USER MANUAL AR4C08TT ARDES

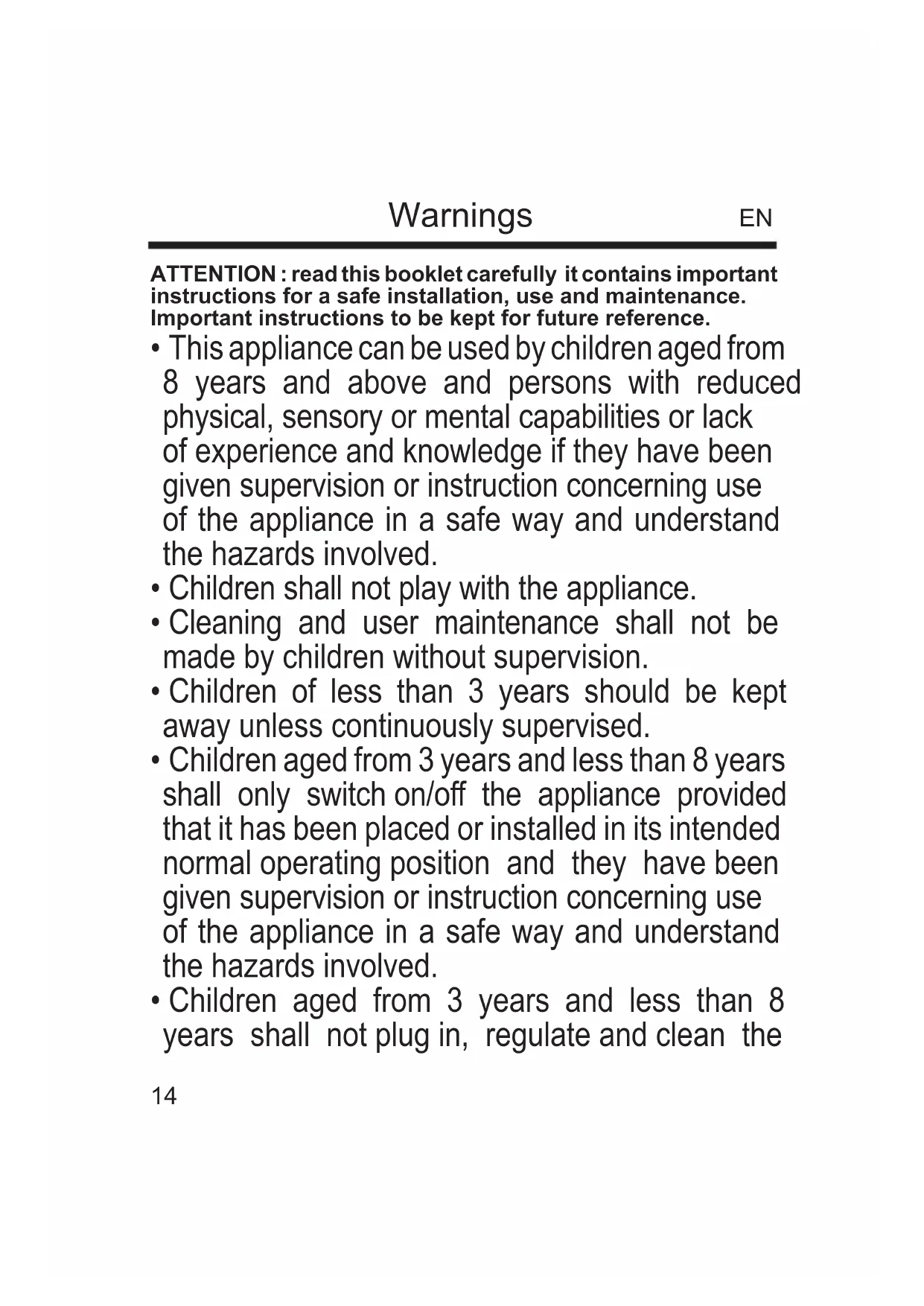

Contatti POLY POOL S.p.A. - via Sottocorna 21/B, 24020 Parre (BG) - Italy14 Warnings ATTENTION : read this booklet carefully it contains important instructions for a safe installation, use and maintenance. Important instructions to be kept for future reference.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Children of less than 3 years should be kept away unless continuously supervised.

• Children aged from 3 years and less than 8 years shall only switch on/o󰀨 the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the EN15 appliance or perform user maintenance.

• CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer in order to prevent any risks.

• WARNING: In order to avoid overheating, do not cover the heater.

• Do not place the appliance immediately below a socketoutlet.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• Do not use this heater if it has been dropped.

• Do not use if there are visible signs of damage to the heater.

• Use this heater on a horizontal and stable surface.

• WARNING: Do not use this heater in small rooms when they are occupied by persons not16 capable of leaving the room on their own, unless constant supervision is provided.

• WARNING: To reduce the risk of re, keep textiles, curtains, or any other ammable material a minimum distance of 1 m from the air outlet.

• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and o󰀨 by the utility.

• Don’t connect the appliance to the power supply and don’t use it unless it is completely assembled (see mounting instructions). Keep handy the guarantee, receipt of payment and these instructions for future use and reference. After removing the packaging, check the appliance for any signs of damage. In case of visible damage, do not use it and contact a qualied technician. Do not leave parts of the packaging with in the reach of children.This appliance is not a children’s toy: it is an electrical device and must be treated with the necessary caution. Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate. If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons. Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits. When you don’t use the appliance disconnect it from the power supply and assure that the interruptor is o󰀨. Do not tug on the power cable or on the appliance itself to remove the plug from the socket.17 The use of any electrical appliance requires that a number of basic rulesare observed, namely: - Never touch the appliance with wet or humid hands. - Do not leave the appliance exposed to weathering (rain, sunlight). - Do not subject it to rough handling. In case of a breakdown or malfunctioning of the appliance, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer. If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket. The power cable should be extended to its full lenght to avoid over heating. For safety reasons, the appliance should never be opened. The appliance has been designed and manufactured to operate in the home. Any other use is considered inappropriate and dangerous. Do not insert objects through the safety grill or the air inlets. During use, rest the appliance on a at surface. Do not use this heating appliance with programmers, timers, separate remote control systems (di󰀨erent to the ones provided with the appliance) or any other device that automatically turns on the appliance, as there is a risk of re in the event the appliance is covered or positioned incorrectly. Do not use the heater in presence of ammable substances (petrol, paints, etc.). Do not place the cord near sources of heat.

WARNING: DO NOT COVER THE APPLIANCE OR OBSTRUCT THE

AIR INLETS TO AVOID OVERHEATING.18

0 O󰀨 I minimum heating II medium heating III maximum heating 0 O󰀨 I minimum heating + ventilation II medium heating + ventilation III maximum heating + ventilation

5 - Timer (for model AR4C08TT only)

OFF SPENTO 1 automatic shutdown after one hour of operation 2 automatic shutdown after two hours of operation 3 automatic shutdown after three hours of operation ON continuous operation until manually switched o󰀨 Technical data indicated on the appliance. GBTechnical informations SUPPORT ASSEMBLY Turn the appliance over, rest the plastic supports in place matching the holes with those on the appliance. Then x the supports with the screws provided. GBInstructions for use19 Before connecting or disconnecting the appliance, make sure that the function switch (3) is in the OFF position. To turn the appliance on, insert the plug in the power outlet, set the function switch (3) in the desired position and turn the adjustable thermostat (2) clockwise to the maximum position. Once the desired room temperature is reached, turn the handle slowly, in a counter clockwise direction, until the appliance is turned o󰀨. At this point, the product will automatically restart when the temperature in the room goes below the set limit. OPERATION WITH TIMER (AR4C08TT model only): turn the timer knob (5) to the desired position. NB: when the timer is in the OFF position, the appliance does not work even by using the function switch. Before replacing the appliance in its package, make sure it has cooled su󰀩ciently. This appliance does not require any special maintenance. Disconnect the plug from the socket and let the appliance cool down well before cleaning it. In order to clean the appliance, use a soft or slight damp cloth. Never use abrasives or chemical solvents. Do not use very wet substances, liquids or cloths to prevent water from entering into the apparatus and irreparably damaging it. NEVER IMMERSE THE APPLIANCE INTO THE WATER. GBMaintenance20 USER INFORMATION “Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)”, pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal. The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life. The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste. For more details, please contact the appropriate local authority. Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally- friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment. Abusive disposal of the product by the user shall result in the application of administrative nes in accordance with the laws in force. USER INFORMATION PACKAGING In order to respect the environment, packaging material must be disposed of properly in accordance with separate collection. Check local regulations. GB21 GUARANTEE Terms and Conditions The guarantee is valid for 24 months. This guarantee applies only if it has been duly lled in and is submitted with the receipt showing the date of purchase. The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults. After the guarantee has expired, the appliance will be repaired against payment. The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions. Limits All rights under this guarantee and any responsibility on our part will be voided if the appliance has been: - mishandled by unauthorized persons - improperly used, stored or transported. The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation. If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer. GB22 Information requirements for electric local space heaters Model identier(s): AR4C08T Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

nom 2,0 kW Manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

min 0,8 kW Manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

max,c 2,0 kW Electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consuption Fan assisted heat output No At nominal heat output

max N/A kW Type of heat output/room temperature control (select one) At minimum heat output

Single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

With mechanic thermostat room temperature control Yes With electronic room temperature control No Electronic room temperature control plus day timer

Electronic room temperature control plus week timer

Other control options (multiple selections possible) Room temperature control, with presence detection

Room temperature control, with open window detection

With distance control option No With adaptive start control No With working time limitation No With black bulb sensor No Contact details POLY POOL S.p.A. - via Sottocorna 21/B, 24020 Parre (BG) - Italy23 Information requirements for electric local space heaters Model identier(s): AR4C08TT Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

nom 2,0 kW Manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

min 0,8 kW Manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

max,c 2,0 kW Electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consuption Fan assisted heat output No At nominal heat output

max N/A kW Type of heat output/room temperature control (select one) At minimum heat output

Single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

With mechanic thermostat room temperature control Yes With electronic room temperature control No Electronic room temperature control plus day timer

Electronic room temperature control plus week timer

Other control options (multiple selections possible) Room temperature control, with presence detection

Room temperature control, with open window detection
