Product Type	Wi-Fi 2K Surveillance Camera
Brand	Lorex
Model	W482CAD-B
Video Resolution	2K
Night Vision	Yes, with mechanical IR filter
Two-Way Audio	Yes (built-in microphone and speaker)
Connectivity	Wi-Fi 2.4 GHz / 5 GHz
Storage	Pre-inserted micro SD card (included)
Power	UL/CSA certified power adapter (provided), 2.8 m USB cable
Dimensions (wall mount)	Height 78 mm, Width 78 mm, Depth 128 mm
Dimensions (ceiling mount)	Height 107 mm, Width 78 mm, Depth 132 mm
Package Contents	Camera, power adapter, 3 m extension cable, wall and ceiling/table mounts, micro SD card, mounting kit (screws, anchors, template, key)
Mobile App	Lorex Home (iOS/Android)
Motion Detection	Yes, with distance, angle and height settings
Recommended Mounting Angle	30° to 60° downward
Recommended Mounting Height	2.5 to 5 m from ground
Optimal Detection Range	1.5 to 15 m
LED Status Indicator	Solid green (connected), flashing green (ready for setup), solid red (reset), flashing red (disconnected)
Maintenance	Clean with a damp cloth; do not use abrasive products; do not immerse
Operating Temperature	Not specified in the manual, use within manufacturer's specified limits
Warranty	Limited hardware warranty (see lorex.com/warranty)
Support	Online help: help.lorex.com

Frequently Asked Questions - W482CAD-B Lorex

How to install the Lorex W482CAD-B camera?

Plug in the power, download the Lorex Home app, create an account, press + and follow the instructions. Make sure you have the latest version of the app and firmware.

How to connect the camera to Wi-Fi?

After plugging in the power, wait for the status indicator to flash green (ready for setup). Open the app, press +, then follow the instructions to connect the camera to your 2.4 GHz or 5 GHz Wi-Fi network.

What to do if the status indicator is flashing green?

This means the camera is ready to be set up. Open the Lorex Home app and proceed with the configuration.

How to optimize motion detection?

Place the camera at a height of 2.5 to 5 m, tilt it 30° to 60° downward, and make sure the objects to be detected are between 1.5 and 15 m. Accuracy may be affected by distance, angle, and night vision.

Can I use this camera outdoors?

The manual recommends installation in a sheltered location. The extension cable is weather-resistant, but the camera should not be immersed. Use it under an awning or porch.

How to reset the camera?

Press the pairing/reset button located under the camera. The status indicator turns solid red to confirm the reset to factory settings.

Does the camera record sound?

Yes, the camera has a built-in microphone and speaker for two-way audio. Note that audio recording without consent may be illegal under local laws.

What is the night vision range?

The manual does not specify the exact range, but the mechanical IR filter enables night vision. Optimal motion detection is 1.5 to 15 m under normal conditions.

How to mount the camera on the wall?

Use the mounting template to drill two holes (6 mm), attach the mounting plate with screws, insert the wall mount bracket aligning it and push down until it clicks, then screw the camera onto the bracket and adjust the angle.

What to do if the app cannot find the camera?

Check that the status indicator is flashing green. Make sure your phone is connected to the same Wi-Fi network. Restart the camera and the app. If the problem persists, visit help.lorex.com.

USER MANUAL W482CAD-B Lorex

Thank you for your purchase!

How to get started with your 2K Wi-Fi Camera

Safety precautions

• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use and handling of the product.
• Operate the camera within the specified temperature, humidity and voltage and use manufacturer approved accessories.
• Do not disassemble the camera.
• Do not point the camera directly at the sun or a source of intense light.
  • Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh, chemical-based cleaners.

Disclaimers

• A regulated UL / CSA approved power supply is required for use with this camera (included).
  Use of a non-regulated, non-conforming power supply can damage this product and voids the warranty.
• Not intended for submersion in water. Installation in a sheltered location recommended.
• Audio recording without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal, and indicates that the camera filter is working.
• Some channels on the 5GHz Wi-Fi band are restricted in Canada. This means certain Wi-Fi networks may not be available to connect to during setup.

Contents

Section 1 Package Contents & Dimensions

2 Overview
3 Status Indicator
4 Camera Setup
5 App Live View
6 Camera Placement
7 Optimize Motion Detection
8 Wall Mounting
9 Ceiling Mounting

1 Package contents

2K Wi-Fi Camera (x1)

Power Adapter (x1)

9.8 ft (3m) Weatherproof Extension Cable (x1)

Wall Mounting Bracket (x1)

Ceiling/Table Mounting Bracket (x1)

Pre-inserted Memory Card (x1)

Mounting Template (x1)

Mounting Plate (x1)

Anchors (x8) Screws (x8)

Wrench (x1)

Cable Clips (x4)
Note: The following contents is based on 1 camera

Dimensions

Camera with Wall Mount

• Height: 3.1" (78mm)
- Width: 3.1" (78mm)
• Length: 5.0" (128mm)

Camera with Ceiling Mount

• Height: 4.2" (107mm)
- Width: 3.1" (78mm)
• Length: 5.2" (132mm)

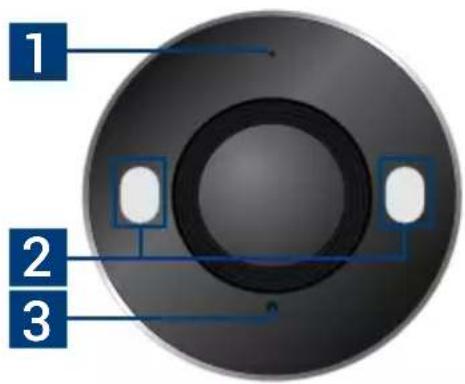

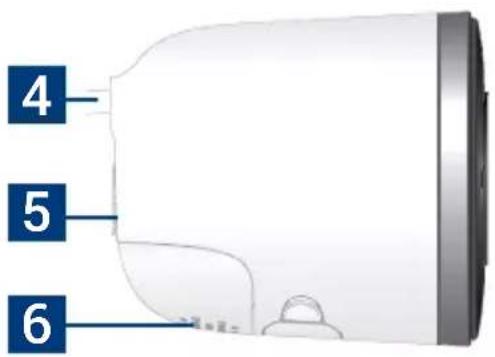

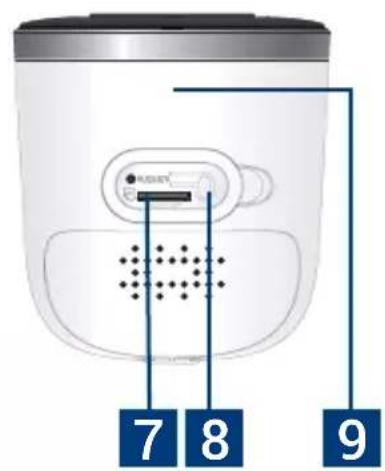

2 Overview

FRONT SIDE BOTTOM

1 2 3

4 5 6

7 8 9

1. Microphone
2. Warning light

3. Status indicator

4. 9.2ft (2.8m) USB power cord

5. Threaded insert (for mounting)

6. Speaker

7. MicroSD slot (card included)

8. Pairing / reset button
9. QR code

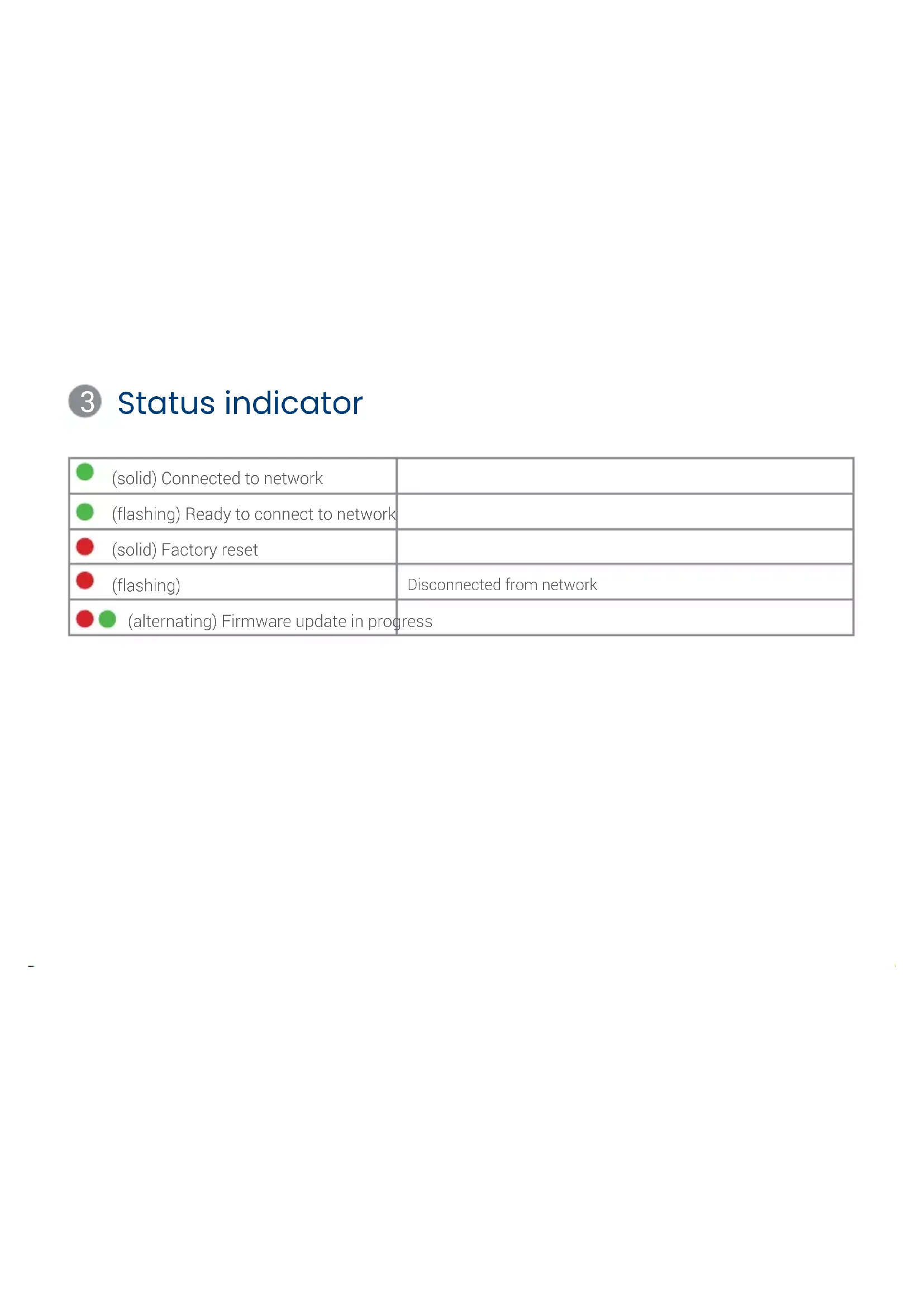

Status indicator

(solid) Connected to network
(flashing) Ready to connect to network
(solid) Factory reset
(flashing)	Disconnected from network
(alternating) Firmware update in progress

4 Camera setup

1. Connect power to the camera with the provided power adapter. When you hear the chime and the status indicator is flashing green, the device is ready for setup.
   Optional: Connect the weatherproof extension cable to the camera's cable.
2. Download the Lorex Home app by scanning the QR code.
3. Open the Lorex Home app, and sign in or create an account.
4. Tap + in the app, then follow the in-app instructions to complete the device setup.

Pure electrical circuit lines without any symbols

Devices + Tap to add your first device

Ensure you update to the latest app and camera firmware version.

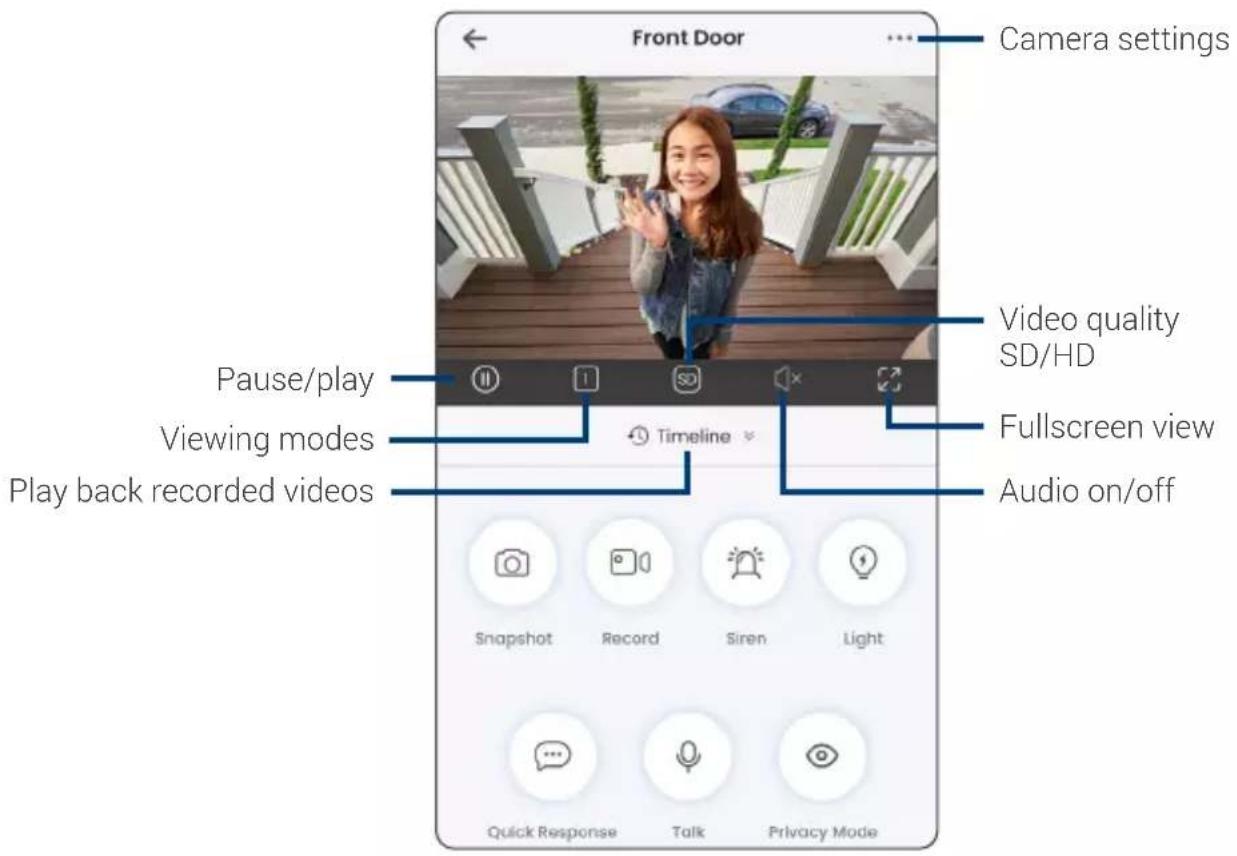

5 App Live View

Front Door Camera settings Video quality SD/HD Fullscreen view Audio on/off Pause/play Viewing modes Play back recorded videos Timeline Snapshot Record Siren Light Quick Response Talk Privacy Mode

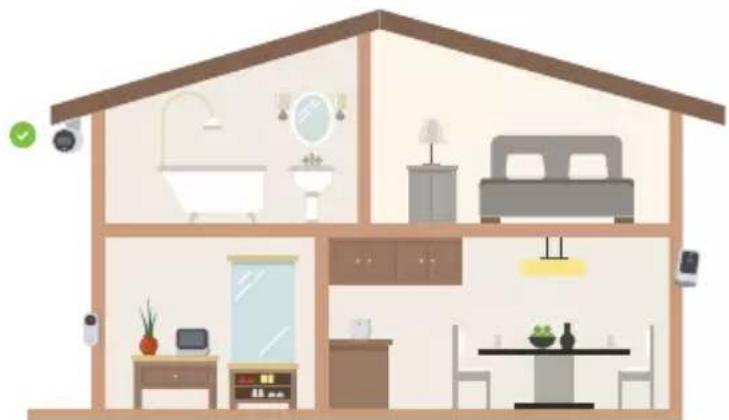

6 Camera Placement

- Place the camera close to your Wi-Fi router as possible.

- Reduce the number of obstructive materials between the camera and the router or access point. Concrete, brick, metal and wood are the most common materials in your house that can cause poor signal strength.

- Other electronic devices such as microwaves, TVs, cordless phones, and baby monitors can cause signal interference. It is recommended to install the camera as far away from these devices as possible.

Illustration of a single-family home with living room, furniture, and wall-mounted appliances (no text or symbols)

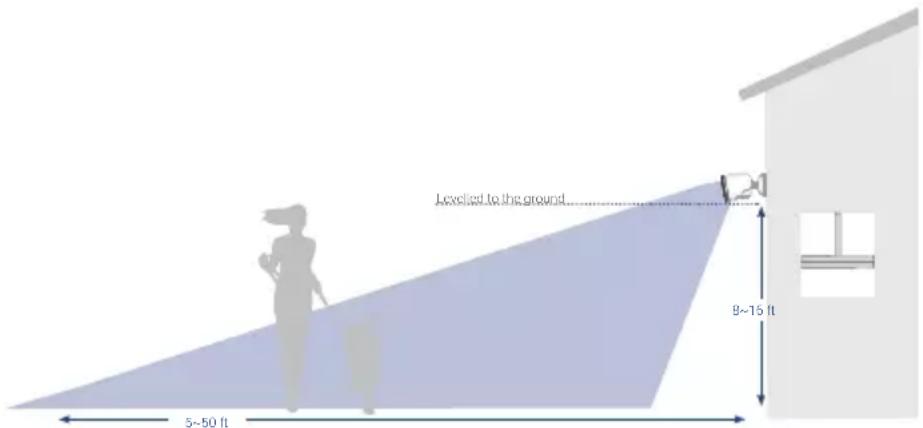

7 Optimize Motion Detection

Distance Optimal accuracy for objects within 5ft to 50ft (1.5\~15m).
Angle Angle the camera around 30^-60^ down from the level position.
Height Install the camera between 8-16ft (2.5\~5m) off of the ground.

Levelled to the ground 9~15 ft 5~50 ft

Note: Accuracy of person detection will be influenced by multiple factors, such as the person's distance from the camera, the height of the person, and the height and angle of the camera. Night vision will also impact the accuracy and distance of detection.

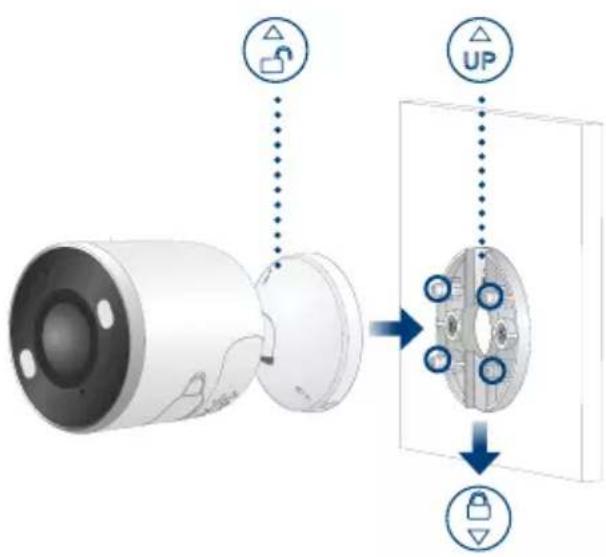

8 Wall Mounting

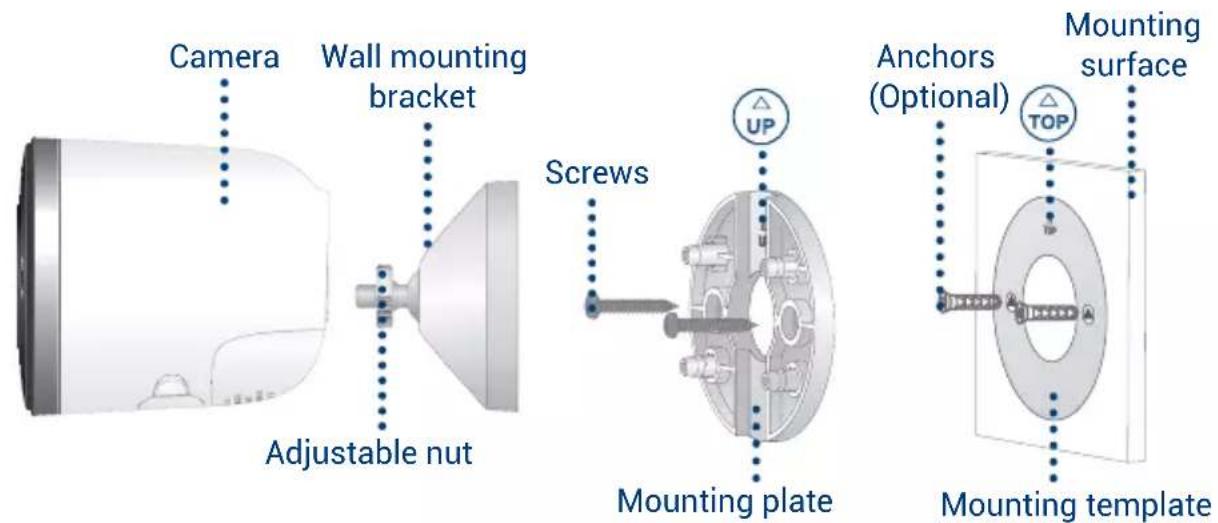

Camera Wall mounting bracket Adjustable nut Screws UP Mounting plate Anchors (Optional) TOP Mounting surface Mounting template

To wall mount the camera:

1. Place the mounting template onto the desired location.

Note: Ensure an outlet is nearby, and keep in mind the cable lengths.

1. Using a 15/64" (6mm) drill bit, drill 2 holes over the triangle symbols on the template.

Optional: Drill 15/64" (6mm) holes for the anchors.

1. Align the arrows of the mounting plate and template. Using a screwdriver and the provided screws, secure the mounting plate to the surface.
2. Align the arrows between the wall mounting bracket and plate. Push the bracket in to install, then slide down to lock in place. You will hear a 'click' when the bracket is installed.
3. Attach the camera to the mounting bracket using the threaded insert at the rear of the camera. Rotate the camera clockwise until attached, then tighten into place with the adjustable nut.
4. Adjust the camera to the desired angle.

Note: If the camera is not holding in place or difficult to adjust, unplug the camera and slide the bracket up to detach from the mounting plate. Tighten or loosen the 3 screws at the back of the mounting bracket to adjust accordingly. Repeat steps 4-6 to re-install.

Diagram illustrating the process of a device's internal components, showing part assembly and directional control buttons.

Circular mechanical component with mounting holes and internal features, no visible text or symbols

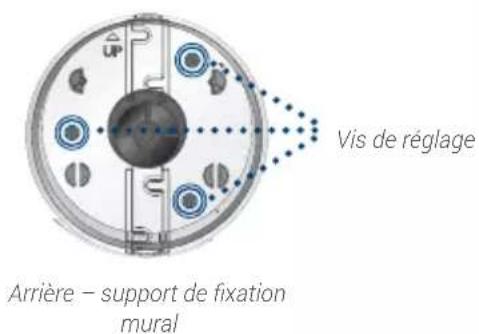

Adjustable screws
Back - Wall mounting bracket

9 Ceiling Mounting

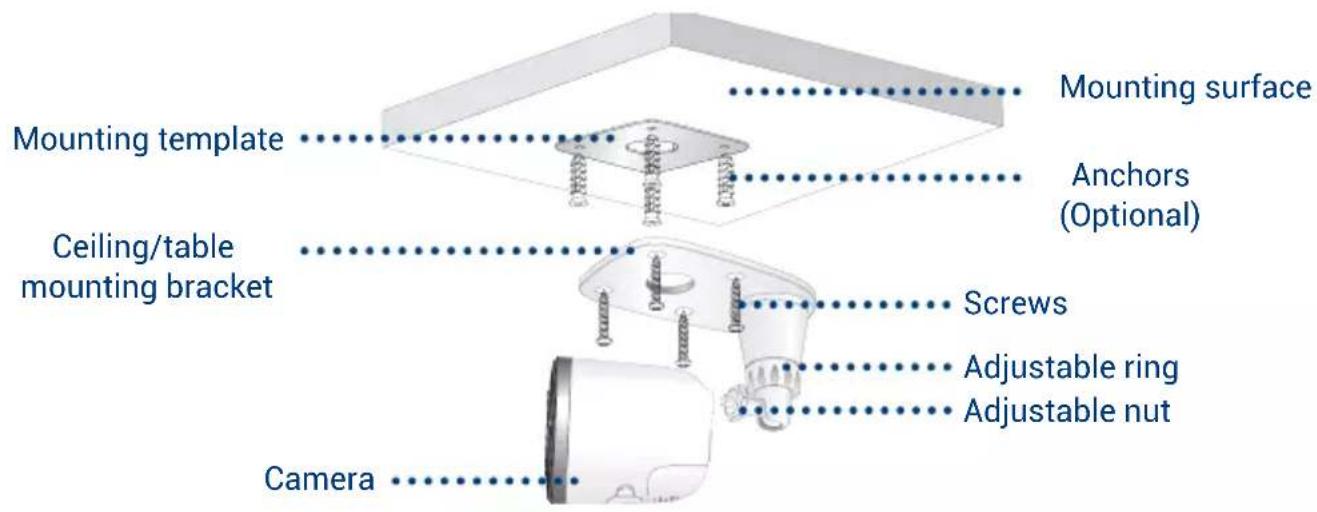

Mounting template Ceiling/table mounting bracket Camera Mounting surface Anchors (Optional) Screws Adjustable ring Adjustable nut

To ceiling mount the camera:

1. Place the mounting template onto the desired location.
   Note: Ensure an outlet is nearby, and keep in mind the cable lengths.

2. Using a 15/64" (6mm) drill bit, drill 4 holes over the X symbols on the template.
   Optional: Drill 15/64" (6mm) holes for the anchors.

3. Remove the 4 pre-inserted plugs from the ceiling/table mounting bracket.

4. Attach the camera to the ceiling/table mounting bracket using the threaded insert at the rear of the camera. Rotate the camera clockwise until attached, then use the wrench to tighten the adjustable nut in place.
5. Place the bracket over the drilled holes. Using a screwdriver and the provided screws, secure the bracket to the surface.
6. Rotate the adjustable ring counter-clockwise to loosen and adjust the camera to the desired position, then tighten to secure.

Optional:

• Feed the camera cable through the hole at the base of the bracket or the mounting surface.
• Open the camera's settings in the app and enable Image Rotation to flip the camera image.

Technical illustration of a mechanical assembly showing two steps: top view and side view, with no visible text or symbols.

Image Rotation

Need help?

Visit help.lorex.com for up-to-date information and resources:

• Download product guides
• Watch how-to-videos
  • Find related troubleshooting tips & FAQs

Register your product

Please see our full Terms of Service and Limited Hardware Warranty Policy visit, lorex.com/warranty.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Copyright © 2021 Lorex Corporation

As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE. All rights reserved.

W482CAD_QSG_TRILINGUAL_R1

LOREX®

Caméra Wi-Fi 2K

Série W482CAD

Pure electrical circuit lines without any symbols

Devices + Tap to add your first device

Illustration of a modern home with living room and furniture (no text or symbols)

Levelled to the ground 8~15 ft 5~50 ft

Diagram illustrating the process of a device's internal components, showing part assembly and directional arrows labeled UP and lock.

Diagram showing two views of a mechanical component with blue circular holes and a blue arrow indicating rotation (no text or symbols on the components themselves)

Besoin d'aide?

Copyright © 2021 Lorex Corporation

Pure electrical circuit lines without any symbols

Devices + Tap to add your first device

Illustration of a modern home with living room and furniture (no text or symbols)

Levelled to the ground 9~16 ft 5~50 ft

Diagram illustrating the process of a device's internal components, showing part assembly and directional arrows labeled UP and lock.

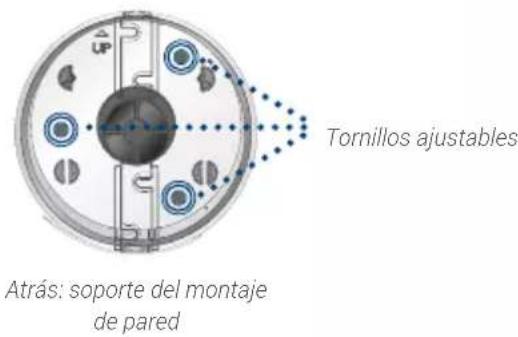

Tornillos ajustables Atrás: soporte del montaje de pared

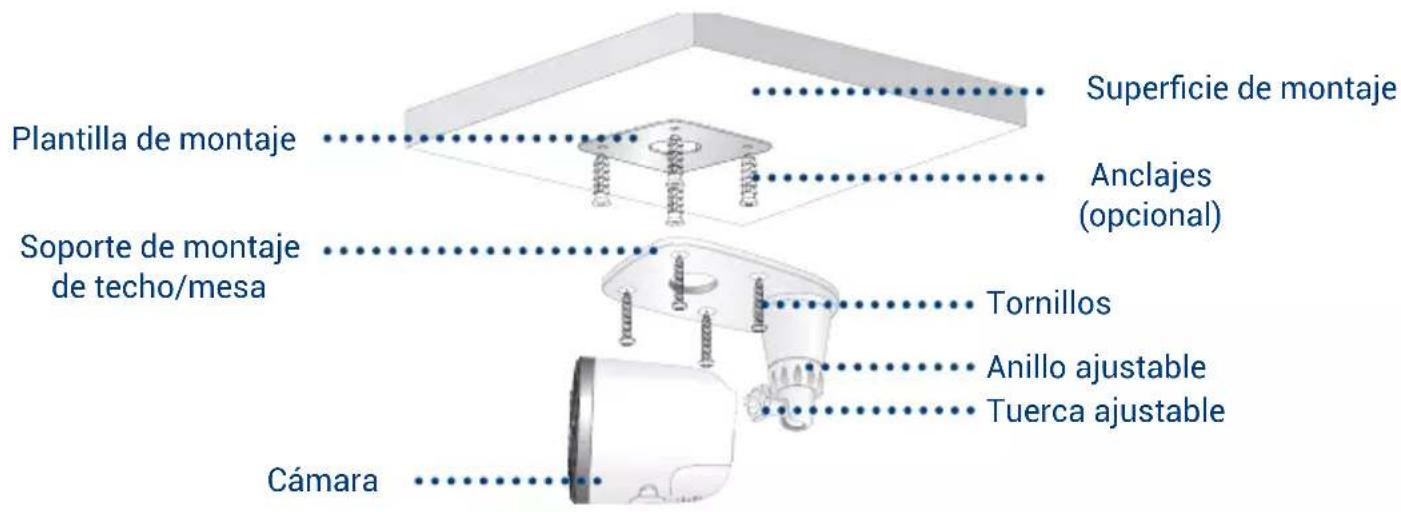

9 Montaje en techo
