W461ASD-B - Surveillance Camera Lorex - Free user manual and instructions

Product type	Indoor Wi-Fi surveillance camera
Brand	Lorex
Model	W461ASD-B
Height	109 mm (4.3 in)
Width	68 mm (2.7 in)
Power supply	UL/CSA listed regulated USB power supply (included)
Connectivity	Wi-Fi (2.4 GHz)
Night vision	Automatic mechanical IR filter (normal click when activated)
Audio	Built-in microphone and speaker for two-way communication
Recording	On microSD card (not included) via dedicated slot
Viewing angle	Not specified in the manual (estimated: ~110°)
Video resolution	HD (SD/HD quality adjustable in the app)
LED indicator	Solid green (normal operation), blinking green (ready to connect), solid red (malfunction), blinking red (network failure or SD card error), blinking red/green (updating)
Mounting	Magnetic mounting plate with double-sided adhesive tape or screws (included)
Usage	Indoor only
Mobile app	Lorex Home (iOS and Android)
Main functions	Live viewing, two-way communication, image capture, video recording, privacy mode, image rotation, user sharing
Maintenance	Periodic cleaning with a damp cloth only; no abrasive chemicals
Safety	Do not disassemble; do not expose to sunlight or intense light source
Certifications	Compliant with FCC Part 15; limited warranty at lorex.com/warranty
Box contents	Camera, USB power supply, USB cable, magnetic mounting plate, mounting template, double-sided adhesive tape, anchors and screws (x3)

Frequently Asked Questions - W461ASD-B Lorex

How to reset the Lorex W461ASD-B camera?

Press and hold the reset button on the back of the camera until the LED indicator blinks green. See the 'Status Indicator' section of the manual for details.

Can I use this camera outdoors?

No, this camera is designed for indoor use only. Do not install it outdoors.

What does a solid red light on the camera mean?

A solid red light indicates a malfunction. Press and hold the reset button to try to resolve the issue. If the problem persists, contact support.

How do I connect the camera to the Lorex Home app?

Download the Lorex Home app, create an account, plug in the camera, wait for the light to blink green, then press '+' in the app and scan the QR code on the camera. Follow the on-screen instructions.

What microSD card size is supported?

The manual does not specify the maximum capacity. It is recommended to use a Class 10 or higher microSD card, up to 128GB or 256GB (check compatibility with the manufacturer).

Can I record audio without consent?

Audio recording without consent is illegal in some jurisdictions. Lorex disclaims any responsibility for use not in compliance with local laws. Ensure you comply with applicable legislation.

How do I mount the camera to the wall?

Use the mounting template to drill 6 mm holes, insert anchors if needed, attach the magnetic plate with the provided screws, then place the camera on the plate. You can also use the double-sided adhesive tape for a no-drill mounting.

What if the camera fails to connect to Wi-Fi?

Make sure the camera is near the router and no thick obstacles (concrete, metal) block the signal. Keep it away from other electronic devices like microwaves. If the light blinks red, press and hold the reset button and try again.

How do I clean the camera?

Use a damp cloth (no abrasive chemicals) to periodically clean the camera. Do not use harsh cleaners and do not immerse the device in water.

Where can I find warranty and support?

See the limited warranty policy at lorex.com/warranty. For assistance, visit help.lorex.com.

USER MANUAL W461ASD-B Lorex

• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use and handling of the product.
• Use camera within given temperature, humidity & voltage levels noted in the camera's specifications.
• Do not disassemble the camera.
• Do not point the camera directly at the sun or a source of intense light.
• Periodic cleaning required. Use a damp cloth only. Do not use any harsh, chemical-based cleaners.

Disclaimers

• The camera is rated for indoor use only. Do not mount the camera outdoors.
• Do not place the magnetic mounting plate on or near other electrical devices.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal, and indicates that the camera filter is working.
• Audio recording without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.

Contents

What's included....1

Camera overview and dimensions....2

Status indicator....3

Step One: Connect to the app....4

Camera placement....5

Step Two: Mounting the camera (optional)......6

Lorex Home app overview....7

What's included

Camera USB

power adapter

USB power cable

Magnetic mounting plate

Mounting template

Double-sided mounting tape

Anchors & screws (x3)

ATTENTION: A REGULATED UL / CSA APPROVED power supply is REQUIRED for use with this (included). Use of a non-regulated, non-conforming power supply can damage this product and the warranty.

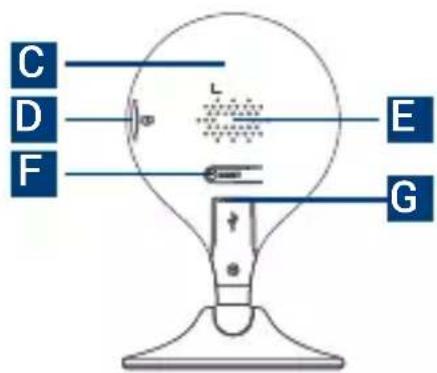

Camera overview

A B

C D F L E G

A. Status indicator
B. Microphone
C. Device QR code
D. microSD slot
E. Speaker
F. Reset button
G. Power port

Dimensions

Height: 4.3" (109mm)

Width: 2.7" (68mm)

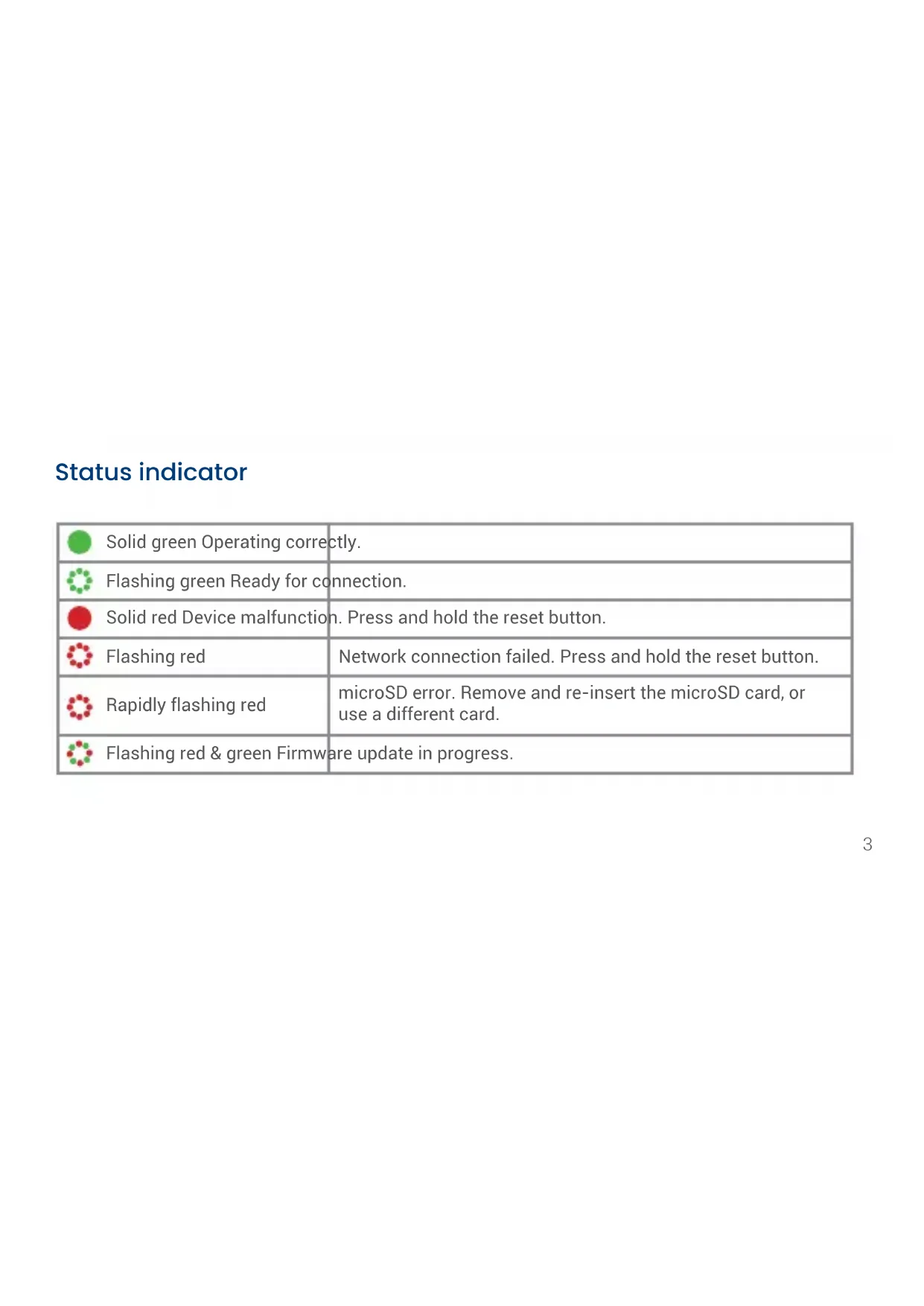

Status indicator

	Solid green Operating correctly.
	Flashing green Ready for connection.
	Solid red Device malfunction. Press and hold the reset button.
	Flashing red	Network connection failed. Press and hold the reset button.
	Rapidly flashing red	microSD error. Remove and re-insert the microSD card, or use a different card.
	Flashing red & green Firmware update in progress.

Step One: Connect to the app

1. Scan the QR code on this page to download the free Lorex Home app from the App Store or Google Play Store.

2. Open the Lorex Home app.

3. Sign in or sign up and create an account.

4. Connect the USB power cable to the camera and plug the USB power adapter into an outlet.

5. Once the status indicator on the camera is flashing green and the startup chime sounds, tap the + icon to add your camera.

6. Scan the device QR code. If your mobile device cannot scan the QR code, tap Manually enter Device ID.

7. Follow the in-app instructions to complete the setup.

Two QR codes: one with a house icon and the other a QR code, both in blue and white gradient blocks.

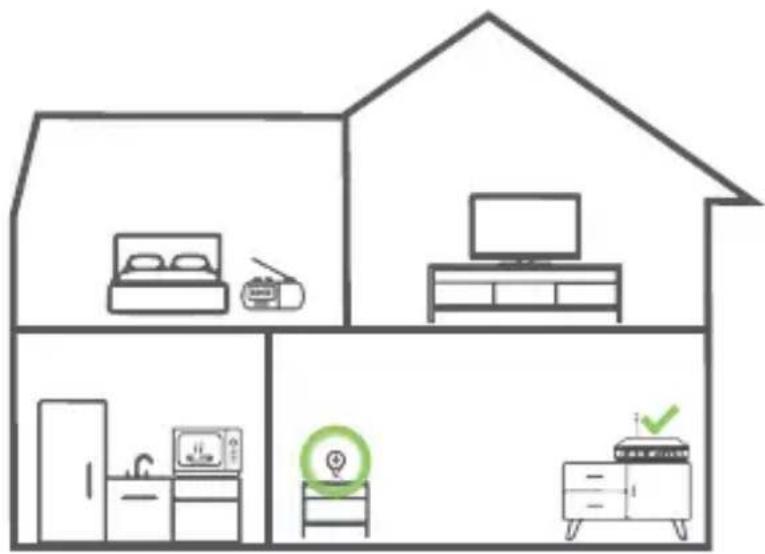

Camera placement

• Place the camera as close to your Wi-Fi router or access point as possible.
• Reduce the number of obstructive materials between the camera and the router or access point. Concrete, brick, metal and wood are the most common materials in your house that can cause poor signal strength.
• Other electronic devices such as microwaves, TVs, cordless phones, and baby monitors can cause signal interference. It is recommended to install the camera as far away from these devices as possible.

Diagram showing a house with home appliances and kitchen areas, including a TV, refrigerator, washing machine, and air conditioner.

Step Two: Mounting the camera (optional)

1. Use the mounting template to mark two holes for the screws.
2. Drill holes using a 1/4" (6mm) drill bit. If mounting to masonry or drywall, gently tap the anchors into the holes.
3. Align the magnetic mounting plate with the drilled holes.
4. Using a Philips screwdriver and two screws secure the magnetic mounting plate in position.
5. Place the camera base onto the magnetic mounting plate.
6. Angle and rotate the camera's position as needed.
7. Open the camera's settings in the app and enable Image Rotation to flip the camera image.

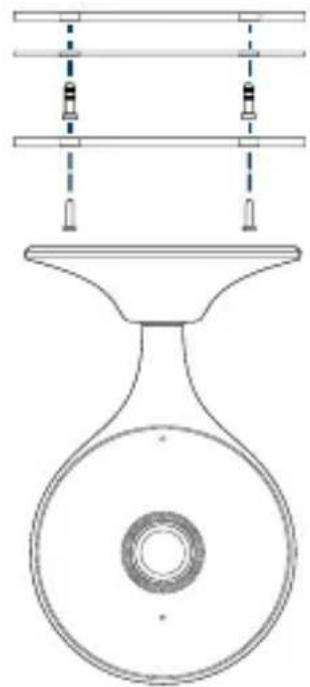

Image Rotation

Technical line drawing of a mechanical component with a circular base and two vertical supports (no text or symbols)

Lorex Home app overview

For a complete overview of controls available in the Lorex Home app, go to lorex.com.

Back

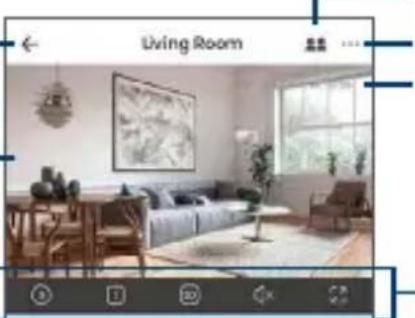

Camera live view

Interior view of a living room with sofa, coffee table, and wall art (no visible text or symbols)

Shared users

Settings Date & time

Two-way talk

Take a snapshot

Seriogranikat;

自然

Richard Vissap

Play back recorded videos

Manually record video

Go on Privacy Mode

to disable the camera's live feed

Trivency folózki

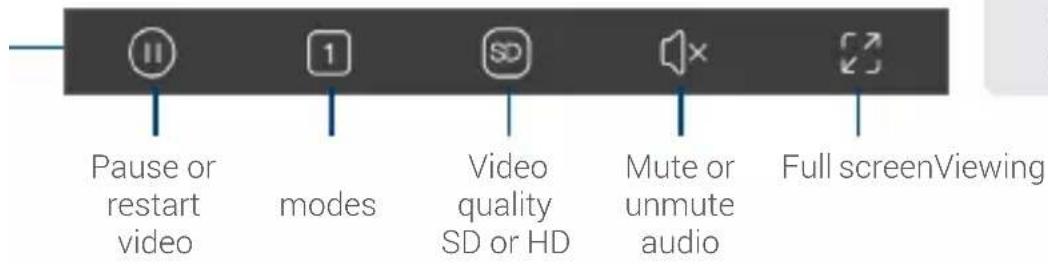

Pause or restart video modes Video quality SD or HD Mute or unmute audio Full screenViewing

Tip!

Change the video quality to SD (Standard Definition) to conserve bandwidth while watching live video. This will not impact the quality of recorded video.

Copyright © 2021 Lorex Corporation

As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE. All rights reserved.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

For up-to-date information and support, please visit: help.lorex.com

Please see our full Terms of Service and Limited Hardware Warranty Policy at lorex.com/warranty

W461ASC_QSG_TRILINGUAL_R1

LOREX®
