ABOUT THIS MANUAL

This manual is designed to provide you with in depth instruction for the use of mCAM products. We recognize that most functions and features of mCAM hardware and the mCAM software are intuitive by design. However, for functions and features that are not perfectly clear we have developed a couple of icons to convey important information or instruction to you. The icons you will see throughout this manual are as follows:

INFO – Provides additional information about a feature or function to help you understand our products better.

WARNING – Provides information on features and functions that may depend on other factors or yield unexpected results.

1001100110001101010100100100110110011001100110001101010100100100110210011001100110011001

LOREX

TABLE OF CONTENTS

1 Software Installation 2 - 4
2 Setting up the Hardware 5
3 Using the mCAM Application

Main Menu 6-7

Set Start Page

Local Surveillance 8

Play/Stop Video

Mute/Unmute Volume

Record Video

Take Snapshots

Select Device 9

Select Video Device

Select Audio Device

Archive 10 - 11

Search Archive

View Recordings and Snapshots

Motion Detection 12 - 13

Set Days and Time

Set Actions

Set Sensitivity

Scheduled Events 14 - 15

Set Days and Time

Set Actions

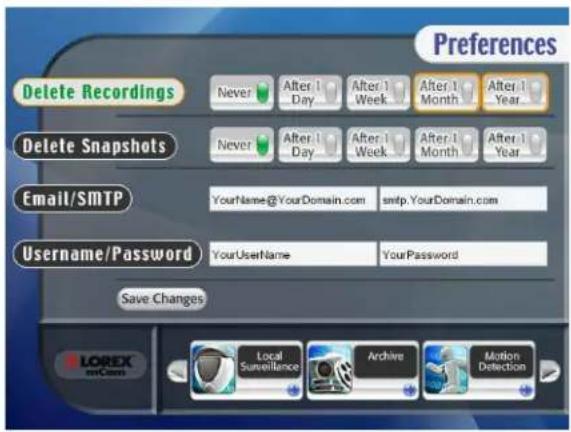

Preferences 16

Delete Recordings

Delete Snapshots

Email

Set Start Page

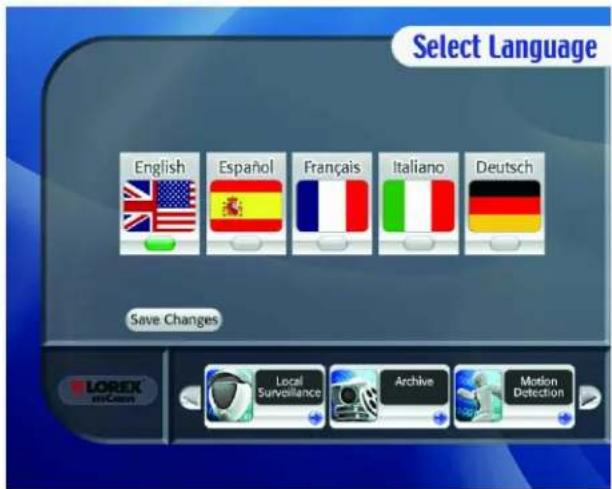

Select Language 17

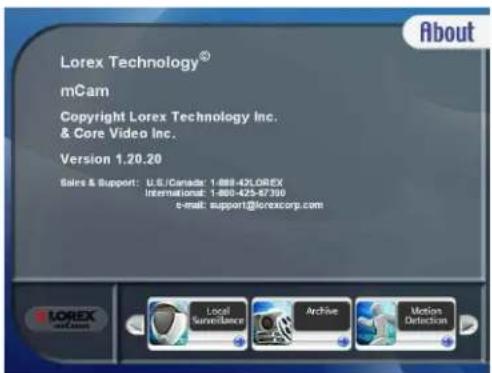

About 18

4 Remote Surveillance 19

1001100110001101010100100100110110011001100110011001100110011001100110011001100110011001100110011001

SOFTWARE INSTALLATION

This section will show you how to install the mCAM Application onto your computer.

1

Insert the mCAM application software CD into your computer's CD-Rom drive.

The CD will automatically start the installation program. Follow the on-screen prompts.

Minimum System Requirements:

• Windows XP
• Pentium IV
  • 256MB RAM (512MB recommended)
• 200MB storage
• Windows Media Center™ is required if you wish to run the enclosed Media Center software
• Internet connection (DSL or cable modem)
• Windows Media Player 9 or above for remote connectivity
  * Check www.lorexcctv.com for the most recent software version.

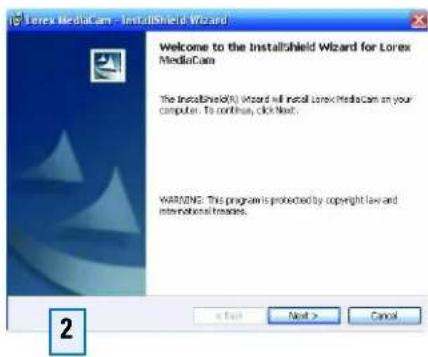

Lorex MediaCam - InstallShield Wizard Welcome to the InstallShield Wizard for Lorex MediaCam The InstallShield(R) Wizard will install Lorex MediaCam on your computer. To continue, click Next: WARNING: This program is protected by copyright law and interprofessional treaties. Next > Cancel

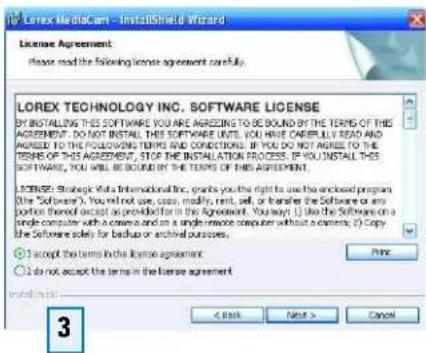

LOREX MediaCom - InstallShield Wizard License Agreement Please read the following license agreement carefully LOREX TECHNOLOGY INC. SOFTWARE LICENSE BY INSTALLING THIS SOFTWARE YOU ARE AGGIED TO BE BOUND BY THE TERMS OF THIS AGREEMENT. DO NOT INSTALL THIS SOFTWARE UNTIL YOU HAVE CAFERFULL READ AND AGREED TO THE FOLLOWING TERMS AND CONDITIONS. IF YOU DO NOT AGGIED TO THE TERMS OF THIS AGREEMENT, STOP THE INSTALLATION PROCESS. IF YOU INSTALL THIS SOFTWARE, YOU WILL BE BOUND BY THE TERMS OF THIS AGREEMENT. LICENSE: Strategic Data International Inc. grants you the right to use the enclosed program (the "Software"). You will not use, copy, modify, print, sell, or transfer the Software or any portion thereof except as provided for in the Agreement. You want: (1) like the Software on a single computer with a core and on a single remote computer without a core; (2) Copy the Software solely for backup or archival purposes. Accept the terms in the license agreement. I do not accept the terms in the license agreement 3 < Back Next > Cancel

If the CD does not start the installation automatically:

Open My Computer

Double-Click on your CD-Rom Icon

Double-Click on Setup.exe

11001100110001101010100100100110110011001100110001101010100100100110110011001100110011000110 LOREX®

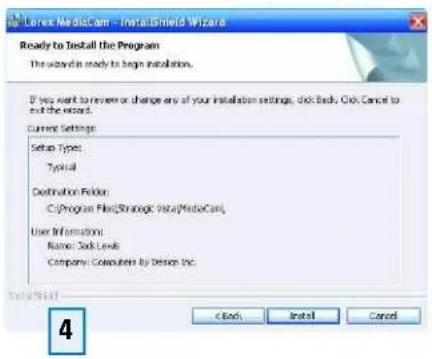

Corex MediaCam - InstallShield Wizard Ready to Install the Program The wizard is ready to begin installation. If you want to review or change any of your installation settings, click Back. Click Cancel to exit the words. Current Settings Setup Types: Typical Destination Folder: C:\Program Files\Strategic Insta\MediaCam\ User Information: Name: Sink Levels Company: Computers by Design Inc. Text Wizard 4 < Back Install Cancel

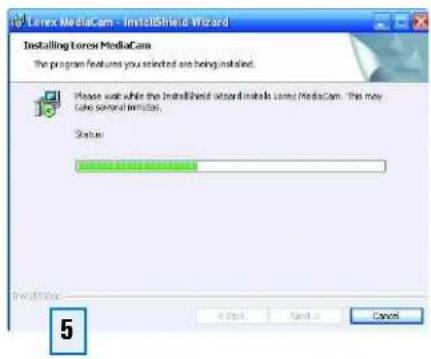

Lorex MediaCam - InstallShield Wizard Installing Lorex MediaCam The program features you selected are being installed. Please work while the InstallShield installed contains Lorex MediaCam. This may take several minutes. Status: InstallShield is completed.

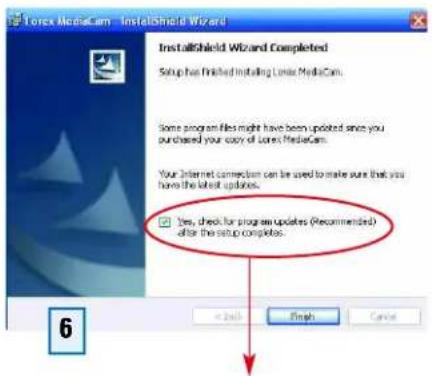

To Forex MediaCam - InstallShield Wizard InstallShield Wizard Completed Setup has finished installing Forex MediaCam. Some program files might have been updated since you purchased your copy of Forex MediaCam. Your Internet connection can be used to make sure that you have the wireless updates. Yes, check for program updates (Recommended) offer the setup completes.

The automatic update must have an active internet connection to function.

Make sure to check for the most recent program updates.

110011001100011010101001001001101100110011001100011010101001001001101100110011001100011010101001001001101 2 SETTING UP THE HARDWARE

Installation Procedure – This section will show you how to connect your mCAM camera to your computer.

All Lorex® mCAM Cameras feature a simple USB interface to your computer.

Hand holding a small electronic device connected to a circular device with a probe inserted (no visible text or symbols)

Close-up of a hand inserting a black USB into an electronic control panel with multiple colored pins (no visible text or symbols)

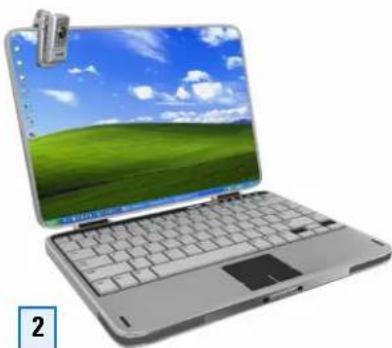

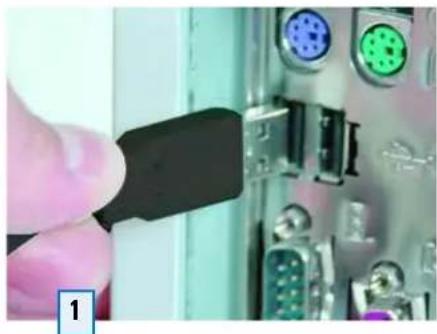

Plug the USB connector into your computers USB port

Laptop with a blank desktop wallpaper and a green screen showing a landscape (no visible text or symbols)

Mount your camera

Universal mounting bracket/stand and clip allows you to place mCAM anywhere.

Clip Mount

Wall Mount

Stand Mount

LOREX®

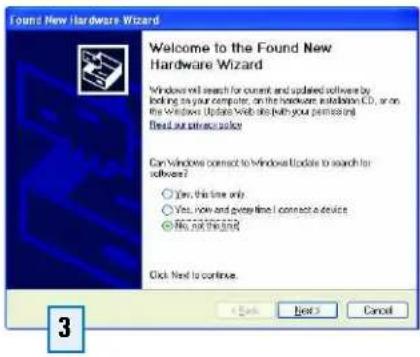

The camera will be detected by your computer. Follow the wizard steps below.

Found New Hardware Wizard Welcome to the Found New Hardware Wizard Windows will search for current and updated software by looking to your computer on the hardware installation C.D. or on the Windows Update Web also with your permission Find our access tool Can Windows connect to Windows Update to search for software? ○ Yes, this time only ○ Yes, now and every time I connect a device ○ No, not the next Click Next to continue. 3

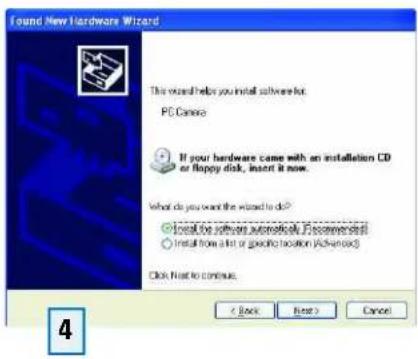

Found New Hardware Wizard This wizard helps you install software for PC Camera If your hardware came with an installation CD or floppy disk, insert it now. What do you want the wizard to do? Install the software automatically. I recommend Install from a list or specific location (Advanced) Click Next to continue. < Back Next > Cancel 4

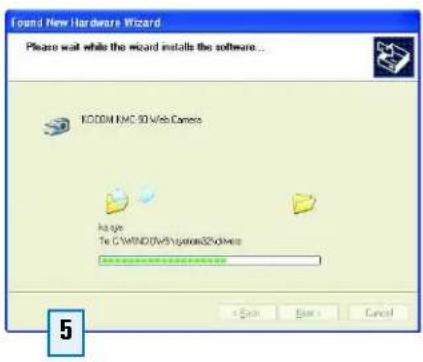

Found New Hardware Wizard Please wait while the wizard installs the software... KODIM INIC 90 Web Camera Image To C:\WINDOWS\Windows\Software\2003.exe 5< Back Next Cancel

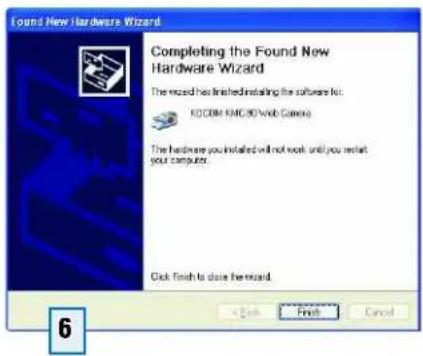

Found New Hardware Wizard Completing the Found New Hardware Wizard The record has finished installing the software for: KODOM KMC30 Web Camera The hardware you installed will not work until you restart your computer. Click Finish to close the record. < Back Finish Cancel 6

System Settings Change Windows has installed installing new devices. The software that supports your device requires that you restart your computer. This must restart your computer before the new settings will take effect. Do you want to restart your computer now? Yes No 7

Restart your computer before opening the mCam application.

1100110011000110101010010010011011001100110011000110101010010010011011001100110011000110210 3 USING THE mCAM APPLICATION

This section will familiarize you the mCAM Software application.

mCAM can run as a Media Center™ application (on computers with Windows Media Center™) or as a web browser application on other Windows operating systems.

For Systems with Microsoft MediaCenter™ navigate to "More Programs"

More Programs Current programs current email

B Select the mCAM icon to open the mCAM Application.

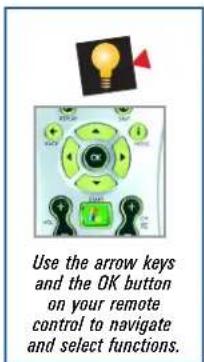

Use the arrow keys and the OK button on your remote control to navigate and select functions.

2A For Systems using other Windows operating systems* (see minimum system requirements)

Start ACs

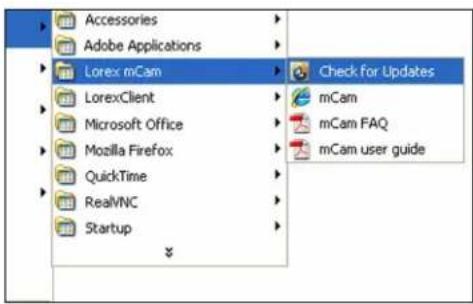

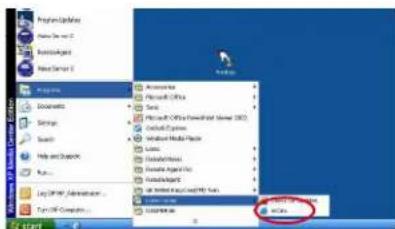

Select Start --> All Programs --> Lorex mCAM --> mCAM to access the Main Menu. This will launch mCAM in your web browser.

B Allow Active Content from the Security Bar (one time only)

This will allow the ActiveX control to run for this session, but you will need to do this every time you run the application:

1. Click on the Security bar, and select 'Allow Blocked Content' from the dropdown menu.
2. Click on the 'Yes' button on the security warning.

My Web Search Google Go To help protect your security, Internet Explorer has restr

Allow Blocked Content... What's the Risk? Information Bar Help Security Warning Allowing active content such as script and ActiveX controls can be useful, but active content might also have your computer. Are you sure you want to let the file run active content? Yes No

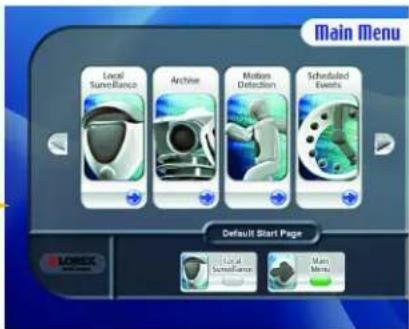

You can set the Default Start Page to Local Surveillance or to Main Menu screen.

Select Main Menu as the default setting to take you to the Main Menu every time you open the application.

Main Menu Local Surveillance Archive Motion Detection Scheduled Events Default Start Page LOREX Local Surveillance Main Menu

Select Local Surveillance as the default setting to bypass the Main Menu and go to the Local Surveillance page when you open the application.

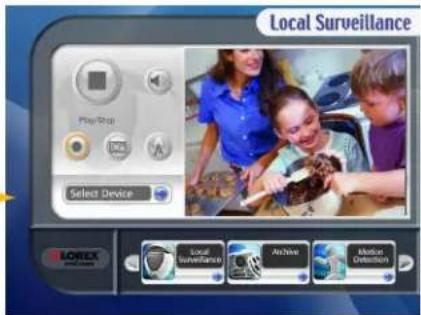

Local Surveillance Play/Stop Select Device LOREX Local Surveillance Archive Masked Detection

Select the arrow keys from within the Quick Jump Tool bar of the application to access more menu items without going back to the Main Menu

Default Start Page

1001100110001101010100100100110110011001100110011010101001901901901101100110011001100110011001100110011001100110011001

3 USING THE mCAM APPLICATION

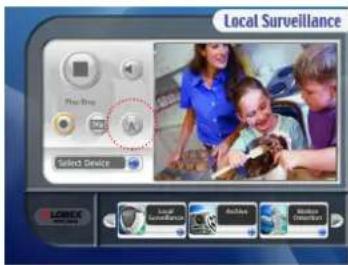

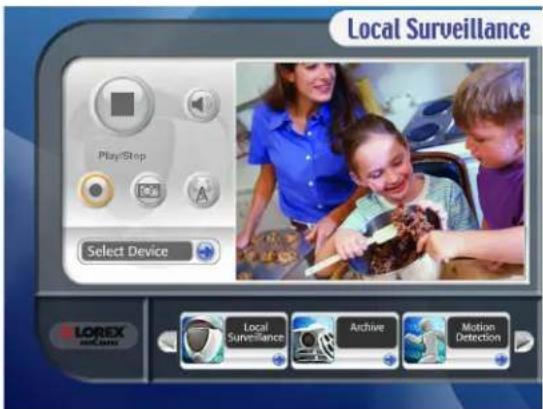

This page is where you can view live video from your mCAM.

Press to Play live video. Press to Stop live video.

Press to Mute the volume. Press to Unmute the volume.

Press to record live video. Press to stop recording.

Press to take a picture of the live video at any given instant.

Press to broadcast live video Press to Stop broadcasting live video.

* Refer to Remote Surveillance section (page 19) in this manual.

Local Surveillance Play/Stop Select Device LOREX Local Surveillance Archive Motion Detection

Video must be playing in the Local Surveillance window for Motion Detection and Scheduled Events to function.

You must use the arrows and the OK button on your remote to select Play, Stop, Mute and Record.

If the video screen is flashing with a red frame, the software is detecting motion. See page 12.

LOREX®

This page allows you to select the video and audio device you want to monitor.

Select Video Device

Select the camera you wish to monitor.

Select Audio Device

Select the audio device you wish to monitor.

Save Changes

Save your changes before leaving this page.

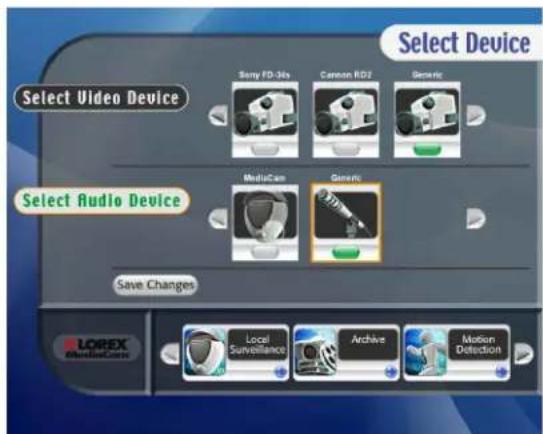

Select Device Select Video Device Select Audio Device Save Changes LOREX Local Surveillance Archive Motion Detection

Only video and audio devices plugged in will be displayed.

Local Surveillance will use the video and audio devices selected here.

11001100110001101010100100100110110011001100110001101010100100100110110011001100110001101 3 USING THE mCAM APPLICATION

This page allows you to retrieve previously saved recordings and snapshots.

1 Specify and Search

Set search criteria, by specifying year, month and day.

Select Recordings or Snapshots.

Search Archive

Press the Search Archive button.

2 Select Item

Select the item you wish to view.

Prev 7

Next 7

Press the arrows to view more archived items.

View

Delete

Select to view or delete items in the archive.

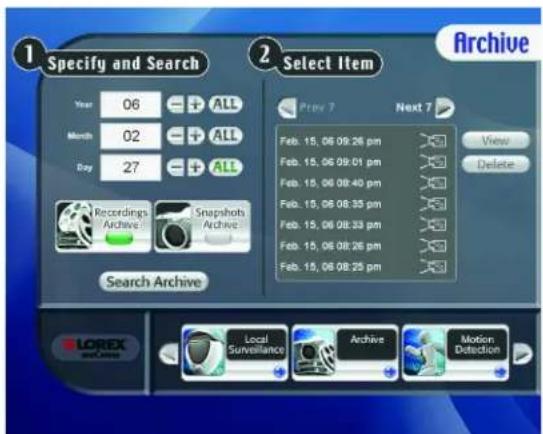

1 Specify and Search Year 06 ALL Month 02 ALL Day 27 ALL Recordings Archive Snapshots Archive Search Archive 2 Select Item Prev 7 Next 7 Feb. 15, 06 09:28 pm Feb. 15, 06 09:01 pm Feb. 15, 06 08:40 pm Feb. 15, 06 08:35 pm Feb. 15, 06 08:33 pm Feb. 15, 06 08:26 pm Feb. 15, 06 08:25 pm Local Surveillance Archive Motion Detection

Selecting ALL for the Year will search the archive for items created in that year. Selecting ALL for Month will search the archive for items created in that month for the year specified. Selecting ALL for the Day will search the archive for items created on that day in the month and year specified.

11001100110001101010100100100110110011001100110001101010100100100110110011001100110011000110 LOREX®

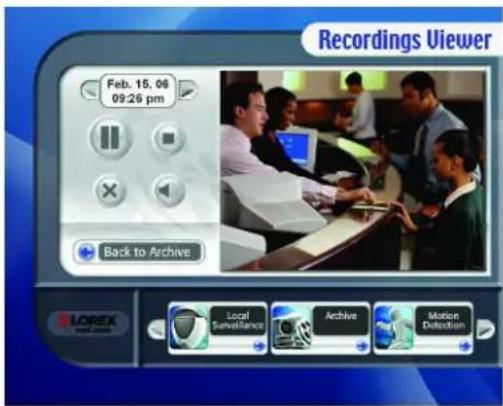

Recordings Archive

Play/pause the current recording.

Stop playback of the current recording.

Delete current recording from archive.

Mute/unmute the volume.

Press to view additional recordings.

Recordings Viewer Feb. 15, 06 09:26 pm Back to Archive LOREX Local Surveillance Archive Motion Detection

Recordings will play automatically when the Recordings Viewer starts.

Deleting the recording or snapshot will permanently remove it from the archive.

Snapshots Archive

Delete current recording from the archive.

Press to view additional snapshots.

Snapshots Viewer Feb. 15, 06 09:26 pm Back to Archive LOREX Local Surveillance Archive Motion Detection

Archive

1001100110001101010100100100110110011001100110021010101001901001101100170017001700170017001700170017001700170017001700170017001700

3 USING THE mCAM APPLICATION

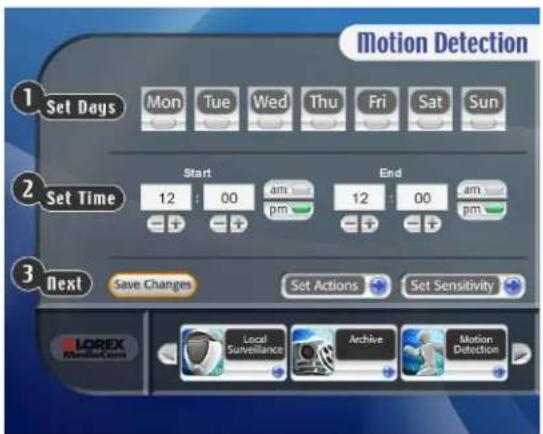

This page will help you setup your camera to record video and take snapshots automatically based on movement within your camera's field of view.

1 Set Days

Select which days of the week mCAM will monitor for motion.

2 Set Time

Select the time range mCAM will monitor for motion on the days selected above.

3 Next

Save Changes

Save your changes before leaving this page.

Motion Detection 1 Set Days Mon Tue Wed Thu Fri Sat Sun 2 Set Time Start am End am 12 00 pm 12 00 pm 3 Next Save Changes Set Actions Set Sensitivity LOREX Local Surveillance Archive Motion Mobile.com

Motion detection is turned on only if at least one day is selected.

11001100110001101010100100100110110011001100110001101010100100100110110011001100110011000110 LOREX®

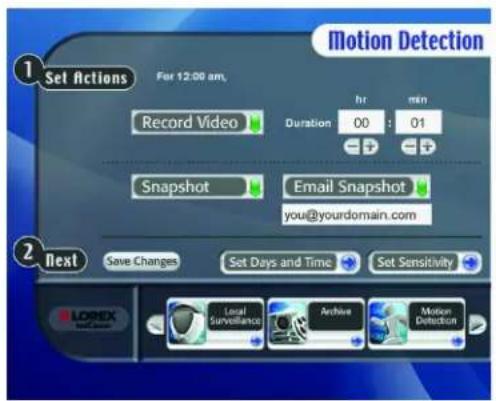

1 Set Actions

Select one or more actions for mCAM to take when motion is detected: Record, Take Snap Shot or Send Email with Snap Shot.

Save Changes

Save your changes before leaving this page.

1 Set Actions For 12:00 am, Record Video Duration hr min 00 : 01 Snapshot Email Snapshot [e-mail] 2 Next Save Changes Set Days and Time Set Sensitivity LOREX Local Surveillance Archive Motion Detection

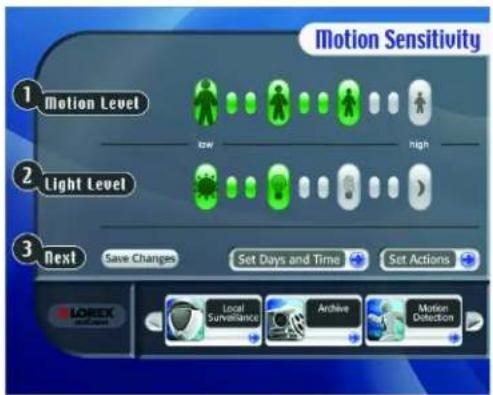

1 Motion Level

Select the level of motion required for mCAM to trigger an action.

2 Light Level

Select the level of light in your environment.

Save Changes

Save your changes before leaving this page.

Motion Sensitivity 1 Motion Level low high 2 Light Level Next Save Changes Set Days and Time Set Actions LOREX Local Surveillance Archive Motion Detection

In order to use the e-mail snapshot feature, you must set your outgoing mail settings on the Preferences page.

A higher Motion Level means greater sensitivity to small movement. A higher Light Level makes the camera less sensitive to motion in darker areas.

Try different Motion and Light Level settings until the desired results have been achieved.

1001100110001101010100100100110110011001100110021101101010010018911031001700170017001700170017001700170017001700170017001700170017001700

3 USING THE mCAM APPLICATION

This page will help you set up the mCAM application to record video or take snapshots based on certain days at specific times.

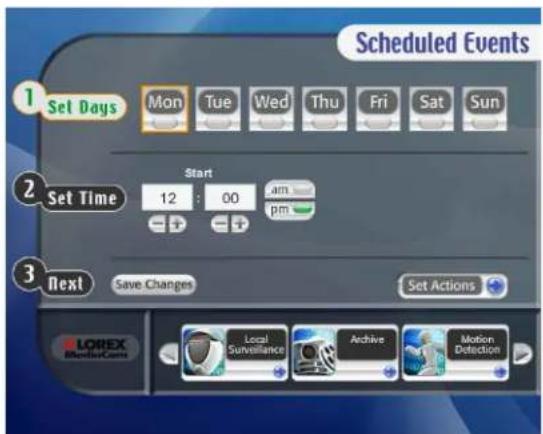

1 Set Days

Select which days of the week mCAM will schedule an event.

2 Set Time

Set the time of the selected days you would like the event to start.

3 Next Save Changes

Save your changes before leaving this page.

Scheduled Events 1 Set Days Mon Tue Wed Thu Fri Sat Sun 2 Set Time Start 12 : 00 p.m 3 Next Save Changes Set Actions LOREX BlimotionCom Local Surveillance Archive Motion Detection

Scheduled Events are turned on only if at least one day is selected.

Video will record at the time specified.

LOREX®

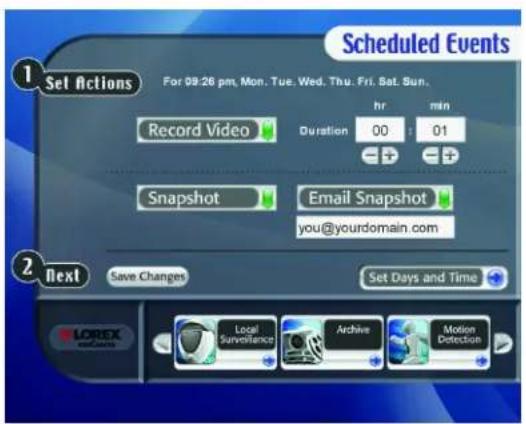

1 Set Actions

Select one or more actions for mCAM to take when motion is detected: Record, Take Snap Shot or Send Email with Snap Shot.

2 Next Save Changes

Save your changes before leaving this page.

Scheduled Events For 09:26 pm, Mon. Tue, Wed. Thu, Fri. Sat. Sun. Record Video Duration hr min 00 01 Snapshot Email Snapshot [e-mail] Save Changes Set Days and Time LOREX Local Surveillance Archive Motion Detection

Duration is how long video will be recorded when an event is triggered.

In order to use the e-mail snapshot feature, you must set your outgoing mail settings on the Preferences page.

Settings are independent of the Set Actions page in the Motion Detection section with the exception of the email address.

1001100110001101010100100100110110011001100110021101101010010018911011001100110011002110021

3

USING THE mCAM APPLICATION

This page is where you may setup system wide mCAM Application parameters.

Delete Recordings

Select the recordings to be purged from the recordings archive by age. Select Save Changes to purge the recordings archive.

Delete Snapshots

Select the snapshots to be purged from the snapshots archive by age. Select Save Changes to purge the snapshots archive.

Email/SMTP

Enter your local email address. Enter your outgoing mail (SMTP) server address.

Username/Password

Enter the logon information for your outbound SMTP email server. Enter your email password.

Save Changes

Save your changes.

Preferences Delete Recordings Never After 1 Day After 1 Week After 1 Month After 1 Year Delete Snapshots Never After 1 Day After 1 Week After 1 Month After 1 Year Email/SMTP [e-mail] smtp.YourDomain.com Username/Password YourUserName YourPassword Save Changes LOREX onCom Local Surveillance Archive Motion Detection

The Email and SMTP addresses as well as the Username and Password is the same information you enter when you configure email applications for outbound email such as Outlook or Outlook Express.

You can return to the Preferences page at any time to purge the archive of unwanted items.

LOREX®

This page allows you to select your preferred language.

Select Language English Español Français Italiano Deutsch Save Changes LOREX in Com Local Surveillance Archive Motion Detection

Make sure you save your changes.

1100110011000110101010010011011001100110011001101010100100110110011001100110011001100110011001100 3 USING THE mCAM APPLICATION

This page provides our support contact information and your software version.

Lorex Technology® mCam Copyright Lorex Technology Inc. & Core Video Inc. Version 1.20.20 Sales & Support: U.S./Canada: 1-888-425LOREX International: 1-800-425-67390 e-mail: [e-mail] LOREX and Caret Local Surveillance Archive Motion Detection

If you call technical support you will need your software version number.

Accessories Adobe Applications Lorex mCam LorexClient Microsoft Office Mozilla Firefox QuickTime RealMNC Startup Check for Updates mCam mCam FAQ mCam user guide

InstallShield Wizard Available Program Updates The following updates are available on the internet, The Update Service did not find updates for your application

You can check for software updates, FAQs by clicking Start/Programs/Lorex mCAM/ Check for updates.

4

REMOTE SURVEILLANCE

Windows Media Player

This section will familiarize you with using Windows Media Player to remotely view your camera.

ON YOUR LOCAL COMPUTER IN THE LOCAL SURVEILLANCE SCREEN (the computer running the mCAM application)

Press the Broadcast Button

Local Surveillance Photo Box Selected Device LOREX Local Surveillance AloLion AloLion AloLion

Note: Do not close the Local Surveillance Screen as this will disconnect the broadcasting.

ON YOUR REMOTE COMPUTER

Open Windows Media Player

(click Start/All Programs/Accessories/Entertainment/Windows Media Player)

All Programs Access Games REAL-TK Gigabic and Fast Ethernet UIC Driver Readisk Sound Manager ReadMTC Accessibility Communications Emplanaric Address Book Calculator Sound Recorder Volume Control Sendbox Audio Driver

From Windows Media Player

screen, select menu item File --> Open URL.

Windows Media Player File View Play Tools Help Open... Ctrl+O Open URL... Ctrl+U Says As... Close Ctrl+W

Enter the URL - http://a.b.c.d:9868 - where a.b.c.d is the IP address of the computer running the mCAM application. Click OK.

Open URL Enter the URL or path to a media file on the Internet, your computer, or your network that you want to play. Open: Http (F192.160.1.100.0068 OK Cancel Browse...

You will now view live video streaming via Windows Media Player.

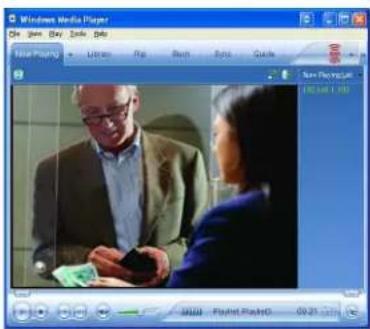

Windows Media Player One: Jave Buy Date Date New Playing + Library Flip Back Tools Quick New Playing 10:34:17:00 PlayNet PlayerD 00:21

For detailed information about determining your IP address, configuring your router, and port forwarding, please visit our website www.lorex-cctv.com and click Consumer Guides Section to view Guide on Port Forwarding a Router

mcam network camera mediac LOREX servers camera www.lorexcctv.com network
