W482CAD-K9 - Surveillance Camera Lorex - Free user manual and instructions

Product Type	2K Outdoor Wi-Fi Security Camera
Brand	Lorex
Model	W482CAD-K9
Video Resolution	2K (2560 x 1440 pixels)
Field of View	Not specified in the manual – estimate: 90-120°
Night Vision	Yes, with automatic mechanical IR filter (audible click during day/night transition)
Audio	Built-in microphone and speaker for two-way communication
Motion Detection	Yes, recommended optimization: distance 1.5-15 m, angle 30-60° downward, height 2.5-5 m
Connectivity	Wi-Fi 2.4 GHz and 5 GHz (some 5 GHz channels prohibited in Canada)
Local Storage	Pre-inserted micro SD card (accessible slot – card included)
Power Supply	UL/CSA certified 5V DC power adapter (included) via 2.8 m USB cable
Mounting	Wall or ceiling mount (brackets and mounting kit included)
Dimensions (wall mount)	Height 78 mm x Width 78 mm x Length 128 mm
Dimensions (ceiling mount)	Height 107 mm x Width 78 mm x Length 132 mm
Weather Resistance	Not submersible – installation in a sheltered location recommended; weather-resistant extension cable provided
Mobile App	Lorex Home (iOS and Android)
LED Status Indicator	Solid green: connected; Flashing green: ready for pairing; etc.
Maintenance	Clean with a damp cloth, no abrasive products
Spare parts / repairability	No information on repairability – contact Lorex support
Warranty	Limited hardware warranty – see lorex.com/warranty

Frequently Asked Questions - W482CAD-K9 Lorex

How do I reset the camera to factory settings?

Press and hold the pairing/reset button (located under the camera) for about 10 seconds until the status indicator flashes red. The camera will restart and be ready for a new setup.

What if the camera does not connect to Wi-Fi?

Make sure the router is on 2.4 GHz (5 GHz may cause issues depending on region). Bring the camera closer to the router during setup and remove obstacles (concrete, brick, metal) between them. Restart the router and try again.

Can I use the camera without a subscription?

Yes, the camera works without a subscription thanks to recording on the micro SD card (included) and live viewing via the Lorex Home app. Some optional cloud features may require a subscription.

How do I flip the image if the camera is ceiling mounted?

In the Lorex Home app, open the camera settings and enable the 'Image Rotation' option to flip the image 180°.

What do the different colored LEDs mean?

Solid green: connected to network. Flashing green: ready for connection (pairing). Solid red: factory reset. Flashing red: disconnected. Alternating green/red: firmware update in progress.

How do I insert or remove the micro SD card?

Locate the micro SD card slot under the camera (next to the speaker). Gently push the card until it clicks. To remove, press it slightly to release it.

Why do I hear a click when the camera switches to night mode?

This click is normal: it comes from the mechanical IR filter that moves automatically for night vision. No action is needed.

Does the camera support 5 GHz Wi-Fi?

Yes, but some 5 GHz channels are prohibited in Canada, which may limit compatibility with certain networks. If you experience issues, use 2.4 GHz Wi-Fi.

How do I mount the camera to the wall or ceiling?

Use the provided mounting template to drill 6 mm holes. Attach the mounting plate to the wall or the bracket to the ceiling using the included screws and anchors. Screw the camera onto the bracket and adjust the angle.

How do I clean the camera?

Use a damp cloth (clean water) to wipe the exterior. Do not use abrasive or chemical cleaners. Make sure the camera is unplugged during cleaning.

USER MANUAL W482CAD-K9 Lorex

Thank you for your purchase!

How to get started with your 2K Wi-Fi Camera

Safety precautions

• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use and handling of the product.
• Operate the camera within the specified temperature, humidity and voltage and use manufacturer approved accessories.
• Do not disassemble the camera.
• Do not point the camera directly at the sun or a source of intense light.
  • Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh, chemical-based cleaners.

Disclaimers

• A regulated UL / CSA approved power supply is required for use with this camera (included).
  Use of a non-regulated, non-conforming power supply can damage this product and voids the warranty.
• Not intended for submersion in water. Installation in a sheltered location recommended.
• Audio recording without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal, and indicates that the camera filter is working.
• Some channels on the 5GHz Wi-Fi band are restricted in Canada. This means certain Wi-Fi networks may not be available to connect to during setup.

Contents

Section 1 Package Contents & Dimensions

2 Overview
3 Status Indicator
4 Camera Setup
5 App Live View
6 Camera Placement
7 Optimize Motion Detection
8 Wall Mounting
9 Ceiling Mounting

1 Package contents

2K Wi-Fi Camera (x1)

Power Adapter (x1)

9.8 ft (3m) Weatherproof Extension Cable (x1)

Wall Mounting Bracket (x1)

Ceiling/Table Mounting Bracket (x1)

Pre-inserted Memory Card (x1)

Mounting Template (x1)

Mounting Plate (x1)

Anchors (x8) Screws (x8)

Wrench (x1)

Cable Clips (x4)
Note: The following contents is based on 1 camera

Dimensions

Camera with Wall Mount

• Height: 3.1" (78mm)
- Width: 3.1" (78mm)
• Length: 5.0" (128mm)

Camera with Ceiling Mount

• Height: 4.2" (107mm)
- Width: 3.1" (78mm)
• Length: 5.2" (132mm)

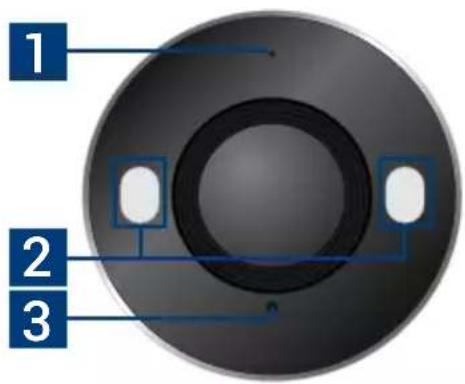

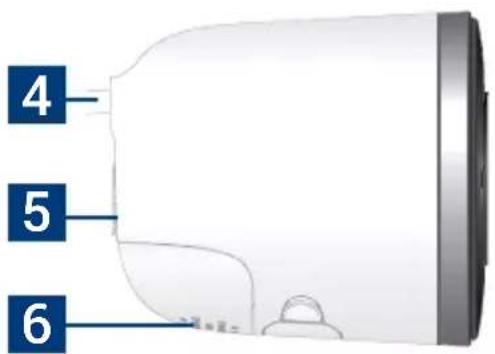

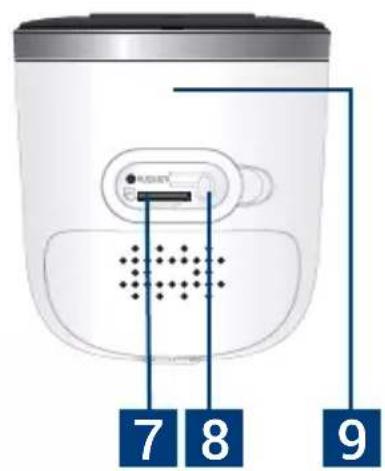

2 Overview

FRONT SIDE BOTTOM

1 2 3

4 5 6

7 8 9

1. Microphone
2. Warning light

3. Status indicator

4. 9.2ft (2.8m) USB power cord

5. Threaded insert (for mounting)

6. Speaker

7. MicroSD slot (card included)

8. Pairing / reset button
9. QR code

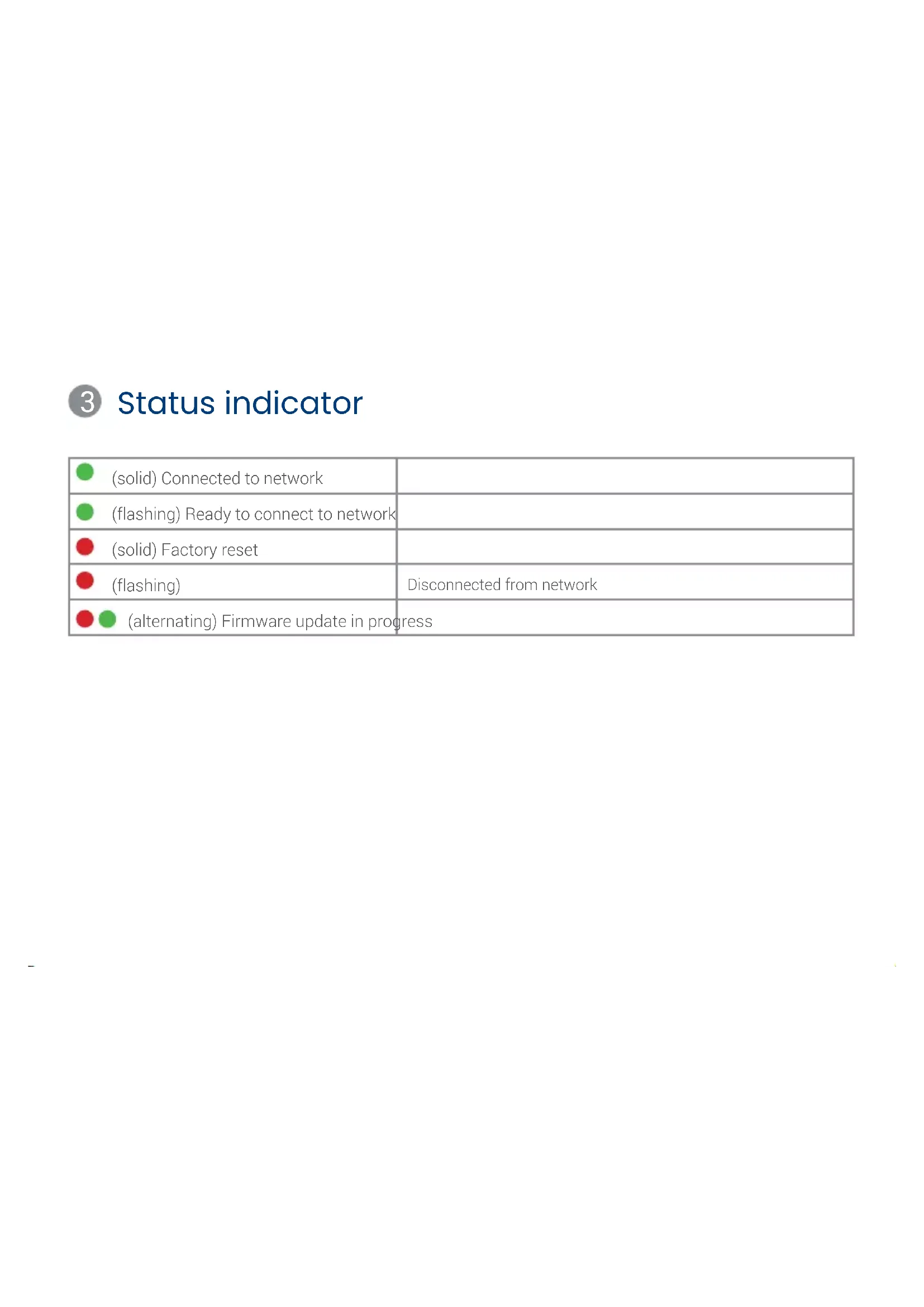

Status indicator

(solid) Connected to network
(flashing) Ready to connect to network
(solid) Factory reset
(flashing)	Disconnected from network
(alternating) Firmware update in progress

4 Camera setup

1. Connect power to the camera with the provided power adapter. When you hear the chime and the status indicator is flashing green, the device is ready for setup.
   Optional: Connect the weatherproof extension cable to the camera's cable.
2. Download the Lorex Home app by scanning the QR code.
3. Open the Lorex Home app, and sign in or create an account.
4. Tap + in the app, then follow the in-app instructions to complete the device setup.

Pure electrical circuit lines without any symbols

Devices + Tap to add your first device

Ensure you update to the latest app and camera firmware version.

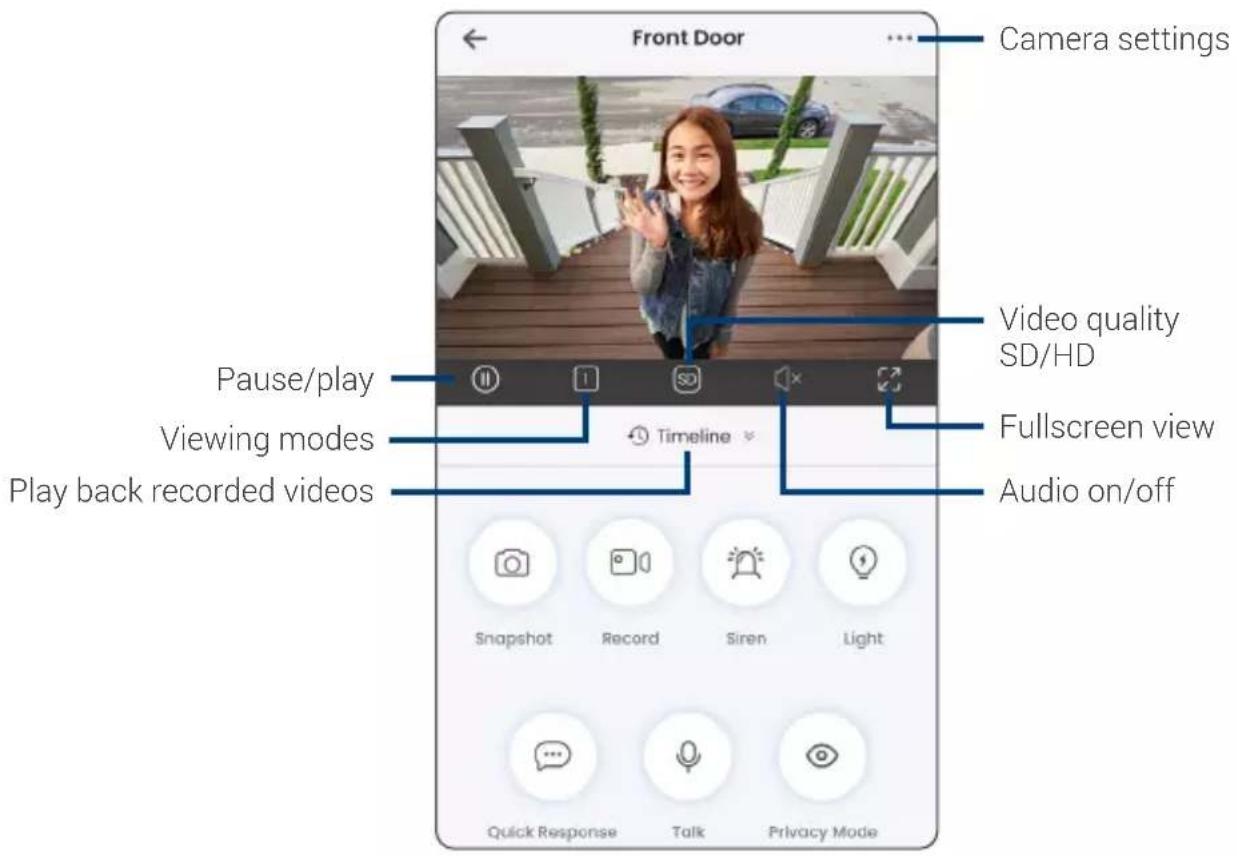

5 App Live View

Front Door Camera settings Video quality SD/HD Fullscreen view Audio on/off Pause/play Viewing modes Play back recorded videos Timeline Snapshot Record Siren Light Quick Response Talk Privacy Mode

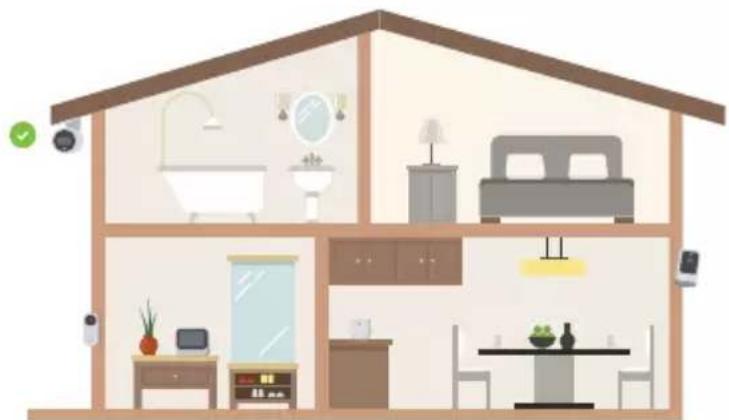

6 Camera Placement

- Place the camera close to your Wi-Fi router as possible.

- Reduce the number of obstructive materials between the camera and the router or access point. Concrete, brick, metal and wood are the most common materials in your house that can cause poor signal strength.

- Other electronic devices such as microwaves, TVs, cordless phones, and baby monitors can cause signal interference. It is recommended to install the camera as far away from these devices as possible.

Illustration of a single-house home with living room and furniture (no text or symbols)

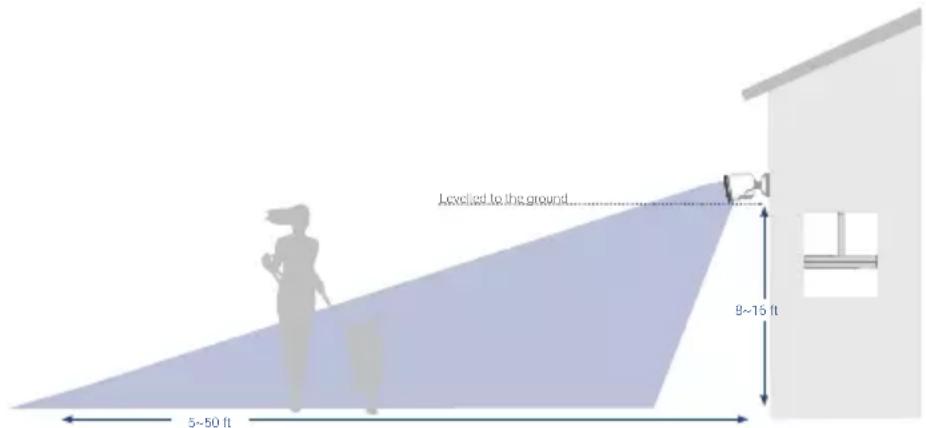

7 Optimize Motion Detection

Distance Optimal accuracy for objects within 5ft to 50ft (1.5\~15m).

Angle Angle the camera around 30^-60^ down from the level position.

Height Install the camera between 8-16ft (2.5\~5m) off of the ground.

Levelled to the ground 8~15 ft 5~50 ft

Note: Accuracy of person detection will be influenced by multiple factors, such as the person's distance from the camera, the height of the person, and the height and angle of the camera. Night vision will also impact the accuracy and distance of detection.

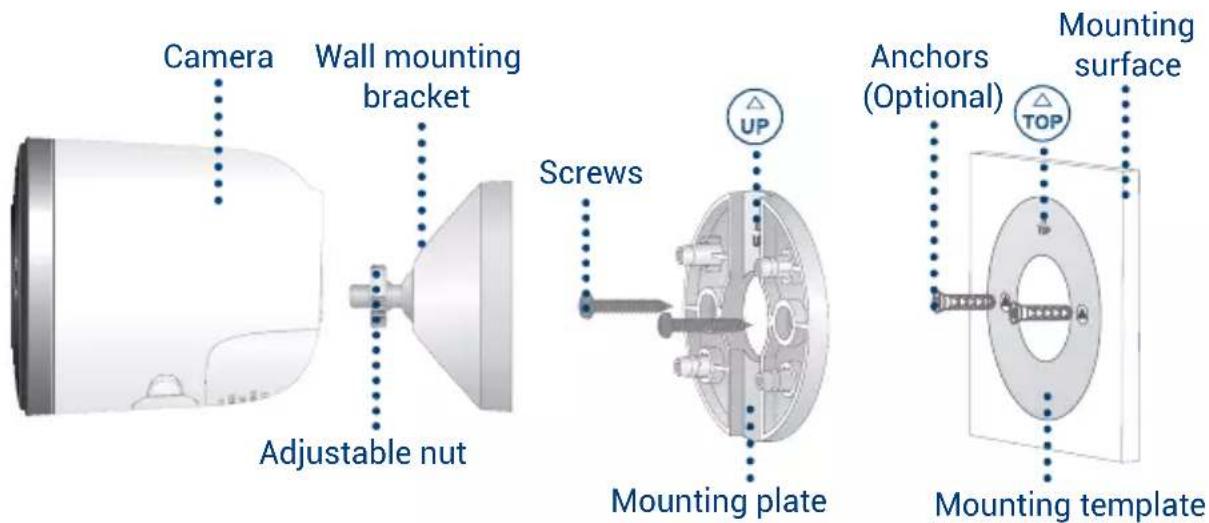

8 Wall Mounting

Camera Wall mounting bracket Adjustable nut Screws UP Mounting plate Anchors (Optional) TOP Mounting surface Mounting template

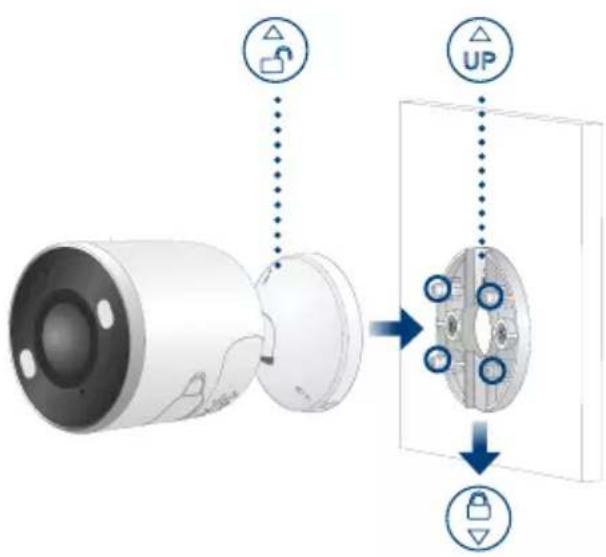

To wall mount the camera:

1. Place the mounting template onto the desired location.

Note: Ensure an outlet is nearby, and keep in mind the cable lengths.

1. Using a 15/64" (6mm) drill bit, drill 2 holes over the triangle symbols on the template.

Optional: Drill 15/64" (6mm) holes for the anchors.

1. Align the arrows of the mounting plate and template. Using a screwdriver and the provided screws, secure the mounting plate to the surface.
2. Align the arrows between the wall mounting bracket and plate. Push the bracket in to install, then slide down to lock in place. You will hear a 'click' when the bracket is installed.
3. Attach the camera to the mounting bracket using the threaded insert at the rear of the camera. Rotate the camera clockwise until attached, then tighten into place with the adjustable nut.
4. Adjust the camera to the desired angle.

Note: If the camera is not holding in place or difficult to adjust, unplug the camera and slide the bracket up to detach from the mounting plate. Tighten or loosen the 3 screws at the back of the mounting bracket to adjust accordingly. Repeat steps 4-6 to re-install.

Diagram illustrating the process of a device's internal components, showing part assembly and directional control buttons.

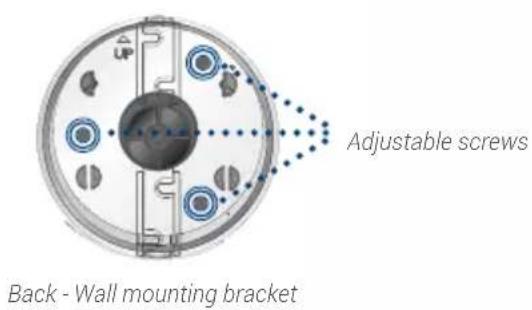

Adjustable screws Back - Wall mounting bracket

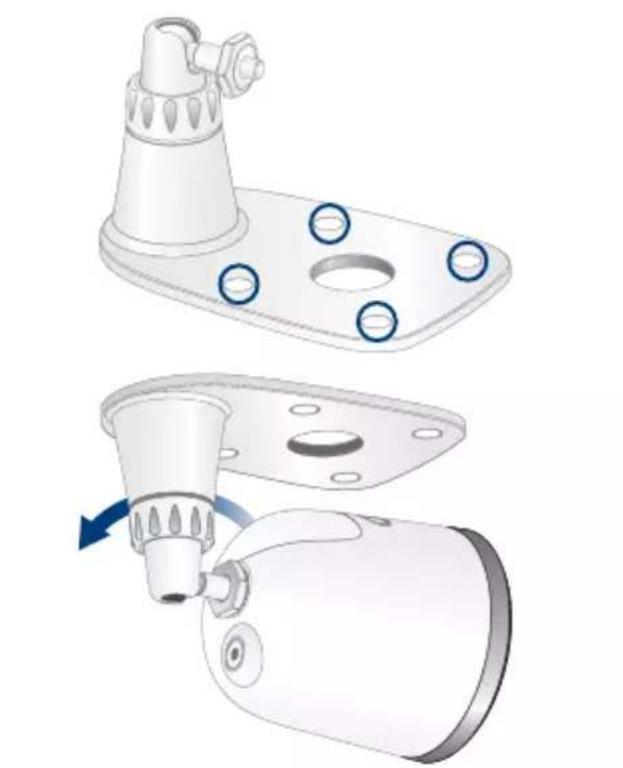

9 Ceiling Mounting

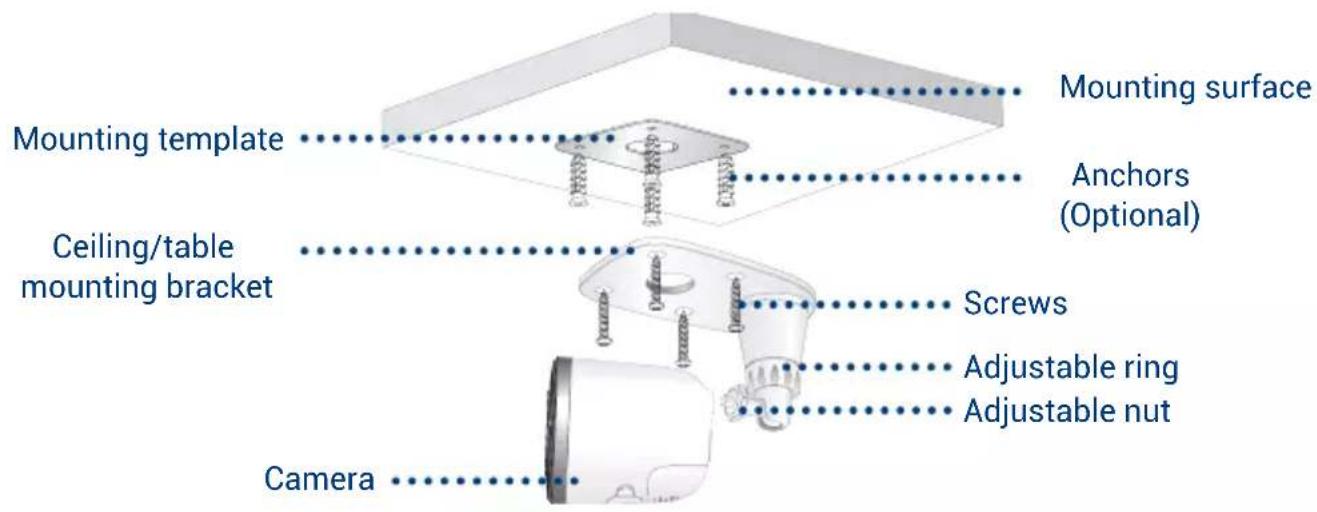

Mounting template Ceiling/table mounting bracket Camera Mounting surface Anchors (Optional) Screws Adjustable ring Adjustable nut

To ceiling mount the camera:

1. Place the mounting template onto the desired location.
   Note: Ensure an outlet is nearby, and keep in mind the cable lengths.

2. Using a 15/64" (6mm) drill bit, drill 4 holes over the X symbols on the template.
   Optional: Drill 15/64" (6mm) holes for the anchors.

3. Remove the 4 pre-inserted plugs from the ceiling/table mounting bracket.

4. Attach the camera to the ceiling/table mounting bracket using the threaded insert at the rear of the camera. Rotate the camera clockwise until attached, then use the wrench to tighten the adjustable nut in place.
5. Place the bracket over the drilled holes. Using a screwdriver and the provided screws, secure the bracket to the surface.
6. Rotate the adjustable ring counter-clockwise to loosen and adjust the camera to the desired position, then tighten to secure.

Optional:

• Feed the camera cable through the hole at the base of the bracket or the mounting surface.
• Open the camera's settings in the app and enable Image Rotation to flip the camera image.

Technical illustration of a mechanical component with two views showing assembly steps (no text or symbols)

Image Rotation

Need help?

Visit help.lorex.com for up-to-date information and resources:

• Download product guides
• Watch how-to-videos
  • Find related troubleshooting tips & FAQs

Register your product

Please see our full Terms of Service and Limited Hardware Warranty Policy visit, lorex.com/warranty.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Copyright © 2021 Lorex Corporation

As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE. All rights reserved.

W482CAD_QSG_TRILINGUAL_R1

LOREX®

Caméra Wi-Fi 2K

Série W482CAD

Pure electrical circuit lines without any symbols

Devices + Tap to add your first device

Illustration of a modern home with living room and furniture (no text or symbols)

Levelled to the ground 8~15 ft 5~50 ft

Diagram illustrating the process of a device's internal components, showing part assembly and status indicators.

Two-step diagram showing a mechanical component being rotated, with no text or symbols present.

Besoin d'aide?

Copyright © 2021 Lorex Corporation

Pure electrical circuit lines without any symbols

Devices + Tap to add your first device

Illustration of a modern home with living room and furniture (no text or symbols)

Levelled to the ground 9~16 ft 5~50 ft

Diagram illustrating the process of a device's internal components, showing part assembly and directional arrows labeled UP and lock.

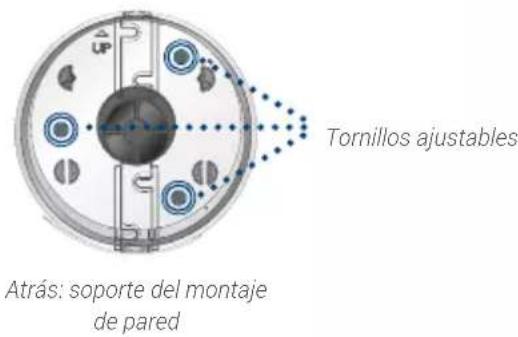

Tornillos ajustables Atrás: soporte del montaje de pared

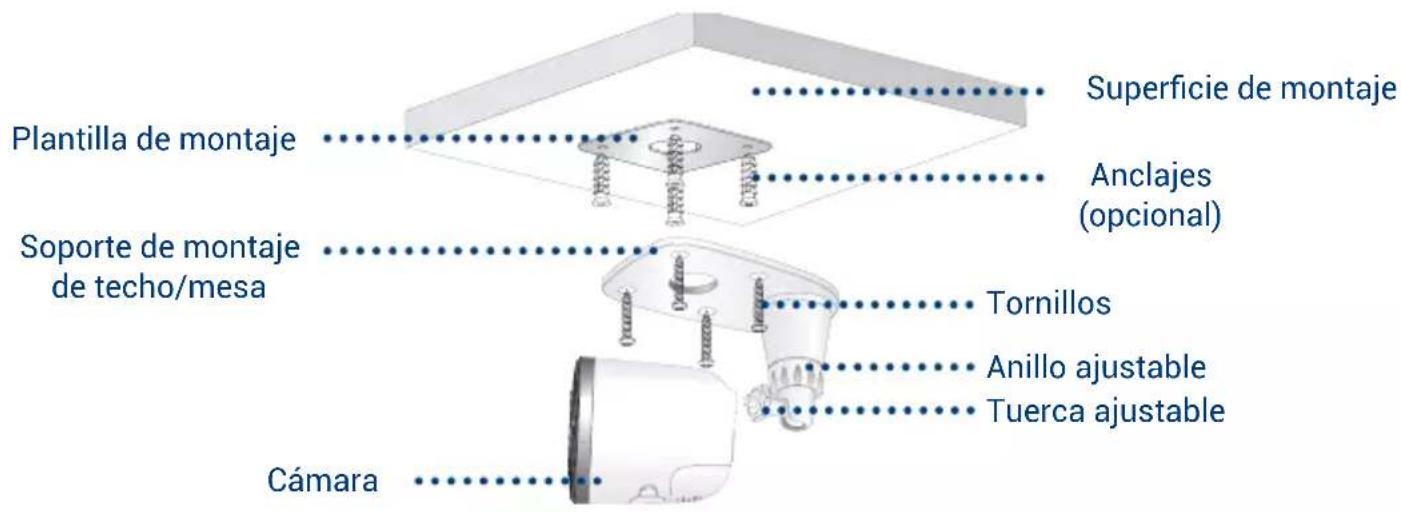

9 Montaje en techo
