HO 985 - Oven Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	HO 985
Product type	Compact electric oven
Supply voltage	230 V ~ 50 Hz
Power	800 W
Timer	Mechanical, up to 60 minutes with auto shut-off
Heating modes	Upper heating element (grill), lower heating element (bake), combined
Indicator light	Indicates operation
Included accessories	Baking tray, grill, hook for removing accessories
Installation	On a flat surface, clear space of 10 cm on sides and 20 cm above, back against the wall
Safety	Automatic shut-off at end of cooking; hot surface (do not touch); do not immerse
Care and cleaning	Clean with a soft cloth after cooling; tray and grill washable with detergent
Usage tips	Empty preheating for 20 min to eliminate odors; oil the non-stick tray
Material	Metal body, quartz heating elements
Warranty	Legal warranty according to applicable legislation
Certifications	Conforms to Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU)

Frequently Asked Questions - HO 985 Orbegozo

How to use the oven for the first time?

Before first use, remove all packaging. Preheat the oven empty for about 20 minutes to eliminate odors. Make sure the room is well ventilated.

What cooking modes are available?

The oven has three modes: upper heating element (grill), lower heating element (bake), and both combined for uniform and quick cooking. Select the mode with the element control knob.

How to set the timer for less than 5 minutes?

First turn the timer to 15 minutes, then turn back to the desired time (e.g., 3 minutes). This allows more precise setting.

What should I do if the oven emits an odor during first use?

It is normal for the oven to emit a slight odor during first use. Ensure the room is well ventilated. The odor will disappear after a few uses.

What accessories are included with the oven?

The oven comes with a baking tray, a grill, and a hook for removing hot accessories. Use the hook to avoid burns.

How to clean the oven after use?

Unplug the appliance and wait for it to cool. Clean the inside and outside with a soft cloth. The tray and grill can be washed with water and detergent. Never immerse the oven in water.

Does the oven turn off automatically?

Yes, the oven turns off automatically at the end of the programmed timer and emits a beep.

Can I use aluminum foil in the oven?

Yes, you can place aluminum foil on the grill to catch grease splatters. Make sure not to cover the heating elements or block heat circulation.

What to do if the power cord is damaged?

If the power cord is damaged, it must be replaced by an authorized service technician. Do not use the appliance and contact Orbegozo support.

What are the essential safety precautions?

Do not touch hot surfaces, use oven mitts. Do not leave the appliance unattended during use. Keep the appliance out of reach of children under 8 years. Do not use with an external timer or remote control system.

USER MANUAL HO 985 Orbegozo

MINI HORNO - MANUAL DE INSTRUCCIONES MINI OVEN - INSTRUCTION MANUAL MINI FOUR - MANUEL D'INSTRUCTIONS MINI FORNO - MANUAL DE INSTRUÇÕES

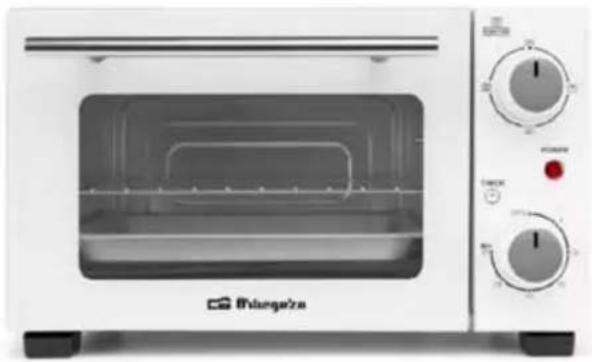

Front view of a white portable oven with control knobs and a red indicator dial (no visible text or symbols on the main subject)

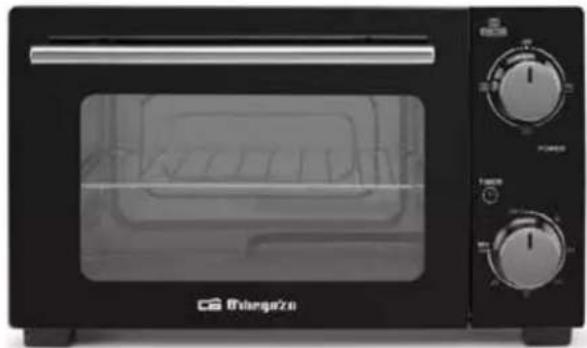

Exterior view of a black portable toaster oven with control knobs and a visible side panel (no text or symbols on the main body)

H0 975 H0 985

Sonlfer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

White portable oven with control knobs and a red indicator light, labeled 1 to 4 (no visible text or symbols on the oven itself)

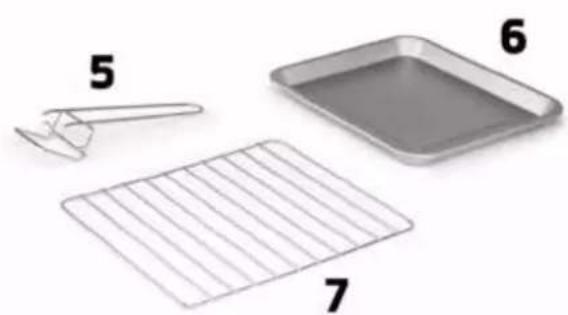

Illustration of a kitchen utensil, a tray with liquid, and a grid-patterned plate (no text or symbols)

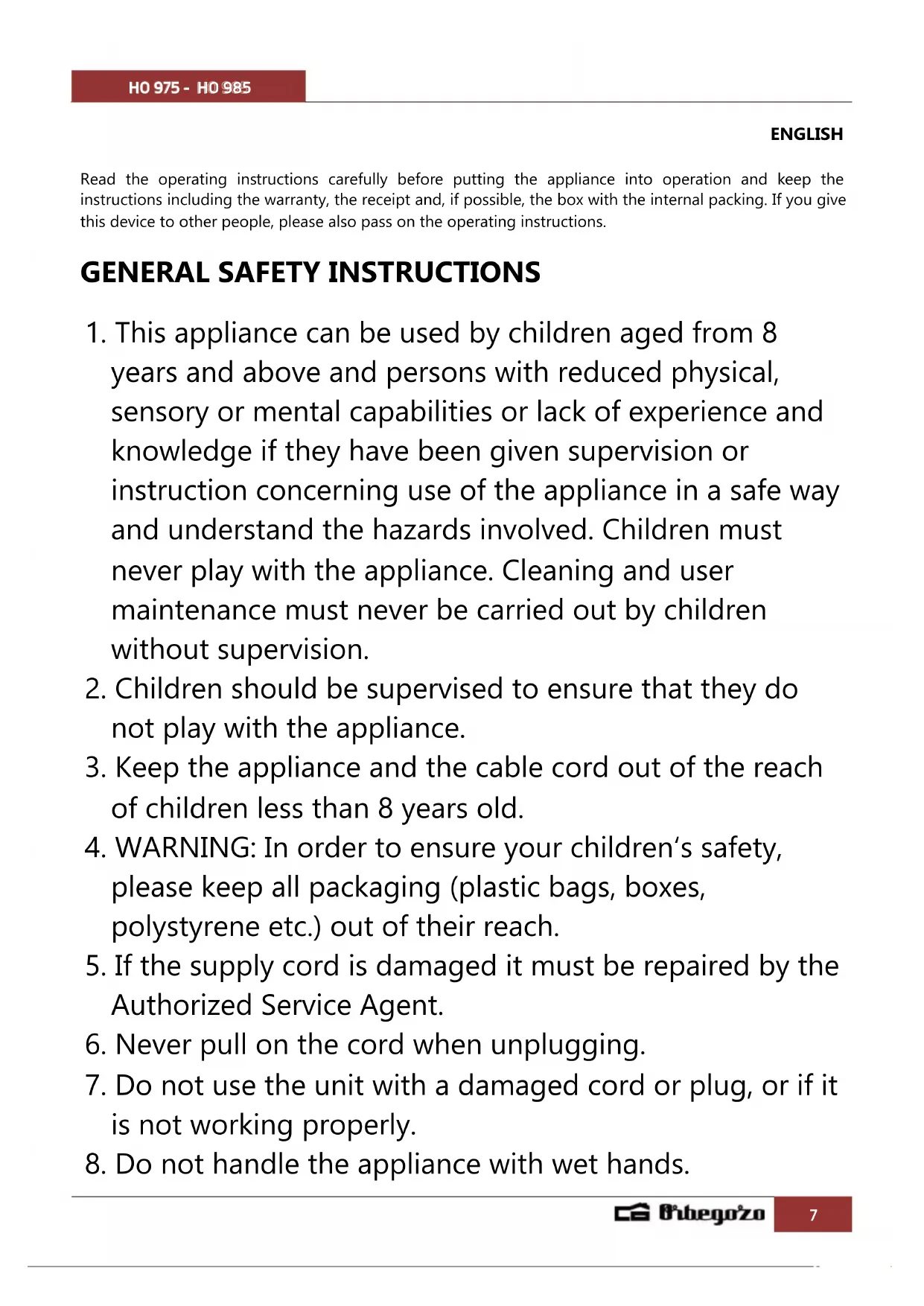

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

GENERAL SAFETY INSTRUCTIONS

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

- CAUTION: The surface can remain hot during or after use.

- Do not operate the device connected to an external timer or a separate remote control system.

- The rear of the appliance should be against the wall.

- The oven gives off heat. You should therefore not place it close to combustible materials such as curtains or wood.

- The clearance above the oven should be at least 50 cm and at least 20 cm at the sides.

- Put the unit down onto a heat-resistant mat.

- Ensure that the timer is in the "off" position when you are not using the unit.

- Please ensure that the mains lead does not come into contact with the hot sections of the device.

- Do not touch the hot parts of the device. Use an oven cloth if necessary.

DESCRIPTION OF THE PRODUCT

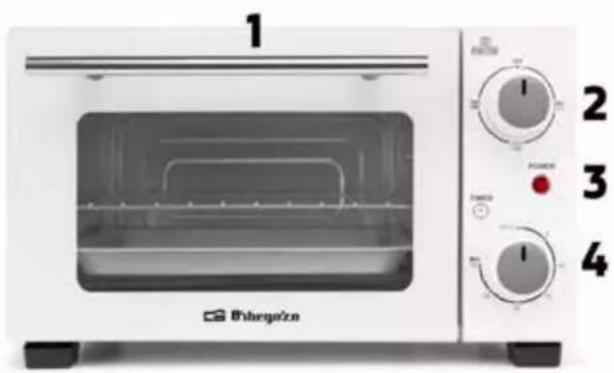

Front view of a simple 8-inch bread oven with control knobs and a red indicator (no visible text or symbols on the oven itself)

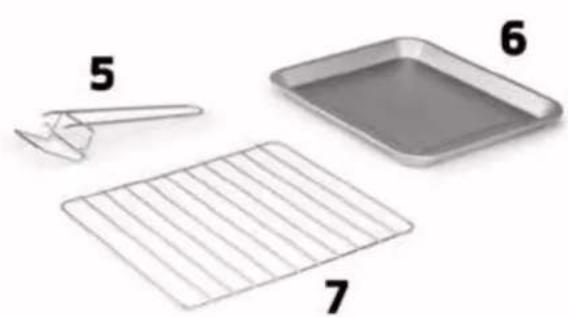

Illustration of a kitchen utensil, a tray with liquid, and a grid-patterned plate (no text or symbols)

1. Door opening handle
2. Heating element control
3. Indication light
4. Timer
5. Hook for taking out accessories
6. Baking tray
7. Wire rack

PRELIMINARY OPERATIONS

Remove any packaging materials that may be present in the oven.

Before initial use please operate the oven for 20 minutes to remove the protective coating on the heating element.

The presence of smoke is normal. Make sure that a sufficient level of ventilation is available.

INSTALLATION

Remove all packing material.

Before using it with food, run the appliance for about 20 minutes completely empty to eliminate bad odors from the first use.

It is normal for the oven to give off an odor in this first use, make sure that the place is well ventilated.

OPERATION

1. The timer must be in the "OFF-0" position.
2. Plug the appliance into a socket.

3. Place the food you want to cook inside the oven.

4. Select whether you want the upper ☐, lower ☐, or both resistors ☐ to work. The upper resistance is perfect for toasting and gratin, the lower one for heating and the use of both simultaneously results in a more uniform and faster cooking.

5. Turn the timer knob clockwise to set the baking time. At the end of the programmed time, the oven stops automatically and emits a short beep.

6. To program a baking time of less than 5 minutes, first set the timer to 15 minutes and then turn the knob to the left, to, for example, 3 minutes. The programming will thus be more precise.

7. When the oven stops, you can open the door and remove the tray or rack with the hook provided (caution it will be hot).

TIPS

• Before cooking spread a little oil on the tray to prevent food sticks.
• To prevent food dirt the oven with fat emerges can put aluminum foil on the rack with cooking only with the rack.

HOW TO CLEAN

• Please remove the mains plug.
• Only clean the machine after it has cooled down.
• The machine must never be immersed in water.
• Wipe surfaces and quartz heating rods with a dry, soft cloth. You can use dry cleaner to clean the exterior and interior of the oven.
• Be sure to wipe off oil and lemon residue immediately.
• The baking tray and rack can be cleaned with detergent and water.

TECHNICAL PARAMETERS

Model	HO 975 - HO 985
Voltage	230V~50Hz
Power	800W

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning

the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

FRANÇAIS

White portable oven with control knobs and a red indicator light (no visible text or symbols on the main subject)

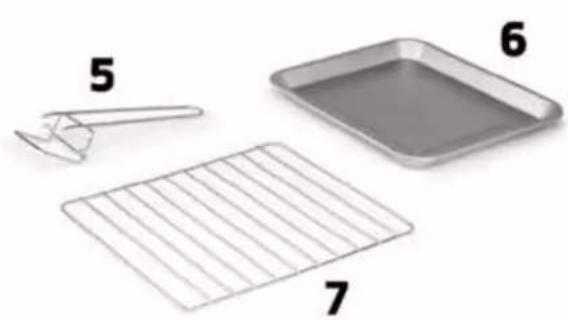

Illustration of a kitchen utensil, a tray, and a grid-patterned plate (no text or symbols)

White portable oven with control knobs and a red indicator light (no visible text or symbols on the main subject)

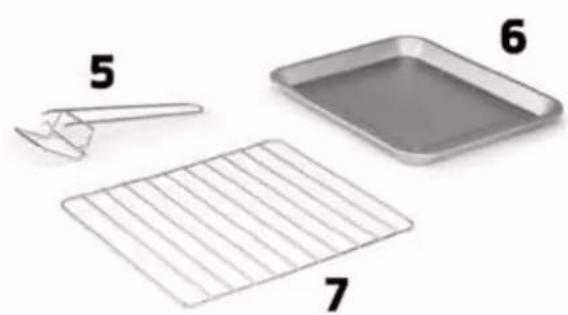

Illustration of a kitchen utensil, a tray, and a grater with numbered labels (no text or symbols on items)
