USER MANUAL HMB5A 011 HAIER

• Content may vary according to your model.1

• Content may vary according to your model.5 This appliance is intended for domestic use only as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Only use the appliance indoors and at altitudes not exceeding 2 000m above sea level. If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorized Haier service engineer must replace the power cord. Use only attachments, consumables or spares recommended or supplied by Haier. Only use the appliance in accordance with the power specication on the rating plate. This appliance is intended to be used in household and similar applications such as: - Staff kitchen areas in shops, ofces and other working environments; - Farm houses; - By clients in hotels, motels and other residential type environments; - Bed and breakfast type environments. The appliance is only to be used with the base provided. CAUTION: Never ll the container above the maximum level since hot foaming coffee or other liquids (e.g. milk) might overow during heating. WARNING Avoid spillage on the connector. Never immerse the appliance. The Environment The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead, it must be handed over

Getting to know your Multi Beverage

1. Remove all the parts and the accessories

from the package and read this manual carefully.

2. Pay attention to the safety instructions,

warnings and important notes to prevent any injury or damage.

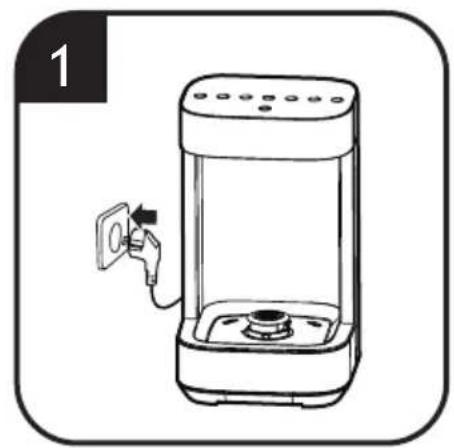

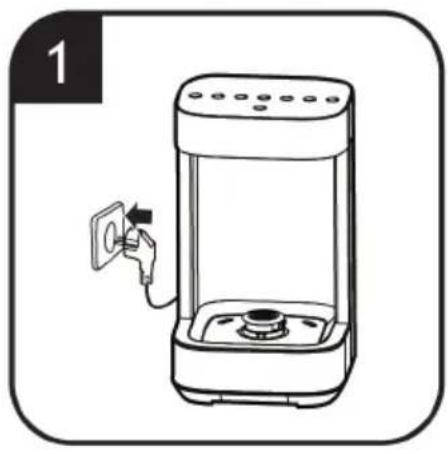

3. Release the required amount of cable from

the cable tidy and plug the appliance into a socket.

4. Before you use the appliance and accessories

for the rst time, thoroughly clean the parts that contact with food. Before you clean the appliance, unplug it. (For cleaning details refer to Chapter 5)

5. The base is designed with drain holes, it can

drain water to the table.

• Use the main product only with the jug provided.

• Do not turn on the appliance if the jug is empty, the overheat control will engage.

• To prevent spillage, do not ll liquid more than the maximum capacity of the jug level indicator.

• When you process milk or ingredients that tend to foam, do not put more than MAX MILK 210 ml in the jug.

• Do not ll the jug with hot milk, this will increase the risk to overow.

• The brush and spoon incorporate a magnet. Keep the magnet away from the heat source. to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city ofce, your household and waste disposal service or the shop where you purchased the appliance. This appliance complies with the European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU. CANDY HOOVER GROUP S.r.l. Via Comolli,16 20861 Brugherio (MB) Italy COMPONENTS & FEATURES: A. Main product B. User interface C. Jug D. Frother E. Level indicator F. Metal lter G. Cleaning brush H. Coffee Spoon*

Content may vary according to your model.7 Make your drink

1. Remove the jug from the base.

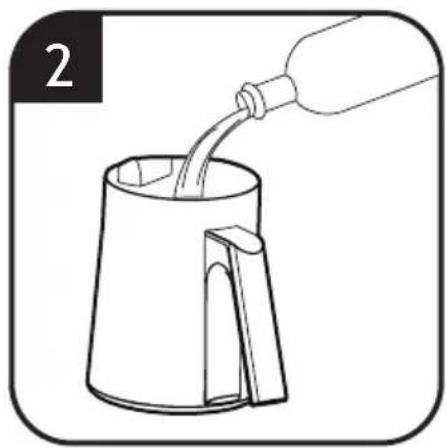

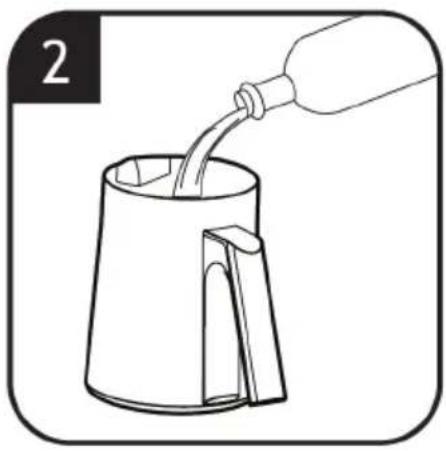

2. Fill the jug with the desired amount

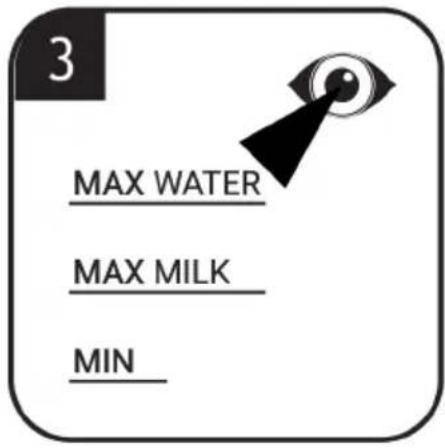

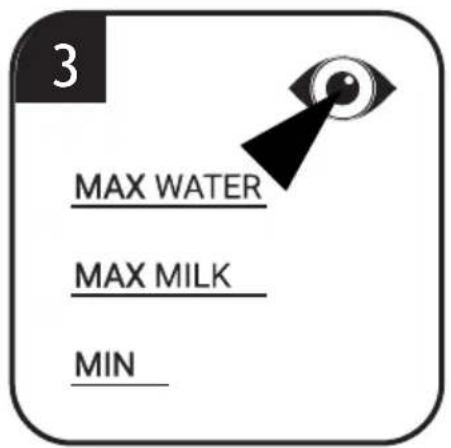

of milk or water, [2] reading the level indicator inside of the jug. [3]

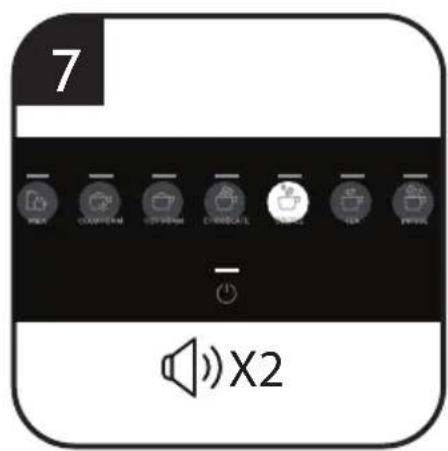

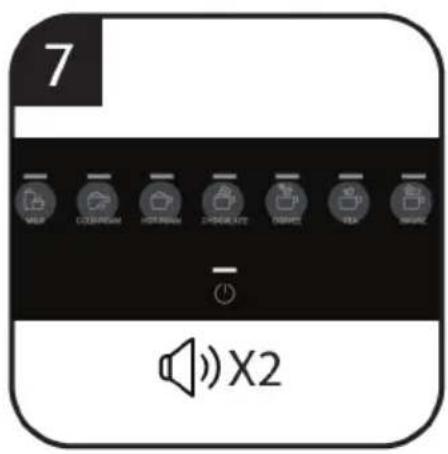

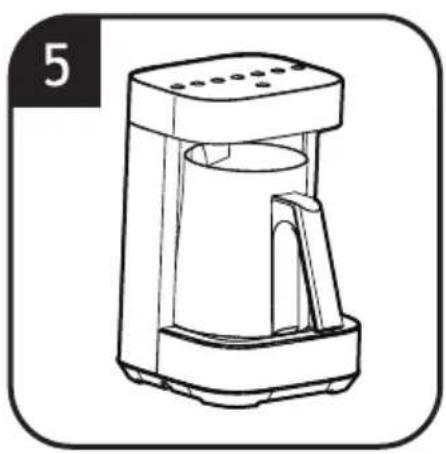

5. Select the desired drink button on the

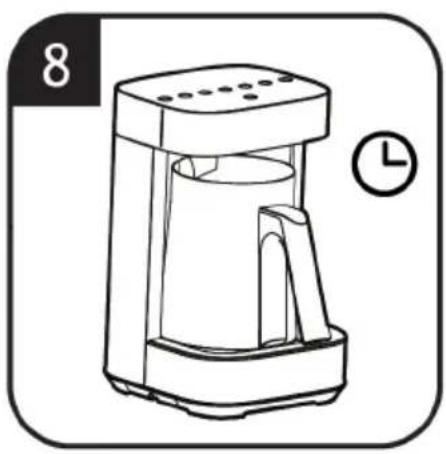

control panel. The selected drink setting will illuminate, and you will hear 2 audible beeps, [7] the heating process will automatically start. [8] a. Note: Do not select any drink button when jug not in place, it will enter Error Mode and turn off automatically. (Refer to Error Mode) b. Note: During preparation process, when the jug is extracted from the base the function is paused. When the jug is put back in place the process resumes. c. Note: Pressing the drink button during preparation will stop the process.

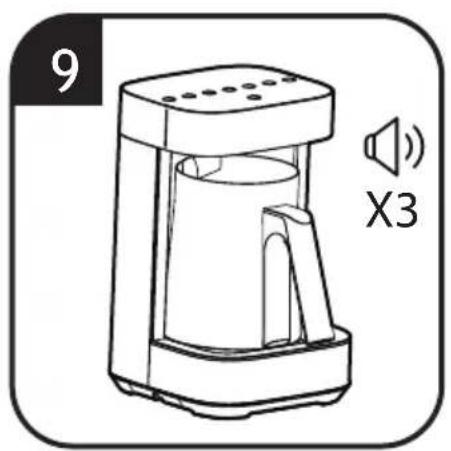

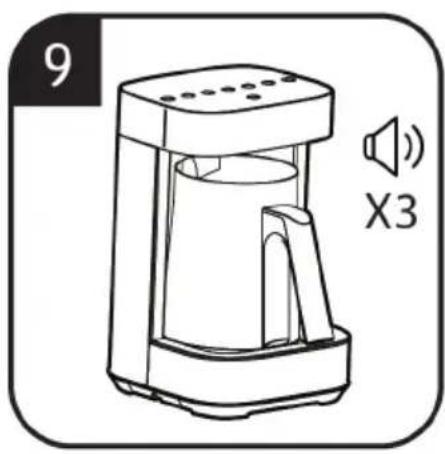

6. When the preparation process is nished,

you will hear 3 audible beeps. [9]

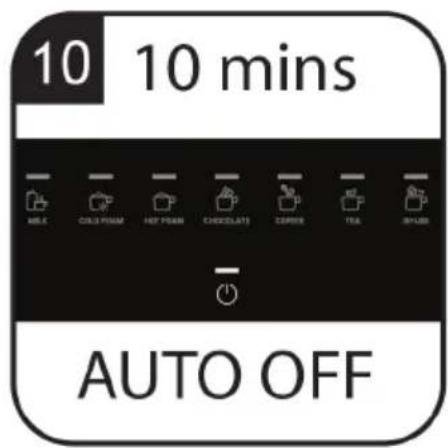

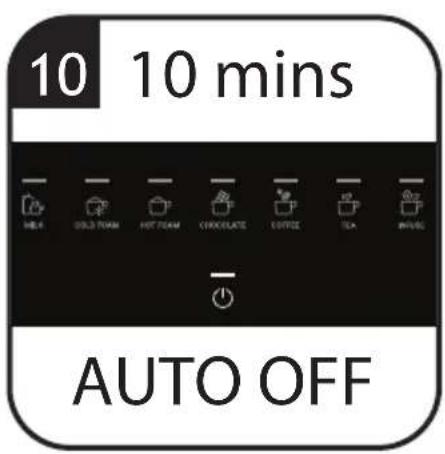

7. The product will automatically turn off

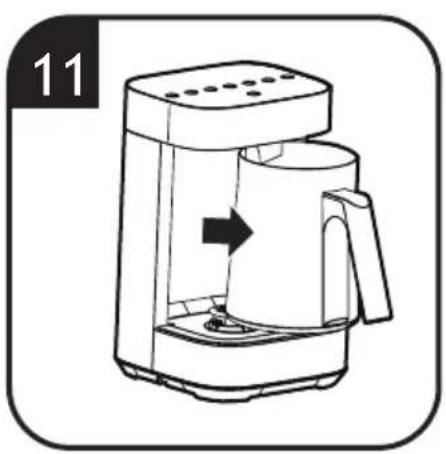

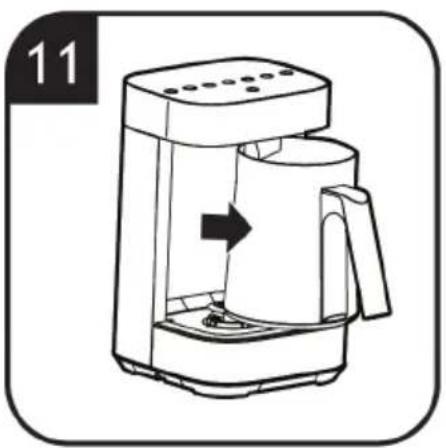

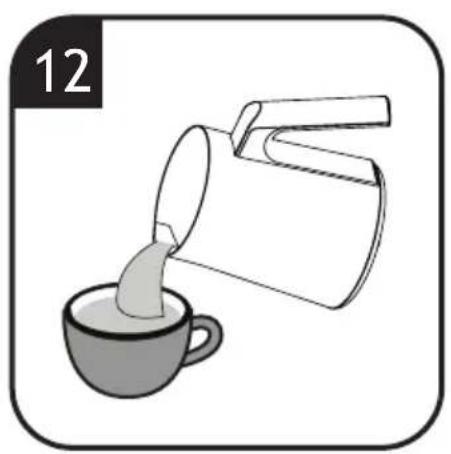

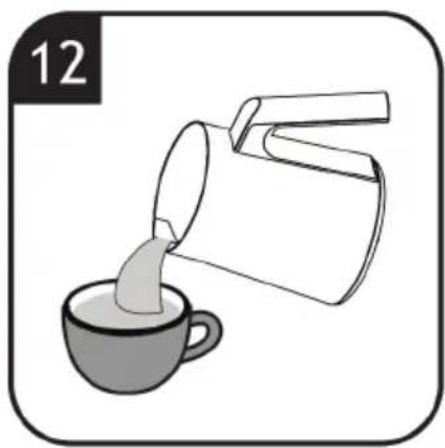

8. Carefully remove the jug from the base

and pour your drink. [11] [12]

Make sure the underside of the device and area underneath the base is dry. Do not operate with a damaged cable or plug. For making a delicious drink, make sure that the jug is clean and dry before use. Milk preparation (Milk, Cold foam, Hot foam)

1. To prevent spillage, do not ll milk above

C) milk, milk which has been frozen will not froth.

3. See recipe table for ingredients.

Chocolate preparation

1. To prevent spillage, do not ll milk above

the MAX MILK level indicator.

2. To ensure the chocolate dissolves, it is

recommend to cut the chocolate bar into small pieces (max 5*5mm).

1. To prevent spillage, do not ll water above

the MAX WATER level indicator.

2. Only use coffee powder as the ingredient.

3. When coffee is prepared, pour into your cup

through the supplied metal lter.

4. See recipe table for ingredients.

Tea & Infuse preparation

1. To prevent spillage, do not ll water above

the MAX WATER level indicator.

2. For tea bags, add bag directly into jug.

When prepared, pour water into your cup and dispose of the tea bag.

3. For Tea leaves & herbs, add the ingredients

and water. When prepared, pour into your cup through the supplied metal lter.

4. See recipe table for ingredients.

MUTE FUNCTION Your product is tted with a mute function, this will turn off all button sounds from the appliance.

• The mute function can be turned on by pressing and holding the chocolate button for 3 seconds.

• To turn off this function, press and hold the chocolate button again for 3 seconds and the function is deactivated. Note: The mute function will only turn on/off the button sound. The audible beeps indicating start or nish of the preparation will not be muted. STANDBY MODE After the heating cycle, the product will turn to standby mode automatically, only the ON/OFF indicator will be illuminated. The product will automatically power off after 10 minutes of further inactivity. ERROR MODE When an error is detected, the product will enter into error mode with blinking lights, audible beeping sounds, and will turn off automatically. There are 3 conditions in ERROR MODE: Temperature Sensor Error, Frother Error and Heating Element Error. (For solutions refer to

4. Using your Multi Beverage8

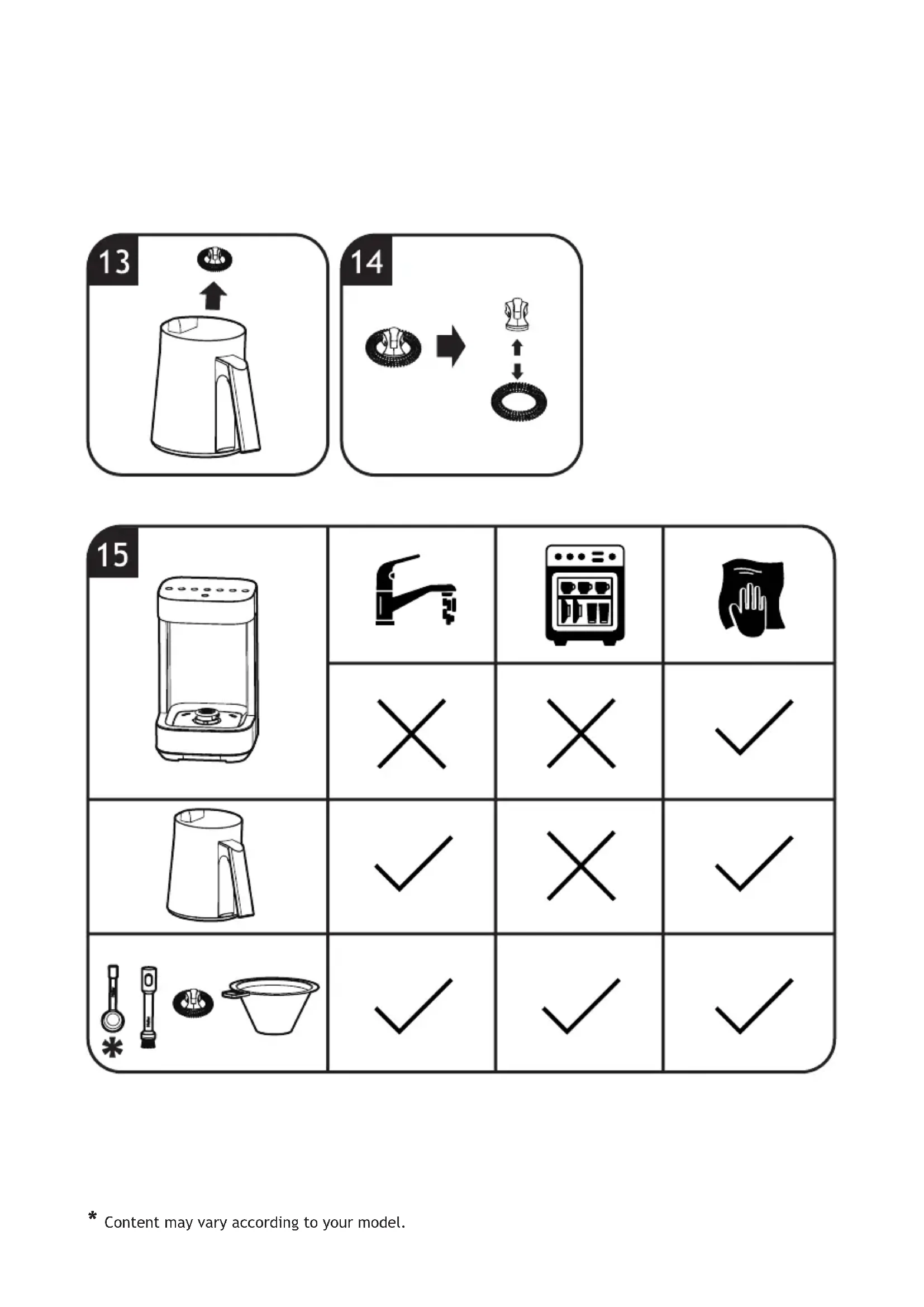

Refer to image 15 to clean your product. [15]

• Before cleaning the main product, please unplug it.

• Do not use abrasive chemicals, metal objects or hard brushes to clean the appliance.

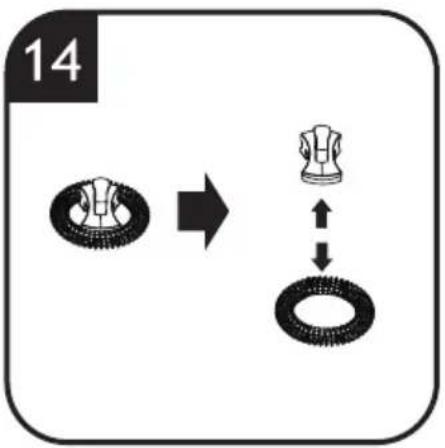

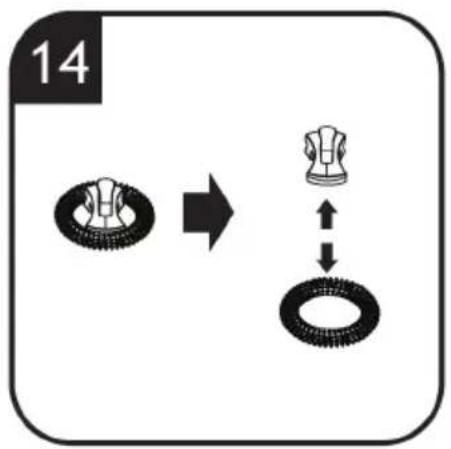

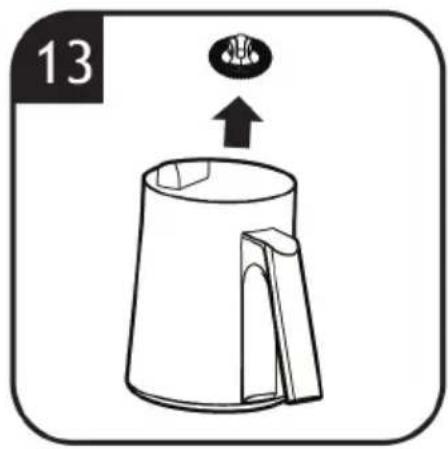

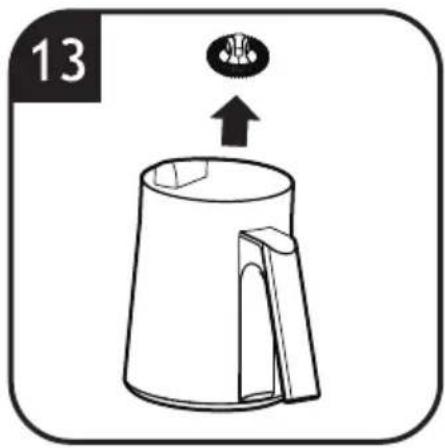

• Remove the frother from the jug.

• The cleaning brush delivered with the appliance is recommended to be used.

• Never wash the jug in the dishwasher.

• Make sure the connector and the recessed areas are clean and dry before next use.

Drink overow » Cause 1: Milk or water exceed the Max level. » Cause 2: The jug inner has scale or is not clean.

• Solution: Ensure the milk and water does not exceed the max level (Max water 350ml, Max milk 210ml). Clean jug inner, ensure it is clean. [3] Temperature sensor Error (All lights blinking for 5 seconds, and an audible beep sounds 3 times) » Cause 1: The jug not in the base but drink function selected. » Cause 2: The temperature sensor has short circuited.

• Solution: Ensure the jug is placed in the main product. If the problem persists contact Customer Service. Frother error (Left 3 lights blinking for 5 seconds, and an audible beep sounds 3 times.) » Cause 1: The ingredients are too large and have jammed the frother. » Cause 2: Agitator motor broken.

• Solution: Remove all ingredients in the frother and clean thoroughly, ensure the ingredient is cut into pieces less than 5*5mm. If the problem persists contact Customer Service. Heating element error (Right 4 lights blinking for 5 seconds, and an audible beep sounds 3 times.) » Cause: Heating element broken.

• Solution: Contact Customer Service. GB9 Haier Spares and Consumables Always replace parts with genuine Haier spares. These are available from your local Haier dealer or direct from Haier. When ordering parts always quote your model number. Quality Haier’s factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001. Your Guarantee The guarantee conditions for this appliance are as dened by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Content may vary according to your model. This table is a recommended guideline only and may vary depending on personal preference, tea/coffee type and age.

Item PreparationHeating TemperatureRecipe Instruction Max Capacity

MILK 210ml (MAX MILK) COLD FOAM N/A MILK 210ml (MAX MILK) HOT FOAM

MILK 210ml (MAX MILK) CHOCOLATE

MILK + CHOCOLATE OR COCOA 21g X 3210ml (MAX MILK) COFFEE

WATER + FRESH/DRY HERBS350ml (MAX WATER)

WATER + KOFFIEPOEDER 21g X 3350ml (MAX WATER)

MAX WATER MAX MELK MIN
