Product Type	Programmable PID Temperature Controller
Brand	Emko
Model	ESM-4920 (variants ESM-4420, ESM-7720, ESM-9920)
Measurement Input	Thermocouple (J, K, R, S, T) and RTD PT-100
Accuracy	±0.25% of full scale
Sampling Cycle	3 samples per second
Input Filter	1.0 second
Control Modes	ON/OFF, P, PI, PD, PID, with adaptive tuning (autotuning)
Process Output	Relay 5A @ 250 V~ or SSR output (24 mA / 12 V==)
Alarm Outputs	2 relay outputs 5A @ 250 V~ or SSR (depending on configuration)
Display	PV: red LED 4 digits (height varies by model); SV: green LED 4 digits
Protection	Front IP65, rear IP20
Operating Temperature	0 to 50 °C
Humidity	0 to 90% RH (non-condensing)
Power Supply	24 V~ / 24 V=, 115 V~, 230 V~ (50/60 Hz) depending on order code
Dimensions (W x H x D)	ESM-4420: 48 x 48 x 95 mm; ESM-7720: 72 x 72 x 95.5 mm; ESM-9920: 96 x 96 x 96 mm
Panel Cutout	ESM-4420: 46 x 46 mm; ESM-7720: 69 x 69 mm; ESM-9920: 92 x 92 mm
Weight	ESM-4420: 220 g; ESM-7720: 270 g; ESM-9920: 340 g
Sensor Break Protection	Yes, automatic detection
Advanced Functions	Soft start, configurable alarms, cold junction compensation
Cleaning	Soft cloth slightly damp (water or ethyl alcohol); do not use solvent
Warranty	2 years (manufacturing defects and materials)
Manufacturer	Emko Elektronik, Bursa, Turkey

Frequently Asked Questions - ESM-4920 Emko

How do I change the set point of the process?

From the main screen, press PSET. Use the Up/Down arrows to adjust the value, then press ASET/OK to confirm and return to the main screen. The device automatically exits this mode after 120 seconds of inactivity.

How do I set the alarms?

Press ASET to access the Alarm 1 set point (AS1). Use the arrows to change the value, then press ASET/OK to confirm. Repeat for Alarm 2 (AS2). Alarms can be configured as high, low, or with hysteresis in the programming menu (Prot).

What should I do if the display shows an error message?

Possible error messages: Err1: sensor disconnected or faulty; PV flashing: value outside low/high limits (PLoL/PuP); Err5: adaptive tuning conditions not met. Check connections, sensor type, and range parameters.

How do I start adaptive tuning (autotuning)?

Access the Programming menu (press and hold PSET for 5 s), enter the password if necessary (default 0). Go to the Cont menu, then set tunE to YES. Press ASET/OK to start. During tuning, the SET display shows a flashing EunE. Ensure the process temperature is below (heating) or above (cooling) at least 5% of full scale compared to the set point.

What types of thermocouples are supported?

The device accepts thermocouple types J (Fe-CuNi), K (NiCr-Ni), R (Pt13%Rh-Pt), S (Pt10%Rh-Pt), and T (Cu-CuNi) according to IEC584.1 (ITS90). It also accepts PT-100 RTD (IEC751 ITS90).

How do I install the controller in a panel?

Cut an opening to the specified dimensions (46x46, 69x69 or 92x92 mm depending on model). Place the sealing gasket, insert the device from the front. Secure it using the two fixing brackets provided, tightening the screws until firmly held. Connect the power supply and inputs/outputs according to the wiring diagram.

What power supply voltages are available?

The power supply can be ordered as 24 V~ or 24 V=, 115 V~ or 230 V~ (50/60 Hz). Check the order code on the label: code A2 = 24 V~/=, A3 = 24 V~, A4 = 115 V~, A5 = 230 V~.

How do I clean the housing?

Use a soft cloth slightly moistened with water or ethyl alcohol. Never use hydrocarbon-based solvents (petroleum, trichloroethylene) as they can damage the plastic and reduce reliability.

What should I do if the programming menu password is lost?

The default password is 0. If a custom password has been set and forgotten, it cannot be recovered. Contact Emko service for a reset. Note that the password is set in the PrPS parameter of the Protection menu.

What is the warranty period and what does it cover?

The warranty is 2 years from the date of delivery. It covers manufacturing defects and materials. It does not apply in case of misuse, modification, or improper installation. For any claims, contact Emko Elektronik.

USER MANUAL ESM-4920 Emko

Five black electronic control unit units with digital displays and buttons, displayed against a plain orange background (no readable text or symbols on devices)

PID TEMPERATURE CONTROL UNITS ESM-XX20

ESM-9920, ESM-9420, ESM-7720, ESM-4920, ESM-4420 PID Temperature Control Units

• 4 digit process (PV) and 4 digit set (SV) display
• Process input (TC, RTD)
• Programmable ON/OFF, P, PI, PD and PID control forms
• Adaptation of PID Coefficients to the system with Self-Tune operation (Step Response Tuning)
• Programmable Heating or Cooling Functions for Control Output
• Selectable Alarm Functions for Alarm Output

ESM series temperature controllers are designed for measuring and controlling a process value. They can be used in many applications with their TC and RTD temperature measurement input, multi-function control outputs, selectable alarm functions.

They are mainly used in glass, plastic, petro-chemistry, textile, automotive and machine production industries. Accurate and advanced controlling is performed with selectable ON-OFF, P, PI, PD, PID and Self Tune PID functions.

Specifications

Process Input: TC, RTD

Thermocouple (TC): J, K, R, S and T (IEC584.1)(ITS90) Thermoresistance (RTD): PT-100 (IEC751)(ITS90)

Measurement Range : Please refer to Table-1 for selection of input type and scale.

Accuracy : ± 0.25% of scale for thermocouple and thermoresistance

Cold Junction Compensation: Automatically ±0.1°C/1°C

Line Compensation : Maximum 10 Ohm

Sensor Break Protection : Upscale

Sampling Cycle : 3 samples per second

Input Filter : 1.0 second.

Control Form : ON/OFF, P, PI, PD or PID (Control form can be programmed by the user.)

Output

Process Output : Relay (5A@250V\~at resistive load) or SSR

Driver Output (Maximum 24mA, Max. 12V ---)

Alarm Output: Relay(5A@250V\~ at resistive load) or SSR Driver

Output(Alarm Output - 2) (Maximum 24mA, Max. 12V —— )

Supply Voltage

(It must be determined in order)

Display

Process Display :

ESM-4420:10.1 mm Red 4 digit LED Display

ESM-4920 : 13.2 mm Red 4 digit LED Display

ESM-7720:13.2 mm Red 4 digit LED Display

ESM-9420 : 10.1 mm Red 4 digit LED Display

ESM-9920 : 19 mm Red 4 digit LED Display

Set Value Display :

ESM-4420 : 8 mm Green 4 digits LED Display

ESM-4920 : 8 mm Green 4 digits LED Display

ESM-7720 : 9.1 mm Green 4 digits LED Display

Environmental Ratings and Physical Specifications

Operating Temperature : 0...50°C

Humidity : 0-90%RH (none condensing)

Protection Class : IP65 at front, IP20 at rear

Weight : ESM-4420 : 220 gr. , ESM-4920 : 240 gr.

ESM-7720 : 270 gr. , ESM-9420 : 230 gr.

ESM-9920 : 340 gr.

Dimension :

ESM-4420 : (48 x 48mm, Depth : 95mm)

ESM-4920 : (96 x 48mm, Depth : 94.5mm)

ESM-7720 : (72 x 72mm, Depth : 95.5mm)

ESM-9420 : (48 x 96mm, Depth : 94.5mm)

ESM-9920 : (96 x 96mm, Depth : 96mm)

Panel CutOut :

ESM-4420 : (46 x 46mm)

ESM-4920 : (92 x 46mm)

ESM-7720 : (69 x 69mm)

ESM-9420 : (46 x 92mm)

ESM-9920 : (92 x 92mm)

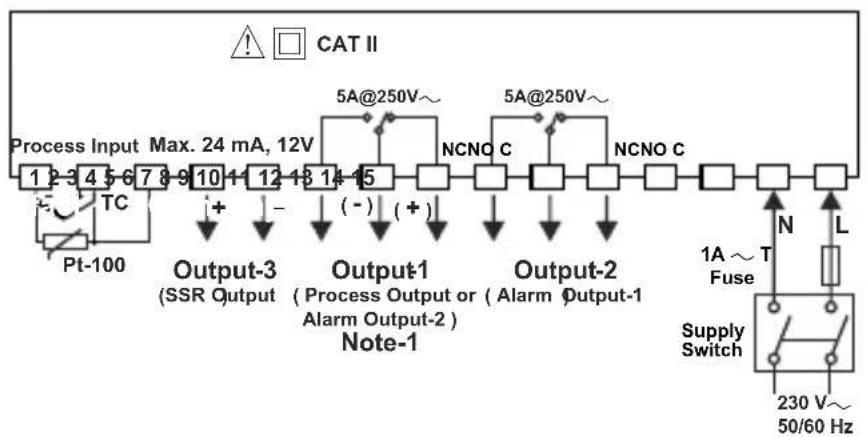

Electrical Wirings

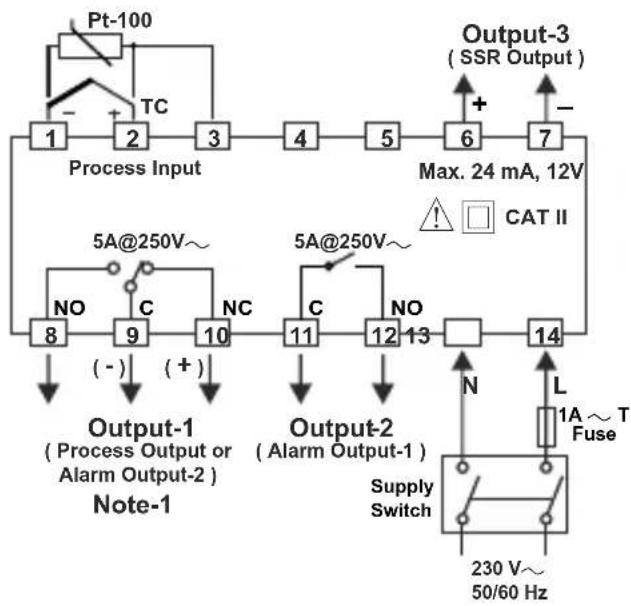

ESM-4420


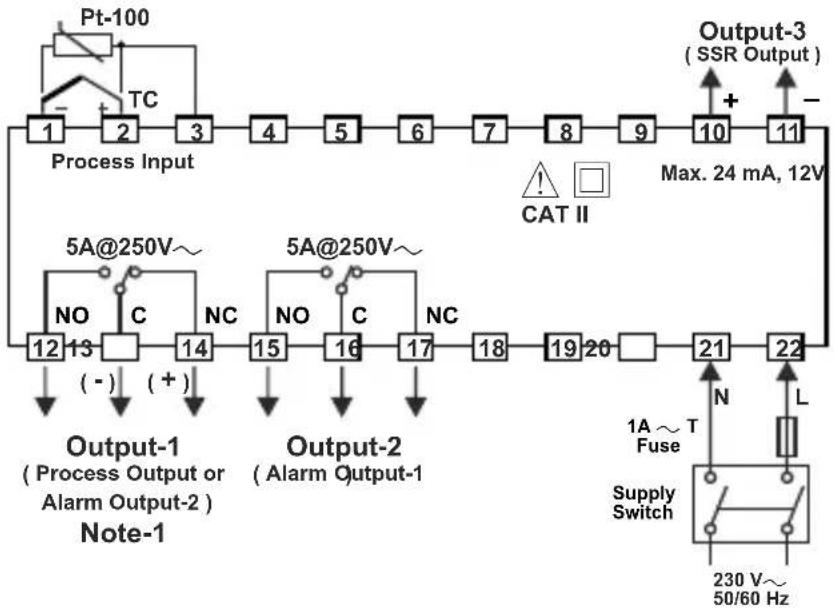

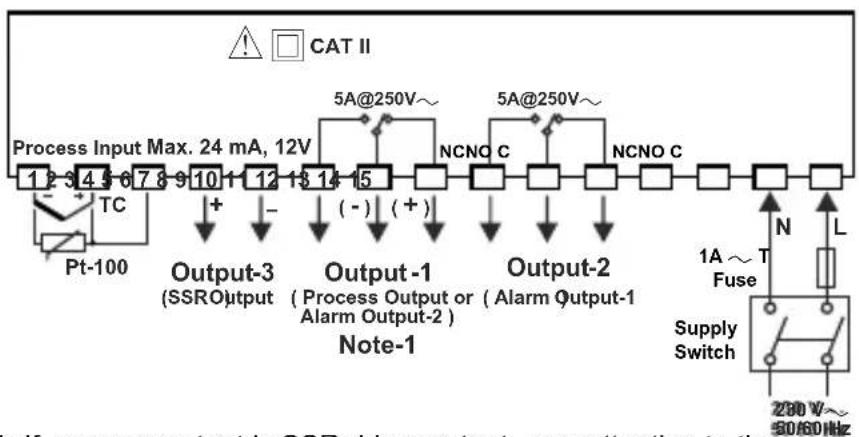

ESM-4920

ESM-7720

ESM-9420

ESM-9920

Note-1: If process output is SSR driver output, pay attention to the (+) and (-) pins while doing the connection of the device

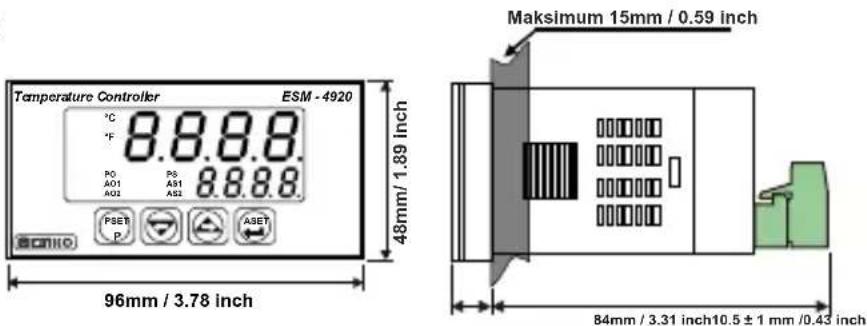

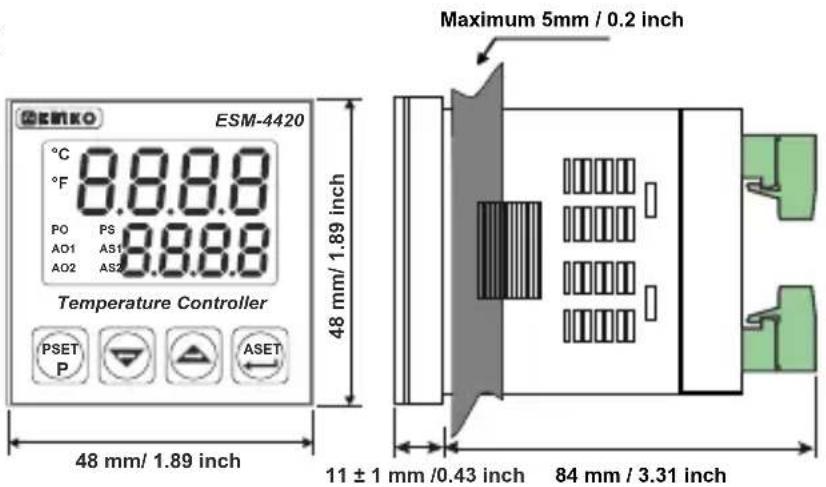

Dimension

ESM-4420

ESM-4420 Temperature Controller PSET P ASET 48 mm/ 1.89 inch Maximum 5mm / 0.2 inch 11 ± 1 mm /0.43 inch 84 mm / 3.31 inch

ESM-4920

Temperature Controller ESM - 4920 °C 8.8.8.8 °F PO P8 A51 8.8.8.8 A01 A52 A02 PSET A3ET P A3ET 48mm/ 1.89 inch 96mm / 3.78 inch Maksimum 15mm / 0.59 inch 84mm / 3.31 inch 10.5 ± 1 mm / 0.43 inch

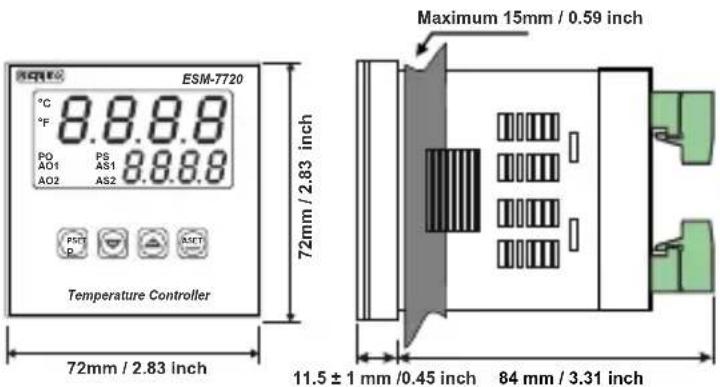

ESM-7720

ESM-7720 °C 8.8.8.8 °F P0 P6 AO1 AS1 8.8.8.8 AO2 AS2 PSET P RESET Temperature Controller 72mm / 2.83 inch 72mm / 2.83 inch Maximum 15mm / 0.59 inch 11.5 ± 1 mm /0.45 inch 84 mm / 3.31 inch

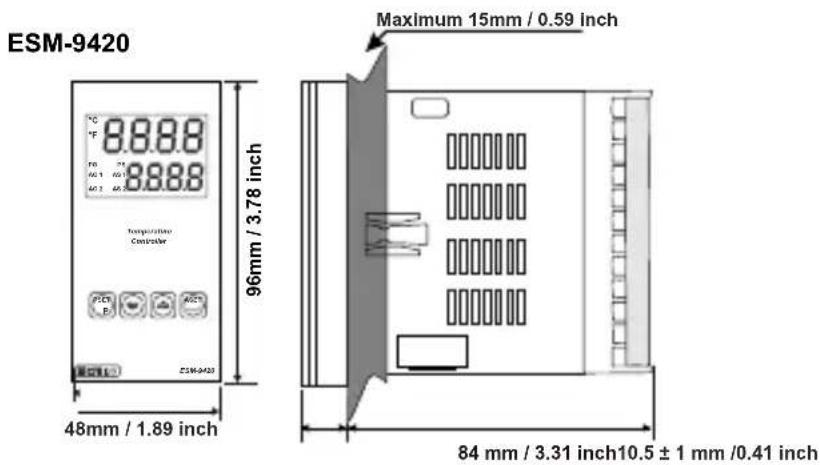

ESM-9420 Temperature Controller 96mm / 3.78 inch 48mm / 1.89 inch Maximum 15mm / 0.59 inch 84 mm / 3.31 inch 10.5 ± 1 mm /0.41 inch

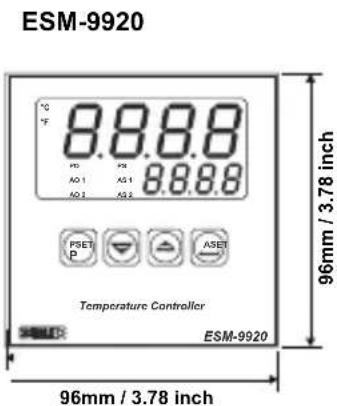

ESM-9920 8.8.8.8 10 PSE AO 1 AS 1 AS 2 AS 2 8.8.8.8 PSET P ASER ASER Temperature Controller ESM-9920 96mm / 3.78 inch 96mm / 3.78 inch

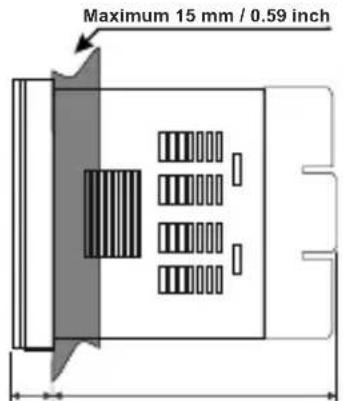

Maximum 15 mm / 0.59 inch

84 mm / 3.31 inch12 ± 1 mm /0.47 inch

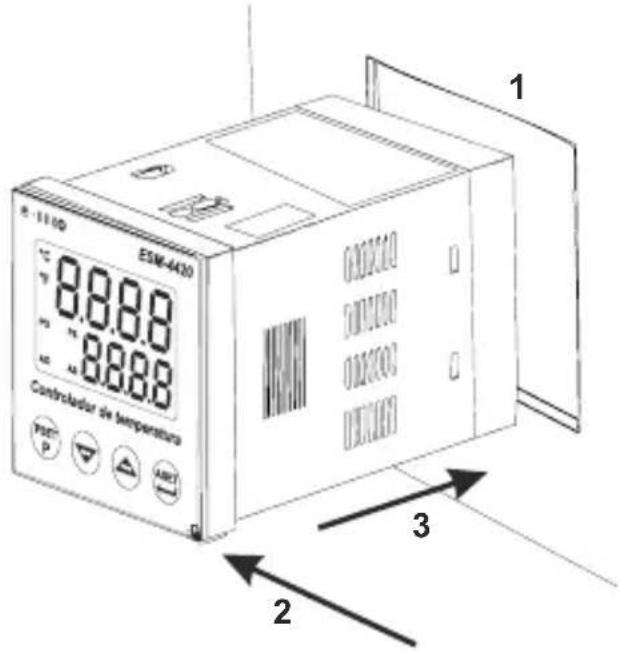

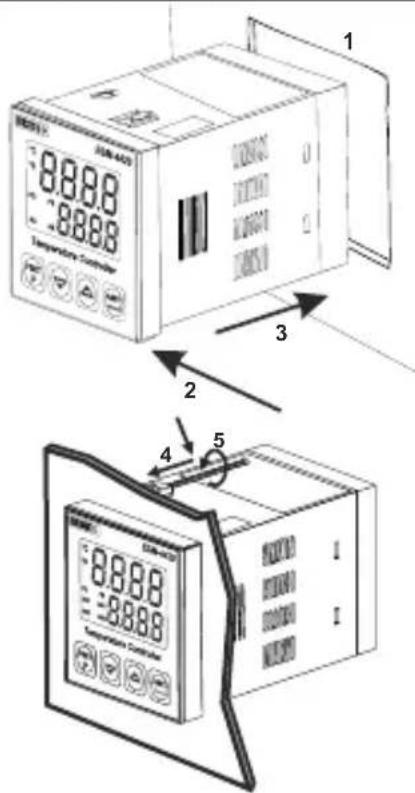

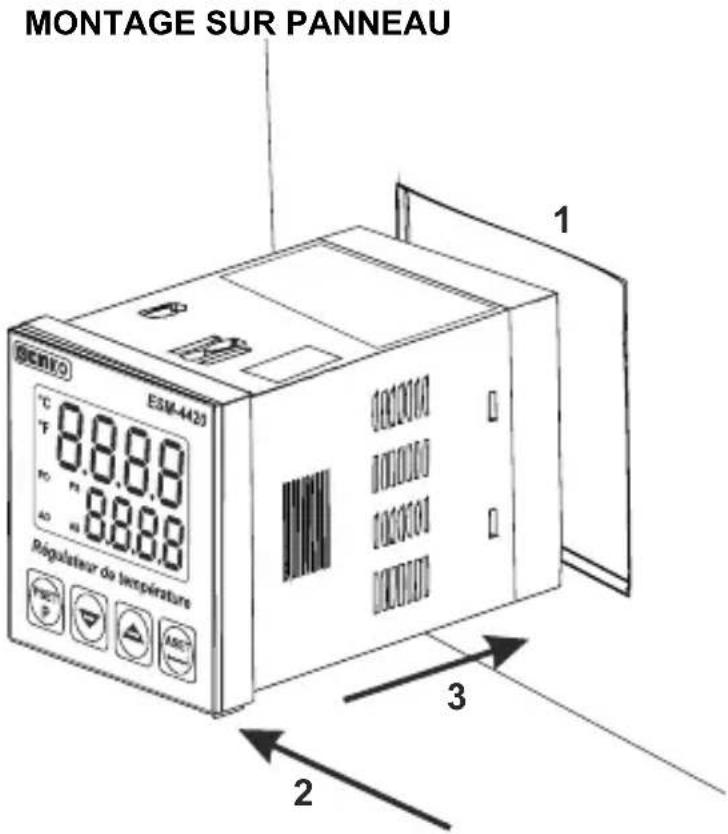

Panel Mounting

88.88 88.88 Temperature Control 1 2 3 4 5

1-Before mounting the device in your panel, make sure that the cutout is of the right size.
2-Check front panel gasket position
3-Insert the device through the cutout. If the mounting clamps are on

the unit, put out them before inserting the unit to the panel.

4-Insert the unit in the panel cut-out from the front side.

5- Insert the mounting clamps to the holes that located top and bottom sides of device and screw up the fixing screws until the unit completely immobile within the panel.

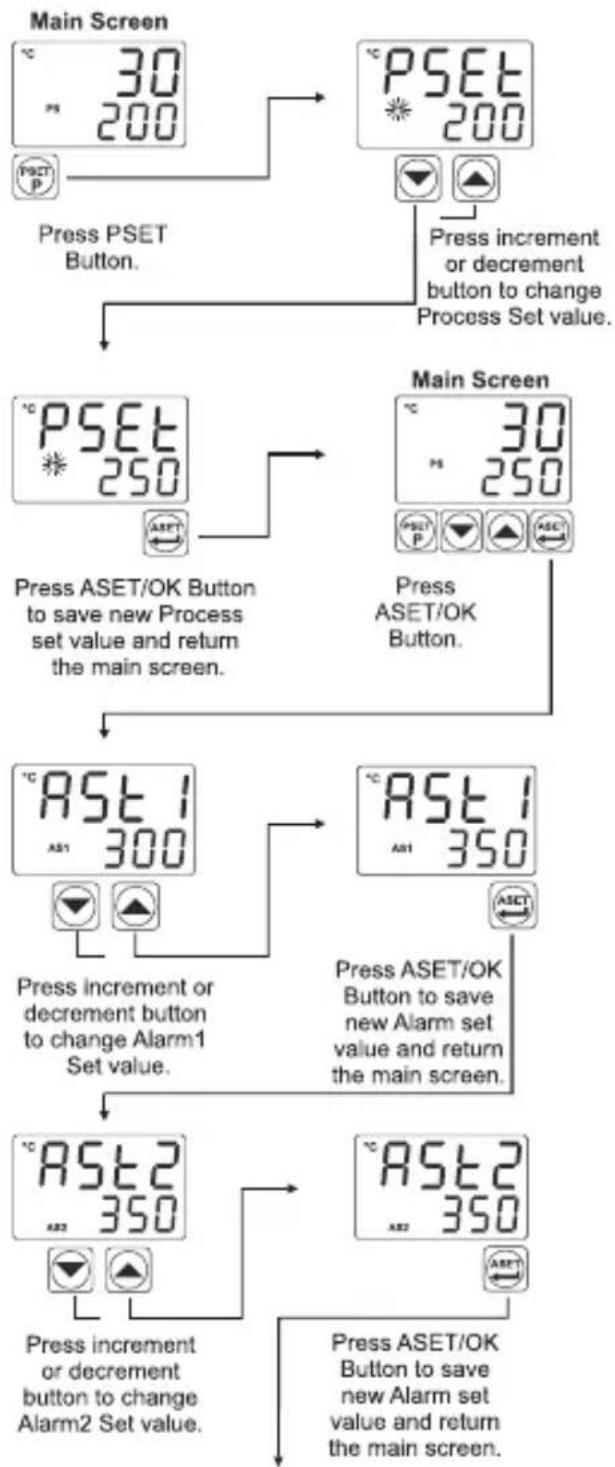

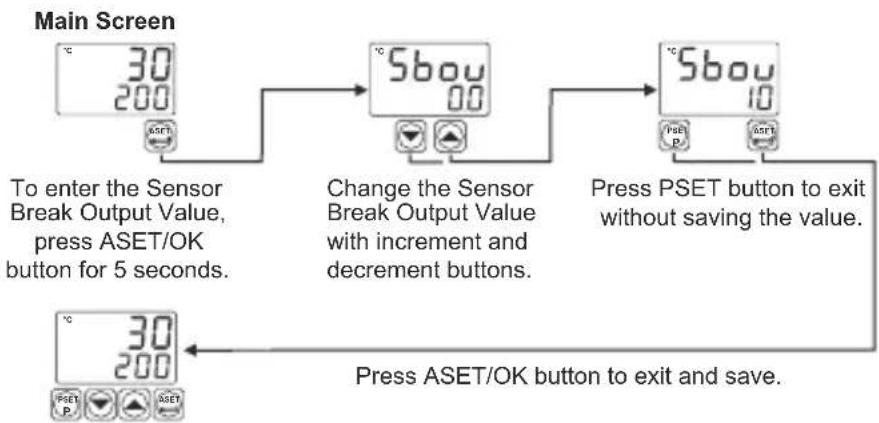

Access and Change Set Values

Note: User can exit from Set Value section without saving the values by pressing button. If no operation for 120 seconds, device automatically exits from Set Value section.

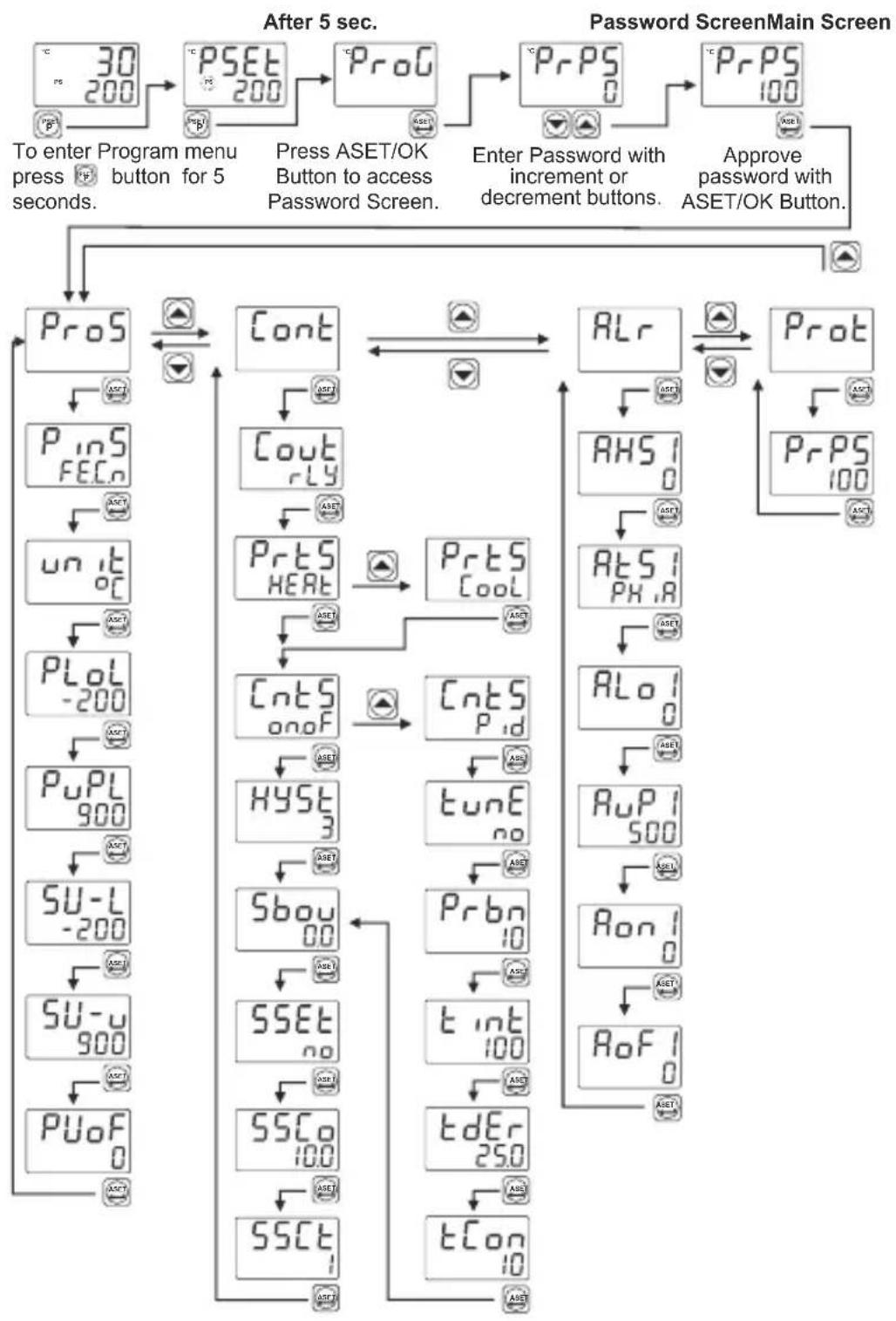

Easy Access Diagram For Program Parameters

    K["ProS"] --> L["Cont"]
    L --> M["Cout rLy"]
    M --> N["Prts HEAT"]
    N --> O["CntS onoF"]
    O --> P["CntS P_id"]
    P --> Q["AHS 1 0"]
    Q --> R["AtS 1 PH,R"]
    R --> S["ALo 1 0"]
    S --> T["AuP 1 500"]
    T --> U["Ron 1 0"]
    U --> V["RoF 1 0"]

    W["PinS FECn"] --> X["un it oC"]
    X --> Y["PLoL -200"]
    Y --> Z["PuPL 900"]
    Z --> AA["SU-L -200"]
    AA --> AB["SU-u 900"]
    AB --> AC["PuO F 0"]

    AD["ASST"] --> AE["ASST"]
    AF["ASST"] --> AG["ASST"]

    AH["ASST"] --> AI["ASST"]

    AJ["ASST"] --> AK["ASST"]

    AL["ASST"] --> AM["ASST"]

    AN["ASST"] --> AO["ASST"]

    AP["ASST"] --> AQ["ASST"]

    AR["ASST"] --> AS["ASST"]

    AT["ASST"] --> AU["ASST"]

    AV["ASST"] --> AW["ASST"]

    AX["ASST"] --> AY["ASST"]

    AZ["ASST"] --> BA["ASST"]

    BB["ASST"] --> BC["ASST"]

    BD["ASST"] --> BE["ASST"]

    BF["ASST"] --> BG["ASST"]

    BH["ASST"] --> BI["ASST"]

    BJ["ASST"] --> BK["ASST"]

    BL["ASST"] --> BM["ASST"]

    BN["ASST"] --> BO["ASST"]

    BP["ASST"] --> BQ["ASST"]

    BQ --> BR["ASST"]

    BS["ASST"] --> BT["ASST"]

    BU["ASST"] --> BV["ASST"]

    BW["ASST"] --> BX["ASST"]

    BY["ASST"] --> BZ["ASST"]

    CA["ASST"] --> CB["ASST"]

    CC["ASST"] --> CD["ASST"]

    CE["ASST"] --> CF["ASST"]

    CG["ASST"] --> DH["ASST"]

    DI["ASST"] --> DJ["ASST"]

    DK["ASST"] --> DL["ASST"]

    DM["ASST"] --> DJ
    DE["TdEr 250"] --> DD["tCon 10"]

Note: If user does not do anything for 120 seconds while device is on programming section, device turns to operation screen.

Easy Access Diagram For Sensor Break Output Value

Note: If user does not do anything for 120 seconds while device is on this section, device turns to operation screen.

Note-2: Sensor Break Output Value can be adjusted on programming section too.

Tune Operation

Starting the Tune operation

1-Enter to the programming section

2- Select YES, tuned parameter in Cont menu. Press ASET/OK button for saving the parameter and turn to the main operation screen.

3- Observe that "Eune" blinks in set display.

Note- For starting the Tune operation,

Heating Tune Operation: Process value must be lower than process set value at least 5% of full scale tErr

Cooling Tune Operation :Process value must be greater than process set value at least 5% of the full scale. If this condition is not okay, Blinks on the screen for 10 seconds.

Canceling Self Tune operation :

1- If sensor breaks ;

2- If Self Tune operation can not be completed in 8 hours ;

3- While heating Self Tune is running, if process value becomes greater than Process Set value

4- While cooling Self Tune is running, if process value becomes less than Process Set value;

5- While Self Tune operation is running, if user changes the process set value;

Then Self Tune operation is canceled, device continues to run with former PID parameters without changing PID parameters.

Pro5 : Process Menu Parameters

P_inS : Process input type selection ; (Default:FEEn ) FEEn : J type (Fe,Cu,Ni) Thermocouple , ; -200°C,900°C -328°F,1652°F nCrn : K type (Ni,Cr,Ni) Thermocouple , -200°C,1300°C ; -328°F,2372°F P13r : R type (Pt13%RhPt) Thermocouple , 0°C,1700°C ; 32°F,3092°F P10r : S type (Pt10%RhPt) Thermocouple , 0°C,1700°C ; 32°F,3092°F CuCn : T type (Cu,Cu,Ni) Thermocouple , -200°C,400°C ; -328°F,752°F rtdU : Pt - 100 , -200°C,650°C ; -328°F,1202°F rtdI : Pt - 100,-199.9°C,650.0°C ; -199.9°F,999.9°F Unit : Unit Selection.°C or °F can be chosen. (Default: °C ) PLoL : Operation Scale minimum (Low Limit) averages according to the process input type and scale. (Default: -200) PuPL : Operation Scale Minimum values according to the process input type and scale. (Default: 900)

SU-L : Process Set value Low Limit. Minimum set value is defined with this parameter. It changes according to the process input type and scale. (Default: -200)
SU-u : Process Set value High Limit. Maximum set value is defined with this parameter. It changes according to the process input type and scale. (Default: 900)
PUoF : Display offset for process value. It can be adjusted from -10% of scale to 10% of scale. It is added to the process display value. (Default: 0)

Note: If process input type selection( P_inS ) is changed, PLoL , PuPL, SU-L , SU-u, PUoF, RLoJ, RuPi, RLo2, RuP2, PSEt, AST1 and AST2

parameters may need to be updated according to the input type selection.

Cont : Control Menu Parameters

This parameter determines, which output will be Process control output. If rLY is chosen, process output is relay output, if SSr is chosen, process output is SSR output. (Default: Ssr)
P-ES : Process Type Selection. It can be HEAT or Cool .(Default: HEAT)
[entS] : Process Control Type Selection. It can be onoF or P_id . (Default: onoF )
tunE : If tune parameter is set to YES, device start to calculate PID parameters automatically. This parameter is shown if [cntS] = p_id. (Default: no)
Prbn : Proportional band. It can be adjusted from %1 to %100. If CntS = P_id, then this parameter can be observed. (Default: 10.0)
t int : Integral Time. 10 car 360 as-justed. from = , the int5 P rd this parameter can be observed. (Default: 100)
tdEr : Derivative Time. It can be adjusted from this parameter can be observed. (Default: 25.0)
tCon : Output Control Period. If can 50 adjusted from If then this parameter can be observed. (Default: 10)
Hyst: Hysteresis value. It of the S adjusted from %0 ile %50 (If CntS=onof, then this parameter can be observed (Default: 3)
5bou : Sensor Break Output Value. %0 to %100. It can be adjusted from (Default: 0.0)
SSEt : Soft Start Set value. Device operates in Soft Start mode, until the temperature reaches Soft Start set value. (Default: no)
SSCo : Soft Start Control Output. This parameter determines soft start mode control output percentage. (Default: 10.0)
SSCE : Soft Start Control time. This parameter determines soft start mode control time (Default:1)

: Alarm Menu Parameters

RHS ! : Alarm Hysteresis value.It.can be adjusted from %0 ile %50 of the Scale( R_uPL - R_LoL ) (Default: 0)

RES : Alarm Type selection. (Default: PH,R)

ALo1 : Alarm Set Low Limit parameter. It can be adjusted from Operation Scale minimum to Alarm Set High Limit. (Default: 0)

R_uP! : Alarm Set High Limit parameter. It can be adjusted from Alarm Set Low Limit to Operation Scale maximum. (Default: 500)

: Alarm on Delay Time. It can be adjusted from 0 to 9999 seconds. (Default: 0)

RoFi : Alarm off Delay Time. It can be adjusted from 0 to 9998 seconds. If it is higher than 9998, LICH, is seen on the screen and Alarm Latching Output is selected. (Default: 0)

RH52 : Alarm Hysteresis value. It can be adjusted from %0 ile %50 of the Scale (RuPL - RLoL). (Default: 0)
At52 : Alarm Type selection. (Default: PH,R)
ALo2 : Alarm Set Low Limit parameter. It can be adjusted from Operation Scale minimum to Alarm Set High Limit. (Default: 0)
R_uP_c2 : Alarm Set High Limit parameter. It can be adjusted from Alarm Set Low Limit to Operation Scale maximum. (Default: 500)
_on^2 : Alarm on Delay Time. It can be adjusted from 0 to 9999 seconds. (Default: 0)
RoF2 : Alarm off Delay Time. It can be adjusted from 0 to 9998 seconds. If it is higher than 9998, LCH is seen on the screen and Alarm Latching Output is selected. (Default: 0)

NOTE: Alarm-2 parameters(AHS2, AtS2, Alo2, AuP2, Aon2, AoF2) are active, if Cout parameter is set as SSR.

PROE : Protection Menu Parameter

PrPS : Password for accessing to the programming section. It can be adjusted from 0 to 9999. If PrPS is 0, password screen is not observed. If PrPS is different from 0 and user enters to the menu pages without entering the password, all the menus can be observed except protection menu Prot. But device does not allow to do any changes in parameters. (Default value is 0)

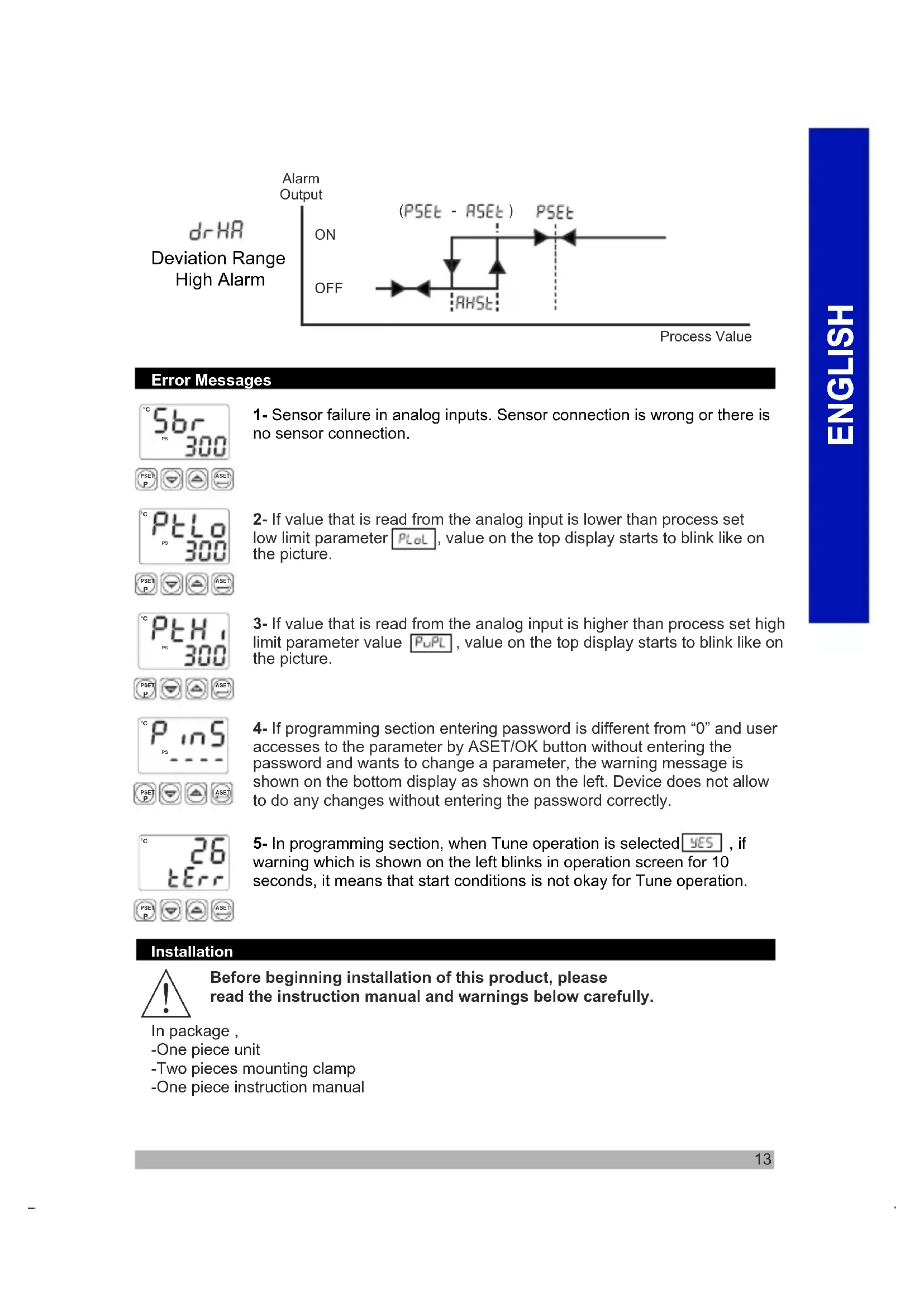

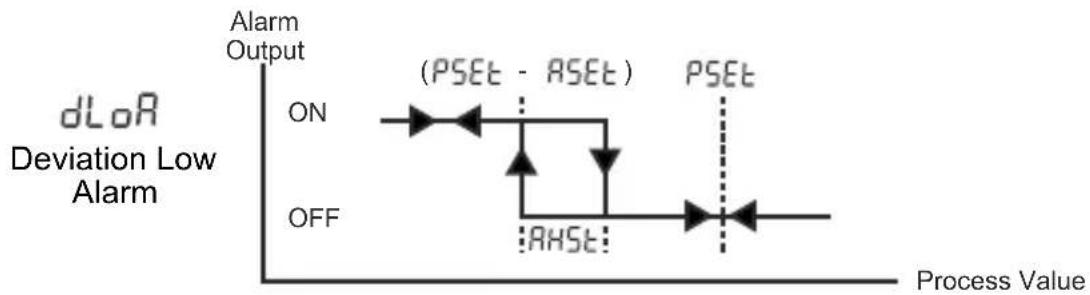

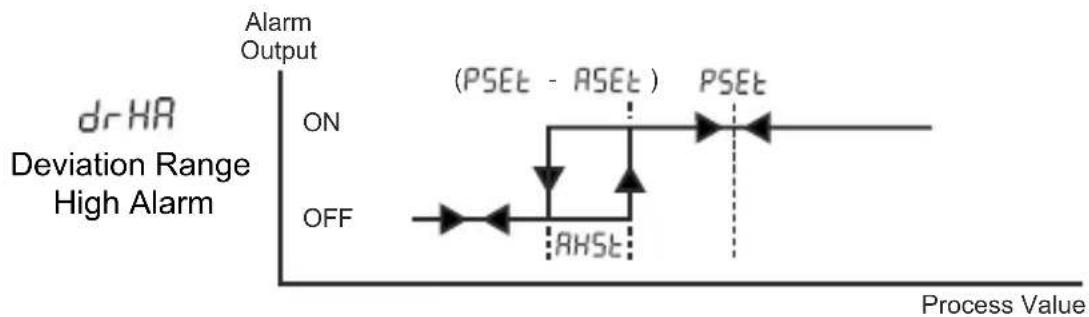

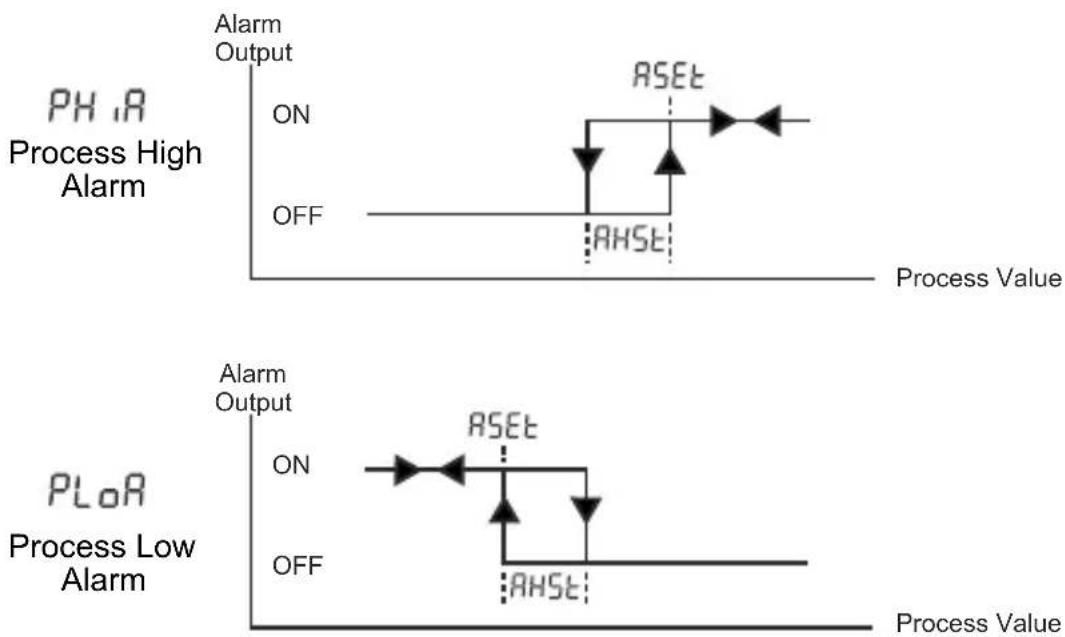

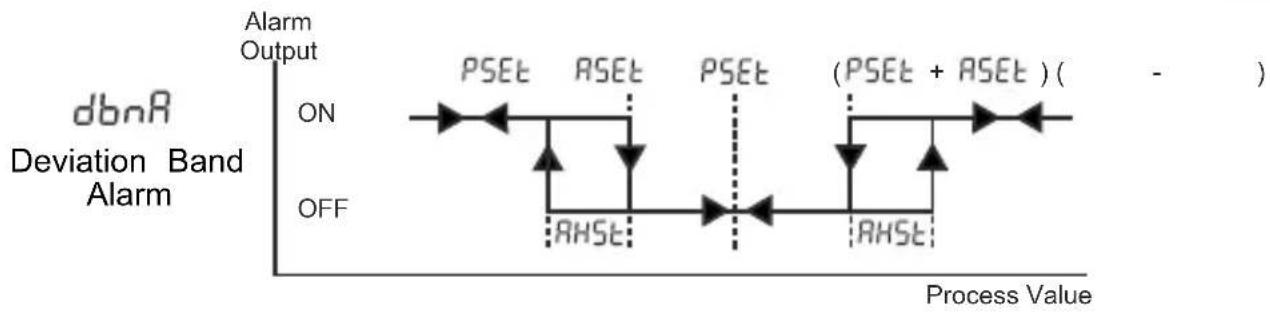

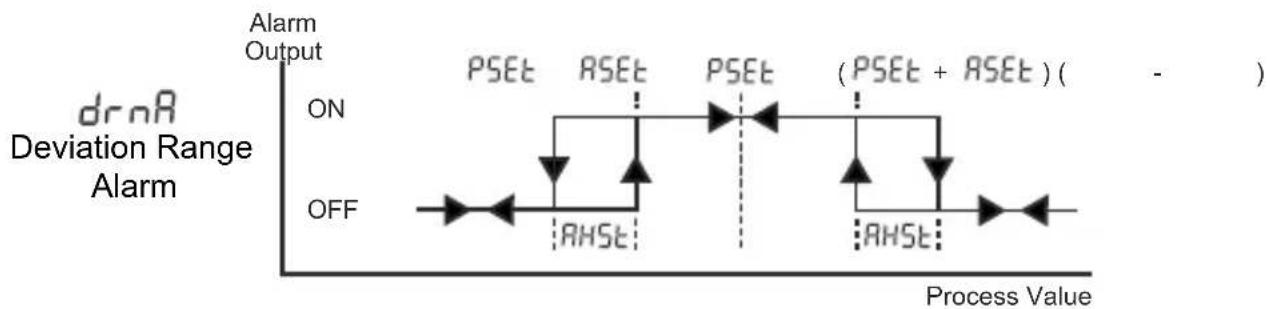

Alarm Types

Error Messages

1- Sensor failure in analog inputs. Sensor connection is wrong or there is no sensor connection.

2- If value that is read from the analog input is lower than process set low limit parameter P_Lol , value on the top display starts to blink like on the picture.

3- If value that is read from the analog input is higher than process set high limit parameter value , value on the top display starts to blink like on the picture.

4- If programming section entering password is different from "0" and user accesses to the parameter by ASET/OK button without entering the password and wants to change a parameter, the warning message is shown on the bottom display as shown on the left. Device does not allow to do any changes without entering the password correctly.

5- In programming section, when Tune operation is selected YES, if warning which is shown on the left blinks in operation screen for 10 seconds, it means that start conditions is not okay for Tune operation.

Installation

Before beginning installation of this product, please read the instruction manual and warnings below carefully.

In package,

-One piece unit

-Two pieces mounting clamp

-One piece instruction manual

A visual inspection of this product for possible damage occurred during shipment is recommended before installation. It is your responsibility to ensure that qualified mechanical and electrical technicians install this product.

If there is danger of serious accident resulting from a failure or defect in this unit, power off the system and the electrical connection of the device from the system.

The unit is normally supplied without a power switch or a fuse. Use power switch and fuse as required.

Be sure to use the rated power supply voltage to protect the unit against damage and to prevent failure.

Keep the power off until all of the wiring is completed so that electric shock and trouble with the unit can be prevented.

Never attempt to disassemble, modify or repair this unit. Tampering with the unit may results in malfunction, electric shock or fire.

Do not use the unit in combustible or explosive gaseous atmospheres. During the equipment is putted in hole on the metal panel while mechanical installation some metal burrs can cause injury on hands, you must be careful.

Montage of the product on a system must be done with it's mounting clamp. Do not do the montage of the device with inappropriate mounting clamp. Be sure that device will not fall while doing the montage.

It is your responsibility if this equipment is used in a manner not specified in this instruction manual.

Warranty

EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date.

This warranty is in force if duty and responsibilities which are determined in warranty document and instruction manual performs by the customer completely.

Maintenance

Repairs should only be performed by trained and specialized personnel. Cut power to the device before accessing internal parts. Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in ethyl alcohol or water to clean the external plastic case.

Other Information:

Manufacturer Information:

Emko Elektronik Sanayi ve Ticaret A.Ş.

Repair and Maintenance Service Information:

Emko Elektronik Sanayi ve Ticaret A.Ş.

A	BC	D	E	/	FG	HI	/	U	V	W	Z
		0		/	01	02	/	0	0	0	0

A	Supply Voltage
2	24V ~ 50/60Hz or 24V= ( ± %15 )
3	24V ~ ( ± %15 ) 50/60Hz
4	115V ~ ( ± %15 ) 50/60Hz
5	230V ~ ( ± %15 ) 50/60Hz
9	Customer

BC	Input Type	Scale
20	Configurable (Table-1)	(Table-1)
D	Serial Communication
0	None
E	Output-1(Process or Alarm)
1	Relay Output (5A@250V~ Resistive Load)
2	SSR Driver Output (Max. 24mA, Max.12V --- )
FG	Output-2(Alarm)
01	Relay Output (5A@250V~ Resistive Load)
HI	Output-3(Process)
02	SSR Driver Output (Max. 24mA, Max.12V --- )

Table-1

BC	Input Type(TC)	Scale(°C)	Scale(°F)
23	J ,Fe CuNi IEC584.1(ITS90)	-200°C,1300°C	-328°F,2372°F
25	K ,NiCr Ni IEC584.1(ITS90)	0°C,1700°C	32°F,3092°F
27	R ,Pt13%Rh Pt IEC584.1(ITS90)	0°C,1700°C	32°F,3092°F
28	S ,Pt10%Rh Pt IEC584.1(ITS90)	0°C,1700°C	32°F,3092°F
29	T ,Cu CuNi IEC584.1(ITS90)	-200°C,400°C	-328°F,752°F
BC	Input Type(RTD)	Scale(°C)	Scale(°F)
39	PT 100 , IEC751(ITS90)	-200°C,650°C	-328°F,1202°F
40	PT 100 , IEC751(ITS90)	-199.9°C,650.0°C	-199.9°F,999.9°F

Five black industrial control unit units with digital displays and indicator lights, displayed against a gradient orange background (no readable text or symbols on devices)

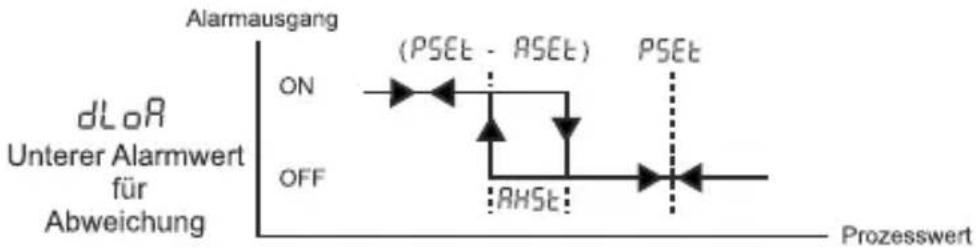

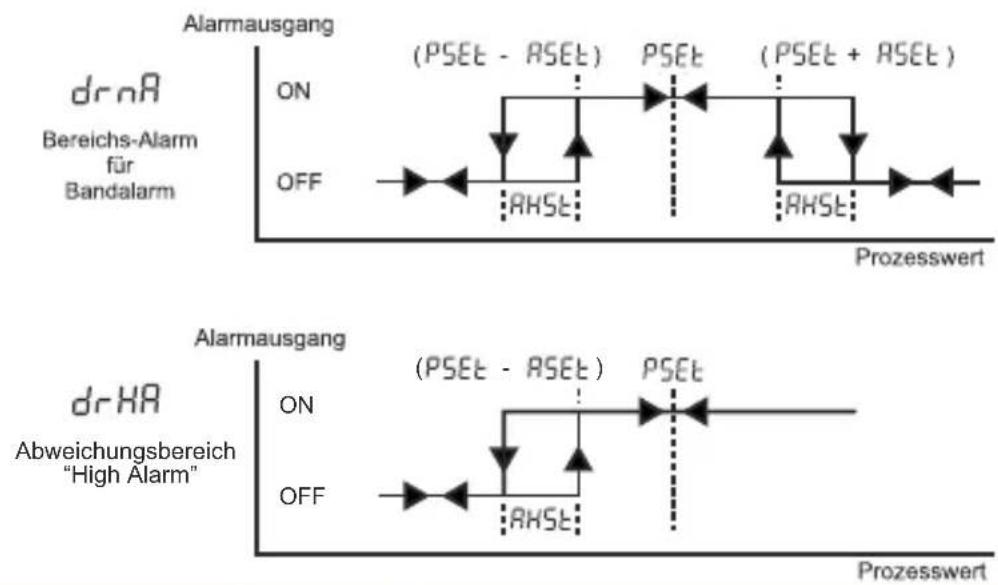

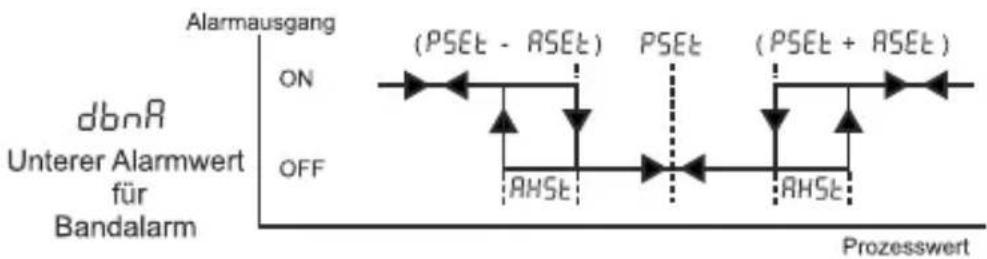

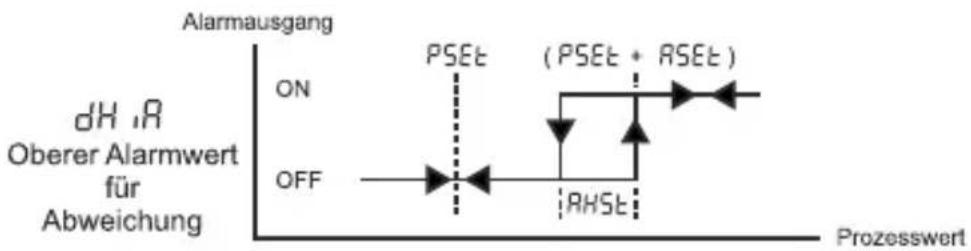

PID TEMPERATURREGLER ESM-XX20

ESM-9920, ESM-9420, ESM-7720, ESM-4920, ESM-4420 PID Temperaturregler

A	BC	D	E	/	FG	HI	/	U	V	W	Z
		0	1	/	01	02	/	0	0	0	0

A	Versorgungsspannung
2	24V ~ 50/60Hz or 24V==( ± %15 )
3	24V ~ ( ± %15 ) 50/60Hz
4	115V ~ ( ± %15 ) 50/60Hz
5	230V ~ ( ± %15 ) 50/60Hz
9	Kundenspezifisch

Five black industrial control unit units with digital displays and buttons, displayed against a plain orange background (no readable text or symbols on devices)

RÉGULATEURS DE TEMPÉRATURE PID ESM-XX20

ESM-4420, ESM-7720, ESM-9920

TENSION D'ALIMENTATION

230V ∼ (±15%) 50/60 Hz - 3VA

115V ∼ (±15%) 50/60 Hz - 3VA

24V ∼ ( ±15% ) 50/60 Hz - 3VA

Diagram of a room interior with ventilation grilles and a green wall-mounted device (no text or symbols)

12 ± 1 mm /0,47 pouce 84 mm / 3,31 pouce

MONTAGE SUR PANNEAU E3M-442J °C 8.8.8 F 8.8.8 P0 P1 8.8.8 AD 8.8.8 Régulateur de température 1 3 2

Five black industrial control unit units with digital displays and indicator lights, displayed against a plain orange background (no readable text or symbols on devices)

Diagram of a room interior with door, vent, and door frame (no text or symbols)

12 ± 1 mm /0,47 pulgadas
84 mm / 3,31 pulgadas

MONTAJE DEL PANEL

ESM-4420 8.8.8.8 8.8.8.8 Controclador de temperatura 1 2 3

A	BC	D	E	/	FG	HI	/	U	V	W	Z
			0		/	01	02	/	0	0	0

A	Tensión de alimentación
2	24 V ∼, 50/60 Hz o 24 V= (± %15)
3	24 V ∼(± %15) 50/60 Hz
4	115 V ∼ (± %15) 50/60 Hz
5	230 V ∼ (± %15) 50/60 Hz
9	Cliente
