USER MANUAL TAT4M223 BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/ welcome Compact toaster

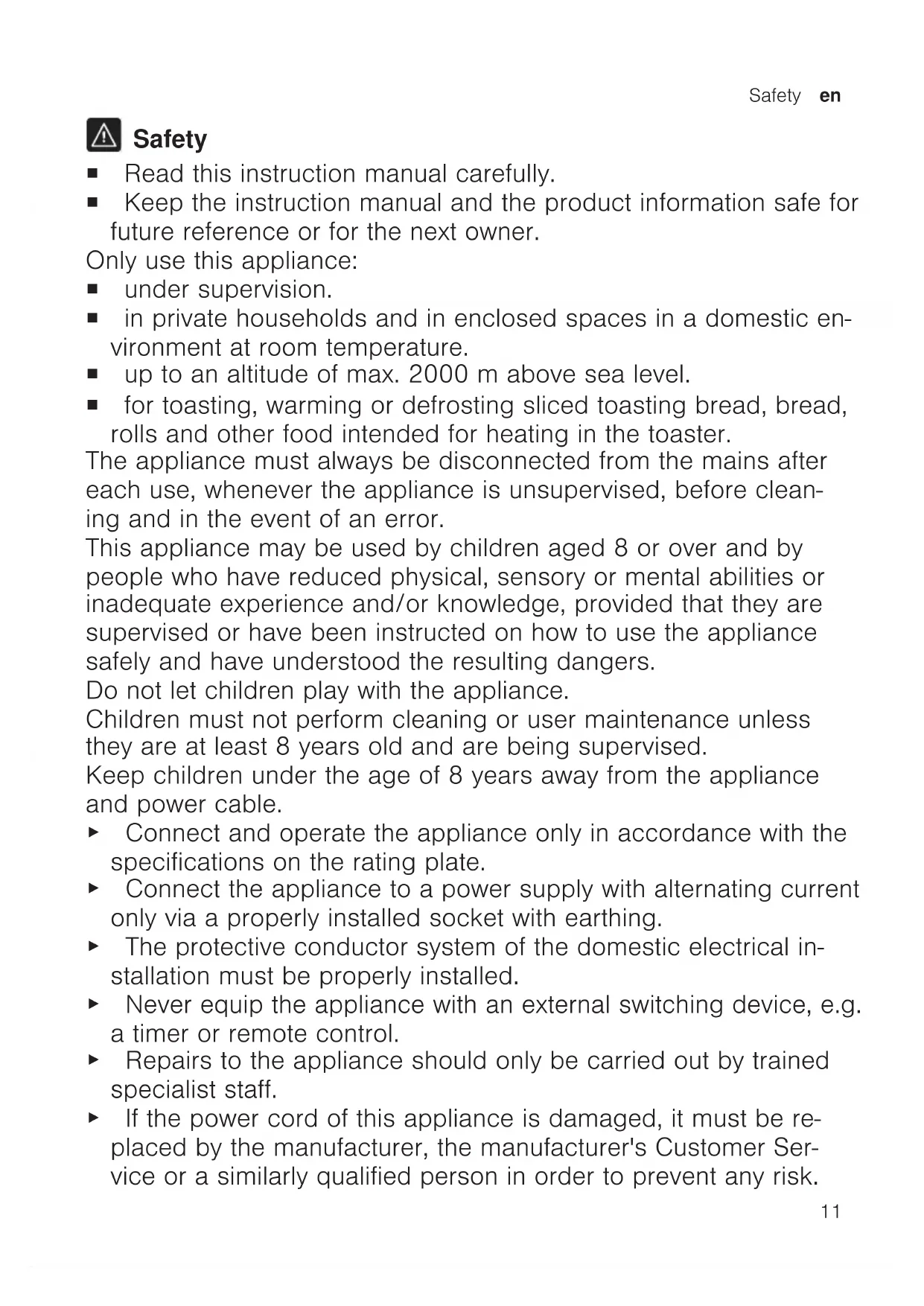

Safety ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. Only use this appliance: ¡ under supervision. ¡ in private households and in enclosed spaces in a domestic en- vironment at room temperature. ¡ up to an altitude of max. 2000m above sea level. ¡ for toasting, warming or defrosting sliced toasting bread, bread, rolls and other food intended for heating in the toaster. The appliance must always be disconnected from the mains after each use, whenever the appliance is unsupervised, before clean- ing and in the event of an error. This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Do not let children play with the appliance. Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised. Keep children under the age of 8 years away from the appliance and power cable. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing. ▶ The protective conductor system of the domestic electrical in- stallation must be properly installed. ▶ Never equip the appliance with an external switching device, e.g. a timer or remote control. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ If the power cord of this appliance is damaged, it must be re- placed by the manufacturer, the manufacturer's Customer Ser- vice or a similarly qualified person in order to prevent any risk.en Overview

▶ Never immerse the appliance or the power cord in water or clean in the dishwasher. ▶ Never use the appliance near water contained in a bath, sink or other vessels. ▶ Do not use steam- or high-pressure cleaners to clean the appli- ance. ▶ Do not use oven or grill sprays to clean the appliance. ▶ Never reach into the toast slots or insert objects into them, e.g. cutlery. ▶ Never operate a damaged appliance. ▶ Never place the appliance on or near hot surfaces. ▶ Never operate the appliance near or underneath inflammable materials such as curtains. ▶ Never cover the toast slots or heat food directly over them. ▶ Only operate the appliance in an upright position and with the crumb tray inserted. ▶ Always ensure proper use by pressing down the lever for the toast lift and never block it. ▶ Never leave the toaster unattended while in use! ▶ Never use foods that could drip during toasting or crisping-up. ▶ Never use greasy or fatty foods or foods containing a lot of sugar, e.g. waffles or bread with spread on. ▶ Remove the crumb tray and wipe it clean. ▶ Never touch the hot surfaces, only the controls. ▶ Allow the appliance to cool down before cleaning or transport- ing. ▶ To avoid injuries, only use the appliance for its intended purpose. ▶ Keep packaging material away from children. ▶ Do not let children play with packaging material. ▶ Keep small parts away from children. ▶ Do not let children play with small parts. Overview

Lever for toast lift

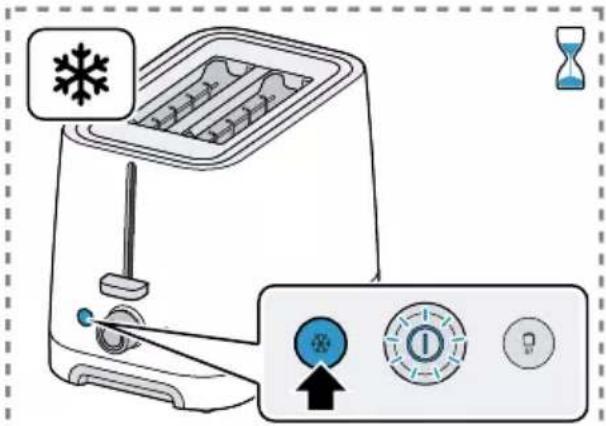

button with LED (defrost)

Rotary selector for toasting degree

button with LED (stop)Preparing the appliance for first use en

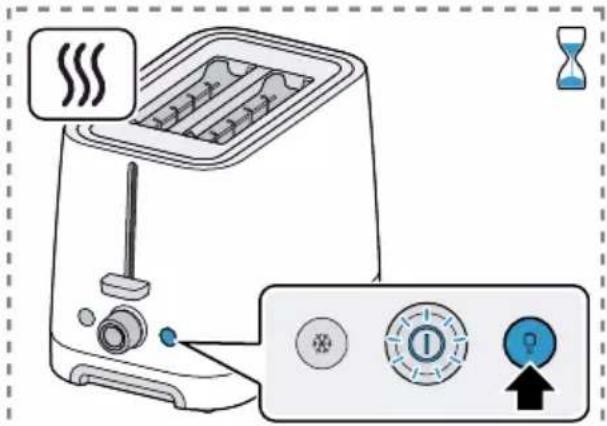

button with LED (warm)

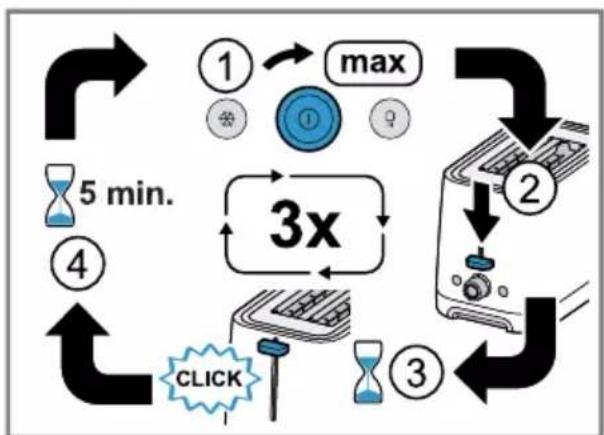

Warming rack Preparing the appliance for first use Note:Heat up the toaster 3 times without bread near an open window at the highest toasting degree setting and leave to cool down.

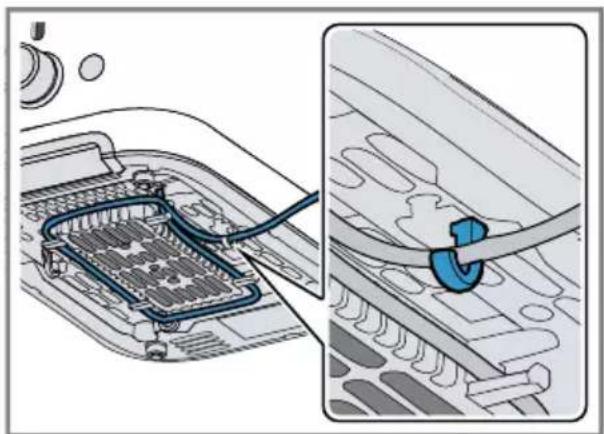

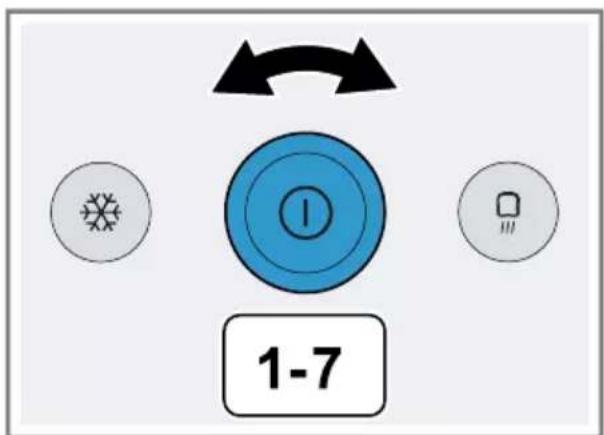

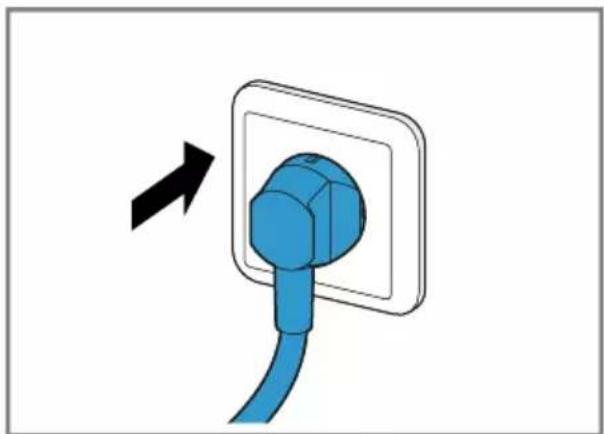

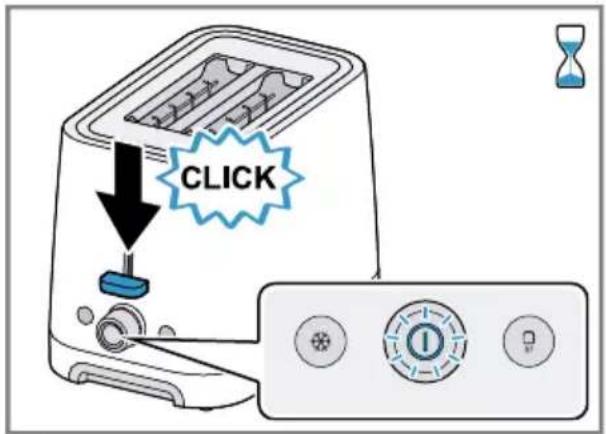

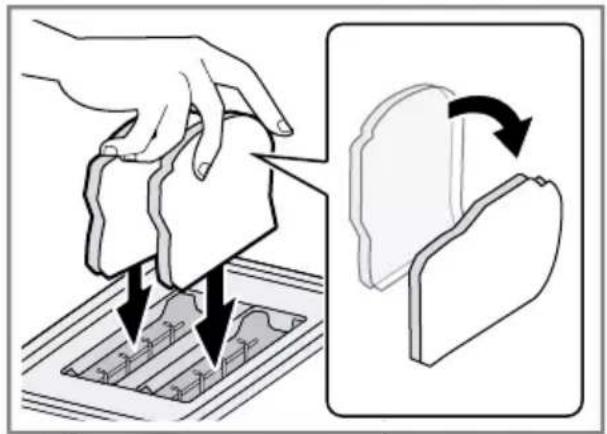

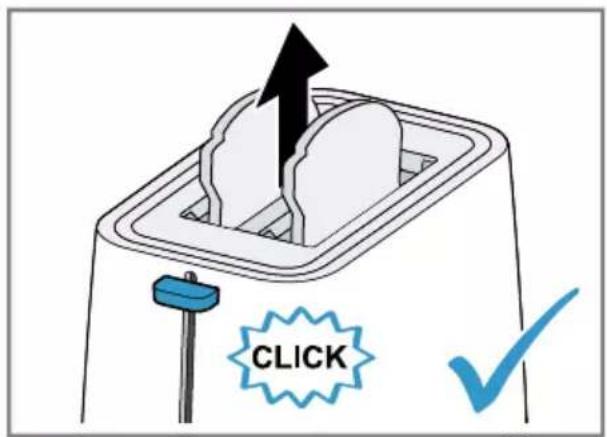

• Fig. 2 - 4 Operation General information Please bear this information in mind so that you can get the best out of your appliance. ¡ You can stop the current toasting pro- cess at any time by pressing the but- ton. ¡ If bread gets jammed in the toast slots, the appliance will switch off automatic- ally. Unplug the toaster, allow it to cool down and then carefully remove the jammed bread. ¡ Try different toasting degree settings when using the appliance for the first time, as results may vary depending on the type of bread and moisture level. ¡ When toasting a single slice of bread, use a lower toasting degree than with 2 slices. ¡ Acrylamide is harmful to your health and is produced when you cook cereal and potato products at very high temperat- ures. Do not toast food items to the point where they are too dark but until they are golden-yellow. Remove any burnt edges. Toasting degree setting Adjust the toasting degree according to the type of bread and personal taste. Setting Use To only warm bread without toasting it, press the but- ton after starting 1-2 Low toasting degree for dry types of bread 3-5 Medium toasting degree for moist types of bread 6-7 High toasting degree for very moist types of bread or thick slices of bread After starting, additionally press the button so frozen bread is toasted to the toast- ing degree selected Toasting, warming or defrosting slices of bread

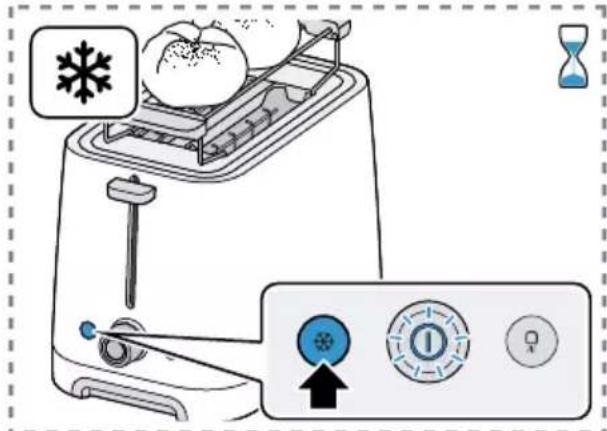

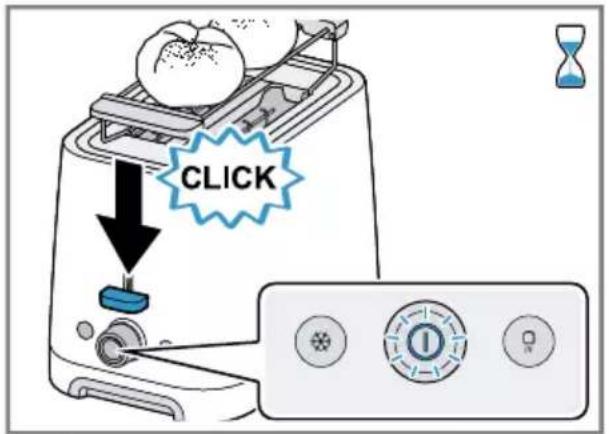

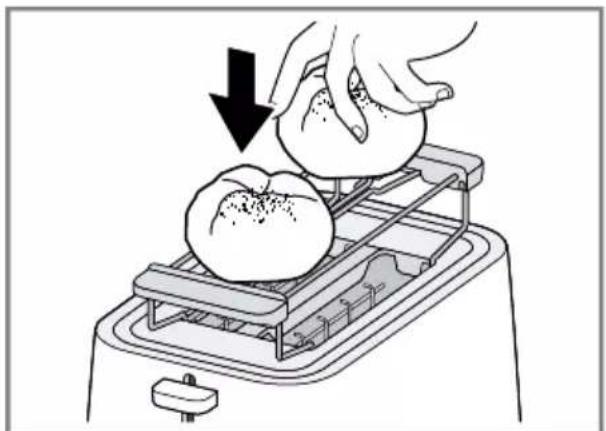

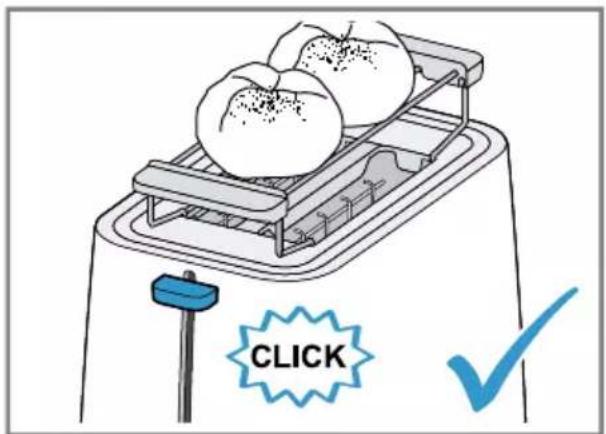

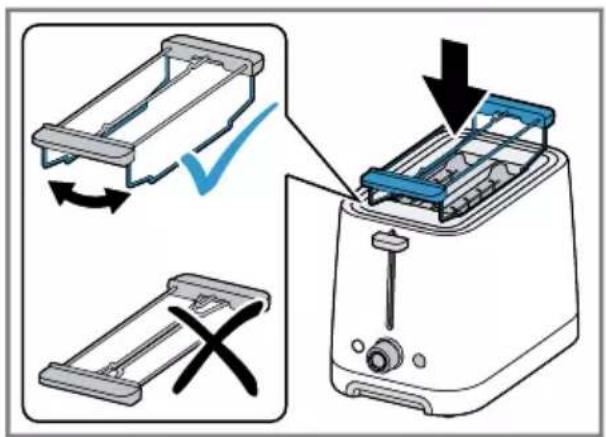

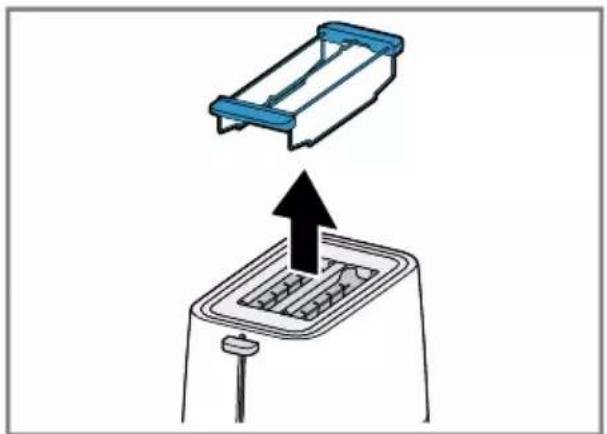

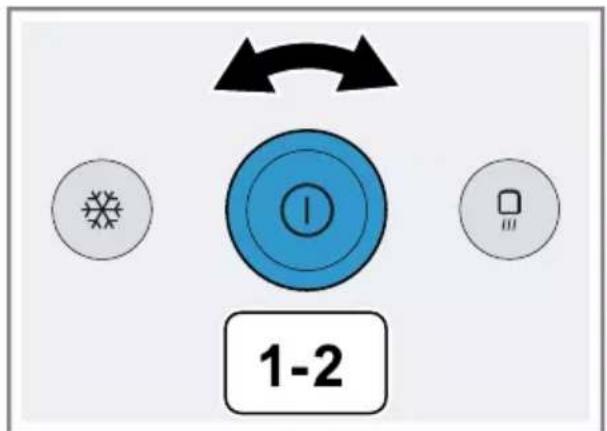

• Fig. 5 - 10 Heating up or defrosting bread rolls Notes ¡ Do not heat up bread rolls and place bread in the toast slots at the same time. ¡ Never use the warming rack with the toaster when folded in.

• Fig. 11 - 17 Overview of cleaning Note:In order to avoid malfunction of the appliance, clean the crumb tray regularly.

• Fig. 18 Customer Service Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website. The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.fr Sécurité
