USER MANUAL TAT5M420 BOSCH

new device on MyBosch now and get free benefits:

bosch-home.com/ welcome

Compact toaster

TAT5M42...

QR code image containing encoded data, no visible human-readable text

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d'utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[it]	Scansionare il codice QR oppure visitare il sito Web per indicazioni dettagliate sull'uso. Si trovano informazioni aggiuntive sull'apparecchio o gli accessori.
[nl]	Scan de QR-code of bezoek de website om de uitgebreide gebruiksinstructies te openen. Hierin vindt u meer informatie over het apparaat of toebehoren.
[da]	Scan QR-koden, eller besøg hjemmesiden, for at åbne de udvidede anvisninger om anvendelse. Der kan der findes yderligere oplysninger om apparatet eller tilbehøret.
[no]	Skann QR-koden eller besøk nettstedet for å åpne mer informasjon om bruken. Der finner du mer informasjon om apparatet eller tilbehøret.
[sv]	Scanna QR-koden eller gå till webbplatsen och öppna de utökade användningsanvisningarna. Där finns mer information om din apparat eller dina tillbehör.
[fi]	Skannaa QR-koodi tai vieraile internet-sivustollamme, jotta voit avata laajennetut käyttötiedot. Sieltä löydät laitetta tai varustetta koskevia lisätietoja.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[pt]	Leia o código QR ou visite a página web para abrir as indicações avançadas relativas à utilização. Aí encontra informações adicionais sobre o seu aparelho ou acessório.
[el]	Σαρώστε τον κωδικό QR ή επισκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη συσκευή σας ή τα εξαρτήματα.
[tr]	Ayrıntılı kullanım bilgilerine ulaşmak için QR kodu taratin veya web sayfasını ziyaret ediniz. Cihaz ve aksesuarlar ile ilgili ayrıntılı bilgileri bu şekilde edinebilirsiniz.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[cs]	Pro další informace k používání načtěte QR kód nebo navštivte webovou stránku. Tam najdete další informace ke spotřebiči nebo příslušenství.
[sk]	Naskenujte QR kód alebo navštívte webovú stránku, aby ste sa dozvedeli rozšírené informácie o používaní. Tam nájdete d'alšie informácie o vašom spotrebiči alebo príslušenstve.
[uk]	Щоб отримати докладніші вказівки з користування, зіскануйте QR-код або відвідайте сайт. Там ви знайдете додаткові відомості про прилад або приладдя.
[ru]	Чтобы узнать больше о пользовании, отсканируйте QR-код или зайдите на сайт. Там вы найдете более подробные сведения о приборе и принадлежностях.

QR code image containing encoded data, no visible human-readable text

https://digitalguide.bsh-group.com?mat-no=8001279525

Diagram showing a car air conditioner panel connected to a blue water tank and pipe (no text or symbols)

2

Blue electrical plug with a cable inserted, showing an arrow indicating direction (no text or symbols)

3

4

1-6

5

Diagram illustrating a hand holding a plastic bag with arrows indicating process, alongside a 3D diagram showing the resulting shape.

6

CLICK defrost stop

7

Diagram illustrating a toaster with snowflake and hourglass icons, showing a 'detrost' control panel with stop buttons.

8

CLICK

9

Diagram showing two steps of a kitchen appliance with a switch, indicating a process to remove or remove the interior.

10

The image is too blurry to recognize any text content.

Illustration of a hand placing a dumpling into a griddle on a toaster (no text or symbols)

12

CLICK defrost stop

The image is too blurry to recognize any text content.

Diagram illustrating a toaster with snowflake, air gap, and control buttons labeled 'defrost' and 'stop'

14

CLICK

The image is too blurry to recognize any text content.

Illustration of a toaster oven with directional arrows indicating process flow (no text or symbols)

16

17

Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

Only use this appliance:

■ under supervision.
■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ up to an altitude of max. 2000 m above sea level.
■ for toasting, warming or defrosting sliced toasting bread, bread, rolls and other food intended for heating in the toaster.

The appliance must always be disconnected from the mains after each use, whenever the appliance is unsupervised, before cleaning and in the event of an error.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
  ▶ Never equip the appliance with an external switching device, e.g. a timer or remote control.
• Repairs to the appliance should only be carried out by trained specialist staff.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

▶ Never immerse the appliance or the power cord in water or clean in the dishwasher.

▶ Never use the appliance near water contained in a bath, sink or other vessels.

- Do not use steam- or high-pressure cleaners to clean the appliance.

- Do not use oven or grill sprays to clean the appliance.

▶ Never reach into the toast slots or insert objects into them, e.g. cutlery.

▶ Never operate a damaged appliance.

▶ Never place the appliance on or near hot surfaces.

▶ Never operate the appliance near or underneath inflammable materials such as curtains.

▶ Never cover the toast slots or heat food directly over them.

▶ Only operate the appliance in an upright position and with the crumb tray inserted.

▶ Always ensure proper use by pressing down the lever for the toast lift and never block it.

▶ Never leave the toaster unattended while in use!

▶ Never use foods that could drip during toasting or crisping-up.

▶ Never use greasy or fatty foods or foods containing a lot of sugar, e.g. waffles or bread with spread on.

▶ Use a firm brush to remove crumbs under the warming rack.

▶ Remove the crumb tray and wipe it clean.

▶ Never touch the hot surfaces, only the controls.

- Allow the appliance to cool down before cleaning or transporting.

▶ To avoid injuries, only use the appliance for its intended purpose.

- Keep packaging material away from children.

▶ Do not let children play with packaging material.

- Keep small parts away from children.

▶ Do not let children play with small parts.

Overview

→ Fig. 1

1	Toast slots
2	Lever for toast lift
3	defrost button with LED (defrost)
4	Rotary selector for toasting degree
5	stop button with LED (stop)
6	Integrated warming rack
7	Lever for warming rack
8	Crumb tray
9	Cord storage

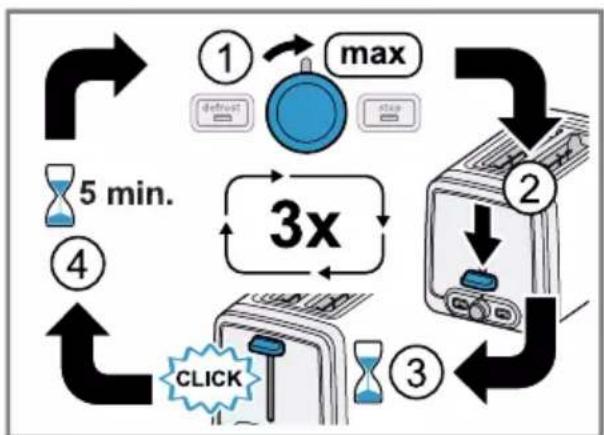

Preparing the appliance for first use

Note: Heat up the toaster 3 times without bread near an open window at the highest toasting degree setting and leave to cool down.

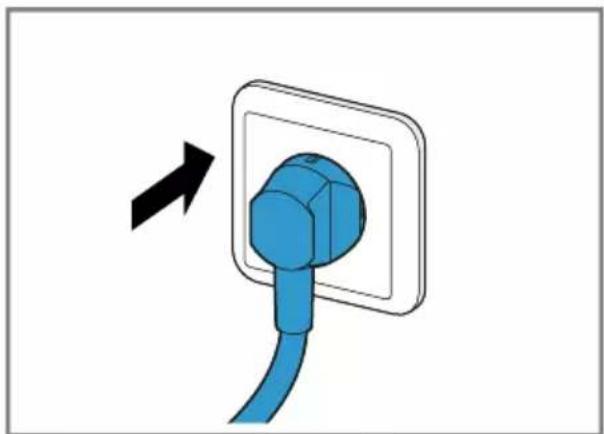

→ Fig. 2 - 4

Operation

General information

Please bear this information in mind so that you can get the best out of your appliance.

■ You can stop the current toasting process at any time by pressing the stop button.
If bread gets jammed in the toast slots, the appliance will switch off automatically. Unplug the toaster, allow it to cool down and then carefully remove the jammed bread.
■ Try different toasting degree settings when using the appliance for the first time, as results may vary depending on the type of bread and moisture level.
■ When toasting a single slice of bread, use a lower toasting degree than with 2 slices.
■ Acrylamide is harmful to your health and is produced when you cook cereal and potato products at very high temperatures. Do not toast food items to the point where they are too dark but until they are golden-yellow. Remove any burnt edges.

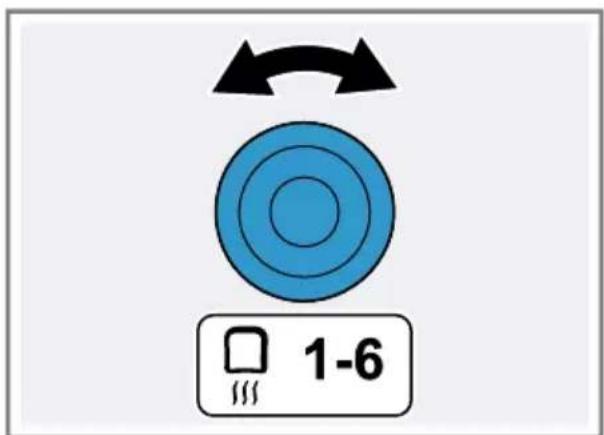

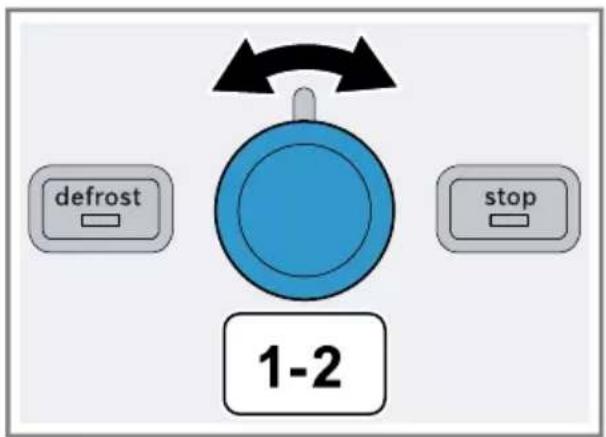

Toasting degree setting

Adjust the toasting degree according to the type of bread and personal taste.

Setting Use
	Lowest setting to warm bread or pre-toasted food without toasting
1-2 Low toasting degree for dry types of bread
3-4 Medium toasting degree for moist types of bread
5-6 High toasting degree for very moist types of bread or thick slices of bread

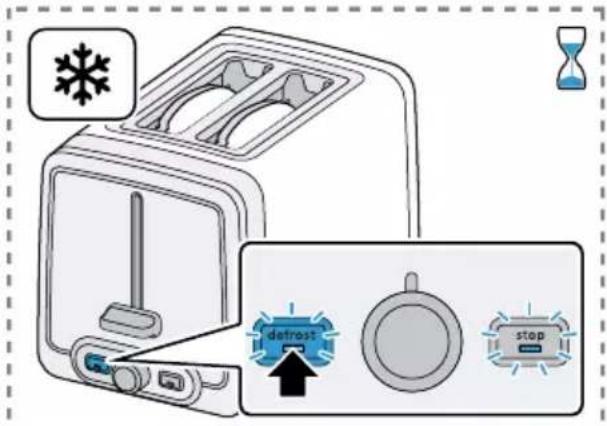

defrost After starting, additionally press the defrost button so frozen bread is toasted to the toasting degree selected

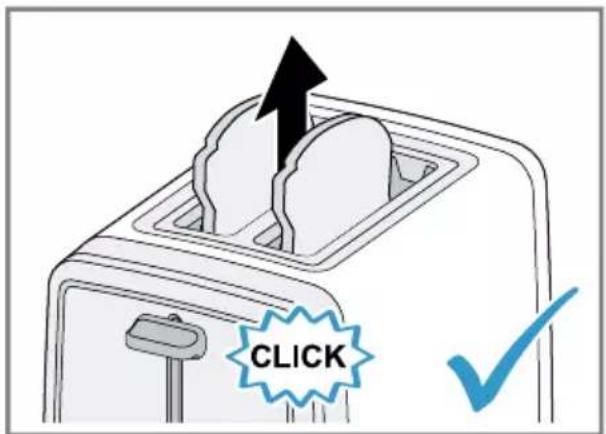

Toasting, warming or defrosting slices of bread

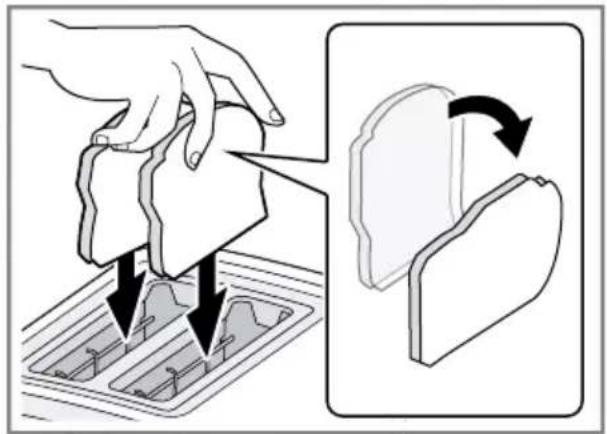

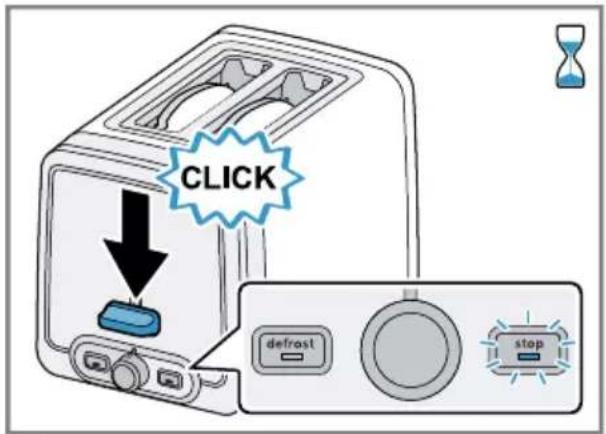

→ Fig. 5 - 9

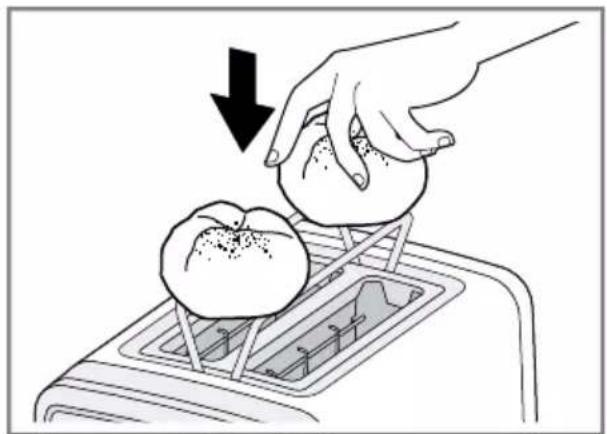

Heating up or defrosting bread rolls

Note: Do not heat up bread rolls and place bread in the toast slots at the same time.

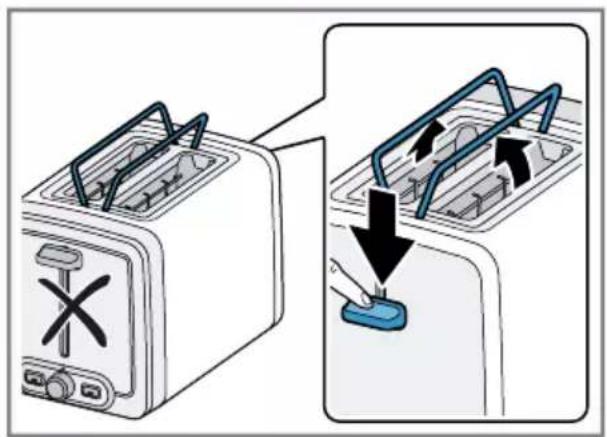

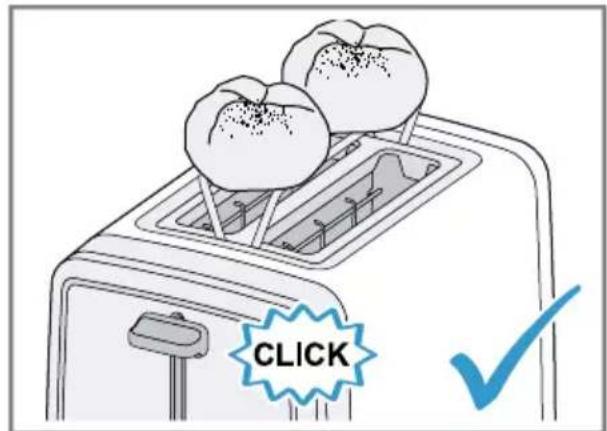

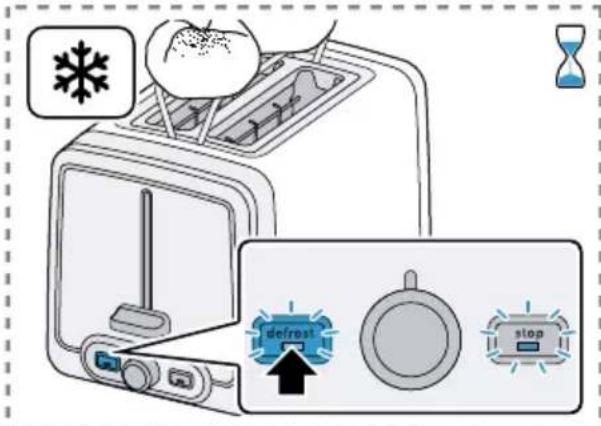

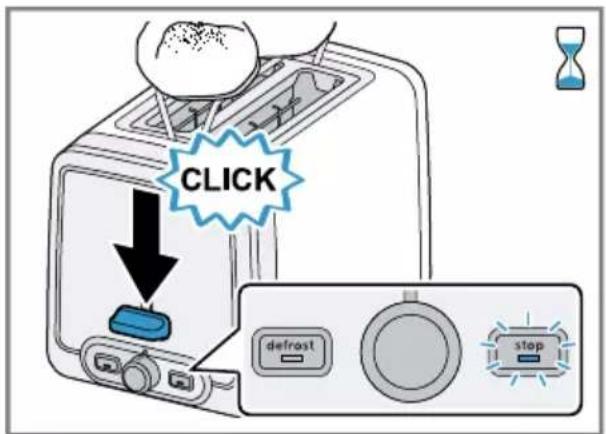

→ Fig. 10 - 16

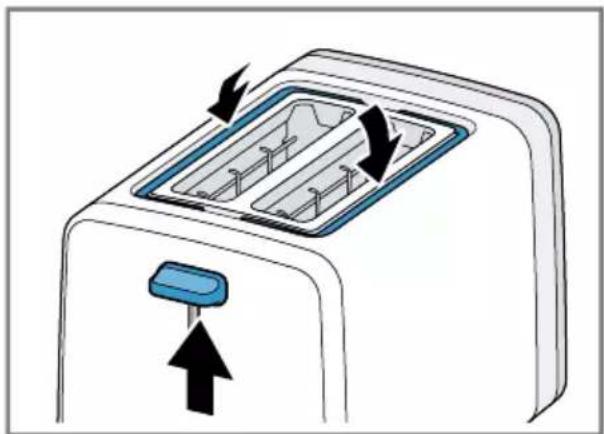

Overview of cleaning

Note: In order to avoid malfunction of the appliance, clean the crumb tray regularly.

→ Fig. 17

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
