Product type	5-Channel Car Amplifier
Brand	Rockford Fosgate
Model	Prime R600-5
Height	6.10 cm
Width	19.49 cm
Length	43.40 cm
RMS Power at 4 Ω	50 W x 4 (channels 1-4) + 200 W x 1 (sub)
RMS Power at 2 Ω	75 W x 4 (channels 1-4) + 300 W x 1 (sub)
Bridged RMS Power	150 W x 2 (channels 1-4)
Internal fuse	2 x 40 A ATC
Recommended external battery fuse	80 A
Signal-to-Noise Ratio (at 1 W / 4 Ω)	> 70 dB (A-weighted)
Signal-to-Noise Ratio (at rated power / 4 Ω)	> 90 dB (A-weighted)
Topology (channels 1-4)	Class A/B
Topology (sub)	Class D
Built-in filters	Fixed 80 Hz high-pass, adjustable 50-250 Hz low-pass (channels 1-4); adjustable 40-130 Hz low-pass (sub)
Filter slope	12 dB/octave (Butterworth)
Frequency response	20 Hz - 20 kHz ±1 dB
Input sensitivity	150 mV to 8 V (RCA)
Input impedance	20 kΩ
Damping factor	> 200
Total harmonic distortion + noise	< 1.0% at 4 Ω
Punch Bass (channels 1-4)	0 / +6 / +12 dB at 45 Hz
Punch Bass (sub)	Variable 0 to +12 dB at 45 Hz
Phase (sub)	0° / 180°
Punch level remote	Included (remote sub level control)
Power supply	9 - 16 V DC
Protections	Short circuit, thermal, low impedance
Warranty	1 year (Prime, Punch, signals, speakers); 2 years (Power); 90 days (refurbished)

Frequently Asked Questions - Prime R600-5 Rockford Fosgate

How to connect the Prime R600-5 amplifier?

Disconnect the battery, then connect the power cable (B+) via a fuse within 18 inches of the battery, the ground (GND) to a clean metal surface, and the REM wire to a switched 12V source. Connect the RCA cables from the audio source and the speakers to the terminals. Use AWG 4 wire for power.

How to adjust the amplifier gain?

Set the gain to minimum (counterclockwise). Increase the volume on the audio source until audible distortion, then reduce it. Then increase the amplifier gain to the desired volume without distortion. Avoid excessive gain to limit noise.

What are the high-pass and low-pass filters for?

The high-pass (HP) filter at 80 Hz lets higher frequencies pass for mid/high speakers. The adjustable low-pass (LP) filter (50-250 Hz) sends bass to subwoofers. The all-pass (AP) mode lets all frequencies pass.

What to do if the protection LED lights up?

The yellow LED indicates a short circuit or too low impedance on the speakers. Check connections and impedance (minimum 2 Ω stereo, 4 Ω bridged for channels 1-4, 2 Ω for sub). Turn off power and correct the issue.

How to use the Punch Bass feature?

For channels 1-4, the switch offers 0, +6, or +12 dB at 45 Hz. For the sub, the potentiometer varies from 0 to +12 dB at 45 Hz. This boosts bass frequencies around 45 Hz.

Can I connect speakers in bridge mode?

Yes, channels 1-4 can be bridged for 150 W RMS per pair (left/right channels). Use terminals CH1+ and CH2- for one channel, CH3+ and CH4- for the other. Minimum impedance: 4 Ω per bridged pair.

Which fuses to use?

The amplifier contains two internal 40 A (ATC) fuses. The external fuse on the power cable should be 80 A. Always use fuses of the same rating to avoid damage.

Where to mount the amplifier?

Never mount in the engine compartment. Choose a location with good air circulation (trunk, under seat) leaving at least 1 inch (2.54 cm) around the heat sink. Avoid plastic or cardboard surfaces, and secure it firmly.

How to reduce engine noise in the speakers?

Keep RCA cables away from power wires. Check the ground: it should be on a clean metal surface. If noise persists, add a second ground or test with a direct power source for the REM wire.

What does the warranty cover?

The limited 1-year warranty (Prime) covers manufacturing defects for the original purchaser in the USA. Not covered: accidents, misuse, water damage, theft, or unauthorized repairs. Keep the receipt.

USER MANUAL Prime R600-5 Rockford Fosgate

PRIME R800 D Rockford Fosqale

PRIME™

5-Channel Amplifier

R600-5

Installation & Operation

Congratulations on your purchase of the world's finest brand of car audio amplifiers. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve.

For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized training through Rockford Technical Training Institute (RTTI). Please read your warranty and retain your receipt and original carton for possible future use.

Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Rockford Fosgate in your installation. Rockford Fosgate has everything from RCA cables and speaker wire to power wire and battery connectors. Insist on it! After all, your new system deserves nothing but the best.

To add the finishing touch to your new Rockford Fosgate image order your Rockford accessories, which include everything from T-shirts to jackets.

To get a free brochure on Rockford Fosgate products and Rockford accessories, visit our web site at: www.rockfordfosgate.com or, in the U.S. call 1-800-669-9899 or FAX [phone]. For all other countries, call +001-480-967-3565 or FAX [phone].

PRACTICE SAFE SOUND™

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels over 130dB. Use common sense and practice safe sound.

If, after reading your manual, you still have questions regarding this product, we recommend that you your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call.

The serial number can be found on the outside of the box. Please record it in the space provided by your permanent record. This will serve as verification of your factory warranty and may become useful recovering your unit if it is ever stolen.

Serial Number: ____

Model Number: ____

TABLE OF CONTENTS

Introduction.	Operation. . 2
Safety Instructions	. Adjusting Gain
Design Features.	. Adjusting Crrossover Frequency
Installation	. Punch, Bass 5-7
Installation Considerations	Troubleshooting.
Mounting Locations.	Specifications.
Battery and Charging	Limited Warranty Information
Wiring the System.	6

NOTE: Review each section for more detailed information.

GETTING STARTED

Welcome to Rockford Fosgate! This manual is designed to provide information for the owner, salesperson and installer. For those of you who want quick information on how to install this product, please turn to the Installation Section of this manual. Other information can be located by using the Table of Contents.We, at Rockford Fosgate, have worked very hard to make sure all the information in this manual is current. But, as we are constantly finding new ways to improve our product, this information is subject to change without notice.

SAFETY INSTRUCTIONS

WARNING

This symbol with “WARNING” is intended to alert the user to the presence of important instructions. Failure to heed the instructions will result in severe injury or death.

CAUTION

This symbol with “CAUTION” is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage.

CAUTION: To prevent injury and damage to the unit, please read and follow the instructions in this manual. We want you to enjoy this system, not get a headache.

CAUTION If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.

CAUTION Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

CONTENTS OF CARTON

A Prime R600-5 5-Channel Amplifier Installation & Operation Manual

Mounting Hardware Kit

The hardware kit included with each amplifier contains the mounting hardware necessary to secure the amplifier to the vehicle.

R600-5

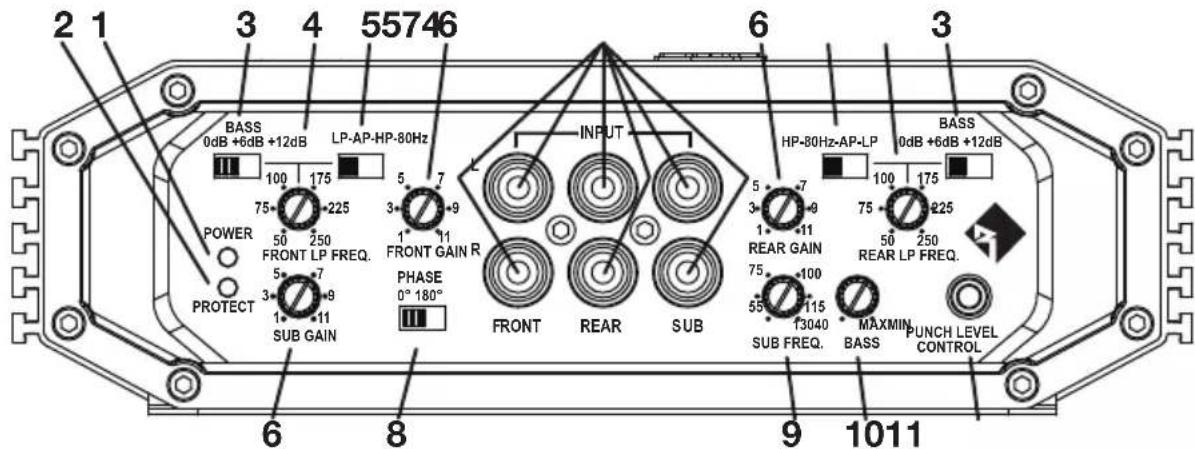

2 1 3 4 55746 BASS 0dB +6dB +12dB LP-AP-HP-80Hz POWER 50 250 FRONT LP FREQ. 5 7 PROTECT 3 9 1 11 SUB GAIN 3 11 FRONT GAIN R PHASE 0° 180° INPUT FRONT REAR SUB BASS 0dB +6dB +12dB HP-80Hz-AP-LP 100 175 5 7 3 9 1 11 REAR GAIN 75 100 55 115 f3040 SUB FREQ. MAXMIN BASS PUNCH LEVEL CONTROL 6 8 9 1011

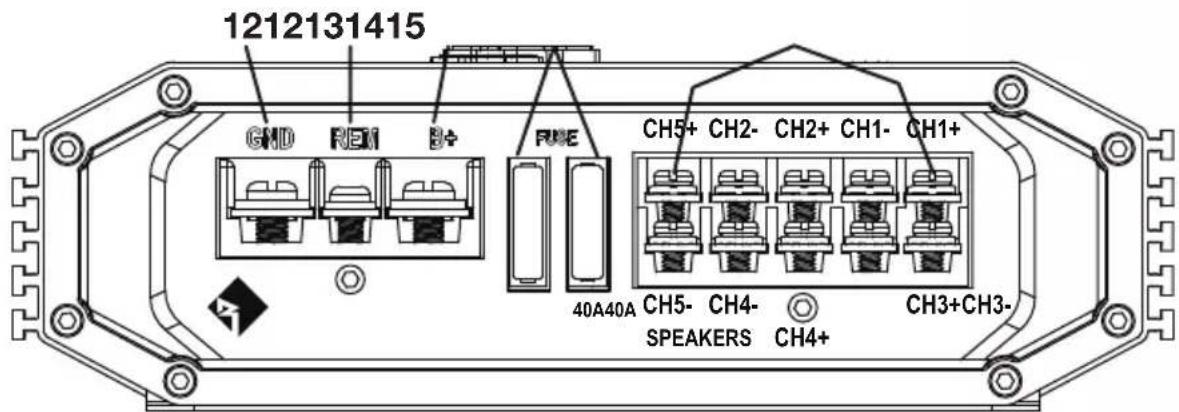

1212131415 GND REM 3+ FUSE CH5+ CH2- CH2+ CH1- CH1+ 40A40A CH5- CH4- SPEAKERS CH4+ CH3+CH3-

I. Power LED – This Blue LED illuminates when the unit is turned on.
2. Protect LED – This Red LED illuminates if a short circuit or too low of an impedance is detected at the speaker connections. The amplifier will automatically shut down if this occurs.
3. Punch Bass – This Punch level control is adjustable between 0dB, +6dB and +12dB @ 45Hz.
4. Variable Crossover (Low Pass Only) – Is a built-in 12dB/octave Butterworth filter with a crossover point variable from 50Hz to 250Hz.
5. Crossover Switch – Selectable switch for 80Hz High-Pass (HP), All Pass (AP), or Low-Pass (LP) operation.
6. Gain Control – The input gain control is preset to match the output of most source units. It can be adjusted to match output levels from a variety of source units.
7. RCA Input Jacks – The industry standard RCA jacks provide an easy connection for signal level input. They are nickel-plated to resist the signal degradation caused by corrosion.
8. Sub Phase Switch – Allows you to select the output phase of the amplifier between 0^ and 180^ .
9. Sub Crossover Frequency – Is a built-in 12dB/octave Butterworth filter with a crossover point variable from 40Hz to 130Hz.
10. Sub Punch Bass – This Bass level is variable from 0dB to +12dB centered at 45Hz @ 12dB/octave.
11. Sub Punch Level Control – When connected, the "Gain Control" is linked and allows you to remotely control the output level of the amplifier from the dash or center console.
12. Power Terminals – The power and ground are nickel-plated clamp wire connectors and will accommodate fork or ring style connectors.
13. REM Terminal – The nickel-plated clamp wire connector and will accommodate fork or ring style connectors. This terminal is used to remotely turn-on and turn-off the amplifier when +12V DC is applied.
14. Fuses – These ATC fuses are easily accessible in case of failure. Always replace fuses with same type and rating. See Specifications for fuse ratings.
15. Speaker Terminals – The heavy duty, nickel-plated clamp wire connectors (+ and -) will accommodate fork or ring style connectors.

INSTALLATION CONSIDERATIONS

The following is a list of tools needed for installation:

Fuse-holder and fuse.

(See specifications for fuse rating)

Volt/Ohm Meter

Wire strippers

Wire crimpers

Wire cutters

2 Phillips screwdriver

Battery post wrench

Hand held drill w/assorted bits

Assorted connectors

Adequate Length—Red Power Wire

Adequate Length—Remote Turn-on Wire

Adequate Length—Black Grounding Wire

This section focuses on some of the vehicle considerations for installing your new amplifier.

Pre-planning your system layout and best wiring routes will save installation time. When deciding on the layout of your new system, be sure that each component will be easily accessible for making adjustments

CAUTION: If you feel unsure about installing this system yourself, have it installed by a qualified technician.

CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

Before beginning any installation, follow these simple rules:

I. Be sure to carefully read and understand the instructions before attempting to install the unit.
2. For safety, disconnect the negative lead from the battery prior to beginning the installation.
3. For easier assembly, we suggest you run all wires prior to mounting your unit in place.
4. Route all of the RCA cables close together and away from any high current wires.
5. Use high quality connectors for a reliable installation and to minimize signal or power loss.
6. Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic line vacuum lines or electrical wiring when working on any vehicle.
7. Never run wires underneath the vehicle. Running the wires inside the vehicle provides the best protection.
8. Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect any wires routed through metal, especially the firewall.
9. ALWAYS protect the battery and electrical system from damage with proper fusing. Install the appropriate fuse holder and fuse on the +12V power wire within 18" (45.7 cm) of the battery terminal.
10. When grounding to the chassis of the vehicle, scrape all paint from the metal to ensure a good, clear ground connection. Grounding connections should be as short as possible and always be connected to metal that is welded to the main body, or chassis, of the vehicle. Seatbelt bolts should never be used for connecting to ground.

MOUNTING LOCATIONS

Engine Compartment

Never mount this unit in the engine compartment. Mounting the unit in the engine compartment will void your warranty.

Trunk Mounting

Mounting the amplifier vertically or inverted will provide adequate cooling of the amplifier.

Mounting the amplifier on the floor of the trunk will provide the best cooling of the amplifier.

Passenger Compartment Mounting

Mounting the amplifier in the passenger compartment will work as long as you provide a sufficient amount of air for the amplifier to cool itself. If you are going to mount the amplifier under the seat of the veh you must have at least 1" (2.54cm) of air gap around the amplifier's heatsink.

Mounting the amplifier with less than 1" (2.54cm) of air gap around the amplifier's heatsink in the passenger compartment will not provide proper cooling and will severely affect the performance of the amplifier and is strongly not recommended.

BATTERY AND CHARGING

Amplifiers will put an increased load on the vehicle's battery and charging system. We recommend checking your alternator and battery condition to ensure that the electrical system has enough capacity handle the increased load of your stereo system. Stock electrical systems which are in good condition should be able to handle the extra load of any Prime Series amplifier without problems, although battery and alternator life can be reduced slightly. To maximize the performance of your amplifier, we suggest to use of a heavy duty battery and an energy storage capacitor.

WIRING THE SYSTEM

CAUTION: If you do not feel comfortable with wiring your new unit, please see your local Authorized Rockford Fosgate Dealer for installation.

CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.
CAUTION: Avoid running power wires near the low level input cables, antenna, power leads, sensitive equipment or harnesses. The power wires carry substantial current and could induce noise into the audio system.

I. Plan the wire routing. Keep RCA cables close together but isolated from the amplifier's power cable and any high power auto accessories, especially electric motors. This is done to prevent coupling the noise from radiated electrical fields into the audio signal. When feeding the wires through the firewall or any metal barrier, protect them with plastic or rubber grommets to prevent short circuits. Leave the wires long at this point to adjust for a precise fit at a later time.

1. Prepare the RED wire (power cable) for attachment to the amplifier by stripping 3/8" of insulation from the end of the wire. Crimp the bared wire into a fork or ring style connector and attach to B+ terminal. Tighten the screw to secure the cable in place.

NOTE: The B+ cable MUST be fused 18" or less from the vehicle's battery. Install the fuseholder under the hood and ensure connections are water tight.

1. Trim the RED wire (power cable) within 18" of the battery and splice in a inline fuse holder (not supplied). See Specifications for the rating of the fuse to be used. DO NOT install the fuse at this time.
2. Strip 1/2" from the battery end of the power cable and crimp an appropriate size ring terminal to cable. Use the ring terminal to connect to the battery positive terminal.
3. Prepare the BLACK wire (Ground cable) for attachment to the amplifier by stripping 3/8" of insulation from the end of the wire. Crimp the bared wire into a fork or ring style connector and attach to the GROUND terminal. Tighten the screw to secure the cable in place. Prepare the chassis ground by scraping any paint from the metal surface and thoroughly clean the area of all dirt and grease. Strip the other end of the wire and attach a ring connector. Fasten the cable to the chassis using a non-anodized screw and a star washer.

NOTE: Keep the length of the BLACK wire (Ground) as short as possible. Always less than 30"(76.2cm).

1. Prepare the Remote turn-on wire for attachment to the amplifier by stripping 3/8" of insulation from the end of the wire. Crimp the bared wire into a fork or ring style connector and attach to the REMOTE terminal. Tighten the screw to secure the wire in place. Connect the other end of the Remote wire to a switched 12 volt positive source. The switched voltage is usually taken from the source unit's remote amp on lead. If the source unit does not have this output available, the recommended solution is to wire a mechanical switch in line with a 12 volt source to activate the amplifier.
2. Securely mount the amplifier to the vehicle or amp rack. Be careful not to mount the amplifier on cardboard or plastic panels. Doing so may enable the screws to pull out from the panel due to re vibration or sudden vehicle stops.
3. Connect from source signal by plugging the RCA cables into the input jacks at the amplifier.

CAUTION: Always ensure power is off or disconnected at the amplifier before connecting RCA cables. Failure to do so may cause damage to the amplifier and/or connected components.

1. Connect the speakers. Strip the speaker wires 3/8", crimp the bared wire into a fork or ring style connectors and attach to the speaker terminals. Tighten the screw to secure into place. Be sure to maintain proper speaker polarity. DO NOT chassis ground any of the speaker leads as unstable operation may result.

2. Perform a final check of the completed system wiring to ensure that all connections are accurate. Check all power and ground connections for frayed wires and loose connections which could cause problems. Install inline fuse near battery connection.

NOTE: Follow the diagrams for proper signal polarity.

CAUTION: This amplifier is not recommended for impedance loads below 2 stereo and 4Ω bridged (ch. 1/2/3/4) and 2Ω for the Sub channel.

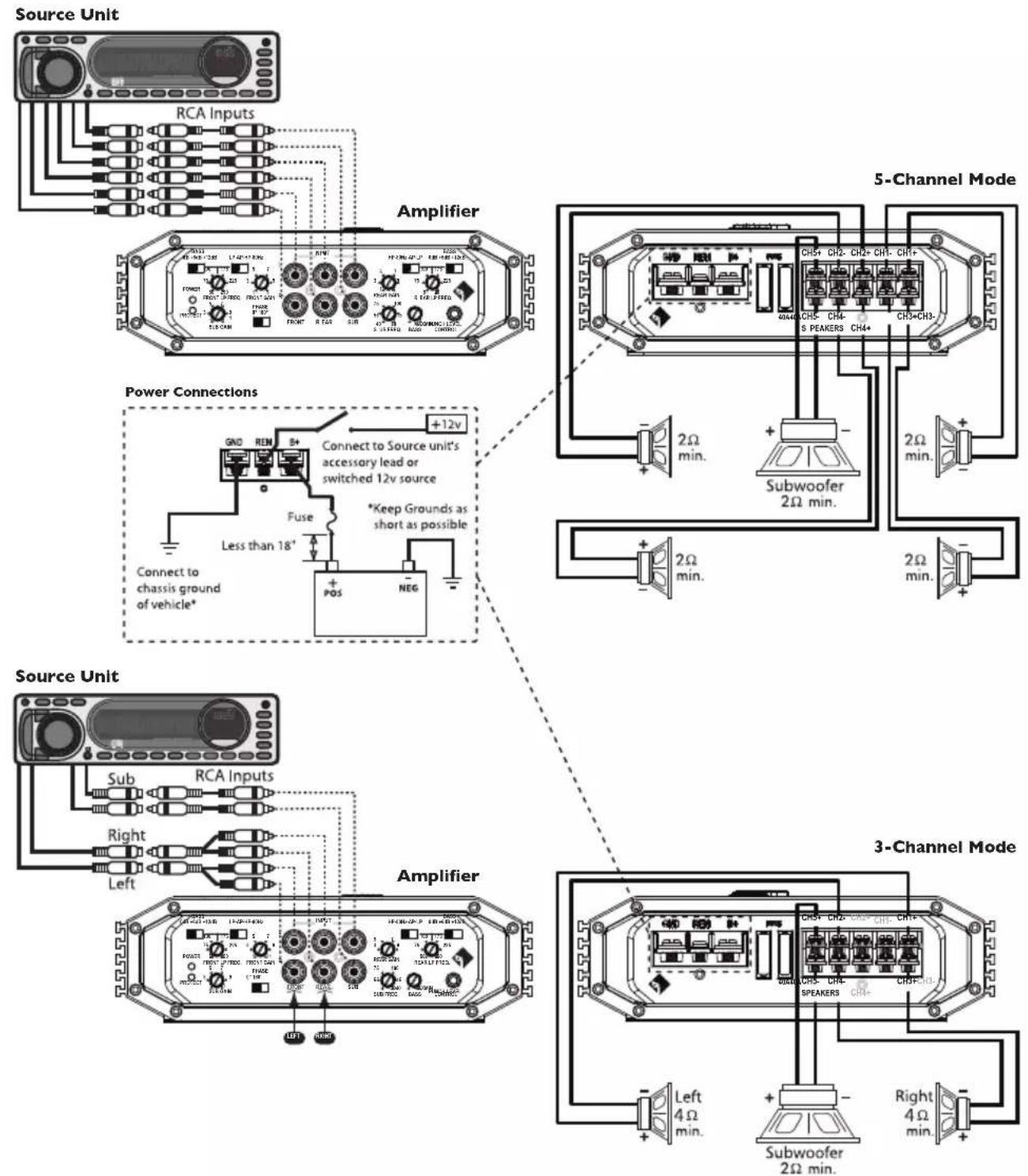

Source Unit RCA Inputs Amplifier Power Connections Connect to chassis ground of vehicle* +12v GND REM B+ Connect to Source unit's accessory lead or switched 12v source Fuse *Keep Grounds as short as possible Less than 18° + POS NEG 2Ω min. Subwoofer 2Ω min. 2Ω min. 2Ω min. 3-Channel Mode Source Unit Sub RCA Inputs Right Left Amplifier Left 4Ω min. Subwoofer 2Ω min. Right 4Ω min.

ADJUSTING GAIN

To adjust the gain setting, turn the amplifier gains all the way down (counter-clockwise).Turn the source volume up until distortion is audible and then turn it down a bit until the distortion is inaudible. This is about all the way up on most source units. Next, increase the amplifier gain setting until adequate vol achieved. NOTE: Best signal to noise and dynamic range are realized with the gain at minimum.

CAUTION: Avoid setting the amplifier gain very high as noise and distortion will increase significantly.

Placing the crossover switch in the HP position sets the amplifier to the 80Hz High Pass mode, enabling frequencies above the cut-off point to pass.

Placing the crossover switch in the AP position sets the amplifier to the All Pass mode, preventing any crossover adjustment, allowing all frequencies to pass.

Placing the crossover switch in the LP position sets the amplifier to the Low Pass mode, enabling frequencies below the cut-off point to pass, adjustable between 50Hz-250Hz. Turn the crossover adjustment knob all the way down. With the system playing, turn the crossover adjustment knob up slow until the desired crossover point is achieved. A good place to start is at about 80Hz.

The sub channel utilizes a dedicated Low Pass crossover, adjustable between 40Hz-130Hz.

PUNCH BASS

The Punch Bass control is a narrow band adjustment at 45Hz selectable at 0dB, +6dB and +12dB incr. The sub channel utilizes a dedicated Bass control variable from 0dB to +12dB, centered at 45Hz.

PHASE SWITCH

Allows you to conveniently switch the output phase of the amplifier between 0^ and 180^ . This has the effect as physically reversing the Positive (+) and Negative (-) speaker wires.

REMOTE PUNCH LEVEL CONTROL

When connected, the "Gain Control" is linked and allows you to remotely control the output level of amplifier from the dash or center console.

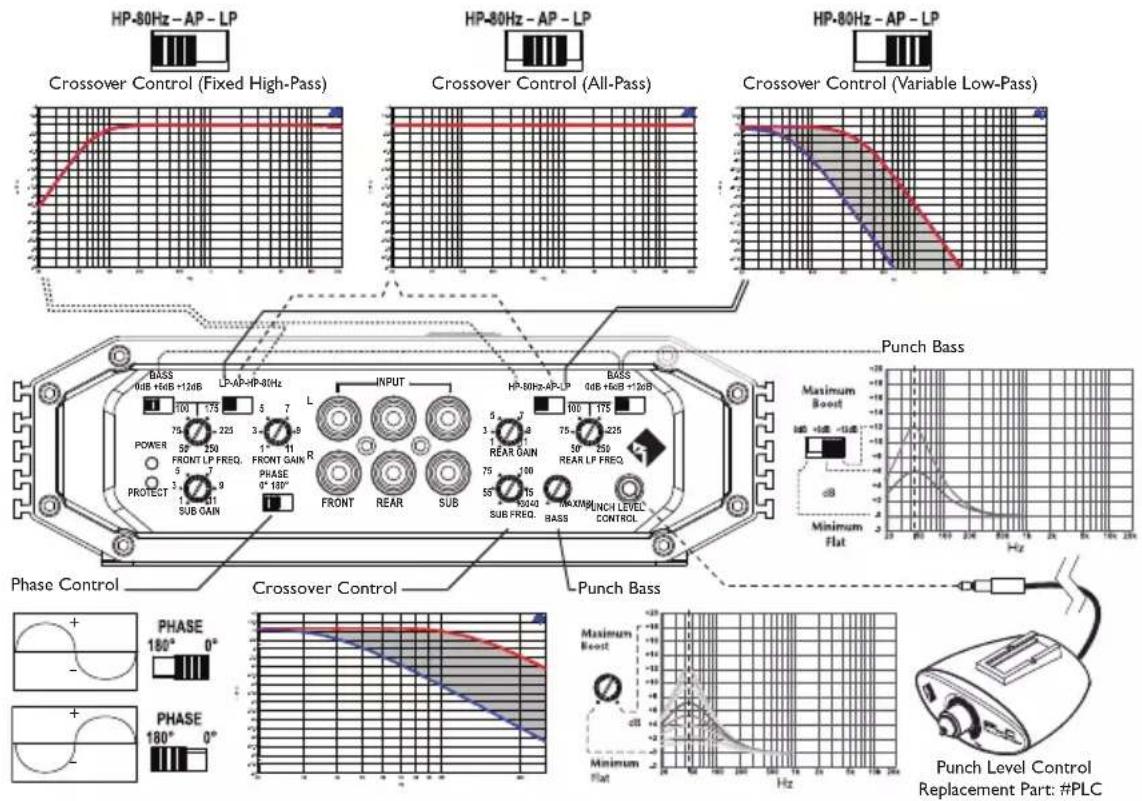

HP-80Hz - AP - LP Crossover Control (Fixed High-Pass) HP-80Hz - AP - LP Crossover Control (All-Pass) HP-80Hz - AP - LP Crossover Control (Variable Low-Pass) Punch Bass BASS 0dB +16dB +12dB LPAAP+HP-80Hz POWER 75 225 50 250 FRONT LP FREQ. 3 11 PROTECT 3 9 1 11 SUB GAIN PHASE 0° 100° R FRONT REAR SUB PUNCH LEVEL CONTROL Punch Bass Maximum Boost 100 175 75 225 50 250 REAR LP FREQ. 55 100 SUB FREQ. BASS Maximum Boost dB Minimum Flat Hz Phase Control Crossover Control Punch Bass PHASE 180° 0° PHASE 180° 0° Maximum Boost dB Minimum Flat Hz Punch Level Control Replacement Part: #PLC

NOTE: If you are having problems after installation follow the Troubleshooting procedures below.

Procedure I: Check Amplifier for proper connections.

Verify that POWER light is on. If POWER light is on skip to Step 3, if not continue.

I. Check in-line fuse on battery positive cable. Replace if necessary.
2. Check fuse(s) on amplifier. Replace if necessary.
3. Verify that Ground connection is connected to clean metal on the vehicle's chassis. Repair/replace if necessary.
4. Verify there is 9 to 14.4 Volts present at the positive battery and remote turn-on cable. Verify quality connections for both cables at amplifier, stereo, and battery/fuseholder. Repair/replace if necessary.

Procedure 2: Protect light is on.

1. If the Protect light is on, this is a sign of a possible short in the speaker connections. Check for proper speaker connections and use a volt/ohm meter to check for possible shorts in the speaker wiring. Too low of a speaker impedance may also cause Protect to light.

Procedure 3: Check Amplifier for audio output.

I. Verify good RCA input connections at stereo and amplifier. Check entire length of cables for kinks, splices, etc. Test RCA inputs for AC volts with stereo on. Repair/replace if necessary.
2. Disconnect RCA input from amplifier. Connect RCA input from test stereo directly to amplifier input.

Procedure 4: Check Amplifier if you experience Turn-on Pop.

I. Disconnect input signal to amplifier and turn amplifier on and off.
2. If the noise is eliminated, connect the REMOTE lead of amplifier to source unit with a delay turn-on module.

OR

I. Use a different 12Volt source for REMOTE lead of amplifier.

Procedure 5: Check Amplifier if you experience excess Engine Noise.

I. Route all signal carrying wires (RCA, Speaker cables) away from power and ground wires.

OR

1. Bypass any and all electrical components between the stereo and the amplifier(s). Connect stereo directly to input of amplifier. If noise goes away the unit being bypassed is the cause of the noise.

OR

1. Remove existing ground wires for all electrical components. Reground wires to different locations. Verify that grounding location is clean, shiny metal free of paint, rust etc.

OR

1. Add secondary ground cable from negative battery terminal to the chassis metal or engine block of vehicle.

OR

1. Have alternator and battery load tested by your mechanic. Verify good working order of vehicle electrical system including distributor, spark plugs, spark plug wires, voltage regulator etc.

MODEL- PRIME R600-5

Continuous Power Rating (RMS) - Measured at 14.4 Battery Volts

4Ω load Per Channel 50 Watts × 4 + 200 Watts × I

2Ω Load Per Channel 75 Watts × 4 + 300 Watts × I

4Ωload Bridged 150 Watts x 2 + n/a

Dimensions: Height 2.40" (6.10cm)

Width 7.67" (19.49cm)

Length 17.09" (43.40cm)

Amplifier Fuse Rating (Amp) (2) 40A ATC

External Battery Fuse Rating (Not Supplied)

"A" Weighted Signal to Noise Ratio

Referenced to 1 Watt into 4 ohms (CEA-2006)

"A" Weighted Signal to Noise Ratio

Referenced to rated output into 4 ohms

Amplifier Topology (Ch. 1/2/3/4)

Amplifier Topology (Sub)

Crossover Slope

Crossover Frequency (Ch. 1/2/3/4)

Crossover Frequency (Sub)

Frequency Response 20Hz to 20KHz ±1dB

Signal Voltage Adjustment Range

Protection

Punch Bass (Ch. 1/2/3/4)

Punch Bass (Sub)

Phase (Sub)

Input Impedance

Operating Voltage

Balanced Inputs

CMRR (Common Mode Rejection Ratio)

Damping Factor

THD+N (Total Harmonic Distortion + Noise)

These specifications are Amplifier Power Standard CEA-2006 Compliant

80A

70 dB

90 dB

Class A/B

Class D

12dB/octave Butterworth

High-Pass: 80Hz

Low-Pass: variable from 50Hz to 250Hz

Low-Pass: 40Hz to 130Hz

Variable from 150mV to 8V (RCA Input)

Short circuit protection shut downs the amplifier in case of very low impedance or shorted speaker wires.

0dB/+6dB/+12dB @ 45Hz

Variable from 0dB to +12dB @ 45Hz

1^ / 180^

20K ohms

9 to 16 Volts DC

No

40dB @ 1KHz

200

< 1.0% @ 4 ohm

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:

Length of Warranty

Speakers, Signal Processors, PRIME and PUNCH Amplifiers - 1 Year POWER Amplifiers - 2 Years

Any Factory Refurbished Product - 90 days (receipt required)

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, d name, product purchased and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

I. Damage caused by accident, abuse, improper operations, water, theft, shipping.
2. Any cost or expense related to the removal or reinstallation of product.
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center.
4.Any product which has had the serial number defaced,altered, or removed.
5. Subsequent damage to other components.
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer.

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited duration to the period of the express warranty set forth above. Some states do not allow on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product

How to Obtain Service

Contact the Authorized Rockford Fosgate Dealer you purchased this product from.

If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate.

You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Cher client,

Phase (Sub) 1^/180^

12dB/Oktav Butterworth

Hochpass bei 80 Hz

www.rockfordfosgate.com/rftech

Amplifier Power Standard CEA CEA-2006 Compliant

Rockford Fosgate

Rockford Corporation

600 South Rockford Drive

Tempe, Arizona 85281 U.S.A.

In U.S.A., [phone] - Customer Service I-800-669-9899

www.rockfordfosgate.com

Designed & Engineered in Tempe, Arizona, U.S.A.

Specifications subject to change without notice.
