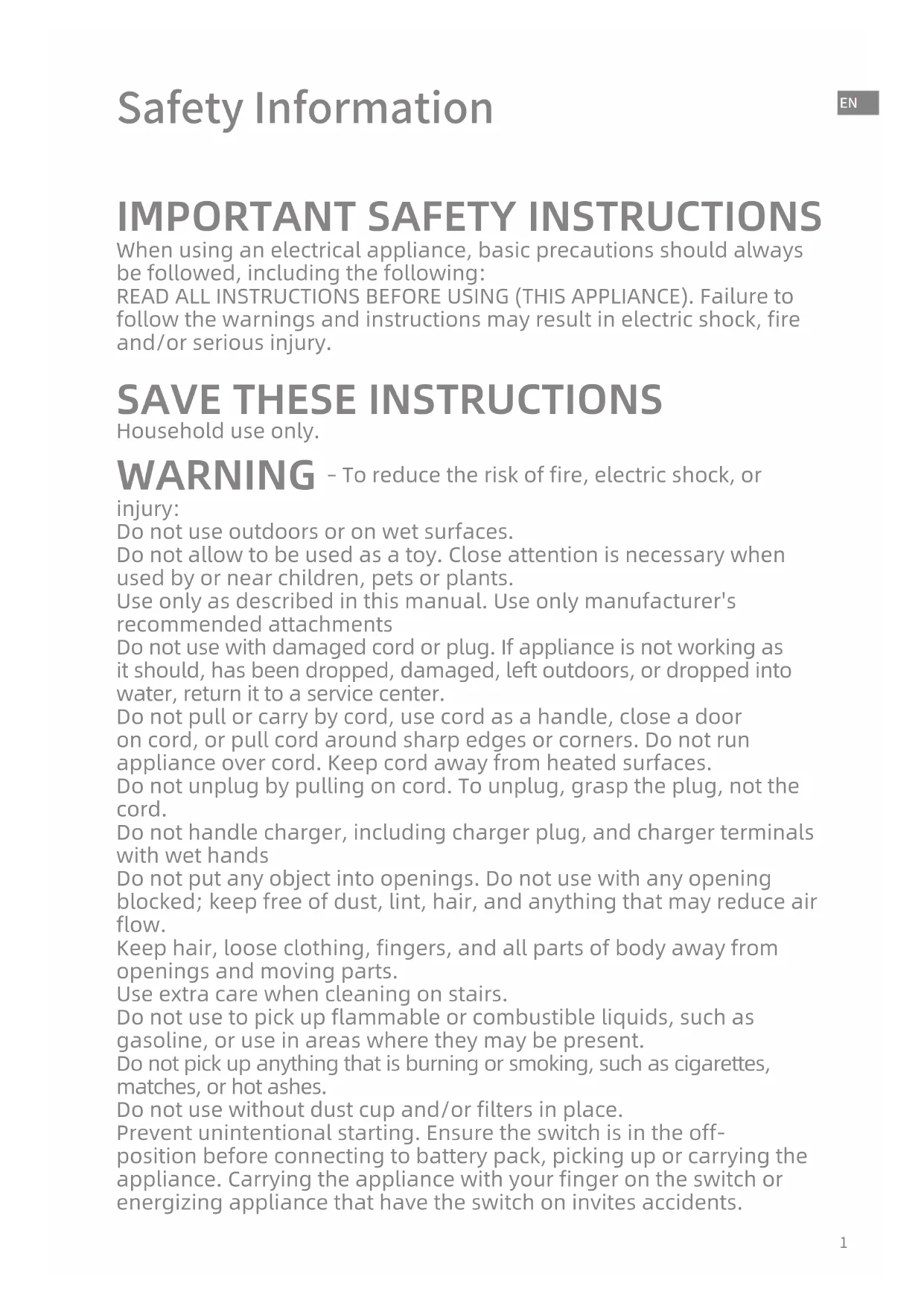

Safety Information

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE THESE INSTRUCTIONS

Household use only.

WARNING - To reduce the risk of fire, electric shock, or

injury:

Do not use outdoors or on wet surfaces.

Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.

Use only as described in this manual. Use only manufacturer's recommended attachments

Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

Do not handle charger, including charger plug, and charger terminals with wet hands

Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

Use extra care when cleaning on stairs.

Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

Do not use without dust cup and/or filters in place.

Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

EN

Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Do not use a battery pack or appliance that is damaged or modified.

Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.

Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.

Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

Do not use and store in extremely hot or cold environments (below 0^ C/ 32^ F or above 40^ C/ 104^ F). Please charge the cordless vacuum cleaner in temperature above 0^ C/ 32^ F and below 40^ C/ 104^ F.

Caution:

This device complies with Part 15 of the FCC Rules / Innovation, Science and Economic Development Canada's licence-exempt RSS(s).

Operation is subject to the following two conditions:

1. this device may not cause harmful interference.

2. this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following.

---	Direct current
~	Alternating current

Component Names

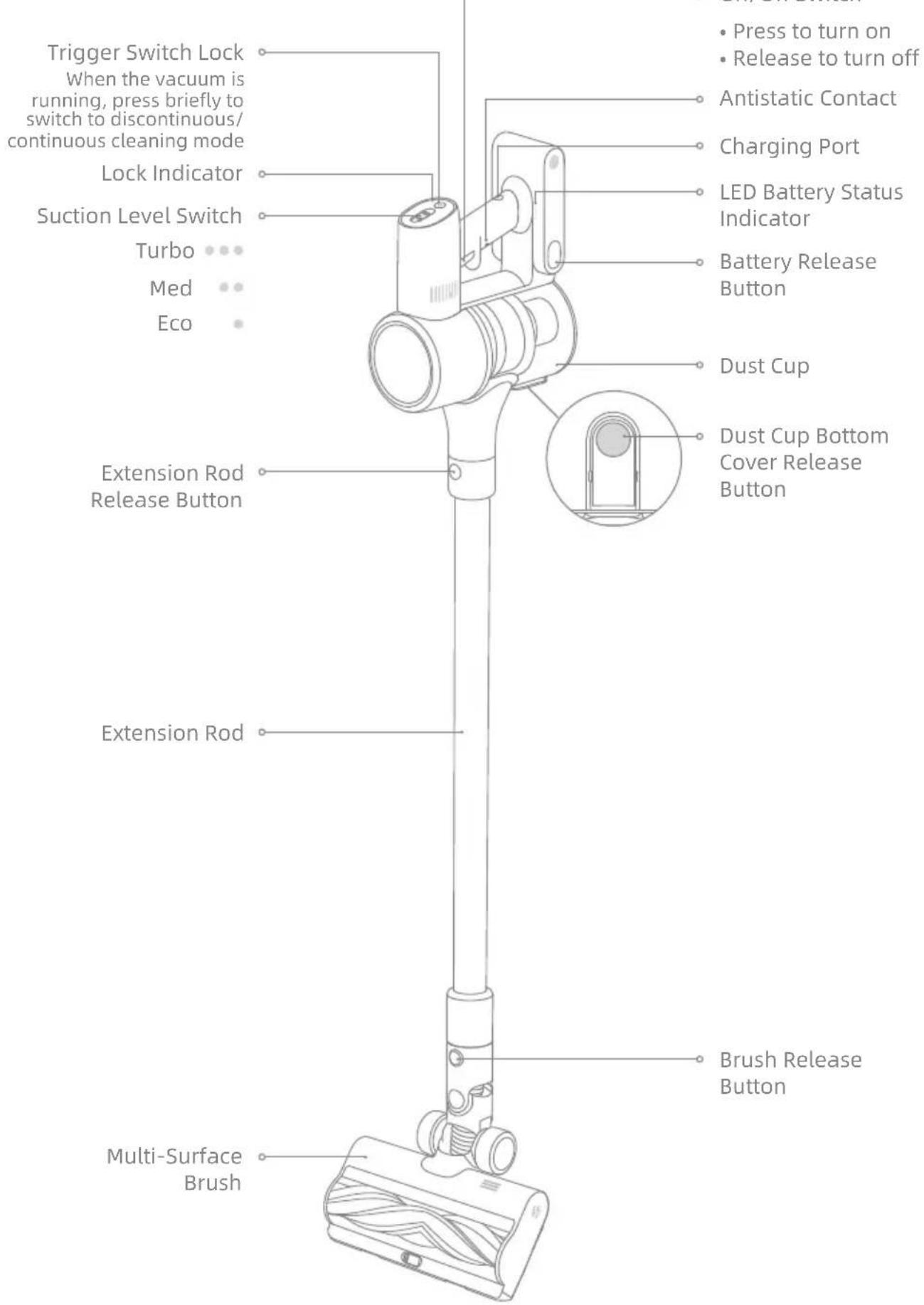

Product Overview

EN

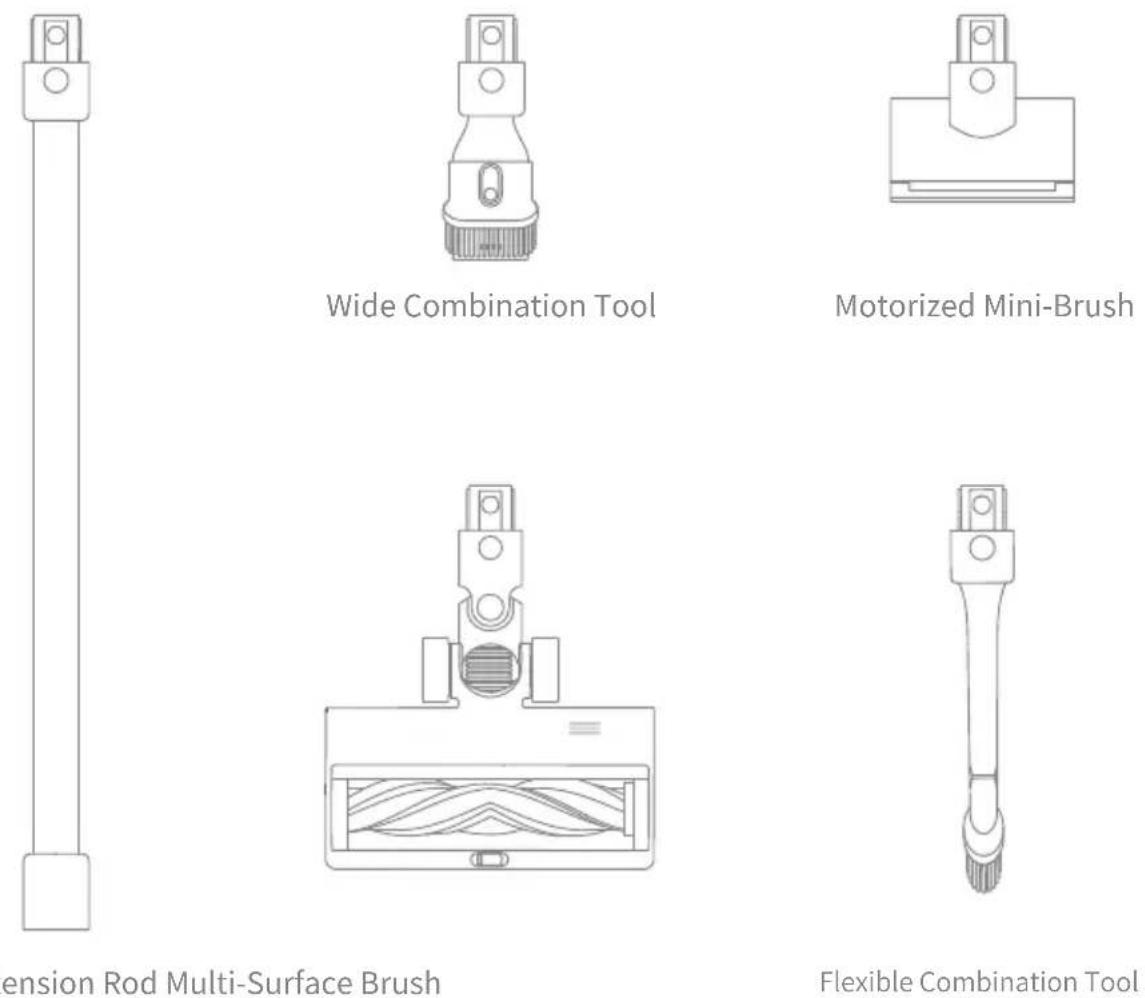

Accessories

Charger

Pure technical line drawings of mechanical components without any text or symbols

Wall Mount
(Including screw × 2, wall plug × 2, and mounting template sticker)

Note: The images in this manual are for illustrative purposes only. The actual product may differ.

Installation


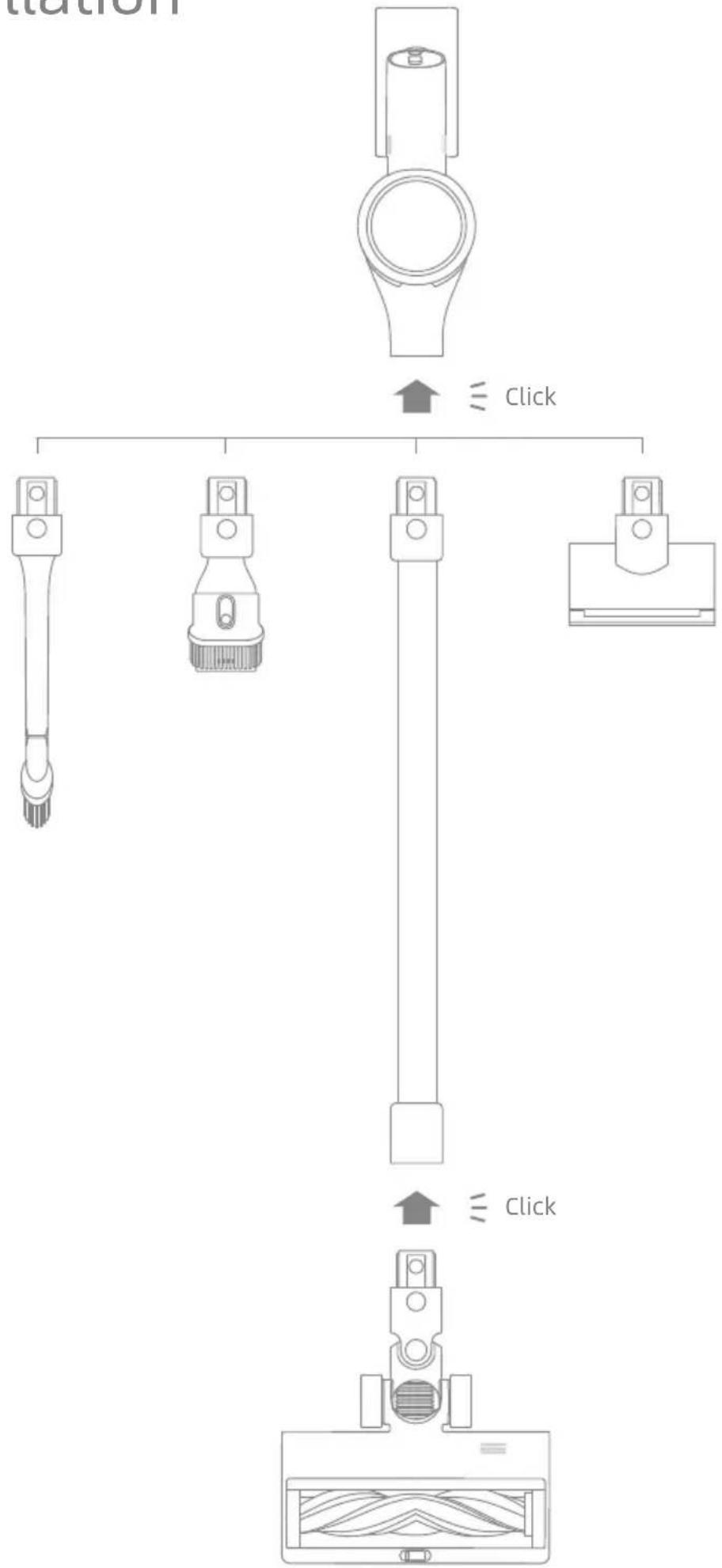

Installation

Wall Mount Installation Diagram

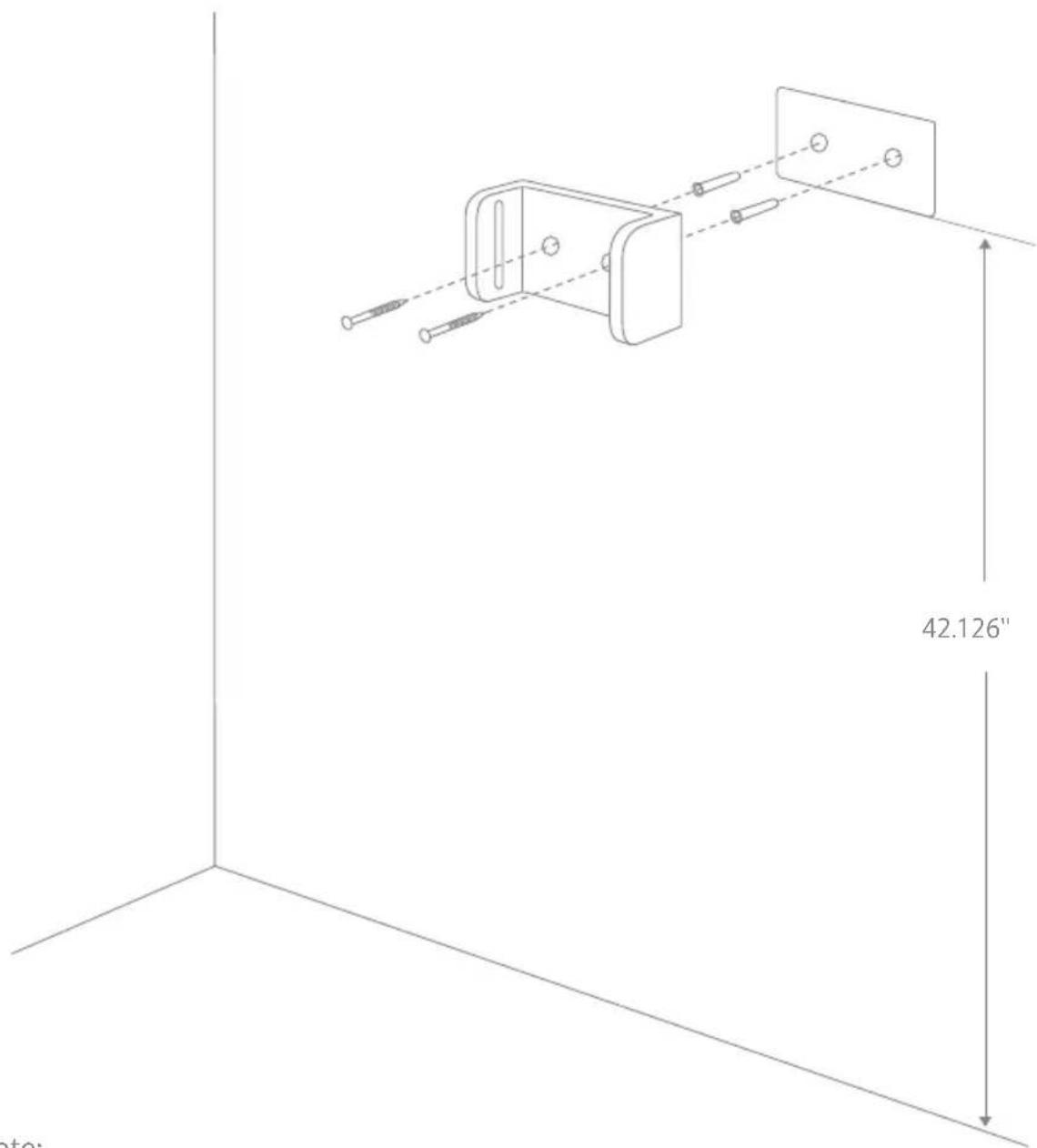

1. Paste the mounting template sticker on the wall. The bottom edge of the mounting template sticker should be parallel to and about 42.126" from the ground.
2. Use a power drill with an 0.315" drill bit to drill a hole into each marker on the mounting template sticker, then insert a wall plug into each hole.
3. Align the holes on the mount with the holes on the wall. Fasten it to the wall with the included screws.

Note:

• The wall mount is an optional accessory. You can install it based on your needs.
- The wall mount should be installed on a cool, dry surface with an electrical outlet nearby. Prior to installing, ensure that there are no electrical wires or pipes in the space directly behind installment position.

Charging

Fully charge the vacuum before using it for the first time.

Note:

• A full charge will take approximately 3.5 hours.

- Using Turbo mode for a prolonged period will cause the battery to heat up, which increases charging time. Allow the vacuum to cool down for 30 minutes before charging it.

Charging Methods

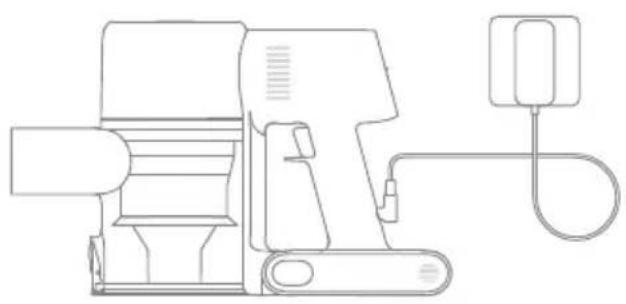

Charging the Vacuum with the Charger

Line drawing of a mechanical device with attached cable and connector (no text or symbols)

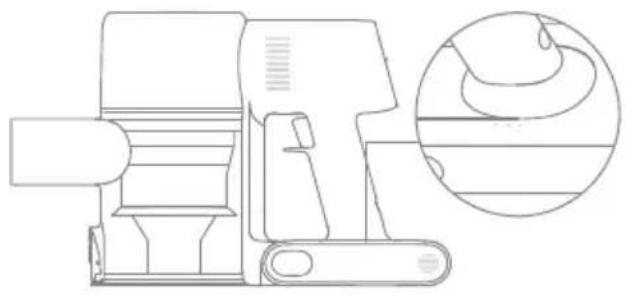

LED Battery Status Indicator

Low battery

Half battery

Nearly full

Fully charged

Technical line drawing of a mechanical device with an inset magnified detail (no text or symbols)

Off

Blinking

On

Note: Once the vacuum is fully charged, the indicator will turn off after 5 minutes, and the vacuum will enter the energy-saving mode.

How to Use

Working Methods

Select from two working methods for the vacuum, based on your needs.

Method 1: Discontinuous Cleaning Mode

Press and hold the on/off switch to power it on, and release it to stop immediately.

Line drawing of a mechanical device with no visible text or symbols

Method 2: Continuous Cleaning Mode (Trigger Switch Lock)

Click the trigger switch lock to switch to Continuous Cleaning Mode when the vacuum is running. Then release the on/off switch to make the vacuum in Continuous Cleaning Mode.

Use the trigger switch lock to free your fingers and avoid finger fatigue caused by holding the switch.

Simple line drawing of a circular device with a handle and control knob (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Note:

• In this mode, the lock indicator will illuminate steadily.
- Click the trigger switch lock again to quit the Continuous Cleaning Mode.

Using Different Accessories

Multi-Surface Brush

Suitable for vacuuming on the med/low pile carpets, tiles and floors.

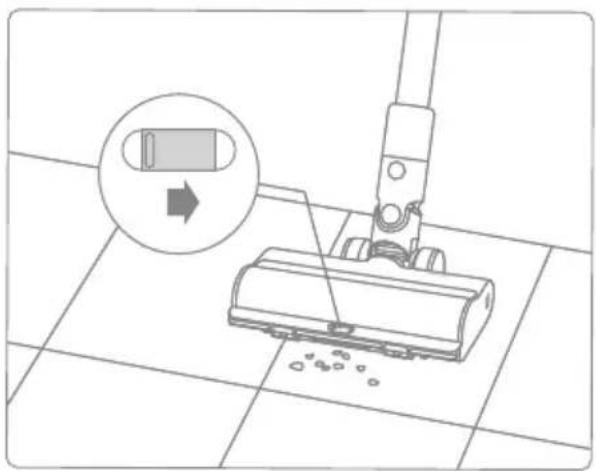

For vacuuming large particles by turning on the switch on the brush, such as coffee beans, corn flakes and etc.

Note:

• The multi-surface brush can be attached directly to the vacuum.
• When the appliance starts, the lights in front of the brush roller will automatically turn on, which is convenient for use.

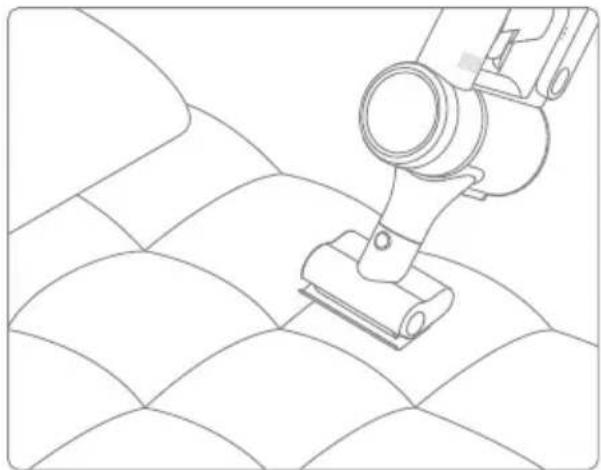

Motorized Mini-Brush

For vacuuming dirt, pet hair, and other stubborn debris from sofas, bedding, and other fabric surfaces.

Note: It is not recommended to vacuum on fragile surfaces, such as silk.

Line drawing of a sewing machine stitching a patterned fabric background (no text or symbols)

Wide Combination Tool

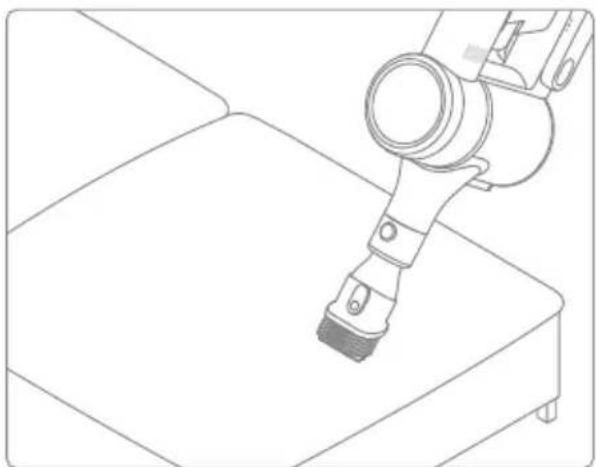

For vacuuming curtains, keyboards, ceilings, sofas, vehicle interiors, coffee tables, etc.

Line drawing of a robotic arm operating on a platform (no text or symbols)

How to Use

EN

Flexible Combination Tool

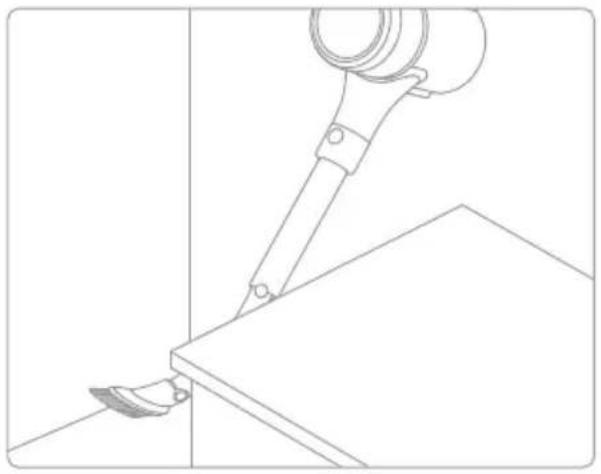

Bendable and retractable brush-nozzle, more flexible to vacuum in narrow gaps.

Line drawing of a robotic arm gripping a tool on a flat surface (no text or symbols)

Wall Mount

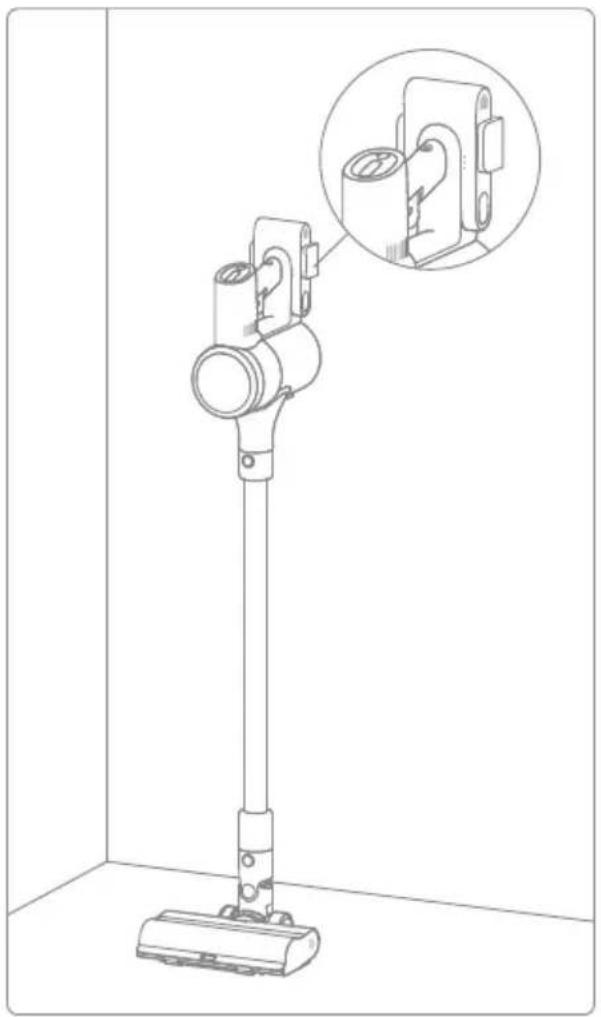

The vacuum cleaner can be placed on the wall mount when it is not in use.

Note:

• Do not put the vacuum cleaner alone on the wall mount.
• Place it on the wall mount after connecting it with the extension rod and the multi-surface brush.

Line drawing of a vacuum cleaner with an inset close-up showing its internal components (no text or symbols)

Note:

• If any rotating part becomes stuck, the vacuum may shut off automatically. Remove any trapped foreign objects, then resume use.
• When the motor becomes overheated, the vacuum will automatically shut off. Wait until the battery temperature returns to normal, then resume use.

Care & Maintenance

Tips:

1. Always use genuine parts to keep your warranty from being void.
2. If the filter or nozzle becomes clogged, the vacuum will stop working shortly after being turned on. Clear the tube to restore functionality.
3. If the vacuum is not used for an extended period, fully charge it, unplug its charger, and store it in a cool, low-humidity environment away from direct sunlight. To avoid over-discharging the battery, recharge the vacuum at least once every three months.

Cleaning the Vacuum

Wipe the vacuum with a soft dry cloth.

Cleaning the Dust Cup, Pre-Filter, and Cyclone Assembly

The vacuum's cleaning ability will be reduced if the dust cup is filled to the "MAX" mark. To regain performance, empty the dust cup in a timely manner. Before emptying the dust cup, make sure the vacuum is disconnected from the power, and do not press its power button.

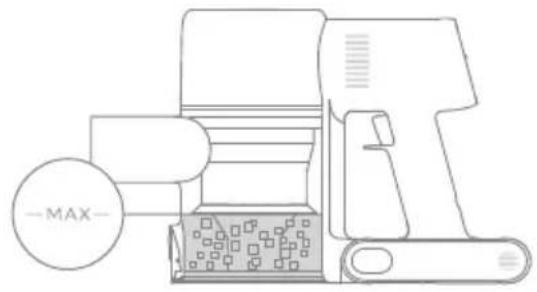

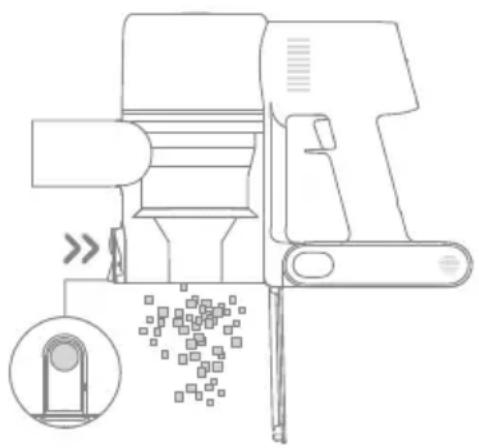

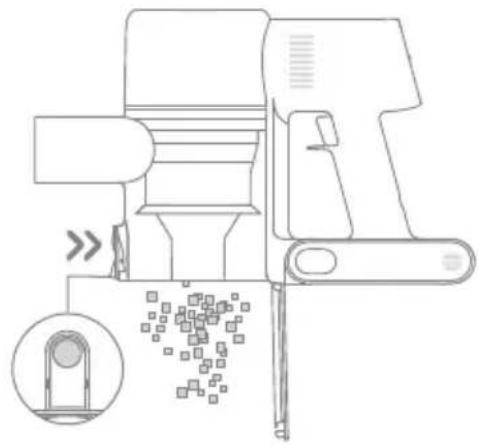

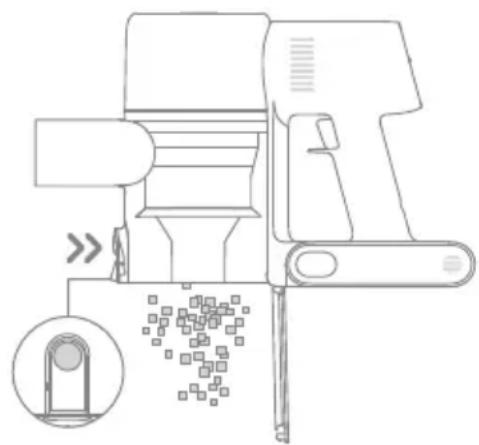

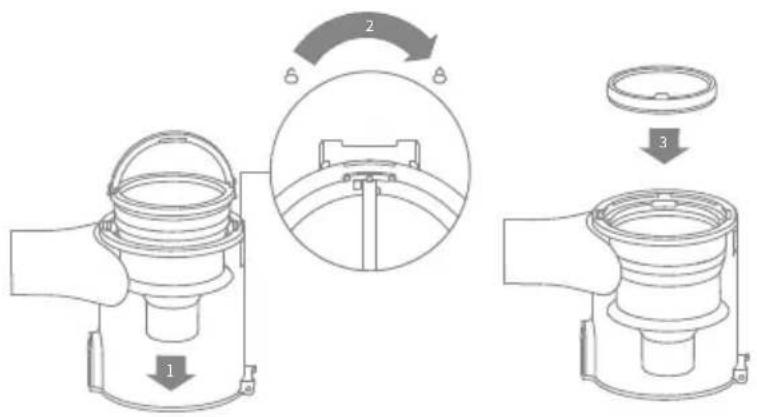

1. Press the dust cup bottom cover release button, then empty the contents.

Line drawing of a printer with a circular label labeled '-MAX-' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with an inset showing a component (no text or symbols)

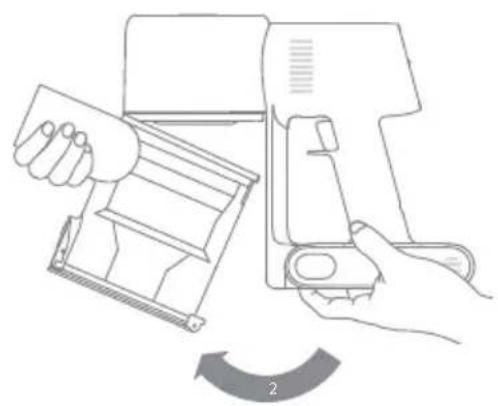

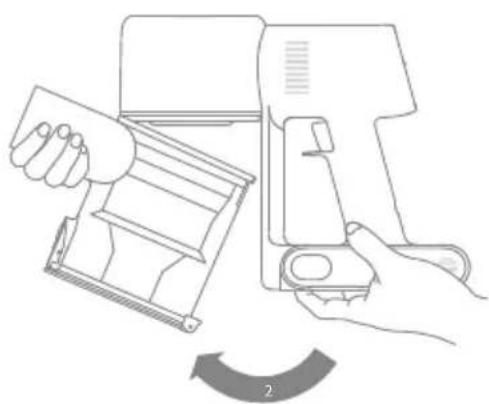

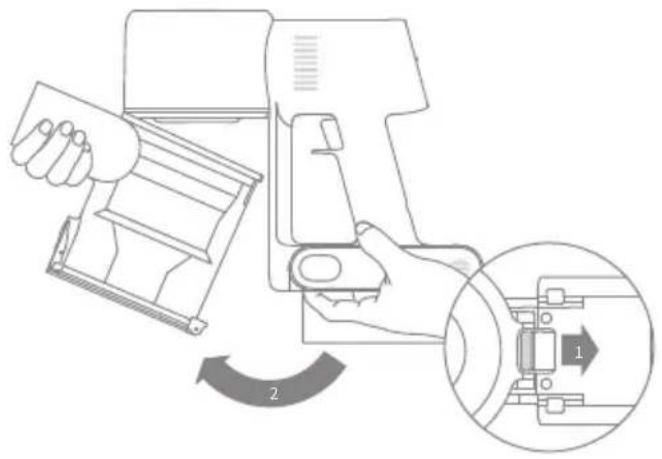

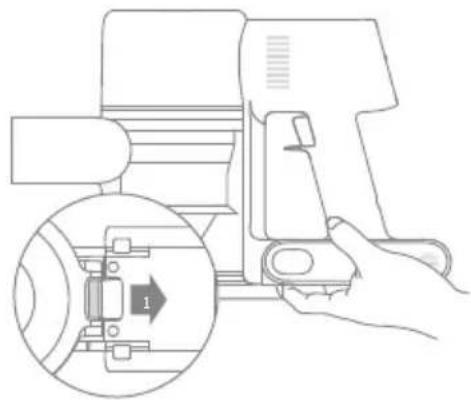

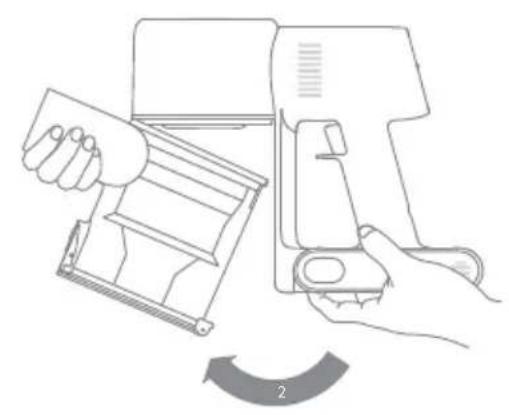

1. Push the dust cup release switch in the direction indicated by the arrow, then gently remove the dust cup from the vacuum.

Line drawing of a hand operating a camera with an inset showing a mechanical component (no text or symbols)

Line drawing of a hand holding a device with a curved arrow indicating rotation (no text or symbols)

Care & Maintenance

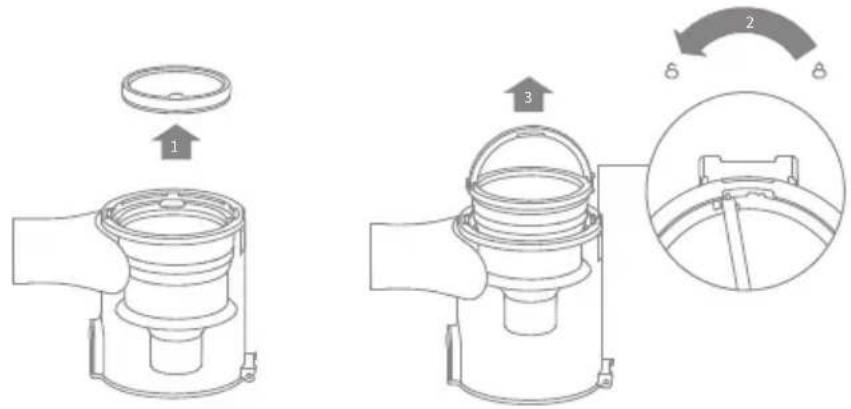

1. Remove the pre-filter first, then lift the handle of the cyclone assembly and turn it counterclockwise until it stops, then pull to lift out the cyclone assembly.

1. Wipe the dust cup with a soft wet cloth. Pay attention to wringing out the cloth before using.

Line drawing of a hand cleaning a small object with a cloth (no text or symbols)

To avoid the risk of electric shock, do not rinse the dust cup with water.

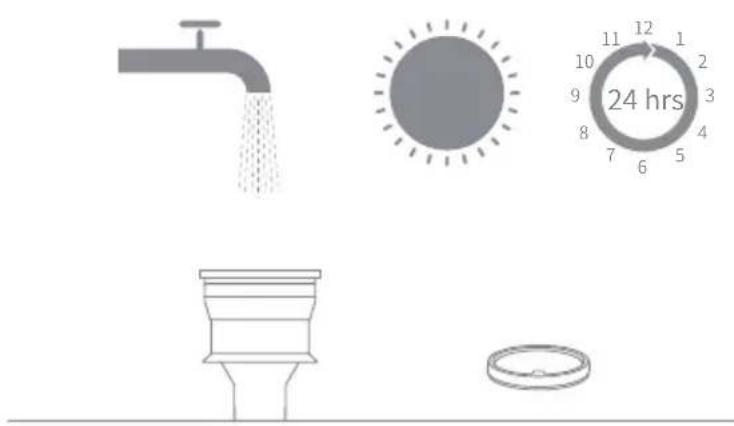

1. Rinse the cyclone assembly and pre-filter until they are clean. After washing, air dry for at least 24 hours.

Pre-FilterCyclone Assembly

Note:

• It is recommended to clean the dust cup once every month.
• It is recommended to clean the pre-filter at least once every 3 months and the cyclone system at least once every 6 months.

Care & Maintenance

Installing the Dust Cup, Pre-Filter, and Cyclone Assembly

1. Insert the cyclone assembly vertically into the dust cup, and make sure that the handle of the cyclone assembly line up with the slot on the left side of the dust cup. Turn the handle clockwise until it locks, then flip the handle down.
2. Place the pre-filter with its front side facing up into the cyclone assembly.

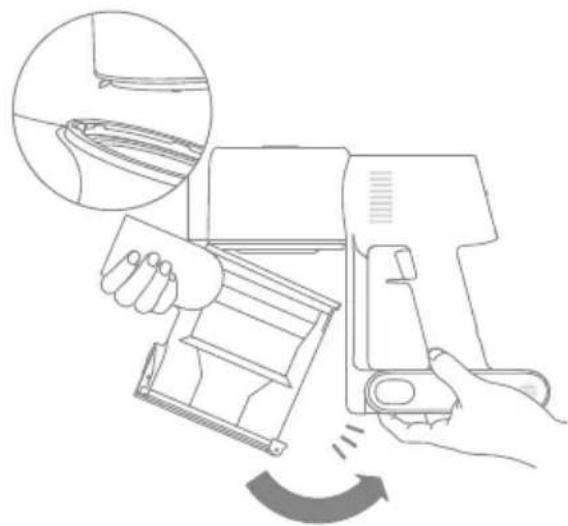

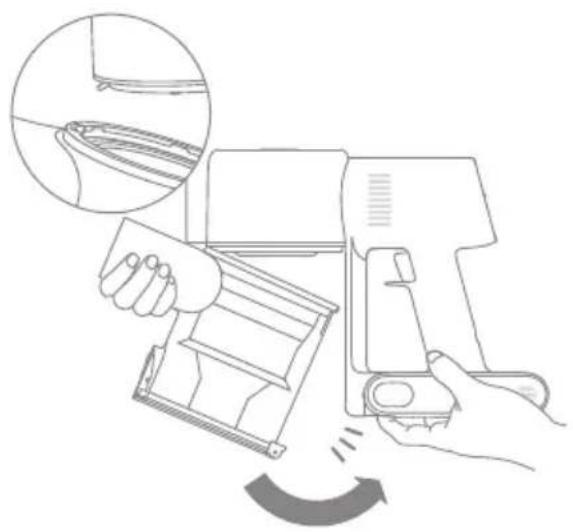

1. Slightly tilt the dust cup so the slot aligns with the clip on the vacuum. Then gently push the dust cup until it clicks into place.

Line drawing of a hand operating a cleaning machine with a magnified inset showing the blade detail (no text or symbols)

Care & Maintenance

EN

Cleaning the Filter

It is recommended to clean the filter once every 4 to 6 months.

1. Remove the dust cup as shown in the figure.

2. Remove the filter from the vacuum by pulling it down in the direction shown in the figure.

Diagram showing a device being processed into a cylindrical component (no text or symbols present)

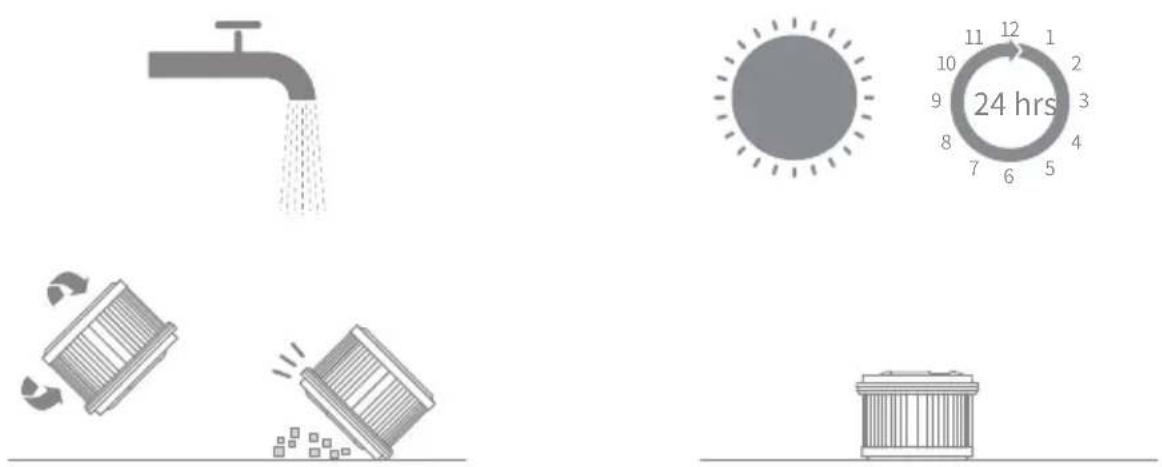

1. Clean the filter with clean water. Make sure you rotate the filter 360^ to thoroughly and remove all dust caught in the filter. Lightly tap the filter several times to remove any excess dirt.

2. Allow the filter to air dry for 24 hours.

Note:

• Only use clean water to wash the filter. Do not use detergent.
• Do not attempt to clean the filter with a brush or finger.

Care & Maintenance

Installing the Filter

1. Insert the filter into the vacuum and gently press down, as illustrated.

2. Reinstall the dust cup.

Diagram of a handheld device with a cylindrical component and an upward arrow, no text or symbols present

Line drawing of a hand using a cleaning tool to clean or adjust a device, with an inset showing the blade being cut (no text or symbols present)

Care & Maintenance

EN

Cleaning the Multi-Surface Brush

1. Turn the lock counterclockwise until it stops, then remove the roller from the roller brush.

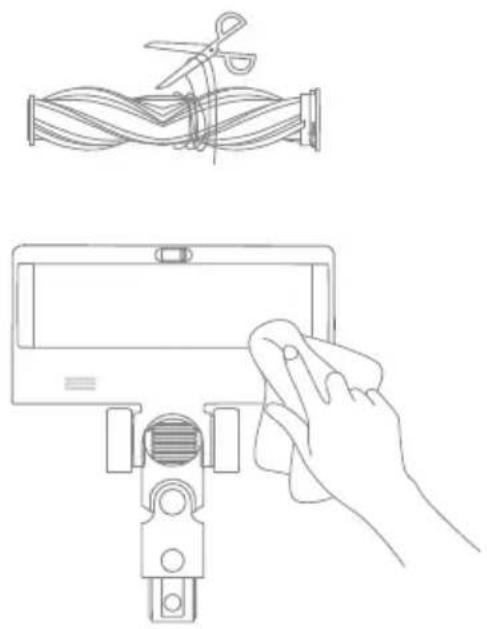

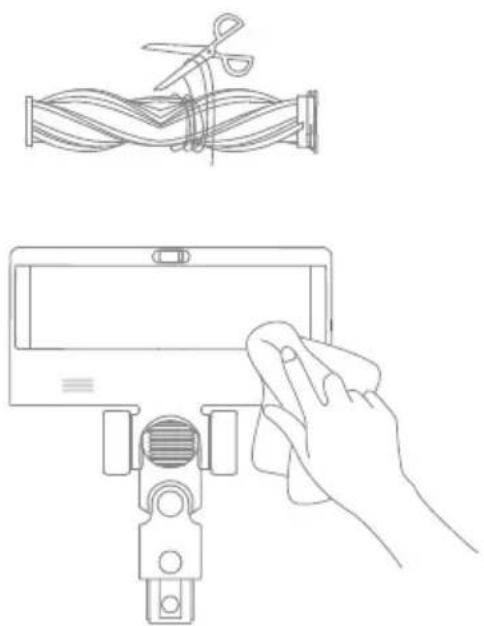

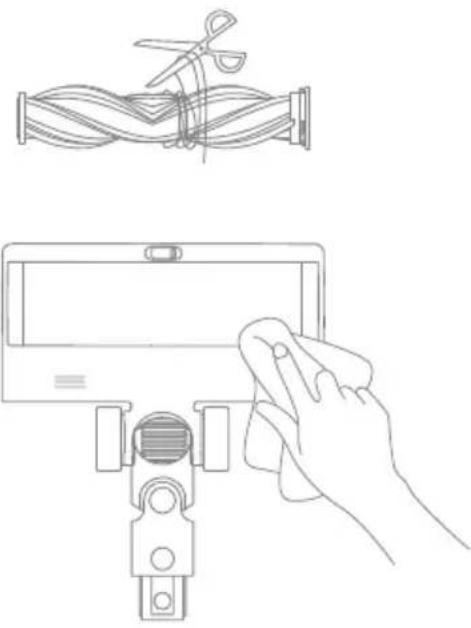

2. Use scissors to cut off the hairs and fibers that get stuck on the brush roller. Wipe the dust from the notch and transparent cover with a dry cloth or paper towel. Thoroughly dry before use.

Diagram of a robotic arm with a circular component and a circular dial indicator (no text or symbols)

Line drawing showing a hand cleaning a small electronic device with a pair of scissors above it (no text or symbols)

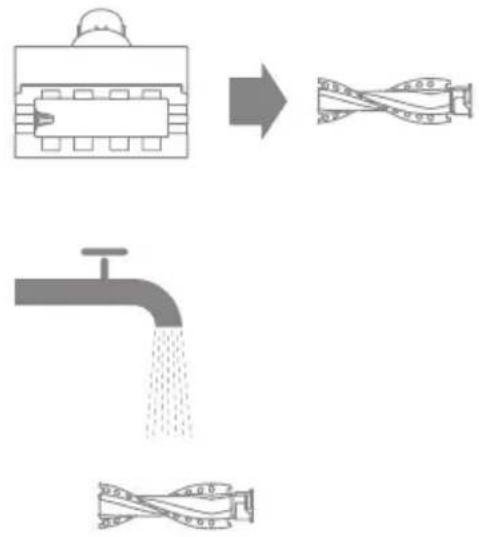

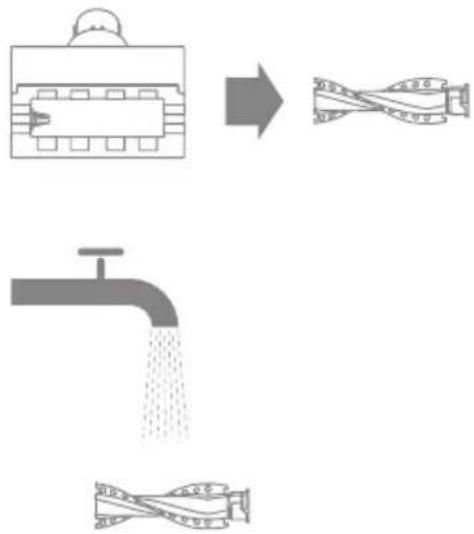

1. When it is dirty, rinse the brush roller with clean water until it is clean.

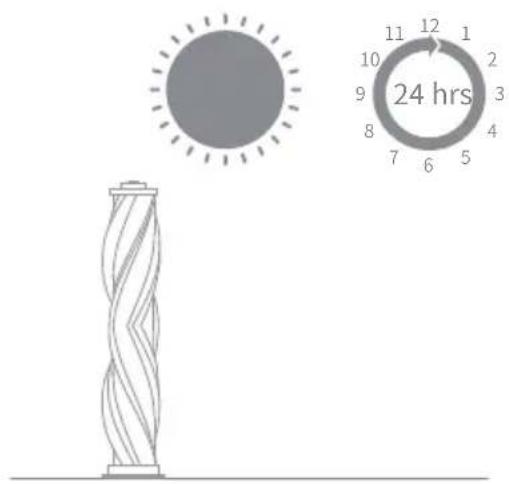

2. Stand the brush roller upright for at least 24 hours until it is fully dry.

Illustration of a faucet releasing water into a pipe with wavy lines indicating flow (no text or symbols)

Care & Maintenance

Cleaning the Motorized Mini-Brush

1. Use a coin as illustrated to rotate the lock counterclockwise until you hear a click.

2. After unlocking the motorized mini-brush, remove the brush roller, then rinse and clean it.

Diagram showing a connector with a circular dial and lock mechanism (no text or symbols)

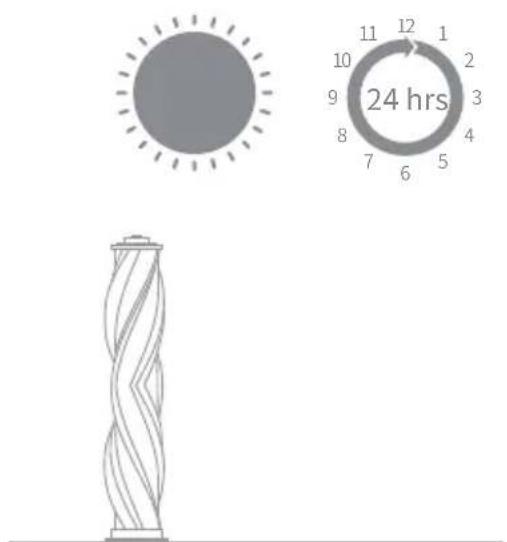

1. Stand the brush roller upright in a well-ventilated area for at least 24 hours until it is fully dry.

2. Once the brush roller is dry, reinstall it by following the disassembly steps in reverse.

Diagram showing a plug inserted into a circular device with a rotary knob (no text or symbols)

Care & Maintenance

Battery Pack

The vacuum contains a removable rechargeable lithium-ion battery pack which has a limited number of recharge cycles. After extended use, the battery pack may no longer hold a charge. If this happens, it means the battery pack has reached the end of its life cycle and needs to be replaced.

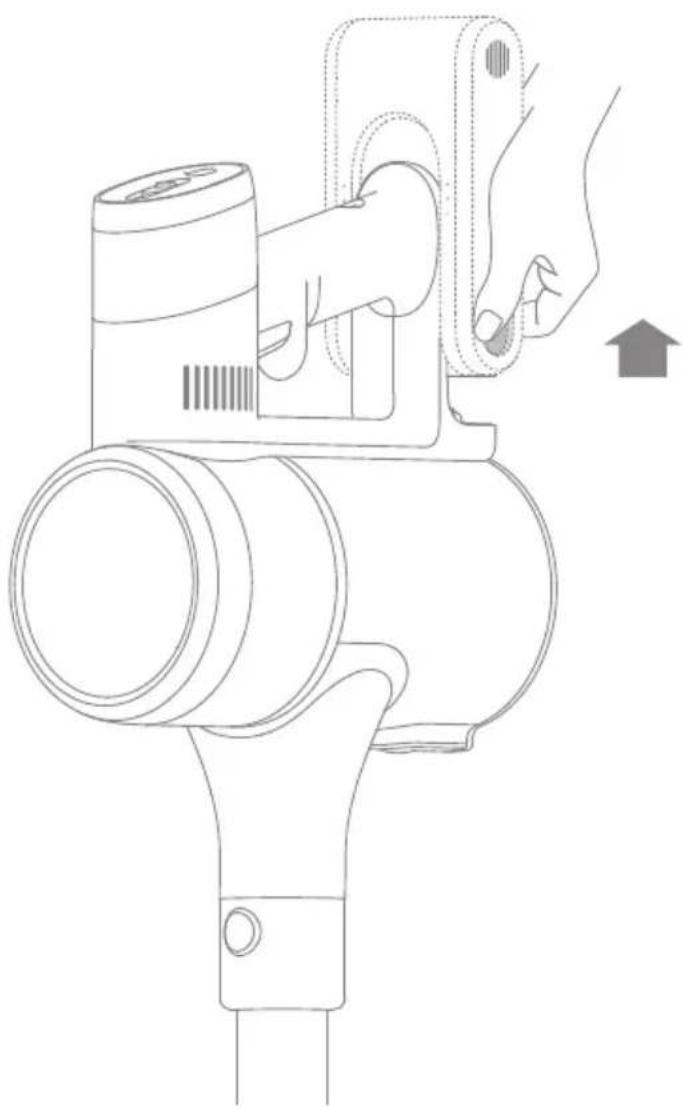

1. Press down the battery pack release button and slide the battery pack to the right, as illustrated, to remove it.
2. Install the new battery pack.

Line drawing of a hand operating a handheld device with a circular base and handle, showing no text or symbols.

Vacuum Cleaner
Model VTV22B
Charging Voltage 30 V Rated Voltage 25.2 V			---
Rated Power 350 W Charging Time			approximately 3.5 hours
Motorized Mini-Brush
Model VMM4
Rated Power 20 W Rated Voltage 25.2 V			---
Multi-Surface Brush
Model VMB3
Rated Power 40 W Rated Voltage 25.2 V			---
Charger
Model YLS0251 B-T300080
Input	100-240 V~50/60 Hz0.8 A max	Output 30 V 0.8 A	---
Rechargeable Lithium-Ion Battery Pack
Model V2309-7S1P-BCA
Nominal Voltage 25.2 V Nominal Capacity		2500 mAh
Rated Capacity	2400 mAh	Energy	60.48 Wh

If the vacuum is not working properly, please refer to the table below.

Errors Possible Causes Solutions
Vacuum does not work.	Vacuum is out of battery or low on power.	Fully charge the vacuum, then resume use.
	Overheat protection mode triggered by a blockage.	Clean the suction openings or air duct. Wait until the vacuum cools down, then reactivate it.
	Suction opening or air duct is blocked.	Clear any blockages from suction opening or air duct.
Weak suction force.	Dust cup is full and/or filter assembly is clogged.	Empty the dust cup and clean the filter assembly.
	Attachment is blocked.	Clear any blockages in the attachment.
Motor makes a strange noise.	Main suction opening or extension rod is blocked.	Clear any blockage in the main suction opening or extension rod.
The first indicator is red after turning on the vacuum.	Battery pack is damaged.	Please contact after-sales service to arrange maintenance.
The first indicator blinks red when charging the vacuum.	The charger is incompatible.	Only use the original charger to charge the vacuum.
The battery indicator does not light up when charging.	The charger does not plug into the vacuum well.	Check whether the charger is properly plugged into the vacuum.
	The battery is charged and switches to Sleep Mode automatically.	The vacuum runs normally.
	If the problem persists after ruling out the above two possibilities.	Please contact the after-sales department for maintenance.
Charging too slow.	Battery temperature is too low or too high.	Wait until the battery's temperature returns normal, then resume use.
LED lights of the multi-surface brush do not work.	LED lights are damaged.	Please contact the aftersales department for maintenance.

The lithium-ion battery pack contains substances that are hazardous to the environment. Before disposing of the vacuum, please remove the battery pack, then discard or recycle it in accordance with local laws and regulations of the country or region it is used in.

Simple line drawing of a vertical cylindrical object with a small protrusion on top (no text or symbols)

Tige de rallonge Brosse multi-surfaces

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pure technical line drawings of mechanical components without any text or symbols

Line drawing of a mechanical device with attached cable and connector (no text or symbols)

Technical line drawing of a mechanical device with an inset circular detail showing internal components (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a circular device with a handle and control knob (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Remarque:

Brosse multi-surfaces

Line drawing of a sewing machine on a patterned fabric background (no text or symbols)

Line drawing of a robotic arm interacting with a mechanical component (no text or symbols)

Mode d'utilisation

Line drawing of a robotic arm gripping a tool, no text or symbols present

Support mural

Technical line drawing of a vacuum cleaner with an inset close-up showing its mounting bracket (no text or symbols present)

Remarque:

Line drawing of a printer with a circular label labeled '-MAX-' and no readable text or symbols

Line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols)

Line drawing of a handheld device with an inset close-up showing internal components (no text or symbols)

Line drawing of hands using a handheld device to adjust or install a device, with no visible text or symbols.

Line drawing of a hand cleaning a rectangular object with a cloth (no text or symbols)

Line drawing of a hand operating a cleaning machine with a magnified inset showing the blade detail (no text or symbols)

Diagram showing a device being processed into a cylindrical component (no text or symbols present)

Remarque:

Diagram of a handheld device with a cylindrical component and an upward arrow, no text or symbols present

Line drawing of a hand operating a cleaning machine with a magnified inset showing the blade detail (no text or symbols)

Diagram of a robotic arm with a circular dial and directional arrow, no text or symbols present

Line drawing showing a hand cleaning a device with scissors and a cloth (no text or symbols)

Illustration of a faucet releasing water and a wavy pipe with flowing lines (no text or symbols)

Diagram showing a plug inserted into a circular dial with a rotary knob (no text or symbols)

Diagram of a device with a circular dial and directional arrow, no text or symbols present

Line drawing of a hand operating a handheld device with a circular base and handle, showing no text or symbols.

Caractéristiques

Pure vertical line drawing of a mechanical or electrical component (no text or symbols)

Varilla extensible Cepillo Multisuperficie

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pure technical line drawings of mechanical components without any text or symbols

Line drawing of a mechanical device with attached cable and connector (no text or symbols)

Technical line drawing of a mechanical device with an inset circular detail showing internal components (no text or symbols)

Apagado

Line drawing of a mechanical device with no visible text or symbols

Diagram of a circular device with a switch and battery symbol, no text or labels present

Line drawing of a mechanical device with no visible text or symbols

Nota:

Line drawing of a sewing machine stitching a patterned fabric background (no text or symbols)

Line drawing of a robotic arm interacting with a mechanical component (no text or symbols)

Modo de uso

Line drawing of a robotic arm gripping a flat surface, no text or symbols present

Montaje en Pared

Technical line drawing of a vacuum cleaner with an inset close-up showing its mounting bracket detail (no text or symbols present)

Nota:

Line drawing of a mechanical device with a circular label labeled '-MAX-' (no text or symbols on the device itself)

Technical line drawing of a mechanical device with an inset showing a component (no text or symbols)

Line drawing of a hand operating a handheld device with an inset showing a mechanical component (no text or symbols)

Line drawing of a hand holding a device with a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand cleaning a rectangular object with a cloth (no text or symbols)

Line drawing of a hand operating a cleaning or cleaning device with a magnified inset showing the handle (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a downward arrow indicating motion (no text or symbols)

Diagram of a handheld device with a button and scroll, showing internal components (no text or symbols)

Line drawing of a hand operating a device with a magnified inset showing the handle (no text or symbols)

Technical line drawing of a mechanical component with a circular inset showing a rotary knob (no text or symbols)

Line drawing showing a hand cleaning a small object with scissors and a tablet device (no text or symbols)

Illustration showing a faucet, a coiled pipe, and a windmill with a 24-hour timer (no text or symbols on the diagram itself)

Diagram showing a device with a lock and a circular dial indicator (no text or symbols)

Diagram of a plug device with a circular dial showing a control knob (no text or symbols)

Line drawing of a hand operating a handheld device with a circular base and handle, showing no text or symbols.

Especificaciones

ES
