USER MANUAL Athena 60 Klarstein

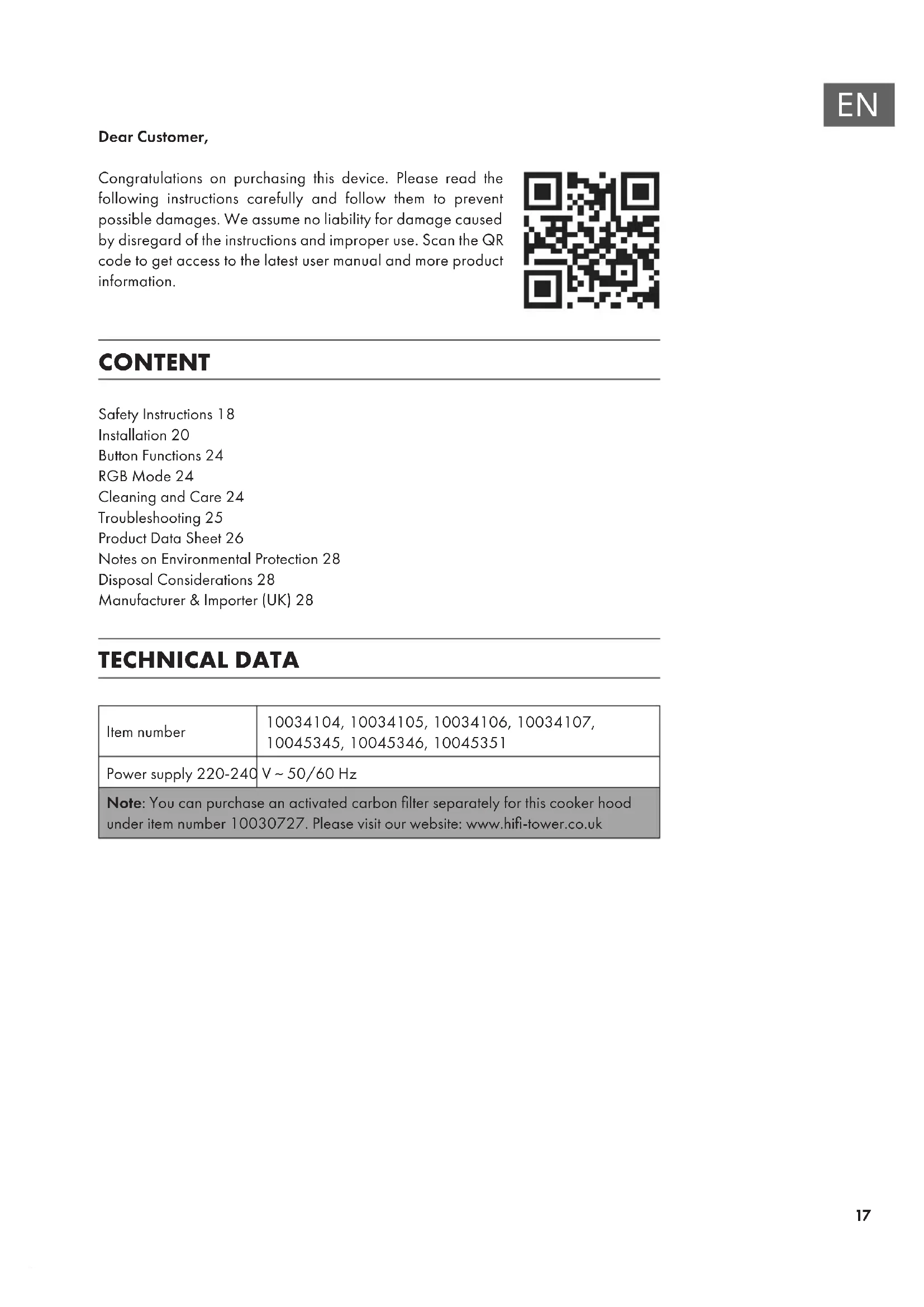

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENT Safety Instructions18 Installation20 Button Functions24 RGB Mode24 Cleaning and Care24 Troubleshooting25 Product Data Sheet26 Notes on Environmental Protection28 Disposal Considerations28 Manufacturer & Importer (UK)28 TECHNICAL DATA Item number 10034104, 10034105, 10034106, 10034107, 10045345, 10045346, 10045351 Power supply 220-240 V ~ 50/60 Hz Note: You can purchase an activated carbon lter separately for this cooker hood under item number 10030727. Please visit our website: www.hi-tower.co.uk18

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.

• The installation work must be carried out by a qualied electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.

• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.

• Children under the age of 8 must not use the cooker hood.

• The appliance is not intended for commercial use, but only for household and similar environments.

• The cooker hood and its lter mesh should be cleaned regularly in order to keep it in good working order.

• Before cleaning, switch the power off at the main supply.

• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.

• Prohibit putting the cooker hood by re.

• If the appliance does not function normally, contact the manufacturer or a specialist company.

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.

• Do not ambé under the range hood. Accessible parts may become hot when used with cooking appliances. Important hints on installation

• The air must not be discharged into a ue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

• Regulations concerning the discharge of air have to be fullled.19

Important notes about the extraction mode WARNING Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed. Open ue combustion equipment (for example, gas, oil, wood or coal- red heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without suf cient air intake this creates a vacuum. Toxic gases from the chimney or extraction ue can thereby be sucked back into the living spaces.

• Always ensure that a suf cient supply of fresh air is guaranteed and that the air can circulate.

• An air supply / extractor box alone does not ensure compliance with the limit value. Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can ow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a quali ed chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation. If the hood is used exclusively in the recirculation mode, unrestricted operation is possible. Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.

• Take a second person to help you during disassembly to avoid injuries.20

INSTALLATION Preparation If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, exible pipe or inammable material with an interior diameter of 150mm)

• Before installation, turn the unit off and unplug it from the outlet.

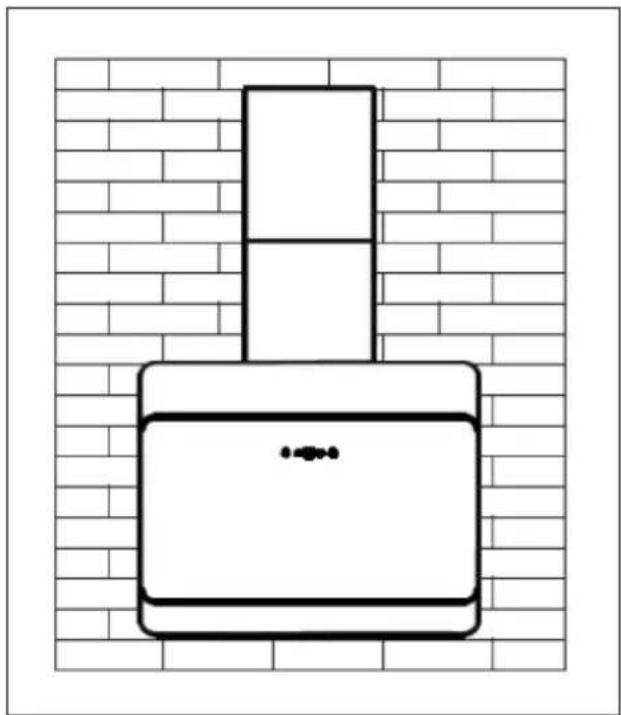

• The cooker hood should be placed at a distance of 65~75cm above the cooking plane for best effect. Installation (Vent outside) Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa (4 x 10

1. The hood can be installed in exhaust or recirculation mode.

2. The hood must be placed at a distance of 65-75 cm from the cooking surface for

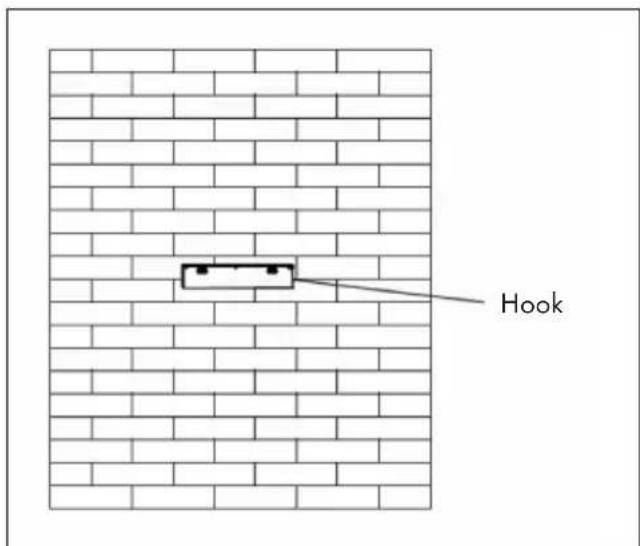

3. Install the hook to a suitable location once you‘ve determined the installation height,

and maintain alignment.

4. The exterior of the chimney must be xed so as to be freely adjustable in height.

5. Hang the hood on the plate of the hood and x the replace with 4 screws.

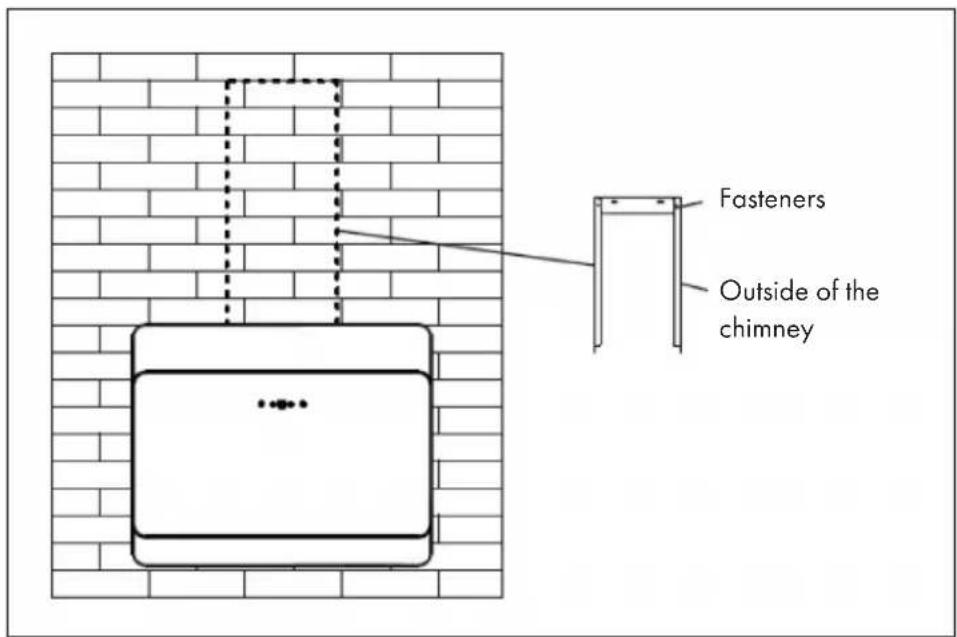

6. Place the outside of the chimney and secure with the chimney support.

7. Finally, attach the outdoor replace on the wall.

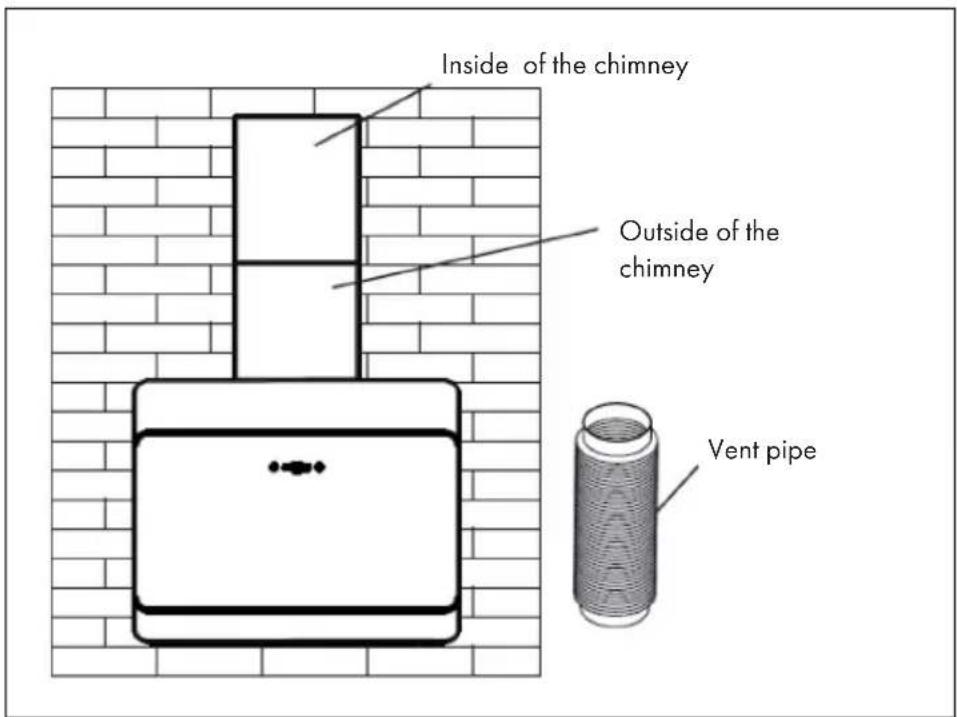

Fasteners Outside of the chimney Outside of the chimney Inside of the chimney Vent pipe22

8. Adjust the height of the inside of the chimney to the desired position, slightly widen

the outdoor replace and screw. Notes on Installation

• Before installing, make sure the place is clean to avoid suction of broken pieces of wood scraps and dust.

• It can not share the air vent pipe of another device such as a pipe gas, a hose and a hot air pipe.

• The curvature of the vent pipe should be above 120 °, parallel or above the starting point and must be connected to the outer wall.

• After installation, make sure that the extractor is level to avoid grease collection at one end.23

Installation (Vent inside) If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section “Installation (Vent outside)”. Installing the Carbon Filter Note: An activated carbon lter is not included. But you can buy it as an extractor hood.

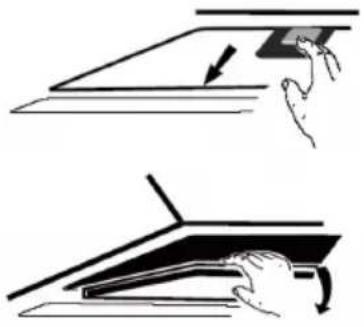

Activated carbon lter can be used to trap odours. In order to install the activated carbon lter, the grease lter should be detached rst. Press the lock and pull it downward.

Plug the activated carbon lter into the unit and turn it in clockwise direction. Repeat the same on the other side. Make sure the lter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon lter attached, the suction power will be lower.24

1. Touch the light button 3 times briey to switch to RGB mode (only the colored

background light will light) in standby / working mode.

2. Now touch and hold the light button (approx. 5 seconds) until the keypad starts

3. Now you can switch through the background colours with button 3: White / Red /

Green / Blue / Yellow / Purple / Orange / Turquoise / Yellow-green.

4. To conrm the selected light, touch the light button again for about 5 seconds.

Monthly Cleaning for Grease Filter Clean the lter every month can prevent any risk of re. The lter collects grease, smoke and dust, so the lter is directly affecting the efciency of the cooker hood. If not cleaned, the grease residue (potential ammable) will saturate on the lter. Clean it with household cleaning detergent. Light button High speed button Medium speed button Low speed button On/Off button BUTTON FUNCTIONS25

Annual Cleaning for Activated Filter Apply solely to unit that installed as a recirculation unit (not vented to the outside). This lter traps odours and must be replaced at least once a year depending on how frequent the cooker hood used. Replacing Bulbs 1 Switch the unit off and unplug the appliance. 2 Remove the lamp cover by unscrewing the 2 screws. 3 Unscrew the incandescent bulb. Replace with the same type and rated bulb. TROUBLESHOOTING Fault Cause Solution Light on, but fan does not work The fan blade is jammed. Switch of the unit and repair by qualied service personnel only. The motor is damaged. Both light and fan do not work light bulb burn. Replace the bulb with correct rating. Power cord looses. Plug in to the power supply again. Serious Vibra-tion of the unit The fan blade is damaged. Switch of the unit and repair by qualied service personnel only. The fan motor is not xed tightly. The unit is not hung properly on the bracket. Take down the unit and check whether the bracket is in proper location. Suction per-formance not good Too long distance between the unit and the cooking plane Readjust the distance to 65-75cm26

Information according to Regulation (EU) No. 65/2014 Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20 11+A11:2014+A12:2015 Item number 10034104, 10034105, 10034106, 10034107 Description Symbol Value Unit Annual Energy Consumption AEC hood 40,4 kWh/Year Energy Efciency class A Fluid Dynamic Efciency FDE hood 28,5 Fluid Dynamic Efciency class A Lighting Efciency LE hood 33,6 Lux/W Lighting Efciency class A Grease Filtering Efciency GFE hood 75 % Grease Filtering Efciency class D air ow at minimum and maximum speed in normal use, intensive or boost excluded 414,8 / 594 m³/h air ow at intensive or boost setting - m³/h airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use 59 / 63 dB airborne acoustical A-weighted sound power emissions at intensive or boost setting - dB power consumption in off mode P

0,48 W power consumption in standby mode

Information according to Regulation (EU) No. 65/2014 Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20 11+A11:2014+A12:2015 Item number 10045345, 10045346, 10045351 Description Symbol Value Unit Annual Energy Consumption AEC hood 38,7 kWh/Year Energy Efciency class A Fluid Dynamic Efciency FDE hood 28,5 Fluid Dynamic Efciency class A Lighting Efciency LE hood 33,6 Lux/W Lighting Efciency class A Grease Filtering Efciency GFE hood 75 % Grease Filtering Efciency class D air ow at minimum and maximum speed in normal use, intensive or boost excluded 414,8 / 594 m³/h air ow at intensive or boost setting - m³/h airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use 59 / 63 dB airborne acoustical A-weighted sound power emissions at intensive or boost setting - dB power consumption in off mode P

0,48 W power consumption in standby mode

• During cooking, make sure that there is sufcient air supply so that the cooker hood can operate efciently and with low operating noise.

• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.

• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.

• Switch off the cooker hood when you no longer need it.

• Switch off the lighting when you no longer need it.

• Clean the lter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent re hazards.

• Always put the lid on when cooking to reduce cooking steam and condensation. DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Limited PO Box 42 272 Kensington High Street London, W8 6ND United Kingdom29
