GRD6090B - Grill plate GEORGE FOREMAN - Free user manual and instructions

Product type	Electric grill plate
Brand	George Foreman
Model	GRD6090B
Plate coating	Non-stick
Removable plates	Yes (upper and lower, part numbers GR6090-01 and GR6090-02)
Removable drip tray	Yes (part number GR6090-03)
Adjustable hinge	Yes (front/back and left/right for variable thicknesses)
Digital display	Yes (temperature and timer)
Programmable timer	Yes (adjustable via + and - buttons, beep at end)
Temperature control	Yes (adjustable via TEMP button)
Automatic preheat	Yes (activates 5 seconds after temperature setting)
Quick start	Yes (press START for preset at 220°C)
Power supply	1200 W (estimated)
Power cord	Short, polarized plug
Safety	Polarized plug, tamper-proof screw, do not immerse, do not use outdoors
Plate care	Dishwasher safe or hand wash (warm soapy water)
Exterior cleaning	Wipe in direction of stainless steel grain, stainless steel cleaner
Usage	Household use only
Warranty	3-year limited (United States and Canada)
Repairability	No user-serviceable parts, refer to qualified technician

Frequently Asked Questions - GRD6090B GEORGE FOREMAN

How to clean the grill plates?

Unplug the appliance and let it cool completely. Remove the plates and drip tray. They are dishwasher safe or can be hand washed with warm soapy water. Do not use steel wool or abrasive cleaners to avoid damaging the non-stick coating.

How to adjust the temperature?

Turn on the appliance with the On/Off switch. Press the TEMP button (the display blinks). Use the + and - buttons to set the desired temperature. The preheat starts automatically after 5 seconds.

What to do if smoke appears during first use?

This is normal: there may be slight smoke or odor during the first few minutes due to residual manufacturing oil. Make sure the plates and tray are clean. This will disappear after a few uses.

Can I use metal utensils on the plates?

No, to avoid damaging the non-stick coating, use silicone, heat-resistant rubber, or wooden utensils. Also avoid cutting food on the plates.

How to use the timer?

After placing the food, press the TIME button. The display blinks. Use the + and - buttons to set the cooking time. The appliance beeps at the end of the programmed time.

Does the grill heat on both sides?

Yes, the upper and lower plates heat to grill food on both sides simultaneously. It is recommended to keep the lid closed during cooking.

How to store the appliance to save space?

You can store the appliance on its side, as shown in the manual. Make sure it is completely cooled and clean before storing.

What if the digital display does not work?

Check that the appliance is plugged in and the On/Off switch is on. If the touch screen does not respond, gently clean it. If the problem persists, contact customer service at 1-800-947-3745.

Can I use the grill without the drip tray?

No, the drip tray must always be in place during cooking to collect juices. Do not use the grill without the tray or base.

What is the warranty and how to activate it?

The appliance comes with a 3-year limited warranty (valid in the United States and Canada). Keep your receipt as proof of purchase. Register your product online at www.prodprotect.com/georgeforeman or call 1-800-947-3745.

USER MANUAL GRD6090B GEORGE FOREMAN

Open stainless steel grater with open lid and control buttons (no visible text or symbols)

CONTACT SMOKELESS GRILL

PARRILLA DE CONTACTO SIN HUMO

GRIL DE CONTACT SANS FUMÉE

USE AND CARE MANUAL

MANUAL DE USO Y CUIDADO

GUIDE D'UTILISATION ET D'ENTRETIEN

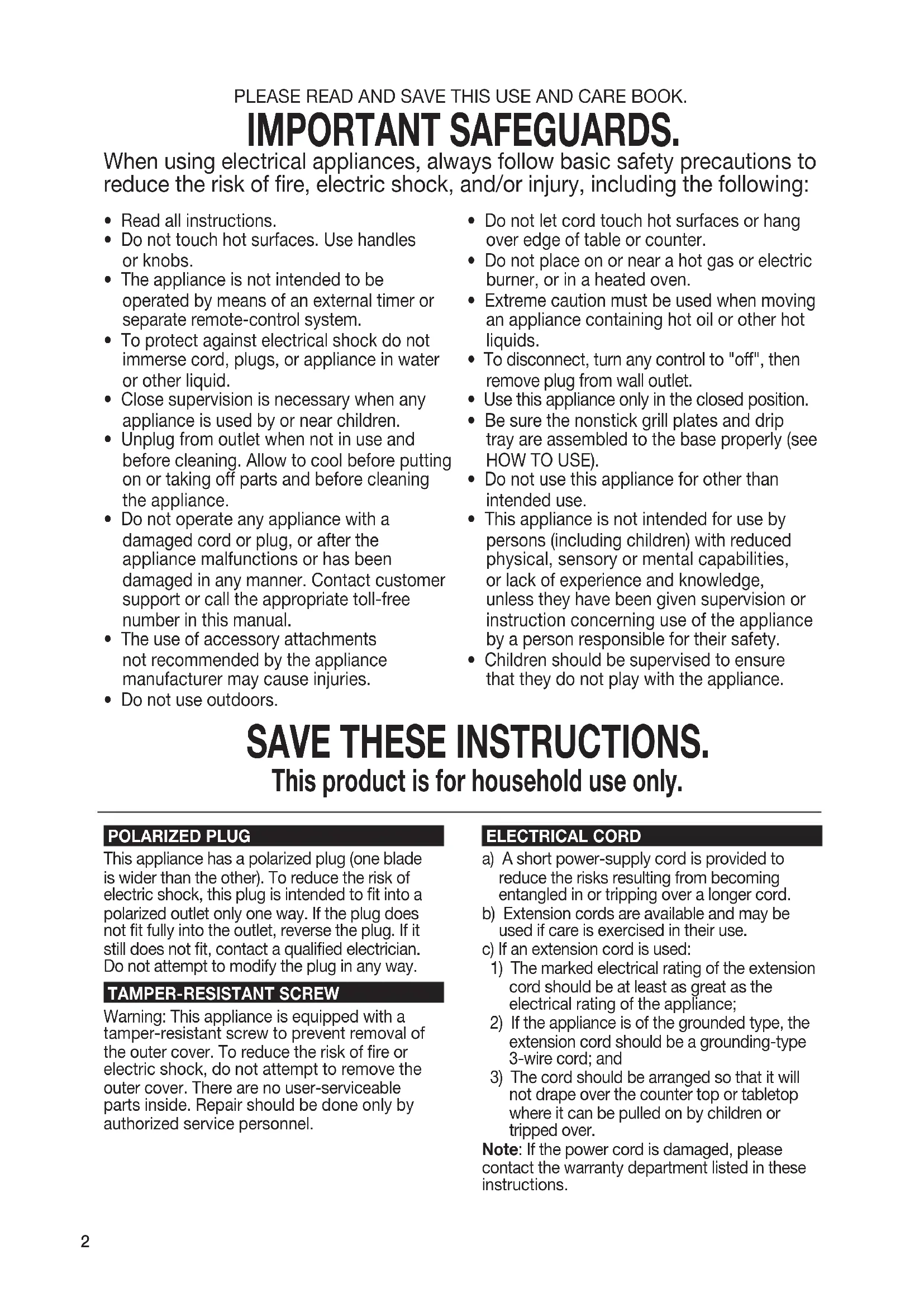

PLEASE READ AND SAVE THIS USE AND CARE BOOK.

IMPORTANT SAFEGUARDS.

When using electrical appliances, always follow basic safety precautions to reduce the risk of fire, electric shock, and/or injury, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• To protect against electrical shock do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer support or call the appropriate toll-free number in this manual.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

• Do not use outdoors.

• Do not let cord touch hot surfaces or hang over edge of table or counter.

• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• To disconnect, turn any control to "off", then remove plug from wall outlet.
• Use this appliance only in the closed position.
• Be sure the nonstick grill plates and drip tray are assembled to the base properly (see HOW TO USE).
• Do not use this appliance for other than intended use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
b) Extension cords are available and may be used if care is exercised in their use.
c) If an extension cord is used:
1) The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance;
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord; and
3) The cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over.

Note: If the power cord is damaged, please contact the warranty department listed in these instructions.

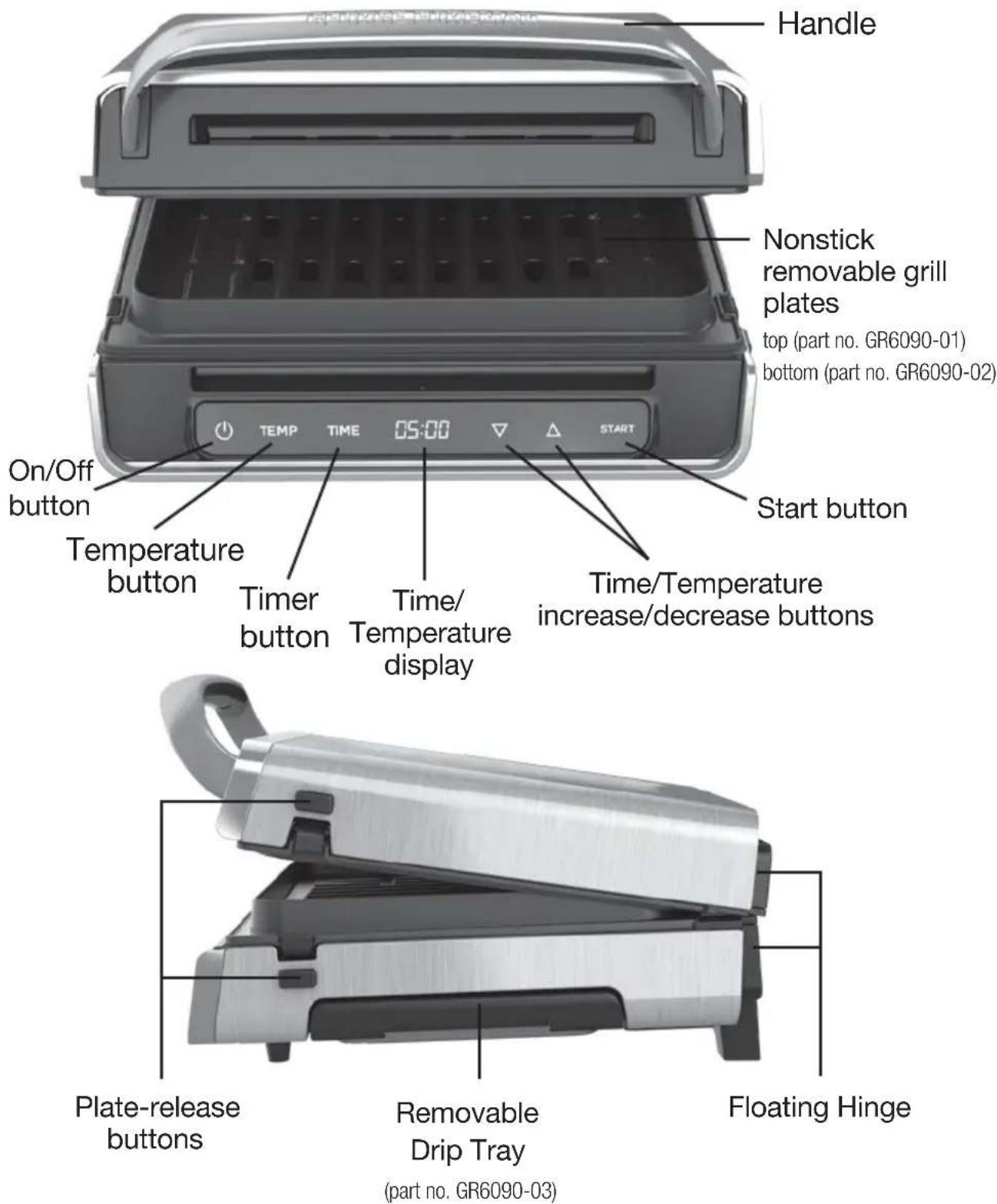

GETTING TO KNOW YOUR GRILL

HOW TO USE

This product is for household use only.

GETTING STARTED

• Remove all packing material, any stickers, and the plastic band around the power plug.
• Remove and save literature.
• Please visit www.prodprotect.com/georgeforeman to register your warranty.

BEFORE FIRST USE

1. Wash grill plates and drip tray in warm water and dish soap. Dry thoroughly.

Disclaimer: When using the grill for the first time, you may notice smoke or a slight odor during the first few minutes if there is still oil on the plates from the manufacturing process. This is normal.

Illustration of a computer monitor with an inserted slot and an arrow indicating the slot (no text or symbols present)

Slide drip tray into base. The drip tray must always be in place during cooking.

Close-up of a hand opening a portable electronic device (no visible text or symbols)

Fit the grill plates onto the base by first inserting tabs at back of grill. Plates will click when correctly attached.

TO OPERATE

1. Plug the cord into a standard electrical outlet.

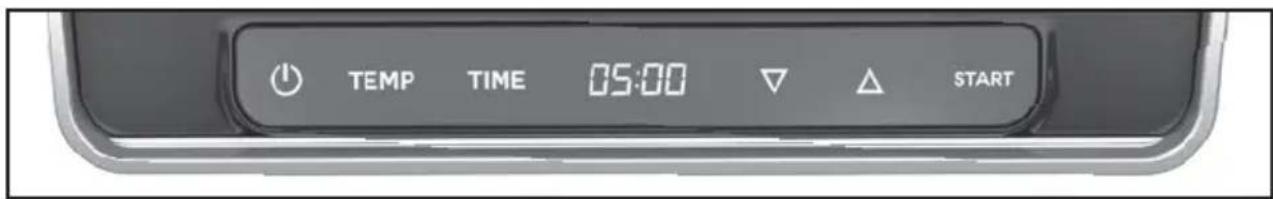

Push the power button on digital display to turn the unit on.

Keep the lid closed.

Push TEMP button.

Time/Temperature display will begin to flash.

Set temperature using temperature/time control buttons.

Note: Preheating starts automatically 5 seconds after the temperature is set.

Optional: Push START to begin preheat.

Digital display light will slowly pulse red.

When the digital display light turns green, the unit is ready.

Open storage device with internal compartments and control buttons (no visible text or symbols)

Place food on grill plates and close cover.

Select TIME to set timer.

See Cooking Guide (pg. 5) for timer suggestions

Set timer using temperature/time control buttons.

Unit will beep when time* has fully elapsed.

Remove food, press power button to turn off. Unplug unit when finished.

QUICK START

- Pressing the START button immediately after turning the grill on will automatically set the grill to a 425°F preheat.

FLOATING HINGE

- Hinge adjusts backwards and forwards, left and right to make full contact for uneven thicknesses and thicker cuts of meat.

Stacked metallic mechanical parts with a black arrow indicating direction (no text or symbols)

Tips

- To avoid damaging the nonstick surface, do not use aerosol nonstick spray, sharp utensils or cut food on the cooking surface of the unit. Use silicone, heat-resistant rubber or wooden utensils.

Caution

• Because some countertop finishes are more affected by heat than others, use care not to place grill on surfaces where heat may cause a problem.
• Grill surface is hot during use.
• Do not use the grill without the drip tray or base.

The GRD6090B smokeless grill produces up to 85% less smoke than the George Foreman indoor/outdoor grill (RPGD3994) when grilling 1/4 lb. beef burgers (20% fat, 80% lean) with clean grill plates and drip trays.

COOKING GUIDE

The following chart is meant to be used as a guideline only. Cooking time will depend on the thickness of the food. To be sure your food is cooked, USDA recommends using a meat thermometer to test for doneness. Insert the meat thermometer into the thickest part of the meat until the temperature stabilizes.

BEEF HAMBURGER (4 OZ)

Temp: 425°F

Grill time: 4-8 min.

Cooked to 145°F

BRATWURSTS

Temp: 425°F

Grill time: 25-30 min.

Cooked to 160°F

CHICKEN BREAST

Temp: 425°F

Grill time: 4-8 min.

Cooked to 165°F

SALMON (6 OZ)

Temp: 400°F

Grill time: 6-8 min.

Cooked to 145°F

STEAK (12 OZ)

Temp: 425°F

Grill time: 8-15 min.

Cooked to 145°F

BACON

Temp: 375°F

Grill time: 15-21 min.

Cook to desired crispness

PORK CHOP (8 OZ)

Temp: 425°F

Grill time: 8-12 min.

Cooked to 145°F

VEGETABLES

Temp: 375°F

Grill time: 5-8 min.

Cook to desired doneness

CARE AND CLEANING

Caution: To avoid accidental electric shock and burns, unplug from outlet before cleaning, allow your grill to cool completely.

This product contains no user serviceable parts. Refer service to qualified service personnel.

Note: not properly cleaning the grill plates may result in increased smoke levels from residual oils left over from previous cooking cycles.

Hand inserting a device into an open digital scanner (no visible text or symbols)

Unplug and allow the unit to cool completely before cleaning.

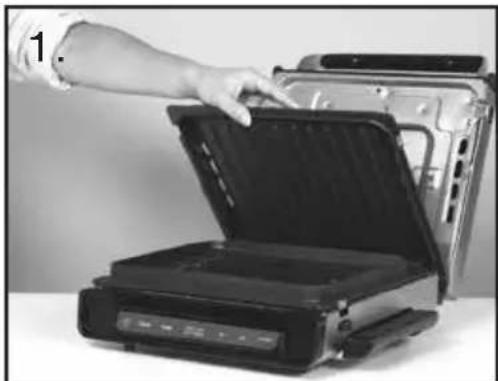

Remove the grill plates, the top one first. Pull out and empty drip tray.

Do not immerse the unit in water.

Close-up of a kitchen appliance with multiple plastic units and a rack, no visible text or symbols

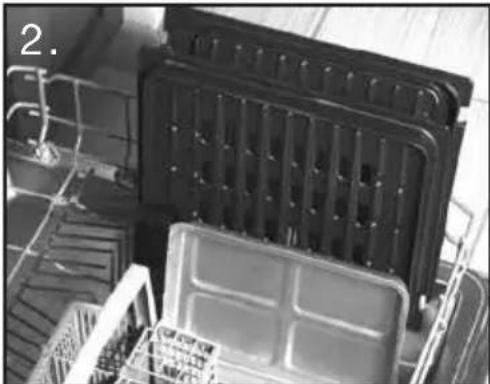

Drip tray and grill plates are dishwasher-safe or can be hand washed.

Do not use steel wool pads or other abrasive cleaners on the cooking surface as they may damage the nonstick coating. To remove cooked-on food, use a plastic bristle brush or nylon mesh pad.

Black-and-white photo of a printer with a hand placed on top, showing its lid and control panel (no visible text or symbols)

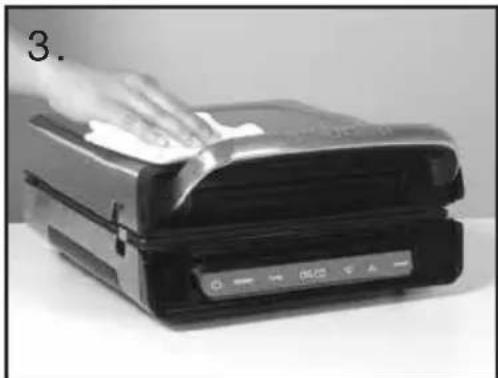

Increase the longevity of the exterior surface by wiping down/along the grain of the stainless steel with a wet paper towel.

Use stainless steel cleaner for deeper clean.

Clean touch screen after each use to maintain usability.

Black-and-white photo of a white and black appliance mounted on a cabinet, with a close-up of its side panel attached (no visible text or symbols)

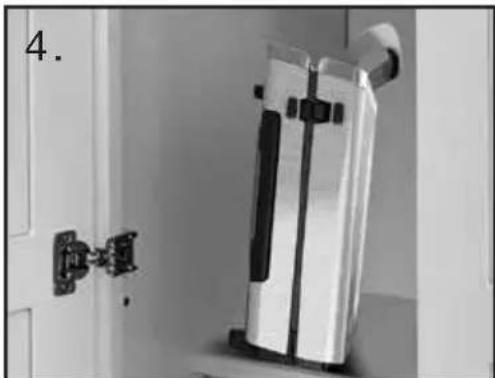

To save space, store unit on its side as shown.

FEATURED RECIPE

MOJO CHICKEN SANDWICH WITH CARIBBEAN SLAW

Prep Time: 10 minutes + 30 minutes to marinate

Cook Time: 6 minutes Total Time: 46 minutes Servings: 6

Ingredients:

Mojo marinade:

^3/_4 cup orange juice

12 cup chopped sweet onion

1 tsp lime zest

14 cup lime juice

14 cup olive oil

14 cup soy sauce

2 tbsp minced garlic

2 tsp dried oregano

1-1/2 tsp ground cumin

1-1/2 tsp ground pepper

Caribbean Slaw:

1 cup mayonnaise

2 tbsp orange juice

1 tsp grated orange zest

1 tbsp lime juice

Grated zest from 1 lime

1 medium shallot minced

2 tbsp minced cilantro

2 tsp chopped chipotle chilies in adobo

1 tsp minced garlic

Salt and pepper to taste

1 bag of coleslaw mix

1 red bell pepper sliced thin

1 cup pineapple chunks

6 chicken breasts, boneless, skinless

6 Kaiser rolls, sliced

Directions:

1. For Mojo marinade: In a blender combine all ingredients and puree. Makes 2 cups. Pour over chicken breasts in a gallon sized food storage bag. Refrigerate for at least 30 minutes or up to 8 hours.

2. For Caribbean slaw: In a blender combine the mayonnaise, orange juice, orange zest, lime juice, lime zest, shallot, cilantro, chilies, and garlic. Puree. Season to taste with salt and pepper. Makes about 1-1/2 cups. In a large bowl combine the cabbage, red pepper, and pineapple. Toss to mix. Pour the dressing over the cabbage mix and stir to coat. Refrigerate until ready to use.

3. Preheat grill. Place chicken breasts on the grill and cook until an internal temperature of 165F is reached, approximately 6 minutes depending on the thickness of the chicken breast.

4. Grill buns, cut side down for about 2 minutes or until toasted.

5. Build the sandwich: Place the grilled chicken on the bun, top with the slaw and cover with top of bun.

More recipes can be found at www.georgeforemancooking.com

WARRANTY AND CUSTOMER

SERVICE INFORMATION

For support or any questions regarding your appliance, call the appropriate 800 number listed within this section. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult our Product Protection Center at www.prodprotect.com/georgeforeman.

Three-Year Limited Warranty

(Applies only in the United States and Canada)

What does my warranty cover?

- Your warranty covers any defect in material or workmanship provided; however, the liability of Spectrum Brands Inc. will not exceed the purchase price of product.

How long is the warranty period?

Your warranty extends three years from the date of original purchase with proof of purchase.

What support does my warranty provide?

- Your warranty provides you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get support?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/georgeforeman, or call toll-free 1-800-947-3745, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

How does state law affect my warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

What does my warranty not cover?

• Damage from commercial use
- Damage from misuse, abuse or neglect
- Products that have been modified in any way
- Products used or serviced outside the country of purchase
- Glass parts and other accessory items that are packed with the unit
- Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

Are there additional warranty exclusions?

- This warranty shall not be valid where it is contrary to U.S. and other applicable laws, or where the warranty would be prohibited under any economic sanctions, export control laws, embargos, or other restrictive trade measures enforced by the United States or other applicable jurisdictions. This includes, without limitation, any warranty claims implicating parties from, or otherwise located in, Cuba, Iran, North Korea, Syria and the disputed Crimea region.

POR FAVOR LEA ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

Close-up of a mechanical device with a slide and arrow indicating motion (no visible text or symbols)

Close-up of a hand opening a device with a panel, no visible text or symbols

Open storage device with internal compartments and control buttons (no visible text or symbols)

Stacked metallic objects with a curved handle and an arrow indicating direction (no text or symbols)

Consejos

Hand inserting a device into an open file folder (no visible text or symbols)

Stacked plastic crates with visible internal compartments, no text or symbols present

Black rectangular electronic device with a hand pressing down on top, showing control buttons (no readable text or symbols)

Black-and-white photo of a wall-mounted air conditioner unit with a close-up of its side panel, no visible text or symbols.

Col. Centro, Cuauhtemoc,

México, D.F.

Tel. [phone]

Nicaragua

LRM ELECTRONICA

Managua - Sinsa Altamira 1.5

kilómetros al norte

Nicaragua

Tel. [phone]

Panamá

Supermarcas

City Market Nivel Plaza Local 153

Diagonal Hotel Melia,

Caracas.

Tel. [phone]

IMPORTANTES CONSIGNES DE SÉCURITÉ.

Close-up of a mechanical device with a slide and arrow indicating motion (no text or symbols)

Close-up of a hand using a portable device to press or install a tray (no visible text or symbols)

Open file organizer with internal compartments (no visible text or symbols)

Mechanical component with a curved handle and arrow indicating direction (no text or symbols)

Conseils

Hand opening a black printer into a rack, no visible text or symbols

Stacked electronic device with a paper lid and control buttons, no visible text or symbols on the device itself.

Top-down view of a black plastic waste container with internal grating and a white plastic tray (no text or symbols visible)

Black-and-white photo of a wall-mounted device with a handle, next to a door panel (no visible text or symbols)

Art. 123 No. 95 Col. Centro, C.P. 06050 Deleg.

Cuauhtemoc Servicio al Consumidor, Venta de

IMPORTADO POR / IMPORTED BY:

AIDISA BOLIVIA S.A.

At the end of this product's life,

you can mail it to Spectrum Brands at

507 Stokely Drive, Deforest, WI 53532

marked "Product Takeback: Please Recycle!"

507 Stokely Drive, Deforest, WI 53532

marcado "Product Takeback: Please Recycle!"

507 Stokely Drive, Deforest, WI 53532

Art. 123 No. 95 Col. Centro, C.P. 06050 Deleg.

Cuauhtemoc SERVICIO AL CONSUMIDOR,

VENTA DE REFACCIONES Y ACCESORIOS

01 800 714 2503

NIT 1020647023,

Resolución Ministerial 0661-12.

IMPORTADO POR / IMPORTED BY:

IMPORTADO POR / IMPORTED BY:

Spectrum Brands de México, SA de C.V

IMPORTADO POR / IMPORTED BY:

Spectrum Brands Corp, S.A.S.

Transversal 23 #97-73

Oficinas 403-404-405,

Bogotá, Colombia

Register your product at www.prodprotect.com/georgeforeman

® Registered Trademark and ™ Trademark of Spectrum Brands, Inc.
