HKS 65-1500 L - Circular saw Güde - Free user manual and instructions

Product type	Circular saw
Brand	Güde
Model	HKS 65-1500 L
Supply voltage	230 V / 50 Hz
Rated power	1600 W
No-load speed	5000 min⁻¹
Blade diameter	190 mm
Blade bore	20 mm
Max. cutting depth at 90°	65 mm
Max. cutting depth at 45°	44 mm
Weight	4.3 kg
Sound pressure level L_pA	96.3 dB(A)
Sound power level L_WA	104.3 dB(A)
Vibration emission value a_h	2.050 m/s²
Protection class	II
Intended use	Longitudinal wood cutting
Extraction system	Vacuum cleaner connection
Maintenance	Cleaning of ventilation slots, blade replacement
Safety	Lower protective guard, safety switch, insulated handles
Spare parts	Available at www.guede.com
Plunge cutting device	Yes

Frequently Asked Questions - HKS 65-1500 L Güde

What is the maximum cutting depth of the Güde HKS 65-1500 L circular saw?

The maximum cutting depth is 65 mm at an angle of 90° and 44 mm at an angle of 45°.

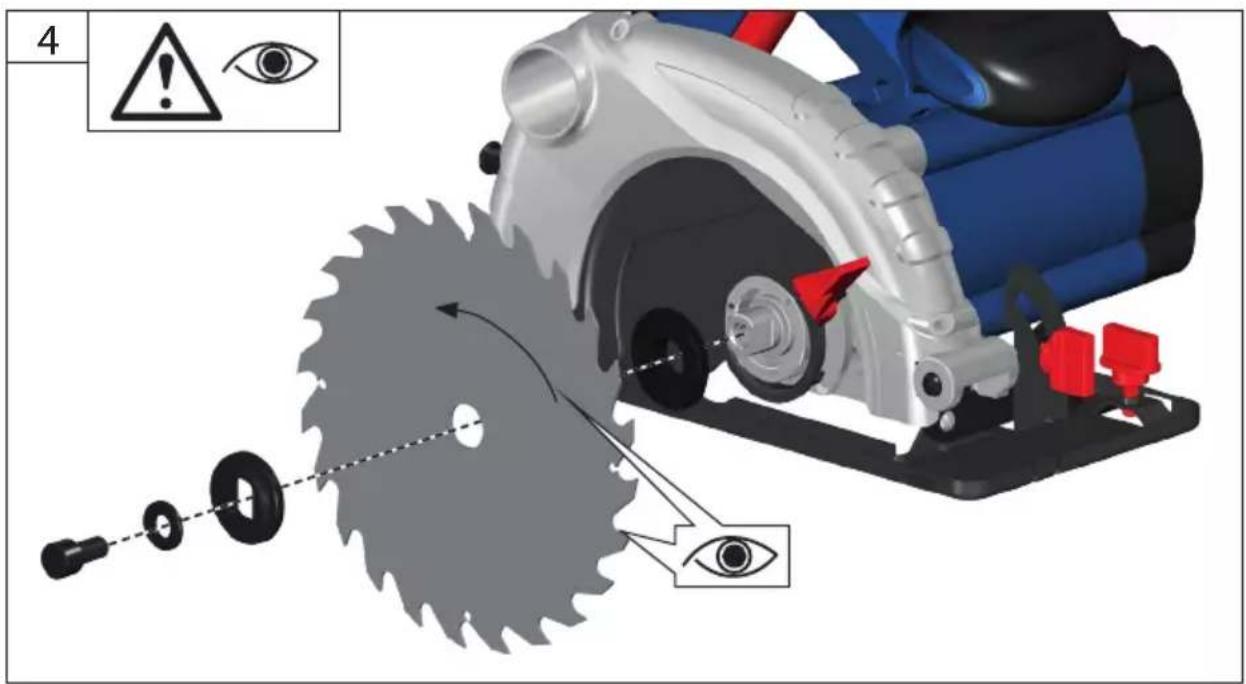

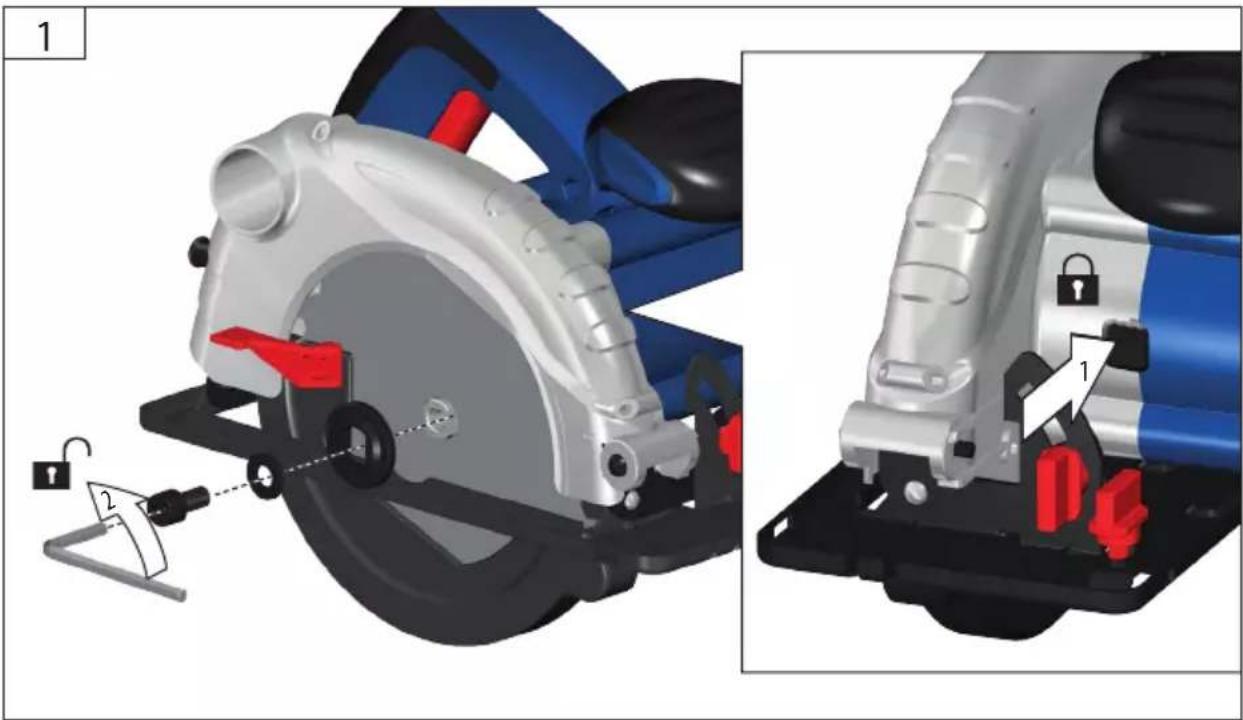

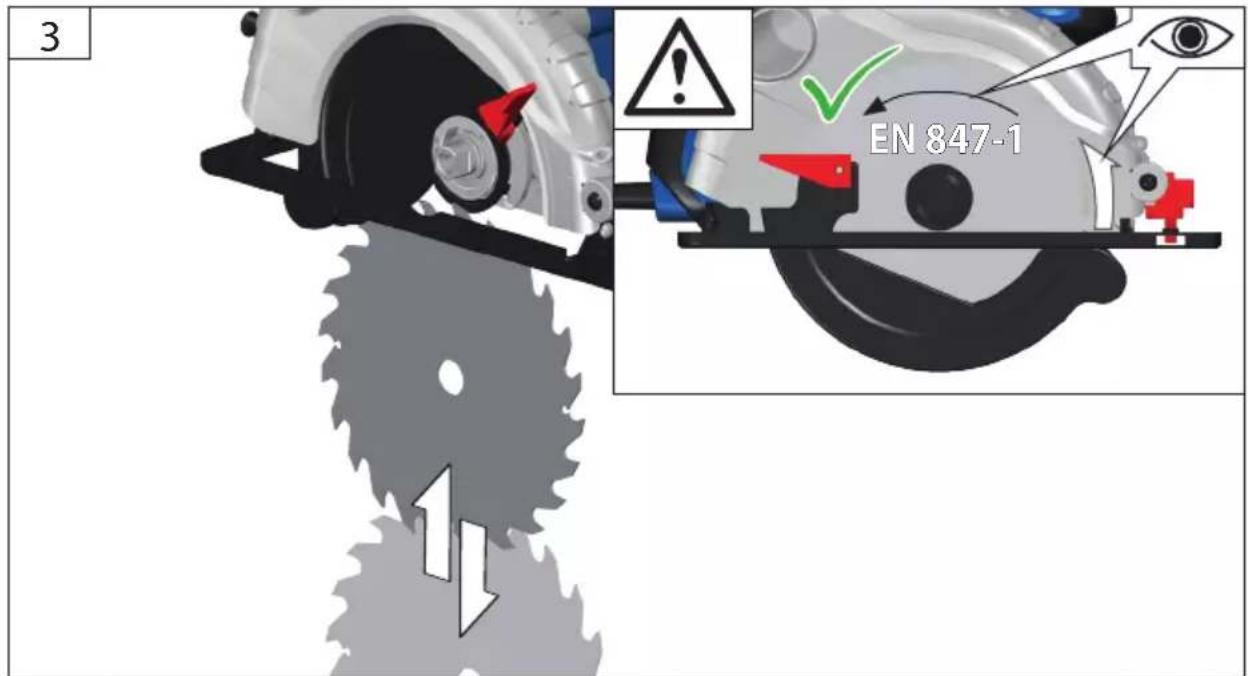

How do I change the saw blade?

Before any intervention, disconnect the tool. Use the supplied wrench to loosen the blade fixing screw. Remove the flange and the used blade. Place the new blade respecting the direction of rotation, then reassemble the flange and screw, tightening firmly.

What are the essential safety precautions?

Always wear safety glasses, hearing protection and gloves. Ensure the workpiece is well secured. Keep hands away from the blade and use both hands to hold the saw. Never place hands under the workpiece.

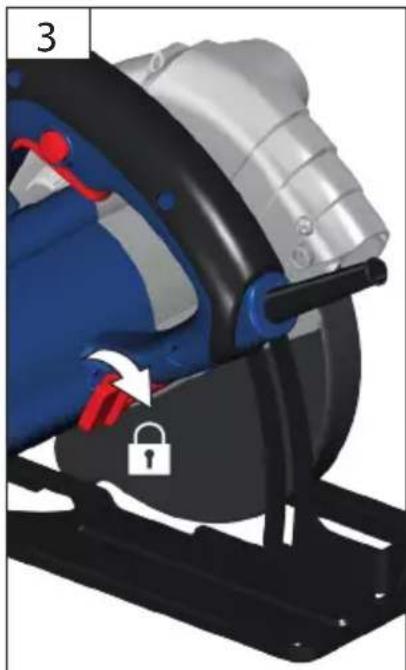

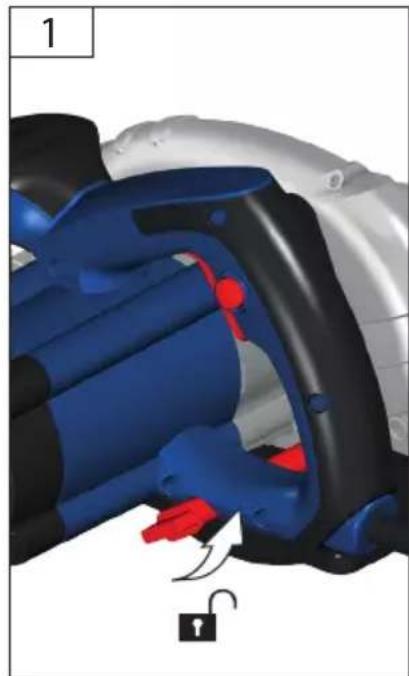

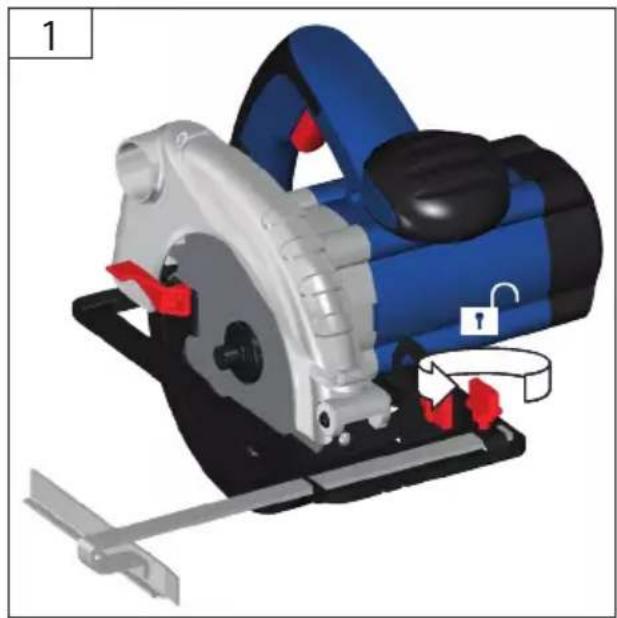

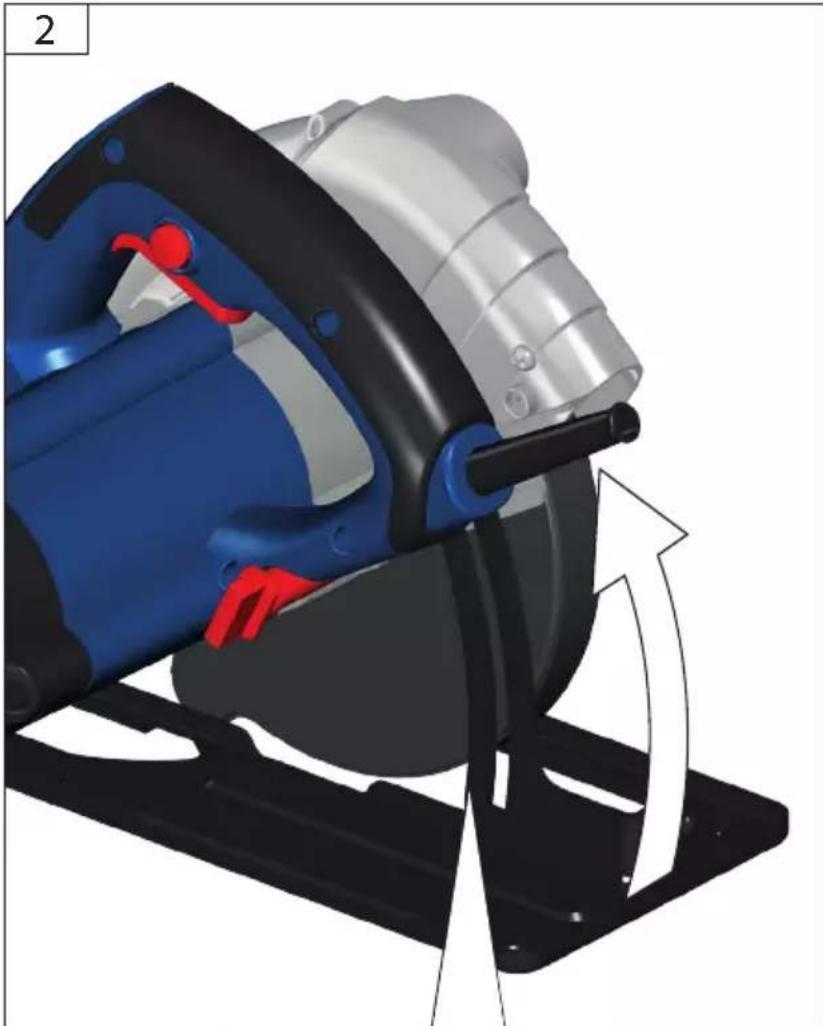

How do I adjust the cutting depth?

Loosen the depth adjustment lever on the side of the saw. Adjust the base plate to the desired height using the graduated scale. Tighten the lever. Check that less than one tooth of the blade protrudes below the workpiece.

Can I use this saw to cut metal or plastic?

The Güde HKS 65-1500 L circular saw is designed for wood cutting only. For synthetic materials, adjust the feed speed to prevent melting. Do not cut metal or hazardous materials such as asbestos.

What accessories are available for this saw?

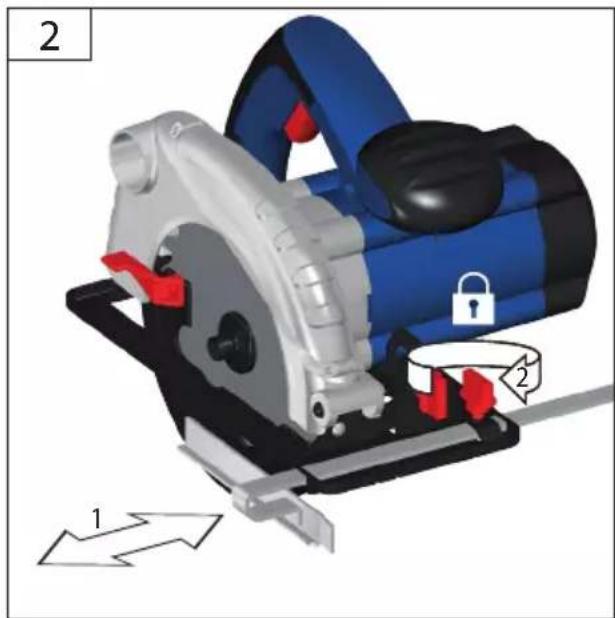

You can use a vacuum cleaner connected to the extraction outlet, a longitudinal cutting guide for precise cuts, and replacement blades of 190 mm diameter with 20 mm bore.

How do I clean and maintain the saw?

Before cleaning, disconnect the tool. Use a damp cloth to clean surfaces. Do not spray water or use flammable solvents. Clean the ventilation slots regularly. Have the damaged cable replaced by a professional.

What should I do if the blade jams during cutting?

Release the On/Off switch immediately. Do not attempt to remove the saw until the blade has completely stopped. Identify the cause of the jam (material, dull blade) and correct it before restarting.

Where can I find spare parts for this saw?

Spare parts are available on the Güde website at www.guede.com. You can contact after-sales service for specific parts.

What is the electrical power of the saw and what type of plug is required?

The rated power is 1600 W at a voltage of 230 V / 50 Hz. The appliance is protection class II, allowing connection to sockets without a protective contact. Use a residual current device (RCD) of 30 mA.

USER MANUAL HKS 65-1500 L Güde

HKS 65-1500 L

58238

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

ENGLISH Please read the instructions carefully before starting the machine.

D Inbetriebnahme

GB Starting-up the machine

F Mise en service

1 Messa in funzione

E Puesta en marcha

2-4

5

6-7

8

9

D Betrieb

GB Operation

F Fonctionnement

I Esercizio

E Funcionamiento

NL Gebruik

DK Drift

CZ Provoz

SK Prevádzka

GR Λειτουργία

H Üzemeltetés

SLO Delovanje

HR Rad

BG Работа

RO Functionare

TR İşletim

PL Eksploatacja

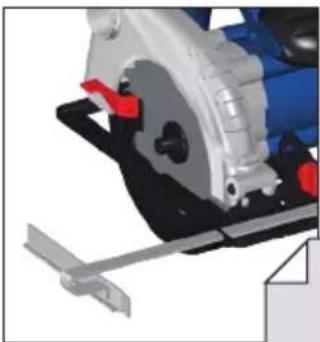

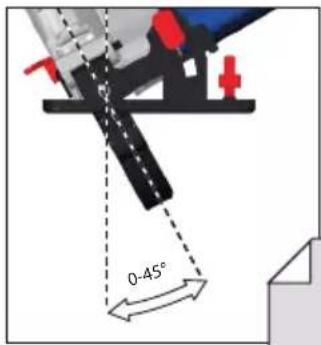

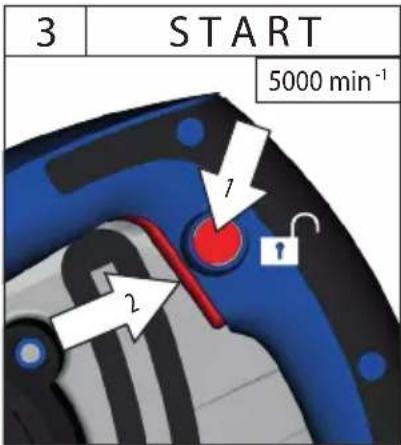

START STOP

10-11

14

15

D Inbetriebnahme

GB Starting-up the machine

F Mise en service

1 Messa in funzione

E Puesta en marcha

58155

D	Inbetriebnahme	GR	Прώτη θέση σε λειτουργία
GB	Starting-up the machine	H	Üzembe helyezés
F	Mise en service	SLO	Uvedba v pogon
I	Messa in funzione	HR	Puštanje u rad
E	Puesta en marcha	BG	Пускане в действие
NL	Inbedrijfstelling	RO	Punerea în funcțiune
DK	Ibrugtagning	TR	İşletime alma
CZ	Uvedení do provozu	PL	Uruchomienie
SK	Uvedenie do prevádzky

D Inbetriebnahme

GB Starting-up the machine

F Mise en service

1 Messa in funzione

E Puesta en marcha

6TEST

D	Inbetriebnahme	GR	Прώτη θέση σε λειτουργία
GB	Starting-up the machine	H	Üzembe helyezés
F	Mise en service	SLO	Uvedba v pogon
I	Messa in funzione	HR	Puštanje u rad
E	Puesta en marcha	BG	Пускане в действие
NL	Inbedrijfstelling	RO	Punerea în funcțiune
DK	Ibrugtagning	TR	İşletime alma
CZ	Uvedení do provozu	PL	Uruchomienie
SK	Uvedenie do prevádzky

Probeschnitt durchführen Carry out a test cut Effectuer une coupe d'essai Effettuare un taglio di prova Efectuar corte de prueba Proefsnede maken

Foretages et prøvesnit Provedte zkušební řez. Vykonat' skušobný rez. Праγματοποιήστε μια δοκιμαστική τομή. Végezzen teszvágást Opravite preizkusni rez!

Izvesti probno rezanje Направете пробно рязане! Efectuați un test de tăiere Deneme kesmesi yapin Wykonac próbę cięcia

	D	Inbetriebnahme	GR	Прώτη θέση σε λειτουργία
	GB	Starting-up the machine	H	Üzembe helyezés
	F	Mise en service	SLO	Uvedba v pogon
	I	Messa in funzione	HR	Puštanje u rad
	E	Puesta en marcha	BG	Пускане в действие
	NL	Inbedrijfstelling	RO	Punerea în funcțiune
	DK	Ibrugtagning	TR	İşletime alma
	CZ	Uvedení do provozu	PL	Uruchomienie
	SK	Uvedenie do prevádzky

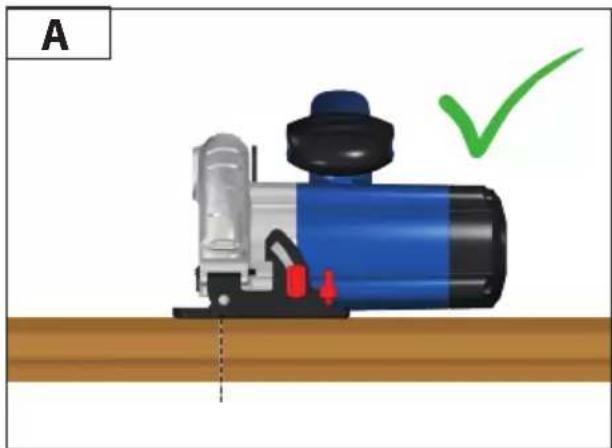

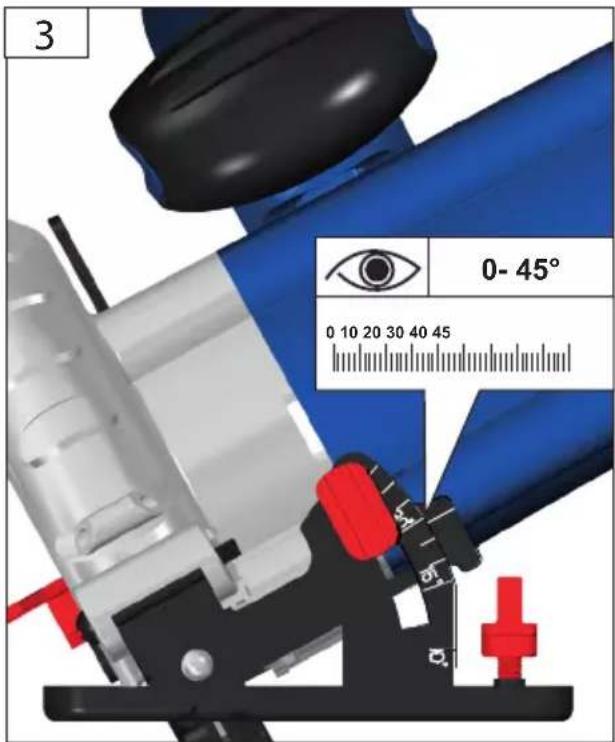

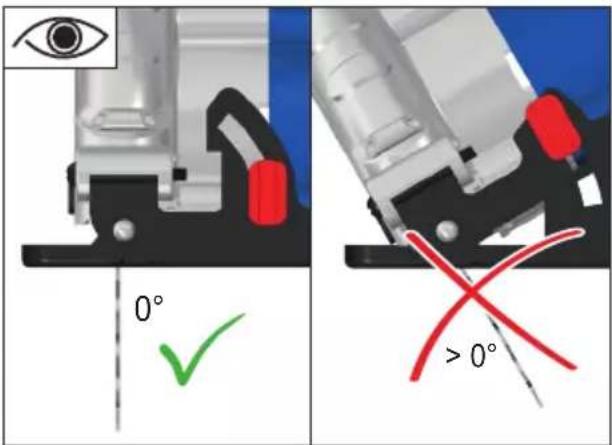

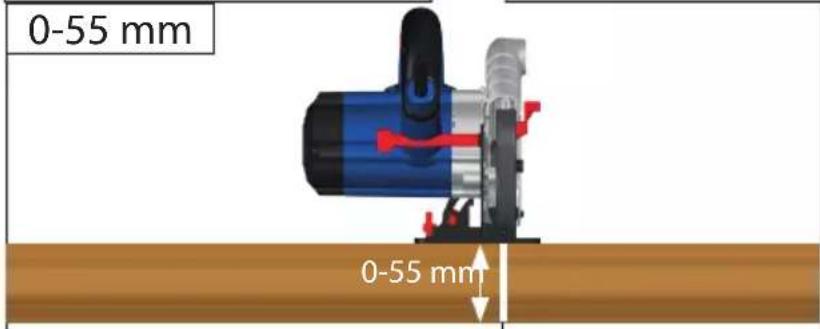

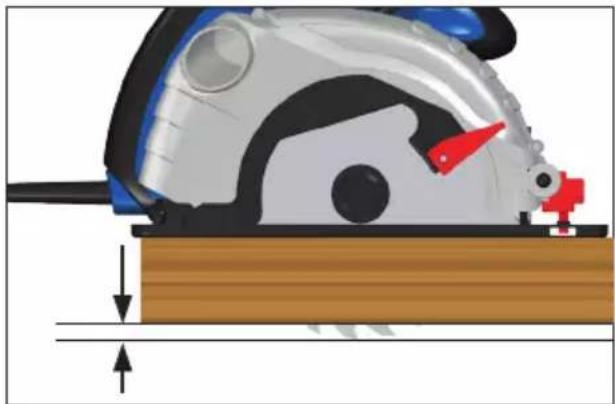

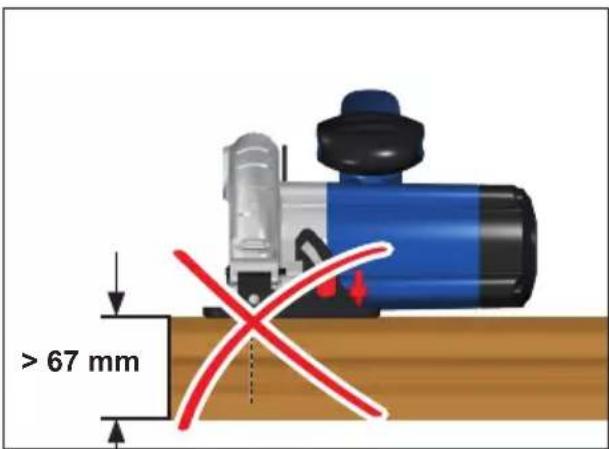

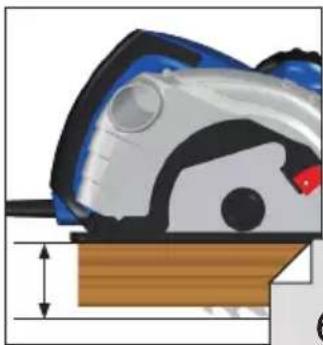

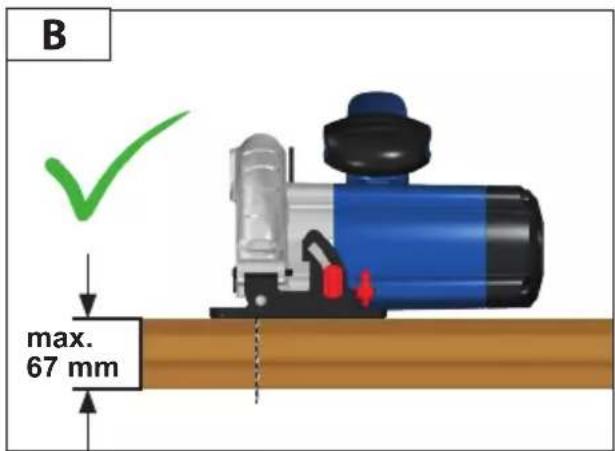

Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.

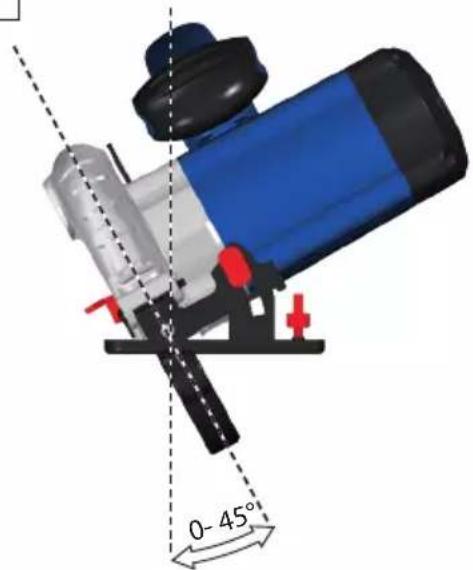

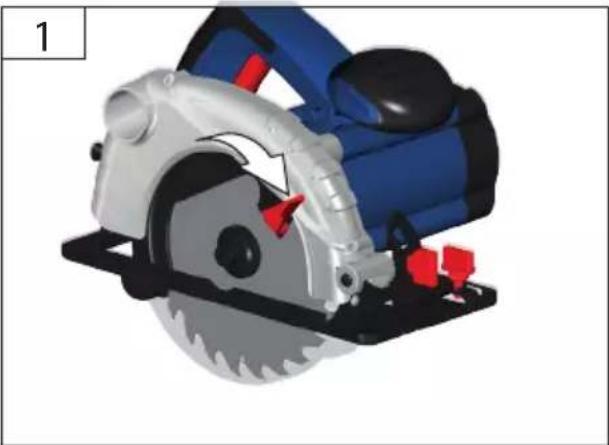

D Inbetriebnahme

GB Starting-up the machine

F Mise en service

I Messa in funzione

E Puesta en marcha

2

4

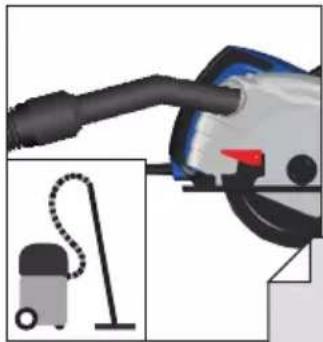

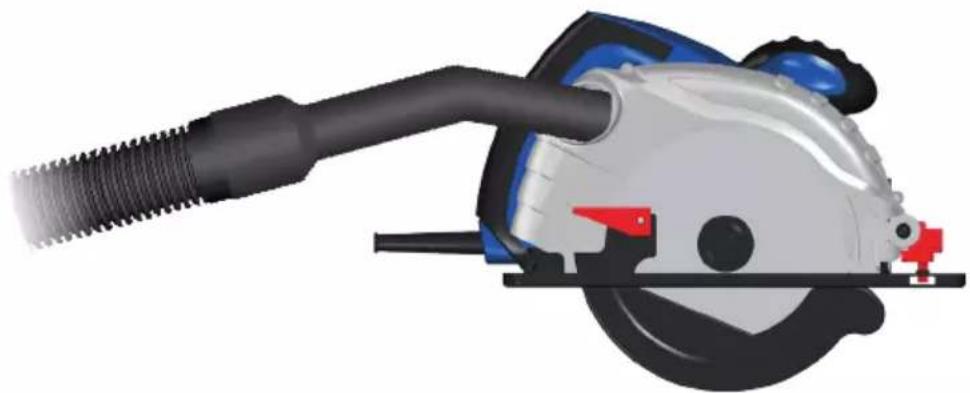

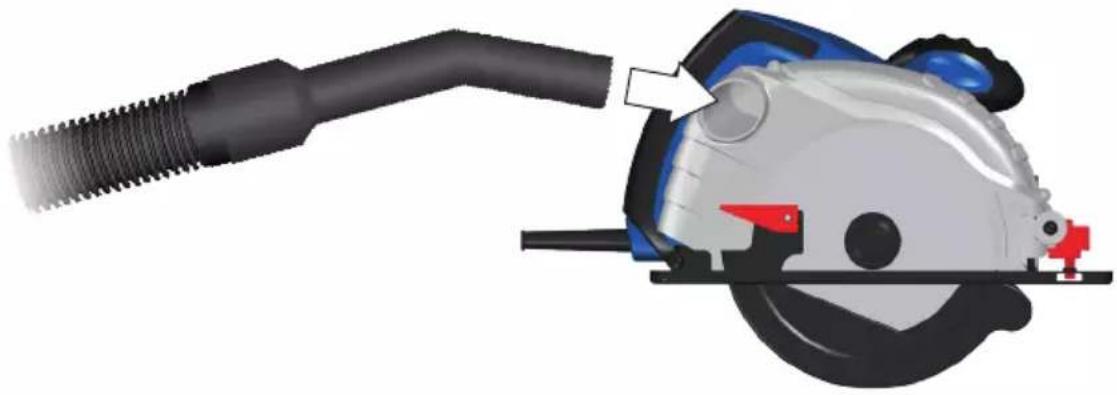

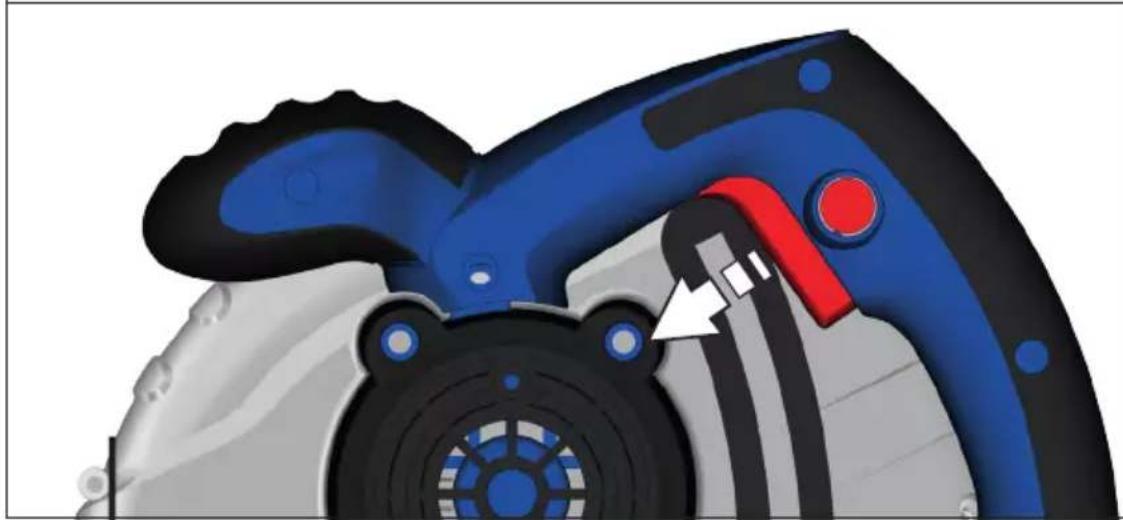

D Staubabsaugung

GB Dust extractor

1

2

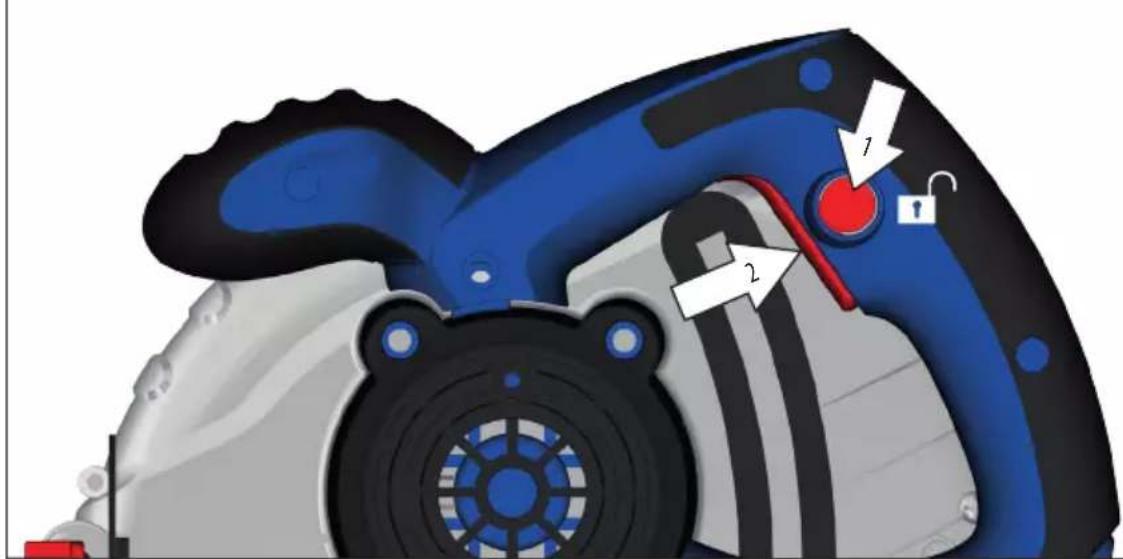

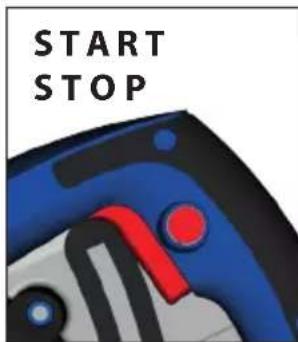

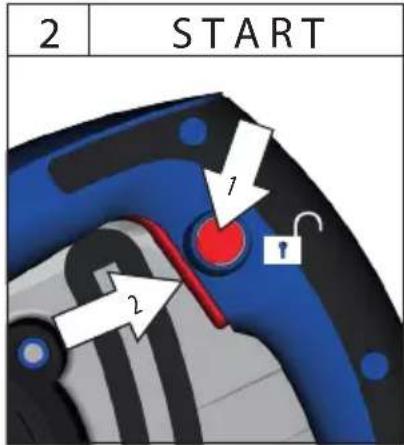

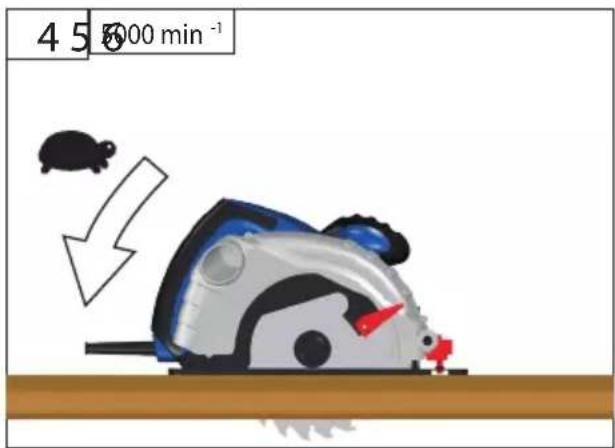

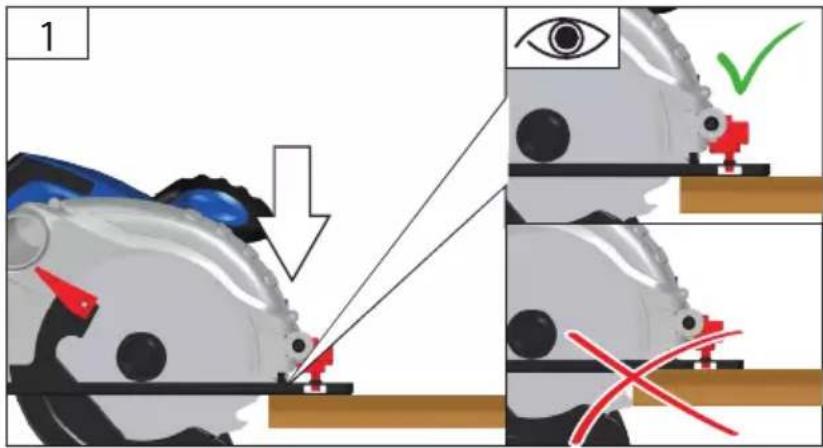

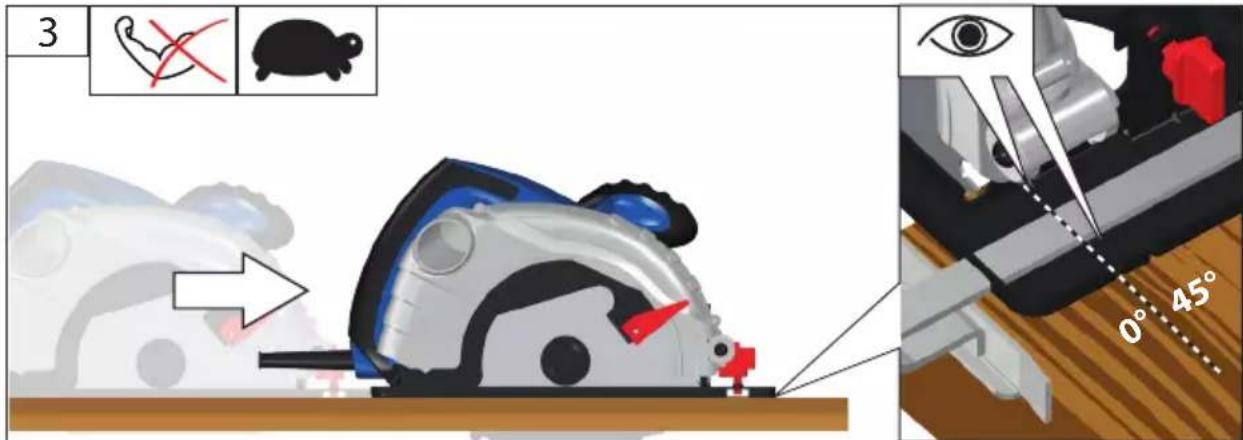

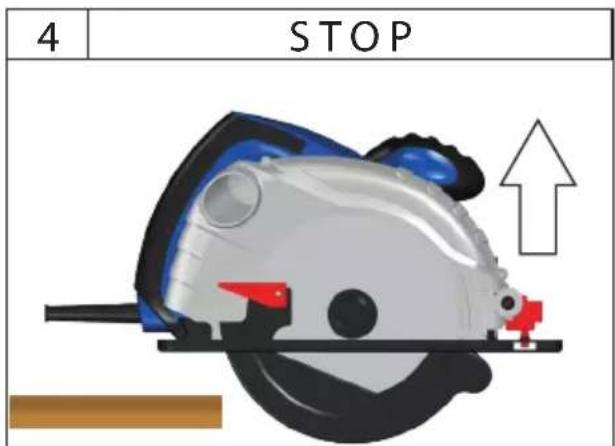

START STOP

DE Betrieb

EN Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

HU Üzemeltetés

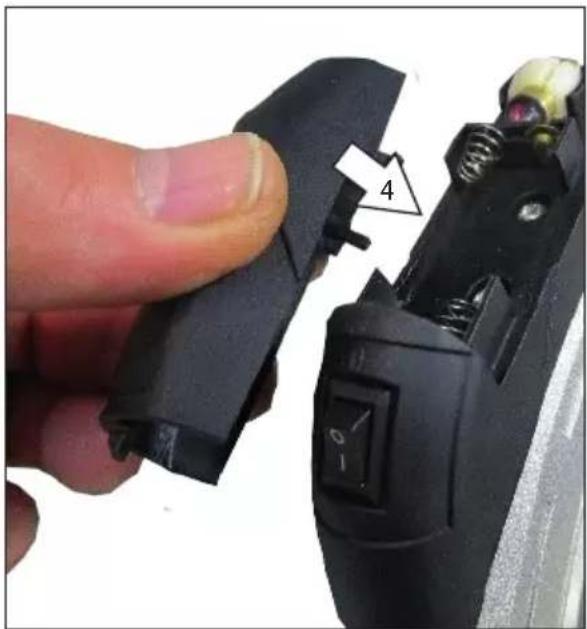

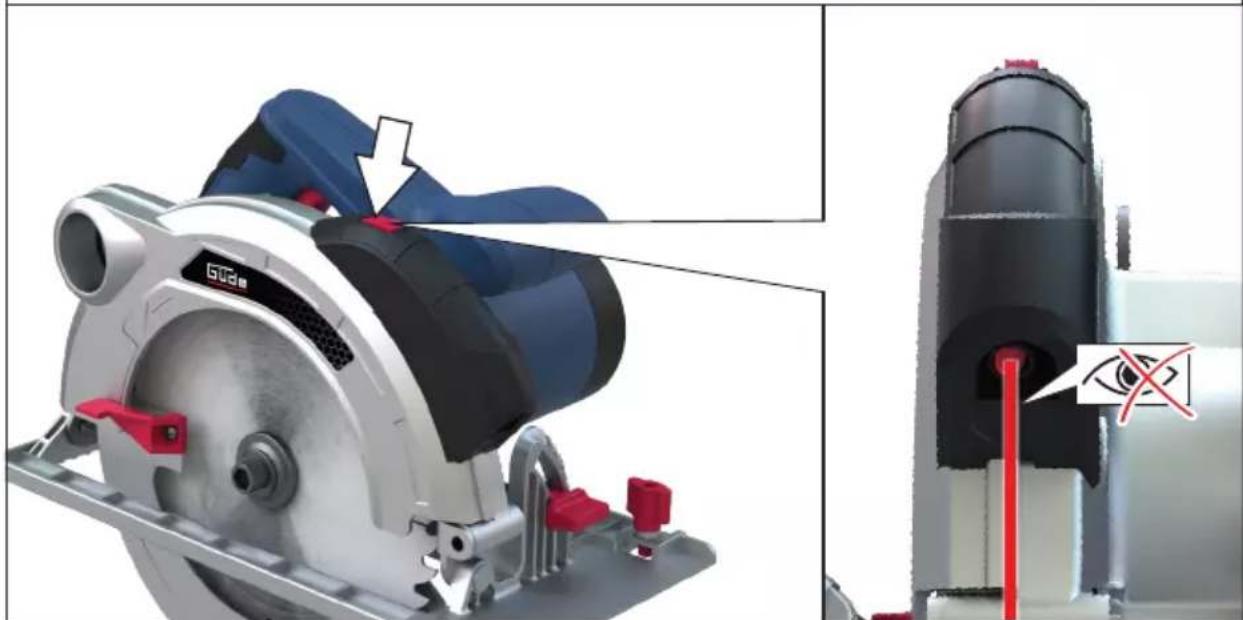

LASER 2

EN 60825-1:2014 P ≤ =1 mW λ = 650nm

DE Betrieb

EN Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

HU Üzemeltetés

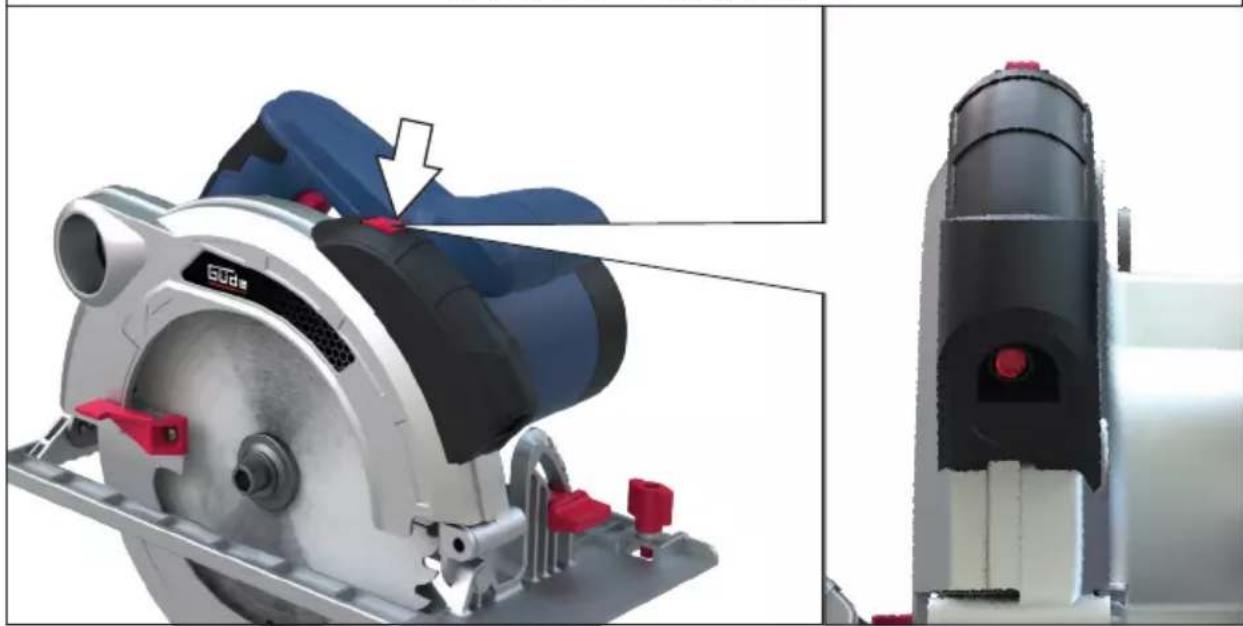

START STOP

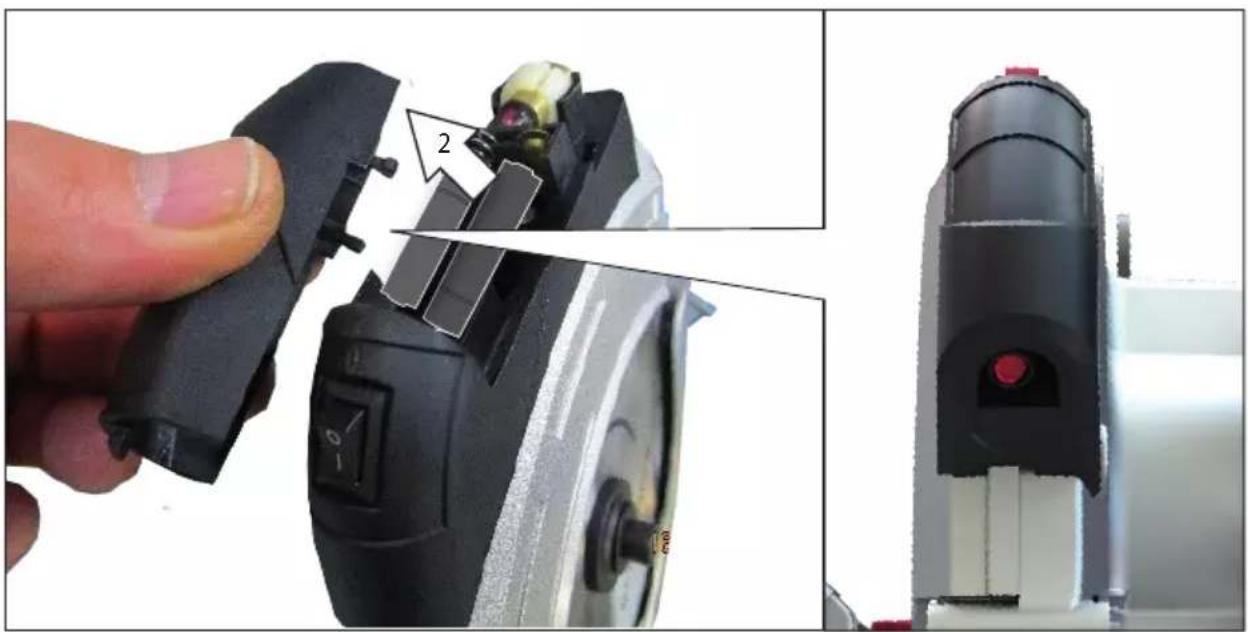

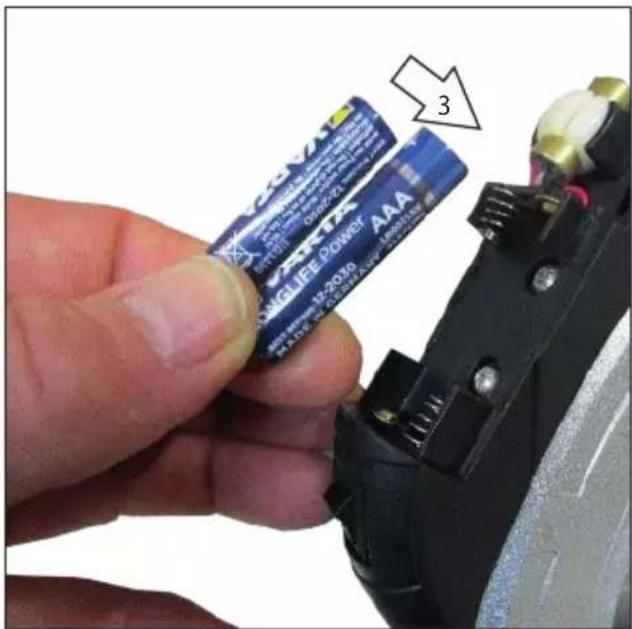

LASER 2

EN 60825-1:2014 P <=1 mW λ = 650nm

START LASER

STOPP LASER

D	Betrieb	GR	Λειτουργία
GB	Operation	H	Üzemeltetés
F	Fonctionnement	SLO	Delovanje
I	Esercizio	HR	Rad
E	Funcionamiento	BG	Pабота
NL	Gebruik	RO	Funcționare
DK	Drift	TR	İşletim
CZ	Provoz	PL	Eksploatacja
SK	Prevádzka

START

STOP

D	Betrieb	GR	Λειτουργία
GB	Operation	H	Üzemeltetés
F	Fonctionnement	SLO	Delovanje
I	Esercizio	HR	Rad
E	Funcionamiento	BG	Pабота
NL	Gebruik	RO	Functionare
DK	Drift	TR	İşletim
CZ	Provoz	PL	Eksploatacja
SK	Prevádzka

	D	Betrieb	GR	Λειτουργία
	GB	Operation	H	Üzemeltetés
	F	Fonctionnement	SLO	Delovanje
	I	Esercizio	HR	Rad
	E	Funcionamiento	BG	Pабота
	NL	Gebruik	RO	Functionare
	DK	Drift	TR	İşletim
	CZ	Provoz	PL	Eksploatacja
	SK	Prevádzka

D	Betrieb	GR	Λειτουργία
GB	Operation	H	Üzemeltetés
F	Fonctionnement	SLO	Delovanje
I	Esercizio	HR	Rad
E	Funcionamiento	BG	Pábota
NL	Gebruik	RO	Functionare
DK	Drift	TR	İşletim
CZ	Provoz	PL	Eksploatacja
SK	Prevádzka

Technische Daten

Circular saw	HKS 65-1500 L
Art. No 58238
Service connection 230V - 50Hz
Rated input 1600 W
No-load speed 5000 min	-1
Saw blade dia. x hole dia 190 x 20 mm
Max. Cutting depth at 90°/45° 65 / 44
Weight 4,3 kg
Noise details
Sound pressure level LpA	96,3 dB(A)
Sound power level LWA	104,3 dB(A)
Measured according to EN 62841; Uncertainty K = 3 dB (A)
Wear ear protectors!
Vibration details
Vibration total values (triaxial vector sum) deter-mined according to EN 62841:
Vibration emission value ah	2,050 m/s2
Uncertainty K = 1,5 m/s2

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to

third parties.

Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

In case of any doubts about connection and operation refer please to our customer center

Specified Conditions Of Use

This electronic circular saw can cut lengthways and mitre accurately in wood.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2.

Accident type, 3. Number of injured persons, 4. Injury type(s)

Symbols

WARNING / Caution!

Read the operating instructions to reduce the risk of injury.

Wear eye protective goggles! Wear ear protectors!

Wear gloves!

Unplug the machine before any work on it.

Class II tool.

CE marking

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

WARNING Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Safety instructions for manual circular saws

Cutting procedures

a) DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
b) Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.

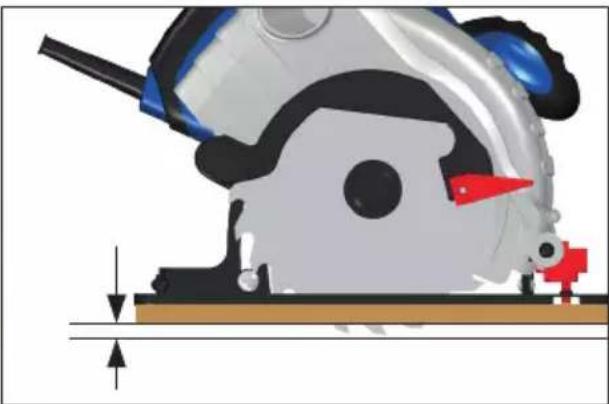

c) Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.
d) Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control.
e) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a „live“ wire will also make exposed metal parts of the power tool „live“ and could give the operator an electric shock.

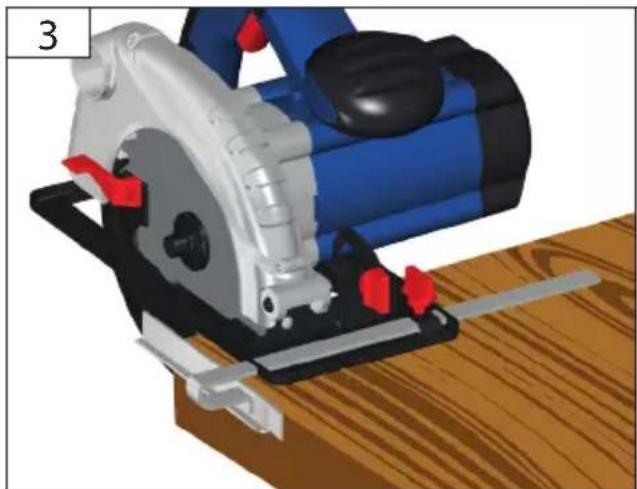

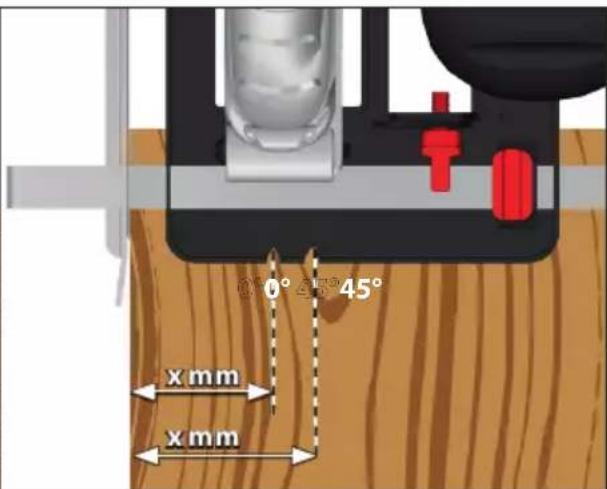

f) When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding.
g) Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
h) Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.

Kickback causes and related warnings

– kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;
– when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;
- if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.

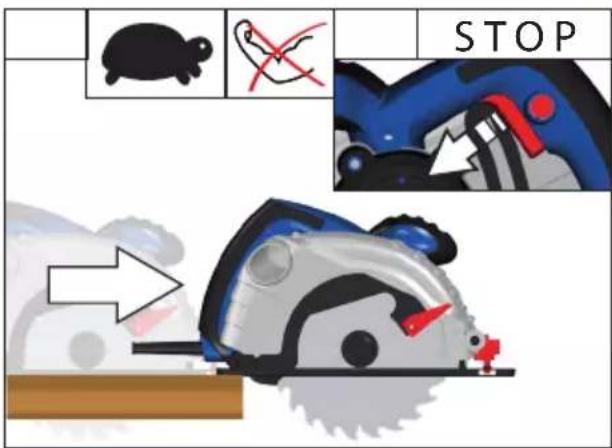

b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.

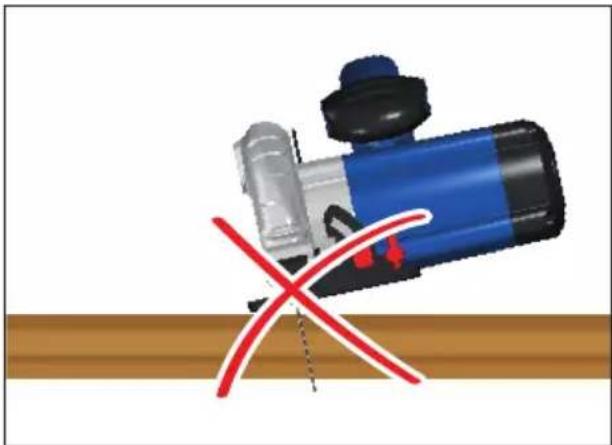

c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.

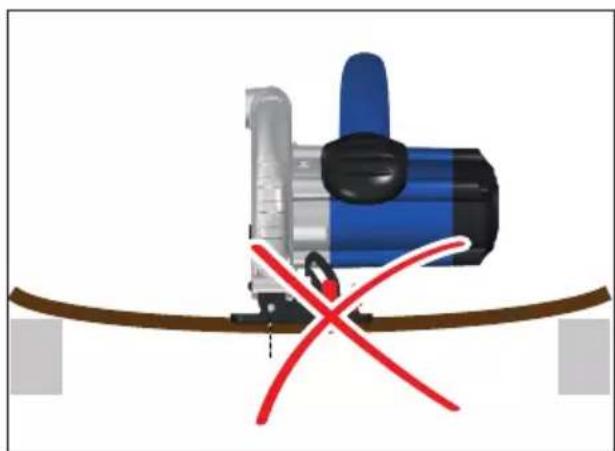

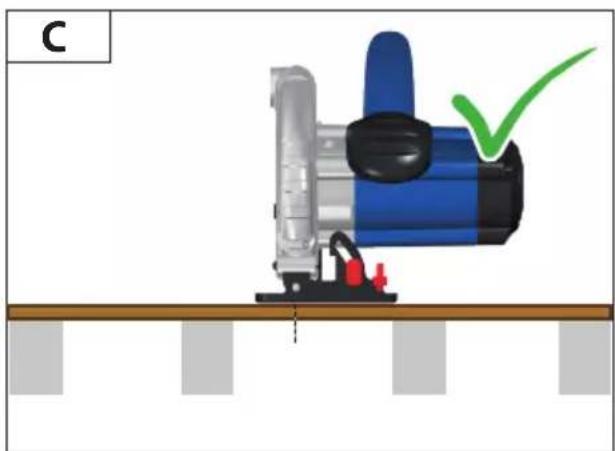

d) Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
e) Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.

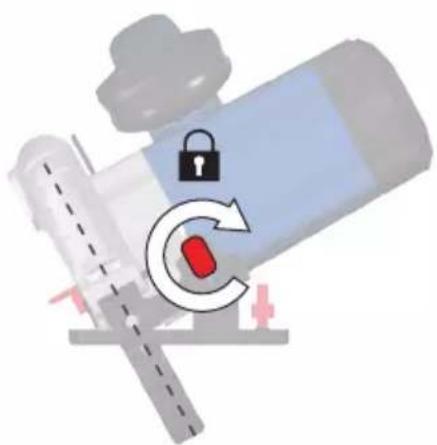

f) Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
g) Use extra caution when sawing into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.

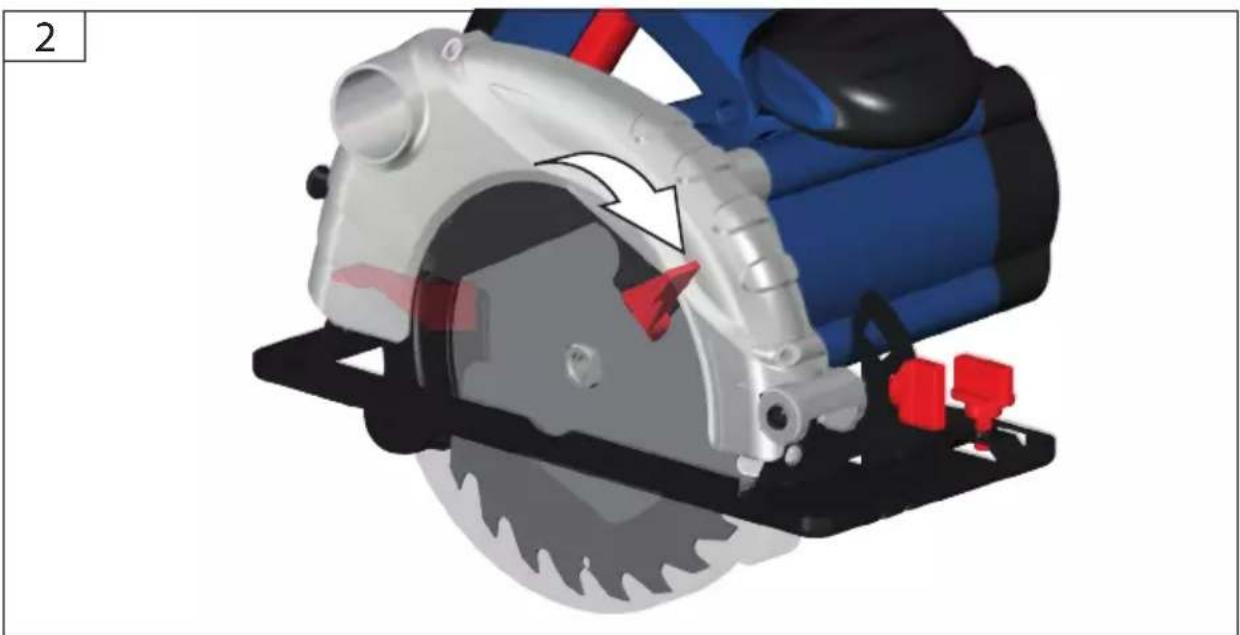

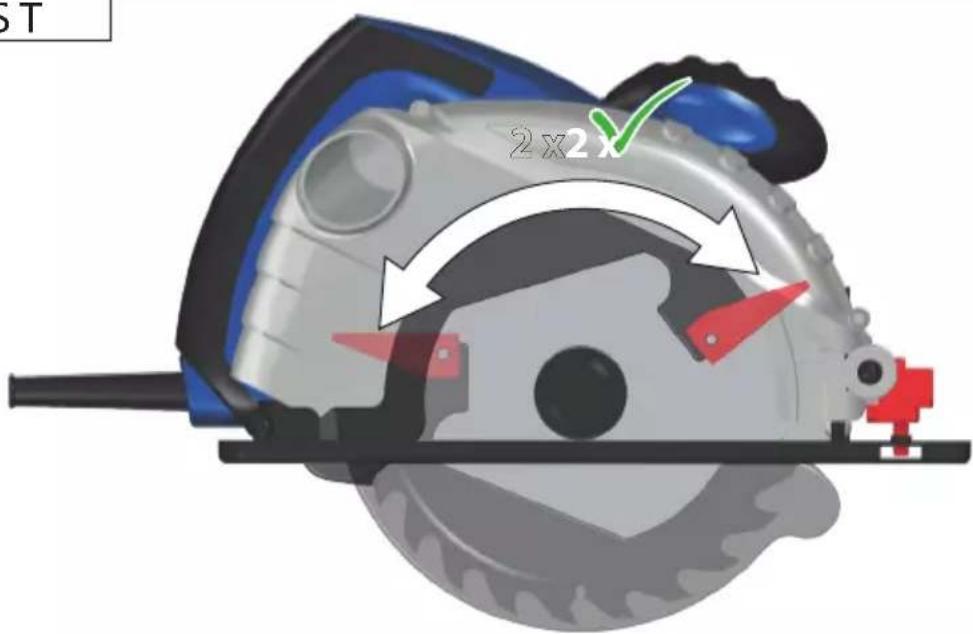

Lower guard function

a) Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.
b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.

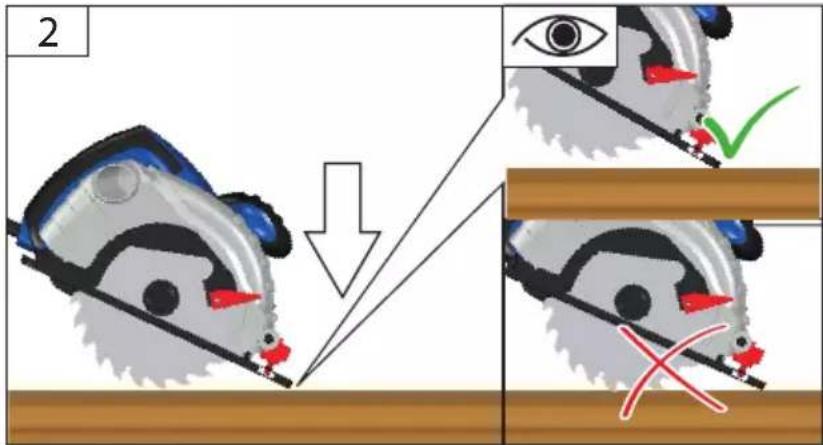

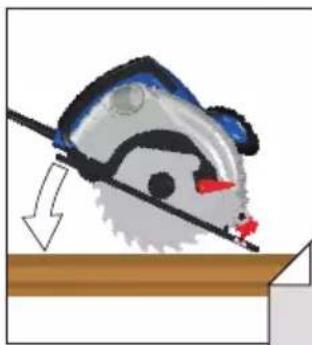

c) Lower guard may be retracted manually only for special cuts such as „plunge cuts“ and „compound cuts“. Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically.

d) Always observe that the lower guard is covering the blade before placing saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.

Additional Safety and Working Instructions

Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust mask, protective gloves, sturdy non-slip footwear and ear defenders.

The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g. with a vacuum cleaner.

Always keep the connection cable from the working area of the device. Always guide the cable backwards, away from the device!

Do not machine any materials that present a danger to health (e.g. asbestos).

When working in walls ceiling, or floor, take care to avoid electric cables and gas or waterpipes.

Please turn the device immediately off when the tool used gets blocked! Do not turn the device on again when the tool is still blocked. This could cause bounce back with a high reaction moment. Determine and remove the cause of the blocking of the tool used while respecting the safety instructions.

The possible causes may be:

• it is tilted in the workpiece to be machined
• it has pierced through the material to be machined
  • the power tool is overloaded

Do not reach into the machine while it is running.

Chips and splinters must not be removed while the machine is running.

WARNING! Danger of burns

The insertion tool may become hot during use.

- when changing tools

- when setting the device down

Adapt the feed speed to avoid overheating the blade tips and to avoid melting plastic materials during cutting.

Mains Connection

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

Connect only to single-phase AC system voltage as indicated on the rating plate. It is also possible to connect to sockets without an earthing contact as the design conforms to safety class II. Only plug-in when machine is switched off.

Maintenance

⚠️ Unplug the machine before any work on it.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff. Use only original accessories and original spare parts.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body! Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.

Caution! If the power cord of the appliance gets damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person to avoid danger.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Function of the bottom guard
