USER MANUAL BHCB66641BBBHS BEKO

NLEN / 2 Welcome! Dear Customer, Thank you for choosing the Beko product. We want your product, manufactured with high quality and technology, to offer you the best efficiency. Therefore, carefully read this manual and any other documentation provided before using the product. Keep in mind all the information and warnings stated in the user’s manual. This way, you will protect yourself and your product against the dangers that may occur. Keep the user’s manual. If you give the product to someone else, give the manual with it. The warranty conditions, usage and troubleshooting methods for your product are provided in this manual. The symbols and their descriptions in the user’s manual: Hazard that may result in death or injury. Important information or useful usage tips. Read the user’s manual. Hot surface warning. NOTICE Hazard that may result in material damage to the product or its environment.EN / 3 Table of Contents 1 Safety Instructions ....................... 4

1.7 Maintenance and Cleaning

2 Environmental Instructions ......... 10

2.1 Waste Directive............................. 10

2.1.1 Compliance with the WEEE Dir-

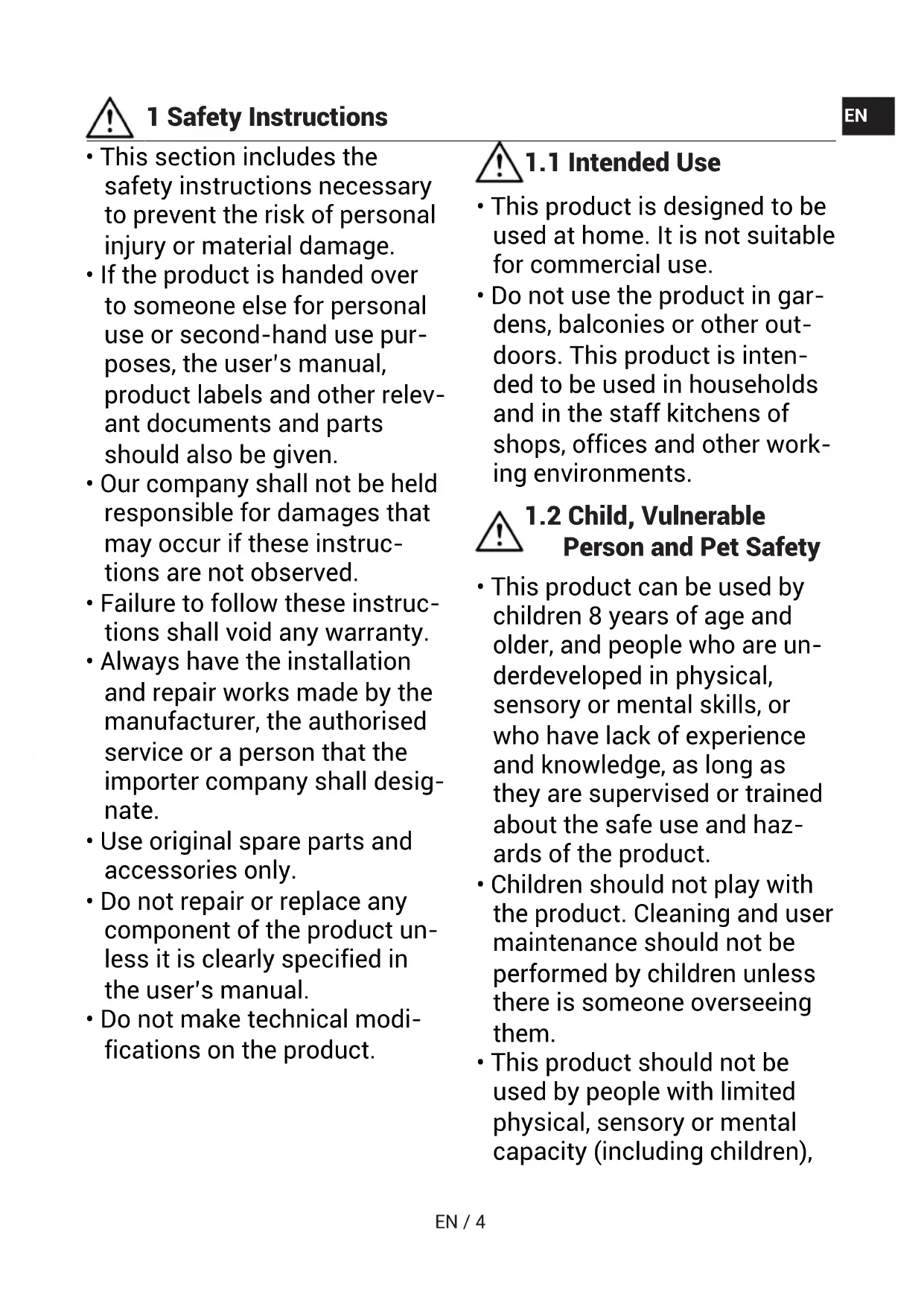

NLEN / 4 1 Safety Instructions

• This section includes the safety instructions necessary to prevent the risk of personal injury or material damage.

• If the product is handed over to someone else for personal use or second-hand use pur- poses, the user’s manual, product labels and other relev- ant documents and parts should also be given.

• Our company shall not be held responsible for damages that may occur if these instruc- tions are not observed.

• Failure to follow these instruc- tions shall void any warranty.

• Always have the installation and repair works made by the manufacturer, the authorised service or a person that the importer company shall desig- nate.

• Use original spare parts and accessories only.

• Do not repair or replace any component of the product un- less it is clearly specified in the user’s manual.

• Do not make technical modi- fications on the product.

• This product is designed to be used at home. It is not suitable for commercial use.

• Do not use the product in gar- dens, balconies or other out- doors. This product is inten- ded to be used in households and in the staff kitchens of shops, offices and other work- ing environments.

1.2 Child, Vulnerable

Person and Pet Safety

• This product can be used by children 8 years of age and older, and people who are un- derdeveloped in physical, sensory or mental skills, or who have lack of experience and knowledge, as long as they are supervised or trained about the safe use and haz- ards of the product.

• Children should not play with the product. Cleaning and user maintenance should not be performed by children unless there is someone overseeing them.

• This product should not be used by people with limited physical, sensory or mental capacity (including children),

NLEN / 5 unless they are kept under su- pervision or receive the neces- sary instructions.

• Children should be supervised to ensure that they do not play with the product.

• Electrical products are dan- gerous for children and pets. Children and pets should not play with the product.

• Keep the packaging materials out of the reach of children. There is a hazard of injury and suffocation.

• Before discarding worn out and useless products:

1. Unplug and disconnect the

power plug (if the product is plugged in).

2. Cut off the power cable and

disconnect it with the plug from the product.

3. Do not allow children to play

with product when it is in idle mode.

1.3 Electrical Safety

• Plug the product into a groun- ded outlet protected by a fuse that matches the current rat- ings indicated on the type la- bel. Have the grounding in- stallation made by a qualified electrician. Do not use the product without grounding in accordance with local / na- tional regulations.

• The plug or the electrical con- nection of the appliance shall be in an easily accessible place. If this is not possible, there should be a mechanism (fuse, switch, key switch, etc.) on the electrical installation to which the product is connec- ted, in compliance with the electrical regulations and sep- arating all poles from the net- work.

• Unplug the product or switch off the fuse before repair, maintenance and cleaning.

• Plug the product into an outlet that meets the voltage and frequency values specified on the type label.

• (If your product does not have a mains cable) only use the connecting cable described in the "Technical specifications" section.

• Do not plug your hood in until it is mounted.

• Do not jam the power cable under and behind the product. Do not put a heavy object on the power cable. The power cable should not be bent, crushed, and come into con- tact with any heat source.

• Do not install the electricity cord near the heaters. The cable might melt, causing a fire.

• Make sure that the power cable is not jammed while putting the product to its place after assembly or cleaning.

• Do not plug your hood in until it is mounted.

• Use original cable only. Do not use cut or damaged cables.

• Do not use an extension cord or multi-plug to operate your product.

• Contact the authorized service centre or importer to use the approved adapter in cases where the use of a converter adapter (for plug type) is ne- cessary.

• Contact the importer or the authorized service centre if the length of the power line is in- adequate.

• Portable power sources or multiple plugs may overheat and catch fire. Keep multiple plugs and portable power sources away from the product.

• If the power cable is damaged, it must be replaced by the manufacturer, an authorized service or a person to be spe- cified by the importer com- pany in order to prevent pos- sible dangers.

• If your product has plug, do not make electrical connec- tions by disconnecting the plug during installation. Con- nections made by cutting off render the product warranty void and pose a danger to user safety. If your product has a power cable and plug:

• Never put the product plug into a broken, loose, or out-of- socket plug. Make sure the plug is fully inserted into the socket. Otherwise the connec- tions may overheat and cause a fire.

• Avoid inserting the device into plugs that are greasy, unclean, or potentially exposed to wa- ter (such as those near a worktop where water may es- cape). Otherwise there is a risk of short circuit and electrocu- tion.

• Never touch the plug with wet hands!

• Pull the plug out of the socket using the plug's body rather than the cord itself.

• Disconnect the product from the mains before transporting the product.

• The product is heavy, carry the product with at least two people.

• Do not place items on the ap- pliance. Carry the appliance vertically.

• When you need to transport the product, wrap it with bubble wrap packaging mater- ial or thick cardboard and tape it tightly. Secure the moving parts of the product firmly to prevent damage.

• Before the product is installed, check the product for any damage after transport. Con- tact the importer or the au- thorized service centre if dam- aged.

1.5 Installation Safety

• To have your product ready for use, first provide the place of installation and have the elec- trical installation made. Al- ways have the installation made by the manufacturer, the authorised service or a person that the importer company shall designate.

• To have your product ready for use, first provide the place of installation and have the elec- trical installation made. Then, call the Authorised Service to have the installation per- formed. After installation by the authorized service, the warranty period begins.

• Before beginning the installa- tion, de-energize the power line to which the product will be connected by turning off the fuse.

• Always wear protective gloves during transport and installa- tion. Otherwise there is a risk of injury from sharp edges!

• Before the product is installed, check the product for any damage. Do not have it in- stalled if the product is dam- aged.

• Avoid using any heat-insulat- ing materials to cover the in- terior of the furniture that will be installed.

• Direct sunlight and heat sources, such as electric or gas heaters, must not be present in the area where the product is installed.

• If there is a socket behind the place where the product will be installed, it must be en- sured that the product does not come into contact with the socket nor with the plug plugged into the socket.

• For usage with chimney con- nections, have qualified indi- viduals assess the suitability of the chimney to which the product will be connected.

• Height between the bottom surface of your hood and the top surface of the hob should be no less than 650 mm. Oth- erwise, your product will be af- fected by the heat or flame of the hob and pose a safety hazard.

• Never attach the hood to flues used as a flame heater or flame-emitting heaters. Com- ply with local regulations on purging the outflow.

• Use pipes with a diameter of 120 mm when connecting a flue to your product. The pipe connection should be as short as possible and with few bends.

• Poisoning Danger! While the appliance is operating, air is drawn from the whole house. If adequate ventilation is not provided, air flow occurs and the waste and toxic gases re- leased as a result of combus- tion in the house are reab- sorbed. Do not operate the product together with products that provide air cir- culation and may emit toxic gas (wood, gas, oil and coal stoves, boilers, water heaters, etc.).

• Ensure that the appliance is switched off after every use.

• Don't use the product if it breaks down or gets damaged while being used. Disconnect the product from the electri- city. Contact the importer or the authorized service centre.

• Do not touch the lamps of your hood after operating the hood for a long time. Hot lamps may burn your hand.

• Do not operate the appliance without an oil filter. Do not re- move the filters while the ap- pliance is operating. Other- wise the product and electrical connections may be adversely affected by the oil.

• Do not create a high flame un- der the product. Otherwise, the oil in the oil filter may ignite, causing a fire.

• Turn off the oven before taking the cooking pots, pans, etc. from the ovens. Otherwise, your product could be harmed by flame and growing heat.

• Never set anything combust- ible or items prone to falling on your hood. Otherwise, it could fall on the hop and risk burning them or fall into the food and hurt the user,

• Do not keep easily flammable materials under your hood.

• (For Models A and B) Run your hood for another 15 minutes after the cooking or frying pro- cess to clean the kitchen air thoroughly of the odours and vapours generated during cooking.

• (Except for goods that return exhaust air to the room) The room needs to be well ventil- ated if the hood is utilized in the same area as gas or liquid fuel burning equipment.

• The chimney of appliances like room heaters that run on gas or liquid fuel must be entirely insulated in the environment where the hood is utilized, or the appliance must be her- metic.

• If there is another appliance operating with energy other than electrical energy in the same environment with the hood, the negative pressure in the room should be at most

0.04 mbar so that the exhaust

of the other appliance is not drawn back into the room by the hood.

• Easily flammable and com- bustible materials should not be hung on the hood handles (if any).

• There should not be open fire under the hood. (for example: flambe)

• Caution: Accessible parts can heat up when used with a cooker.

• The grease accumulated on the hood and grease filter must be cleaned at the spe- cified intervals. Otherwise, there is a risk of fire!

• It is recommended to clean the filter once a month under normal usage. If not, the build- up of oil in the filter could catch fire and pose a hazard.

• Never wash the product by spraying or pouring water on it! There is the risk of electric shock!

• Do not use steam cleaners to clean the product as this may cause an electric shock.

NLEN / 10 2 Environmental Instructions

2.1.1 Compliance with the WEEE Dir-

ective and Disposing of the Waste Product This product complies with EU WEEE Dir- ective (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manu- factured with high quality parts and materials which can be re- used and are suitable for re- cycling. Therefore, do not dis- pose of the waste product with normal domestic and other wastes at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. You can ask your local administration about these collection points. Disposing of the appliance properly helps prevent negative consequences for the environment and human health. Compliance with RoHS Directive: The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2.2 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the pack- aging waste with the household or other wastes, take it to the packaging material collection points designated by the local authorities.

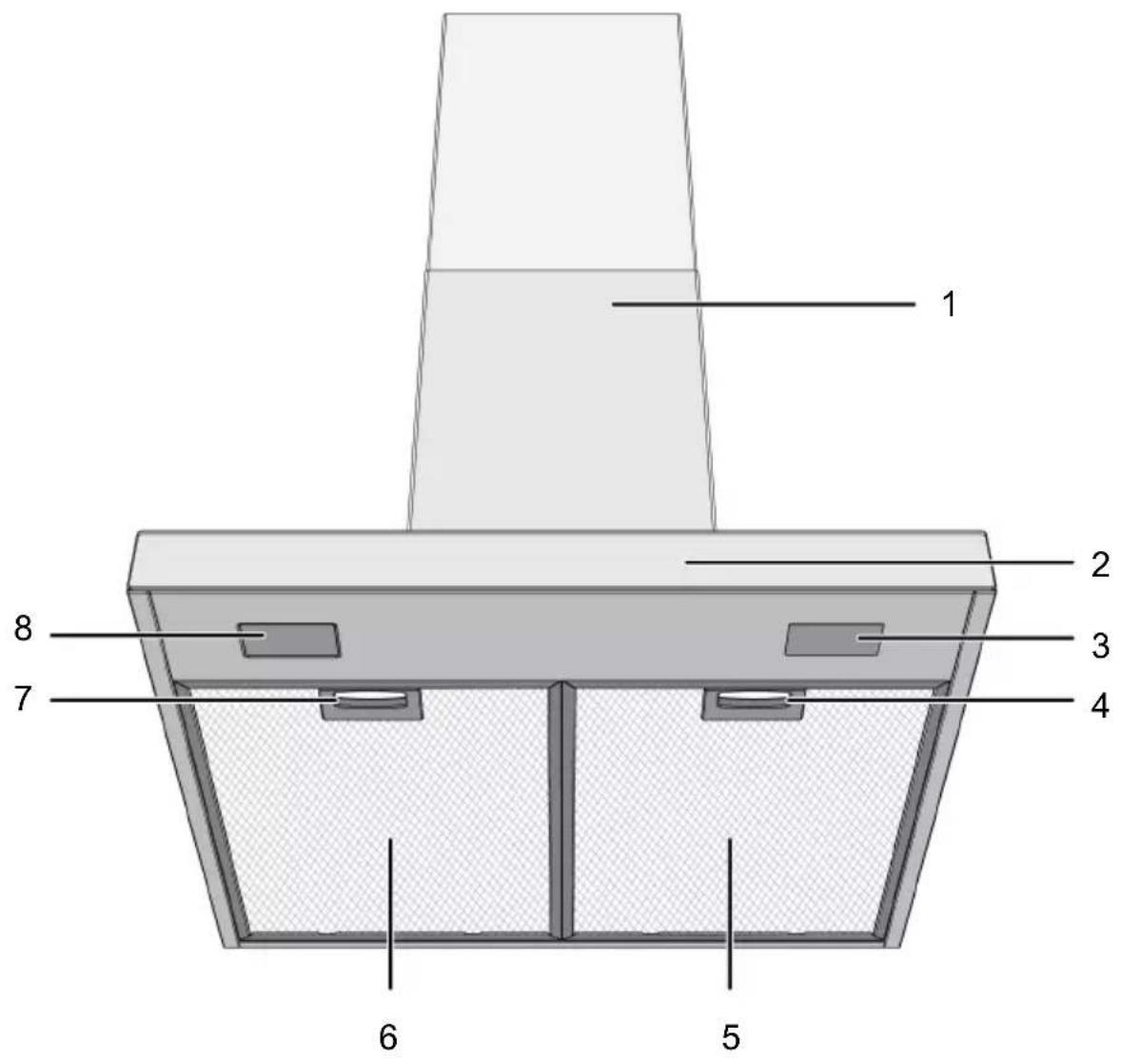

1 Hood body 2 Control panel 3 Lamp 4 Aluminium filter lock 5 Aluminium filter 6 Aluminium filter 7 Aluminium filter lock 8 Lamp

• Dependent on the model. It may not be avail-able on your product.

3.2 Product Accessories

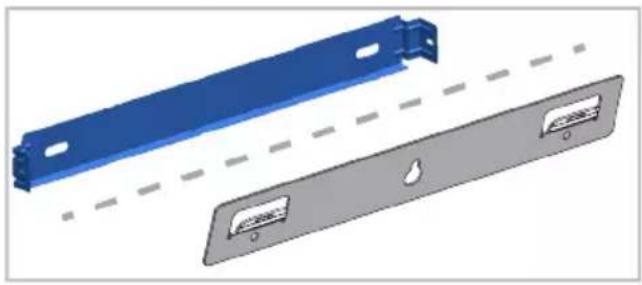

Depending on the product model, the sup- plied accessory varies. All accessories de- scribed in the user’s manual may not be available in your product. Wall mounting part

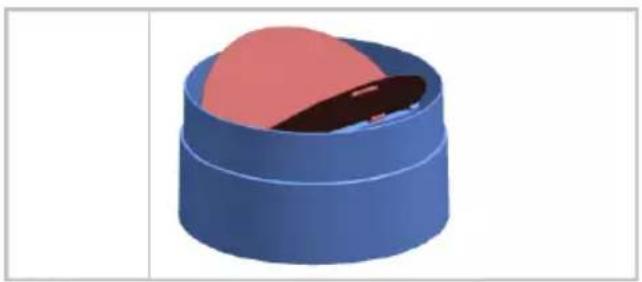

NLEN / 12 Air router Flue connection adapter Covers to prevent reverse airflow

3.3 Technical Specifications

Product external dimensions (height/width/depth) (mm) min. 735 - max. 1025 /598 /505 Voltage/Frequency 220-240 V ~1N; 50 Hz Total power consumption max. 300 W Suction power 700-720 m3/h Diameter of air outlet pipe 120-150 mm Control Model A 3 levels Model B 3 levels + 1 booster Model C 3 levels + 1 booster Technical specifications may be changed without prior notice to improve the quality of the product. Figures in this manual are schematic and may not exactly match your product. Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with relevant standards. Depend- ing on operational and environmental conditions of the product, these values may vary.

NLEN / 14 4 Using the Hood The hood has an engine with various speeds. For a good performance, we re- commend using low speeds under normal conditions and high speeds in case of strong odour and vapour condensation. The program is cancelled if power is cut when any program in your hood is active. MODEL A 1 Lamp key 2 On-Off/Speed 1 key 3 Speed 2 key 4 Speed 3 key MODEL B 1 Lamp key 2 On-Off/Speed 1 key 3 Speed 2 key 4 Speed 3 key 5 Booster key MODEL C 1 Automatic mode key 2 On-Off/Speed 1 key 3 Speed 2 key 4 Speed 3 key 5 Booster key 6 Lamp key Operating the hood

1. Touch the speed level key you have se-

lected to operate the hood. ð The set speed level key lights up.

2. You can touch the other speed level

keys to change the speed level. When in operation, the product will run for a maximum of 6 hours if no key is touched. Turning off the hood

1. To turn the hood off, touch again the

key of the level on which the hood is operating or key. If you touch the key with any func- tion active except the lamp, then the function is cancelled. Turning on the intensive ventilation mode (Booster) (for models B and C)

1. Press key once to start the hood in

the intensive ventilation mode. ð The intensive ventilation mode starts up and runs for a maximum of 10 minutes. During this time, the key lights up. After 10 minutes, the product continues to operate in Speed 3 and the Speed 3 key lights up.

NLEN / 15 In intensive ventilation mode, when any speed key is touched, it returns to that speed level and continues to operate. Operating the lamp

1. Touch the key to operate the lamp.

ð Hood lamp lights. (For Models B and C) If you touch the key again within the first 1 minute, the lamp will con- tinue to light at the low illumination level. If you touch it again 1 minute after turning the lamp on, it turns off. The illumination lamps operate for a maximum of 12 hours. Turning off the lamp

1. One minute after turning the hood lamp

on, you can turn it off by touching the key again. (For Models B and C) If you touch the key again within the first 1 minute after the lamp is switched on, the lamp switches to the low il- lumination level. Setting the lamp illumination colour (for models B and C) You can use the colour of your hood's illu- mination lamps in 3 different shades.

1. With the hood lamp turned on, touch

key for more than 2 seconds. ð The lamp changes to the other colour shade.

2. If you continue to touch the key, it

will change to the next colour shade after every 2 seconds. According to the desired colour shade, stop touching key when the lamp is in that colour shade. The colour shade will automat- ically activate. You can only change the light col- our shade while the lamp has high light intensity. In the event of a power outage, your hood will remember the colour shade set and the lamp will work in the colour that was last set. Automatic mode (for model C) Your hood measures the temperature of the air in the kitchen and the air coming from your hob by using a sensor. In auto- matic mode, it determines the required levels for the temperature of the air from the hob to match the temperature of the air in the kitchen and operates at levels de- termined automatically.

1. To enable the automatic mode touch

the key. ð The automatic mode is activated and operates until the temperature of the air from the hob equals the ambient temperature. It will switch off automatically when the tem- perature equalizes. You must en- able automatic mode again to re- switch it on. While automatic mode is active, automatic mode will be cancelled when you turn the product on and off at any speed.

2. To turn automatic mode off early touch

the key once more. If the ambient temperature differ- ence occurs even when the hob is not operating while the automatic mode is active, the temperature sensor in the product will detect the difference and the product may start operating at Speed 2 or 3 de- pending on the difference. In this case, automatic mode will be turned off when the temperature difference is equalized. Do not use automatic mode when your hob is not working.

NLEN / 16 Air cleaning mode (for models B and C) You can use air cleaning mode to eliminate the odour in your house during a long time at low level.

1. Touch the Speed 1 key for more than 3

seconds. ð Air cleaning mode is activated. The light of the Speed 1 key flashes when the air cleaning mode is active.

2. The air cleaning mode will operate at

Speed 1 for 10 minutes in 1 hour and will stop for 50 minutes. If you do not switch off the air cleaning mode, it will remain in operation for 10 minutes, then stop for 50 minutes in each hour for 24 hours. When air cleaning mode is active, it is automatically cancelled at the touch of any key except lamp key. Your hood continues to operate at the function of the key you touch. Aluminium filter fill warning The light of Speed 2 key flashes for thirty seconds after every 100 hours of opera- tion. Clean the aluminium filters. After cleaning, the lamp warning of Speed 2 key does not turn off automatically. This product continues to show the 30-second warning when the product switches off after every operation. When you touch the Speed 2 key for more than 3 seconds, alu- minium filter fill warning is reset and the lamp is turned off. The warning is not cancelled if the power is cut when the hood gives aluminium filter fill warning. When the power is available, it continues to warn with the light of Speed 2 key flashing. If you run the hood at any speed level with the aluminium filter fill warning, the warning will not ap- pear for as long as the hood is run- ning. When you turn off the hood, the fill warning starts flashing again for 30 seconds. If you turn off the warning without cleaning the aluminium filter, the operating time of 100 hours is re- set and it starts over. At the end of the next 100 hours, your hood warns again. Carbon filter fill warning (for products with carbon filter) The light of Speed 2 key flashes for thirty seconds after every 100 hours of opera- tion. In this case, you must replace your carbon filter. Consult an authorized service for this. After replacement, the lamp warn- ing of Speed 2 key does not turn off auto- matically. This product continues to show the 30-second warning when the product switches off after every operation. When you touch the Speed 2 key for more than 3 seconds, carbon filter fill warning is reset and the lamp is turned off. The warning is not cancelled if the power is cut when the hood gives carbon filter fill warning. When the power is available, it continues to warn with the light of Speed 2 key flashing. If you run your hood at any speed level with the carbon filter fill warn- ing, the warning will not appear for as long as the hood is running. When you turn off the hood, the fill warning starts flashing again for 30 seconds.

NLEN / 17 If you turn off the warning without replacing the carbon filter, the op- erating time of 100 hours is reset and it starts over. At the end of the next 100 hours, warning is given again. 5 Maintenance and Cleaning

• Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals.

• Disconnect the product from the elec- trical connection before starting main- tenance and cleaning operations. There is an electric shock hazard!

• Some detergents or cleaning agents may cause damage to the surface. Do not use abrasive detergents, cleaning powders, cleaning creams or sharp objects during cleaning.

• Do not use steam cleaning products for cleaning. Product cleaning

• The product should be thoroughly cleaned after each use. Thus, food residues are easily cleaned and these residues are prevented from burning when the product is used again later.

• No special cleaning agent is required for cleaning the product. Clean the product using dishwashing detergent, warm wa- ter and a soft cloth or sponge and dry it with a dry cloth.

• Do not use acid or chlorine-containing cleaning agents to clean stainless or inox surfaces and handles. Clean with a soft soapy cloth and liquid (non-scratch- ing) detergent, taking care to wipe in one direction.

• There are sensors in the backside of the product's glass cover. Do not damage these sensors during cleaning. (For model C)

5.2 Aluminium Filter

This filter serves to retain oil particles in the air. It is recommended to clean the filter once a month under normal usage. To achieve this:

1. Remove the aluminium filters.

2. Wash the filters in water using liquid

detergent and reinstall after drying. Aluminium filters may change colour as they are washed; this is normal and does not require replacing your filters. You can also wash the aluminium filter in the washing machine. (max. 70 °C) Removing aluminium filters

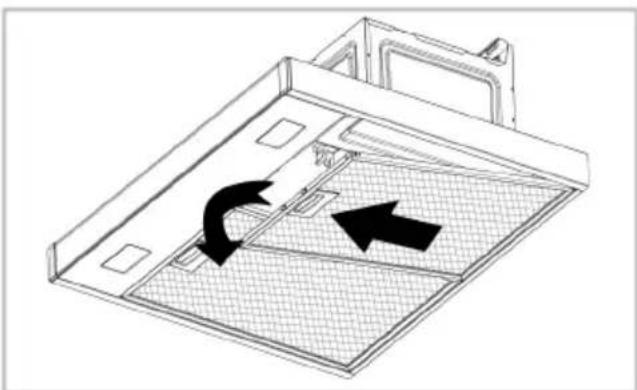

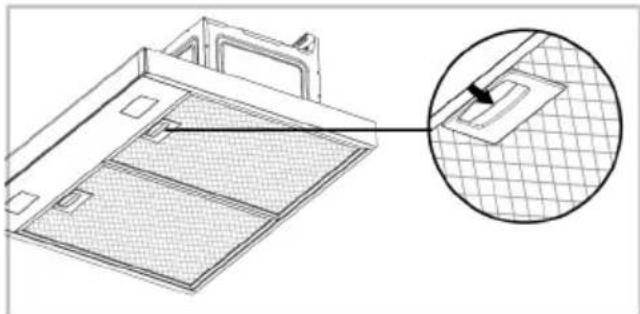

1. Push the aluminium filter lock forward.

2. Lower the filter slightly and pull it for-

ward. Otherwise, you can tilt the filter.

3. Reinstall the aluminium filter in its slot

after flushing by following the above steps in reverse.

In the event of a lamp malfunction in the hood, contact your local dealer or the Cus- tomer Service, and ensure that the lamp is replaced.

• If you have installed your product without a flue, you should replace your carbon filters every 4 months in normal use. You can obtain the carbon filter from Authorized Services.

• The carbon filter should never be washed.

• If you do not follow the rules for cleaning and replacing the filters of your hood, you may cause a fire. In carbon-filtered usage, the sound level increases and the flow rate performance decreases. Removing carbon filter

1. Remove the aluminium filters.

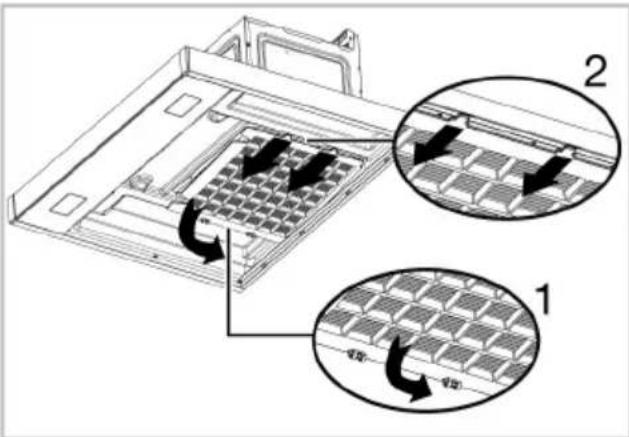

2. Release the locks of the carbon filter

from their slots (1).

3. Remove the pins on the other end of the

carbon filter from its socket and pull it out in the direction of the arrow (2).

4. Reverse this process, first insert the

tabs into the slot of the new carbon fil- ter and then push the locks upwards.

5. Install the aluminium filters.

6 Troubleshooting If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Never try to repair your product yourself. Product is not working.

• Fuse may be faulty or blown. >>> Check the fuses in the fuse box. Change them if necessary or reactivate them.

• The product may not be plugged in. >>> Check if the product is plugged in to the outlet or not.

• The speed button may not be set. >>> Press/touch the desired speed button.

• There may be no electricity. >>> Ensure the mains is operational and check the fuses in the fuse box. Change the fuses if necessary or reactivate them. Hood light is not on.

• Hood lamp may be faulty. >>> Contact your local dealer where you purchased your product or the Customer Service, and ensure that the lamp is replaced.

• There may be no electricity. >>> Ensure the mains is operational and check the fuses in the fuse box. Change the fuses if necessary or reactivate them.

5.2 Aluminium filter
