WP-DC28 - Camera CANON - Free user manual and instructions

Product Type	Waterproof housing for digital camera
Brand	Canon
Model	WP-DC28
Maximum underwater depth	40 meters (130 feet)
Materials	Polycarbonate, ABS, transparent glass plate, EPDM
External dimensions	150.0 × 106.3 × 116.6 mm (5.91 × 4.19 × 4.59 inches)
Volume	Approx. 1105 cm³
Weight (housing only)	Approx. 460 g (16.2 oz)
Operating temperature	0 to 40 °C (32 to 104 °F)
Waterproof standard	JIS Class 8 protection
Package contents	Waterproof housing, collar, wrist strap, diffuser plate, silicone grease, user guide
Accessories sold separately	WW-DC1 weights (4 recommended)
O-ring seal	O-ring; replacement recommended every year
Main functions	Underwater shooting, beach, rain, ski resorts; flash with diffuser plate
Compatibility	Specific Canon digital cameras (see manual)
Maintenance after sea use	Rinse with fresh water, wipe with soft cloth; do not wash interior with water
Safety precautions	Do not disassemble; do not use beyond 40 m; avoid high temperatures

Frequently Asked Questions - WP-DC28 CANON

How to install the camera in the WP-DC28 housing?

Make sure the camera is turned off. Open the back cover of the housing by sliding the lock button. Insert the camera into the housing, ensuring the lens is aligned with the window. Close the cover, checking that the O-ring is clean and properly seated. Lock the latch.

How to maintain the O-ring seal?

Gently remove the O-ring with your fingers (no sharp tools). Clean the O-ring and groove with a cotton swab to remove any dirt. Apply a drop of the supplied silicone grease to the O-ring and spread evenly. Reinsert the O-ring into the groove. Replace the O-ring once a year.

What is the maximum operating depth?

The WP-DC28 waterproof housing is designed for use up to 40 meters (130 feet) depth. Do not exceed this limit to avoid leakage or damage.

Should I remove the collar before using the housing underwater?

Yes, it is imperative to remove the collar and attach the wrist strap before any underwater use. The collar could get tangled and pose a choking hazard. Use the collar only for transport to the beach.

How to use the flash with the waterproof housing?

Attach the supplied diffuser plate to the housing for even light distribution. Do not scratch the plate. Insert the edge of the plate into the designated groove. The plate may be less effective if the subject is very close.

What to do in case of condensation inside the housing?

Immediately stop using the camera. Remove the camera from the housing and wipe the condensation with a soft dry cloth. Wait for the moisture to completely evaporate before reuse. Avoid sudden temperature changes.

Can I use this housing with any Canon camera?

No, the WP-DC28 is designed for specific Canon models. Check the compatibility list in the manual or on the Canon website. Only use recommended cameras to ensure waterproofing.

How to clean the housing after use in salt water?

Rinse the outside of the housing thoroughly with fresh water (max 30 °C) as soon as possible. Soak it in fresh water for several hours to dissolve salt deposits. Then wipe with a soft dry cloth. Do not wash the inside with water; use a dry cloth.

When should I replace the O-ring seal?

It is recommended to replace the O-ring once a year to maintain waterproofing. A damaged or cracked O-ring can cause leaks. Contact Canon customer service for a replacement O-ring.

Where can I buy accessories like weights for the housing?

The weights (reference WW-DC1) are sold separately. Visit your Canon dealer or the official website. The housing requires 4 weights for proper buoyancy when diving.

USER MANUAL WP-DC28 CANON

Mechanical assembly diagram showing a motor handle and gear mechanism (no text or labels)

Diagram of a device's internal components, showing a device with a close-up view and cable being inserted (no text or symbols present)

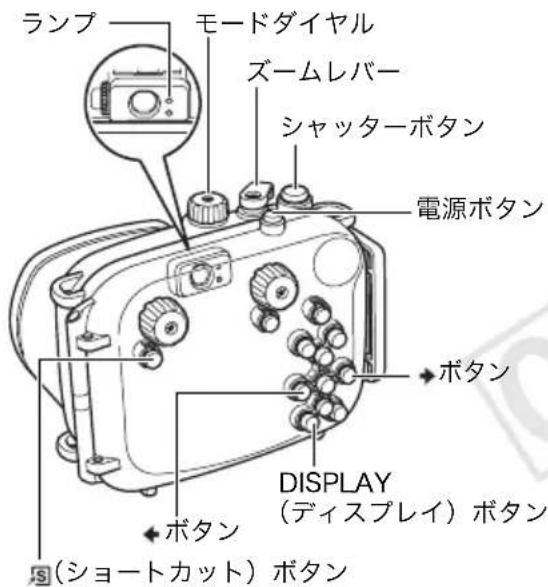

摄影

Line drawing of a camera with lens and control panel (no text or symbols)

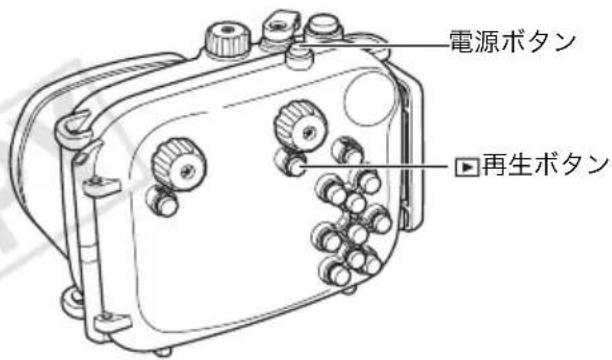

再生

1 ▶(再生) ボタンを押します。

保管するときは

• While every effort has been made to ensure that the information contained in this guide is accurate and complete, no liability can be accepted for any errors or omissions. Canon reserves the right to change the specifications of the hardware and software described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form, by any means, without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the camera, the software, memory cards, personal computers or peripheral devices.

Copyright © Canon Inc. 2008 All rights reserved.

Please read this manual carefully to operate the Waterproof Case correctly. Store this manual in a safe place for further reference once you have read it.

Introduction

- Thank you for purchasing this Waterproof Case. Once installed in the Waterproof Case, you can use your Canon Digital Camera in the rain, at the beach or on the ski slopes. You can also use it underwater at depths down to 40 meters (130 ft.) and in wet or dusty environments.

- Before you use the Waterproof Case, please make sure the case is functioning correctly and does not leak. Close the Waterproof Case before installing the camera and hold it underwater at an approximate depth of 15 cm (5.9 in.) for around three minutes to check for leaks. Perform a similar check after you install the camera. If it leaks, contact your Canon Customer Support Help Desk.

- Canon Inc., its subsidiaries and affiliates, and distributors of the Waterproof Case are not liable for any consequential damages arising from corrupted or lost data due to mistaken operation or malfunction of the Waterproof Case, the camera, the battery or the memory card that results in the failure of an image to be recorded. - Please carefully read the Camera User Guide supplied with your camera also.

Unpacking

The Waterproof Case is shipped with the items listed below. Please check your package now to confirm that it is complete. Contact your Canon dealer if anything is missing.

• Waterproof Case
• Neck Strap
• Wrist Strap
• Diffusion Plate
  • Silicone Grease for the Waterproof Seal
• User Guide (this guide)

Sold Separately

- Canon Waterproof Case Weight WW-DC1

Weights used for the Canon Waterproof Case to prevent it from floating while taking pictures underwater.

Refer to the specifications (p. 19) for the number of weights needed for this Waterproof Case. For details on installing the weights, refer to the Waterproof Case Weight user guide.

Safety Precautions

Before you use the Waterproof Case, thoroughly read these precautions to ensure correct use. The precautions described below are for ensuring safe use of the Waterproof Case and for preventing danger and damage to yourself and others. Thoroughly understand the details of these precautions before reading the rest of this manual.

• After you use the Waterproof Case, be sure to remove the camera from it. If you leave the Waterproof Case containing the camera in direct sunlight or in a high-temperature place, this may cause a fire or the case to burst.
- Do not use the Waterproof Case in place of a personal flotation device (life jacket).
- Do not use the neck strap underwater. Remove the neck strap and attach the wrist strap before use underwater. There is danger that the neck strap will become entangled and cause strangulation or another mishap.
- Do not use the Waterproof Case at water depths exceeding 40 meters (130 ft.). The case may malfunction, suffer damage or leak.

• Do not press the buttons or the lever of the Waterproof Case with unnecessary force when in the water. This may warp the casing and cause leaks.
• When cleaning the case, do not spray water at the waterproof seal under pressure. This may cause leaks.
• Do not disassemble or modify the Waterproof Case. This may cause leaks.
• Do not damage the waterproof seal, scratch its contact surfaces, or allow dirt, sand, hair or other debris to accumulate between the waterproof seal and the case. This may cause leaks.
• Do not use the Waterproof Case in water at temperatures above 40 °C (104 °F). Heat may warp the casing and cause leaks.
• Do not leave the Waterproof Case in direct sunlight, inside a car in hot weather, or near a heater. Heat may warp the casing and cause leaks. Cover it with a towel, for example, if you have to leave it in the sun.

Handling Precautions

• Do not drop or throw the Waterproof Case.
• Use only the supplied silicone grease. Use of other waterproofing products may impair the strength of the Waterproof Case. If any other waterproofing product is mistakenly applied, wipe it off immediately.
• Avoid opening or closing the Waterproof Case near water. When you are installing the camera or changing the memory card or the battery, choose a place with low humidity well away from salty sea air.

• Avoid using the Waterproof Case for long periods of time in hot temperatures.

• Battery life is reduced in cold temperatures. When you use the Waterproof Case in very cold places, keep it warm by putting it in a bag whenever you are not shooting. It is not advisable to use the Waterproof Case in temperatures below the freezing point.

• Moving the Waterproof Case rapidly between hot and cold temperatures may cause condensation (water droplets) to form on its internal surfaces. If this occurs, stop using the camera immediately as the condensation may cause a malfunction. Remove the camera from the Waterproof Case and wipe off the condensation from the Waterproof Case and the camera with a soft and dry cloth, and wait until the moisture evaporates completely before resuming use.

About Water Leakage

Stop shooting immediately if the Waterproof Case leaks. If you use the camera in this state, this may cause a fire or electric shocks. Never use it in this state. Thoroughly wipe the Waterproof Case interior and the camera dry. Please contact your Canon Customer Support Help Desk.

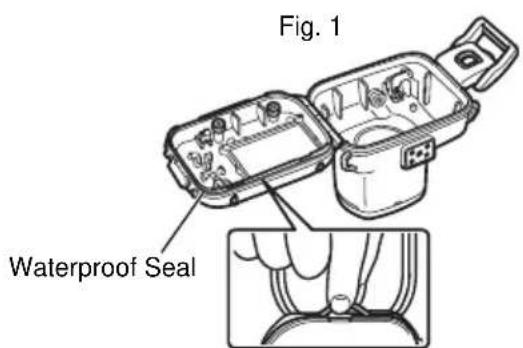

Waterproof Seal

- Debris (e.g. sand, dirt or hair) stuck to the waterproof seal may cause water leakage. Catching a single strand of hair or a tiny grain of sand in the seal can cause leaks.

• When removing the seal from your Waterproof Case, use your fingers so you do not damage the waterproof seal (as shown in Fig. 1). Do not dig your fingernails into it or use pointed or metallic objects to remove it.
• Do not pull the waterproof seal. Pulling the seal may overstretch it, which may cause the case to not close properly and cause leaks.
• While mounting the waterproof seal, do not twist or pull the seal with force. Extreme care should be taken to ensure the waterproof seal is level around the mounting groove. Please check to ensure that the waterproof seal is working.

• Be careful not to apply too much grease. Applying too much grease to the seal may cause water leakage (about a droplet is sufficient).
• Do not use paper or cloth to apply the grease to the seal.
• A damaged or cracked waterproof seal may cause leaks. Please contact your Canon Customer Support Help Desk.

To ensure that the Waterproof Case remains waterproof, it is recommended to replace the seal once a year. Please contact your Canon Customer Support Help Desk.

Care and Maintenance

- Wash the exterior of the Waterproof Case with enough clean fresh water (tap water under 30 °C/ 86 °F, etc.) as soon as possible after using it. It is particularly advisable to soak it in fresh water for several hours after use in salt water to remove salt deposits. Please check that you have locked the catch securely to prevent water from entering the case. Wipe it dry with a soft cloth after washing. To avoid scratching the Waterproof Case, do not wipe it while any sand or grit remains on it. The metal parts may rust or the buttons may become hard to press if salt deposits remain. Wipe the interior of the case with a soft, dry cloth. Do not wash it with water.

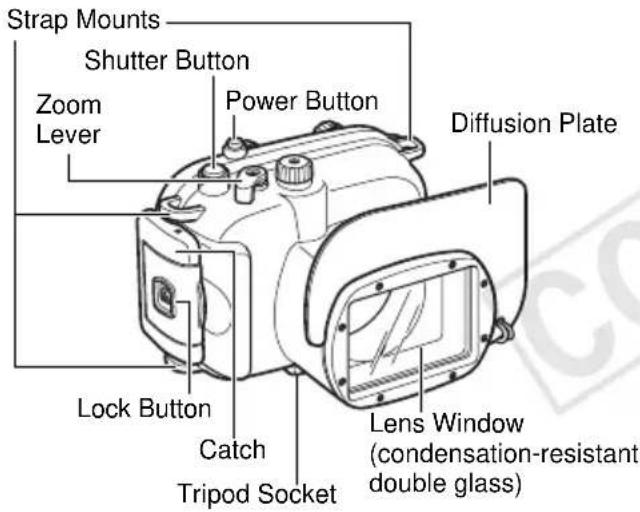

Components

Front

Lens Window

Since dirt or smudges on the lens window may show in photographs, keep the lens window clean by wiping it gently with a soft, dry cloth.

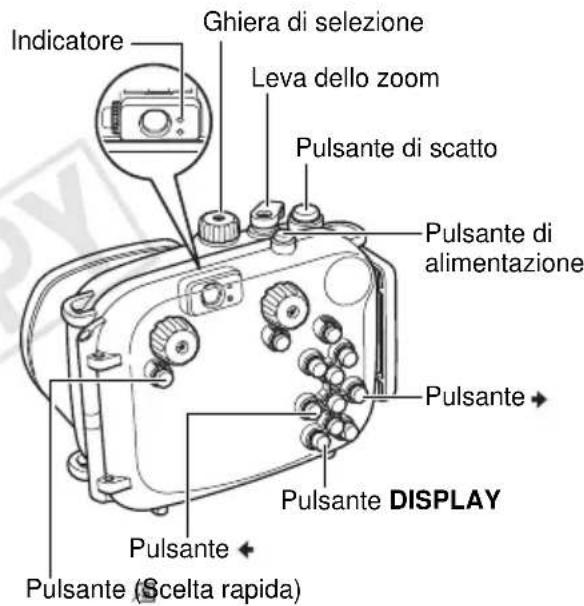

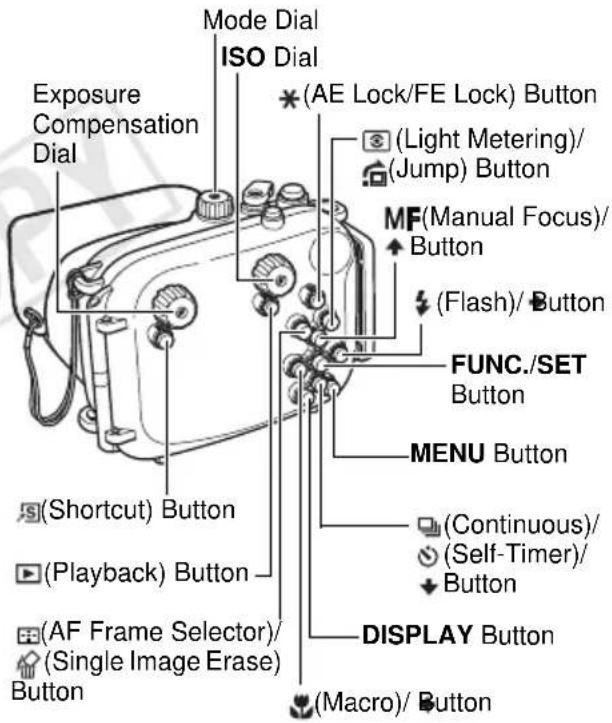

Back

Preparations

Preparing the Camera

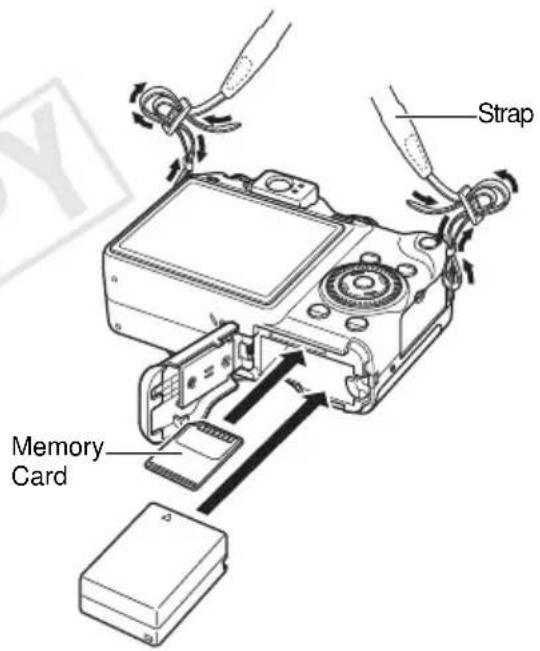

1 Confirm that the camera's power is off and open the memory card slot/battery cover.

2 Insert the battery, and the memory card.

• Please refer to the Camera User Guide for information regarding the type of battery to use with the camera and installation methods for the battery and memory card.
• Use a battery that is adequately charged.
• Ensure you have enough storage space on your memory card to record your images.

3 Remove the camera's strap.

Inserting the camera while the strap is attached could trap the strap in the Waterproof Case closure and cause leaks.

Technical illustration of a mechanical component with bolts and a curved housing (no text or symbols)

Do not use the camera's strap as a strap for the Waterproof Case.

Preparing the Waterproof Case

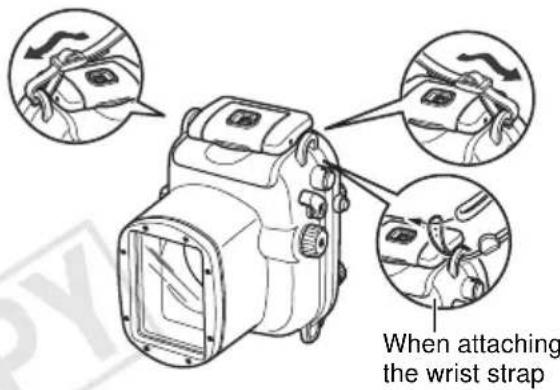

4 Fasten both ends of the neck strap to the strap mounts as shown, and adjust it to a comfortable length.

Use the neck strap when carrying the camera on the beach. Remove the neck strap and attach the wrist strap before use underwater. There is danger that the neck strap will become entangled and cause strangulation or another mishap.

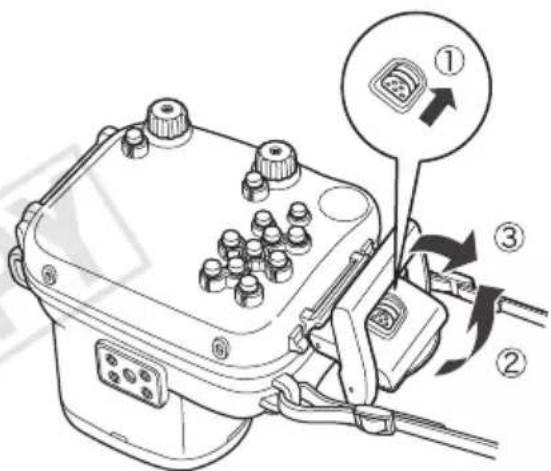

5 Slide the lock button as shown, and release the catch to open the back cover.

- When using commercially available anticondensation products, the anticondensation solution should only be applied to the inside surface of the lens window using a soft cloth. If anticondensation solution comes in contact with any surface other than the inside of the lens window, wipe it off immediately with a soft, dry cloth, as it could lead to deterioration of the Waterproof Case.

Apply a thin coat of grease to the entire seal before using the Waterproof Case in order to prevent abrasion and deterioration.

For waterproof seal handling precautions, see "Waterproof Seal" on page 6.

1. Remove the waterproof seal.
2. Using a cotton swab, wipe off any debris (e.g. sand, dirt or hair) which is present on the waterproof seal and on the seal mounting groove of the Waterproof Case.
3. Apply a small amount (droplet) of grease to your fingertip.
4. Evenly coat the entire surface of the waterproof seal, taking care not to scratch the surface.
5. Place the waterproof seal back in the seal mounting groove of the Waterproof Case.

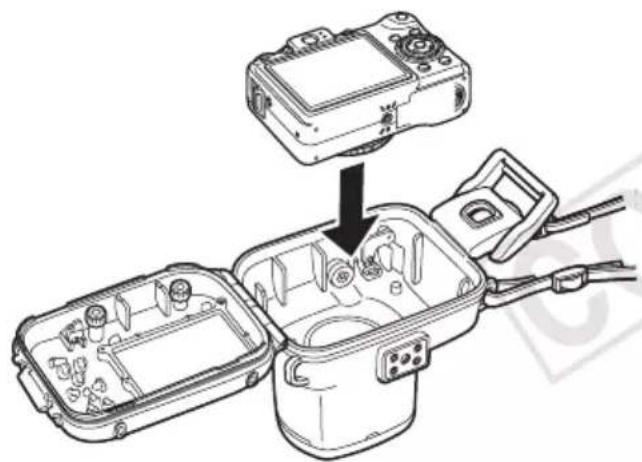

Installing the Camera

6 Insert the camera into the Waterproof Case as shown.

Diagram of a device open with internal components and wiring, showing a close-up of the lid (no text or symbols present)

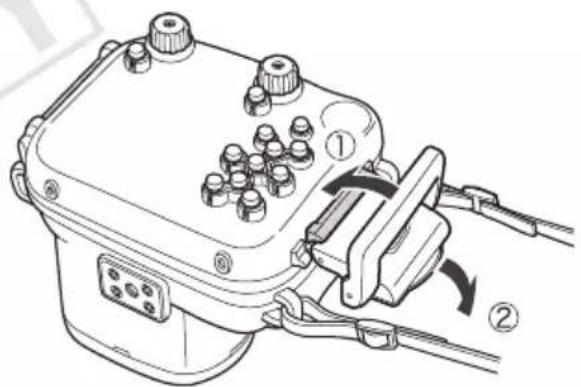

7 Close the Waterproof Case.

• Make sure that the waterproof seal and its contact surfaces are free of debris (e.g. sand, dirt or hair). Catching a single strand of hair or a tiny grain of sand in the seal can cause leaks.
• Make sure that the catch is fastened properly.

Technical line drawing of a mechanical device with numbered components (no text or symbols)

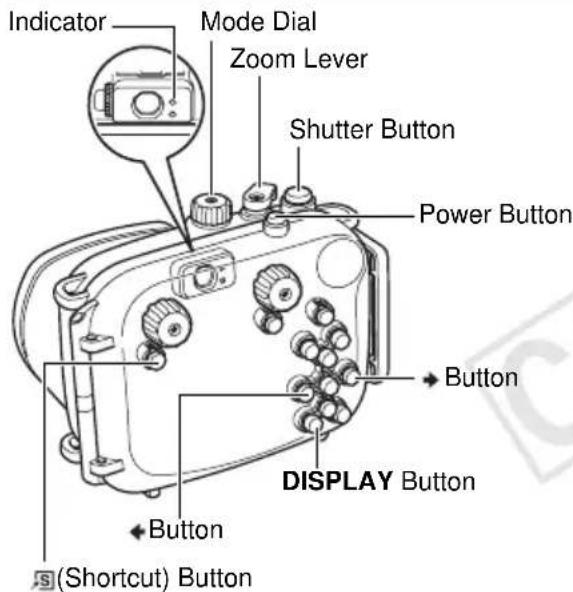

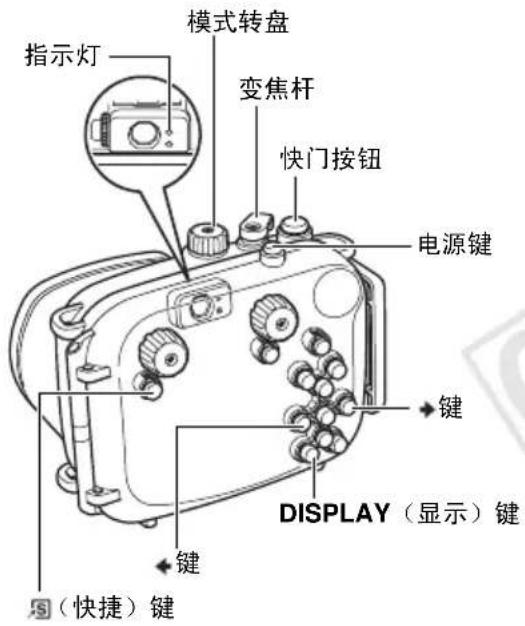

Shooting

1 Press the power button to turn on the power.

2 Set the mode dial to any desired position.
3 Adjust settings as required.

• Press the DISPLAY button to turn on the LCD monitor.
• You can adjust the zoom with the zoom lever.

Setting the Special Scene mode to (Underwater) to shoot

You can obtain more natural appearing coloration underwater if you set the Special Scene mode to 📄(Underwater). This mode selects the optimal white balance for marine lighting and tones down the blue colors.

1. Set the mode dial to \$6 Nepal Scene mode).
2. Pressing the (Shortcut) button, use the or button to select .
3. Compose and shoot the image.

Shooting when the mode dial is set to P, Tv, Av Mr

You can set the white balance to 📁 (Underwater) using the FUNC. menu for the above modes. Please note that you can set the white balance manually with the press of a single button if you assign the 📄 (Custom White Balance 1 or 2) function to the 📄 button. This is recommended for adjusting the white balance to the shooting conditions.

4 Use the LCD monitor to compose the shot. Press the shutter button halfway and wait until the upper indicator lights green or orange. After it lights, press the shutter button all the way.

• Make sure that the lens window is always clean.

• Ensure that your fingers and wrist strap do not obstruct the lens window, flash or diffusion plate when shooting.

• If the power saving function activates and shuts off the power, press the power button again.

• You cannot shoot images using the viewfinder.

Using the Control Dial

Using the control dial with the waterproof case differs slightly from that of the camera itself.

1. When you want to turn the control dial clockwise, press the button while pressing the button.
2. When you want to turn the control dial counterclockwise, press the ◀button while pressing the ◀button.

5 When you have finished using the camera, turn the camera off.

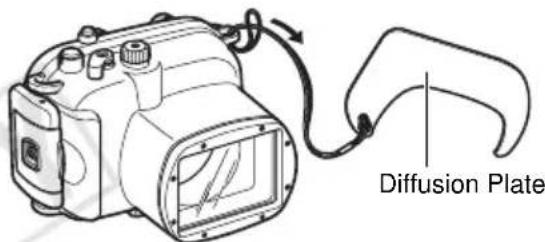

Using the Flash

In order to evenly distribute light from the flash, please attach the diffusion plate.

• Do not scratch the surface of the diffusion plate, as this may prevent flash light from being diffused properly.
• When shooting with the flash, parts of the image may appear dark, so be sure to attach the diffusion plate before shooting. If the subject is too close to the camera, however, the diffusion plate may be less effective.

Attaching the Diffusion Plate

1 Thread the cord through the strap mount.

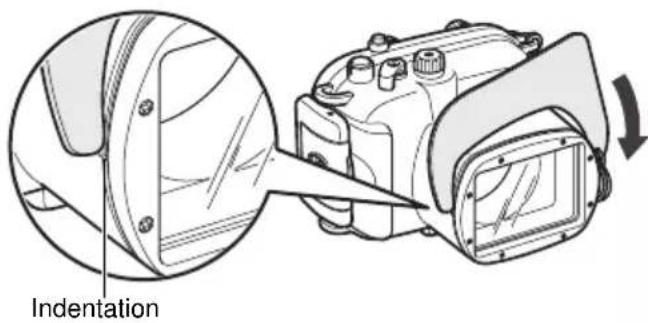

2 Insert the edge of the diffusion plate into the indentation.

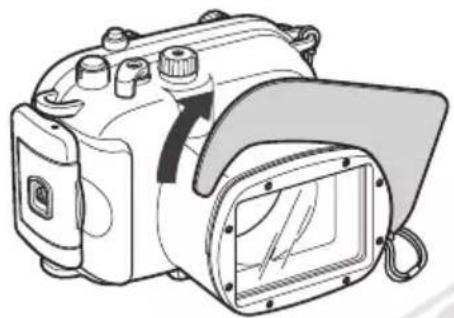

Removing the Diffusion Plate

Lift and remove the diffusion plate.

Line drawing of a camera with lens and control panel (no text or symbols)

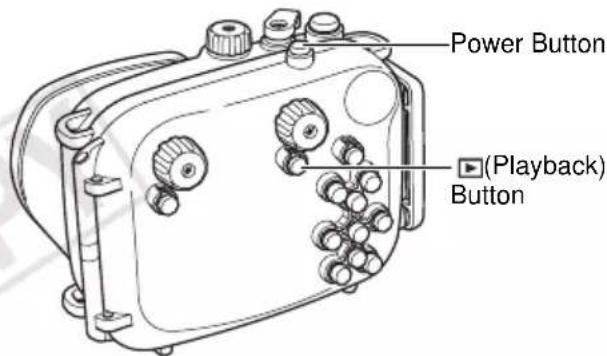

Playback

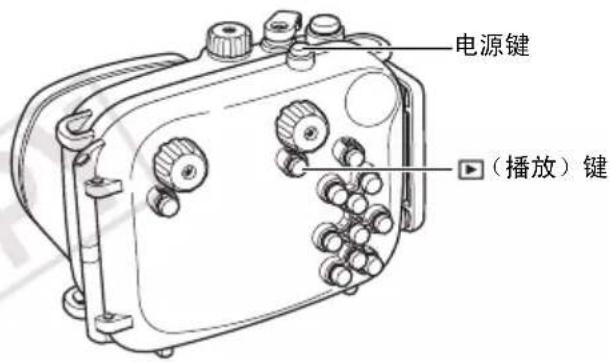

1 Press the ☐(Playback) button.

2 When you have finished using the camera, turn the camera off.

After you use the Waterproof Case, be sure to remove the camera from it. If you leave the Waterproof Case containing the camera in direct sunlight or in a high-temperature place, this may cause a fire or the case to burst.

Removing the Camera

1 After use, be sure to completely dry all the water from the Waterproof Case.

- Remove any dirt, sand, hair or other debris from the Waterproof Case, and wash it with clean, running tap water to remove salt deposits.

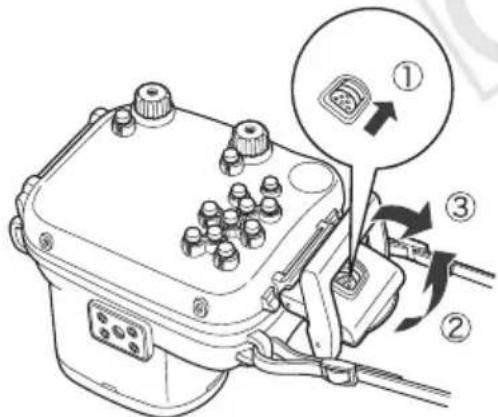

2 Slide the lock button as shown, and release the catch to open the back cover. Remove the camera from the case.

- Be careful not to allow drops of water from your hair or body to fall on the camera or Waterproof Case interior when the case is open. - Do not wash the interior of the Waterproof Case with water. Wipe it with a soft, dry cloth.

Storage

• Store your Waterproof Case carefully, in an opened state to prevent the waterproof seal from deforming and to maintain its waterproof effect.
• Protect the waterproof seal from dust or scratches during storage.
• Do not store the Waterproof Case in hot, cold or humid places, or near substances such as naphthalene or insecticides.

Specifications

Maximum Depth:	40 m (130 ft.) (Meets JIS protection class 8 for waterproofing.)
Waterproofing:	Seal, O-ring, etc.
Main Materials:	Polycarbonate, ABS, clear plate glass, EPDM, etc.
Camera's Operating Temperature:
Dimensions:	150.0 × 106.3 × 116.6 mm (5.91 × 4.19 × 4.59 in.) (excluding protrusions)
Volume:	Approx. 1105 cm ^3 (37.4 fl. oz. (US))
Weight:	Approx. 460 g (16.2 oz.) (Waterproof Case only*)

Number of Separately Sold Waterproof Case Weights (WW-DC1) Recommended for Mounting: 4 weights
* Including diffusion plate Subject to change without notice.

MEMO

Deutsch

Haftungsausschluss

Mechanical component diagram showing gears and housing (no text or symbols)

Line drawing of two DSLR camera cases with suspended cables (no text or symbols)

Diagram of a device's internal components, showing a device with an open case and a close-up view of its internal structure (no text or symbols visible)

Technical line drawing of a mechanical device with numbered components (no text or symbols)

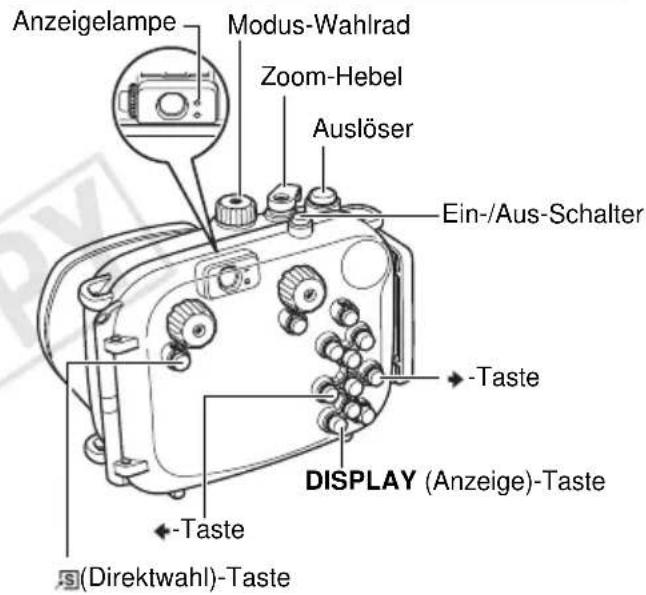

Fotografieren

Line drawing of a camera with lens and control panel (no text or symbols)

Wiedergabe

Lagerung

Mechanical component diagram showing gears and a housing (no text or symbols)

Diagram of an open electronic device with internal components and a close-up view showing internal wiring (no text or symbols)

7 Cierre la funda impermeable.

Technical line drawing of a mechanical device with numbered components and a clamping mechanism (no text or symbols)

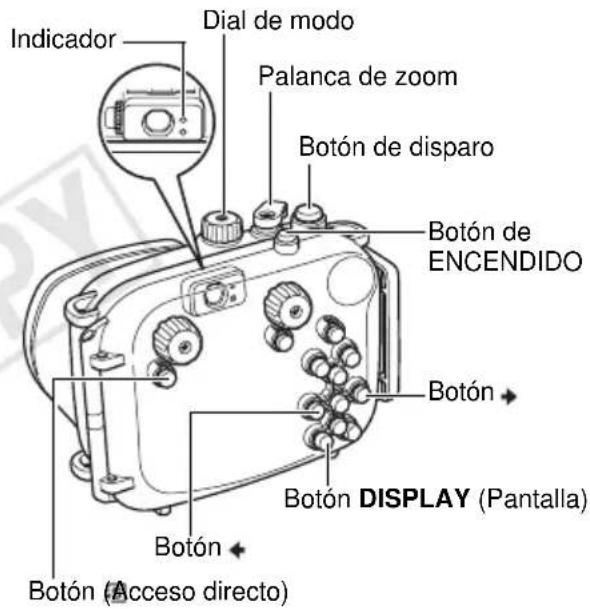

Fotografiado

Line drawing of a camera with lens and external components (no text or symbols)

Reproducción

Almacenamiento

Mechanical component diagram showing gears and a housing (no text or symbols)

Diagram of a device's internal components, showing an open case with internal modules and a close-up of the top component (no text or symbols present)

Technical line drawing of a mechanical device with labeled parts (① and ②), no readable text or symbols present.

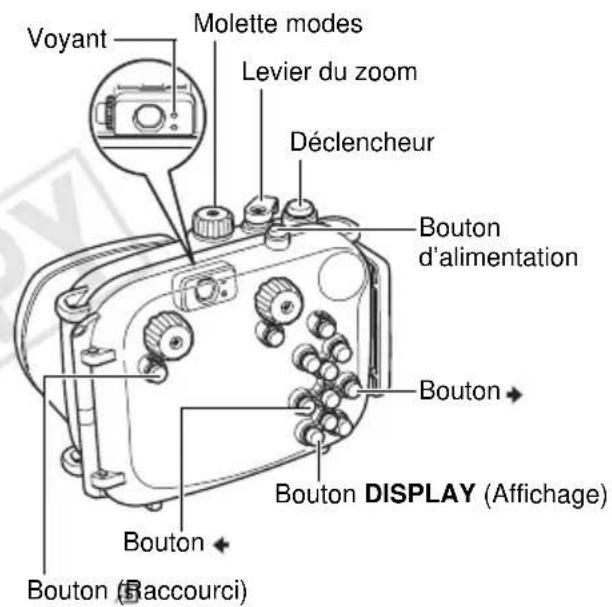

Prise de vue

Line drawing of a camera with lens and screen (no text or symbols)

Lecture

Stockage

Mechanical component diagram showing gears and a housing (no text or symbols)

Line drawing of an open electronic device with internal components and a close-up view of the housing (no text or symbols)

Technical line drawing of a mechanical device with numbered components and a clamping mechanism (no text or symbols)

Ripresa

Line drawing of a camera with lens and control panel (no text or symbols)

Riproduzione

Conservazione

Technical line drawing of a mechanical component with gears and a housing (no text or symbols)

请勿将相机的系带用作防水套的系带。

准备防水套

Diagram of a device open into a plastic case with an open lid and cable, showing internal components (no text or symbols)

7 关上防水套。

Technical line drawing of a mechanical device with numbered components and a clamping mechanism (no text or symbols)

拍摄

Line drawing of a camera module with no visible text or symbols

播放

1 按下 ▶（播放）键。

2 相机用完后，请关闭相机电源。

存放时的注意事项

CDI-M422-010 XXXXXXXX © CANON INC. 2008 IMPRIMÉ AU JAPON

PRINTED IN JAPAN
