USER MANUAL MF500 Duronic

MF500 - Milk Frother

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

Contents

English Manual 3
Manuel d'utilisation en français 11
Gebrauchsanleitung auf Deutsch 19
Manual de Instrucciones en Espanol 27
Manuale D'istruzioni In Italiano 35
Instrukcja obslugi. Polski 43
Türkçé Kullanim Kilavuzu 51
Gebruikershandleiding Nederlands 59
Svensk manual 67

English Manual

Features and Specifications

Model Number	Size Capacity Weight	Cable Power Voltage
MF500 WE	24x17x13cm	500ml / 260ml	1.4kg	60cm	850-1000W
MF500 BK	9.5x6.7x5.1in			23.6in
					220-240V
					50-60Hz

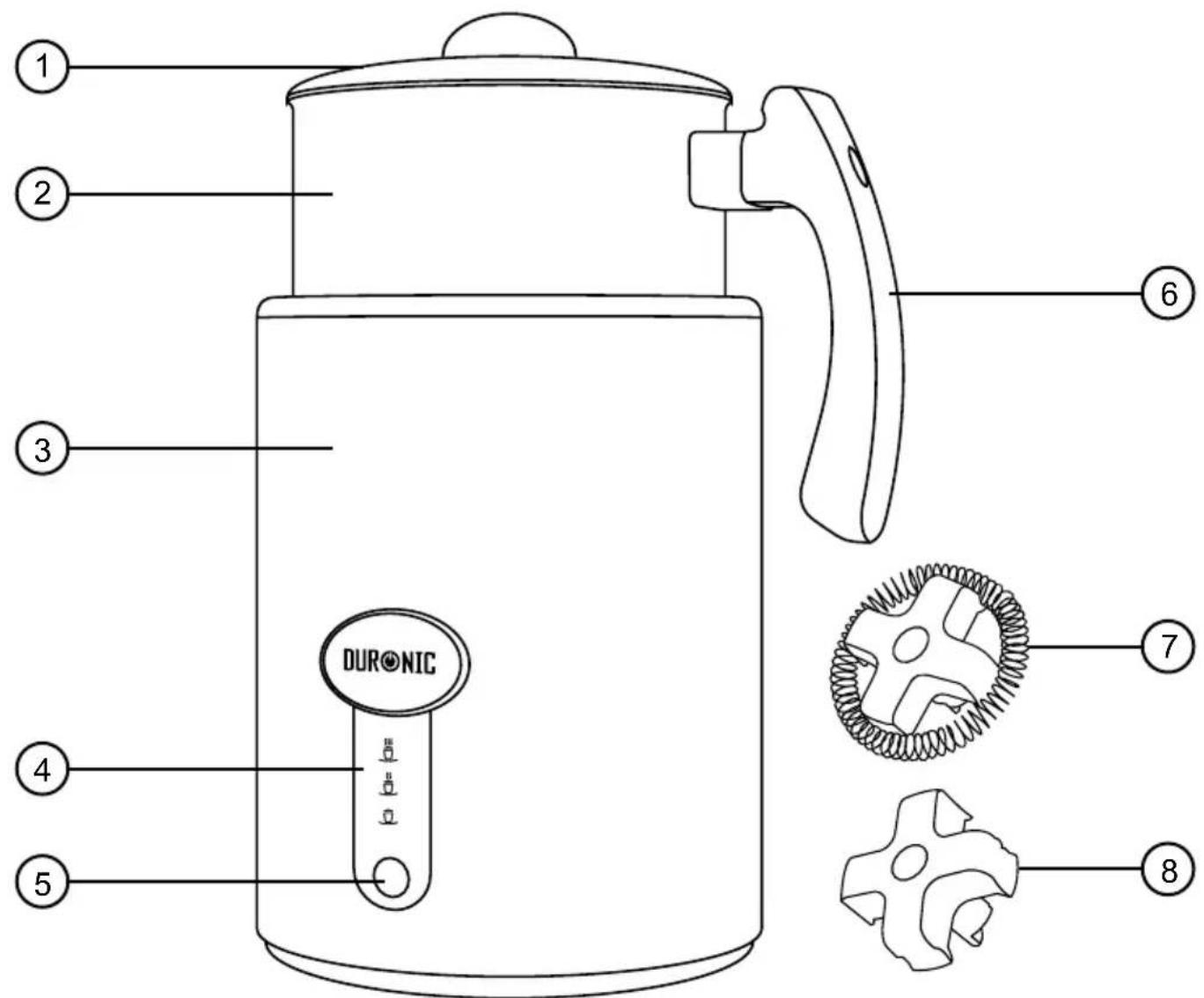

Components

1. Lid
2. Milk Jug
3. Base Unit

4. Light Indicator Panel

5. Power Button

6. Handle
7. Frothing Whisk
8. Stirring Whisk

DURONIC

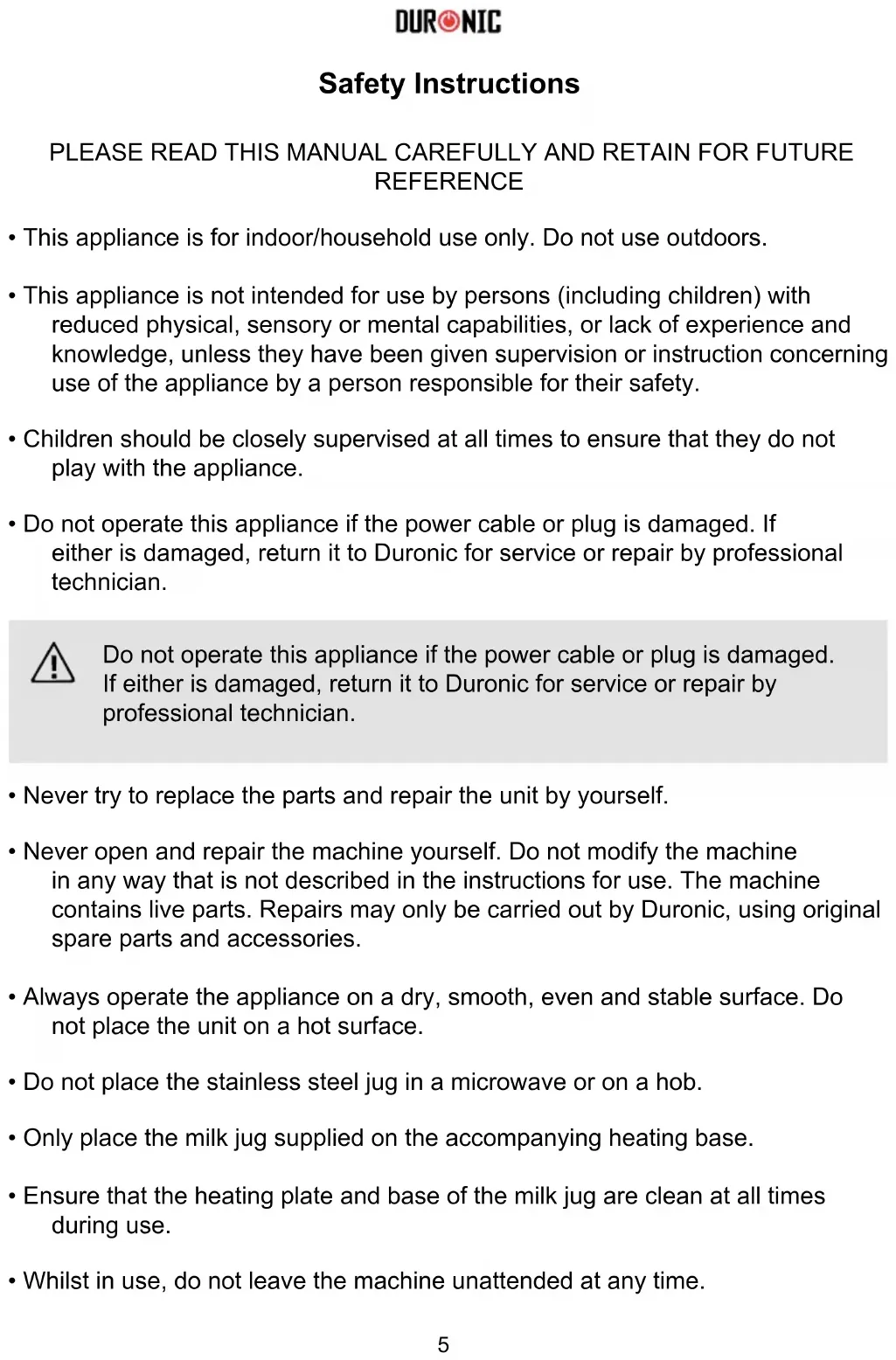

Safety Instructions

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

• This appliance is for indoor/household use only. Do not use outdoors.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be closely supervised at all times to ensure that they do not play with the appliance.
• Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by professional technician.

Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by professional technician.

• Never try to replace the parts and repair the unit by yourself.
• Never open and repair the machine yourself. Do not modify the machine in any way that is not described in the instructions for use. The machine contains live parts. Repairs may only be carried out by Duronic, using original spare parts and accessories.
• Always operate the appliance on a dry, smooth, even and stable surface. Do not place the unit on a hot surface.
• Do not place the stainless steel jug in a microwave or on a hob.
• Only place the milk jug supplied on the accompanying heating base.
• Ensure that the heating plate and base of the milk jug are clean at all times during use.
• Whilst in use, do not leave the machine unattended at any time.

DURONIC

• Disconnect the mains plug from the power socket if you are going to be absent for long periods.
• Make sure that the appliance and its mains cable are not located close to hot surfaces.
• Be careful with heated milk as it could burn if spilt

How to Use

You can use the MF500 milk frother to make a whole variety of hot and cold drinks. It comes with two different whisk attachments; one is for frothing milk and the other is for heating/stirring milk.

You can use any milk you wish (dairy, nut-based, plant-based, powdered and even hot chocolate powdered). However, please bear in mind that different milks will froth and heat differently.

Please note: the maximum amount of milk you can use depends on what you wish to do with the machine.

• If you want to froth the milk only, the maximum amount you can add is 260ml because the fluid expands as it froth up.

If you only want to heat/stir milk only, the maximum amount you can add is 500ml.

	WHISK FUNCTION	MAXIMUM CAPACITY
	Frothing whisk Frothing 260ml
	Stirring whisk Heating/Stirring 500ml

DURONIC

Please ensure you choose the correct whisk for your desired beverage.

Ensure that you do not exceed the recommended maximum capacity stated above as this will result in the milk overflowing from the jug. If this happens, turn off the machine immediately, unplug from the mains socket and clean up the spillage with a damp wet cloth. Ensure all parts are dried.

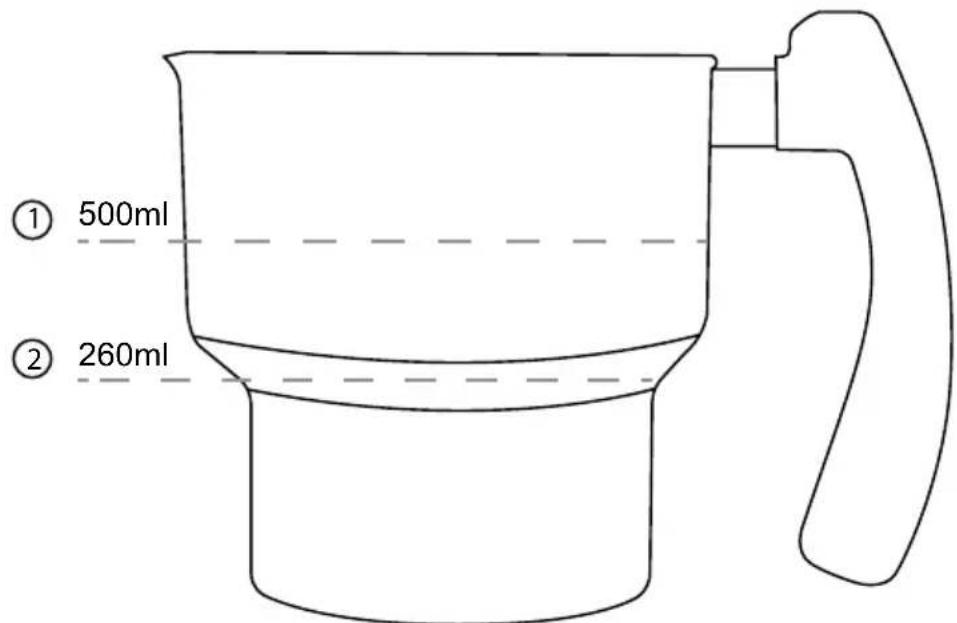

1. Max Heating Fill Level

2. Max Frothing Fill Level

Cold Froth

1. Attach the frothing whisk into the inside of the jug.
2. Add milk to the milk jug. Do not add more than 260ml.
3. Place the lid on the jug and make sure it's closed.
4. Place the jug onto the heating base.
5. Connect the plug to the power socket.
6. Touch the power button three times - the white light will come on.
7. Wait until the machine stops and the white light goes out.
8. The cool froth is ready to pour/scoop out into a cup. Drink on its own or add to your desired beverage.

Hot Froth

1. Attach the frothing whisk into the inside of the jug.
2. Add milk to the milk jug. Do not add more than 260ml.
3. Place the lid on the jug and make sure it's closed.
4. Place the jug onto the heating base.
5. Connect the plug to the power socket.
6. Touch the power button one time - the blue light will come on.
7. Wait until the machine stops and the blue light goes out.
8. The hot froth is ready to pour/scoop out into a cup. Drink on its own or add to your desired beverage.

Blue

Hot Milk / Hot Chocolate

1. Attach the heating whisk into the inside of the jug.
2. Add milk to the milk jug. Do not add more than 500ml.
3. Add hot chocolate powder according to the packet instructions.
4. Place the lid on the jug and make sure it's closed.
5. Place the jug onto the heating base.
6. Connect the plug to the power socket.
7. Touch the power button two times - the red light will come on.
8. Wait until the machine stops and the red light goes out.
9. The hot drink is now ready. Carefully pour into a cup and enjoy.

Red

DURONIC

Cleaning and Maintenance

• If you use the milk frother with powdered milk or hot chocolate powder, make sure to clean the frother properly and thoroughly to remove any clumps of powder residue.
• Clean the milk frother jug and whisk immediately after use so that milk residues do not dry onto it.
• Always switch the appliance off at the wall socket and unplug before cleaning.
• Do not use abrasive cleaning materials like scourers or scrubbing brushes on the milk frother or its parts.
• Do not use abrasive cleaners on the exterior or interior of the frother.
  To clean the base, use a well-wrung damp cloth to wipe over the surface. Ensure you dry it thoroughly immediately afterwards.
• To clean the jug and whisks, wash in warm soapy water and dry thoroughly before the next use or storage.
• Do not place the whisks or any part of the frother in the dishwasher.
• Always ensure your jug is completely dry before placing inside the heating base.
• Always store the machine and whisks in a safe place out of reach of children.
• Ensure the appliance is clean and dry before storage.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse. Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
