USER MANUAL MF130 Duronic

Creative Consumer Electronics

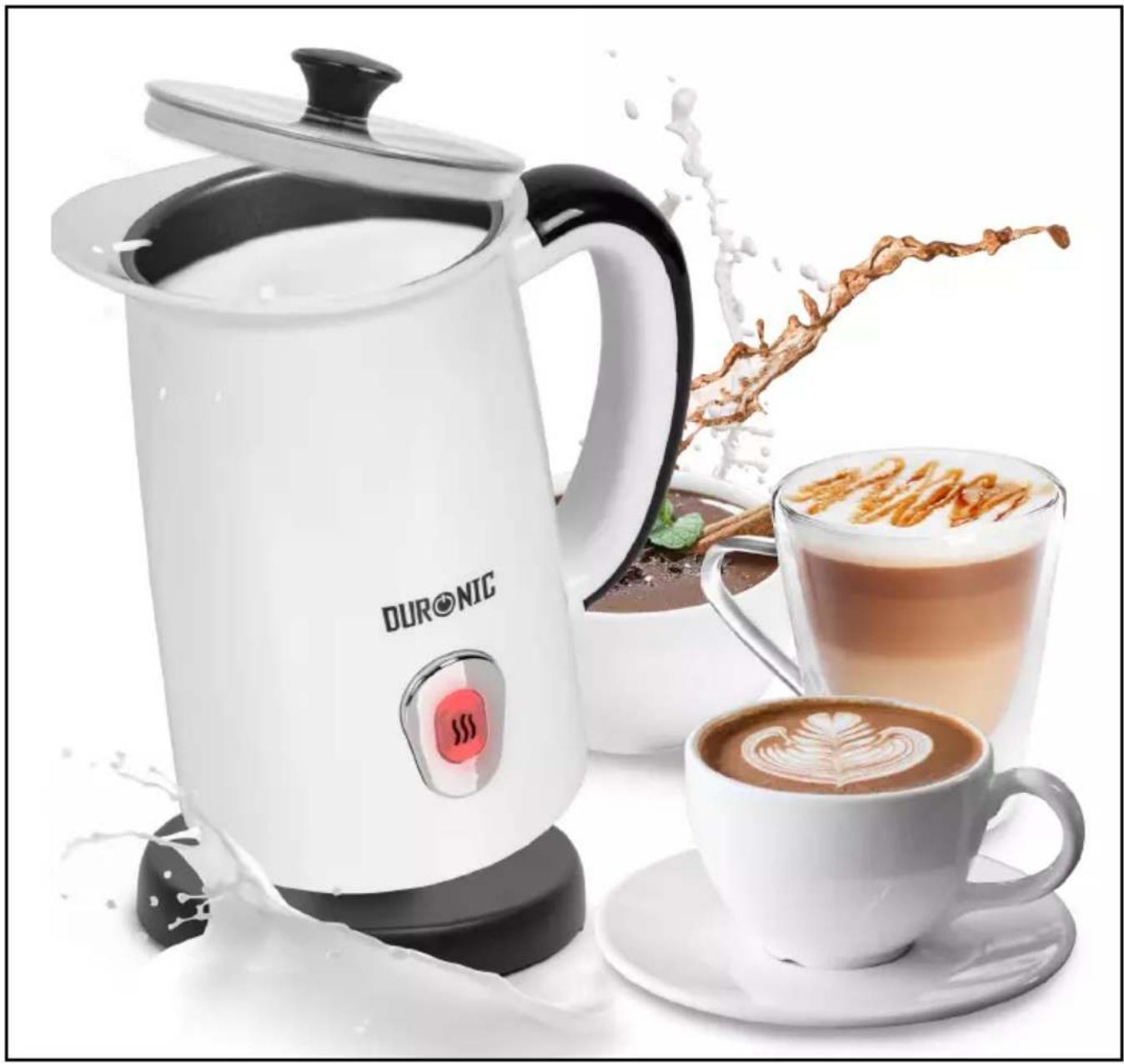

Product photo of a Duronic coffee maker with milk splashing, accompanied by a coffee cup and glass (no text or symbols visible)

MF130 - Milk Frother

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

Contents

English Manual 3

Features and Specifications

Model Number	Size Capacity Weight Cable Power Voltage
MF130	19x17x11.8cm7.5x6.7x4.6in	240ml / 130ml	0.75kg	60cm23.6in	450-550W	220-240V50-60Hz

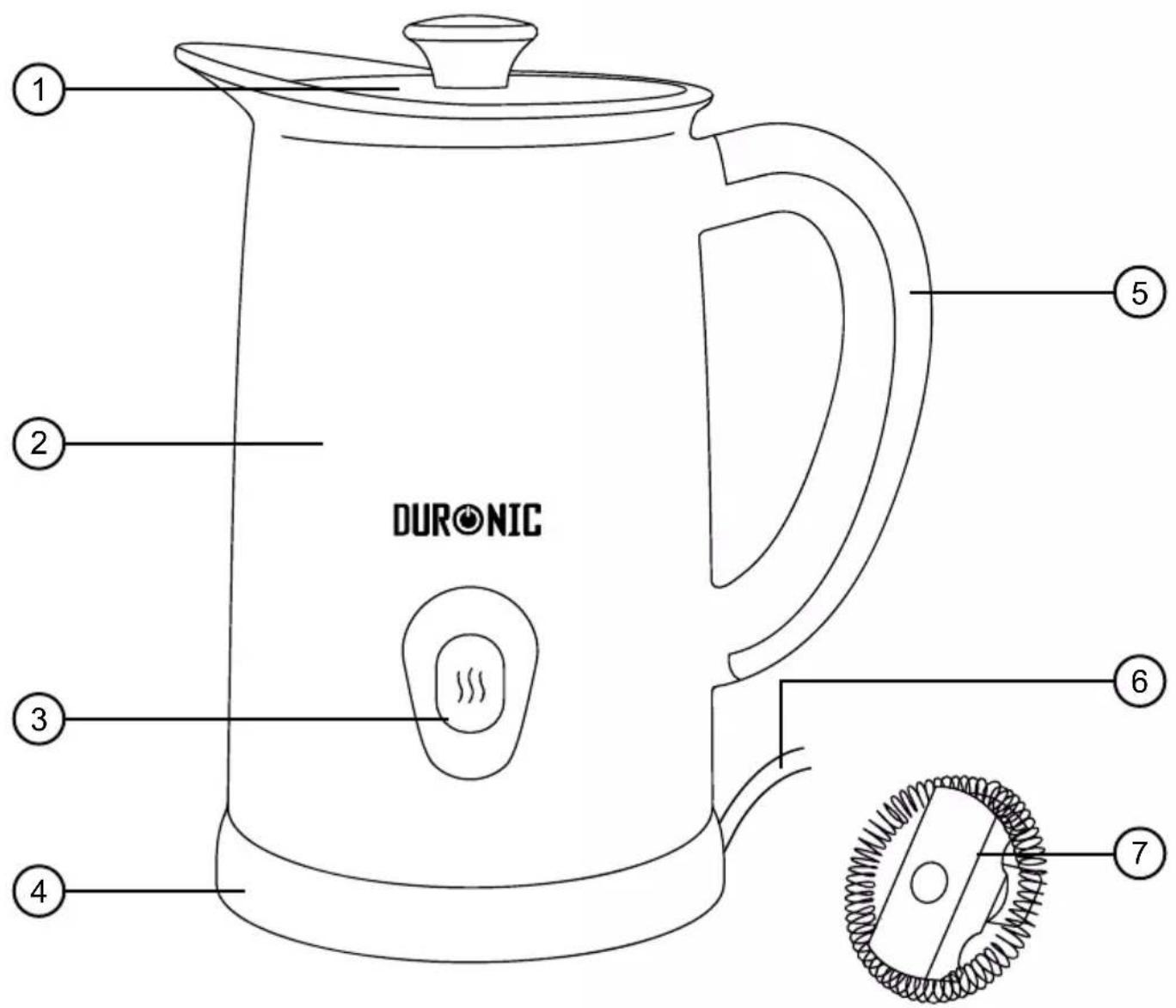

Components

1 2 DURONIC 3 4 5 6 7

1. Lid

2. Milk jug

3. Power button

4. Base unit

5. Handle

6. Power cable & plug

7. Frothing whisk

DURONIC

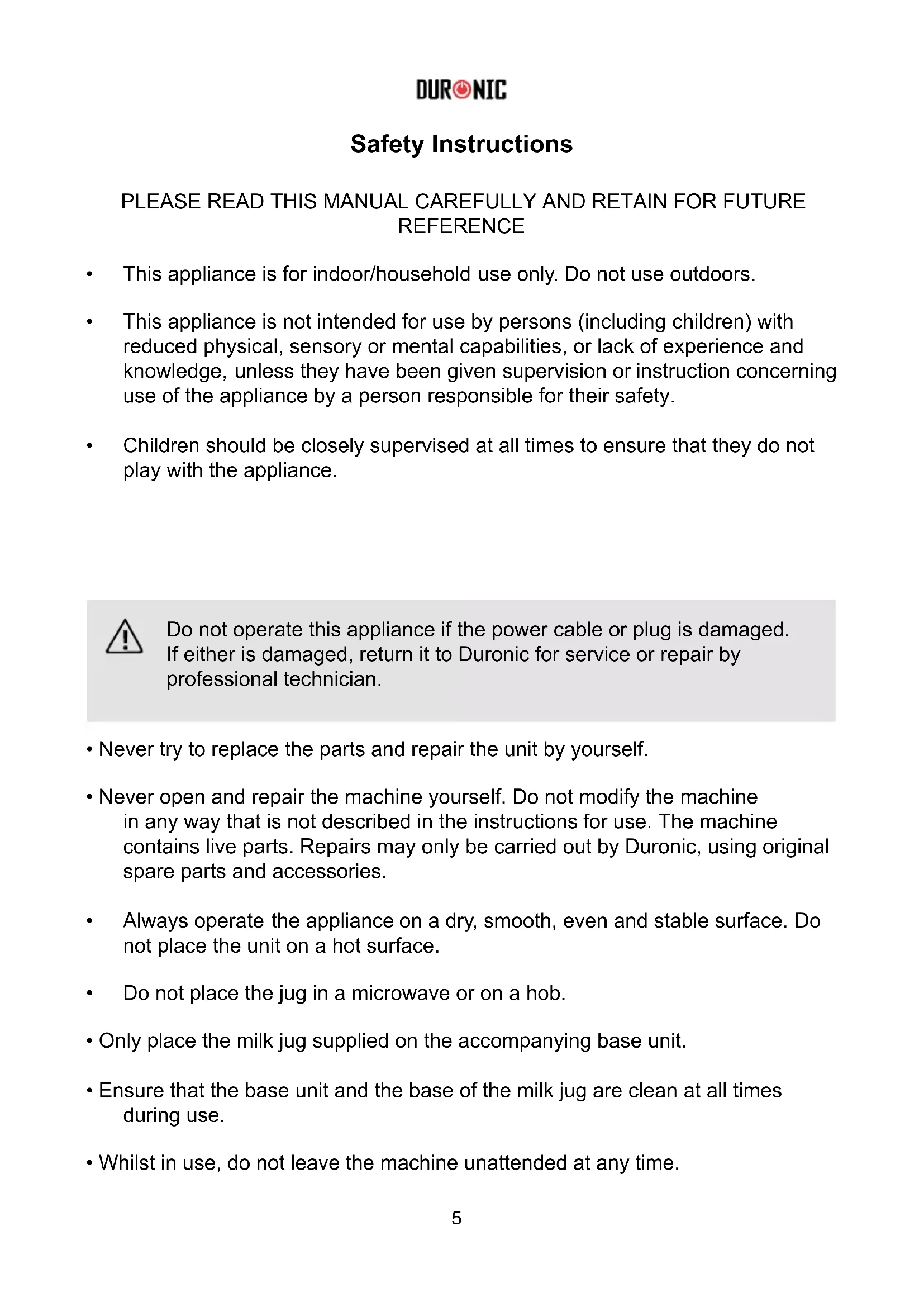

Safety Instructions

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

• This appliance is for indoor/household use only. Do not use outdoors.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be closely supervised at all times to ensure that they do not play with the appliance.

Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by professional technician.

• Never try to replace the parts and repair the unit by yourself.
• Never open and repair the machine yourself. Do not modify the machine in any way that is not described in the instructions for use. The machine contains live parts. Repairs may only be carried out by Duronic, using original spare parts and accessories.
  • Always operate the appliance on a dry, smooth, even and stable surface. Do not place the unit on a hot surface.
  • Do not place the jug in a microwave or on a hob.
• Only place the milk jug supplied on the accompanying base unit.
• Ensure that the base unit and the base of the milk jug are clean at all times during use.
• Whilst in use, do not leave the machine unattended at any time.

DURONIC

Safety Instructions (continued)

- Disconnect the mains plug from the power socket if you are going to be absent for long periods.

- Make sure that the appliance and its mains cable are not located close to hot surfaces.

Risk of injury:

Be careful with heated milk as it could burn if spilt.

Introduction

Make the drinks you love easily in your own kitchen!

The Duronic MF130 is an electric milk frother that can heat and froth up to 240ml of milk at a time, which is perfect for creating a variety of hot drinks.

From cappuccino, latte, flat white, mocha, to hot chocolates, macha and barley drinks, this frother takes them all to another level.

How to Use

1. Place the base unit on a worktop near a plug socket. Plug in the cable and switch it on at the socket.
2. Place the milk jug onto the base unit and remove the lid from the jug.
3. Choose which type of whisk to use for your desired beverage and insert it into the jug, ensuring it is pushed into place.

Use the whisk with the metal coil for frothy foamy milk, or remove the coil and use only the plastic stirrer part for heated milk.

DURONIC

How to Use (continued)

	WHISK FUNCTION	MAXIMUM CAPACITY
	Frothing whisk Frothing 130ml
	Stirring whisk Heating/Stirring 240ml

1. Pour milk into the jug. You can use any milk you wish (dairy, nut-based, plant-based, powdered milk and even hot chocolate powder). However, please bear in mind that different milks will froth and heat differently.

2. If you want to froth the milk only, the maximum amount you can add is 130ml because the fluid expands as it froths up.

3. If you only want to heat/stir milk only, the maximum amount you can add is 240ml.

4. Max Heating Fill Level

5. Max Frothing Fill Level
6. Min Fill Level

① 240ml
② 130ml
③ 75ml

Simple line drawing of a beaker with liquid level indicator (no text or symbols)

DURONIC

How to Use (continued)

Caution:

Ensure that you do not exceed the recommended maximum capacity stated above as this will result in the milk overflowing from the jug. If this happens, turn off the machine immediately, unplug from the mains socket and clean up the spillage with a damp well-wrung cloth. Ensure all parts are dried.

1. Place the lid on top of the jug and switch on the frother. The switch will light up and heating/stirring will start.
2. Once the milk has reached the optimum temperature and finished warming/frothing, the frother will automatically come to a stop and the light on the switch will go off.

Caution:

This does not mean the frother is turned off completely. You must remember to press the power switch into the 'off' position to switch off the frother properly. If you do not, the frother will restart when you place the jug back onto the base unit.

DURONIC

Cleaning and Maintenance

After using the Milk Frother:

1. Switch the appliance off at the wall socket and unplug before cleaning.
2. If you use the milk frother with powdered milk or hot chocolate powder, make sure to clean the frother properly and thoroughly to remove any clumps of powder residue.
3. Clean the milk frother jug and whisk immediately after use so that milk residues do not dry onto it. Clean only the inside of the jug with warm water, dish soap and a cloth or sponge.

Caution:

Do not get the base of the jug wet at any time as this may damage the unit or create an electrical safety hazard.

1. Dry thoroughly before the next use or storage.

General Cleaning:

• If you need to clean the outside of the jug, use a damp well-wrung cloth to wipe over the jug body.
• If the bottom of the jug gets wet at any time, remove moisture with a dry cloth and leave the jug to air dry before using it again.
• Do not use abrasive cleaning materials like scourers or scrubbing brushes on the milk frother or its parts.
  • To clean the base unit, use a well-wrung damp cloth to wipe over the surface. Ensure you dry it thoroughly immediately afterwards.
• Do not place the whisks or any part of the frother in the dishwasher.
• Ensure the appliance is clean and dry before storage.

① 240ml
② 130ml
③ 75ml

Simple line drawing of a beaker with liquid level indicator (no text or symbols)

DURONIC

Simple line drawing of a beaker with liquid level indicator (no text or symbols)

DURONIC

① 240ml
② 130ml
③ 75ml

Simple line drawing of a beaker with liquid level indicator (no text or symbols)

DURONIC

Features and Specifications

Modello	Dimensioni	Pesca'apità			Potenza	Volt
MF130	19x17x11.8cm7.5x6.7x4.6in	240ml / 130ml	0.75kg	60cm23.6in	450-550W	220-240V50-60Hz

Componenti

1 2 DURONIC 3 4 5 6 7

① 240ml
② 130ml
③ 75ml

Simple line drawing of a beaker with liquid level indicator (no text or symbols)

DURONIC

Simple line drawing of a beaker with liquid level indicator (no text or symbols)

DURONIC

Jak używać (cd.)

Uwaga:

Simple line drawing of a beaker with liquid level indicator (no text or symbols)

DURONIC

Simple line drawing of a beaker with liquid level indicator (no text or symbols)

DURONIC

Features and Specifications

Modell-nummer	Storlek	Kapacitet	Vikt Kabel Spänning	Effekt
MF130	19x17x11.8cm7.5x6.7x4.6in	240ml / 130ml	0.75kg	60cm23.6in	450-550W

Components

1 2 DURONIC 3 4 5 6 7

① 240ml
② 130ml
③ 75ml

Simple line drawing of a beaker with a handle and side panel, no text or symbols present

DURONIC

Information for consumers on the disposal of Waste Electrical & Electronic Equipment (WEEE).

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Information for consumers on the disposal of Waste Electrical & Electronic Equipment (WEEE).
