Hybrid - Radio Duronic - Free user manual and instructions

Product type	AM/FM Radio with Dynamo and Solar Panel
Brand	Duronic
Model	Hybrid
Dimensions (L x W x H)	130 x 73 x 41 mm
Weight	203 g
Battery type	Internal battery (300 mAh, 2.4 V)
Battery life (full charge)	Approximately 7 hours
Charging time (USB)	8 hours
Charging time (solar panel, full sun)	20 to 30 hours
Charging time (dynamo, 1 minute)	Provides about 20 minutes of use
Audio output power	≥ 100 mW
Speaker	Diameter 40 mm
FM frequencies	88 - 108 MHz
AM frequencies	530 - 1650 kHz
FM sensitivity	≥ 10 µV
AM sensitivity	> 1.5 mV/m
FM antenna	Telescopic (length 33 mm)
AM antenna	Built-in (magnetic)
Ports	3.5 mm jack, Mini-USB
Power supply	Dynamo, solar panel, USB 5 V
Warranty	1 year
Product lifespan	5 years

Frequently Asked Questions - Hybrid Duronic

How to turn the radio on and off?

Turn the volume controller counterclockwise to turn on and increase volume, and clockwise to decrease and turn off. A click is heard when turning on or off.

What are the available recharging methods?

The Duronic Hybrid can be recharged in three ways: dynamo (turn the crank at 2.5-3 turns/second), solar panel (expose the panel to the sun, full charge in 20-30 hours) or USB (via the mini-USB port, full charge in 8 hours).

How to improve radio reception?

For FM, fully extend the telescopic antenna and orient it for the best reception. For AM, the antenna is internal; move the device to pick up a better signal. Avoid high places or underground locations, and keep the device away from heat sources and other electronic devices.

Can I use the radio while it is charging?

Yes, you can use the radio while charging via USB or solar panel. However, when recharging by dynamo, it is not recommended to use it at the same time because the rotation must be constant.

What is the battery life after a full charge?

After a full charge (USB, solar or combined dynamo), the radio can operate for approximately 7 hours continuously.

Can I use headphones?

Yes, plug earphones or headphones into the 3.5 mm jack to listen to the radio privately.

What to do if the radio produces no sound?

First check the volume. If the light indicator is dim or absent, the battery is dead: recharge it. Make sure the antenna is properly extended for FM, or move the device for AM. If the problem persists, contact customer service.

How to maintain the battery?

To extend battery life, recharge it at least once a month by operating the dynamo for 1 minute. Avoid recharging for more than 5 minutes if the battery is not discharged, and do not let the battery drain completely too often.

Is the radio waterproof?

No, the Duronic Hybrid is not waterproof. Do not place the device on a wet or hot surface, and avoid dropping it in water.

How to recycle the device at end of life?

This product bears the WEEE symbol (Waste Electrical and Electronic Equipment). Do not dispose of it with household waste. Take it to an appropriate collection point for recycling of components.

USER MANUAL Hybrid Duronic

Creative Consumer Products

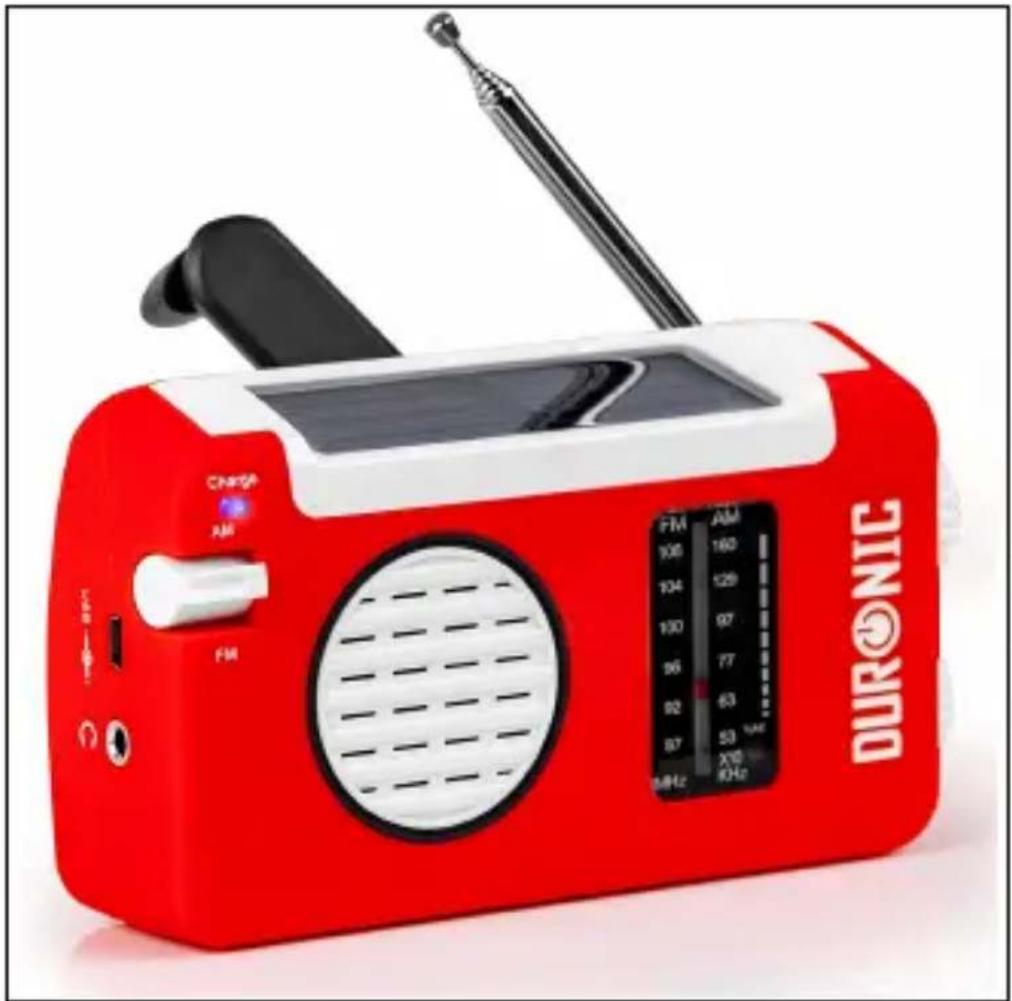

Red DURONIC radio station with antenna and solar panel (no visible text or symbols on device body)

HYBRID Radio

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

Duronic

@duronicmedia

@duronicmedia

duronic

DURONIC

Contents

English Manual 5

Frequency band and Transmission power

Sensitivity of the FM: ≥10 uV

Sensitivity of the AM Better than 1.5mV/m

Reception scope of the FM: 88-108 MHz

Reception scope of the AM: 530-1650KHz

The audio frequency output power: ≥100 mW

Radio working time after 1 min of cranking (2.5 - 3

circles/s): ≈ 20 minutes

Radio working time after 5 hours charging under sunlight ≈ 30 minutes

Max. electricity by solar panel charging: 40mA

Time to full-charge by solar panel: 20-30 hours

Radio working time after being charged fully ≈ 7 hours

Charging Outside Power

Input voltage: 5V

Fully Charged Time ≈ 8 hours

Main Parts Life Span

Switch: 5000 times

Whole unit: 5 years

Plastic parts: 5 years

Size and Weight

Antenna length (external part) ≈ 33mm

Product size ≈ 130*73*41mm

Product weight ≈ 203g

Others

Specification of built-in battery: 300mAh, 2.4v

Diameter of built-in loudhailer: 40mm

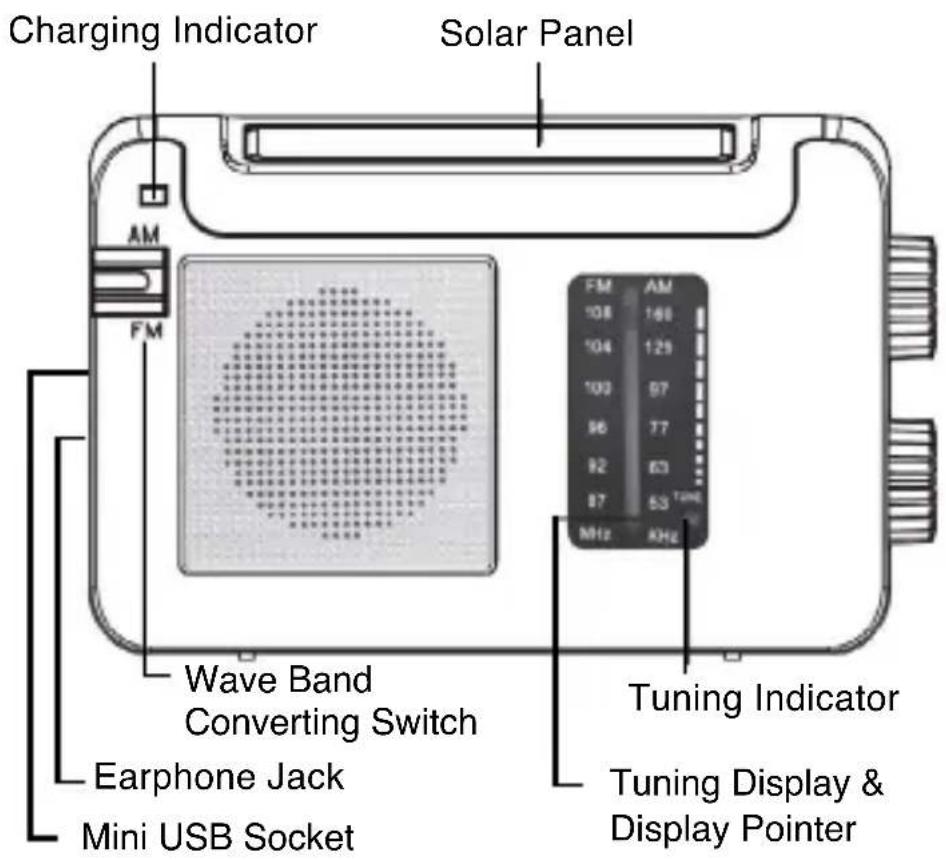

Product Diagram

Charging Indicator Solar Panel AM FM Wave Band Converting Switch Earphone Jack Mini USB Socket Tuning Indicator Tuning Display & Display Pointer FM AM 108 148 104 128 103 97 96 77 92 63 97 53 TIME MHz kHz

Tuning Knob Telescoping Antenna

Volume Knob Handle Head of Handle

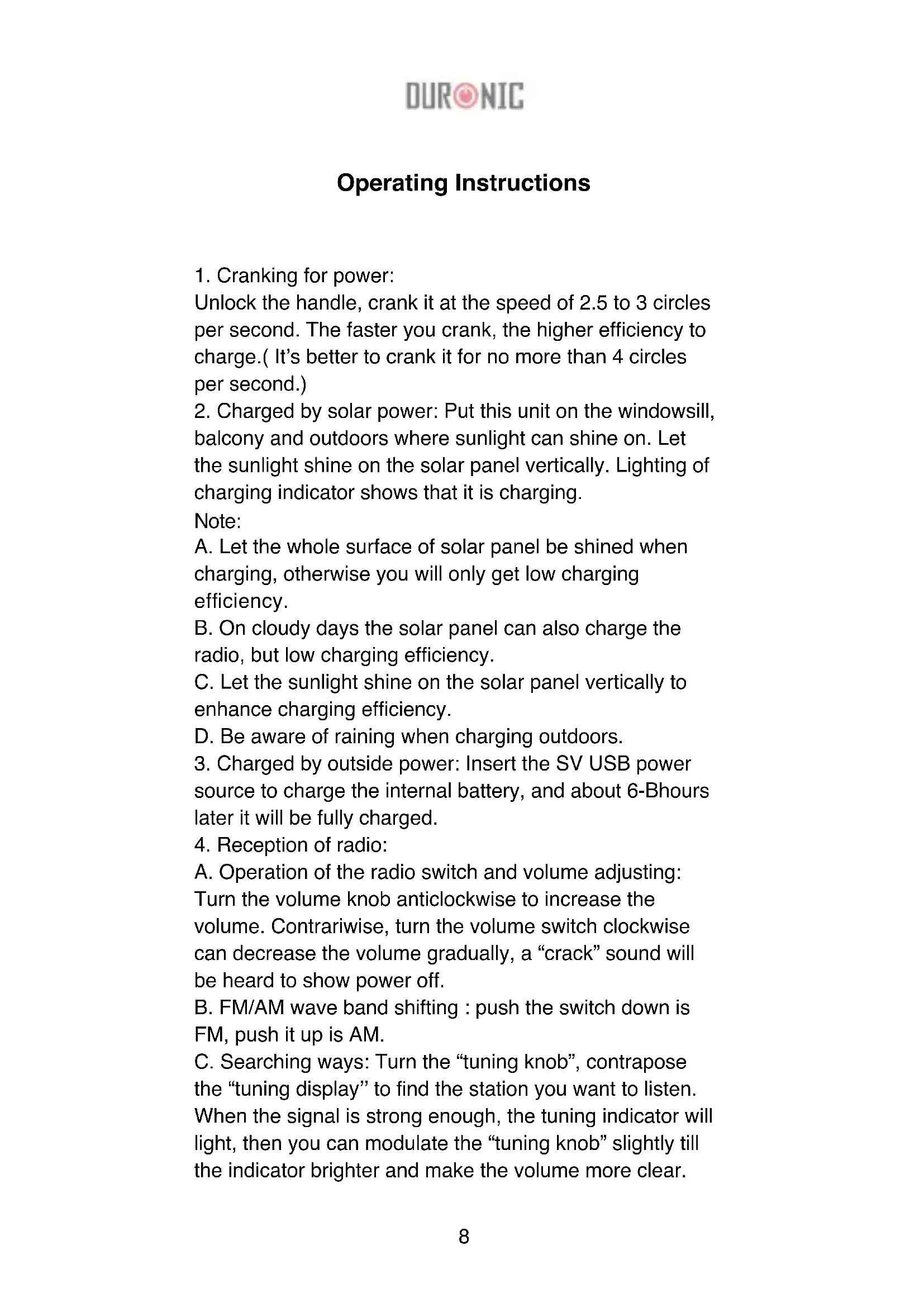

Operating Instructions

1. Cranking for power:

Unlock the handle, crank it at the speed of 2.5 to 3 circles per second. The faster you crank, the higher efficiency to charge.( It's better to crank it for no more than 4 circles per second.)

1. Charged by solar power: Put this unit on the windowsill, balcony and outdoors where sunlight can shine on. Let the sunlight shine on the solar panel vertically. Lighting of charging indicator shows that it is charging.

Note:

A. Let the whole surface of solar panel be shined when charging, otherwise you will only get low charging efficiency.

B. On cloudy days the solar panel can also charge the radio, but low charging efficiency.

C. Let the sunlight shine on the solar panel vertically to enhance charging efficiency.

D. Be aware of raining when charging outdoors.

1. Charged by outside power: Insert the SV USB power source to charge the internal battery, and about 6-Bhours later it will be fully charged.

2. Reception of radio:

A. Operation of the radio switch and volume adjusting: Turn the volume knob anticlockwise to increase the volume. Contrariwise, turn the volume switch clockwise can decrease the volume gradually, a "crack" sound will be heard to show power off.

B. FM/AM wave band shifting : push the switch down is FM, push it up is AM.

C. Searching ways: Turn the “tuning knob”, contrapose the “tuning display” to find the station you want to listen. When the signal is strong enough, the tuning indicator will light, then you can modulate the “tuning knob” slightly till the indicator brighter and make the volume more clear.

D. Use of antenna:

a). This product adopts telescoping antenna to receive signal for FM. When the signal is weak, you can pull out the antenna or change the direction of the antenna to find the optimal position, thus can improve the effect of radio. Whereas, shrink the antenna when the signal is strong. b). It adopts built-in magnetic antenna to receive signal for AM. You can change the position of the product properly when the signal is weak.

Note

a. It is advised to turn the volume to the optimal position (be comfortable) when you listen. It will be anamorphic if the sound is too loud.

b. Avoid places like high building, basement, etc as possible as you can, such places will badly influence the effect of the reception. Leave far away from the induction cooker, fluorescent lamp, car generator, motor, computer or such electrical equipment that may disturb the signal easily.

b. Earphone: Plug the earphone into the earphone jack, the loudhailer will be off at this time. Be caution the things below when using the earphone:

A. Adjusting the volume to proper position when listen, too loud or listen for a long time will affect your hearing.

B. Avoid listening when you have fall asleep.

Caution

1. Pay attention to the holding gesture when cranking which can protect your finger and nail from hurting. Keep rotating steadily.

2. In order to assure the using life of the battery and mechanical parts, pis pay attention to the things below:

a) Do not crank it for more than 5 minutes when the power of the battery is enough (lighting and radio normally) and less than 20 minutes when it runs out of power.

b) When the light is dim or the radio is soundless, it means the battery is lack of power badly, please turn off the light and radio or crank it for a while.

c) Cranking it as even as possible (keep rotating steadily,

2.5 or 3 circles per second is best). Avoid cranking too violent and quick or changing the cranking direction abruptly. Too slowly cranking would make current weak and influence the charging efficiency, and too violent cranking will possibly damage the driving system.

d) Do not crank it for a long time or too violent.

e) In order to prolong the lifespan of the battery, you should crank it for at least one minute once a month.

1. Do not place this product in which temperature or humidity is high. Do not drop or hit this product.

2. Tum off the light when charging to enhance the efficiency of charging.

3. The product will be a little hot if cranking for a long time.

4. We do not give notice again if the parameter of this product changed.

5. We reserve the final right to interpret this product.

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment. This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge. If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Frequency band and Transmission power

Sensitivity of the FM: ≥10 uV

Sensitivity of the AM Better than 1.5mV/m

Reception scope of the FM: 88-108 MHz

Reception scope of the AM: 530-1650KHz

The audio frequency output power: ≥100 mW

Radio working time after 1 min of cranking (2.5 - 3

circles/s): ≈ 20 minutes

Radio working time after 5 hours charging under sunlight ≈ 30 minutes

Max. electricity by solar panel charging: 40mA

Time to full-charge by solar panel: 20-30 hours

Radio working time after being charged fully ≈ 7 hours

Charging Outside Power

Input voltage: 5V

Fully Charged Time ≈ 8 hours

Main Parts Life Span

Switch: 5000 times

Whole unit: 5 years

Plastic parts: 5 years

Size and Weight

Antenna length (external part) ≈ 33mm

Product size ≈ 130*73*41mm

Product weight ≈ 203g

Others

Specification of built-in battery: 300mAh, 2.4v

Diameter of built-in loudhailer: 40mm

Product Diagram

Charging Indicator Solar Panel AM FM Wave Band Converting Switch Earphone Jack Mini USB Socket Tuning Indicator Tuning Display & Display Pointer FM AM 108 148 104 128 103 97 96 77 92 63 97 53 TIME MHz kHz

Tuning Knob Telescoping Antenna

Volume Knob Handle Head of Handle

Operating Instructions

1. Cranking for power:

Unlock the handle, crank it at the speed of 2.5 to 3 circles per second. The faster you crank, the higher efficiency to charge.( It's better to crank it for no more than 4 circles per second.)

1. Charged by solar power: Put this unit on the windowsill, balcony and outdoors where sunlight can shine on. Let the sunlight shine on the solar panel vertically. Lighting of charging indicator shows that it is charging.

Note:

A. Let the whole surface of solar panel be shined when charging, otherwise you will only get low charging efficiency.

B. On cloudy days the solar panel can also charge the radio, but low charging efficiency.

C. Let the sunlight shine on the solar panel vertically to enhance charging efficiency.

D. Be aware of raining when charging outdoors.

1. Charged by outside power: Insert the SV USB power source to charge the internal battery, and about 6-Bhours later it will be fully charged.

2. Reception of radio:

A. Operation of the radio switch and volume adjusting: Turn the volume knob anticlockwise to increase the volume. Contrariwise, turn the volume switch clockwise can decrease the volume gradually, a "crack" sound will be heard to show power off.

B. FM/AM wave band shifting : push the switch down is FM, push it up is AM.

C. Searching ways: Turn the “tuning knob”, contrapose the “tuning display” to find the station you want to listen. When the signal is strong enough, the tuning indicator will light, then you can modulate the “tuning knob” slightly till the indicator brighter and make the volume more clear.

D. Use of antenna:

a). This product adopts telescoping antenna to receive signal for FM. When the signal is weak, you can pull out the antenna or change the direction of the antenna to find the optimal position, thus can improve the effect of radio. Whereas, shrink the antenna when the signal is strong. b). It adopts built-in magnetic antenna to receive signal for AM. You can change the position of the product properly when the signal is weak.

Note

a. It is advised to turn the volume to the optimal position (be comfortable) when you listen. It will be anamorphic if the sound is too loud.

b. Avoid places like high building, basement, etc as possible as you can, such places will badly influence the effect of the reception. Leave far away from the induction cooker, fluorescent lamp, car generator, motor, computer or such electrical equipment that may disturb the signal easily.

b. Earphone: Plug the earphone into the earphone jack, the loudhailer will be off at this time. Be caution the things below when using the earphone:

A. Adjusting the volume to proper position when listen, too loud or listen for a long time will affect your hearing.

B. Avoid listening when you have fall asleep.

Caution

1. Pay attention to the holding gesture when cranking which can protect your finger and nail from hurting. Keep rotating steadily.

2. In order to assure the using life of the battery and mechanical parts, pis pay attention to the things below:

a) Do not crank it for more than 5 minutes when the power of the battery is enough (lighting and radio normally) and less than 20 minutes when it runs out of power.

b) When the light is dim or the radio is soundless, it means the battery is lack of power badly, please turn off the light and radio or crank it for a while.

c) Cranking it as even as possible (keep rotating steadily,

2.5 or 3 circles per second is best). Avoid cranking too violent and quick or changing the cranking direction abruptly. Too slowly cranking would make current weak and influence the charging efficiency, and too violent cranking will possibly damage the driving system.

d) Do not crank it for a long time or too violent.

e) In order to prolong the lifespan of the battery, you should crank it for at least one minute once a month.

1. Do not place this product in which temperature or humidity is high. Do not drop or hit this product.

2. Tum off the light when charging to enhance the efficiency of charging.

3. The product will be a little hot if cranking for a long time.

4. We do not give notice again if the parameter of this product changed.

5. We reserve the final right to interpret this product.
