Ecohand - Radio Duronic - Free user manual and instructions

Product Type	Dynamo radio with solar panel and flashlight
Brand	Duronic
Model	Ecohand
Dimensions (L x W x H)	134 x 42 x 67 mm
Weight	176 g
Power supply	Built-in battery 80 mAh, 3.6 V
Radio autonomy (full battery)	Approximately 7 hours
Radio autonomy (1 min of dynamo)	Approximately 10 minutes
Flashlight autonomy (1 min of dynamo)	30 minutes
Main functions	FM/AM radio, Flashlight, Dynamo, Solar panel, External charger (USB)
FM reception	88-108 MHz, sensitivity ≥10 µV
AM reception	530-1650 KHz, sensitivity >3 mV/m
Audio output power	≥100 mW
External charger (USB)	Output 5.6 V, 2.5 W max
Solar panel	Max current 40 mA, full charge 20-30h
Warranty	1 year
Maintenance	Use the dynamo at least 1 minute per month; do not overcharge
Safety precautions	Avoid pinching fingers in the crank; do not expose to moisture or heat

Frequently Asked Questions - Ecohand Duronic

How to recharge the radio with the dynamo?

Unfold the crank and turn it at a speed of 2.5 to 3 rotations per second. Avoid exceeding 4 rotations per second. One minute of dynamo provides approximately 10 minutes of radio listening.

What is the radio autonomy after a full charge?

The autonomy is approximately 7 hours of radio listening after a full charge of the built-in battery.

How to improve FM reception?

Unfold and orient the telescopic antenna to find the best position. If the signal is too strong, you can fold it back.

Can I use the radio to charge my phone?

Yes, plug your phone via the provided USB cable into the output port (DC out) of the radio. The output voltage is 5.6 V and max power is 2.5 W.

What is the battery lifespan?

The built-in battery has an estimated lifespan of 5 years under normal usage conditions.

How to maintain the battery?

Use the dynamo at least 1 minute per month to maintain the battery in good condition. Avoid recharging for more than 5 minutes if the battery is still partially charged.

What to do if the radio does not turn on?

Check that the battery is charged. If the indicators are dim or absent, recharge the radio via the dynamo, solar panel, or an external USB charger.

Can the flashlight be used independently?

Yes, the flashlight has its own switch. You can turn it on without using the radio.

What are the usage precautions?

Do not place the device on a wet or hot surface. Avoid dropping the device. When using the dynamo, be careful not to pinch your fingers.

Where to find spare parts?

Spare parts are not listed in the manual. Contact Duronic customer service via the retailer for any assistance.

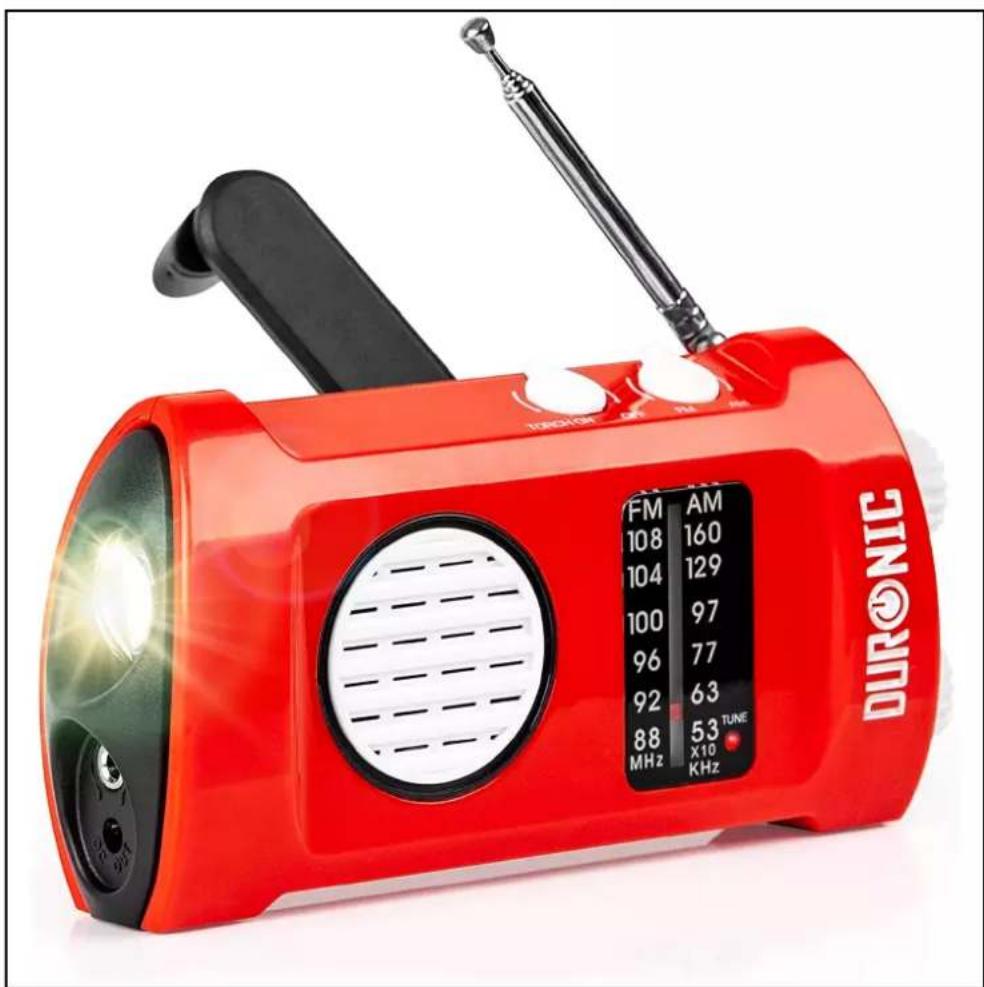

USER MANUAL Ecohand Duronic

Creative Consumer Products

DURONIC 108 AM 104 129 100 97 96 77 92 63 88 53 TUNE MHz X10 KHz 10X10

ECOHAND Radio

Contents

English Manual 5

Sensitivity of the FM: ≥15 uV

Sensitivity of the AM Better than 3mV/m

Reception scope of the FM: 88-108 MHz

Reception scope of the AM: 530-1650KHz

The audio frequency output power: ≥100 mW

Radio working time after 1 min of cranking ≈ 10 mins

Radio working time after being charged fully ≈ 2.5 hours

Charging Outside Power

Voltage Output: 5.6V

Max.output power: 2.5W

Phone talking time after 3 mins cranking: 2-8 mins

Lighting

Max.Luminous flux: 2Lm

Max. Brightness: 2000Mcd

Lighting time after 1 minute cranking: 30 mins

Main Parts Life Span

Switch: 5000 times

Whole unit: 5 years

Plastic parts: 5 years

Size, Weight & Specifications

Product size ≈ 134*42*67mm

Product weight ≈ 176g

Specification of built-in battery: 80mAh, 3.6v

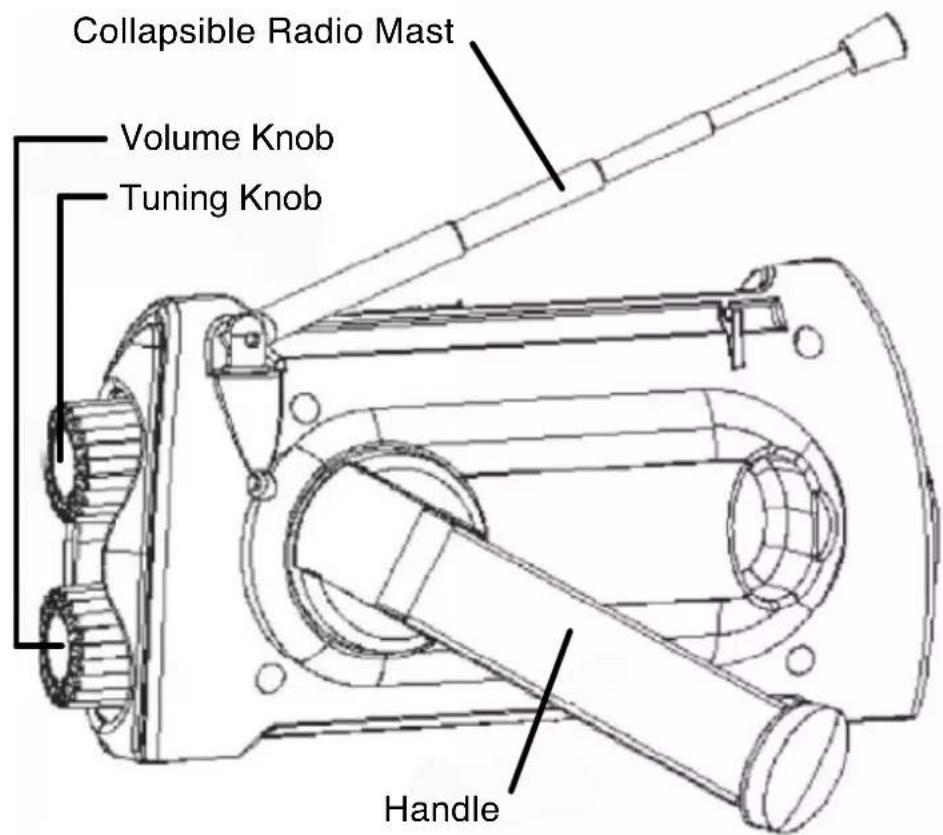

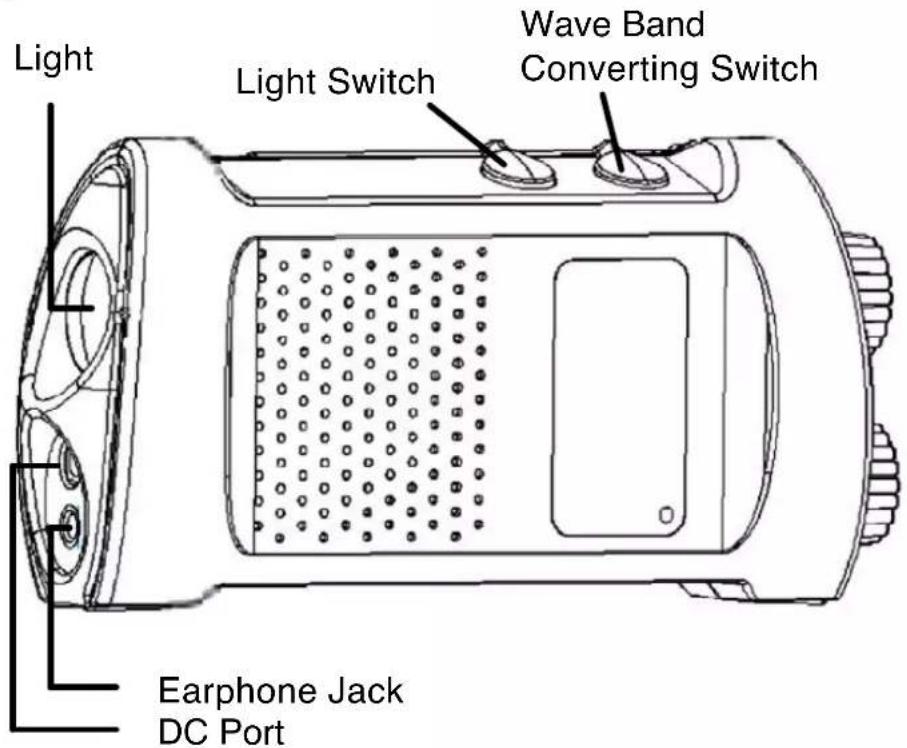

Product Diagram

Collapsible Radio Mast Volume Knob Tuning Knob Handle

Light Light Switch Wave Band Converting Switch Earphone Jack DC Port

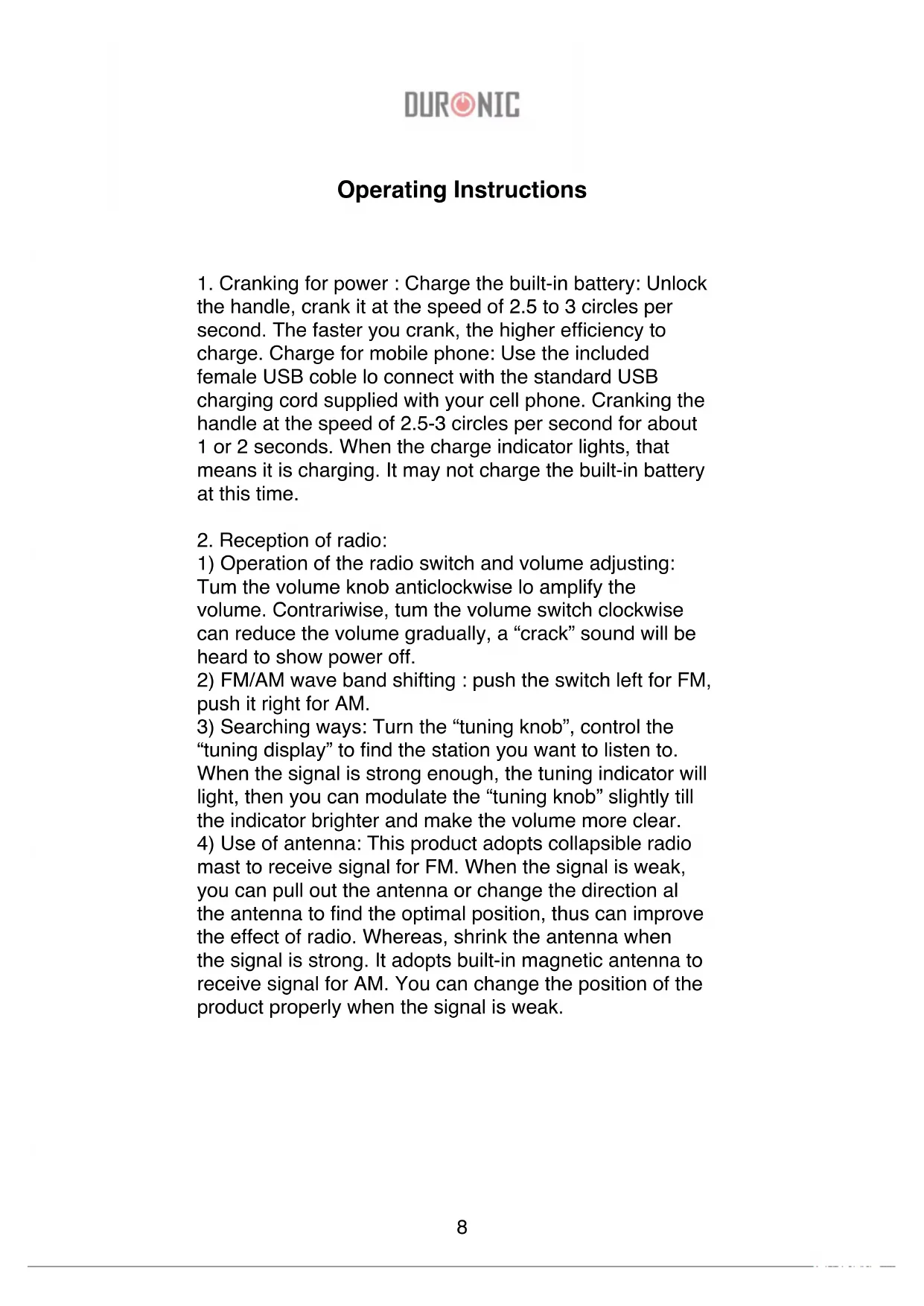

Operating Instructions

1. Cranking for power : Charge the built-in battery: Unlock the handle, crank it at the speed of 2.5 to 3 circles per second. The faster you crank, the higher efficiency to charge. Charge for mobile phone: Use the included female USB cable lo connect with the standard USB charging cord supplied with your cell phone. Cranking the handle at the speed of 2.5-3 circles per second for about 1 or 2 seconds. When the charge indicator lights, that means it is charging. It may not charge the built-in battery at this time.
2. Reception of radio:

1) Operation of the radio switch and volume adjusting: Tum the volume knob anticlockwise lo amplify the volume. Contrariwise, tum the volume switch clockwise can reduce the volume gradually, a “crack” sound will be heard to show power off.

2) FM/AM wave band shifting : push the switch left for FM, push it right for AM.

3) Searching ways: Turn the “tuning knob”, control the “tuning display” to find the station you want to listen to. When the signal is strong enough, the tuning indicator will light, then you can modulate the “tuning knob” slightly till the indicator brighter and make the volume more clear.

4) Use of antenna: This product adopts collapsible radio mast to receive signal for FM. When the signal is weak, you can pull out the antenna or change the direction at the antenna to find the optimal position, thus can improve the effect of radio. Whereas, shrink the antenna when the signal is strong. It adopts built-in magnetic antenna to receive signal for AM. You can change the position of the product properly when the signal is weak.

Caution

1. Pay attention to the holding gesture when cranking which can protect your finger and nail from hurting. Keep rotating steadily.
2. In order to assure the using life of the battery and mechanical parts, pis pay attention to the things below:

a) Do not crank it for more than 5 minutes when the power of the battery is enough (lighting and radio normally) and less than 20 minutes when it runs out of power.
b) When the light is dim or the radio is soundless, it means the battery is lack of power badly, please turn off the light and radio or crank it for a while.
c) Cranking it as even as possible (keep rotating steadily,
2.5 or 3 circles per second is best). Avoid cranking too violent and quick or changing the cranking direction abruptly. Too slowly cranking would make current weak and influence the charging efficiency, and too violent cranking will possibly damage the driving system.
d) Do not crank it for a long time or too violent.
e) In order to prolong the lifespan of the battery, you should crank it for at least one minute once a month.
3. Do not place this product in which temperature or humidity is high. Do not drop or hit this product.
4. Tum off the light when charging to enhance the efficiency of charging.
5. The product will be a little hot if cranking for a long time.
6. We do not give notice again if the parameter of this product changed.
7. We reserve the final right to interpret this product.

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment. This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge. If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
