BL520 - Griddle Duronic - Free user manual and instructions

Product type	Compact blender
Brand	Duronic
Model	BL520
Bottle capacity	570 ml and 400 ml
Power	500 W
Input voltage	220-240 V ~ 50/60 Hz
Dimensions (approx.)	34.5 x 11 x 11 cm
Body material	Stainless steel (model BL520)
Bottle material	Plastic
Blade type	Stainless steel blades
Activation mechanism	Bottle rotation (locking)
Usage	Indoor domestic use only
Safety	Safety lock, protected blades, automatic shut-off in case of overheating
Cleaning	Hand wash only (bottles, lids, blades)
Motor base maintenance	Wipe with a damp cloth, do not immerse
Warranty	1 year
Included accessories	2 bottles, 2 lids, blade assembly, motor base
Overheat prevention function	Yes, automatic shut-off after prolonged use
Maximum liquid temperature	Ambient or cold temperature (do not blend hot liquids)

Frequently Asked Questions - BL520 Duronic

What is the bottle capacity of the Duronic BL520?

The BL520 comes with two bottles: a 570 ml and a 400 ml, ideal for individual smoothies.

Can I blend ice cubes with the BL520?

Yes, but make sure to add enough liquid (water, milk, etc.) so that the mixture stays fluid and do not overload with ice.

How to clean the Duronic BL520 blender?

Wash the bottles and lids by hand with warm soapy water. For quick cleaning, fill halfway with warm water and a drop of dish soap, blend for 10-20 seconds, then rinse. The motor base can be wiped with a damp cloth. Do not put in the dishwasher.

Why does my blender stop after a few seconds?

This is normal if you have used the appliance for more than 60 seconds. The overheat prevention function activates. Let the motor cool down for 1 minute before using again.

Can I blend frozen fruits?

Yes, but they should be partially thawed (taken out of the freezer one hour before). Always add a liquid to facilitate blending.

Are the bottles dishwasher safe?

No, the manual indicates that bottles and parts are not dishwasher safe. Hand wash only.

What to do if an odor occurs during use?

This is normal for a new motor. The odor disappears after a few regular uses.

How does the safety lock work?

The blender only starts if the bottle is properly locked onto the motor base by rotation. Turn the bottle clockwise to start, and counterclockwise to stop.

What is the warranty period of the Duronic BL520?

The product comes with a 1-year warranty from the date of purchase, valid in the European Union. Keep the proof of purchase.

Can I blend hot ingredients?

No, never use hot or boiling liquids. Let them cool to room temperature before blending.

USER MANUAL BL520 Duronic

Creative Consumer Products

Product advertisement image featuring a Duronic blender with colorful splashes and fruit imagery (no text or symbols on the main graphic)

BL510 / BL520 Sports Blender

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

Contents

English Manual 5

Features and Specifications

Model Number	Capacity Dimensions Power Voltage
BL510 570ml		34.5x11x11cm 500W		220-240V50-60Hz
BL520 570ml / 400ml

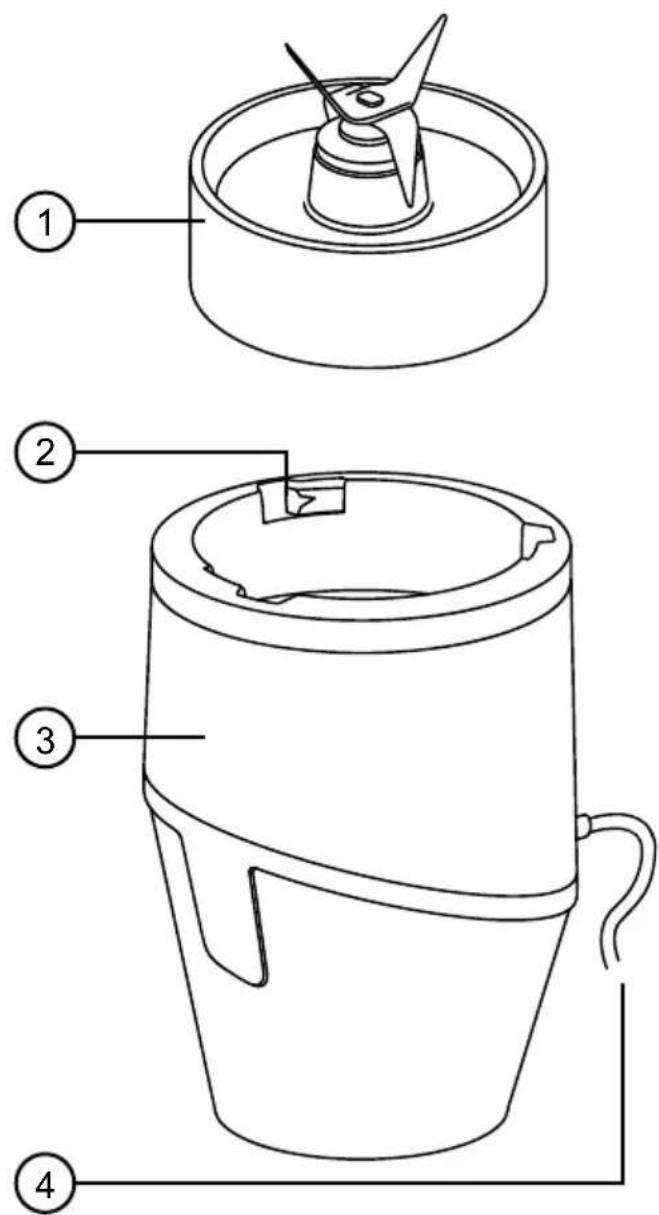

Components

1. Blade assembly
2. Locking position
3. Motor unit
4. Power cable

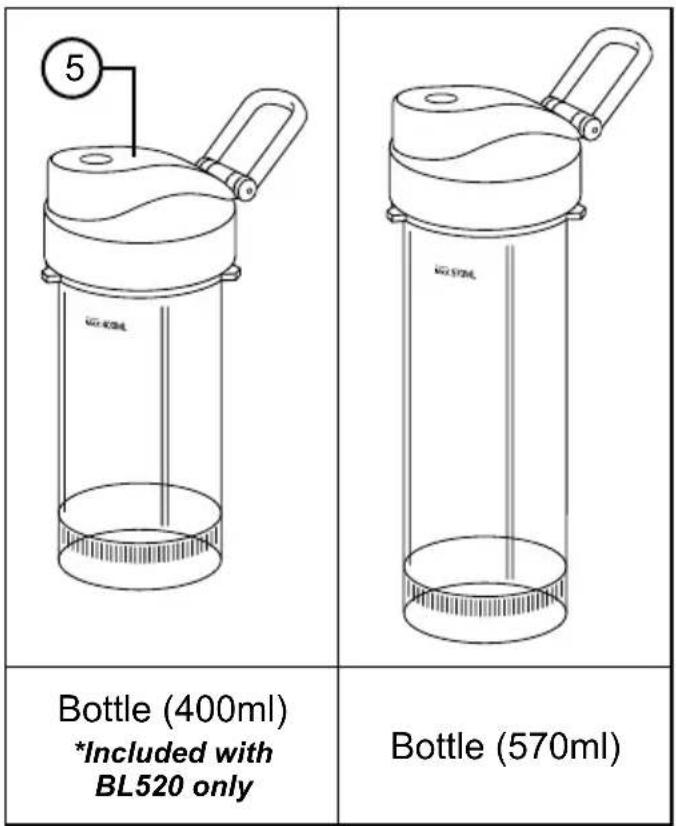

5. Lid

DURONIC

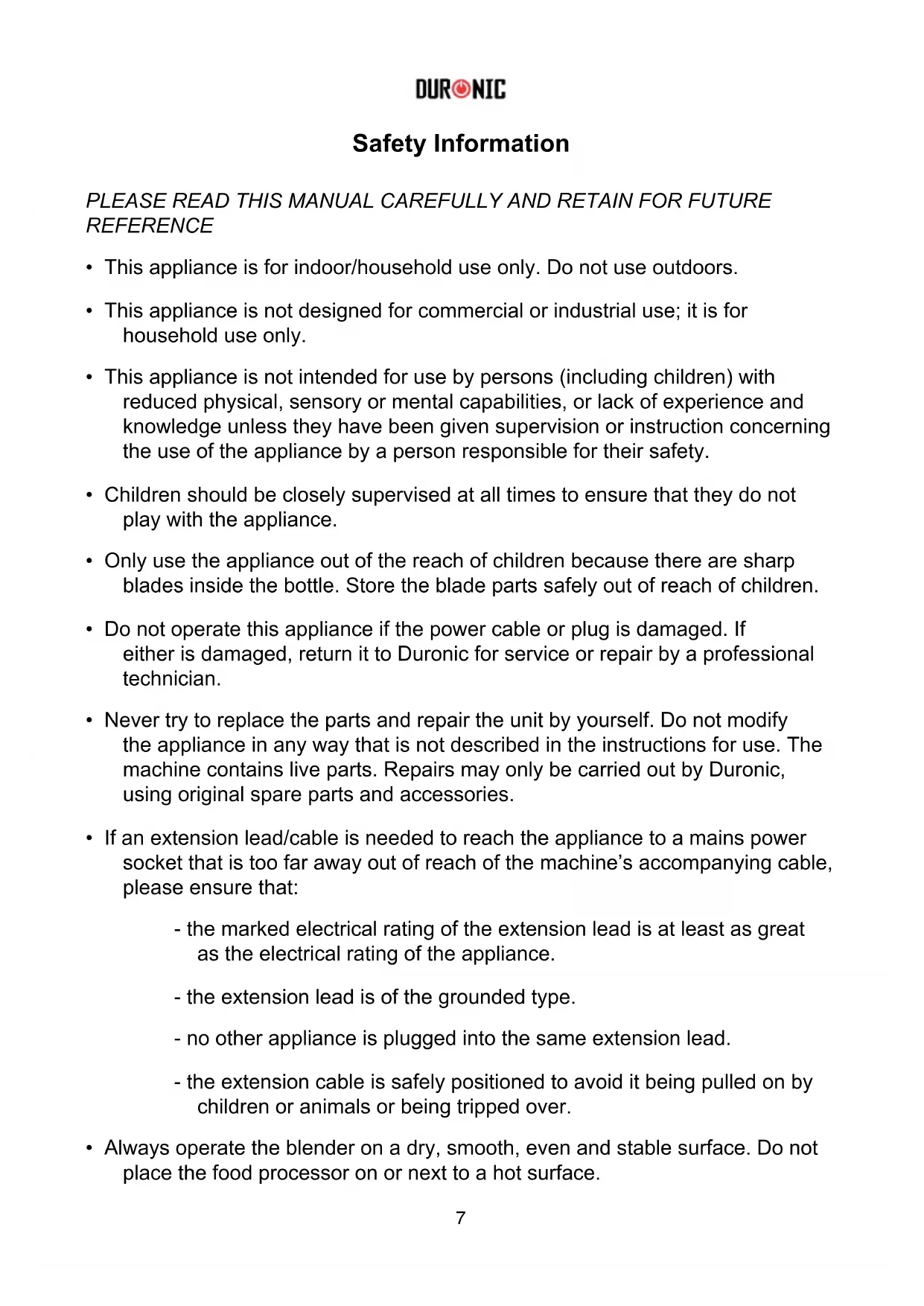

Safety Information

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

• This appliance is for indoor/household use only. Do not use outdoors.

- This appliance is not designed for commercial or industrial use; it is for household use only.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

- Children should be closely supervised at all times to ensure that they do not play with the appliance.

- Only use the appliance out of the reach of children because there are sharp blades inside the bottle. Store the blade parts safely out of reach of children.

- Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by a professional technician.

- Never try to replace the parts and repair the unit by yourself. Do not modify the appliance in any way that is not described in the instructions for use. The machine contains live parts. Repairs may only be carried out by Duronic, using original spare parts and accessories.

- If an extension lead/cable is needed to reach the appliance to a mains power socket that is too far away out of reach of the machine's accompanying cable, please ensure that:

- the marked electrical rating of the extension lead is at least as great as the electrical rating of the appliance.

- the extension lead is of the grounded type.

- no other appliance is plugged into the same extension lead.

- the extension cable is safely positioned to avoid it being pulled on by children or animals or being tripped over.

• Always operate the blender on a dry, smooth, even and stable surface. Do not place the food processor on or next to a hot surface.

DURONIC

- Position the blender and its power cable to the rear of the work surface, well out of reach of children.

- Disconnect the mains plug from the power socket if you are going to be absent for long periods.

- Never disconnect the plug by pulling on the power cable.

- Unplug from the mains plug outlet when not in use and before cleaning.

- This appliance is not intended to be operated using an external timer or separate remote-control system.

- Do not let the power cable hang over the edge of the table or counter, or touch hot surfaces.

- Do not use the blender for anything other than blending food.

- Do not operate the food processor with wet hands.

- Do not use any attachments which are not listed in this manual. The use of any additional attachments are not recommended by the manufacturer and may cause a risk of injury.

- The jug and parts are not dishwasher safe – hand wash only.

- Do not put large pieces of food in the blender. Chop or slice fruits and vegetables before blending them.

- If using ice cubes in the blender, ensure that there is sufficient liquid in the bottle to keep the mixture loose and do not overload with ice.

- Never process hot or boiling liquids. Allow them to cool before processing.

- To clean, wipe the motor unit with a well-wrun wet cloth. Do not submerge it in water or other liquids. Wash the cups and lids with warm water and soap. Dry properly before placing the cups back into the machine.

- Allow moving parts to come to a stop before changing or cleaning accessories.

- Do not switch the blender if the bottle is empty or use the blender for more than 60 seconds at a time as this can overheat the motor.

• The blades have very sharp edges. Take care when handling or cleaning them. • Never use harsh, abrasive or caustic cleaners to clean this appliance.

DURONIC

Introduction

This manual is for two different products, the BL510 and BL520. Both are compact personal blenders ideal for making daily smoothies or cold drinks.

The BL510 is our standard model that comes with one bottle (570ml) and has a black exterior body.

The BL520 is our premium model that comes with two bottles (570ml and 400ml) and has a stainless-steel exterior body.

Before First Use

1. Before first use, remove all packaging and set aside.
2. Clean the bottle(s) and blade for the first time as per the instructions in 'Cleaning and Maintenance'.
3. Wipe clean the motor unit and dry.
4. Place the blender motor unit on a flat, dry surface and located close to an electrical mains socket.

How to Use

1. Add the ingredients to the bottle. Don't fill the bottle above the MAX 570ml mark (or MAX 400ml mark if you are using a 400ml bottle).

2. Fit the blade assembly onto the bottle. Tighten the blade assembly firmly in place.

3. Turn the bottle upside down so that the blade assembly is at the bottom, then line up the tabs on the bottle with the openings on the rim of the motor unit. Insert the bottle into the motor unit.

4. The blender has a twist-to-start activation. To start blending simply turn the bottle clockwise to lock it in place and start the blending. Your blender will not work unless the bottle is correctly locked into position.

CAUTION: This blender is powerful and will blend as soon as you turn the bottle into place. Ensure you use both hands to hold the bottle and base while blending.

1. Once you have reached your desired blending consistency turn the bottle anti-clockwise to stop and release the bottle. It will stop blending as soon as the bottle is unlocked from the base.
2. When you have finished blending your drink, the blades have stopped rotating, and the bottle is unlocked from the motor unit, you can remove the bottle.
3. Turn the bottle so that it is the right side up and remove the blade assembly.
4. Place the bottle lid onto the bottle and twist to tighten into place. You can now enjoy your drink!

Tips

- If any of the ingredients become stuck around the blade during the blending process, simply remove the bottle from the motor unit, give it a shake then refit it and carry on processing.

DURONIC

Cleaning and Maintenance

For ease of cleaning, we recommend that you clean your blender bottle and cap as soon as you have finished using them.

Quick Cleaning

1. Half fill a bottle with warm water and a drop or two of washing-up liquid then put the blade assembly on the bottle. Turn the bottle upside down and place onto the motor unit (in the same way as described in 'How to Use' section above.
2. Turn the bottle clockwise and hold in place for 10-20 seconds.
3. Remove the bottle, unscrew the blade assembly and rinse them both under running water.

General Cleaning

Clean the motor unit with a damp cloth only. Wash the blade assembly in warm, soapy water. Rinse and dry thoroughly. For stubborn food deposits stuck around the blade, carefully use a washing up brush.

Wash the bottles and lids in warm, soapy water. Rinse and dry thoroughly.

Storing

Store your blender in a clean, dry place. Ensure all parts are dismantled and keep the blade in a safe place out of the reach of children.

CAUTION: Never immerse the base motor unit or power cable into water for cleaning.

Troubleshooting

Issue Possible	Solution
The blender has stopped working	CHECK THE FOLLOWING:Is the blade assembly locked securely into the motor unit?IF THE BLENDER IS STILL NOT WORKING:If you have been using the blender for more than five minutes consistently, it may be that the overheat prevention function has stopped the blender to allow the motor to cool down. Allow the motor to cool down for 1 minute and try to use the blender again.If it still does not work, please contact the Duronic Customer Care Team for assistance.
There is a strange smell during blending	This is normal and fades away with time. The motor unit has a powerful motor which is brand new and factory installed. As you are the first user of the blender, you will receive a slight odour coming from the motor. However, with regular usage the odour will disappear.
Can I blend frozen fruits?	You can use partially frozen fruits. This means that they need to be removed from the freezer an hour or more before blending them.If using frozen food or ice cubes, please ensure you add a liquid to the mix to ensure the blender can blend efficiently.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Follow Us

Features and Specifications

Model Nummer	Capaci Voltagen	Vämetingen	Vermogen
BL510 570ml		34.5x11x11cm	500W	220-240V50-60Hz
BL520 570ml / 400ml

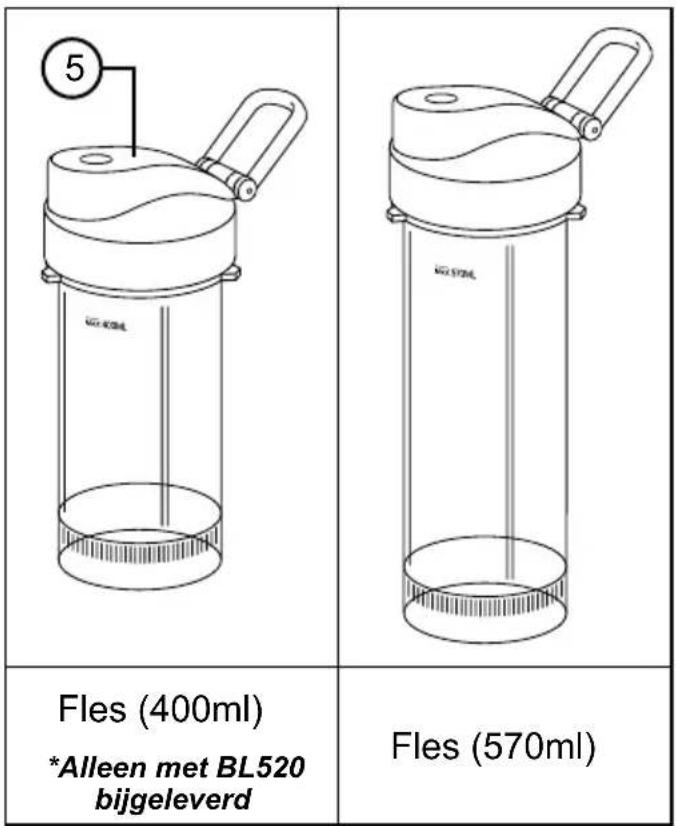

Componenten

1. Messtuk
2. Vergrendeling
3. Motorblok
4. Netsnoer
5. Deksel
