Product Type	Lithium-ion battery
Brand	Fuxtec
Model	EP60
Nominal voltage	40 V
Weight	1.7 kg
Operating temperature	0 °C to 40 °C
Charge indicator	4 LEDs with test button
Number of contacts	2
Unlock button	Yes
Heat protection	Do not expose to fire or direct sunlight
Moisture protection	Avoid water and moisture
Short circuit protection	Do not open the battery
Recommended charger	Fuxtec original chargers
Recommended storage	Partially discharge, store between 10 °C and 25 °C
Disposal	Do not dispose of with household waste, recycle according to EU directive
Warranty	24 months from date of purchase
Certifications	IEC 62133
Battery type	Lithium-ion
Charging temperature	0 °C to 40 °C
Compatibility	Fuxtec power tools with suitable voltage

Frequently Asked Questions - EP60 Fuxtec

How to check the charge level of the EP60 battery?

Press the button on the battery. The 4 LEDs indicate the charge level. If one of the LEDs blinks, the battery needs to be recharged. If no LED lights up, the battery is defective and must be replaced.

Which charger to use for the Fuxtec EP60 battery?

Use only chargers recommended by Fuxtec. An unsuitable charger may cause fire or explosion.

How to charge the battery correctly?

Charge the battery at a temperature between 0 °C and 40 °C. Do not cover the battery or the charger during charging. After charging, unplug the charger from the outlet.

What is the lifespan of the EP60 battery?

The lifespan depends on usage. If the runtime decreases significantly after a full charge, it is a sign of wear. Replace the battery.

Can I store the battery for a long time without using it?

Yes, partially discharge it and store it in a cool place (10 °C to 25 °C). Avoid extreme temperatures and humidity.

What to do in case of battery liquid leakage?

Avoid any contact. In case of contact, rinse thoroughly with water. If the liquid gets into the eyes, consult a doctor. The liquid may irritate the skin or cause burns.

Can I open the battery to repair it?

No, never open the battery. Risk of short circuit, fire or explosion. Have any repair carried out by a qualified professional.

How to dispose of the battery at the end of its life?

Do not dispose of it with household waste, nor in fire or water. Take it to a collection point for battery recycling. In the EU, directive 2006/66/EC requires recycling.

Does the battery get hot during charging?

Yes, some heating is normal during charging. If it becomes very hot, stop charging and check the compatibility of the charger.

What to do if the battery does not light up after pressing the button?

If no LED lights up after pressing the button, the battery is probably defective. Replace it with an original Fuxtec battery.

USER MANUAL EP60 Fuxtec

Illustration of a rectangular electronic device with a display screen (no text or symbols visible)

EP20 / EP40 / EP60

Rev01

de Originalbetriebsanleitung 2
en Original operating instructions 5
fr Notice d'instructions d'origine 8

de

Verwendete Symbole

WARNUNG!

Diagram showing labeled components of an electronic device with numbered parts and a close-up view of the internal component.

Illustration of a mechanical device with a labeled component (no text or symbols visible)

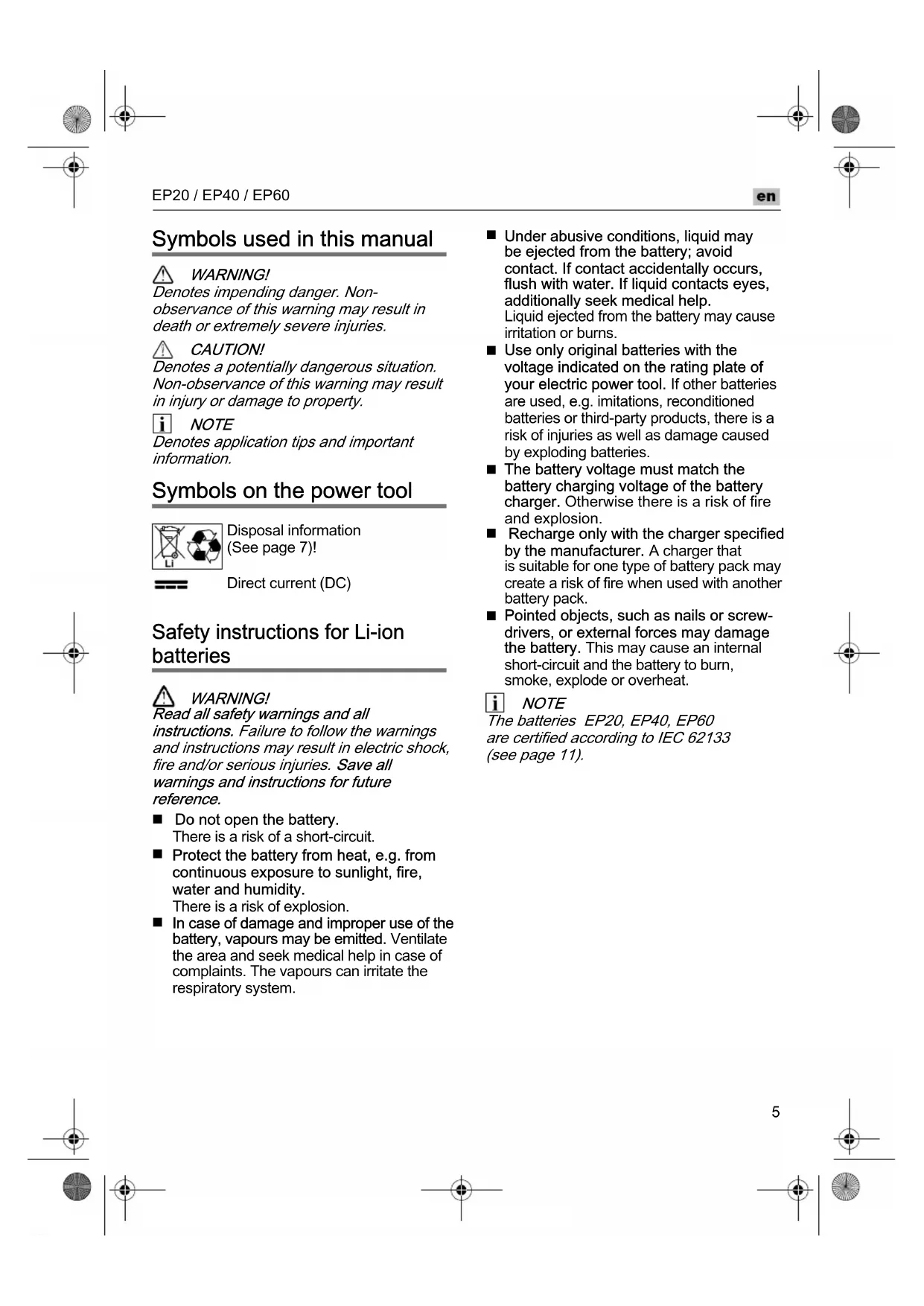

Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a potentially dangerous situation. Non-observance of this warning may result in injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

Disposal information (See page 7)!

Direct current (DC)

Safety instructions for Li-ion batteries

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injuries. Save all warnings and instructions for future reference.

■ Do not open the battery.
There is a risk of a short-circuit.
■ Protect the battery from heat, e.g. from continuous exposure to sunlight, fire, water and humidity.
There is a risk of explosion.
In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.

■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

■ Use only original batteries with the voltage indicated on the rating plate of your electric power tool. If other batteries are used, e.g. imitations, reconditioned batteries or third-party products, there is a risk of injuries as well as damage caused by exploding batteries.

■ The battery voltage must match the battery charging voltage of the battery charger. Otherwise there is a risk of fire and explosion.

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

■ Pointed objects, such as nails or screw-drivers, or external forces may damage the battery. This may cause an internal short-circuit and the battery to burn, smoke, explode or overheat.

NOTE

The batteries EP20, EP40, EP60 are certified according to IEC 62133 (see page 11).

en

Overview

Different batteries are described in these instructions.

The illustrated battery may differ in detail from the one which you purchased.

Diagram showing labeled components of a printer or scanner device with numbered parts and a control panel interface.

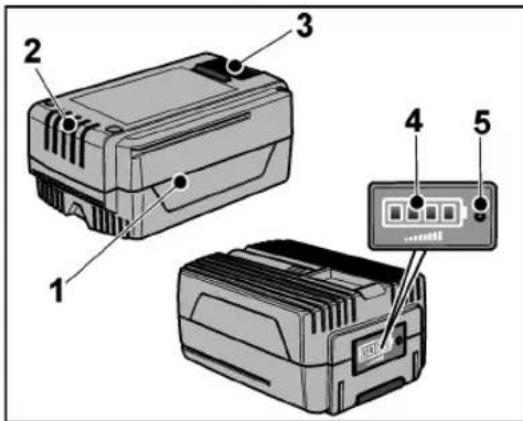

1 Battery
2 Contacts
3 Release button
4 LED for battery state of charge indicator
5 Button for battery state of charge indicator

Technical specifications

Li-ion battery
Battery type		EP 20	EP 40	EP 60
Nominal voltage V 40
Capacity Ah 2 4 6
Operating temperature	°C 0	...40
Weight kg 0.9 1.3 1.7

Battery state of charge

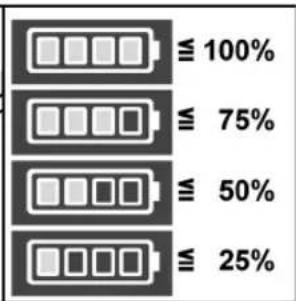

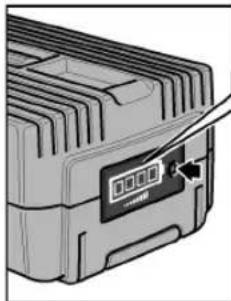

■ Press the button to check the state of charge at the state of charge indicator LED.

Illustration of a device with a label and pointer, no visible text or symbols

The indicator goes out after 5 seconds. If the LED flashes, the battery must be recharged. If the LED not lights up after the button is pressed, the battery is faulty and must be replaced.

Information to ensure a long battery service life

CAUTION!

• Never charge batteries at temperatures below 0 °C or above 40 °C.
• Do not charge batteries in an environment which has high air humidity or at a high ambient temperature.
• Do not cover batteries and/or the battery charger during the charging process.
  Battery and charger heat up during the charging process. This is perfectly normal! Lithium ion batteries do not exhibit the well known "memory effect". Nevertheless, before a battery is recharged, it should be fully discharged and the charging process always run to the end.

i NOTE

• Follow the instructions for charging the battery in the operating instructions for the electric power tool and the battery charger.
• Reduced operating times after recharging indicates that the battery is worn out. The battery must be replaced.

If the batteries are not used for a prolonged period, store batteries partially charged and in a cool location (10–25 °C).

Transport

The equivalent lithium content of the batteries included in the product package is below the appropriate limit values.

Therefore the battery as an individual component as well as the power tool and its product package are not subject to national or international dangerous goods regulations.

If several machines with lithium ion batteries are transported, these regulations may become relevant and special safety measures may be required (e.g. for the packaging).

In this case find out about the currently valid regulations for the country of use.

CAUTION!

Do not post batteries which have a damaged casing.

Disposal information

Recycling raw materials instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw accumulators/batteries into the household waste, fire or water.

Do not open disused batteries.

Accumulators/batteries should be collected, recycled or disposed of in an environmentally friendly manner.

EU countries only:

In accordance with Directive 2006/66/EC defective or used batteries must be recycled.

i NOTE

Please ask your dealer about disposal options!

Guarantee

This product has been manufactured to the highest quality standards. When a new product is purchased, it is guaranteed a 24-month manufacturer's warranty which comes into force on the date the product was purchased. The guarantee covers only defects which can be attributed to a material and/or production fault as well as non-performance of warranted characteristics. When making a claim under the guarantee, enclose the original sales receipt with purchase date. Repairs under the guarantee may be carried out only by workshops or service centres authorised by the manufacturer. A claim may be made under the guarantee only if the power tool has been used as intended.

This warranty is invalid where defects are caused by or result from:

• misuse, abuse or neglect;
  – commercial use (industry, craft, rental)
  – repairs attempted by unauthorized repair centers

– damage caused by external effects, foreign objects, substances or accidents.

fr

Symboles utilisés

AVERTISSEMENT!

Diagram showing labeled components of a device with numbered parts and an inset view of the internal connector.

Illustration of a device with a labeled component (no text or symbols visible)
