| Product Type | Lithium-ion battery |
| Brand | Fuxtec |
| Model | EP40 |
| Nominal voltage | 40 V |
| Weight | 1.3 kg |
| Operating temperature | 0 to 40 °C |
| Battery type | Lithium-ion |
| Charge level indicator | 4 LED |
| Charge test button | Yes |
| Compatibility | Fuxtec tools (EP series) |
| Unlocking function | Unlock button |
| Recommended charging | Fully discharge before recharging |
| Charging precautions | Do not charge below 0°C or above 40°C |
| Maintenance | Clean contacts, store in a dry place |
| Safety | Avoid exposure to moisture, do not short-circuit |
| Spare parts | EP40 replacement battery |
| Repairability | Replacement only, no internal repair |
Frequently Asked Questions - EP40 Fuxtec
User questions about EP40 Fuxtec
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Battery in PDF format for free! Find your manual EP40 - Fuxtec and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EP40 by Fuxtec.
USER MANUAL EP40 Fuxtec

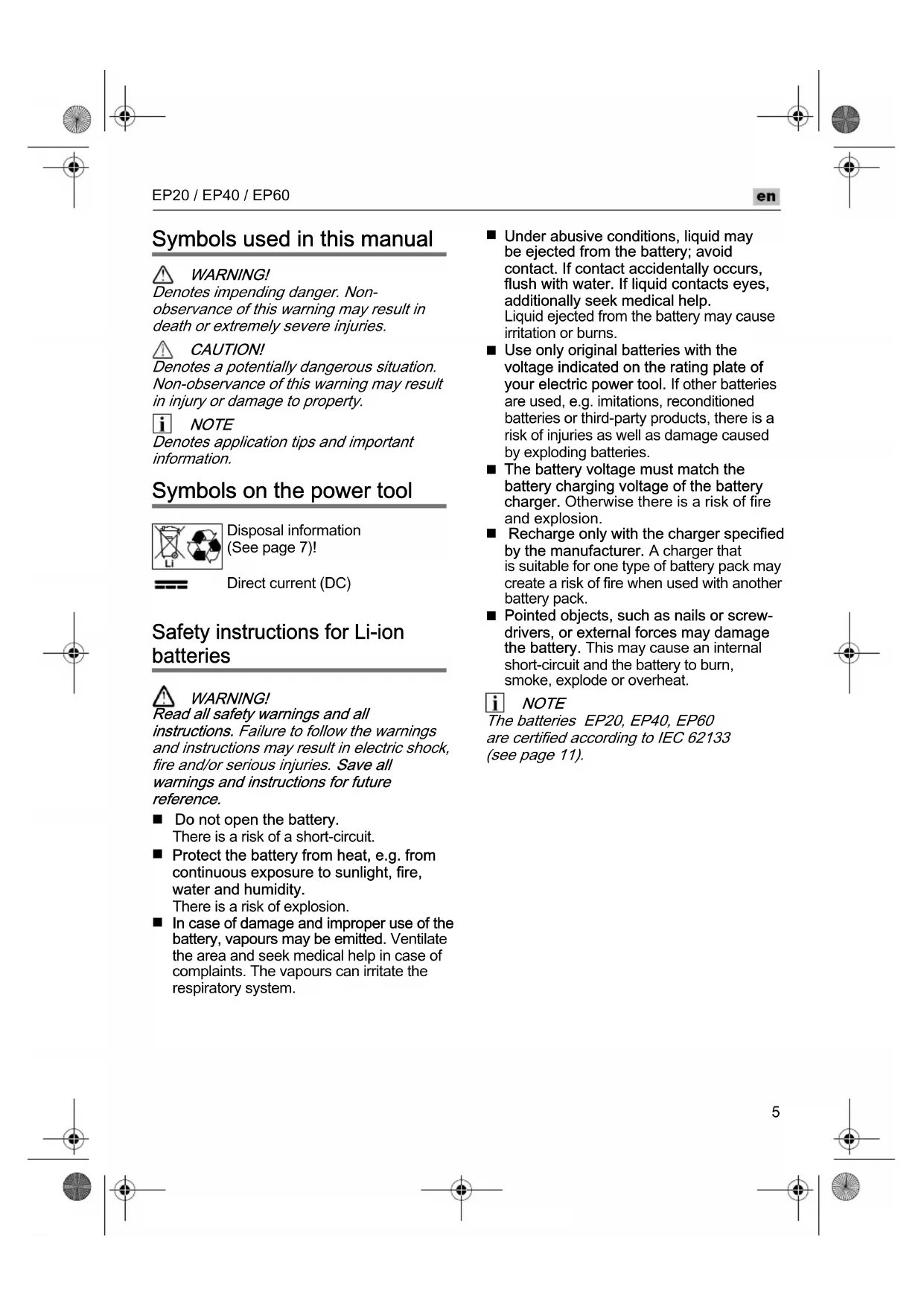

Symbols used in this manual
WARNING!
Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.
CAUTION
Denotes a potentially dangerous situation. Non-observation of this warning may result in injury or damage to property.
i NOTE
Denotes application tips and important information.
Symbols on the power tool
Disposal information (See page 7)!
Direct current (DC)
Safety instructions for Li-ion batteries
WARNING
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injuries. Save all warnings and instructions for future reference.
Do not open the battery.
There is a risk of a short-circuit.
- Protect the battery from heat, e.g. from continuous exposure to sunlight, fire, water and humidity.
There is a risk of explosion.
In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Use only original batteries with the voltage indicated on the rating plate of your electric power tool. If other batteries are used, e.g. imitations, reconditioned batteries or third-party products, there is a risk of injuries as well as damage caused by exploding batteries.
The battery voltage must match the battery charging voltage of the battery charger. Otherwise there is a risk of fire and explosion.
- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
Pointed objects, such as nails or screwdrivers, or external forces may damage the battery. This may cause an internal short-circuit and the battery to burn, smoke, explode or overheat.
i NOTE
The batteries EP20, EP40, EP60 are certified according to IEC 62133 (see page 11).
en
EP20 / EP40 / EP60

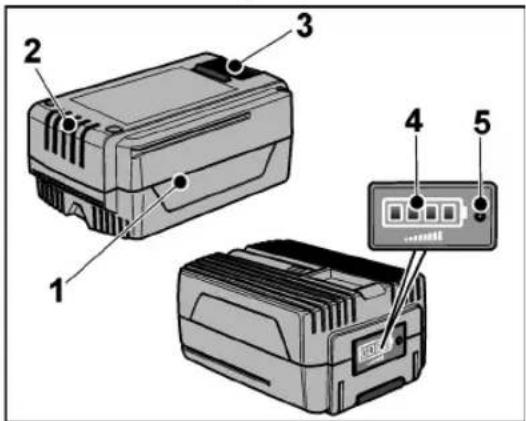

Overview
Different batteries are described in these instructions.
The illustrated battery may differ in detail from the one which you purchased.
1 Battery
2 Contacts
3 Release button
4 LED for battery state of charge indicator
5 Button for battery state of charge indicator
Technical specifications
| Li-ion battery | ||||
| Battery type | EP 20 | EP 40 | EP 60 | |
| Nominal voltage V 40 | ||||
| Capacity Ah 2 4 6 | ||||
| Operating temperature | °C 0 | ...40 | ||
| Weight kg 0.9 1.3 1.7 | ||||

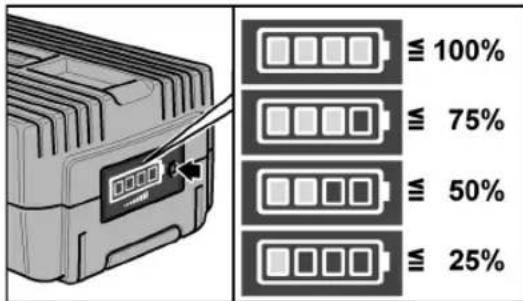

Battery state of charge
Press the button to check the state of charge at the state of charge indicator LED.
The indicator goes out after 5 seconds. If the LED flashes, the battery must be recharged. If the LED not lights up after the button is pressed, the battery is faulty and must be replaced.
Information to ensure a long battery service life
CAUTION!
- Never charge batteries at temperatures below 0^ or above 40^ .
- Do not charge batteries in an environment which has high air humidity or at a high ambient temperature.
- Do not cover batteries and/or the battery charger during the charging process.
Battery and charger heat up during the charging process. This is perfectly normal! Lithium ion batteries do not exhibit the well known "memory effect". Nevertheless, before a battery is recharged, it should be fully discharged and the charging process always run to the end.
i NOTE
- Follow the instructions for charging the battery in the operating instructions for the electric power tool and the battery charger.
- Reduced operating times after recharging indicates that the battery is worn out. The battery must be replaced.
If the batteries are not used for a prolonged period, store batteries partially charged and in a cool location (10 - 25^)
Transport
The equivalent lithium content of the batteries included in the product package is below the appropriate limit values.
Therefore the battery as an individual component as well as the power tool and its product package are not subject to national or international dangerous goods regulations.
If several machines with lithium ion batteries are transported, these regulations may become relevant and special safety measures may be required (e.g. for the packaging).
In this case find out about the currently valid regulations for the country of use.
CAUTION
Do not post batteries which have a damaged casing.
Disposal information
Recycling raw materials instead of waste disposal.
Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.
WARNING!
Do not throw accumulators/batteries into the household waste, fire or water. Do not open disused batteries.
Accumulators/batteries should be collected, recycled or disposed of in an environmentally friendly manner.
EU countries only: In accordance with Directive 2006/66/EC defective or used batteries must be recycled.
i NOTE
Please ask your dealer about disposal options!
Guarantee
This product has been manufactured to the highest quality standards. When a new product is purchased, it is guaranteed a 24-month manufacturer's warranty which comes into force on the date the product was purchased. The guarantee covers only defects which can be attributed to a material and/or production fault as well as nonperformance of warranted characteristics. When making a claim under the guarantee, enclose the original sales receipt with purchase date. Repairs under the guarantee may be carried out only by workshops or service centres authorised by the manufacturer. A claim may be made under the guarantee only if the power tool has been used as intended. This warranty is invalid where defects are caused by or result from:
misuse, abuse or neglect;
- commercial use (industry, craft, rental)
- repairs attempted by unauthorized repair centers
damage caused by external effects, foreign objects, substances or accidents.
Vue d'ensemble
2020-11 /No liability for printing errors. Subject to technical modifications.
FUXTEC GmbH - Kappstrasse 69 - 71083 Herrenberg - Germany
