USER MANUAL EC50 Fuxtec

these operating instructions,

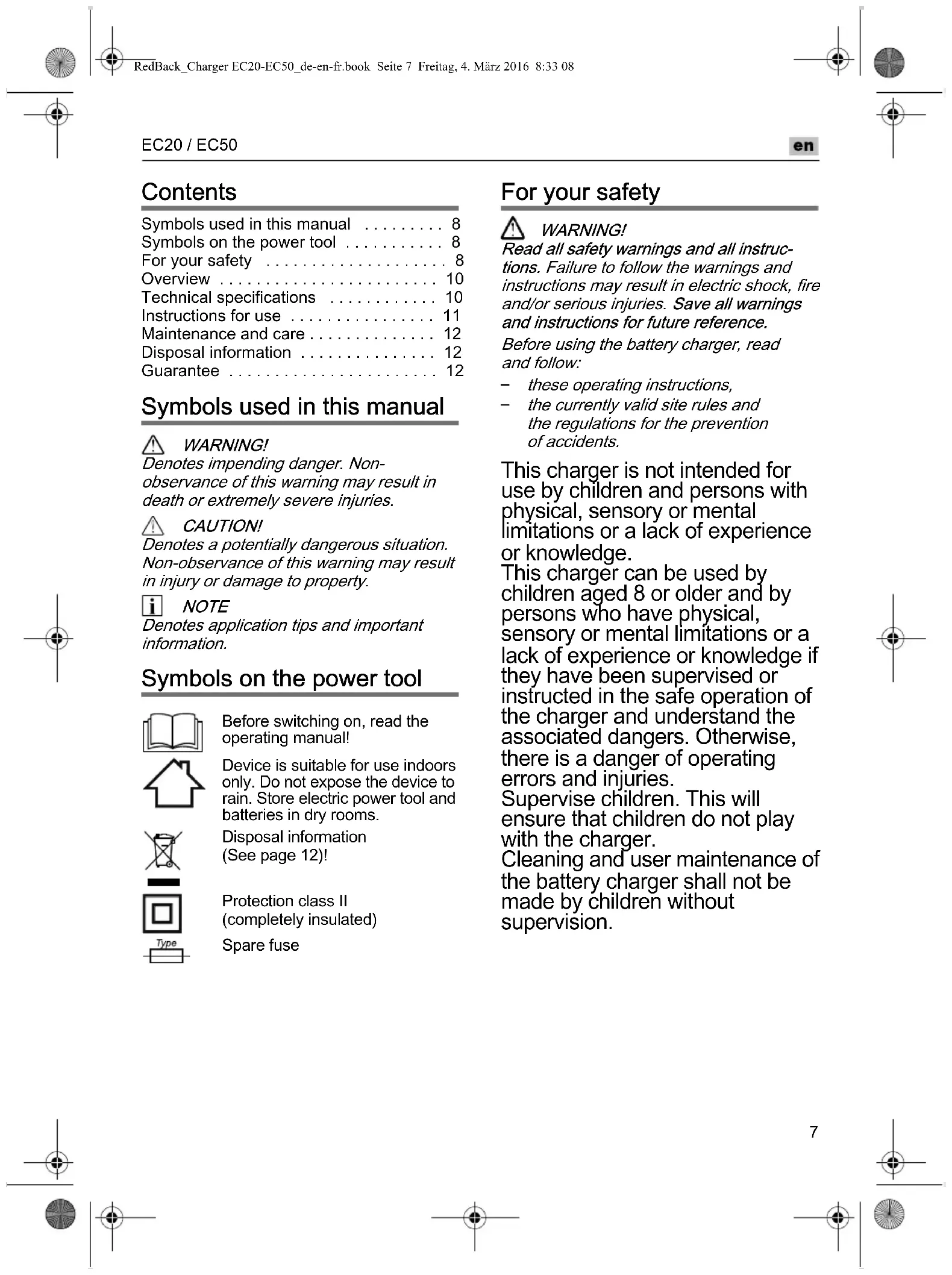

the currently valid site rules and the regulations for the prevention of accidents. This charger is not intended for use by children and persons with physical, sensory or mental limitations or a lack of experience or knowledge. This charger can be used by children aged 8 or older and by persons who have physical, sensory or mental limitations or a lack of experience or knowledge if they have been supervised or instructed in the safe operation of the charger and understand the associated dangers. Otherwise, there is a danger of operating errors and injuries. Supervise children. This will ensure that children do not play with the charger. Cleaning and user maintenance of the battery charger shall not be made by children without supervision. Before switching on, read the operating manual! Device is suitable for use indoors only. Do not expose the device to rain. Store electric power tool and batteries in dry rooms. Disposal information (See page 12)! Protection class II (completely insulated) Spare fuse RedBack_Charger EC20-EC50_de-en-fr.book Seite 7 Freitag, 4. März 2016 8:33 08EC20 / EC50

Intended use The battery charger EC20 / EC50 is designed for charging batteries of types – EP20 (40 V/2.0 Ah), – EP40 (40 V/4.0 Ah), – EP60 (40 V/6.0 Ah). Safety instructions for the battery charger

Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock. Keep the battery charger clean. Contamination can lead to danger of an electric shock.

Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock.

Do not place any objects on the battery charger and do not place the battery charger on soft surfaces. There is a risk of fire.

Always check that the mains voltage matches the voltage indicated on the rating plate of the battery charger.

Never use the charger if cable, plug or the unit itself has been damaged by external influences. Take the charger to the nearest service centre.

Never open the battery charger. If the battery charger is defective, take it to a service centre. Safety instructions for Li-ion batteries

Do not open the battery. There is a risk of a short-circuit. Protect the battery from heat, e.g. from continuous exposure to sunlight, fire, water and humidity. There is a risk of explosion.

In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Use only original batteries with the voltage indicated on the rating plate of your electric power tool. If other batteries are used, e.g. imitations, reconditioned batteries or third-party products, there is a risk of injuries as well as damage caused by exploding batteries.

The battery voltage must match the battery charging voltage of the battery charger. Otherwise there is a risk of fire and explosion.

Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

Pointed objects, such as nails or screw- drivers, or external forces may damage the battery. This may cause an internal short-circuit and the battery to burn, smoke, explode or overheat. RedBack_Charger EC20-EC50_de-en-fr.book Seite 8 Freitag, 4. März 2016 8:33 08EC20 / EC50

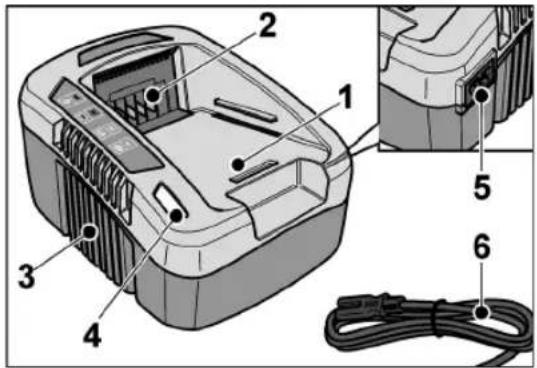

Overview Different chargers are described in these instructions. The illustrated charger may differ in detail from the one which you purchased. 1 Slot for battery 2 Contacts 3 Ventilation slots 4 LED (charge status/fault messages) 5 Socket 6 Power cord Displays of LED: Technical specifications (4) lights red Charger is ready to use. flashs green Battery is charging. lights green Charging process finished. Maintenance charging. See Charging process. flashs red – Battery is too hot or too cold. – Battery or charger is faulty. See Fault messages. Device Battery charger Type EC20 EC50 Input voltage

100-240 100-130 200-240 Mains frequency Hz 50-60 50-60 50-60 Rated current A 1 3 3 Rated power W 100 250 250 Charging voltage V 40 40 40 Charging current A 2 5 5 Charging time (depending on charge state) EP20 EP40 EP60 min min min

Instructions for use CAUTION!

Do not charge batteries in an environment which has high air humidity or at a high ambient temperature.

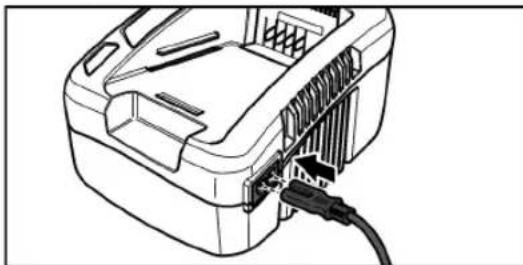

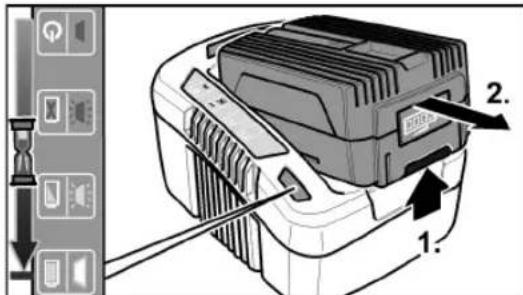

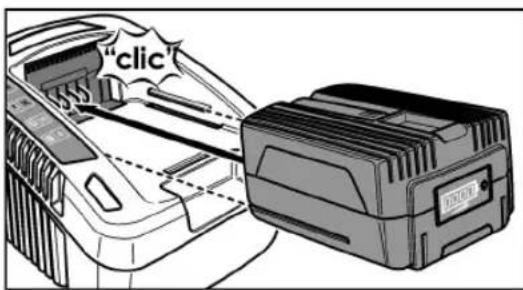

Do not cover batteries and/or the battery charger during the charging process. Charging process CAUTION! Use only original batteries in the supplied battery charger. NOTE Battery and charger heat up during the charging process. This is perfectly normal! Plug the power cord in the socket on the charger. Insert the mains plug. The LED is solid red. Insert battery into the charger as far as stop. The LED flashes green and the battery is charged. When the battery is fully charged, the LED lights green. To remove, press the release button ( 1.) and pull out the battery ( 2.). Pull out the mains plug. Fault messages If the LED flashes red after the battery is inserted into the charger, there is an fault with the battery or charger. – The battery is too hot or too cold. The charging process starts when the battery reaches the charging tempera- ture (0 °C...40 °C). – If after some time the LED still flashes red: Remove battery from the charger. Check contacts at charger and battery for con- tamination and clean if necessary. Reinsert battery. The battery is faulty if the same display appears again. Replace battery or have it checked in a professional workshop. – If this fault message is also displayed with a different battery, then there is a fault with the charger. Have the charger checked by a professional workshop. Information to ensure a long battery service life Lithium ion batteries do not exhibit the well known memory effect. Nevertheless, before a battery is recharged, it should be fully discharged and the charging process always run to the end. If the batteries are not used for a prolonged period, store batteries partially charged and in a cool location (10–25 °C). NOTE Reduced operating times after recharging indicates that the battery is worn out. The battery must be replaced. RedBack_Charger EC20-EC50_de-en-fr.book Seite 10 Freitag, 4. März 2016 8:33 08EC20 / EC50

Maintenance and care WARNING! Before performing any work, pull out the mains plug. Do not use water or liquid detergents. Cleaning Remove dirt and dust from the housing with a paint brush or dry cloth. Storage Store the charger in a dry and frost-free place (10-25 °C). Store the battery and the charger separately. Repairs Repairs may be carried out by an authorised customer service centre only. Disposal information WARNING! Render redundant power tools unusable:

mains operated power tool by removing the power cord,

battery operated power tool by removing the battery. EU countries only: Do not throw electric power tools into the household waste! In accordance with the European Directive 2012/19/EC on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner. Recycling raw materials instead of waste disposal. Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type. WARNING! Do not throw accumulators/batteries into the household waste, fire or water. Do not open disused batteries. Accumulators/batteries should be collected, recycled or disposed of in an environmentally friendly manner. EU countries only: In accordance with Directive 2006/66/EC defective or used batteries must be recycled. NOTE Please ask your dealer about disposal options! Guarantee This product has been manufactured to the highest quality standards. When a new product is purchased, it is guaranteed a 24-month manufacturers warranty which comes into force on the date the product was purchased. The guarantee covers only defects which can be attributed to a material and/or production fault as well as non- performance of warranted characteristics. When making a claim under the guarantee, enclose the original sales receipt with purchase date. Repairs under the guarantee may be carried out only by workshops or service centres authorised by the manufac- turer. A claim may be made under the guarantee only if the power tool has been used as intended. This warranty is invalid where defects are caused by or result from: – misuse, abuse or neglect; – commercial use (industry, craft, rental) – repairs attempted by unauthorized repair centers – damage caused by external effects, foreign objects, substances or accidents. RedBack_Charger EC20-EC50_de-en-fr.book Seite 11 Freitag, 4. März 2016 8:33 08EC20 / EC50

3. Serial number: changed according to different orders

4. Applicable EC Directives:

2020-11 /No liability for printing errors. Subject to technical modifications.
