USER MANUAL HEV312 HONEYWELL

hazard, plug the humidifier directly into a 120V AC electrical outlet. To avoid risk of fire, shock or personal injury do not use an extension cord or power strip.

6. Shut off and unplug humidifier before

moving. The humidifier should always be unplugged and emptied when not in operation or while being cleaned. Do not move or tilt humidifier while it is in operation. Plug and unplug humidifier with dry hands. Never pull by cord.

7. When moving or lifting the full Water Tank,

use two hands; one hand on the Tank Handle and the other on the bottom of the Tank.

8. Do not add any medications, inhalants,

scent products or essential oils into Base, Reservoir or Water Tank.

9. Do not cover or insert objects into any

openings on the humidifier

10. Do not block intake or output vents.

11. Do not operate the humidifier without

water. Turn off and unplug unit when tank is empty.

12. Humidifier requires regular cleaning. Refer

to, and follow, cleaning instructions.

13. Do not operate outdoors; this appliance is

intended for indoor use.

14. Do not attempt to repair or adjust any

electrical or mechanical functions on this humidifier. Doing so will void your warranty.

15. For residential use only.

SAVE THESE INSTRUCTIONS

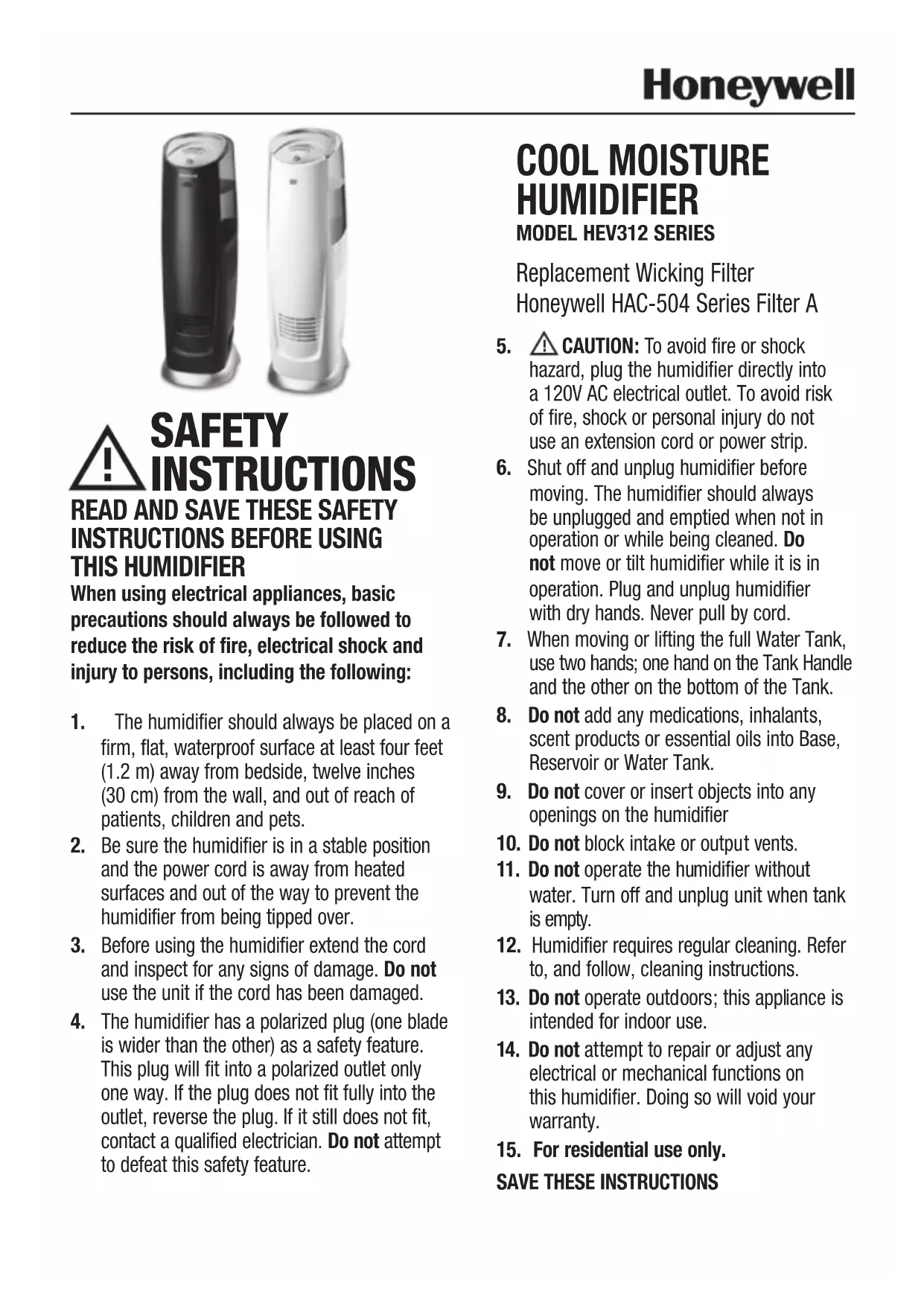

READ AND SAVE THESE SAFETY

INSTRUCTIONS BEFORE USING

THIS HUMIDIFIER When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following:

1. The humidifier should always be placed on a

firm, flat, waterproof surface at least four feet (1.2 m) away from bedside, twelve inches (30 cm) from the wall, and out of reach of patients, children and pets.

2. Be sure the humidifier is in a stable position

and the power cord is away from heated surfaces and out of the way to prevent the humidifier from being tipped over.

3. Before using the humidifier extend the cord

and inspect for any signs of damage. Do not use the unit if the cord has been damaged.

4. The humidifier has a polarized plug (one blade

is wider than the other) as a safety feature. This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.SETTING UP YOUR HUMIDIFIER WATER TANK SEAL PAD TANK CAP FILTER

FILTER HOLDING BASKET

MAIN HOUSING HEV312 Your humidifier is made up of these parts:

Step 1 Step 3 Step 2 Fill tank with cool tap water. Replace tank cap. Tighten by turning clockwise

Place tank back on humidifier. Remove the filter from the holding basket. Soak the filter in cool water. DO NOT squeeze filter. Place wet filter back in the filter holding basket and place back in unit. SETTING UP YOUR HUMIDIFIER (CONT’D) Placement Soak Filter Power Fill Tank Remove the water tank and carefully set aside. Turn tank upside-down. Remove tank cap by turning counter- clockwise

Once the filled water tank has been placed on the unit do not move humidifier. Doing so could cause leakage and spills. With the power switch in the OFF position, plug the filled humidifier into a polarized 120V outlet. DO NOT FORCE THE POLARIZED PLUG INTO THE OUTLET; it will only fit one way. DO NOT plug in humidifier with wet hands to avoid electric shock. Select a firm, level location at least 12” (30cm) from any walls for proper airflow. Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring. Manufacturer will not accept responsibility for property damage caused by water spillage. Step 1 Step 2 Step 3 Step 1 Step 1

3 3OPERATING YOUR HUMIDIFIER

Output/Fan Speed Control Set Humidity Use the ( ) up or ( ) down button to set desired humidity. The unit will operate until the selected humidity is reached or the unit is turned off. When desired humidity is reached, the fan will shut off but LED will remain lit. The fan will turn back on when the room humidity drops below the set level. NOTE: To go back to continuous run mode, turn your unit off and on again. Press power to start unit in high speed. Push ( ) Up button or

The filter should be changed every 1-2 months depending on your water quality. Keep in mind, depending on your water quality, mineral deposits can still clog or discolor the filter, affecting it’s life and that of the humidifier. It is recommended you change your filter in the bathroom or kitchen. Keep in mind your filter may be damp depending on your last usage. To change the filter: Step 2 Step 3 Uses replacement filter Filter A HAC-504 Series. Turn off and unplug your humidifier. Remove the water tank and carefully set aside. Remove filter holding basket and discard old filter. Step 5 Step 6 Step 7 Soak new filter in cool water. Do not squeeze out. Insert new filter into holding basket and place filter holding basket back in unit. Replace the water tank.

Step 1Step 7 Step 6 Step 5 CLEANING Cleaning involves two steps, SCALE REMOVAL and DISINFECTING. Be sure to perform these two separate steps in the proper order to avoid harmful chemical interactions. SCALE REMOVAL NOTE: REMOVE FILTER BEFORE CLEANING. Failure to remove filter during cleaning will destroy the filter. Step 1 Step 2 Step 3 Step 4 Turn off and unplug your humidifier. Remove the water tank and carefully set aside. Remove filter basket. Remove filter from basket. Failure to do so will destroy the filter. Place basket in sink or tub and fill the bottom of the basket with undiluted vinegar. Let stand for 20 minutes. With vinegar in the basket, wipe surface with a soft cloth or brush. Rinse the filter basket thoroughly with water to remove scale and cleaning solution. Step 8

Step 4 Step 5 Remove the water tank and carefully set aside. Remove filter holding basket. Remove filter and set aside. Failure to do so will destroy the filter. Fill water tank with 1 tsp. of household bleach and 1 gallon of cool water Step 6 Step 7 Pour some solution into the filter basket. Let stand for 20 minutes. Rinse with water until the smell of bleach is gone.

END-OF-SEASON CARE AND STORAGE

• Follow the CLEANING instructions when the humidifier will not be used for at least one week, or at the end of the season.

• At the end of the season, remove and throw away the filter; do not store with a used filter.

• Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.

• Pack the unit in its original carton and store in a cool, dry location.

• Before next use, remember to clean your humidifier and install a new filter. CONSUMER RELATIONS Step 1 NOTES: The use of other water treatment products and chemicals may cause deterioration of the filter or damage the humidifier, thereby hindering the humidifier’s effectiveness.

NOTE: It is recommended that all maintenance be done in the kitchen or bathroom on a water resistant surface. Remove water tank from unit before moving. For questions, technical support or to order replacement parts, contact Consumer Relations. Call us toll-free at: 1-800-477-0457 Hours: Mon-Fri 8:00AM-7:00PM EST Email: [e-mail] Or visit our website at: www.HoneywellPluggedIn.com Please be sure to specify Model number HEV312. Purchase replacement filter part number HAC-504 Series or FILTER A.ELECTRICAL RATINGS This HEV312 model is rated at 120V, 60 Hz. NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN THE HUMIDIFIER TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE PRODUCT OR PERSONAL INJURY. TROUBLESHOOTING Q: I hear the fan turning, but I don’t see any mist. Is my humidifier operating properly? A: Dry air is pulled through the system and a fan disperses invisible, moisture balanced air. There is no “mist” emitted. When operating normally you will feel only cool air coming from the unit. Monitor the water level in your Tank/ Base. If you notice a decrease in the Water Tank over 24 hours then the unit is operating normally. Q: My unit has been running for several hours. I hear the fan spinning, but I do not notice the water level in the tank decreasing. A: First, check the filter to ensure it is wet. If the pad appears dry, remove it from the filter holding basket and gently rinse under cool water. Reposition wet filter in the filter holding basket. You may also want to note the current moisture level in your home. If the humidity level is over 60% the unit will not put out much moisture as your air is already saturated. Q: My filter has turned light brown and rust colored. Do I need a new filter? A: Probably not. Since your filter has been made with Protec

antimicrobial the change in color indicates only a mineral deposit. Soak filter in a sink full of cool water to help break up deposits. The discoloration may remain but will not affect the humidifier’s performance. Q: My humidifier doesn’t appear to be as clean as when I first purchased and/or I’m smelling an unpleasant odor. What should I do? A: If you have been using your humidifier regularly for over 30 days, follow the cleaning instructions.

You should first read all instructions before attempting to use this product. A. This 3 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR

INCIDENTAL OR CONSEQUENTIAL DAMAGES

OF ANY NATURE, ANY IMPLIED WARRANTY

OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE ON THIS PRODUCT

IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase. B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship. C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual. D. This warranty does not cover the filters, pre-filters, UV bulbs or other accessories (if included) except for material or workmanship defects. Call us toll-free at 1-800-477-0457 or e-mail: [e-mail] Please be sure to specify a model number located on the box and the back and bottom of your unit. NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE
