CS074AE - Portable air conditioner HONEYWELL - Free user manual and instructions

Product Type	Portable Evaporative Air Cooler
Brand	Honeywell
Model	CS074AE
Power Supply	120 V, 60 Hz (standard plug)
Main Functions	Evaporative cooling, ventilation, automatic oscillation
Fan Speeds	4 speeds: Ultra Low, Low, Medium, High
Wind Types	Normal, Natural, Sleep
Timer	Timer and pre-set up to 15 hours
Remote Control	Yes, with AAA flat battery (2 x 1.5 V)
Water Tank	Level indicator, capacity not specified
Cold Accumulators	2 detachable ice packs
Cooling System	Filter and honeycomb system
Control Panel	LED display with icons
Oscillation	Automatic horizontal, manual vertical adjustment
Maintenance	Regular cleaning of filter and honeycomb system
Safety	Low water level alarm, unplug before maintenance
Weight	Approximately 6.5 kg (estimate)
Dimensions (approx.)	Height: 75 cm, Width: 40 cm, Depth: 30 cm

Frequently Asked Questions - CS074AE HONEYWELL

How do I turn on the cooling mode?

Add water to the tank up to the Max level, then press the Cooling button until the indicator lights up. The water pump will humidify the honeycomb system to produce cool air.

Can I use the appliance without water?

Yes, you can use the appliance in fan mode without water. If you activate cooling mode without water, the low water level alarm will sound and cooling will stop automatically.

How do I set the timer?

During operation, press and hold the Timer button until the icon lights up. Use the keys to set the duration (max 15 h). In standby, the button allows a pre-set to turn on the appliance automatically after the chosen duration.

What does the Sleep mode mean?

The Sleep mode starts at low speed, then automatically switches to Ultra Low speed after one hour, for quiet and comfortable operation during the night.

How do I clean the filter and honeycomb system?

Turn off and unplug the appliance. Remove the back grille by unscrewing the screw and pushing the sides. Rinse the grille/filter with clean water and let it dry. Remove the honeycomb system from its frame and clean it with a damp cloth or replace if necessary.

Where do I install the cold accumulators?

Freeze the two ice packs for about 4 hours, then place them in the ice compartment (lid on the tank). Ensure the water level does not exceed the Max mark and do not open them.

Why is water dripping from the air vents?

This may happen if the tank is overfilled or the honeycomb system is saturated. Wait 2 to 5 minutes after stopping for the water to drain, then wipe off the excess. Make sure you do not exceed the Max level.

How do I use the remote control?

Insert two AAA flat batteries (1.5 V) respecting polarity. Point the remote control at the appliance and ensure no obstacles block the signal. It allows control of power, speed, oscillation, mode, timer, and backlight.

What should I do if the low water level alarm sounds in cooling mode?

The alarm indicates the tank is empty. Turn off and unplug the appliance, fill with water above the minimum level, plug back in and turn on. To continue without cooling, turn off and then on without activating cooling mode.

How do I store the appliance for a long period?

Empty the water tank and clean it. Remove the cold accumulators. Clean the filter and honeycomb system, let dry completely. Store the appliance in a dry place, away from direct sunlight.

USER MANUAL CS074AE HONEYWELL

Read and save these instructions before use

Line drawing of a portable air conditioner unit with multiple cooling fans and wheels (no text or symbols)

Assistance Au Client:

QR code image containing encoded data, no visible human-readable text

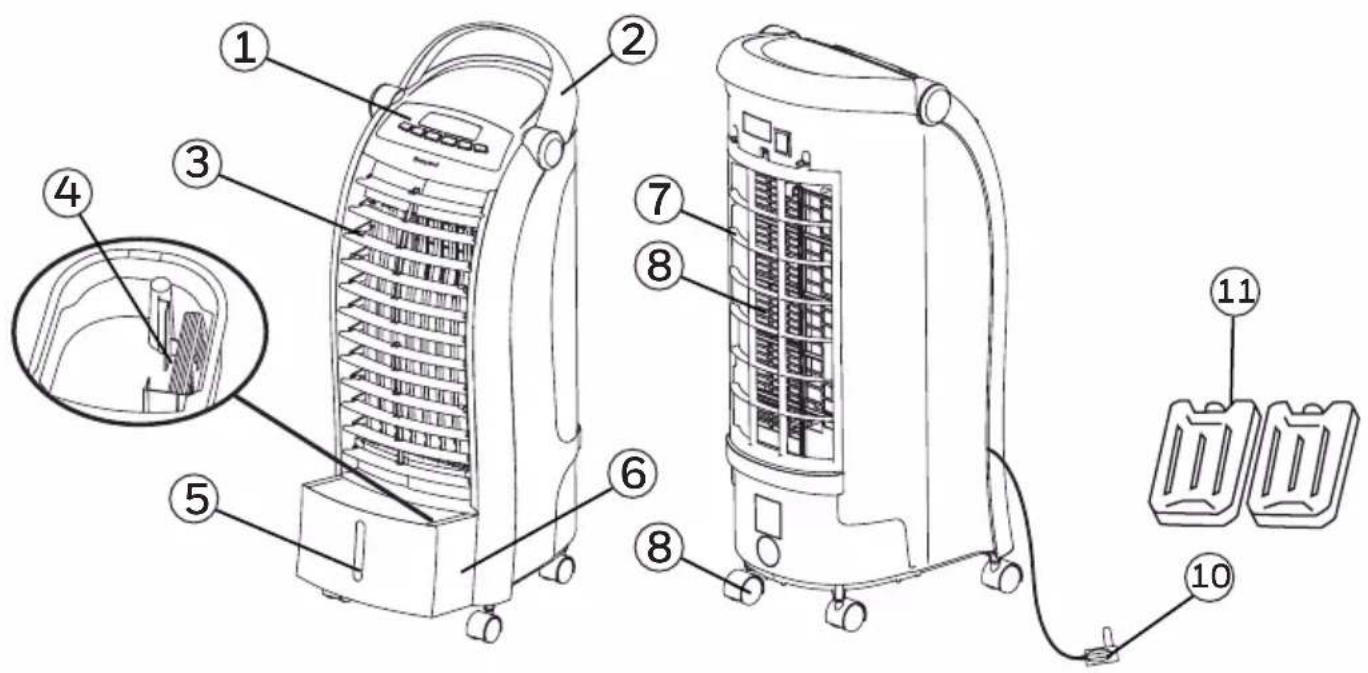

Technical diagram of a portable air purifier with numbered components and internal structure annotations

1) Control Panel 7) Rear Grill & Mesh Filter
2) Handle 8) Honeycomb Cooling Media
3) Louvers 9) Casters
4) Ice Compartment 10) Power Cord & Plug
5) Water Level Indicator 11) Ice Packs
6) Water Tank

WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL PREVAIL.

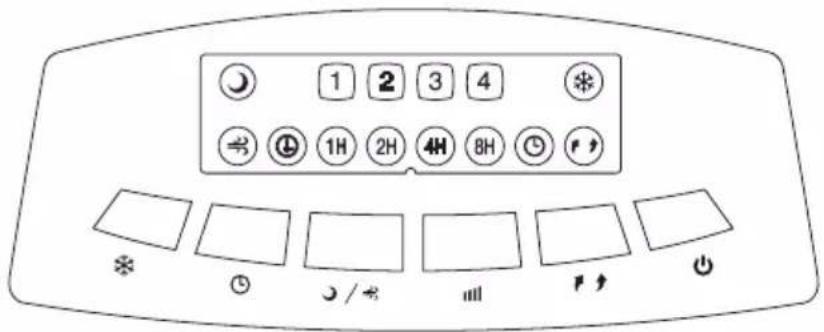

CONTROL PANEL

1 2 3 4 1H 2H 4H 8H

Icons on Display Screen

Cool

Swing

Speed:

Timer:

Preset

Sleep

1 = Ultra Low

1H

2 = Low

2H

3 = Medium

4H

Wind Type

[Non-Text]

4 = High

8H

Buttons on Control Panel

Power

Swing

Speed

Sleep / Wind Type

Timer / Preset

Cool

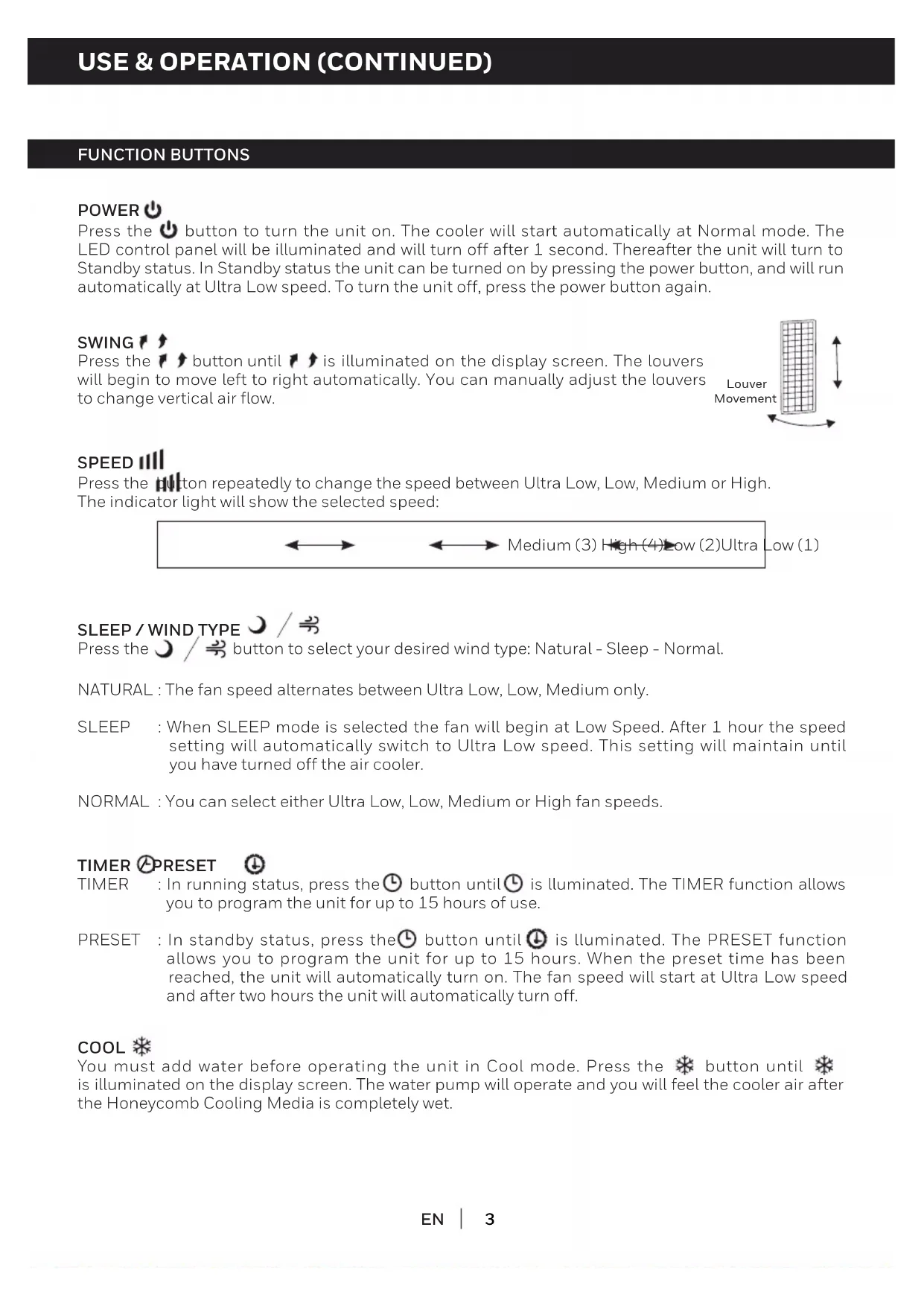

FUNCTION BUTTONS

POWER

Press the ⏻ button to turn the unit on. The cooler will start automatically at Normal mode. The LED control panel will be illuminated and will turn off after 1 second. Thereafter the unit will turn to Standby status. In Standby status the unit can be turned on by pressing the power button, and will run automatically at Ultra Low speed. To turn the unit off, press the power button again.

SWING

Press the ➕ ➕ button until ➕ ➕ is illuminated on the display screen. The louvers will begin to move left to right automatically. You can manually adjust the louvers to change vertical air flow.

Louver Movement

SPEED

Press the Newton repeatedly to change the speed between Ultra Low, Low, Medium or High. The indicator light will show the selected speed:

Medium (3) High (4) Low (2) Ultra Low (1)

SLEEP / WIND TYPE

Press the 🎥 / 🌘 button to select your desired wind type: Natural - Sleep - Normal.

NATURAL : The fan speed alternates between Ultra Low, Low, Medium only.

SLEEP : When SLEEP mode is selected the fan will begin at Low Speed. After 1 hour the speed setting will automatically switch to Ultra Low speed. This setting will maintain until you have turned off the air cooler.

NORMAL: You can select either Ultra Low, Low, Medium or High fan speeds.

TIMER A PRESET

TIMER : In running status, press the ⏻ button until ⏻ is illuminated. The TIMER function allows you to program the unit for up to 15 hours of use.

PRESET : In standby status, press the ⏻ button until ⏻ is illuminated. The PRESET function allows you to program the unit for up to 15 hours. When the preset time has been reached, the unit will automatically turn on. The fan speed will start at Ultra Low speed and after two hours the unit will automatically turn off.

COOL

You must add water before operating the unit in Cool mode. Press the ✪ button until ✪ is illuminated on the display screen. The water pump will operate and you will feel the cooler air after the Honeycomb Cooling Media is completely wet.

REMOTE CONTROL

Honeywell

	TIMER / PRESET	: Controls the Timer / Preset function
	SPEED	: Ultra Low / Low / Medium / High
	SWING	: Controls the motion of the louvers
	SLEEP / WIND TYPE	: Natural / Sleep / Normal
	POWER	: ON / OFF
	COOL	: Evaporative Cooling On / Off
	LIGHT	: Display screen light On / Off

NOTE:

• The remote control requires AAA (2 x 1.5V) batteries for replacement.
- Open the battery compartment at the back of the remote control and insert the batteries inside. Care must be taken to insert the batteries according to the correct polarity (+ / -) markings shown inside the battery compartment.
- Always point the remote control signal transmitter towards the unit when operating. Make sure that the signal path is not obstructed.
- Remove the batteries if the unit is not going to be used for an extended period of time.
- Do not drop the remote control.
- Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.
- Do not mix old and new batteries.
• Do not recharge the battery.
- Exhausted batteries are to be removed from the product and safely disposed of as per local regulations.
- Do not dispose of batteries in fire. Batteries may explode or leak.

WARNING: Caution for ingestion of the small battery. Keep away from children and animals.

COOLER LOCATION

Make sure to position the air cooler correctly before you set up and start using the product. Please refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.

FILLING WITH WATER & ICE

CAUTION:

Unplug the unit from the electrical power outlet before emptying or refilling the water tank.

To refill, slide out the water tank located at the front of the unit.

The Water Level Indicator is located at the front of the unit. Refill the water tank when water level is low.

Do not fill water above the "Max." water level mark to avoid water droplets collecting on the louvers. Check the water level in the tank before running the COOL function. Make sure that the water in the tank is above the minimum water level mark. Running the unit in COOL mode with inadequate water may cause pump failure.

NOTE: After turning off the unit, water from the Honeycomb may continue to drip and collect in the tank compartment. Wait 2 – 5 minutes to allow water in Honeycomb to drip into the tank to avoid water spillage. If there is water spillage in the tank compartment, then simply wipe dry with a clean, dry cloth.

NOTE: The water capacity refers to the total volume of water that can be contained within the air cooler water tank and water distribution system. The water capacity in the tank at the "Max." indicator level may be lower than the actual water capacity of the air cooler.

WARNING: Do not fill water tank with dirty water or salt water. This can damage the unit and Honeycomb media.

NOTE:

This product has two detachable ice packs which can be used together repeatedly. You may add ice packs in the ice compartment to enhance the cooling performance.

Freeze the ice pack in the freezer for approximately for 4 hours, thereafter place it into the ice compartment. Place in the correct position as shown in Figure 1 to avoid damage of the water pump. Please make sure the water level does not exceed the "Max." indicator level.

WARNING: DO NOT open the ice pack during operation.

WARNING: DO NOT consume the ice crystals from inside of the ice pack.

Figure 1:

Technical line drawing of a mechanical component or housing with internal structure and directional arrows (no text or symbols)

Ice Compartment

LOW WATER ALARM\*

The unit is equipped with a Low Water Alarm sensor. In Cooling Mode, when water in the tank is below the minimum level, you will hear a beeping sound and the indicator light will flash continuously. The unit will automatically pause evaporative cooling.

Refill the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug from the power outlet. Fill the water tank with water above the minimum water level mark. Plug in and switch ON again.

To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch the unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low Water Alarm will sound again if the COOL function is activated while the water tank is still empty.

*Applicable for models with Low Water Alarm feature only.

CLEANING & DRAINING THE WATER TANK

Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used for a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in the separate Safety & Maintenance Guide.

WARNING:

Before cleaning the unit, switch the unit OFF and disconnect from the electrical socket.

• Move the unit to a location where the water can be drained. Pull out the Water Tank from the front of the unit.
  • Refill the water tank with clean water, up to the maximum level and drain it completely.
• Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive elements or chemicals to clean this product.
• When the product is not in use, store the unit in a dry place out of direct sunlight.

CLEANING THE MESH FILTER AND HONEYCOMB COOLING MEDIA

WARNING:

Before cleaning the unit, switch the unit OFF and disconnect from the electrical socket.

• The appliance is supplied with a Mesh Filter and Honeycomb Cooling Media.
- The Mesh Filter and Honeycomb Cooling Media are located inside the Rear Grill. See Figure 2 for instructions on how to remove them from the unit for cleaning and maintenance.
- Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank and refill with fresh water, especially if the tank has not been cleaned in a long time.
- The cleaning frequency for the Honeycomb media depends on local air and water conditions. In areas where the mineral content of water is high, mineral deposits may build up on the Honeycomb Cooling Media and restrict air flow. Draining the water tank and refilling with fresh water at least once a week will help reduce mineral deposits. If mineral deposits remain on the Honeycomb Cooling Media, the media should be removed and washed under fresh water. The media should be cleaned every two months or sooner, depending on your needs.
- For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool function 15 minutes before turning the unit off.

Removing the Mesh Filter and Honeycomb Cooling Media:

1. Remove the screw from the rear grill / mesh filter of the Air Cooler.
2. Carefully pull out the rear grill / mesh filter from the cooler.
3. Rinse the rear grill / mesh filter with clean water and let it dry before re-installing to the unit.
4. Carefully pull out the Honeycomb Media from the Honeycomb Frame.
5. Replace or clean media with water and a damp cloth as needed.

WARNING:

DO NOT operate the Air Cooler when the Rear Grill is removed from the Air Cooler, or if there is a loose-fitting Rear Grill. Doing so can cause serious injury or dangerous electrical shock.

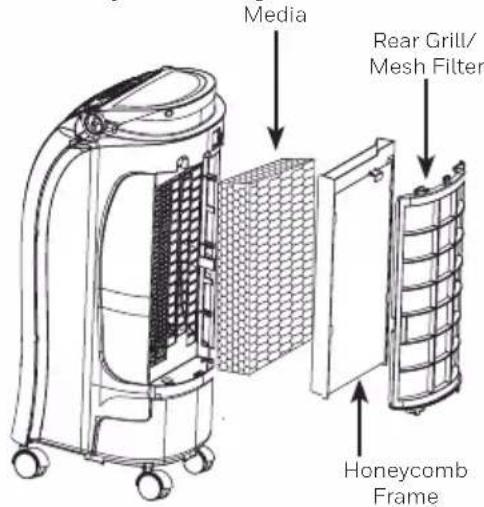

Figure 2: Honeycomb Cooling

Media Rear Grill/ Mesh Filter Honeycomb Frame

Technical diagram of a portable air purifier with numbered components and internal structure view

Honeywell

Technical line drawing of a mechanical component with internal structure and directional arrows (no text or symbols)

Technical diagram of a portable air purifier with numbered components and internal structure view

Louver Movement

VELOCIDAD

Honeywell

Cross-sectional diagram of a mechanical component or housing (no text or symbols visible)
