Product type	Air purifier
Model	90-127
Brand	Neo
Power supply	220 V AC
Main functions	Air purification with composite filter (activated carbon + HEPA), anion generator, UV lamp (optional), automatic mode, sleep mode, timer (1H/2H/4H/8H), 3 fan speeds
Indicators	Air quality (color), filter replacement, sleep mode, automatic mode, anions, UV
Remote control	Yes, included
Maintenance and cleaning	Clean the anion generator with a soft cloth moistened with detergent water; replace the UV lamp every 2 years; replace the composite filter when the indicator flashes
Spare parts	Main body, remote control, set of filters (composite filter)
Safety	Use by children from 8 years and above with supervision; do not let children play with the appliance; unplug before cleaning; do not use if cord is damaged
General information	Manual available in multiple languages; free PDF download

Frequently Asked Questions - 90-127 NEO

How to replace the filter of the Neo 90-127 air purifier?

When the filter replacement indicator flashes and the device emits 5 beeps, remove the front panel, take out the old filter, install a new composite filter, then press the SLEEP button for 5 seconds to reset the indicator. Close the panel.

What to do if the purifier does not work?

Check that the power cord is properly plugged in, that the front panel is correctly closed, and that the device is placed on a flat surface. If the problem persists, contact after-sales service.

Why does the air quality indicator stay red all the time?

The sensor may be disturbed by water vapor, fumes or sprays. Test the device in a cleaner environment to verify.

How to use the timer on the Neo 90-127?

Press the TIMER button to select the duration: 1H, 2H, 4H or 8H. The timer works both in operation and when stopped.

How to enter sleep mode?

Press the SLEEP button on the remote control or on the machine panel. To exit sleep mode, press the AUTO button.

What do speeds I, II, III mean?

These are the three fan speeds. Use the SPEED button to switch from the lowest speed (I) to the highest (III) according to the desired purification level.

How to activate the anion or UV function?

On the non-UV version, press ANION to turn anions on/off. On the UV version, press FUNCTION to switch between anions, UV, or both.

What safety precautions should be observed?

Do not leave children unattended. Unplug the device before cleaning. If the power cord is damaged, have it replaced by a professional. Do not use if there is a burning smell or abnormal noise.

How to clean the anion generator?

Use a soft cloth moistened with clean detergent water to gently clean the air inlet and outlet. Brush gently if necessary.

Where can I find spare parts such as the replacement filter?

The composite filter, remote control and other parts are available from the dealer or manufacturer. Consult the manual for references.

USER MANUAL 90-127 NEO

Line drawing of a portable air purifier with mesh cover and control panel (no text or symbols)

Simple line drawing of a hand cleaning a cylindrical container and a bowl (no text or symbols)

Exterior view of a black rectangular office building (no signage)

Technical diagram of a cylindrical device with labeled components and internal structure

To make sure you get fully understanding of our product before you use it, pls read the instruction manual carefully before operation and preserve the instruction manual if required.

Troubleshooting

Please confirm the following before repair when these occur.

ABNORMAL	CHECKING
Not working	1. Check if the power cord connected well to power socket. Reconnect it if not.2. Check if the front panel closed well. Close it well if not.3. Check if the machine placed flatly. Place it flatly if not.
The air quality indicator is always red in color.	Sensor may be influenced by water vapor, fumes, sparys, test the machine in another clean environment.

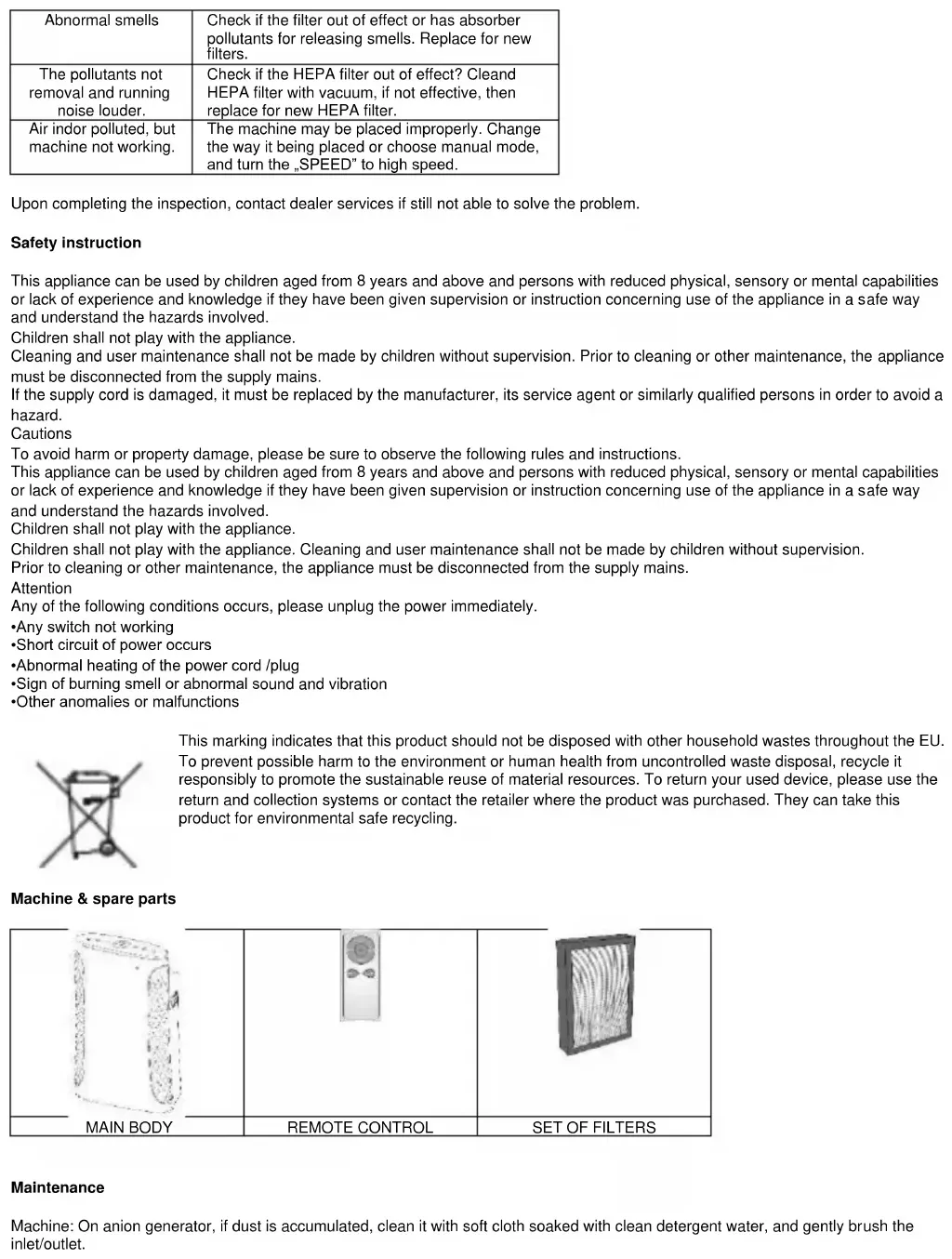

Abnormal smells	Check if the filter out of effect or has absorber pollutants for releasing smells. Replace for new filters.
The pollutants not removal and running noise louder.	Check if the HEPA filter out of effect? Cleand HEPA filter with vacuum, if not effective, then replace for new HEPA filter.
Air indor polluted, but machine not working.	The machine may be placed improperly. Change the way it being placed or choose manual mode, and turn the „SPEED” to high speed.

Upon completing the inspection, contact dealer services if still not able to solve the problem.

Safety Instruction

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision. Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Cautions

To avoid harm or property damage, please be sure to observe the following rules and instructions.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.

Attention

Any of the following conditions occurs, please unplug the power immediately.

•Any switch not working

•Short circuit of power occurs

•Abnormal heating of the power cord /plug

•Sign of burning smell or abnormal sound and vibration

•Other anomalies or malfunctions

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Machine & spare parts

			[w3c2]
	MAIN BODY		REMOTE CONTROL		SET OF FILTERS

Maintenance

Machine: On anion generator, if dust is accumulated, clean it with soft cloth soaked with clean detergent water, and gently brush the inlet/outlet.

Line drawing of a hand cleaning a cylindrical device next to a bowl (no text or symbols)

Remark: UV lamp installed

UV lamp: it can be used for about 2 years, while replacing it, you need to turn off the machine, remove the UV lamp at 90 degrees rotation, and replace.

Operational instructions

Sleep mode

Press “SLEEP” button of remote control or touch “SLEEP” button on the machine to enter into sleep mode.	Press “AUTO” button of remote control or touch “AUTO” button on the machine to end sleep mode.	TimerOn power-on or power-off state, touch “TIMER” button to select time – 1H/2H/4H/8H.	ANION (Non-UV Version)Press “ANION” button on the machine to start or end anion generator.	FUNCTION (UV Version)Press “FUNCTION” button on the panel: The 1^st time: end anion generator.The 2^nd time: start the UV light & anion generator together.The 3^rd time: end the anion only, and keep the UV light on.The 4^th time: end the UV light, and turn the anion on again.The 5^th time: end the both.

Filter replacement

Filter replacement rings bells for 5 times, and the indicator flashes.

Remove the panel.	Remove the filters to be replaced.	Touch „SLEEP” buton for 5 seconds to restart reset filter replacement indicator.	Close the front panel.

Introduction

1 2 3 4

1. Digital display
2. Touch buttons
3. Sensor
4. Panel

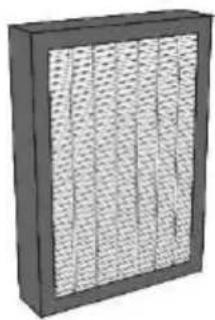

Composite filter

Exterior view of a black rectangular industrial air filter unit with vertical perforated panels (no text or symbols)

Technical diagram of a cylindrical device with labeled components, showing internal structure and mounting points.

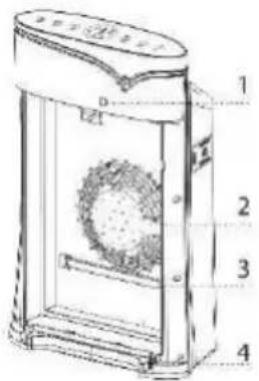

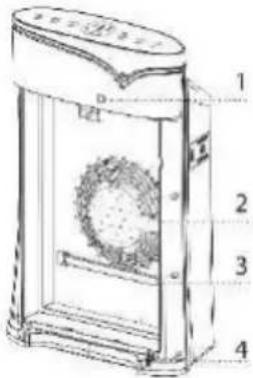

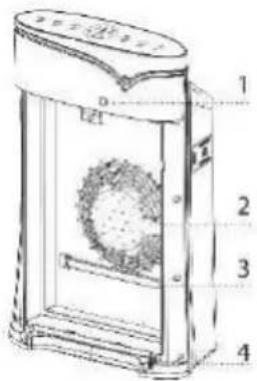

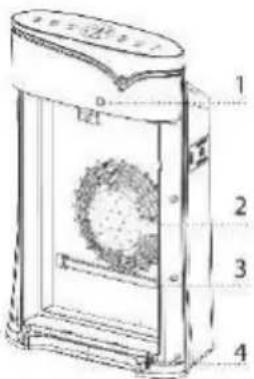

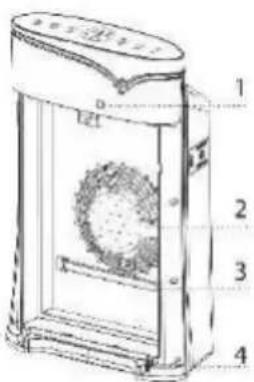

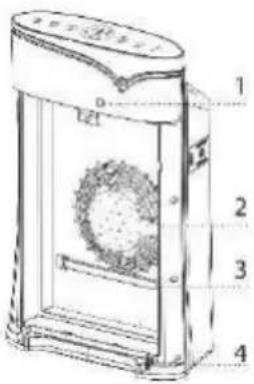

1. Magnetic lock
2. Air duct
3. UV lamp (Optional)
4. Buckle
5. Handle
6. Outlet
7. Nameplate

5 6 7

Guidelines for usage

Unpack the machine.	Remove the panel.	Remove the filter and the poly bag.	Install Activated carbon filter.	Load the panel.	Connect the other hand to 220AC power supply.	Touch „ON/OFF" buton to start machine working.

Operational Instructions

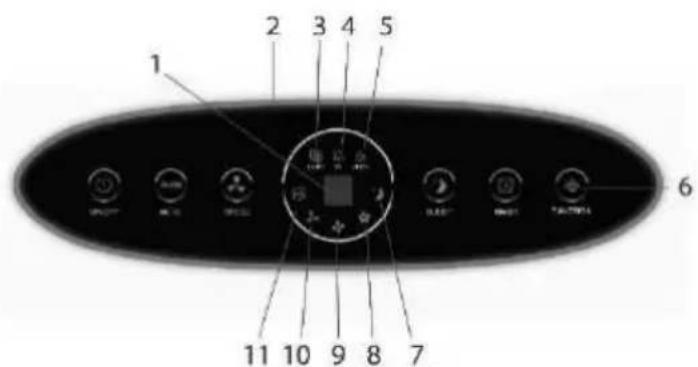

Panel

1 2 3 4 5 6 11 10 9 8 7

1. Timer
2. Air quality indicator
3. Filter replacement indicator
4. UV Version shows this icon, while Non-UV version does not show.
5. Anion indicator
6. UV Version with „FUNCTION“ buton non-UV Version with „ANION“ buton.
7. Sleep mode indicator
8. Speed III
9. Speed II
10. Speed I
11. Auto mode indicator

Power on	Auto mode	Fan speed adjustment
Press „ON/OFF" on remote contro lor touch it on the panel to turn on ort urn off the device.	Press „AUTO" buton of remote contro lor touch „AUTO" buton on the machine.	Press „SPEED" buton of remote contro lor touch „SPEED" to adjust the speed when machin eis power on.
