Product type	Cordless rotary hammer
Brand	HiKOKI
Model	DH1826DA
Rated voltage	18 V (DC)
No-load speed	0 – 950 /min
Full load impact rate	0 – 4300 /min
Drilling capacity (concrete)	26 mm
Drilling capacity (steel)	13 mm
Drilling capacity (wood)	27 mm
Motor type	Fan-cooled brushless DC motor
Weight (with battery BSL36A18)	3.8 kg
Power supply	Li-ion battery 36 V / 18 V (model BSL36A18)
Compatible charger	UC18YSL3 (120 V, 60 Hz)
Charging time (BSL36A18)	Approx. 32 minutes at 20 °C
Operating modes	Hammering only, Rotation + hammering, Rotation only
Special functions	Auto Stop, Reactive force control (RFC), Battery charge indicator, LED light

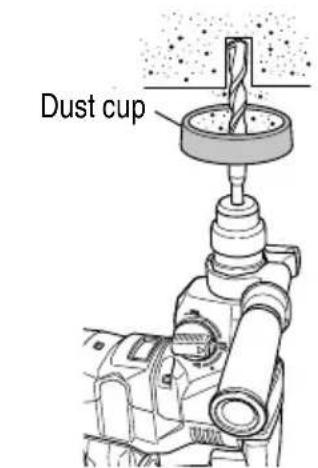

Safety	Adjustable side handle, Dust cap, Overload protection, Emergency stop
Maintenance and cleaning	Clean the terminals, replace grease at authorized center, check screws, use soft cloth
Spare parts and repairability	Battery, charger, drill bits, chisels, dust cap, side handle; repair by authorized center
General information	Manual available in FR, EN, ES; ask questions online

Frequently Asked Questions - DH1826DA HiKOKI

What type of battery to use with the HiKOKI DH1826DA hammer?

Use exclusively the Li-ion battery model BSL36A18 (36 V / 18 V). Batteries from the BSL3660/3626/3620 and BSL14xx series are not compatible.

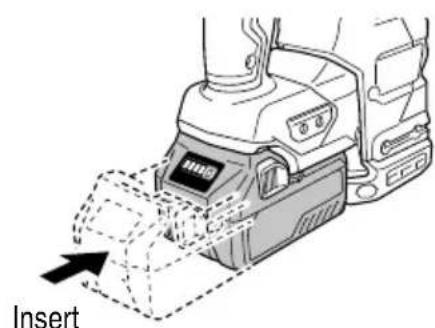

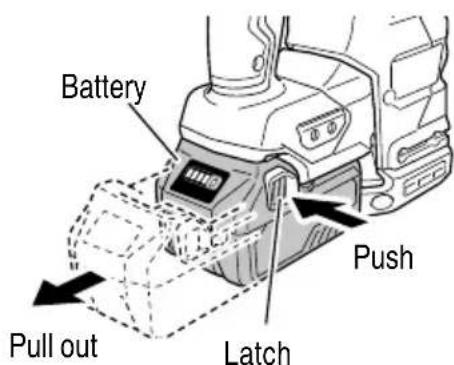

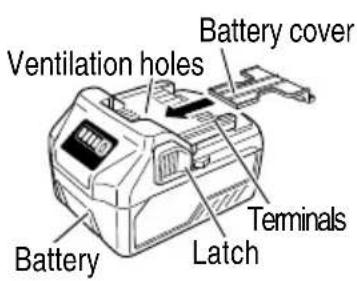

How to install the battery on the tool?

Insert the battery observing polarity until it clicks. To remove, hold the handle and push the battery latch (see Fig. 5 and 6 in the manual).

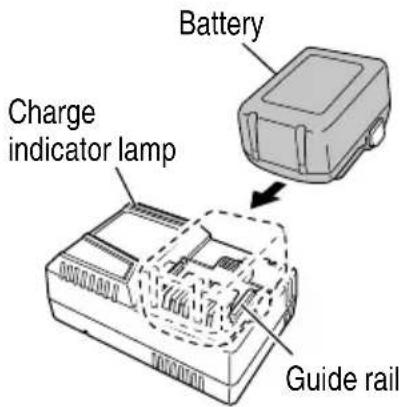

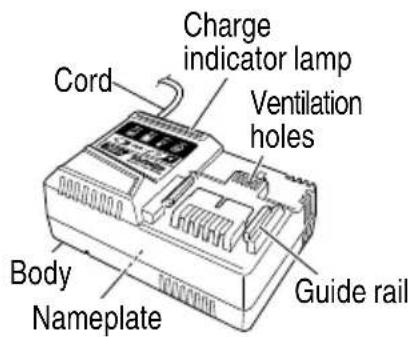

What is the battery charging procedure?

Plug the charger UC18YSL3 into a 120 V outlet. Insert the battery into the charger. The indicator flashes blue during charging and becomes solid green when charging is complete. Do not charge if the temperature is below -10 °C or above 40 °C.

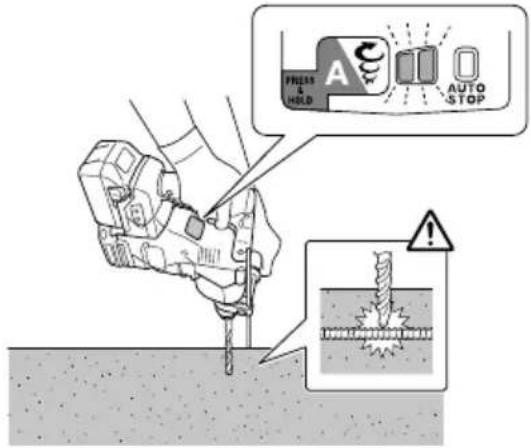

What to do if the tool stops suddenly during use?

This may be due to an overload or activation of the reactive force control (RFC). Release the trigger, eliminate the cause of the overload (e.g., stuck bit) and wait until the indicator stops flashing before resuming. If the battery is overheated, let it cool.

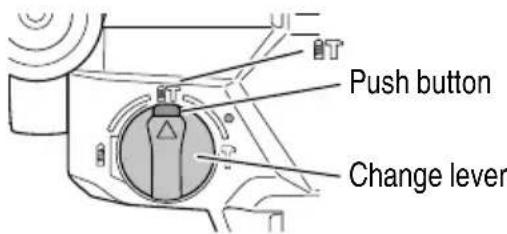

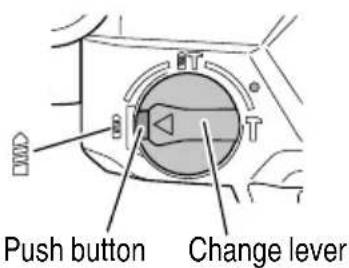

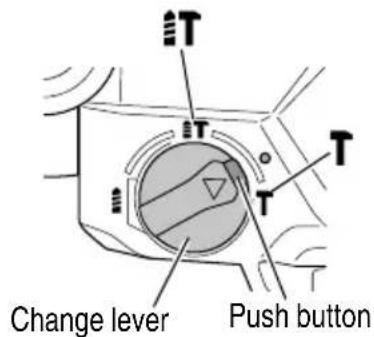

How to adjust the operating mode (drilling only, hammering only, combination)?

Turn the change knob after pressing the push button to unlock. Place the ▲ mark on the desired mode: T (hammering only), rotation + hammering or rotation only. Make sure the motor is stopped before changing mode.

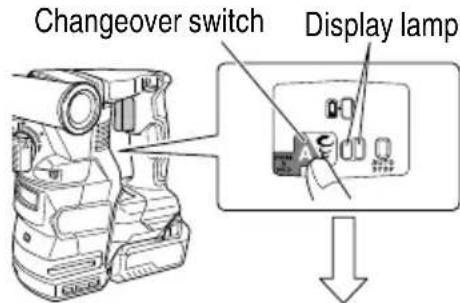

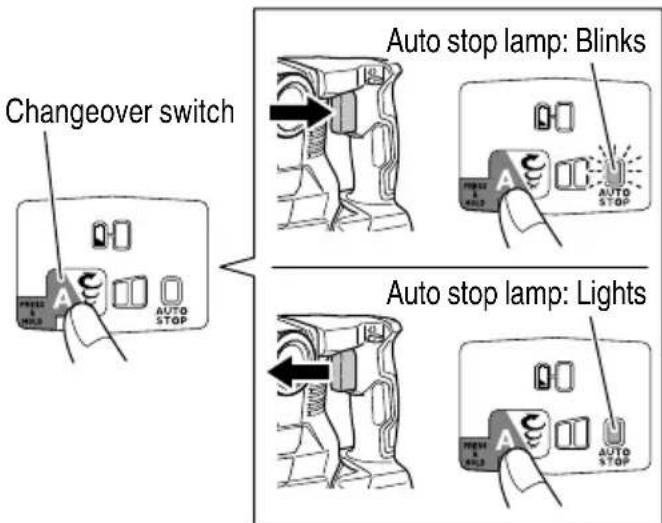

How to use the auto stop function?

Press the reversing switch for more than 2 seconds: the auto stop indicator flashes. Perform a drilling: the working time is memorized. During subsequent drillings, the tool stops automatically if the time exceeds the memorized duration. To cancel, press the reversing switch again for 2 seconds.

How to maintain the rotary hammer to extend its life?

Regularly clean the terminals of the battery and tool with a dry cloth. Replace the grease every year at an authorized center. Check the tightness of screws. Do not clean plastic parts with solvents; use a soft cloth and soapy water.

What to do if the battery does not charge or the indicator flashes purple?

This indicates a fault with the battery or charger. Make sure the battery is fully inserted and there are no foreign objects on the terminals. If the problem persists, contact an authorized metabo HPT service center.

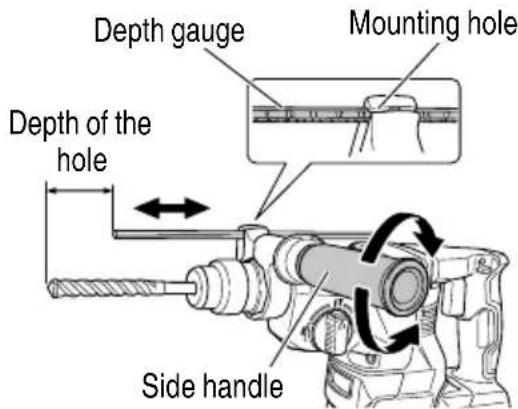

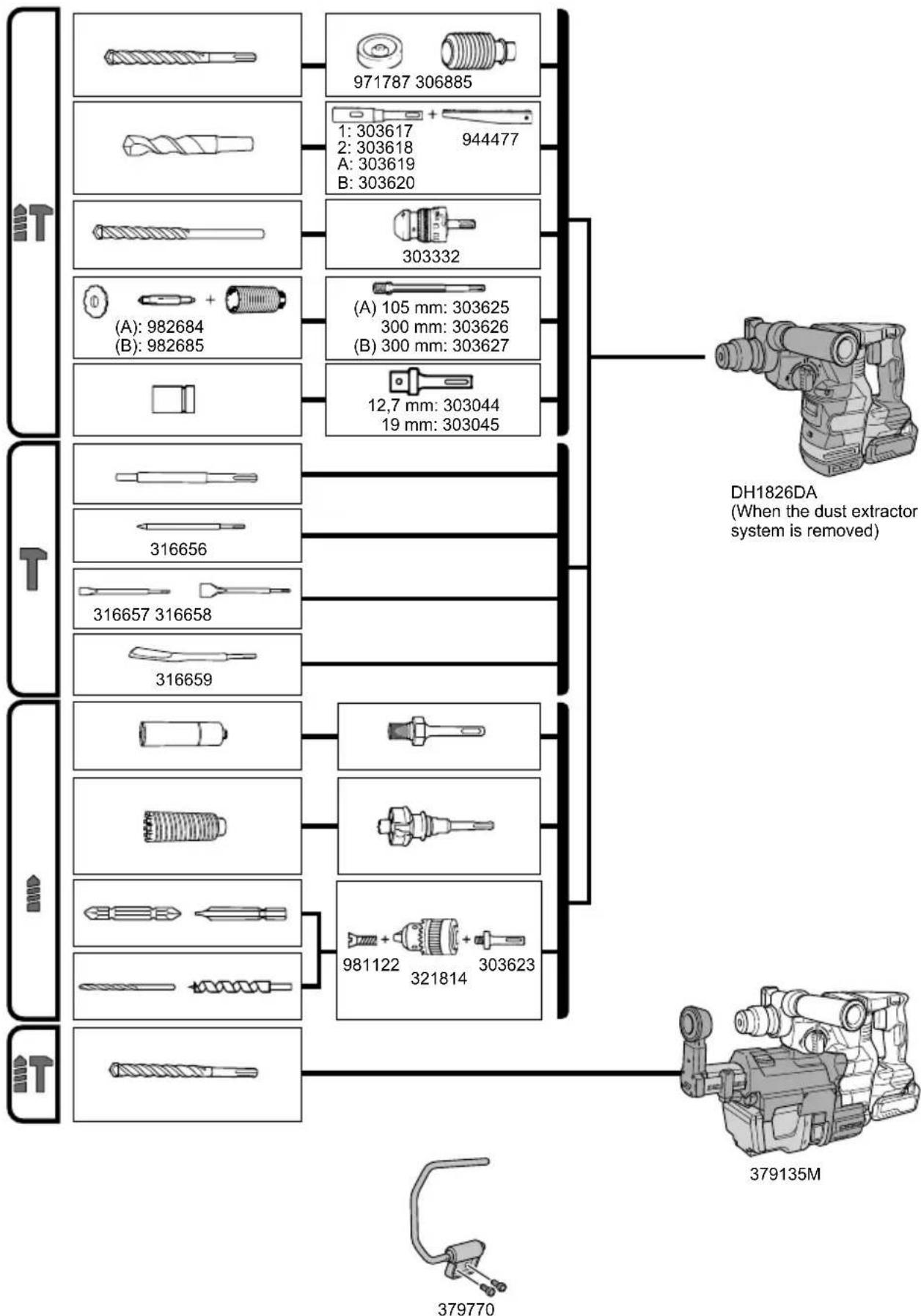

What accessories are supplied with the DH1826DA?

The tool is supplied with a side handle (code 335273) and a depth gauge (code 303709). The battery and charger are sold separately. Optional accessories are available: drill bits, chisels, dust cap, drill chuck, etc.

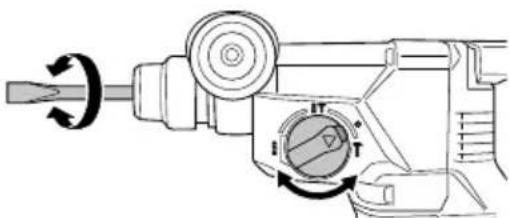

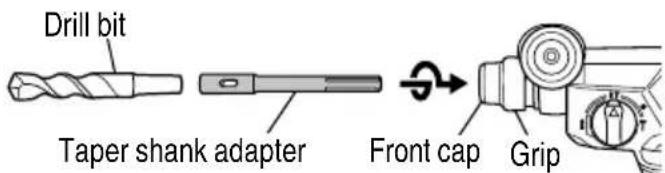

Can I use the tool in hammer-only mode for chiseling?

Yes, set the change knob to the T mark (hammering only). Adjust the chisel to the desired angle by placing the knob between the rotation mark and T, then lock on T. Use a grinding point or suitable chisel.

USER MANUAL DH1826DA HiKOKI

Technical line drawing of a mechanical drill bit with threaded shaft (no text or symbols)

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury! This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

AVERTISSEMENT

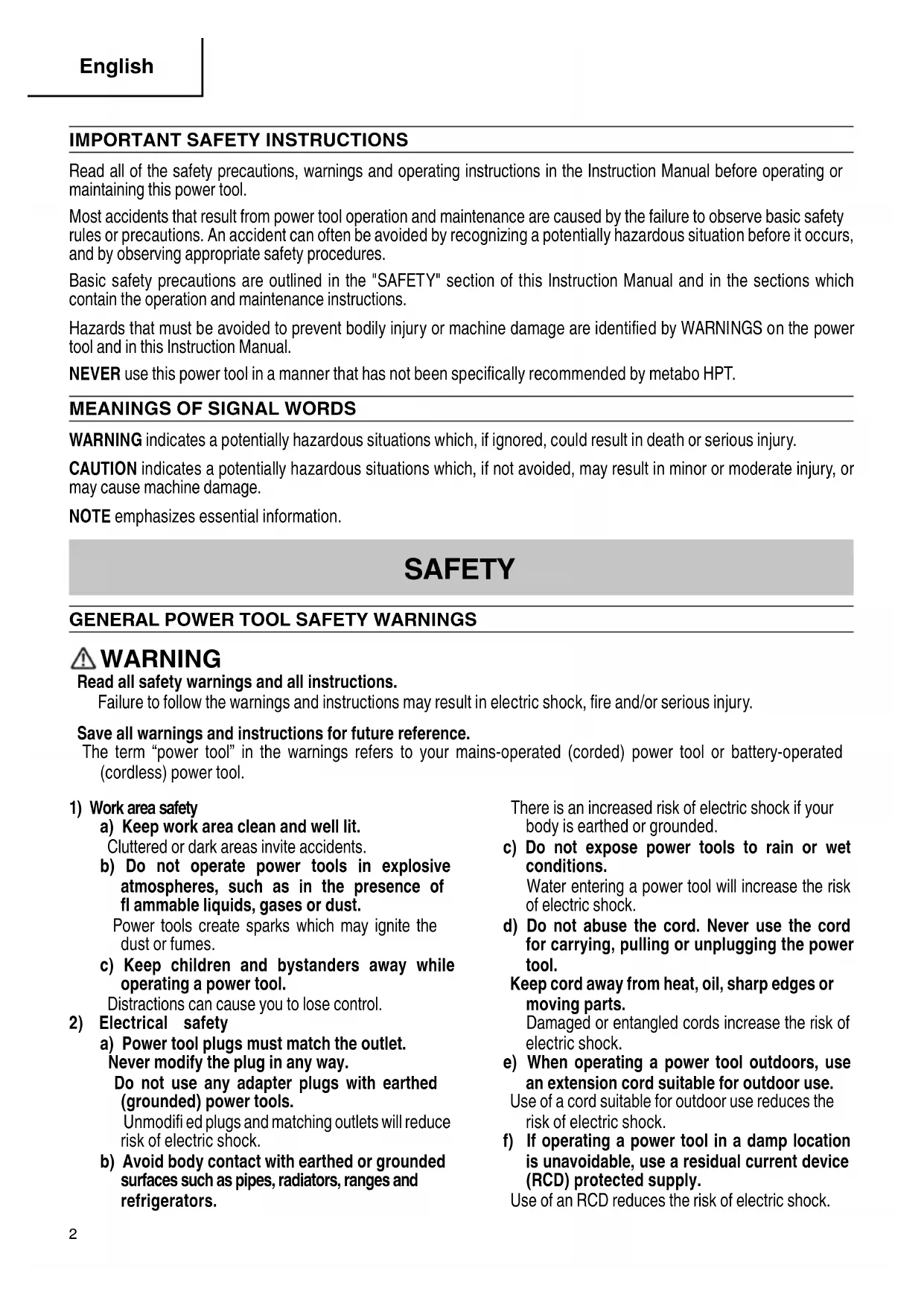

IMPORTANT SAFETY INSTRUCTIONS

Read all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool.

Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the "SAFETY" section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual.

NEVER use this power tool in a manner that has not been specifically recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

- WARNING -

To reduce the risk of injury, user instruction manual.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Wear ear protectors.

Exposure to noise can cause hearing loss.

1. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
2. Hold power tools by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring.

Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

1. NEVER touch the tool bit with bare hands after operation.
2. NEVER wear gloves made from materials likely to roll up such as cotton, wool, cloth or string, etc.

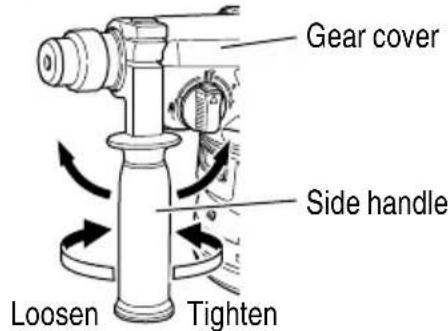

3. ALWAYS attach the side handle and securely grip the Rotary Hammer.
4. Never touch moving parts. NEVER place your hands, fingers or other body parts near the tool's moving parts.
5. Never operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

1. Use right tool.

Don't force small tool or attachment to do the job of a heavy-duty tool.

Don't use tool for purpose not intended —for example— don't use circular saw for cutting tree limbs or logs.

1. Never use a power tool for applications other than those specified.
   NEVER use a power tool for applications other than those specified in the Instruction Manual.
2. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool.

NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

1. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

1. Do not use power tools if the plastic housing or handle is cracked.
   Cracks in the tool's housing or handle can lead to electric shock. Such tools should not be used until repaired.
2. Bits and accessories must be securely mounted to the tool.
   Prevent potential injuries to yourself or others. Bits and accessories which have been mounted to the tool should be secure and tight.
3. Keep motor air vent clean.
   The tool's motor air vent must be kept clean so that air can freely flow at all times. Check for dust build-up frequently.
4. Because the cordless tool operates by battery power, be aware of the fact that it can begin to operate at any time.
5. NEVER use a tool which is defective or operating abnormally.

If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center.

1. NEVER leave tool running unattended. Turn power off.
   Don't leave tool until it comes to a complete stop.
2. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

1. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents.

Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

1. ALWAYS wear eye protection that meets the requirement of the latest revision of ANSI Standard Z87.1.

1. Do not use the product if the tool or the battery terminals (battery mount) are deformed. Installing the battery could cause a short circuit that could result in smoke emission or ignition.

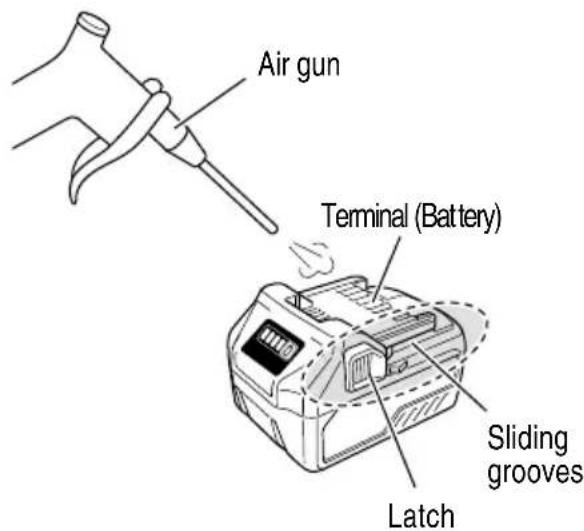

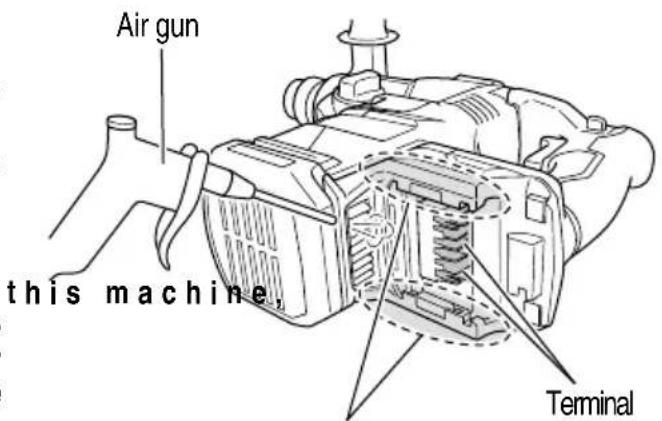

2. Keep the tool's terminals (battery mount) free of swarf and dust.

Prior to use, make sure that swarf and dust have not collected in the area of the terminals.
During use, try to avoid swarf or dust on the tool from falling on the battery.
When suspending operation or after use, do not leave the tool in an area where it may be exposed to falling swarf or dust.

Doing so could cause a short circuit that could result in smoke emission or ignition.

1. ALWAYS be careful with buried object such underground wiring.

Touching live wiring or electric cable with this tool may result in electric shock.

Confir rm before use whether hidden objects are present, such as electric cables within the wall, floor or ceiling.

1. Definitions for symbols used on this tool

V ......volts

==......direct current

no ......no load speed

---/min .....revolutions per minute

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING

Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

aTsisamanual contains important safety and operating instructions for battery charger Model UC18YSL3.

1. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. To reduce risk of injury, charge metabo HPT rechargeable battery type BSL36A18 and BSL18 series. Other type of batteries may burst causing personal injury and damage.
3. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.
4. To reduce risk of damage to electric plug and cord, pull by plug when disconnecting battery charger.
5. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
6. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock.

If extension cord must be used make sure:

a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger:
b. That extension cord is properly wired and in good electrical condition; and
c. That wire size is large enough for a rating of battery charger as specified in Table 1.

Table 1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS

AC Input Rating Amperes* AWG Size of Cord
Equal to or greater than	but less than	Length of Cord, Feet (Meter)
		25 (7.5)	50 (15)	100 (30)	150 (45)
0	2	18	18	18	16
2	3	18	18	16	14
3	4	18	18	16	14

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing rating by the voltage rating—for example:

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

1. Do not operate battery charger with damaged cord or plug-replace them immediately.

2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.

3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, unplug charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER

You must charge the battery before you can use the power tool. Before using the model UC18YSL3 battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual.

REMEMBER: USE ONLY metabo HPT BATTERY TYPE BSL36A18. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

WARNING

Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.
2. NEVER incinerate the battery, even if it is damaged or is completely worn out. The battery can explode in a fire.
3. NEVER short-circuit the battery.
4. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.
5. NEVER charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation.
6. NEVER charge when the temperature is below 14^ F ( -10^ C) or above 104^ F ( 40^ C).
7. NEVER connect two battery chargers together.
8. NEVER insert foreign objects into the hole for the battery or the battery charger.
9. NEVER use a booster transformer when charging.
10. NEVER use DC power to charge.
11. NEVER store the battery or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C) such as inside metal box or car.
12. NEVER expose the battery or battery charger to rain or wet conditions.
13. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.
14. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.
15. ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops.
   In such case, charge it up immediately.
2. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the battery power may stop.
   In this case, stop using the battery and let the battery cool. After that, you can use it again.

Furthermore, please heed the following warning and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.
   During work make sure that swarf and dust do not fall on the battery.
   ○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.
   Do not store an unused battery in a location exposed to swarf and dust.
   Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).
2. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.
3. Do not use an apparently damaged or deformed battery.
4. Do not use the battery for a purpose other than those specified.
5. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.
6. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.
7. Keep away from fire immediately when leakage or foul odor are detected.

8. Do not use in a location where strong static electricity generates.

9. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

10. Do not immerse the battery or allow any fluids to flow inside. Conductive liquid ingress, such as water, can cause damage resulting in fire or explosion. Store your battery in a cool, dry place, away from combustible and flammable items. Corrosive gas atmospheres must be avoided.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately.

If left untreated, the liquid may cause eye-problems.

1. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately.

There is a possibility that this can cause skin irritation.

1. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If an electrically conductive foreign terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fire. Please observe the following matters when storing the battery.

Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.
○ Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 3).

REGARDING LITHIUM-ION BATTERY TRANSPORTATION

When transporting a lithium-ion battery, please observe the following precautions.

WARNING

Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

• Lithium-ion batteries that exceed a power output of 100 Wh are considered to be in the freight classification of Dangerous Goods and will require special application procedures.
• For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

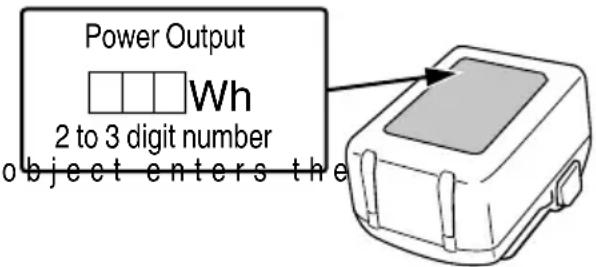

• If the BSL36B18 is installed in the power tool, the power output will exceed 100 Wh and the unit will be classified as Dangerous Goods for freight classification.

Power Output Wh 2 to 3 digit number object enters the

Fig. 1

SAVE THESE INSTRUCTIONS

AND

MAKE THEM AVAILABLE TO OTHER USERS

AND

OWNERS OF THIS TOOL!

FUNCTIONAL DESCRIPTION

NOTE

The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool.

NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.

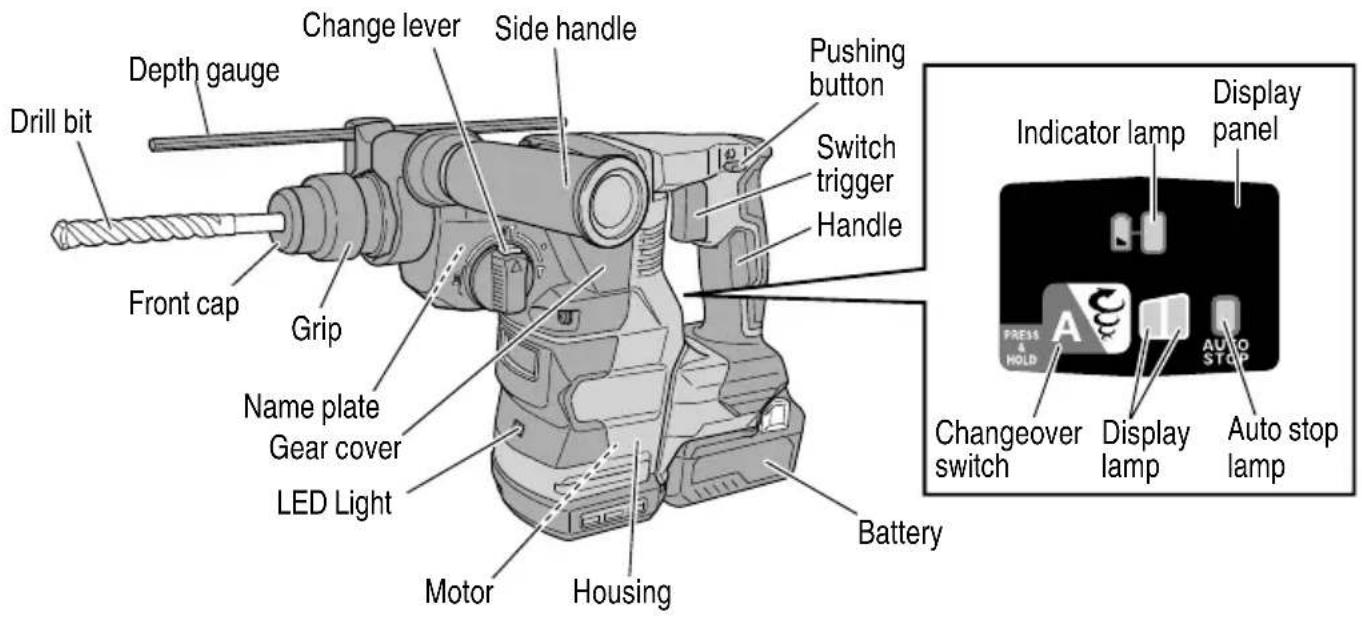

NAME OF PARTS

1. Cordless Rotary Hammer (DH1826DA)

Drill bit Depth gauge Change lever Side handle Pushing button Switch trigger Handle Front cap Grip Name plate Gear cover LED Light Motor Housing Battery Display panel Indicator lamp Auto stop lamp Changeover switch Display lamp

Fig. 2

2. Battery (BSL36A18) 3. Battery Charger (UC18YSL3)

Ventilation holes Battery cover Battery Latch Terminals

Fig. 3 Fig. 4

Charge indicator lamp Ventilation holes Cord Guide rail Body Nameplate

SPECIFICATIONS

1. Cordless Rotary Hammer

Model				DH1826DA
Voltage				18 V
No- Load speed 0–950 /min
Full- Load impact rate 0–4,300 /min
Capacity Drilling		Concrete		1-1/32" (26 mm)
		Steel 1/2" (13 mm)
		Wood		1-1/16" (27 mm)
Type of motor Fan-cooled DC brushless motor
Battery*	Type*			Li-ion battery Model BSL36A18
	Voltage DC 36 V / 18 V
Weight				8.4 lbs. (3.8 kg) (BSL36A18 attached)

* Existing batteries (BSL3660/3626/3620 and BSL14xx series, etc.) cannot be used with this tool.

1. Battery Charger

Model UC18YSL3
Input power source Single phase: AC 120 V 60 Hz
Charging time(At a temperature of 68°F (20°C))	BSL36A18 : Approx. 32 min
Charging voltage	DC 14.4 V–18 V
Charging current	DC 8.0 A
Weight	1.3 lbs. (0.6 kg)

ASSEMBLY AND OPERATION

APPLICATIONS

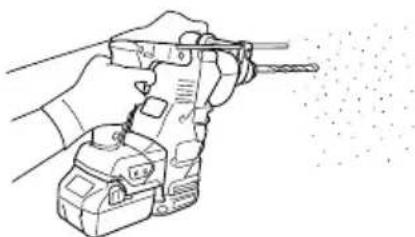

Rotation and hammering function

○ Drilling anchor holes

○ Drilling holes in concrete

○ Drilling holes in tile

Rotation only function

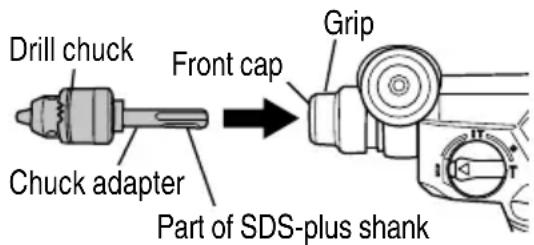

○ Drilling in steel or wood (with optional accessories)

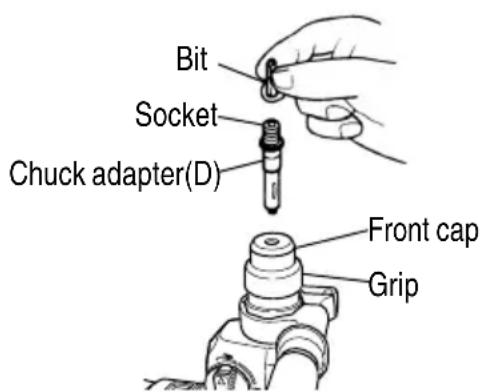

○ Tightening machine screws, wood screws (with optional accessories)

Hammering only function

○ Light-duty chiselling of concrete, groove digging and edging.

REMOVAL AND INSTALLATION METHOD OF BATTERY

1. Battery removal

Hold the handle tightly and push the battery latch to remove the battery (See Fig. 5).

CAUTION

Never short-circuit the battery.

1. Battery installation

Insert the battery while observing its polarities (see Fig. 6).

Battery Push Pull out Latch

Fig. 5

Insert

Fig. 6

CHARGING METHOD

NOTE

Before plugging into the receptacle, make sure the following points.

○ The power source voltage is stated on the nameplate.
○ The cord is not damaged.

WARNING

Do not charge at voltage higher than indicated on the nameplate.

If charged at voltage higher than indicated on the nameplate, the charger will burn up.

1. Connect the charger's power cord to a receptacle.

When the power cord is connected, the charge indicator lamp will blink in red. (At 1-second intervals)

WARNING

Do not use the electrical cord if damaged. Have immediately.

1. Insert the battery to the battery charger.

Insert the battery into the battery charger as shown in Fig. 7.

Battery Charge indicator lamp Guide rail

Fig. 7

1. Charging

When inserting a battery in the charger, the charge indicator lamp will blink in blue.

When the battery becomes fully recharged, the charge indicator lamp will light up in green. (See Table 2)

(1) Charge indicator lamp indication

The indications of the charge indicator lamp will be as shown in Table 2, according to the condition of the battery charger or the battery.

Table 2

Indications of the charge indicator lamp
Charge indicator lamp (RED / BLUE / GREEN / PURPLE)	Before charging	Blinks (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds.(off for 0.5 seconds)	Plugged into power source
	While charging	Blinks (BLUE)	Lights for 0.5 seconds. Does not light for 1 second.(off for 1 second)	Battery capacity at less than 50%
		Blinks (BLUE)	Lights for 1 second. Does not light for 0.5 seconds.(off for 0.5 seconds)	Battery capacity at less than 80%
		Lights (BLUE)	Lights continuously	Battery capacity at more than 80%
	Charging complete	Lights (GREEN)	Lights continuously(Continuous buzzer sound: about 6 seconds)
	Overheat standby	Blinks (RED)	Lights for 0.3 seconds. Does not light for 0.3 seconds.(off for 0.3 seconds)	Battery overheated. Unable to charge. (Charging will commence when battery cools)
	Charging impossible	Flickers (PURPLE)	Lights for 0.1 seconds. Does not light for 0.1 seconds.(off for 0.1 seconds)(Intermittent buzzer sound: about 2 seconds)	Malfunction in the battery or the charger

(2) Regarding the temperature of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the Table 3, and batteries that have become hot should be cooled for a while before being recharged.

Table 3

Rechargeable batteries	Temperatures at which the battery can be recharged
BSL36A18	32^ – 122^ (0^ – 50^)

(3) Regarding recharging time (At 68°F (20°C))

Table 4 Charging time

Battery\Charger	UC18YSL3
BSL36A18 Approx. 32 min

NOTE

The recharging time may vary according to the ambient temperature.

1. Disconnect battery charger from the receptacle.

CAUTION

Do not pull the plug out of the receptacle by pulling on the cord.

Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

1. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger.

NOTE

Be sure to pull out the battery from the battery charger after use, and then keep it.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times.

How to make the batteries perform longer

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION

• When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 rest until the next charging.
• If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the charge indicator lamp of UC18YSL3 charger lights for 0.3 seconds, does not light for 0.3 seconds (off for 0.3 seconds). In such a case, fi rst let the battery cool, then start charging.
• When the charge indicator lamp flickers (at 0.2-second intervals), check for and take out any foreign objects in the charger's battery installation hole. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

HOW TO RECHARGE USB DEVICE

When an unexpected problem occurs, the data in a USB device connected to this product may be corrupted or lost. Always make sure to back up any data contained in USB device prior to use with this product.

Please be aware that our company accepts absolutely no responsibility for any data stored in a USB device that is corrupted or lost, nor for any damage that may occur to a connected device.

WARNING

• Prior to use, check the connecting USB cable for any defect or damage. Using a defective or damaged USB cable can cause smoke emission or ignition.
  ○ When the product is not being used, cover the USB port with the rubber cover.

Buildup of dust etc. in the USB port can cause smoke emission or ignition.

NOTE

☐ The time required for charging will be longer when a USB device and battery are being simultaneously charged.
- There may be an occasional pause during USB recharging.
When a USB device is not being charged, turn the USB power switch OFF and remove the USB device from the charger.

Failure to do so may not only reduce the battery life of a USB device, but may also result in unexpected accidents.

(1) Select a charging method

Depending on the charge method selected, either the battery is inserted into the charger or the power cord is plugged into an outlet.

○ Charging a USB device by battery (Fig. 8-a)
○ Charging a USB device from a electrical outlet (Fig. 8-b)
○ Charging a USB device and battery from a electrical outlet (Fig. 8-c)

Simple line drawing of a device with a plug and cable, no text or symbols present

a

Diagram of a device with a plug and cable, no text or symbols present

b

Simple line drawing of a device with a bulb and plug, no text or symbols present

C
Fig. 8

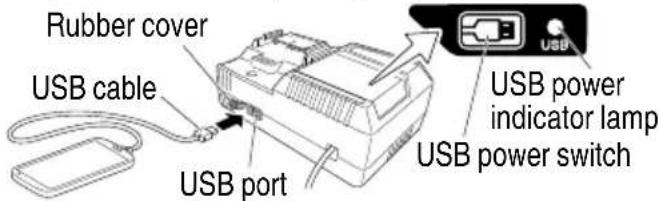

(2) Turn the USB power switch ON (Fig. 9) When you turn the USB power switch ON, the USB power indicator lamp will light up.

Rubber cover USB cable USB port USB power indicator lamp USB power switch

Fig. 9

(3) Connect the USB cable. (Fig. 9) Pull back the rubber cover and firmly plug commercially available USB cable (appropriate to the device being charged) into the USB port.

When the power cord is not plugged into an outlet and the battery runs out of power, power output will stop and the USB power indicator lamp will shut off.
When the USB power indicator lamp goes out, change the battery or plug the power cord into an electrical outlet.
(4) When charging is completed
- The USB power indicator lamp will not go out when a USB device has been completely charged. To verify charge status, check the USB device.
Turn the USB power switch OFF and unplug the power cord from the electrical outlet. (Fig. 9)
○ Remove the battery from the charger and place the rubber cover over the USB port.

BEFORE USE

Check the work area to make sure that it is clear of debris and clutter.

Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

PRIOR TO OPERATION

1. Confirming condition of the environment Confirm that the work site is placed under appropriate conditions conforming to prescribed precautions.
2. Attaching the side handle (Fig. 10)
   (1) Turn the grip of the side handle to loosen it and push it in until it comes in contact with the gear cover.

(2) Adjust the side handle to the angle that allows the easiest use, then turn the side handle's grip firmly to lock it place.

Gear cover Side handle Loosen Tighten

Fig. 10

in a

1. Mounting the drill bit (Fig. 11, 12)

WARNING

To prevent accidents, make sure to turn the switch off and disconnect the battery when the drill bits and other various parts are installed or removed.

NOTE

When using tools such as drill bits, etc., make sure to use the genuine parts designated by our company.

(1) Clean, then smear the shank portion of the drill bit with the grease or machine oil.
(2) Insert the drill bit in a twisting manner into the tool holder until it latches itself. (Fig. 11)

The grip need not be adjusted during bit installation.

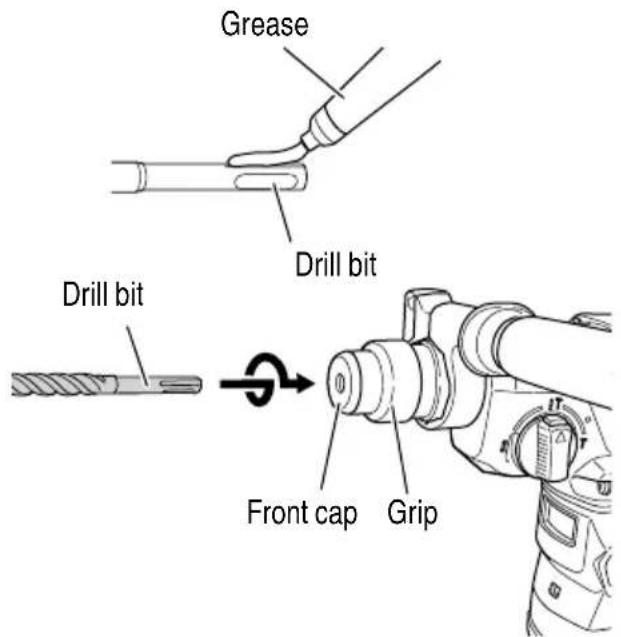

Grease Drill bit Drill bit Front cap Grip

Fig. 11

(3) Check the latching by pulling on the drill bit.

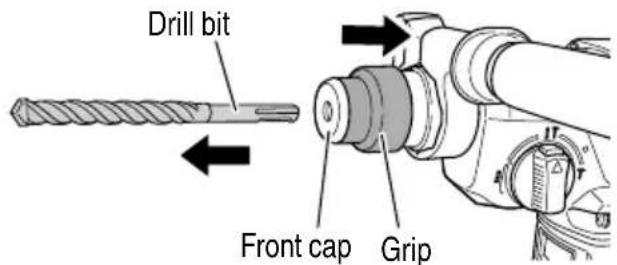

(4) To remove the drill bit, fully pull the grip in the direction of the arrow and pull out the drill bit. (Fig. 12)

Drill bit Front cap Grip

Fig. 12

1. Installation of dust cup or dust collector (B) (Optional accessories) (Fig. 13, Fig. 14)

When using a rotary hammer for upward drilling operations attach a dust cup or a dust collector (B) to collect dust or particles for easy operation.

○ Installing the dust cup

Use the dust cup by attaching to the drill bit as shown in Fig. 13.

When using a bit which has big diameter, enlarge the center hole of the dust cup with this rotary hammer.

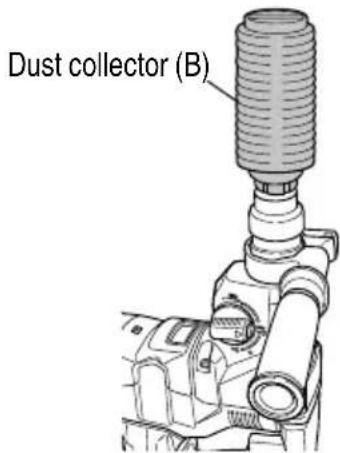

○ Installing dust collector (B)

When using dust collector (B), insert dust collector (B) from the tip of the bit by aligning it to the groove on the grip. (Fig. 14)

Dust cup

Fig. 13

Dust collector (B)

Fig. 14

CAUTION

1. Selecting the driver bit

● The dust cup and dust collector (B) are for exclusive use of concrete drilling work. Do not use them for wood or metal drilling work.
- Insert the dust collector (B) completely so that it fi ts tightly against the front cap.
- If the rotary hammer is switched on which dust collector (B) is not in contact with a concrete surface, the dust collector (B) may rotate together with the drill bit, causing the dust collector (B) to detach from the grip. Make sure to turn on switch after pressing dust cup on the concrete surface. When using dust collector (B) attached to a drill bit that has more than 7-15/32" (190 mm) of overall length, dust collector (B) cannot touch the concrete surface and will rotate. Therefore, please use dust collector (B) by attaching to drill bits which have 6-17/32" (166 mm), 6-19/64" (160 mm), and 4-21/64" (110 mm) overall length.
- Dump particles after every two or three holes when drilling.
- Please replace the drill bit after removing dust cup, dust collector (B).

Screw heads or bits will be damaged unless a bit appropriate for the screw diameter is employed to drive in the screws.

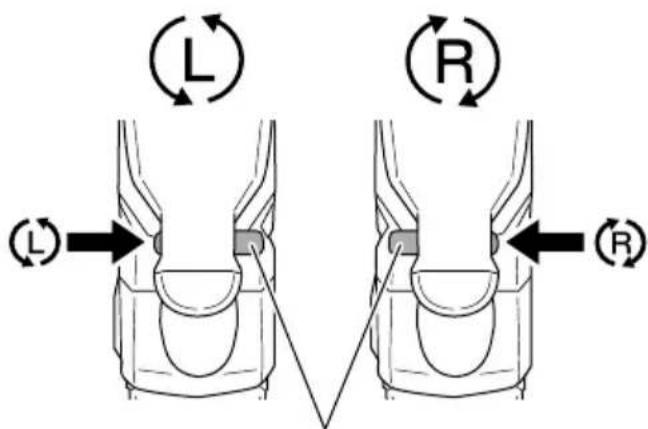

1. Confir rm the direction of bit rotation (Fig. 15)

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the pushing button. (Fig. 15) The L-side of the pushing button is pushed to turn the bit counterclockwise.

(L) (R)

Pushing button
Fig. 15

CAUTION

The pushing button cannot be switched while the power tool is turning. To switch the pushing button, stop the power tool, then set the pushing button.

7. About remaining battery indicator

You can check the battery's remaining capacity by pressing the remaining battery indicator switch to light the indicator lamp. (Fig. 16, Table 5)

The indicator will shut off approximately 3 seconds after the remaining battery indicator switch is pressed.

It is best to use the remaining battery indicator as a guide since there are slight differences such as ambient temperature and the condition of the battery.

Also, the remaining battery indicator may vary from those equipped to a tool or charger.

Table 5

State of lamp Battery Remaining Power
	Lights;The battery remaining power is over 75%
	Lights;The battery remaining power is 50%-75%.
	Lights;The battery remaining power is 25%-50%.
	Lights;The battery remaining power is less than 25%
	Blinks;The battery remaining power is nearly empty. Recharge the battery soonest possible
	Blinks;Output suspended due to high temperature. Remove the battery from the tool and allow it to fully cool down.
	Blinks;Output suspended due to failure or malfunction. The problem may be the battery so please contact your dealer.

As the remaining battery indicator shows somewhat differently depending on ambient temperature and battery characteristics, read it as a reference.

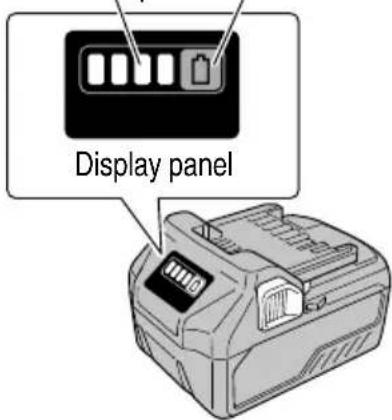

Remaining battery indicator lamp Remaining battery indicator switch

Display panel

Fig. 16

NOTE

Do not give a strong shock to the display panel or break it. It may lead to a trouble.

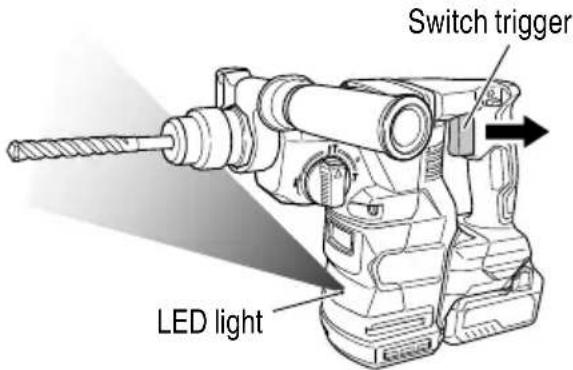

8. How to use the LED light

While the switch is pulled, the LED light will automatically light up the tip portion of the tool. (Fig. 17)

The LED light will automatically turn off 10 seconds after the switch is released.

Switch trigger LED light

Fig. 17

CAUTION

- Do not expose directly your eye to the light by looking into the light.

If your eye is continuously exposed to the light, your eye will be hurt.

● Wipe off any dirt or grime attached to the lens of the LED light with a soft cloth, being careful not to scratch the lens.

Scratches on the lens of the LED light can result in decreased brightness.

9. Selecting the function mode

You can switch functions to the 3 modes of "hammering only", "rotation + hammering", and "rotation only" by turning the change lever while pressing the push button. Set the ▲ mark position of the change lever to that of the mode to be used.

CAUTION

● Before operating the change lever, check and make sure that the motor has stopped.

A failure can occur if it is operated while the motor is running.
● To operate the change lever, press the push button, and release the lock of the change lever. Also, check and make sure after operation that the push button has returned and that the change lever has been locked.
- Switch the change lever without mistake.

If it is used at a position halfway, there is a fear that the service life of the switching mechanism may be shortened.

HOW TO USE

WARNING

To prevent accidents, make switch off and disconnect the battery when the drill bits and other various parts are installed or removed. The power switch should also be turned off during a work break and after work.

CAUTION

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. Therefore, if the tool is overloaded, the motor may stop. However, this is not the trouble but the result of protection function. In this case, release the switch of tool and eliminate the causes of overloading.

1. Switch operation
   When the switch trigger is depressed, the tool rotates. When the switch trigger is released, the tool stops.
   The rotational speed of the rotary hammer can be controlled by varying the amount that the switch trigger is pulled. Speed is low when the switch trigger is pulled slightly and increases as the switch trigger is pulled more.
   When releasing the switch trigger, the brake will be applied for immediate stopping.

2. Rotation + hammering

This rotary hammer can be set to rotation and hammering mode by pressing the push button and turning the change lever to the ⚪ mark (Fig. 18).

Push button Change lever

Fig. 18

(1) Mount the drill bit.
(2) Pull the trigger switch after applying the drill bit tip to the drilling position (Fig. 19).

Line drawing of a hand using a drill bit with motion lines indicating spray (no text or symbols)

Fig. 19

(3) Pushing the rotary hammer forcibly is not necessary at all. Pushing slightly so that drill dust comes out gradually is sufficient.

CAUTION

When the drill bit touches construction iron bar, the bit will stop immediately and the rotary hammer will react to revolve. Therefore please grip the side handle and handle tightly as shown in Fig. 19.

3. Rotation only

This rotary hammer can be set to rotation only mode by pressing the push button and turning the change lever to the mark (Fig. 20).

To drill wood or metal material using the drill chuck and chuck adapter (optional accessories), proceed as follows.

Installing drill chuck and chuck adapter. (Fig. 21)

Push button Change lever

Fig. 20

(1) Attach the drill chuck to the chuck adapter.
(2) The part of the SDS-plus shank is the same as the drill bit. Therefore, refer to the item of “Mounting the drill bit” for attaching it.

Drill chuck Chuck adapter Front cap Grip Part of SDS-plus shank

Fig. 21

CAUTION

• Do not apply excessive force during operation. Doing so will not only damage the tip of the drill bit, but also reduce the service life of the rotary hammer.
• Drill bits may snap off while withdrawing the rotary hammer from the drilled hole. For withdrawing, it is important to use a pushing motion.
• Do not attempt to drill anchor holes or holes in concrete with the machine set in the rotation only function.
• Do not attempt to use the rotary hammer in the rotation and striking function with the drill chuck and chuck adapter attached. This would seriously shorten the service life of every component of the machine.

4. When driving machine screws (Fig. 22)

First, insert the bit into the socket in the end of chuck adapter (D).

Next, mount chuck adapter (D) on the main unit using procedures described in 3 (1), (2), (3), put the tip of the bit in the slots in the head of the screw, grasp the main unit and tighten the screw.

Bit Socket Chuck adapter(D) Front cap Grip

Fig. 22

CAUTION

● Exercise care not to excessively prolong driving time, otherwise, the screws may be damaged by excessive force.
- Apply the rotary hammer perpendicularly to the screw head when driving the screw; otherwise, the screw head or bit will be damaged, or driving force will not be fully transferred to the screw.
- Do not attempt to use the rotary hammer in the rotation and striking function with the chuck adapter and bit attached.

5. When driving wood screws (Fig. 22)

(1) Selecting a suitable driver bit
Employ plus-head screws, if possible, since the driver bit easily slips off the heads of minus-head screws.
(2) Driving in wood screws.
Prior to driving in wood screws, make pilot holes suitable for them in the wooden board. Apply the bit to the screw head grooves and gently drive the screws into the holes.
○ After rotating the rotary hammer at low speed for a while until the wood screw is partly driven into the wood, squeeze the trigger more strongly to obtain the optimum driving force.

CAUTION

Exercise care in preparing a pilot hole suitable for the wood screw taking the hardness of the wood into consideration. Should the hole be excessively small or shallow, requiring much power to drive the screw into it, the thread of the wood screw may sometimes be damaged.

6. Hammering only

This rotary hammer can be set to hammering only mode by pressing the push button and turning the change lever to the T mark (Fig. 23).

Change lever Push button

Fig. 23

(1) Mount the bull point or cold chisel.
(2) Press the push button and set the change lever to middle of IT mark and T mark (Fig. 24).
The rotation is released, turn the cold chisel and adjust the cold chisel to desired position (Fig. 25).

IT IT T T Change lever Push button

Fig. 24

Technical line drawing of a mechanical tool with rotating components (no text or symbols)

Fig. 25

(3) Turn the change lever to T mark (Fig. 23). Then bull point or cold chisel is locked.
7. Using depth gauge (Fig. 26)
(1) Loosen the knob on the side handle, and insert the depth gauge into the mounting hole on the side handle.
(2) Adjust the depth gauge position according to the depth of the hole and thighten the knob securely.

Depth gauge Mounting hole Depth of the hole Side handle

Fig. 26

1. How to use the drill bit (taper shank) and the taper shank adapter

(1) Mount the taper shank adapter to the rotary hammer (Fig. 27).
(2) Mount the drill bit (taper shank) to the taper shank adapter (Fig. 27).
(3) Turn the switch ON, and drill a hole in prescribed depth.

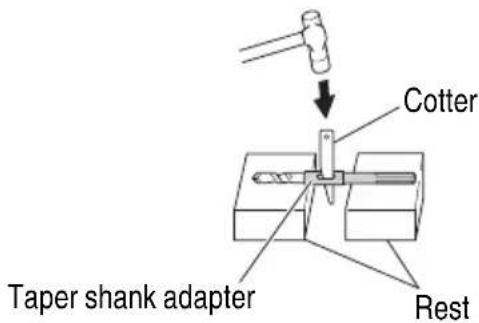

(4) To remove the drill bit (taper shank), insert the cotter into the slot of the taper shank adapter and strike the head of the cotter with a hammer supporting on the rests (Fig. 28).

Drill bit Taper shank adapter Front cap Grip

Fig. 27

Cotter Taper shank adapter Rest

Fig. 28

OPERATIONAL CAUTIONS

Resting the unit after continuous work

(1) The power tool is equipped with a temperature protection circuit to protect the motor.
Continuous work may cause the temperature of the unit to rise, activating the temperature protection circuit and automatically stopping operation.
If this happens, allow the power tool to cool before resuming use.
(2) After use for continuous works, rest the unit for 15 minutes or so when replacing the battery. The temperature of the motor, switch, etc., will rise if the work is started again immediately after battery replacement, eventually resulting in burnout.

Pressing the changeover switch allows the selection of rotation speed and the auto stop function.

○ Rotation speed (Low mode/Normal mode) (Fig. 29) Select either Low mode or Normal mode and operate the tool in the selected speed.

Changeover switch Display lamp

Lighting status of display lamp
Number of rotations (/min) 700 950
Number of impacts (/min) 3,170 4,300

Fig. 29

○ Auto stop mode (on/off) (Fig. 30)

This product is equipped with an auto stop fu to support continuous drilling work. The function features a memory mode for storing the work time for drilling from switch ON to switch OFF, and an auto stop mode that automatically stops the motor from the second drilling onward should the work exceed the stored work time while the switch is ON.

AUTO STOP FUNCTION

In selection mode, pressing the button for longer than two seconds will move to memory mode. (Fig. 30)

Changeover switch Auto stop lamp: Blinks Auto stop lamp: Lights

Fig. 30

(At the same time the auto stop lamp will blink.)

Conduct drilling when the auto stop lamp is flashing. The time between switching ON and switching OFF is stored by the tool.

Conduct drilling when the auto stop lamp is flashing. Continuous drilling is possible as the memory storage time will be recorded by the tool until the auto stop function auto stop mode is cancelled.

The auto stop function is cancelled by pressing the changeover switch once again for over two seconds. (At the same time, the auto stop lamp will switch off.)

CAUTION

○ Switch ON the tool once you place the tip of the tool on the work material.
○ The rotation speed and the level at which the switch is pulled during drilling is not stored to memory.
- Fully carry out drilling in one go during auto stop mode.
○ The motor will stop even if you switch OFF within the memory storage time.
When you switch OFF within the memory storage time, the count will be reset. If you rework a task in which a hole has been partially drilled, the memory storage time will be fully recounted.
○ The auto stop function will remain active until canceled.

REACTIVE FORCE CONTROL

This product is equipped with a Reactive Force Control (RFC) feature that reduces jerking of the tool body. If the tool bit is suddenly overburdened, any jerking of the tool body is reduced by activation of the slip clutch stopping of the motor by the sensor built into the tool body. If the motor is stopped because of overburdening detection by the controller, the RFC indicator lamp (display lamp) will blink while the switch is pulled. In addition, the lamp will continue blinking for approximately three seconds after the switch is released. The motor will remain stopped while the lamp is blinking. (Fig. 31)

Because the RFC feature may not activate or its performance may be insufficient depending on the working environment and conditions, be careful not to suddenly overburden the tool bit while operating.

● Possible causes of sudden overburdening
① Tool bit biting into material
② Impact against nails, metal or other hard objects
③ Tasks involving prying or any excess application of pressure, etc.

Also, other causes include any combination of the aforementioned.

- When the reactive force control (RFC) is triggered When the RFC is triggered and the motor stops, turn off the tool's switch and remove the cause of the overburdening before continuing operation.

PREM & HOLD AUTO STOP

Fig. 31

ABOUT THE PROTECTION FUNCTION

This tool has a built-in protection circuit for preventing damage to the unit in the event of an abnormality. Depending on the following, the display lamp and the indicator lamp will flash, and the unit will cease to operate. Verify the problem indicated by the flashing and take the necessary steps to correct the problem. When pressing the changeover switch, do so when the switch is not being pulled.

Changeover switch

PRESS & HOLD A AUTO STOP Display lamp

Fig. 32

Table 6

Display lamp fl ashing	Cause Solution
	Operation has ceased because the internal temperature has exceeded the temperature limit. (High temperature protection function)	Allow the unit to cool for 15 to 30 minutes. When the temperature goes down and the display lamp blinking stops, pull the switch trigger to recover operation.
	Sudden overburdening of the tool bit has activated the RFC, stopping further operation of the tool.RFC (See page 20 “REACTIVE FORCE CONTROL”)	Release the switch trigger and leave it until the display lamp blinking stops. Pull the switch trigger again to recover operation.Before continuing operation, remove the cause of the overburden.

NOTE

Despite taking steps to correct a problem, the display lamp may continue to blink. Should this be the case, the unit may require repair. If so, please contact the outlet from which this product was purchased for repairs.

MAINTENANCE AND INSPECTION

WARNING

Be sure to turned off the switch and remove the battery before maintenance and inspection.

1. Inspecting the tool
   Since use of as dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.
2. Check the Screws
   Loose screws are dangerous. Regularly inspect them and make sure they are tight.

CAUTION

Using this power tool with loosened, screws is extremely dangerous.

1. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool.

Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

1. How to replace grease

Low viscosity grease is applied to this rotary hammer so that it can be used for a long period without replacing the grease. Please contact the nearest service center for grease replacement when any grease is leaking from loosened screw. Further use of the rotary hammer despite the grease shortage causes seizure to reduce the service life.

CAUTION

A specific grease is used with therefore, the normal performance of the machine may be badly affected by use of other grease. Please be sure to let one of our service agents undertake replacement of the grease.

1. Inspection of terminals (tool and battery)

Check to make sure that swarf and dust have not collected on the terminals.

On occasion check prior, during and after operation.

CAUTION

Remove any swarf or dust which may have collected on the terminals.

Failure to do so may result in malfunction.

1. Cleaning on the outsider

When the power tool is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

1. Cleaning the battery installation compartment and the battery
   After drilling concrete, if concrete dust has accumulated on the battery installation compartment and the battery, clean off the accumulated concrete dust with an air gun or a dry cloth before using the tool. (Fig. 33)
   Also, after cleaning, ensure that the battery can be installed and removed smoothly from the tool.

CAUTION

Using the tool when the battery is covered with concrete dust may lead to accidents such as the battery falling during use.

Furthermore, such use may cause a malfunction or contact failure between the battery and the terminals.

Air gun this machine, Terminal

Battery sliding grooves

Air gun Terminal (Battery) Sliding grooves Latch

Fig. 33

8. Disposal of the exhausted battery

WARNING

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste offi cials for details in your area for recycling options or proper disposal.

9. Storage

Storing in a place below 104^ F ( 40^ C) and out of the reach of children.

NOTE

Storing lithium-ion batteries

Make sure the lithium-ion batteries have been fully charged before storing them.

Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, significantly reducing battery usage time or rendering the batteries incapable of holding a charge. However, significantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to five times.

If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

10. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY.

CAUTION

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

Important notice on the batteries for the metabo HPT cordless power tools

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

TROUBLESHOOTING GUIDE

WARNING

● To avoid injury from an accidental start, turn the switch OFF and remove the plug from the power source or remove the battery from the main body before making any adjustments.
● All electrical or mechanical repairs should be done only by qualified service technicians. Contact metabo HPT Authorized Service Center.

1. Power tool

Symptom Possible	cause Remedy
Tool doesn't run No remaining	battery power Charge the battery.
	Battery isn't securely attached. Push in the battery until a click is heard.
	Concrete dust has accumulated on the terminals of the battery installation compartment as well as on the battery sliding grooves.	Clean off the accumulated concrete dust with a dry cloth.
	The battery was attached while the switch trigger was ON.	Attach the battery when the switch trigger is OFF.
Tool suddenly stopped	Tool was overburdened	Remove the cause of the overburdening.See “Reactive force control”.
	Reactive force control was activated
	Battery or tool overheated	Allow the tool and battery to thoroughly cool.
Tool bits-can't be attached-fall off	The shape of the attachment portion doesn't match	For the SDS-plus shank type, use a bit with a diameter that is within the designated range.
Holes can't be smoothly drilled.	The drill is worn	Replace with a new drill.
	The drill is rotating in reverse.	Switch to forward rotation.
Screw head slip and comes loose	Bit number doesn't match with the screw size.	Install a suitable bit.
	The bit is worn.	Replace with a new bit.
Battery cannot be installed	Attempting to install a battery other than that specified for the tool.	Please install a multi volt type battery.

1. Charger

Symptom Possible	cause Remedy
The charge indicator lamp is rapidly flickers purple, and battery charging doesn't begin.	The battery is not inserted all the way.	Insert the battery firmly.
	There is foreign matter in the battery terminal or where the battery is attached.	Remove the foreign matter.
The charge indicator lamp blinks red, and battery charging doesn't begin.	The battery is not inserted all the way.	Insert the battery firmly.
	The battery is overheated. If left alone, the battery will automatically begin charging if its temperature decreases, but this may reduce battery life. It is recommended that the battery be cooled in a well-ventilated location away from direct sunlight before charging it.
Battery usage time is short even though the battery is fully charged.	The battery's life is depleted. Replace the battery with a new one.
The battery takes a long time to charge.	The temperature of the battery, the charger, or the surrounding environment is extremely low.	Charge the battery indoors or in another warmer environment.
	The charger's vents are blocked, causing its internal components to overheat.	Avoid blocking the vents.
	The cooling fan is not running. Contact a metabo HPT Authorized Service Center for repairs.
The USB power lamp has switched off and the USB device has stopped charging.	The battery's capacity has become low. Replace the battery with one that has capacity remaining.
USB power lamp does not switch off even though the USB device has finished charging.	The USB power lamp lights up green to indicate that USB charging is possible.	This is not a malfunction.
It is unclear what the charging status of a USB device is, or whether its charging is complete.	The USB power lamp does not switch off even when charging is complete.	Examine the USB device that is charging to confirm its charging status.
Charging of a USB device pauses midway.	The charger was plugged into an electrical socket while the USB device was being charged using the battery as the power source.	This is not a malfunction.The charger pauses USB charging for about 5 seconds when it is differentiating between power sources.
	A battery was inserted into the charger while the USB device was being charged using a power socket as the power source.
Charging of the USB device pauses midway when the battery and the USB device are being charged at the same time.	The battery has become fully charged. This is not a malfunction.The charger pauses USB charging for about 5 seconds while it checks whether the battery has successfully completed charging.
Charging of the USB device doesn't start when the battery and the USB device are being charged at the same time.	The remaining battery capacity is extremely low.	This is not a malfunction.When the battery capacity reaches a certain level, USB charging automatically begins.

ACCESSORIES

WARNING

ALWAYS use Only authorized metabo HPT replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool.

The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE

Accessories are subject to change without any obligation on the part of the metabo HPT.

STANDARD ACCESSORIES

DH1826DA(NN)

1 Side Handle Ass'y (Code No. 335273)....12 Depth gauge (Code No. 303709)....1

OPTIONAL ACCESSORIES (sold separately)

(1) Battery (BSL36A18)
(2) Battery Charger (UC18YSL3)

CONSIGNES DE SÉCURITÉ IMPORTANTES

Simple line drawing of a device with a plug and cable, no text or symbols present

a

Diagram of a device with a battery connected to an electrical outlet (no text or symbols visible)

b

Simple line drawing of a device with a battery connected to a screen (no text or symbols)

C
Fig. 8

L R L Bouton-poussoir R

Fig. 15

PRÉCAUTION

2. Rotation + percussion

Line drawing of a hand using a drill bit to drive a tool, with no text or symbols present.

Fig. 19

Technical line drawing of a mechanical tool with rotating components and directional arrows (no text or symbols)

Fig. 25

PRESS & HOLD AUTO STOP

Line drawing of a hand using a drill bit to drive a tool, with no text or symbols present.

Fig. 19

Technical line drawing of a mechanical tool with rotational arrows indicating motion (no text or symbols)

Fig. 25

PRESS & HOLD AUTO STOP

Fig. 31

Line drawing of a quill pen in an inkwell (no text or symbols)

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
  ● Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

AVERTISSEMENT:

Please contact Koki Holdings America Ltd. at 1-800-59-TOOLS (toll free), or metabo HPT AUTHORIZED POWER TOOL SERVICE CENTER regarding COLLECTION.

Pour le RAMASSAGE, contacter Koki Holdings America Ltd. au 1-800-59-TOOLS (appel gratuit), ou UN SERVICE APRÈS-VENTE D'OUTILS ÉLECTRIQUE AGRÉÉ PAR metabo HPT.

Minato-ku, Tokyo 108-6020, Japan

Distributed by

Koki Holdings America Ltd.

1111 Broadway Ave,

Braselton, Georgia, 30517

Koki Holdings America Ltd. Canadian Branch

3405 American Drive, Units 9-10,

Mississauga, ON, L4V 1T6

207

Code No. C99748061 F

Printed in China
