GTM 21 - GPS accessory GARMIN - Free user manual and instructions

Brand	GARMIN
Model	GTM 21
Category	GPS Accessory
Product Type	TMC FM Traffic Information Receiver
Power Supply	12V vehicle cigarette lighter socket
Main Functions	Reception of TMC traffic data, transmission to Garmin GPS, incident avoidance, LED status indicators
Connectivity	Power cable with specific connector for Garmin GPS
Indicators	Power indicator (lit) and status LED (flashing yellow, steady yellow, steady red, steady green)
Antenna	Integrated FM antenna, vertical mounting on windshield with suction cups
Installation	Plug into cigarette lighter socket, connect to GPS, position antenna on windshield
Compatibility	Garmin GPS compatible with power input and TMC reception
Subscription	Depending on region: free service, special or paid subscription; automatic activation upon satellite reception
Coverage	Areas where FM stations broadcast TMC data (check www.garmin.com/traffic)
Registration	On my.garmin.com
Maintenance and Cleaning	Clean with a soft dry cloth; avoid liquids
Safety	Follow the warnings in the provided Important Product and Safety Information guide
General Information	Accessory designed to provide real-time traffic information; Garmin disclaims any responsibility for the accuracy of the data

Frequently Asked Questions - GTM 21 GARMIN

How to connect the GTM 21 receiver to my Garmin GPS?

Disconnect the cigarette lighter cable from your GPS. Connect the GTM 21 receiver cable to the GPS power connector, then plug the other end into the vehicle's power outlet.

Where to place the GTM 21 antenna on the windshield?

Use the suction cups to position the antenna vertically on the windshield. It is recommended to place it a few centimeters from and parallel to the A-pillar.

What does the flashing yellow status LED mean?

A flashing yellow LED indicates that the receiver is determining the country you are in.

What to do if the LED stays steady red?

A steady red LED means a temporary loss of synchronization. Check that you are within range of an FM station broadcasting traffic data and that the receiver is properly powered.

How to know if my traffic information service subscription is active?

The subscription is automatically activated when your Garmin GPS acquires satellite signals while receiving traffic signals. You can check in your GPS traffic settings or consult the product packaging.

Can I use the GTM 21 without a subscription?

Depending on your region, the service may be free or require a subscription. Visit www.garmin.com/fmtraffic for available offers.

Why is my GPS not displaying traffic information?

Check that the receiver is properly connected and powered, that the LED is steady green (normal data), and that you are in a TMC coverage area.

How to register my GTM 21 receiver?

Go to the website http://my.garmin.com and follow the instructions to register your product.

Is the GTM 21 receiver compatible with all Garmin GPS devices?

The receiver is compatible with Garmin GPS devices that have a specific power connector and support TMC reception. Consult your GPS manual.

How to clean the GTM 21 receiver?

Use a soft dry cloth to clean the device. Avoid liquids and abrasive products.

USER MANUAL GTM 21 GARMIN

fm tmc traffic receiver

Close-up of a black automotive electrical plug with attached metallic components (no text or symbols visible)

instructions .... 1

instructions 6

istruzioni 11

anleitungen....16

instrucciones....21

instruções 26

instructies 31

instruktioner 36

ohjeet....41

instruksjoner 46

instruktioner....51

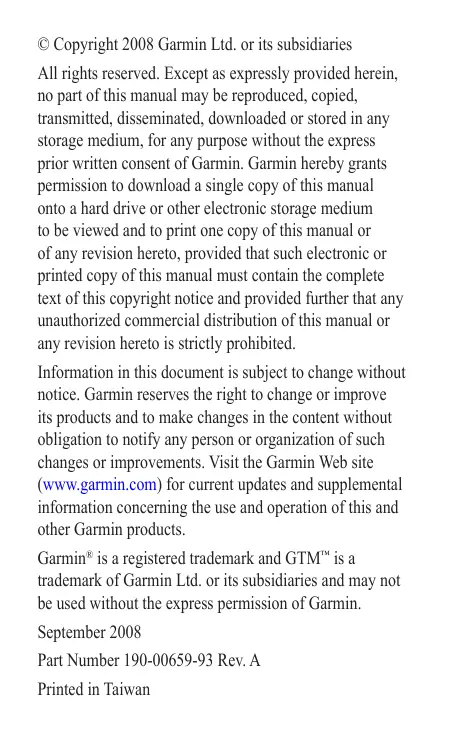

© Copyright 2008 Garmin Ltd. or its subsidiaries

All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products.

Garmin ^® is a registered trademark and GTM ^™ is a trademark of Garmin Ltd. or its subsidiaries and may not be used without the express permission of Garmin.

September 2008

Part Number 190-00659-93 Rev. A

Printed in Taiwan

GTM™ 21 Instructions

See the Important Safety and Product Information guide in the GPS device box for product warnings and other important information.

The Garmin ^® GTM 21 FM TMC Traffic Receiver receives Traffic Message Channel (TMC) information broadcast over the FM radio data system. When a traffic message is received, your Garmin GPS device can change your route to avoid the traffic incident. For coverage areas, refer to the Garmin Web site at www.garmin.com/traffic.

To receive traffic information, the traffic receiver must be connected to the GPS device, connected to an external power source, and the traffic receiver and GPS device must be in data range of an FM station transmitting TMC data.

NOTE: Garmin is not responsible for the accuracy of the traffic information.

Service and Subscription Information

Depending on your region, your traffic receiver receives traffic data through either a premium service or a free, public service. For information about your traffic service subscription, see the product packaging or the Traffic settings in the GPS device. The subscription activates automatically after your Garmin GPS device acquires satellite signals while receiving traffic signals from the service provider.

You can add other FM TMC subscriptions at any time. Check the Garmin Web site at www.garmin.com/fmtraffic for other available services.

Before mounting the traffic receiver, see the Important Safety and Product Information guide for information about laws pertaining to windshield mounting

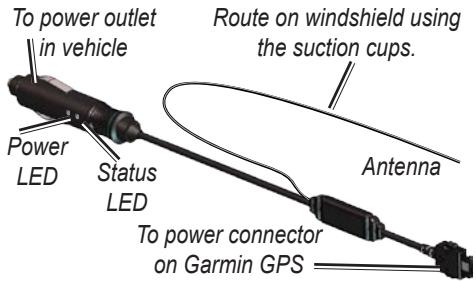

Connecting Your GTM 21

1. Remove the vehicle power cable from your Garmin GPS.
2. Connect the cable on the GTM 21 to the power connector on your Garmin GPS.
3. Plug the other end into a power outlet in your vehicle.
4. Use the suction cups to route the antenna vertically on the windshield. We recommend routing it a few inches away from, and parallel to, the A-pillar.

1. Route the cable so that it does not interfere with vehicle operating controls.

Testing the Traffic Receiver

Observe the LEDs on the GTM 21: When the GTM 21 is connected to power, the Power LED is on. The GTM 21 may take up to five minutes to acquire data.

The Status LED indicates the status of the GTM 21:

• Yellow dot-dash flashes: determining which country you are currently in.
  • Yellow solid light: searching for signal.
  • Red solid light: momentary signal loss.
• Green solid light: normal traffic data.

Check the Map: Check the map on the GPS device for traffic incidents or a traffic icon. Refer to the owner's manual.

Verify Signal Strength: If you are inside a garage where radio signals cannot be received, drive the vehicle outside.

Verify that you are in a service area: Check for service from the pay service or free or premium services.

Using Traffic Data with Your Garmin GPS Device

The traffic receiver works with your Garmin GPS device to show traffic flow and incident information, and to enable routing around traffic incidents. Although each GPS device operates differently, they all provide similar traffic information.

Register your Traffic Receiver

To register your traffic receiver, go to http://my.garmin.com.

Instructions relatives au GTM™ 21

For the latest free software updates (excluding map data) throughout the life of your Garmin products, visit the Garmin Web site at www.garmin.com.

© 2008 Garmin Ltd. or its subsidiaries

Garmin International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, USA

Garmin (Europe) Ltd. Liberty House, Houndown Business Park, Southampton, Hampshire, SO40 9RB UK

Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan

www.garmin.com

Part Number 190-00659-93 Rev. A
