GTM 36 - GPS accessory GARMIN - Free user manual and instructions

Product Type	GPS Accessory - TMC Traffic Information Receiver
Brand	Garmin
Model	GTM 36
Category	GPS Accessory
Main Function	Receives traffic information via TMC (Traffic Message Channel) broadcast on RDS FM
Technology	FM RDS (Radio Data System) Radio
Connectivity	Mini-USB port for connection to a Garmin GPS device
Power Supply	12V cigarette lighter adapter (included)
Internal Antenna	Yes, built-in
External Antenna	Optional, dedicated connector, suction cup included for windshield mounting
Compatibility	Garmin GPS devices equipped with a mini-USB port and supporting TMC traffic information
Data Display	Traffic symbol on the GPS Map page, traffic information and route avoidance
Coverage Area	Varies depending on FM stations broadcasting traffic information
Installation	Plug into the GPS and cigarette lighter, position the receiver without obstructing driving
Safety	Consult the Important Product and Safety Information guide provided with the GPS
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Warranty	Standard Garmin limited warranty. See www.garmin.com/support/warranty.html
Registration	Required at http://my.garmin.com with the 9-digit serial number

Frequently Asked Questions - GTM 36 GARMIN

How to connect the GTM 36 receiver?

First, disconnect the power cable from your GPS. Connect the small end of the GTM receiver to the mini-USB port of the GPS, then plug the receiver's cigarette lighter adapter into a vehicle power outlet.

Why am I not receiving traffic information?

Make sure you are in an area covered by an FM station broadcasting TMC data. Move away from tall buildings and covered garages. If necessary, connect the external antenna to improve reception.

What is the traffic coverage area?

Coverage depends on FM stations broadcasting TMC information. Check www.garmin.com/fmtraffic for available areas.

How to install the external antenna?

Connect the external antenna to the designated connector on the GTM receiver. Mount it vertically on the windshield using the provided suction cups, without obstructing the driver's view.

What does the receiver power indicator mean?

When the GTM receiver is connected to a power source, the indicator lights up to show it is powered. If the indicator does not light up, check the connection to the cigarette lighter.

How to check my traffic service subscription?

On your Garmin GPS, go to Tools > Settings > Traffic > Subscriptions and select your subscription to view details. Depending on the region, the service may be free or subscription-based.

Does the GTM 36 work with all Garmin GPS devices?

It is compatible with Garmin GPS devices that have a mini-USB port and support TMC traffic data. Check compatibility in your GPS manual.

How to register my GTM 36 receiver?

Go to http://my.garmin.com and enter the 9-digit serial number located on the receiver label. Registration activates the warranty and allows you to receive updates.

Do metallic windshields affect reception?

Yes, some windshields (metal) can generate heat and affect receiver performance. Use the external antenna in this case.

Where to find warranty information for the GTM 36?

The standard Garmin limited warranty applies. See details at www.garmin.com/support/warranty.html or in the product guide.

USER MANUAL GTM 36 GARMIN

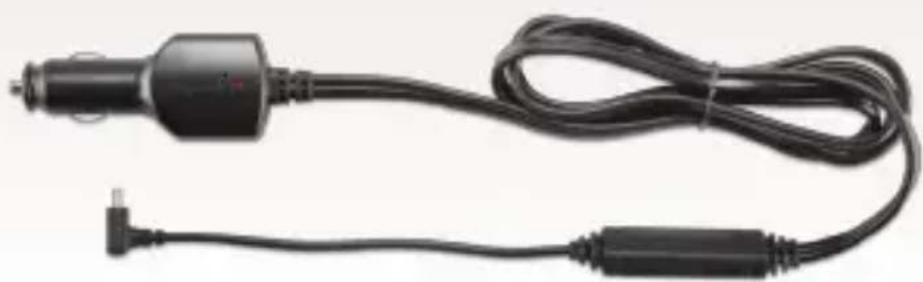

GTM™ 30 series traffic receiver

Black cable with two connectors, one connected to a terminal terminal (no text or symbols visible)

Instructions 2-5

Instructions 6–9

Istruzioni 10–13

GTM™ 30 Series Instructions

The Garmin GTM delivers Traffic Message Channel (TMC) information, including road conditions and traffic delays, to your GPS device. When traffic information is received, your GPS device displays traffic delays on the map. This information is used to avoid traffic delays and find the fastest routes.

The traffic information is broadcast over the FM Radio Data System (RDS). For coverage areas, refer to the Garmin Web site at www.garmin.com/fmtraffic.

NOTE: The GTM and the GPS device must be in data range of an FM station transmitting TMC data to receive traffic information.

NOTE: Garmin is not responsible for the accuracy of the traffic information. The GTM receives signals from the traffic service provider and displays that information on your GPS device.

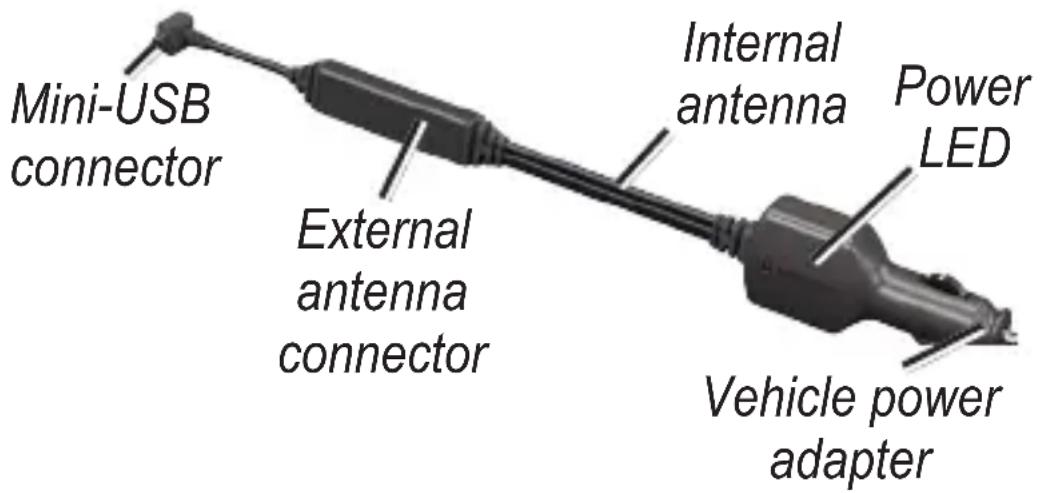

Connecting Your GTM

WARNING

See the Important Safety and Product Information guide in the GPS device product box for product warnings and other important information.

1. Remove the power cable from your GPS device.
2. Connect the small end of the GTM to the mini-USB port on your GPS device.

1. Plug the vehicle power adapter on the GTM into a power outlet in your vehicle.

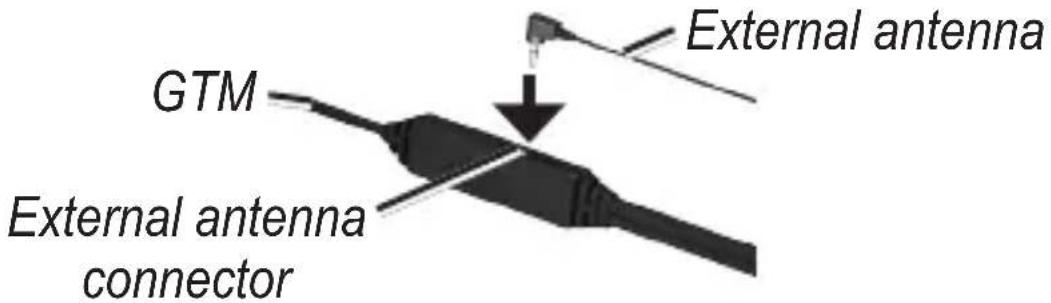

2. The internal antenna is sufficient in strong signal areas. An external antenna may have been included in the product box. To increase the signal range, connect the external antenna to the GTM. Use the attached suction cups to route the external antenna on the windshield vertically, if possible. Be sure not to obstruct the driver's view.

1. Route the GTM so that it does not interfere with vehicle operating controls.
2. For added support, attach the additional suction cup anywhere on the GTM.

The GTM may take up to five minutes to acquire data.

When the GTM is connected to power, the LED turns on.

Viewing Traffic Information

When the device has acquired data, appears on the map page of your GPS device.

From the map, select

See the product documentation for your GPS device for more information.

TIP: If you have trouble receiving traffic information, you may be in a poor signal area. Drive your vehicle to an open area, out of garages and away from tall buildings. Connect the external antenna, if necessary.

NOTE: Heated (metallized) windshields could degrade the performance of the GTM.

Verifying Your Service Area

Touch Tools > Settings > Traffic (> Subscriptions), and select a subscription to check service information.

Service and Subscription Information

Depending on your region, your traffic receiver receives traffic data through either a premium service or a free, public service. For information about your traffic service subscription, see the product packaging or the traffic settings in the GPS device. The subscription activates automatically after your Garmin GPS device acquires satellite signals while receiving traffic signals from the service provider.

You can add other FM TMC subscriptions at any time. Go to www.garmin.com/fmtraffic.

Registering Your GTM

To register your GTM, go to http://my.garmin.com and enter the 9-digit serial number printed on the tag attached to the GTM.

Warranty Information

Garmin's standard limited warranty applies to this accessory. Go to www.garmin.com/support/warranty.html.

Garmin® and the Garmin Logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. GTM™ is a trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. RDS-TMC Traffic Information Services France © ViaMichelin 2006.

© 2011 Garmin Ltd. or its subsidiaries

Garmin International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, USA

Garmin (Europe) Ltd. Liberty House, Houndown Business Park, Southampton, Hampshire, SO40 9LR UK

Garmin Corporation No. 68, Jangshu 2nd Road, Sijhih, Taipei County, Taiwan (R.O.C.)

www.garmin.com

Part Number 190-01314-91 Rev. B September 2011 Printed in Taiwan
