Ferro - Food Processor Homekraft - Free user manual and instructions

Product type	Food processor
Brand	Homekraft
Model	Ferro
Power supply	220-240 V ~, 50/60 Hz, 562-800 W
Main bowl capacity	1200 ml
Blender capacity	1500 ml
Mill capacity	250 ml
Main functions	Slicing, chopping, kneading, beating, whisking, blending, citrus juicing, grinding
Included accessories	Slicer, kneader, beater, whisk, grating discs (fine and coarse), thin blade, thick blade, citrus juicer, blender, mill, spatula, pusher, cups
Max continuous operating time	4.5 to 6 minutes
Mandatory rest time before restart	At least 20 minutes
Safety	Safety lock prevents operation if parts are not properly assembled
Body material	Plastic and stainless steel (blades)
Cleaning	Motor unit: damp cloth; other parts: hand wash (not dishwasher), brush blades carefully
Intended use	Household only
Manufacturer reference	4Kraft Sp. z o.o.

Frequently Asked Questions - Ferro Homekraft

Can the food processor blend hot liquids?

No, never process hot or boiling liquids. Let them cool before blending to avoid splashing.

How long can I use the food processor continuously?

Continuous operation must not exceed 4.5 to 6 minutes. Then, let it cool for at least 20 minutes before using again.

Can I wash the parts in the dishwasher?

No, no component is dishwasher safe. Wash the accessories by hand under running water, except the motor unit which is wiped with a damp cloth. Use a brush for sharp blades.

How to correctly install the bowl?

Place the bowl on the motor unit, handle to the right, then turn clockwise until the locking click. The food processor will only operate if all parts are correctly assembled.

Can the food processor grind meat?

Yes, use the slicer (part 16) to grind meat. Maximum capacity: 500 g of meat, duration 30 seconds.

What to do if the motor does not start?

Check that all parts are correctly locked: the bowl, lid, and accessories must be engaged until the click. The safety lock prevents starting if incorrectly assembled.

Can I use the blender without the lid?

No, the lid (with or without the measuring cup) must always be in place before operating the blender to avoid splashes.

How to clean the mill blades?

Use the provided brush carefully as the blades are very sharp. Never wash the blades with bare hands.

Can the food processor be used by children?

Yes, from 8 years old under supervision. Children must not play with the appliance and cleaning must not be done by children without supervision.

What to do if my food processor becomes discolored from carrots?

Plastic parts may discolor from contact with colored foods. Before cleaning, rub them with a little vegetable oil to reduce discoloration.

USER MANUAL Ferro Homekraft

HOMEKRAFT Robot kuchenny FERRO

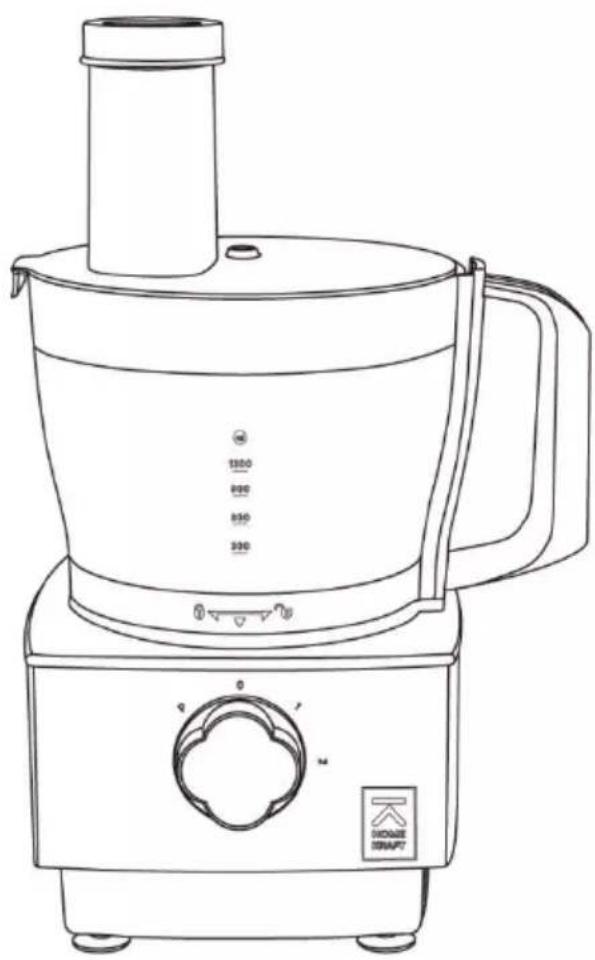

Line drawing of a modern kitchen blender with handle and control panel (no text or symbols)

PL INSTRUKCJA OBSŁUGI

Line drawings of a blender with three views: top, side, and bottom (no text or symbols)

B.

Line drawings of various kitchen appliances including a blender, blender, and blender (no text or labels)

C.

Line drawings of four different kitchen appliances: blender, fan, blender, and blender (no text or symbols)

D.

Line drawing of a kitchen blender with lid, handle, and base (no text or symbols)

E

Line drawing of a blender with three views: top view, front view, and side view (no text or symbols)

F.

Simple line drawing of a device with a top component and a base unit (no text or symbols)

G.

Simple line drawing of a fork and cup (no text or symbols)

Read this manual, keep it and provide to the next user, when the device is passed to another person. Remove the packaging before use.

IX. SAFETY GUIDELINES

Follow the safety guidelines, including the following:

This device may be used by children of at least 8 years of age, people with reduced physical or mental capabilities and people with a lack of experience and knowledge, if they are provided with supervision or instructions on using the device in a safe manner, so that the associated risks are understood. Children should not play with the equipment. Unsupervised children should not perform cleaning and maintenance works on the device. Keep the device and the power cord out of the reach of children.

Before leaving the device unattended and before its assembling, disassembling, or cleaning, always unplug it from the mains. Before replacing components of the device or additional parts that are in motion during its operation, always switch off power supply and remove the plug from the wall socket.

Improper use of the device may cause injury.

The device can be used only when the electric power cord and the device itself are not damaged. If the power cord is damaged, it should be replaced by the manufacturer, its technical service or a specialist repair shop in order to avoid a hazard.

When emptying the contents and during the cleaning be especially careful with sharp cutting edges.

Never process hot or boiling liquids. Before processing, leave them to cool. Liquids may splash during mixing.

Never immerse the mixing tip in fluids above its connexion with the body of the device.

The body of the device must be never immersed in any fluids or washed in the dishwasher.

The device is suitable only for grating or blending food products. During food processing do not use objects or substances other than those recommended by the manufacturer.

Do not use accessories other than those supplied with the device.

The mixing cup is not suitable for microwave ovens.

Risk of injury caused by sharp blades / rotating drives! Never touch the tip of the mixing blade. Do not wash the blade with bare hands. Use a brush to clean it.

NOTE! FERRO FOOD PROCESSOR IS EQUIPPED WITH SPECIAL LOCKS THAT PREVENT SWITCHING THE DEVICE ON IN CASE OF IMPROPER ASSEMBLY OF ITS PARTS!

FOR DOMESTIC USE ONLY!

Do not operate the motor for longer than 4,5 - 6 minutes, as it may overheat. After this time, turn it off for at least 20 minutes, or until the motor cools down.

X. TECHNICAL SPECIFICATIONS

Power supply parameters: 220V-240V \~, 50/60Hz, 562-800 W

Allowable time of continuous operation: 4,5 – 6 minutes

Required interruption before re-starting the operation: 20 minutes

ITEM NO.	DESCRIPTION
1	Base with motor
2	Drive axle
3	Container (1200 ml)
4	Container cover
5	Cover inlet
6	Pusher
7	Security lock
8	Switch for turning ON / switching programs
9	Grinder (250 ml)
10	Small measuring cup of the blender
11	Cover of the blender cup
12	Blender cup (1500 ml)
13	2x seals for blender holders

ITEM NO.	DESCRIPTION
14	Holder of the grinder blade
15	Handle of the blender blade
16	Chopper
17	Masher
18	Mixer
19	Whisk
20	Insert for fine grating
21	Insert for coarse grating
22	Bracket for inserts
23	Thin blade
24	Thick blade
25	Basket of the juicer with a squeezing element
26	Spatula

XI. Selecting a program for each function

Accessories	Functions	Program	Maximum capacity	Maximum operation time
Chopper	- grinding of meat, - cutting vegetables, - preparing stuffing - shredding vegetables and meat at the same time (first insert meat, then vegetables)	21-22	500 g of meat500 g of meat	30 seconds
Plastic stirrer	- preparing dough	2	500 g of flour, 280 ml of water	60 seconds
Inserts for cutting / grinding / grating	Cutting / grinding / grating of food and vegetables, such as carrots, cheese	1-2	1200 ml	60 seconds
Blender	- preparing shakes, soups, jams	1-2	1200 ml	60 seconds
Juice squeezer	- preparing juice	1	1200 ml	60 seconds
Grinder	- grinding spices, coffee	2	200 g	30 seconds

XII. USE

Before the first use, wash the device.

WORKING WITH CHOPPER/MASHER (FIGURE B.)

• preparing: juices, sauces, soups and creams
• grating soft ingredients such as fruit, vegetables

• preparing food for children.

• Connect the drive axle (2) to the base with the motor (1).

• Place the container [1200 ml] (3) on the base with motor (1) to locate the container holder on the right side and turn it clockwise, until the lock clicks.
• Attach the chopper (16) on the drive axle (2) which is inside the container

[1200 ml] (3).

1. Insert the selected products into the container.
2. Place the cover (4) onto the 1200 ml container (3), and rotate it clockwise until the lock clicks
3. Connect the device to a mains socket.
4. Turn on the food processor by setting the switch on the selected program.

NOTE! THE FOOD PROCESSOR IS EQUIPPED WITH SPECIAL LOCKS THAT PREVENT SWITCHING THE DEVICE ON IN CASE OF IMPROPER ASSEMBLY OF ITS PARTS!

You may add individual ingredients through the inlet (5), which is located on the container cover.

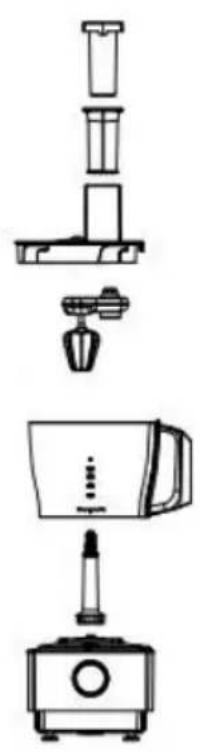

WORKING WITH WHISKS/PLASTIC STIRRER (FIGURE C.)

• whisking eggs,

• kneading dough (soft),

• Connect the drive axle (2) to the base with the motor (1).

• Place the container [1200 ml] (3) on the base with motor (1) and turn it clockwise, until the lock clicks.
• Attach the whisks (16) on the drive axle (2) which is inside the container [1200 ml] (3).
• Break and pour the eggs into the container.
• Place the cover (4) onto the 1200 ml container (3), and rotate it clockwise until the lock clicks
• Connect the device to a mains socket.
• Turn on the food processor by setting the switch on the selected program.

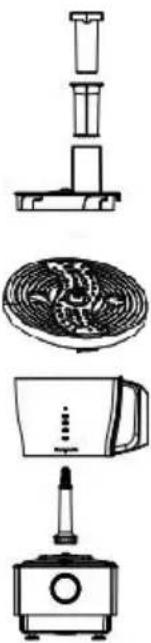

WORKING WITH SELECTED INSERT FOR GRATING/SHREDDING (FIGURE D.)

• shredding of vegetables, fruit, meat,
• grinding of meat,

• grating carrots,

• Connect the drive axle (2) to the base with the motor (1).

• Place the container [1200 ml] (3) on the base with motor (1) and turn it clockwise, until the lock clicks.
• Connect the selected insert (20), (21), (23), (24) with the bracket for inserts (22).
• NOTE! Perform this carefully, as inserts are very sharp!

• Place the bracket for inserts (22) with the selected insert onto the drive axle (2).

• Place the cover (4) onto the 1200 ml container (3), and rotate it clockwise until the lock clicks

• Connect the device to a mains socket.
• Turn on the food processor by setting the switch on the selected program.

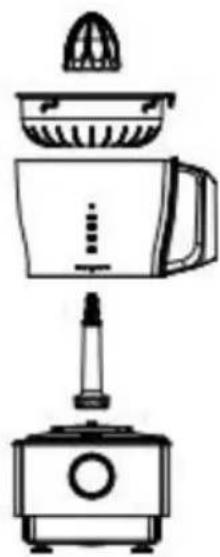

WORKING WITH JUICE SQUEEZER (FIGURE E.)

- for squeezing citrus,

1. Connect the drive axle (2) to the base with the motor (1).
2. Place the container [1200 ml] (3) on the base with motor (1) and turn it clockwise, until the lock clicks.
3. Attach the basket of the juice squeezer (25) with the squeezing element to the drive axle (2) and turn it clockwise, until the lock clicks.
4. Connect the device to a mains socket.
5. Turn on the food processor by setting the switch on the selected program.
6. Start squeezing citrus.

WORKING WITH THE BLENDER (FIGURE F.)

- for preparing mousses and smoothie

1. Connect the holder with the blade (15) and with the blender seal (13). Then, insert into the blade holder (15) the blender cup (12) and rotate it clockwise direction until it stops.
2. Place the blender cup (12) with the blade holder (15) on the base with motor (1) and turn it clockwise, until the lock clicks.
3. Insert selected products into the blender cup.
4. Place the cover (11) with the measuring cup (10) on the blender cup.
5. Connect the device to a mains socket.
6. Turn on the food processor by setting the switch on the selected program.

NOTE! You may add ingredients through the inlet, which is located on the cover (11) of the blender cup.

WORKING WITH THE GRINDER (FIGURE G.)

- to grind coffee and spices

1. Insert selected herbs/spices or coffee beans into the grinder (9).
2. Connect the holder with the blade (14) and with the seal (13). Then, insert into the blade holder (14), the grinder (9) and rotate it clockwise direction until it stops.

3. Place grinder (9) with the blade holder (14) on the base with motor (1) and turn it clockwise, until the lock clicks.

4. Connect the device to a mains socket.

5. Turn on the food processor by setting the switch on the selected program.

Before cleaning, disconnect the unit from the wall socket.

1. Wipe the base of the food processor with the motor using a damp cloth.
2. The mixing whisk may rinsed with running water, but it should not be immersed in water or washed in a dishwasher.
3. Clean he blender cup, grinder and the container manually with running water and leave upside down until dry.
4. Holders with the blades, inserts for grating and chopping, chopper and whisk should be cleaned with a brush attached to the set, observing extreme caution, as all these elements are very sharp!
5. None of the components of the set is suitable for washing in a dishwasher.
6. When processing food products of distinctive colours (e.g. carrots), some parts of the device may become stained. Wipe these parts with vegetable oil before cleaning them.

STORAGE

The device should be stored in a cool, dry place away from moisture and sunlight.

EXPLANATION OF SYMBOLS

The symbol of crossed-out rubbish bin placed on the equipment, packaging or the attached documents indicates that the product must not be disposed of together with other waste.

The user shall provide worn equipment to a designated collection point for proper processing. Information on the available system of collecting electrical equipment waste may be found at the customer service of a store and at the municipal office of the city / municipality. Each household uses electrical and electronic equipment, and thus it is a potential source of waste dangerous for humans and the environment, as this kind of equipment includes hazardous substances, mixtures and components. On the other hand, worn-out equipment is a valuable material that may be a source of recyclable materials such as copper, tin, glass, iron and other.

Appropriate disposal of your old appliance will help to prevent negative consequences for the environment and human health!

The product suitable for food contact

60-413 Poznań, Poland
