PIXMA E3440 - Printer CANON - Free user manual and instructions

Product Type	Inkjet multifunction printer (print, copy, scan)
Dimensions (W x D x H)	435 x 327 x 145 mm
Weight	3.6 kg
Power supply	AC 100-240 V, 50/60 Hz
Power consumption	Approx. 10 W (printing), 0.8 W (standby)
Main functions	Print, copy, scan
Print technology	Thermal inkjet
Maximum print resolution	4800 x 1200 dpi
Print speed	7.7 ipm (black), 4.0 ipm (color)
Ink type	FINE cartridges (black and color)
Input tray capacity	60 sheets (plain paper)
Output tray capacity	25 sheets
Connectivity	USB 2.0, Wi-Fi (IEEE 802.11b/g/n)
Display	None (LED buttons)
Maintenance and cleaning	Use a soft, dry cloth; alignment and cleaning of print heads via software
Safety	Auto power off, overheat protection
Spare parts and repairability	Ink cartridges, power cord; online troubleshooting, professional repair recommended
General information	Brand Canon, model PIXMA E3440, compatible with Windows/macOS, Canon PRINT app for smartphone, 1-year warranty

Frequently Asked Questions - PIXMA E3440 CANON

How to install the ink cartridges?

Open the cover, lower the lock lever on the left, remove the color FINE cartridge from its packaging and remove the protective tape. Insert it into the cartridge holder and raise the lever. Repeat for the black cartridge on the right. The screen should display '0' to confirm.

How to connect the printer to a smartphone?

Install the Canon PRINT Inkjet/SELPHY app from the App Store or Google Play. Open the smartphone's Wi-Fi settings, select the network starting with Canon_ij_, then open the app and follow the instructions to add the printer.

How to connect the printer to a computer?

Go to https://ij.start.canon, select Setup, enter the model name PIXMA E3440, click Start then Connect to a computer/smartphone. Download the file and run it, following the on-screen instructions.

What to do if the screen shows an error code like 'E > 0 > 4'?

Refer to the If one of the following screens appears section of the manual. For example, 'E > 0 > 4' indicates a cartridge issue. Make sure the cartridges are correctly installed and that the protective material has been removed.

How to load paper?

Open the paper support, slide the paper guide to the left, load several sheets against the right edge with the print side facing up, then adjust the guide. Select the paper size with the Select paper button and press OK.

How to align the print head?

If lines are skewed or colors uneven, perform a print head alignment. Access the Maintenance menu in the Online Manual and follow the instructions to align the head.

The printer does not print, what should I do?

Check that the printer is powered on, the cartridges have ink, the paper is loaded correctly, and there is no jam. Consult the Online Manual for error codes.

How to clean the print head?

Use the print head cleaning function from the printer software or the Canon PRINT app. This solves issues of faintness or streaks.

How to replace an empty cartridge?

Open the cover, lower the lock lever of the empty cartridge, remove it. Take the new cartridge out of its packaging, remove the protective tape, insert it, and raise the lever. The screen should confirm the installation.

How to clear a paper jam?

Turn off the printer, open the cover, and gently remove the jammed paper. Make sure no pieces remain. Close the cover and turn the printer back on. Consult the Online Manual for more details.

USER MANUAL PIXMA E3440 CANON

Read Safety and Important Information (addendum) first.

Icon showing a printer with a paper airplane and a document, symbolizing file transfer or sync (no text present)

Installing the Printer......page 1

Two white icons: a laptop and a smartphone, on a solid red background (no text or symbols)

Connecting to a Computer, Smartphone or Tablet......page 4

Line drawing of a printer with hands holding the lid (no text or symbols)

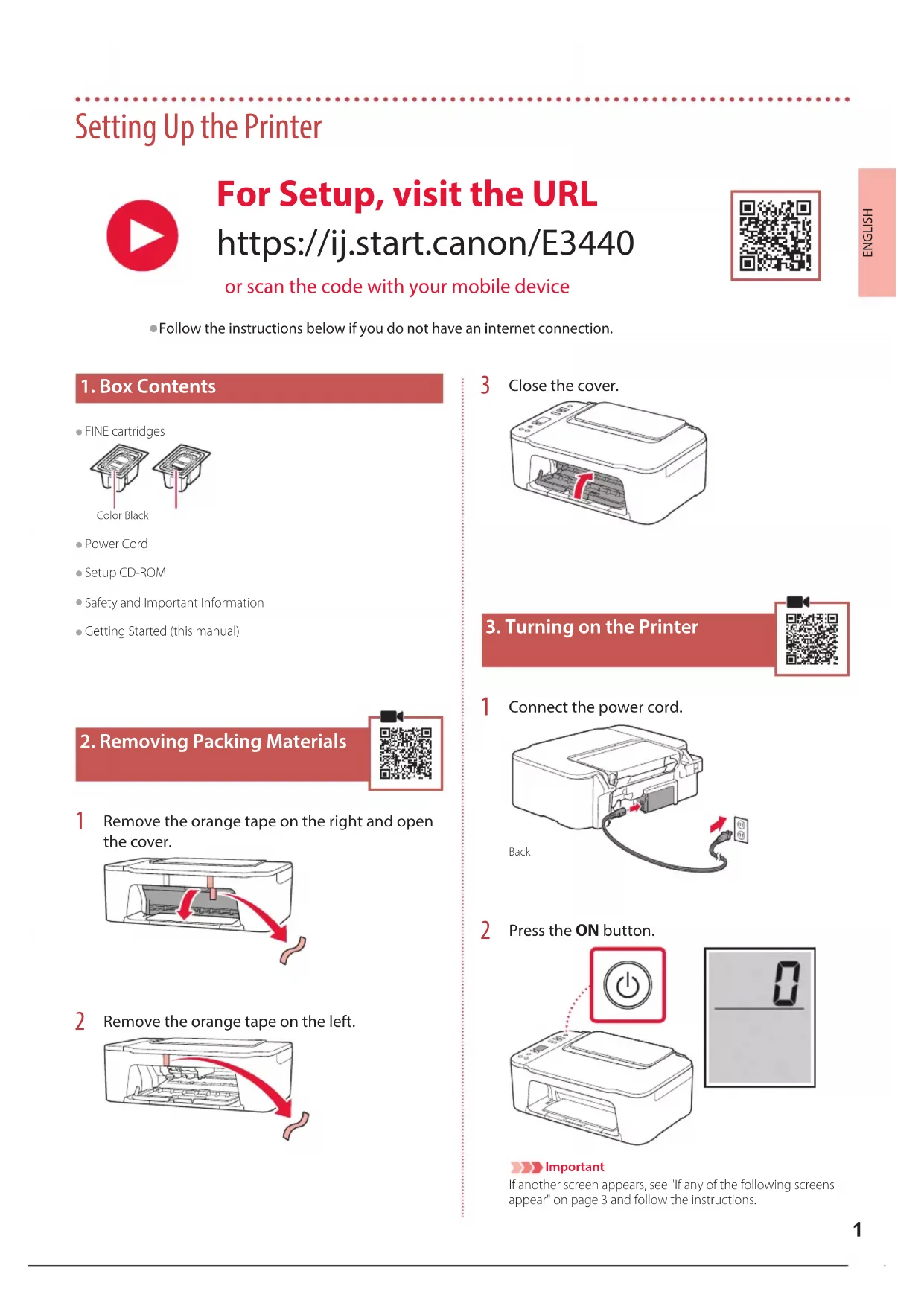

Setting Up the Printer

For Setup, visit the URL

https://ij.start.canon/E3440

or scan the code with your mobile device

- Follow the instructions below if you do not have an internet connection.

1. Box Contents

• FINE cartridges

Color Black

Power Cord
- Setup CD-ROM
• Safety and Important Information
- Getting Started (this manual)

2. Removing Packing Materials

1 Remove the orange tape on the right and open the cover.

Diagram of a printer with red arrows indicating process flow (no text or symbols)

2 Remove the orange tape on the left.

Diagram of a printer internal structure with red arrows indicating flow direction (no text or symbols)

3 Close the cover.

Diagram of a printer with internal structure and red arrow indicating rotation (no text or symbols)

3. Turning on the Printer

1 Connect the power cord.

Diagram of a device with cable and connector, showing connection to a wall-mounted power outlet (no text or symbols)

2 Press the ON button.

Important

If another screen appears, see "If any of the following screens appear" on page 3 and follow the instructions.

Setting Up the Printer

4. Installing the FINE Cartridges

1 Open the cover.

Do not touch the FINE cartridge holder until it stops moving.

2 Lower the ink cartridge lock lever on the left-hand side.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

3 Remove the Color FINE cartridge from the package and remove the protective tape.

Important

• Do not touch the ink on the protective tape. It could stain your hands or surrounding objects.
• Do not touch the areas shown in the figure. Otherwise, the printer may not print correctly.

4 Insert the Color FINE cartridge in the FINE cartridge holder.

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols)

Important

Do not bump the FINE cartridge. Doing so may cause a malfunction.

5 Raise the ink cartridge lock lever.

6 Repeat steps 2 to 5 and install the Black FINE cartridge on the right-hand side.

Technical line drawing of a mechanical component with no visible text or symbols

7 Close the cover.

Line drawing of a printer with internal structure and red arrow indicating rotation (no text or symbols)

8 Check that the following screen appears.

Important

If E > 0 > 4 appears on the screen, see "If any of the following screens appear" on page 3 and follow the instructions.

Select the connection method that best matches how you will use the printer.

• To use the printer without connecting to any other devices

→ Setup is now complete.

• To use the printer connecting to a computer or smartphone

→ Proceed to the next page.

If any of the following screens appear

Numbers or letters

Check the screen, and then follow the corresponding instructions below.

Install the FINE cartridges.

→ "4. Installing the FINE Cartridges" on page 2

Protective material remaining.

→ "2. Removing Packing Materials" on page 1

FINE cartridges are not installed correctly.

→ "4. Installing the FINE Cartridges" on page 2

For all other cases, refer to the Online Manual.

Setting Up the Printer

What device are you connecting?

Computer Smartphone

Computer and smartphone

5-a

Connecting to a Computer

If you are using multiple computers, perform these steps on each computer.

1 Access the Canon website from your computer.

https://ij.start.canon

2 Select Set Up.
3 Enter your printer's model name and click Go.
4 Click Start.
5 Click (B) Connecting to a Computer/Smartphone.

• The following steps are for Windows users.

6 Click Download.
7 Run the downloaded file.

• Follow the on-screen instructions.
• These operations may take some time.
- To connect to a smartphone as well, see "5-b. Connecting to a Smartphone" on page 5.

Using the Setup CD-ROM

Double click EasySetup.exe in the CD-ROM, and then continue from step 3. If you do not have an internet connection, open the win folder in the CD-ROM and double click SETUP.exe. This will install the printer driver.

5-b

Connecting to a Smartphone

If you are using multiple smartphones, perform these steps on each smartphone.

1 Install the "Canon PRINT Inkjet/SELPHY" app on your smartphone.

• Search for "Canon PRINT" in App Store, or Google Play.

- Access the Canon website to download the app.

2 Open your smartphone's Wi-Fi settings. Check that the network name (SSID) that starts with "Canon_ij_" appears.

(Example of iOS screen)

The network name (SSID) that starts with "Canon_ij_"

• If "Canon_ij_" appears - Proceed to step 3.
• If "Canon_ij_" does not appear - Proceed to step

3 Tap the network name (SSID) that starts with "Canon_ij_".
4 Open the installed app, and follow the on-screen instructions in the app to add your printer.

Once you have added your printer, you can print from your smartphone.

To print photos, see "Loading Paper" on page 6.

Loading Paper

1 Open the paper support.

Illustration of a printer with a red arrow indicating the process (no text or symbols present)

2 Slide the paper guide to the left.

Technical diagram showing a mechanical component with an arrow indicating direction, alongside a close-up view of a device (no text or symbols present)

3 Load several sheets of paper against the right edge with the print side facing up and align the paper guide to the width of the paper.

4 Press the Paper Select button, select a paper size, and then press the OK button.

5 Extend the paper output tray, and open the output tray extension.

Two-step diagram showing a printer's internal structure before and after processing, with no text or symbols present.

- Look at it from the side to confirm it looks like the diagram.

Line drawing of a mechanical component or housing with handle and base (no text or symbols)

If Print Results Are Unsatisfactory

Perform Print Head Alignment if straight lines are crooked or colors are inconsistent, or print results are otherwise not what you expected.

For details, click Maintenance on the Online Manual and refer to If Printing Is Faint or Uneven > Aligning the Print Head. Refer to the back cover for how to access the Online Manual.

■ Lines Are Misaligned

■ Uneven or Streaked Colors

Configuration de l'imprimante

https://ij.start.canon/E3440

Diagram of a printer with red arrows indicating process flow (no text or symbols)

Diagram of a printer internal structure with red arrows indicating flow direction (no text or symbols)

3 Fermez le capot.

Diagram of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Important

Diagram showing a mechanical component before and after assembly, with a red arrow indicating a downward motion (no text or symbols present)

Important

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

Important

Cross-sectional diagram of a mechanical component with layered sections (no text or symbols)

7 Fermez le capot.

Line drawing of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Illustration of a printer with an open lid and red arrow indicating rotation (no text or symbols)

Technical diagram showing a mechanical assembly with a red arrow indicating direction, no visible text or symbols

Diagram showing two steps of a printer or printer device with a red arrow indicating rotation, no text or symbols present.

Line drawing of a rectangular container with side handles (no text or symbols)

https://ij.start.canon/E3440

Diagram of a printer with red arrows indicating compression or disassembly process (no text or symbols)

2 Odstranite oranžni trak na levi strani.

Diagram of a printer's internal structure with a red arrow indicating compression or disassembly (no text or symbols present)

3 Zaprite pokrov.

Diagram of a printer with internal structure and red arrow indicating a component (no text or symbols)

3. Vklop tiskalnika

1 Priključite napajalni kabel.

2 Pritisnite gumb VKLOP (ON).

Pomembno

Diagram showing a mechanical component before and after disassembly, with no visible text or symbols

Pomembno

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols)

Pomembno

Pazite, da s kartušo FINE ne udarite ob kaj. V nasprotnem primeru lahko pride do okvare.

6 Ponovite korake od 2 do 5 in namestite črno kartušo FINE na desno stran.

Technical line drawing of a mechanical component with three stacked parts (no text or symbols)

7 Zaprite pokrov.

Line drawing of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Illustration of a printer with an open lid and red arrow indicating rotation (no text or symbols)

2 Vodilo za papir pomaknite v levo.

Technical diagram showing a mechanical component with an arrow indicating direction, alongside a magnified inset of a device (no text or symbols present)

4 Pritisnite gumb Izbira papirja (Paper Select), izberite velikost papirja, nato pa pritisnite gumb OK.

Diagram showing two steps of a printer or printer device with red arrows indicating motion, no text or symbols present.

Line drawing of a rectangular container with side handles (no text or symbols)

Če rezultati tiskanja niso zadovoljivi

Če so ravne črte natisnjene ukrivljeno, barve neskladne ali so rezultati tiskanja kako drugače nepričakovani, opravite postopek Poravnava tiskalne glave (Print Head Alignment).

https://ij.start.canon/E3440

Diagram of a printer with red arrows indicating compression or disassembly process (no text or symbols)

Diagram of a device interior with a red arrow indicating flow or movement, showing internal structure without any text or symbols.

Diagram of a printer with internal structure and red arrow indicating a component (no text or symbols)

3. Pornirea imprimantei

Important

Diagram showing a mechanical component before and after assembly, with a red arrow indicating a downward motion (no text or symbols present)

Important

Diagram of a mechanical component with a red arrow pointing to a specific part (no text or symbols present)

Important

Cross-sectional diagram of a mechanical component with layered sections (no text or symbols)

Line drawing of a printer with internal structure and a red arrow indicating a component (no text or symbols)

Illustration of a printer with an open lid and red arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a component with a red arrow indicating direction, alongside a magnified inset of a mechanical assembly (no text or symbols)

Diagram showing two steps of a printer or printer attachment process, with no visible text or symbols.

Line drawing of a rectangular container with side handles (no text or symbols)

https://ij.start.canon/E3440

Diagram of a printer with internal structure and red arrows indicating motion (no text or symbols)

Diagram of a printer or printer casing with internal structure and red arrow indicating flow direction (no text or symbols)

3 Затворете капака.

Diagram of a printer with internal structure and paperclip, showing no text or symbols

Diagram showing a mechanical component before and after disassembly, with no visible text or symbols.

Важно

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

Важно

Technical line drawing of a mechanical component with no visible text or symbols

7 Затворете капака.

Line drawing of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Diagram of a printer with an open lid and red arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

Diagram showing two views of a printer's internal structure before and after assembly, with no visible text or symbols.

Line drawing of a rectangular container with side handles (no text or symbols)

https://ij.start.canon/E3440

Diagram of a printer with red arrows indicating process flow (no text or symbols)

Diagram of a printer with internal structure and red arrow indicating motion (no text or symbols)

3 Kapağı kapatın.

Diagram of a printer with internal structure and paperclip, showing no text or symbols

3. Yazıcıyı Açma

Diagram of a device with cable and connector, showing connection to a power outlet (no text or symbols)

Önemli

Diagram showing two mechanical component cross-sections with a red arrow indicating a downward motion (no text or symbols present)

Önemli

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

Önemli

Technical line drawing of a mechanical component with three stacked parts (no text or symbols)

7 Kapağı kapatın.

Line drawing of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Diagram of a printer with an open lid and red arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a component being inserted into a housing, with an inset close-up highlighting the detail (no text or symbols present)

Two-step diagram showing a printer's internal structure before and after assembly, with no visible text or symbols.

Line drawing of a rectangular container with side handles (no text or symbols)

https://ij.start.canon/E3440

Diagram of a printer with red arrows indicating process flow (no text or symbols)

Diagram of a printer internal structure with red arrows indicating flow direction (no text or symbols)

3 Zatvorite poklopac.

Diagram of a printer with internal structure and red arrow indicating rotation (no text or symbols)

Diagram showing a mechanical component before and after disassembly, with no visible text or symbols

Važno

• Ne dirajte boju na zaštitnoj traci. Može vam zaprljati ruke ili druge predmete koji se nalaze u blizini.
• Ne dirajte područja prikazana na slici. Inače pisač možda neće ispravo ispisivati.

4 Umetnite uložak FINE u boji u držač uloška FINE.

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

Važno

Nemojte udarati uložak FINE. To može uzrokovati kvar.

5 Podignite ručicu za zaključavanje uloška tinte.

6 Ponovite korake od 2 do 5 i umetnite crni uložak FINE s desne strane.

Cross-sectional diagram of a mechanical component with layered sections (no text or symbols)

7 Zatvorite poklopac.

Line drawing of a printer with internal circuitry and a red arrow indicating a component (no text or symbols)

Illustration of a printer with a red arrow indicating the paper's edge, showing no text or symbols on the device itself.

2 Povucite vodilicu papira ulijevo.

Mechanical assembly diagram showing a component being inserted into a housing, with a red arrow indicating the direction of movement (no text or symbols present)

3 Nekoliko listova papira postavite uz desni rub tako da im strana za ispis bude okrenuta prema gore, a vodilicu papira poravnajte sa širinom papira.

4 Pritisnite gumb Odabir papira (Paper Select), odaberite veličinu papira i zatim pritisnite gumb U redu (OK).

5 Izvucite ladicu za izlaz papira i otvorite produžetak ladice za izlaz papira.

Two-step diagram showing a printer's internal structure before and after assembly, with no visible text or symbols.

- Pogledajte s bočne strane izgleda li kao slika.

Line drawing of a rectangular container with a side handle and top rim (no text or symbols)

Ako rezultati ispisa nisu zadovoljavajući

• Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
- App Store is a trademark of Apple Inc., registered in the U.S. and other countries.
• Google Play is a registered trademark of Google LLC.

Marques
