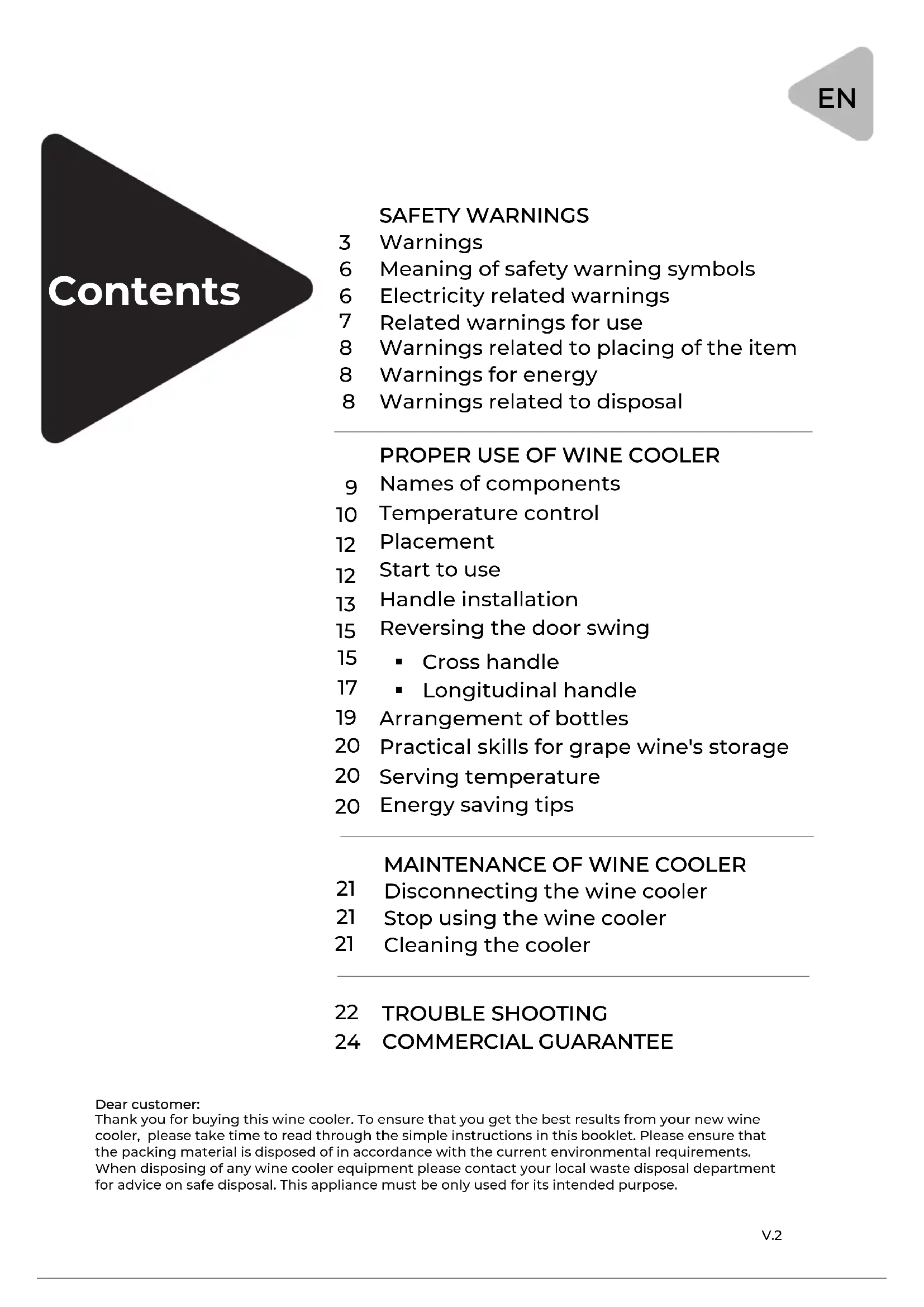

USER MANUAL EMR44VNI1 EAS Electric

SAFETY WARNINGS Warnings Meaning of safety warning symbols Electricity related warnings Related warnings for use Warnings related to placing of the item Warnings for energy Warnings related to disposal

MAINTENANCE OF WINE COOLER

Disconnecting the wine cooler Stop using the wine cooler Cleaning the cooler TROUBLE SHOOTING COMMERCIAL GUARANTEE

PROPER USE OF WINE COOLER

Names of components Temperature control Placement Start to use Handle installation Reversing the door swing Cross handle Longitudinal handle Arrangement of bottles Practical skills for grape wine's storage Serving temperature Energy saving tips Dear customer: Thank you for buying this wine cooler. To ensure that you get the best results from your new wine cooler, please take time to read through the simple instructions in this booklet. Please ensure that the packing material is disposed of in accordance with the current environmental requirements. When disposing of any wine cooler equipment please contact your local waste disposal department for advice on safe disposal. This appliance must be only used for its intended purpose. V.2

6Warning: risk of fire/flammable materials This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means

to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

V.2• Take off the doors.

• Leave the shelves in place so that children may not easily climb inside. The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory. Refrigerant and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm. EN Standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. To avoid contamination of food, please respect the follow- ing instructions:

WARNING: Please abandon the refrigerator according to

local regulators for it use flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the

supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets

or portable power supplies at the rear of the appliance. Do not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw

V.2One- , two- and three-star compartments are not suitable for the freezing of fresh food. (note 3) If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs (note 4). Notes 1 to 4: Please confirm whether it is applicable according to your product compartment type.

Warning: Wine storage appliances are intended to

be used exclusively for the storage of wine. Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. Clean regularly surfaces that can come in contact with food and accessible drainage systems. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.（note 1） Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. Two star frozen food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes (note 2).

V.2This manual contains lots of important safety information which shall be observed by the users. Do not pull the power cord when pulling the power plug of the wine cooler. Please firmly grasp the plug and pull out it from the socket directly. Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn. If they are, they shall be replaced in manufacturer-authorized maintenance stations. The power cord should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line. Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the cooler and other electrical appliances considering that spark may cause a fire. To ensure safety, it is not recommended to place socket, regulators, rice cookers, micro-wave ovens and other appliances at the top of the wine cooler, those recommended by the manufacturer are not included. Do not use electrical appliances in the food pantry.

1.2 Meaning of safety warning symbols

The symbols indicate prohibited matters, and those behaviors are forbidden. Non-compliance with the instructions may result in product damages or endanger the personal safety of users. The symbols indicate matters that must be followed, and those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endanger the personal safety of users. The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of the product will be caused. Prohibition symbols Warning symbols Note symbols

1.3 Electricity related warnings

V.2Do not arbitrarily disassemble or reconstruct the wine cooler, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist. Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger. The gaps between cooler door and cooler body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close or open the cooler door to avoid falling articles. Do not give package and other components to children to play. The bending board and plastic film may lead to suffocation! Do not allow children to enter or climb the cooler to prevent that children are sealed in the cooler or children are injured by the falling cooler. Do not spray or wash the cooler; do not put the cooler in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the cooler. Do not use cooler body, cooler door, etc. as pedal or support. Do not place heavy objects on the top of the cooler considering that objects may fall when open or close the door, and accidental injuries might be caused. Please pull out of the plug in case of power failure or cleaning. Do not connect the cooler to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.4 Related warnings for use

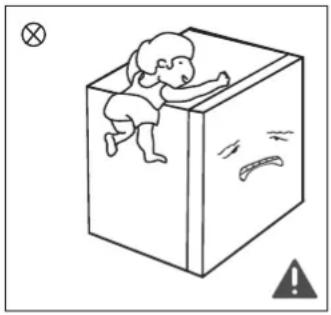

V.2Do not put flammable, explosive, volatile and highly corrosive items in the cooler to prevent damages to the product or fire accidents. Do not place flammable items near the cooler to avoid fires. This product is household cooler and this equipment can only be us ed for the storage of wine. According to the standard requirements, household cooler shall not be used for other purposes, such as storage of blood, drugs or biological products.

1.7 Warnings related to disposal

1) Wine cooler might not operate consistently when sited for an

extended period of time below the cold end of the range of temperatures for which the cooler appliance is designed.

2) Do not exceed the storage time(s) recommended by the wine

manufacturers for any kind of wine.

3) Take the necessary precautions to prevent an undue rise in the

temperature of the wine while defrosting the wine cooler.

4) A rise in temperature of the wine during manual defrosting, maintenance

or cleaning could shorten the storage life. When the wine cooler is scrapped, disassemble the doors, and remove gasket of door and shelves. Put the doors and shelves in a proper place, so as to prevent trapping of any child.

1.5 Warnings related to placing items

1.6 Warnings for energy

DISPOSAL: Do not dispose of this product as unsorted municipal waste. These waste must be collected separately for special treatment. Based on the European directive 2012/19 / EU on waste electrical and electronic equipment (WEEE), household appliances cannot be thrown in the usual municipal containers; They have to be selectively collected to optimize the recovery and recycling of the components and materials that make them up and reduce the impact on human health and the environment. The crossed-out garbage can symbol is marked on all products to remind consumers of the obligation to separate them for separate collection. The consumer should contact the local authority or the seller to inquire about the correct disposal of his appliance. Refrigerant and cyclopentane foaming material used for the wine cooler are flammable. Therefore, when the wine cooler is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

V.22. Proper use of wine cooler

2.1 Names of components

(Above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.) The recommended temperature is 12ºC, please keep the wine rack in the original state. Wine cabinet storage are humidity is 50% ≤ RH ≤ 80%. The temperature in the wine cooler is 5-18ºC, only used to store unopened bottled wine (red wine, white wine, rose wine). Do not place food in the wine cooler to prevent bacterial contamination. Please keep the interior of the wine cabinet dry, and please drink bottled wine during the validity period. Temperature control display Glass door Shelf

V.22.2 Temperature control (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.) Standby button Light button Temperature display area of upper room Temperature display area of lower room Temperature increase button Temperature decrease button Conversion button of function of upper and lower room Display control In the case of initial power-up, the whole screen will display relevant information for 3 seconds and the start-up tone will be uttered, followed by enabling of normal operation display. Digital display area: display the fault code in the case of failure and the set temperature of the corresponding refrigeration chamber in the case of no failure. This cooler adopts the touch control of the glass door. Touch slightly when pressing the keys. It is to be avoided that the area of the display panel is scratched by the sharp things and it shall be kept away from the environment of high magnetic field and high humidity. Otherwise the cooler is possible not to be set and operate normally. Standby Function Press the "Standby" button for 5 seconds to enter/exit the standby mode. Light The internal lamp will be on when the cooler door is opened, and will be off when the cooler door is closed. Users can also turn on/off the internal lamp by pressing the Light button. Once the Light button is activated, the internal lamp will not be controlled by actions of door opened or closed.

V.2Conversion of Fahrenheit-Celsius Long press the ( ) and ( ) buttons at the same time for three seconds to switch between Centigrade and Fahrenheit. Temperature setting Pressing the ( ) button once, the set temperature increases 1ºC/F. Pressing the ( ) button once, the set temperature decreases 1ºC/F. The temperature setting range of upper room is 5º-14ºC (41º-57ºF); and the temperature setting range of lower room is 10-18ºC (50-64ºF). All temperature settings take effect automatically after 30 seconds. Limitation to temperature setting range of lower room The temperature set for the upper room limits the temperature that can be set for the lower room: The set temperature of the upper room must always be lower than that of the lower room, and the difference between the two must be in the range of 2-8ºC. If the set temperature of the upper room is 10ºC, the setting range of the lower room must be 12º-18ºC. If the set temperature of the upper room is 11ºC, the setting range of the lower room should be 13º-18ºC. If the set temperature of the lower room is 12ºC and the user changes the temperature of the upper room from 10º to 11ºC, the temperature of the lower room will automatically change to 13ºC. Error code If any code from the following table appears on the display, it means that there is a malfunction. Contact the official technical service to have the wine cooler checked. Fault code Description Temperature sensor error of upper room

Temperature sensor error of lower room

Communication fault High temperature alarm

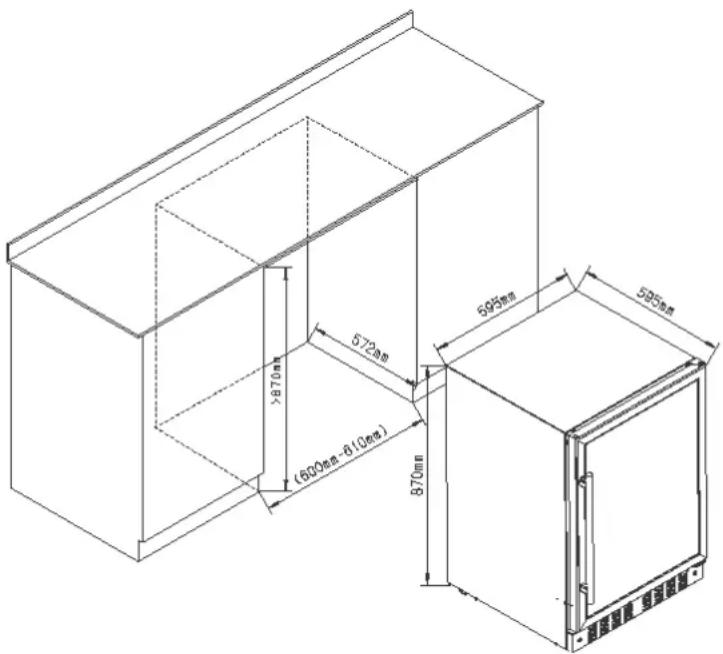

V.22.3 Placement Before using the cooler, remove all packaging materials including bottom cushions and foam pads and tapes inside the cooler, tear off the protective film on the door and the cooler body. Avoid direct sunlight and heat sources such as stove, heating radiator, etc. The cooler is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the feet for levelling if unstable). This wine cooler is built-in type, so it is recommended to keep 40 mm distance at least from the back of the wine cooler to the interior back of outer cabinet, and keep no obstruction in front of the air outlet. It is recommended that the front levelling feet are 3mm higher than the rear levelling feet. (This picture is only for reference. The actual configuration will depend on the physical product or statement by the distributor.)

The cooler shall stay for half an hour before connecting power when it is firstly started. Clean up the inner chamber before put into use for first time. Do not connect cooler to electronic energy saving plug and converter that can convert DC into AC (E.g.: solar energy system, ship grid). Water drop or frost will be generated on back side of wine cooler when compressor is running, which is decided by function of cooler. Wiping out frost or water drop is not needed as the back will wipe them out automatically. The defrosted water will be collected into drain tank, then inflow into water disposal pan above the compressor and vaporized.

V.22.5 Handle installation Please choose the following handle installation instructions according to your actual needs.

1) Put the handle on glass door through the two bolts.

Handle Handle (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.)

V.22) Use an allen wrench to fix the handle, make sure the screw hole is downward. Handle screw Allen wrench Handle screw Allen wrench (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.)

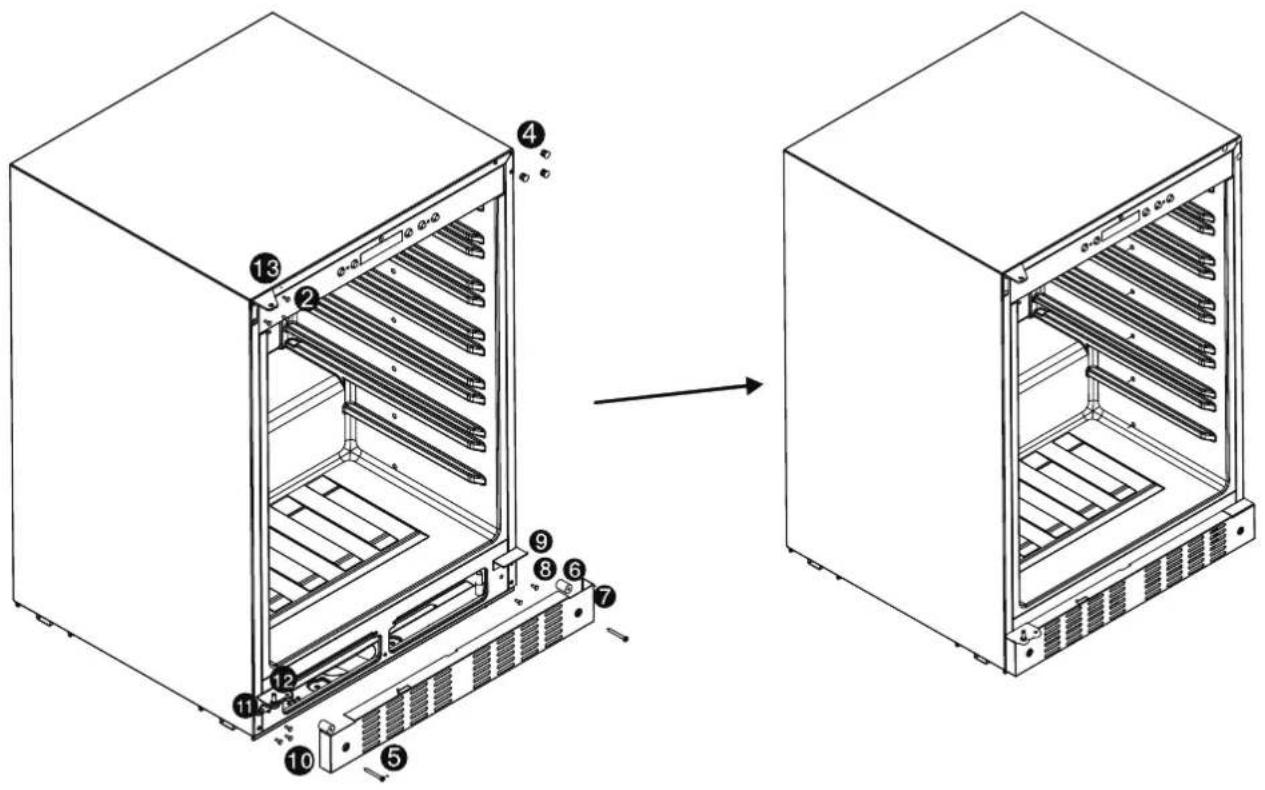

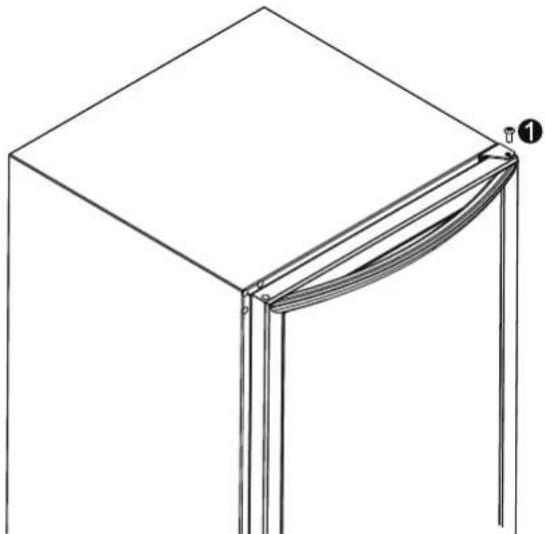

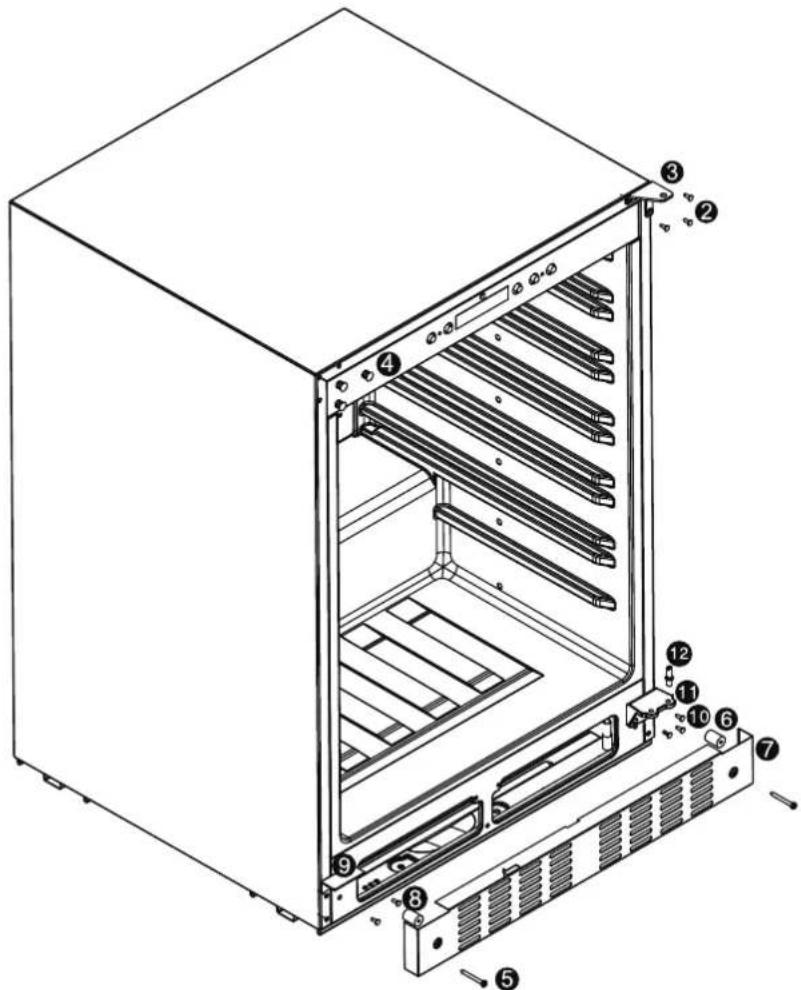

1) Remove the right upper hinge shaft (1) and door.

2) Remove 3 screws (2) from the upper hinge on the right side and the

upper hinge (3). Remove 3 plastic caps (4) on the left side, remove 2 screws (5), and the sleeve (6) from the air cover (7). Remove 2 screws (8) and the door support (9). Remove the 3 screws (10) from the lower hinge, the lower hinge (11) and the lower hinge shaft (12).

V.23) Take out the left upper hinge (13), and fix it on the left upper corner by screw (2). Meanwhile, install the hole caps (4) on the right upper corner, dismantle shaft (12) of lower hinge (11) and install it into the hole of left side, then fix the lower hinge (11) on left lower corner by screw (10). Install the door support (9) on right lower corner by screw (8). At last, install the air cover (7) by screw (5) and sleeve (6) on the lower side of cabinet.

4) Remove the shaft sleeve (14) and shaft hole cap (15) of the door, and

change their positions. Dismantle the door stopper (16), screw (17) and lower shaft sleeve (18), and install them in the left lower corner of the door.

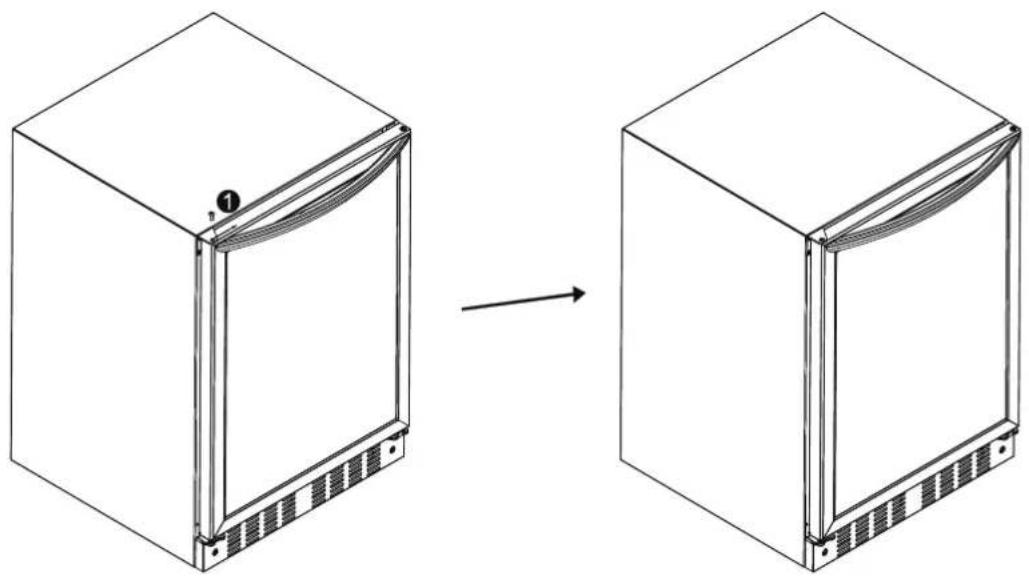

V.25) Install the door, and fix the upper hinge shaft (1). Thus, the door reverse is finished. Keep the right upper hinge (3) for future use.

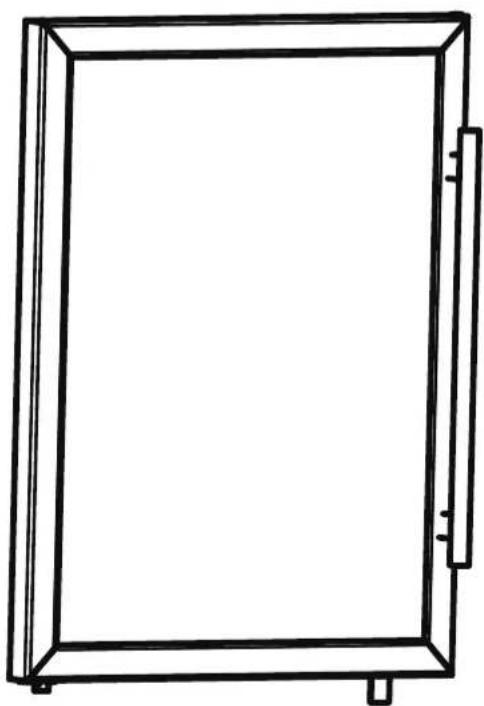

2.6.1. Reversing the door swing (longitudinal handle)

ׁف Dismantle the shaft hole cap ـׁف and the upper sleeveـׂفof the upper part of the glass door assembly, and dismantle screws (3), the door light switch block (4), the door stopper (5) and screws, and the lower sleeve (6) of the lower part of the assembly.

V.22ف Rotate the door assembly 180º, exchange the position of the upper sleeve (2) and the shaft plug (1), and move the door stopper (5) and the lower sleeve (6) from the lower right to the lower left. 3ف Assemble the sleeves, the shaft hole cap, the stopper and the switch block. Install the door on the cabinet. (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.)

• Do not let the bottles touch the back side of wine cooler in order to maintain good air circulation in the cooler.

• The bottle number here may be different from bottles in different shape and size.

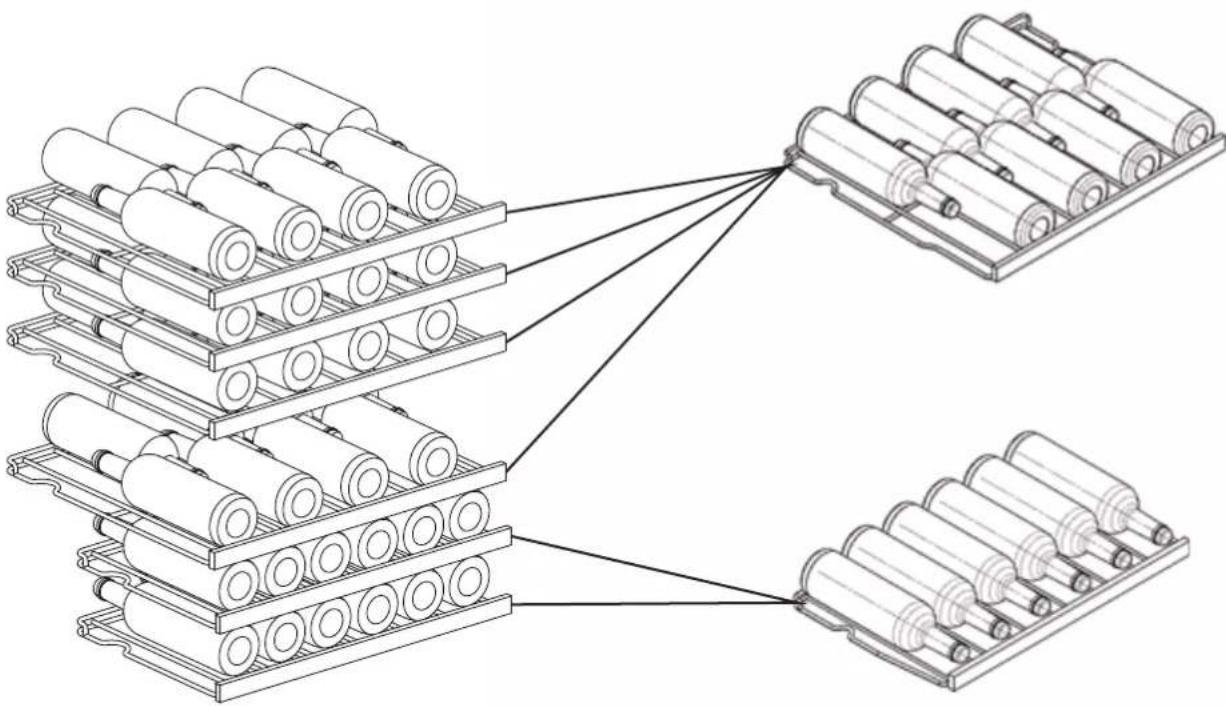

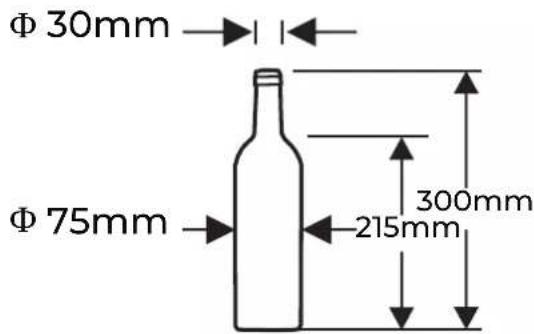

• The capacity for bottle storage in the wine cabinet is based on the following marked bottle size. Oversized bottle may have impact on the number of bottle storage in the wine cabinet. (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.)

V.22.8 Practical skills for grape wine's storage

2.9 Serving temperature

2.10 Energy saving tips

Do not store bottled wine by box or case in the refrigerator. The cork of the old bottle shall always be soaked in the wine when putting into wine cooler. Air space is not allowed between wine and cork. Open-type bottle shelf is helpful, as it does not cut off air circulation. The air moisture that condensed on bottle can be dried out swiftly. The wine shall be put out before drinking. Such as put pink red wine onto the table 2-5 hours before drinking, and red wine 4-5 hours so it can reach a suitable serving temperature. White wine, on the contrary, can be served right on the table. Champagne shall always be stored in cooler and taken out only before drinking. Please notice that wine's temperature is always lower than ideal serving temperature, as the temperature will immediately rise 1 to 2ºC when pouring into tumbler. The wine's taste depends on right pouring temperature; therefore it determines its flavour. It is recommended to let the wine reach the following degree when pouring. Wine kinds Serving temp. Bordeaux red Louis family dry red wine/Barolo Burgundy red/Bordeaux red Port Young Burgundy red Young red wine Young Beaujolais/all white wines with little residual sugar Old white wines/Chardonnay Sherry Young white wines from late vintage White wines Loire/Entre-deux-Mers 18ºC 17ºC 16ºC 15ºC 14ºC 12ºC 11ºC 10ºC 9ºC 8ºC 7ºC The cooler shall be placed in room dry and ventilated. The cooler cannot be put under direct sunlight or next to heat source (such as radiator, stove, etc.), and a suitable insulation board shall be applied if necessary. Try to shorten opening time of cooler's door.

V.23. Maintenance of wine cooler

3.1 Disconnect the wine cooler

Unplug power plug to disconnect the cooler.

3.2 Stop using the wine cooler

If the cooler is left unused for a long time, please:

3.3 Cleaning the wine cooler

Dusts behind the wine cooler and on the ground shall be timely cleaned to improve the cooling effect and energy saving. Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. The interior of the wine cooler should be cleaned regularly to avoid odor. Please turn off the power before cleaning, remove drinks, shelves, etc. Use a soft cloth or sponge to clean the inside of the wine cooler, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and dry with a soft cloth. After cleaning, open the door and let it dry naturally before turning on the power. For areas that are difficult to clean in the wine cooler (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterials accumulation in these areas. Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the wine cooler or contaminate food. Clean the shelves with a soft cloth dampened with soapy water or diluted detergent. Then rinse with water and dry with a soft cloth or dry naturally. The wooden wine rack should not be directly immersed in liquid to prevent cracking or mold after moisture. The wooden wine rack is cleaned with a dry soft cloth. The heavily contaminated wooden wine rack should be cleaned with a soft cloth that has been wrung out, and dry naturally. Wipe the outer surface of the wine cooler with a soft cloth dampened with soap water, detergent, etc., and then wipe dry. Do not rub or scratch the surface of the glass door to prevent the door from being broken or scratched. Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the wine cooler surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts. Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion. Water should not soak the operating control elements and lighting system on the glass door. Notice: Do not use detergent and solvent with sand or acid.

V.24. Trouble shooting Inoperation Long-term operation of compressor Illuminating light does not shine Loud noises Whether the cooler is plugged and connected to power; Low voltage; Whether temperature control knob is in the work area; Failure power or tripping circuit. It is normal that cooler operates for longer time in summer when the ambient temperature is higher; Do not put too much beverages in the cooler at one time; Frequent opening of cooler door. Whether the cooler is connected to power, whether the indicator light is damaged. Whether the floor is flat, whether the placement of cooler is stable; Whether the cooler accessories are properly placed. The cooler enclosure may emit heat during running specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon. Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the cooler when the ambient humidity is high, this is a normal phenomenon, and after wiping with towel, turns up the set temperature of the appliance properly. Cooler enclosure heat / Condensation Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect. Buzz will be generated by running compressor specially when starting up or shutting down. The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation. Airflow sound Buzz Clatter

V.2Extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; Temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C; Subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C; Tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C; Extended temperate Subtropical Temperate +10 to +32 +16 to +32 +16 to +38 +16 to +43 Class Symbol Ambient temperature range °C Table 1: Climate classes Tropical

V.224 V.2 WARRANTY CONDITIONS This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions. WARRANTY EXCLUSIONS
