USER MANUAL EMR24VN1 EAS Electric

2.4 Start to use·········· ··· ··········· ·······8

3.1 ························10

3.2 ························10

3.3 ···························10

arnings for energy Temperature Control

2.5 The arrangement of bottle

6 Practical skills for grape wine’s storage

2.7 Serving temperature

Disconnect the wine cooler Stop using the wine cooler Clean the wine cooler Energy s aving tips 1 Safety warnings 2 Proper use of wine cooler 3 Maintenance of wine cooler

Trouble shooting ·························· · · · 11 DEAR CUSTOMER: Thank you for buying this wine cooler. To ensure that you get the best results from your new wine cooler, please take time to read through the simple instructions in this booklet.Please ensure that the packing material is disposed of in accordance with the current environmental requirements. When disposing of any wine cooler equipment please contact your local waste disposal department for advice on safe disposal.This appliance must be only used for its intended purpose. V.21 Safety warnings

risk of fire / flammable materialsWarning

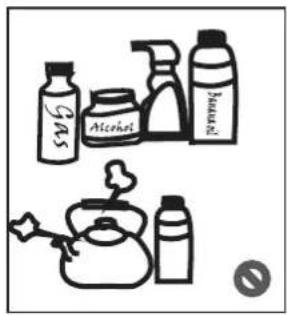

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications. This If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure,

clear of obstruction.

Warning: Do not use mechanical devices or other means to accelerate the defrosting

process, other than those recommended by the manufacturer.

Warning: Do not damage the refrigerant circuit.

Warning: Do not use electrical appliances inside the food storage compartments of the

appliance, unless they are of the type recommended by the manufacturer.

Warning: Please abandon the refrigerator according to local regulators for it use flammable

blowing gas and refrigerant.

Warning: When positioning the appliance, ensure the supply cord is not trapped or

Warning: Do not locate multiple portable socket-outlets or portable power supplies at the

rear of the appliance. Do not use extension cords or ungrounded（two prong）adapters.

Danger: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

- Take off the doors. - Leave the shelves in place so that children may not easily climb inside. The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory. appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.) Children should be supervised to ensure that they do not play with the appliance.

V.2 1flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm. The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside. For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. To avoid contamination of food, please respect the following instructions: – Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. –Clean regularly surfaces that can come in contact with food and accessible drainage systems. –Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.（note 1） –Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. –Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.（note 2） –One-, two- and three-star compartments are not suitable for the freezing of fresh food.（note 3） –For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs.（note 4） –If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. Note 1,2,3,4: Please confirm whether it is applicable according to your product compartment type. For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance. For wine storage appliances: this appliance is intended to be used exclusively for the storage of wine. Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. Refrigerant and cyclopentane foaming material used for the appliance are

21.2 Meaning of safety warning symbols

Prohibition symbols Warning symbols Note symbols The symbols indicate prohibited matters, and those behaviors are forbidden. Non-compliance with the instructions may result in product damages or endanger the personal safety of users. The symbols indicate matters that must be followed, and those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endanger the personal safety of users. The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of the product will be caused. This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

To ensure safety, it is not recommended that to place socket, regulators, rice cookers, microwave ovens and other appliances at the top of the wine cooler, those recommended by the manufacturer are not included. Do not use electrical appliances in the food pantry.Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the cooler and other electrical appliances considering that spark may cause a fire.Worn or damaged power cord shall be replaced in manufacturer-authorized maintenance stations.Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.The power cord should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.Do not pull the power cord when pulling the power plug of the wine cooler. Please firmly grasp the plug and pull out it from the socket directly. V.2

31.4 Related warnings for use

Do not arbitrarily disassemble or reconstruct the , nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist. Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger. wine cooler Please pull out of the plug in case of power failure or cleaning. Do not connect the cooler to power supply within five minutes to prevent damages to the compressor due to successive starts. Do not place heavy objects on the top of the cooler considering that objects may fall when open or close the door, and accidental injuries might be caused. Do not spray or wash the cooler; do not put the cooler in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the cooler. Do not give package and other components to children to play. The bending board and plastic film may lead to suffocation! Do not allow children to enter or climb the cooler to prevent that children are sealed in the cooler or children are injured by the falling cooler. Do not use cooler body, cooler door, etc. as pedal or support. The gaps between cooler door and cooler body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close or open the cooler door to avoid falling articles. V.2 4Do not put flammable, explosive, volatile and highly corrosive items in the cooler to prevent damages to the product or fire accidents.This product is household cooler and this equipment can only be used for the storage of wine. According to the standard requirements, household cooler shall not be used for other purposes, such as storage of blood, drugs or biological products.Do not place flammable items near the cooler to avoid fires.

1.5 Warnings related to placing items

1.7 Warnings related to disposal

1) might not operate consistently when sited for an extended period of time below the cold end of the range of temperatures for which the appliance is designed.2)The need to not exceed the storage time(s) recommended by the manufacturers for any kind of wine.3)The precautions necessary to prevent an undue rise in the temperature of the wine while defrosting the wine cooler.4)The fact that a rise in temperature of the wine during manual defrosting, maintenance or cleaning could shorten thestorage life.Wine coolercoolerwine

.6 Warnings for energy Refrigerant and cyclopentane foaming material used for the are flammable. Therefore, when the is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm. wine wine cooler cooler When the is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child. wine cooler V.2

DISPOSAL: Do not dispose of this product as unsorted municipal waste. These waste must be collected separately for special treatment. Based on the European directive 2012/19 / EU on waste electrical and electronic equipment (WEEE), household appliances cannot be thrown in the usual municipal containers; They have to be selectively collected to optimize the recovery and recycling of the components and materials that make them up and reduce the impact on human health and the environment. The crossed-out garbage can symbol is marked on all products to remind consumers of the obligation to separate them for separate collection. The consumer should contact the local authority or the seller to inquire about the correct disposal of his appliance.2 Proper use of wine cooler

Names of components ( Above is only for reference. The actual configuration will depend on the physical product or statement by the distributor ) Temperature control display Wine Shelf Wine rack Adjustable feet water tray The temperature in the wine cooler is 5-18 ℃, only used to store unopened bottled wine (red wine, white wine, rose wine). Do not place food in the wine cooler to prevent bacterial contamination. Please keep the interior of the wine cabinet dry, please drink during the validity period. bottled wine The recommended temperature is 12 ℃；please keep the wine rack in the original state. V.2 6Lock key Light switch key Display area Temperature-rise key Temperature-drop key

2.2 Temperature Control

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor） Display Control when power on the wine cooler for 1st time, the display screen will display in full for 3 seconds, and the start-up tone will ring, and then enter into the display of normal running; When it is in the locked state, the display screen will turn off if no key operation for 30 seconds; the display screen recover the normal display if any key operation. Except the lighting function, the following functions will be carried out under the unlocked state. Locking and unlocking Under the locked state, long press the Lock key ( ) continuously for 3 seconds, the locking will be relieved; the display area will blink; Under the unlocked state, long press the "Lock key ( )" continuously for 3 seconds to enter into the locked state;

Lighting Press the light switch key ( ) to turn on or turn off the light."" Switching of the Fahrenheit temperature and Celsius temperature Press the Temperature-rise key ( ) and the Temperature-drop key ( ) to finish the switch of the Celsius temperature and Fahrenheit temperature; the display area will show the setting Fahrenheit temperature or Celsius temperature under the existing mode. """"at same time Temperature setting Press the Temperature-rise key ( ), the temperature will increase 1℃ (or ). After locking, the cooler will run according to the setting value; Press the "Temperature-drop key ( )" , the temperature will decrease 1℃ (or ℉). After locking, the cooler will run according to the setting value.

Setting range of the Celsius temperature: 5℃~18℃; setting range of the Fahrenheit temperature: 41 ℉~65℉. Memory function The cooler has the power off memory function. After power on again, the cooler will run according to the setting before the power-off. Fault indication If the indication of the following table is displayed on the display area, it means the cooler is with fault. Fault code Description E 1 E 4 Temperature sensor of the wine cooler with fault Defrosting sensor of the wine cooler with fault When the above faults are displayed on the screen, please do not disassemble winecooler to check by yourself. Please contact the special maintenance personnel of thelocal after-sales service company for the maintenance.This cooler adopts the touch control of the glass door. Touch slightly when pressing the keys. It is to be avoided that the area of the display panel is scratched by the sharp things and it shall be kept away from the environment of high magnetic field and high humidity. Otherwise the cooler is possible not to be set and operate normally. V.2

The cooler shall stay for half an hour before connecting power when it is firstly started. Do not connect cooler to electronic energy saving plug and converter that can convert DC into AC (E.g.: solar energy system, ship grid). Clean up the inner chamber before put into use for first time . Water drop or frost will be generated on when compressor is running, which is decided by function of cooler. s the back will wipe them out automatically. The defrosted water will be collected into drain tank, then inflow into water disposal pan above the compressor and vaporized. back side of wine cooler wiping out frost or water drop is not needed a

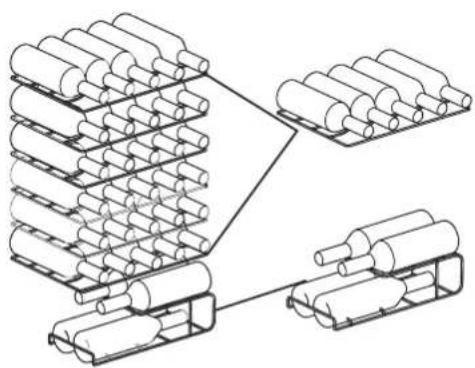

2.5 The arrangement of bottle

lDo not let bottle touch the in order to maintain good air circulation in the cooler. lThe bottle number here may be different from bottles in different shape and size. lThe capacity for bottle storage in the wine cabinet is based on the following marked bottle size. Oversized bottle may have impact on the number of bottle storage in the wine cabinet. back side of wine cooler ( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor ) Φ 30mmΦ 75mm215mm300mm The cooler is placed in a well- ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the feet for levelling if unstable). Before using the cooler remove all packaging materials including bottom cushions and foam pads and tapes inside the cooler, tear off the protective film on the door and the cooler body. Avoid direct sunlight and heat sources such as stove, heating radiator, etc. The top space of the shall be greater than 30cm,and the distances from bothsides and backside shall be more than 10cm to facilitate heat dissipation. cooler V.2

82.6 Practical skills for grape wine’s storage

2.7 Serving temperature

2.8 Energy saving tips

The cork of the old bottle shall always be soaked in the wine when putting into wine cooler. Air space is not allowed between wine and cork.

V.2 93 Maintenance of wine cooler 3.1Disconnect the wine cooler

3.2 Stop using the wine cooler

3.3 Clean the wine cooler

Unplug power plug to disconnect the cooler. If the cooler left unused for a long time, please: 1.Unplug the cooler; 2.Clean the cooler; 3.Keep the cooler door open. Dusts behind the wine cooler and on the ground shall be timely cleaned to improve the cooling effect and energy saving. Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. The interior of the wine cooler should be cleaned regularly to avoid odor. Please turn off the power before cleaning, remove drinks ,shelves, etc. Use a soft cloth or sponge to clean the inside of the wine cooler, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and dry with a soft cloth. After cleaning, open the door and let it dry naturally before turning on the power. For areas that are difficult to clean in the wine cooler (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterials accumulation in these areas. Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the wine cooler or contaminate food. Clean the shelves with a soft cloth dampened with soapy water or diluted detergent. Then rinse with water and dry with a soft cloth or dry naturally. The wooden wine rack should not be directly immersed in liquid to prevent cracking or mold after moisture. The wooden wine rack is cleaned with a dry soft cloth. The heavily contaminated wooden wine rack should be cleaned with a soft cloth that has been wrung out, and dry naturally. Wipe the outer surface of the wine cooler with a soft cloth dampened with soap water, detergent, etc., and then wipe dry. Do not rub or scratch the surface of the glass door to prevent the door from being broken or scratched. Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the wine cooler surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts. Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.Water should not soak the operating control elements and lighting system on the glass door. Notice: Do not use detergent and solvent with sand or acid. detergent V.2 104 Trouble shooting Inoperation Long-term operation of compressor Illuminating light does not shine Loud noises Whether the cooler is plugged and connected to power; Low voltage; Whether temperature control knob is in the work area; Failure power or tripping circuit. It is normal that cooler operates for longer time in summer when the ambient temperature is higher; Do not put too much beverage s in the cooler at one time; Frequent opening of cooler door. Whether the cooler is connected to power, whether the indicator light is damaged. Whether the floor is flat, whether the placement of cooler is stable; Whether the cooler accessories are properly placed. The cooler enclosure may emit heat during running specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon. Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the cooler when the ambient humidity is high, this is a normal phenomenon, and after wiping with towel, turns up the set temperature of the appliance properly. Cooler enclosure heat Condensation Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect. Buzz will be generated by running compressor specially when starting up or shutting down. The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation. Airflow sound Buzz Clatter V.2 11Table 1 Climate classes

Extended temperate Temperate Subtropical Tropical ClassSymbol Ambient temperature range + 16 to + 32 + 16 to + 38 + 16 to + 43 Extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’; Temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 ° C to 32 °C’; Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 ° C to 38 °C’; Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’; V.2 12WARRANTY CONDITIONS This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions. WARRANTY EXCLUSIONS 1.Remote controls, drain intake rubbers, dockings and door seals, weather stripping. 2.Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance. 3.Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use. 4.Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect. 5.Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device. 6.Civil liabilities of any nature. 7.Consequential damage to the appliance as long as it has not been caused by an internal malfunction. 8.Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases. 9.Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer. 10.Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non- original spare parts. 11.Appliances used in industrial applications or for commercial purposes. 12.Appliances with illegible or altered serial number. 13.Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance. 14.During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed. 15.Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points. 16.Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity". Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version. www.easelectric.es V.2
