USER MANUAL EPUR300UV EAS Electric

Abstract arrangement of gray and white triangular shapes pointing right (no text or symbols)

PURIFICADOR DE AIRE

AIR PURIFIER

PURIFICATEUR D'AIR

PURIFICADOR DE AR

Pure diagram of a cylindrical object with two rectangular cutouts, no text or symbols present

EPUR300UV

MANUAL DE INSTRUÇÕES

Illustration of a cylindrical object with layered internal structure (no text or symbols)

Filtro multifuncional

Diagram of a cylindrical device with labeled parts, showing internal layered structure and numbered annotations.

1. Panel de control
2. Salida de aire
3. Asa

Technical diagram of a cylindrical device with numbered parts labeled ③, ④, and ⑤

Illustration of a cylindrical industrial fan or filter unit with internal blades and a handle (no text or symbols)

Illustration of a cylindrical industrial fan or filter unit with internal blades and a handle (no text or symbols visible)

Line drawing of a cylindrical device with internal structure and base, no text or symbols present

Diagram of a cylindrical device with internal components and a handle, showing no text or symbols.

Line drawing of hands holding a grid notebook on a sheet of paper (no text or symbols)

Diagram of a portable air conditioner unit with a handle and internal structure (no text or symbols)

Illustration of a cylindrical device with internal structure and mounting bracket (no text or symbols)

Illustration of a cylindrical industrial device with heat exchanger and cooling fins (no text or symbols)

Illustration of a hand connecting a wall-mounted power outlet to a cylindrical device with mesh insulation (no text or symbols)

Panel de control

Panel de control EPUR300UV

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

To avoid the harm or damage to property that may be caused to you and others, please be sure to follow the following safety precautions.

Warning

This sign indicates that "serious injury or death may be caused."

Notice

This sign indicates that personal injury or damage to other articles may be caused.

- The categories of contents that must be followed are distinguished and explained by signs as follows:

This sign indicates prohibited items.

This sign indicates mandatory items.

Warning

●

- Do not touch the power plug with wet hand

(or it may cause electric shock)

- Do not damage power cord or power plug

- Do not cut, scratch, refit, excessively warp, pull, reverse and twist the power cord, or it may cause electric shock or fire accident.

- (If damaged, the power cord must be replaced by contacting .)

- Do not use the power, socket for connecting equipment exceeding equipment rated value and only use V 50Hz AC power.

(Or it may cause short circuit or internal damage of power line and give rise to fire or electric shock accident.)

- Do not allow children to operate the air purifier without adult supervision.

(or it may cause electric shock or injury.)

- Do not expose machine body to wet conditions.

Or it may cause fire and electric shock accident due to short circuit.

- Do not disassemble or refit the air purifier arbitrarily.

(Arbitrary disassembly or refitting may cause fault or fire accident.) In case of fault, (Please Contact)

● It is forbidden to use chlorine or acid detergent.

(The poisonous gas given out by detergent will do harm to health.)

- It is forbidden to put the foregins objects into the air inlet, air outlet and other gaps.

(Any contact with the interior of product may cause electric shock or injury.)

- Please plug into the power socket entirely.

If it is not plugged firmly, it may cause electric shock and even fire accident due to overheat.

Do not use the damaged plug or loosen power socket.

- Please regularly clean the power plug.

If there is dust on the power plug, the humidity may damage the insulated part of plug.

- Unplug the power plug and wipe with dry cloth.

- If the electric appliance is not used for a long time, unplug the power plug.

● Before maintenance to electrical appliance, make sure of disconnecting power.

(or the product may start suddenly and thus cause electric shock and injury.)

- In case of any of following circumstances, please immediately turn off the power of machine.

- If one switch does not work.

- If breaker works or fuse is burnt.

- If a burnt smell or unusual sound or vibration is felt.

- If there is any other abnormal phenomenon or fault.

- If the power please contact of machine is damaged,

- This machine is not suitable for the disabled person, person with perceptual disturbance, person with intellectual disabilities or children to operate by their own.

(It is exceptional if the machine is operated with the supervision and guidance of safety director).

● Children are not allowed to operate the air purifier arbitrarily.

- Do not place the machine in following places:

- Unstable bearing surface(or the air purifier may be tipped over and fractured and cause personal injury and damage to substances.)

- Places with high temperature, high humidity or that may get the machine wet, such as bathroom (Air purifier may cause electric leakage and thus giverise to electric shock or fire accident)

- Kitchen and other places emitting cooking fumes.

- Place using oil or combustible gas and may cause leakage. (Fire or smoke may occur due to the ignition of oil or gas or suction of oil and combustible gas by machine)

- Please keep the product away from plants & animals.

- Do not let volatile substance or combustible materials, such as cigarette or incense, etc. to enter the machine. (Or it may cause fire accident)

- Do not use ethyl alcohol or diluent or other solvent to clean the air purifier; meanwhile, avoid the surface of machine from contacting aerosol bomb. (Air purifier may be fractured and damaged, even short circuit and thus give rise to electric shock or fire accident)

- Do not use the air purifier in the room with incense insecticide.

(or the chemical residue may accumulate in the machine and release in the air through air outlet and thus do harm to the health.)

• After using insecticide in the room, open the window so that the room will be ventilated thoroughly and then the air purifier can be used.

Operating requirements

- Please do not use in following places.

- The place with direct sunshine and directly facing air outlet and heating place, or it may cause deformation, deterioration, decoloration and fault of machine body.

- The place that curtain and other silk fabrics may shield the air outlet, or it may influence the accuracy of signal acquisition of sensor.

- Surrounding place of electrical equipment with high-intensity magnetic field and strong interaction.

- Do not use the extension socket with other electric appliance with strong electro-magnetic induction, or it may easily cause damage.

- Please do not place objects on the machine.

- Do not place magnet, metal objects and water glass on the machine (Metal and magnet may cause the malfunction of inductive switch and the water in the water glass may sprinkle and thus cause the damage to machine and electric shock.)

- When used for a long time at the same place

The surrounding wall and floor of product may be dirted. please adjust the placing position when maintaining the product.

- When filtering pollen or indoor raise dust, please place the air purifier on the ground, pollen and dust easily gather at the bottom air of indoor due to the weight, it is, therefore, suggested that the product shall be placed on flat ground in the room.

- To enhance the working efficiency of air purifier, circulate the air in the room effectively and purify. Please place the air purifier in the place when there is no screen 30cm at the front ,rear, left and right and within the scope of 100cm on the top so that the air will be better circulated and air purifier will work more efficient.

Please do not sit on and lean on the product.

(Or it may cause equipment damage and personal injury.)

- Prepare to move the air purifier Stop the operation of product, unplug the power plug.

- When plugging the power plug, please hold the part of plug by hand.

(Or it may cause damage of power due to stress and thus give rise to electric shock, short circuit and fire.)

- When using together with non-electric heater, please keep the air ventilating.

- This product cannot eliminate CO (when the non-electric heater is operating, it will generate CO and other gases. If the air cannot be ventilated, it will result in poisoning)

- This appliance is not a substitute for proper ventilation, like regular vaccum cleaning, or use of an extractor hood or fan while cooking.

• The appliance does not remove Carbon Monoxide (Co) or Radon (Rn). It cannot be used as a safety device in case of accidents with combustion process and hazardous chemicals.

Product introduction

This air Purifier can remove dust and fume powerfully. The places with much smoke, dust, pollen and other particle pollutants, such as indoor space, smoking zone, parlour etc. It will reduce the probability of being affected by passive smoking and protect you and your family's health.

This air Purifier has been equipped with Multifunctional filter, which can efficiently remove the particulate matter in the air and effectively eliminate PM 2.5-level particulate matter, formaldehyde and odour (smoke) to make the air you breathe clean and fresh.

Diagram of a cylindrical device with internal layered structure, no text or symbols present

• Multifunctional filter

It can adsorb the smoke, pollen, dust and filter the bacteria in air. With anti-bacterial function, it can deeply clean the air and effectively remove PM 2.5. It can effectively remove the formaldehyde, TVOC, bad smell (smoke) in the air.

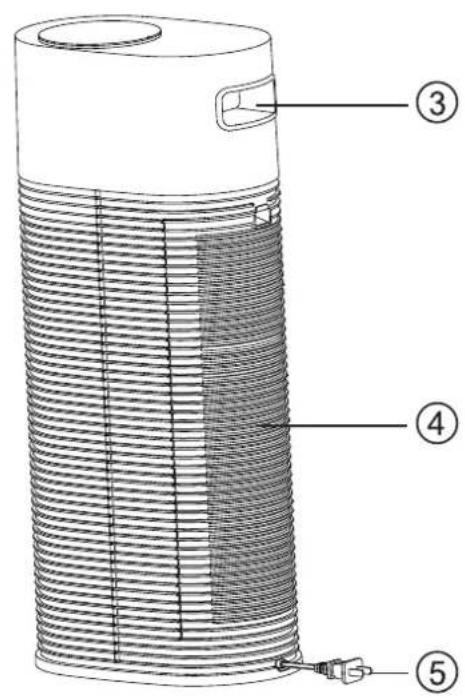

Component

Diagram of a cylindrical device with labeled parts, showing internal layered structure and numbered annotations.

Technical diagram of a cylindrical device with numbered parts labeled ③, ④, and ⑤

1.

. Air outlet

. Air inlet

Preparation for starting up

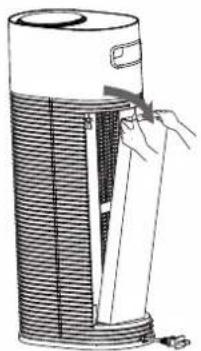

Dismantle the multifunctional filter

Illustration of a cylindrical industrial device with heat sinks and internal structure (no text or symbols)

Illustration of a cylindrical industrial fan or filter unit with internal blades and a handle (no text or symbols visible)

Line drawing of a cylindrical device with a textured base and top panel, emitting exhaust heat (no text or symbols)

Diagram of a portable air conditioner unit with handle and cooling fins (no text or symbols)

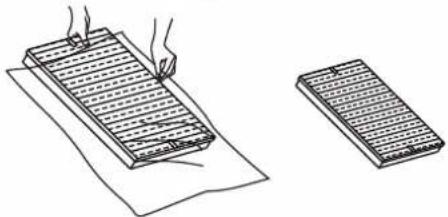

Take out the multifunctional filter from the plastic bag.

Illustration of two different materials: a grid-patterned sheet and a rectangular plate, both without any text or symbols.

Since the multifunctional filter is a consumable. It is not involved in the warranty period of the whole machine. Please confirm that the multifunctional filter is in good condition before removing the protective bag.

Install the multifunctional filter

Install the multifunctional filter; (The side with drawstring will face outward)

Diagram of a cylindrical device with internal components and a handle, showing no text or symbols.

Illustration of a cylindrical industrial fan or filter unit with a handle and base, showing internal structure (no text or symbols)

Illustration of a cylindrical industrial device with heat sinks and ventilation slots (no text or symbols)

Please do not use the air purifier when all multifunctional filter have not be installed.

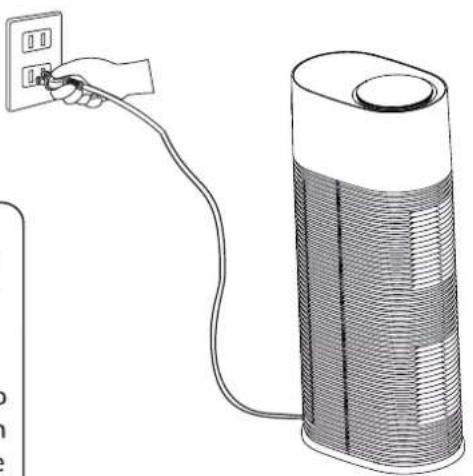

Power on

Place the air purifier on a horizontal support and plug it into a power socket;

• Only use the product on 230V 50Hz socket.
• Before plugging in, please make sure that the hand and plug are dry. If the hand or plug is wet, please wipe the plug or hand and then plug into the power socket.
• After power on, the light on operation panel will flicker for one time, press the button for every time, there will be "Beep" prompt sound.

Illustration of a hand inserting a plug into a wall-mounted device connected to a cylindrical fan (no text or symbols visible)

• Please close the door and window during use.
• If the air quality is not improved after the air purifier is operational for a long time, please open the door and window to keep air ventilation. (under extreme environment)
• Please place the air purifier in the place when there is no screen 30cm at the front, rear, left and right and within the scope of 100cm on the top so that the air will be better circulated and air purifier will work more efficient. Do not place anything on top of appliances and do not sit on the appliances.

Control panel

Operation panel of EPUR300UV

PM2.5 TIME SPEED 888 ug/m³ UV Power Hold 55

Starting up

Light on

Plug the power plug into socket and press the

key to start up.

• Under ready mode, and operates at speed,

- When on any working mode except "ready mode" press the key and air purifier will stop the present state to enter ready mode ※

Light on

- In working mode, the user can press the UV key to start or close the UV function

Wind speed setting

Light on

- In the power-on state, press the "Wind Speed" button, and the wind speed will be switched according to the cycle of automatic mode,

Timing

Light on

•

•

Lock

Press& Hold 3S

- In working mode, the user can press the timing key for 3S, to start or close the lock function

Anion

- In working mode, the user can click on "Anion" key, to start or close the anion function,

Multifunctional filter resetting

The internal timer will calculate the accumulated running time. When the filter light flashes, a buzzer will sound five times (each time the machine is switched on). This reminds you to change the filter: the timer time is calculated based on a simulation test in the laboratory, which may not coincide with actual use. If you notice that the purification effect is getting poorer, change the filter in advance.

After replacing the filter, press and hold the fan speed key for 3 seconds. Then, without releasing the fan button, press the "TIMER" button once. A buzzer will sound and then the indicator light will go out.

After the "Replace Filter" indicator light starts flashing, be sure to replace the filter in time.

Packing list

Packing position	Packaging of main engine			Remarks
Shape	Main engine	Manual
Quantity	1	1

Specification parameters

Model Name	EPUR300UV
Rated voltage
Rated power
Applicable Area	m^2

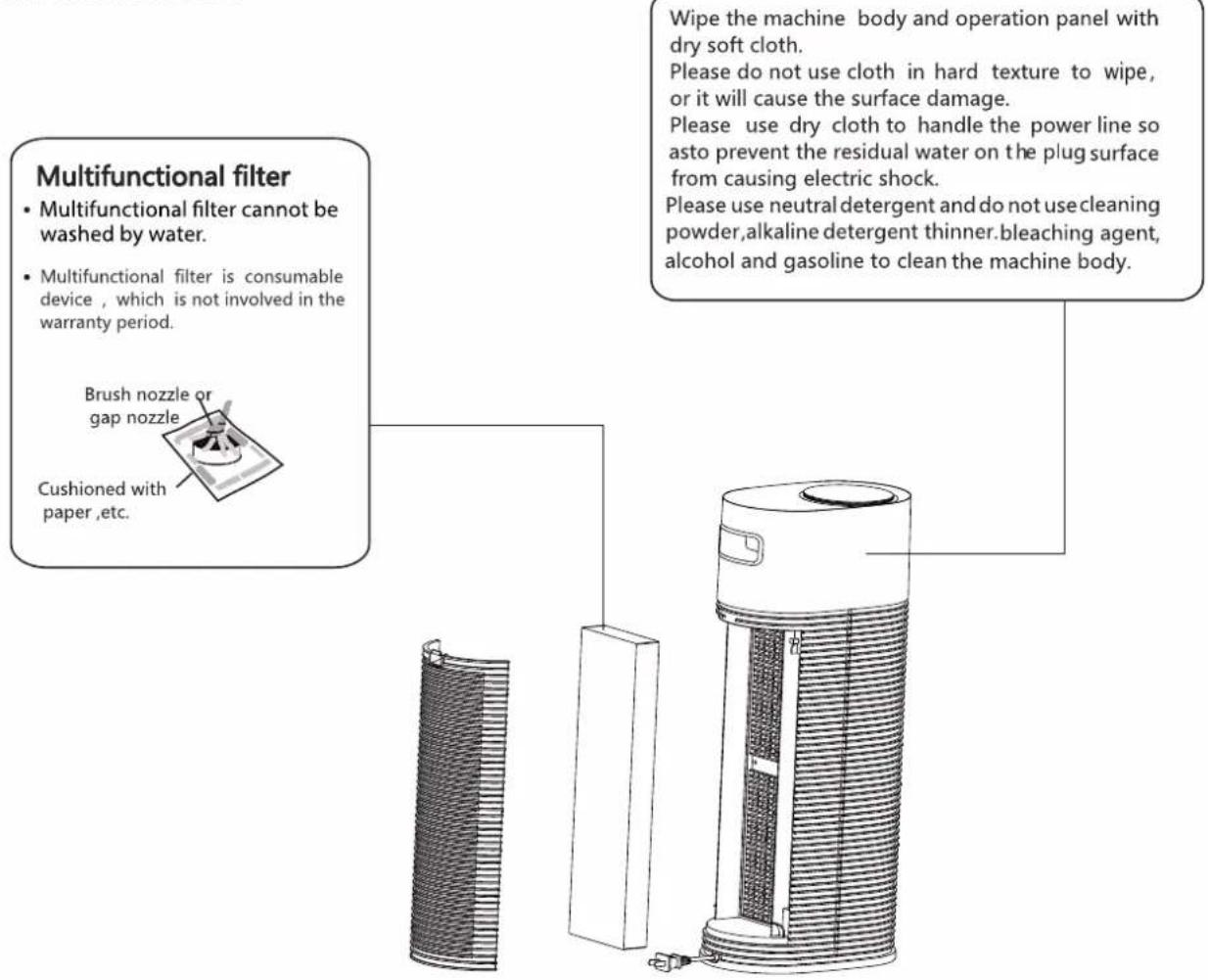

Maintenance precautions

- The power plug must be unplugged and power connection must be disconnected before maintenance.

Multifunctional filter • Multifunctional filter cannot be washed by water. • Multifunctional filter is consumable device, which is not involved in the warranty period. Brush nozzle or gap nozzle Cushioned with paper,etc. Wipe the machine body and operation panel with dry soft cloth. Please do not use cloth in hard texture to wipe, or it will cause the surface damage. Please use dry cloth to handle the power line so asto prevent the residual water on the plug surface from causing electric shock. Please use neutral detergent and do not use cleaning powder,alkaline detergent thinner.bleaching agent, alcohol and gasoline to clean the machine body.

Notes

- Please do not operate while dismantling the multifunctional filter. (It will lose the effect of dust removal and the inhaled dust may cause the sensor fault)

Reference time of replacing multifunctional filter

Multifunctional filter	When the replace strainer indicator light flickers (about once every 3 to 6 months.)
Condition:The product should be operated 8 hrs/day and operating environment is ordinary.
If the operating environment is heavily polluted, please shorten the change time according to practical situation.

The replacement frequency of the multifunctional filter may vary, depending on actual usage and operating environment. please replace the multifunctional filter when the purification is not effective.

• After replacing the multifunctional filter press the key for 3s and indicator light will be out, resetting is finished.

- Please handle the used multifunctional filter as non-combustible rubbish.

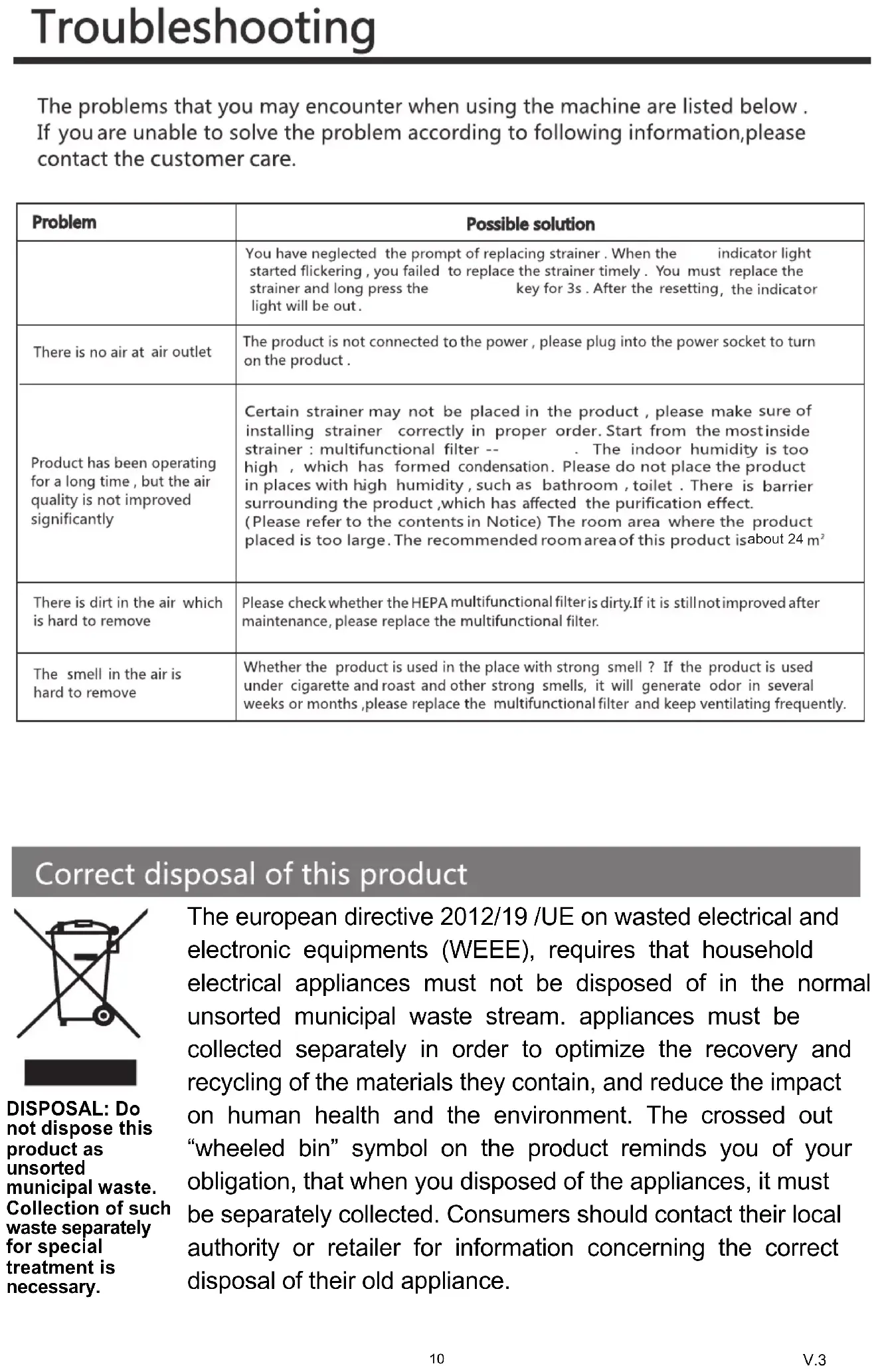

The problems that you may encounter when using the machine are listed below. If you are unable to solve the problem according to following information, please contact the customer care.

Problem	Possible solution
	You have neglected the prompt of replacing strainer. When the indicator light started flickering, you failed to replace the strainer timely. You must replace the strainer and long press the key for 3s. After the resetting, the indicator light will be out.
There is no air at air outlet	The product is not connected to the power, please plug into the power socket to turn on the product.
Product has been operating for a long time, but the air quality is not improved significantly	Certain strainer may not be placed in the product, please make sure of installing strainer correctly in proper order. Start from the mostinside strainer: multifunctional filter -- . The indoor humidity is too high, which has formed condensation. Please do not place the product in places with high humidity, such as bathroom, toilet. There is barrier surrounding the product,which has affected the purification effect.(Please refer to the contents in Notice) The room area where the product placed is too large. The recommended room area of this product is about 24 m^2
There is dirt in the air which is hard to remove	Please check whether the HEPA multifunctional filter is dirty.If it is stillnotimproved after maintenance, please replace the multifunctional filter.
The smell in the air is hard to remove	Whether the product is used in the place with strong smell? If the product is used under cigarette and roast and other strong smells, it will generate odor in several weeks or months,please replace the multifunctional filter and keep ventilating frequently.

Correct disposal of this product

Symbol of a trash bin with crossed lines indicating no waste, above and below a solid black rectangle (no text or labels)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

COMMERCIAL GUARANTEE CONDITIONS

This product has a two-year repair guarantee from the date of sale, against all manufacturing malfunctions, including repairwork and replacement parts, and a five-year guarantee on the compressor (component only). To justify the purchase date, it will be mandatory to present the end user's invoice or purchase receipt and the installation company data. This guarantee will only be effective in Spain.

EXCLUSIONS FROM THE GUARANTEE

1. Devices used improperly, in a manner not in accordance with the instructions for use.
2. Maintenance or upkeep of the appliance: gas charges, periodic reviews, adjustments, greasing.
3. The devices disassembled or manipulated by the user or persons outside the authorized technical services.
4. Materials broken or deteriorated due to wear or normal use of the device: remote controls, gaskets, plastics, filters, etc.
5. Devices that do not have the factory serial number identified or in which it has been altered or erased.
6. Faults caused by fortuitous causes or accidents of force majeure, or as a result of abnormal, negligent or inappropriate use of the device.
7. Civil liabilities of any nature.
8. Loss or damage to software or information media.
9. Faults produced by external factors such as current disturbances, electrical surges, excessive or incorrect voltage supply, radiation and electrostatic discharges including lightning.
10. Installation defects, such as lack of ground connection between indoor and outdoor units, lack of ground connection in the home, alteration of the order of the phases and the neutral, flare in poor condition or connection with refrigeration pipes of different diameter.
11. When there is a pre-installation, the damage caused by not carrying out an adequate preliminary cleaning of the installation with nitrogen and checking for air-tightness.
12. External device linkages (such as Wi-Fi connections). This can never lead to unit change.
13. Substitutions and / or repairs to equipment or devices installed or located at a height equivalent to or greater than 2'20 meters from the ground.

14. Damage by freezing in plate and / or tube exchangers, and in condensers and water chillers.

15. Damage to fuses, blades, lamps, flow switch, filters and other elements derived from normal wear and tear due to the operation of the equipment.

16. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.
17. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without prior notice for product improvement.

EAS ELECTRIC

SMART TECHNOLOGY

www.easelectric.es

Isometric line drawing of a cylindrical object with layered internal structure (no text or symbols)

Diagram of a cylindrical device with labeled parts, showing internal layered structure and numbered annotations.

Technical diagram of a cylindrical device with numbered parts labeled ③, ④, and ⑤

Three identical cylindrical industrial enclosures or storage units, shown from different angles (no text or symbols visible)

Diagram of a cylindrical device with internal components and a handle, showing no text or symbols

Illustration of two different methods: a hand-drawn grid notebook and a flat rectangular plate, both without any text or symbols.

Diagram of a portable air conditioner unit with a handle and internal structure (no text or symbols)

Two cylindrical industrial air purifiers with heat sinks and ventilation ducts, shown from different angles (no text or symbols)

Illustration of a hand connecting a wall-mounted power outlet to a cylindrical device with mesh insulation (no text or symbols)

Panneau de commande

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

EXCLUSIONS DE LA GARANTIE

Diagram of a cylindrical device with internal layered structure (no text or symbols)

Filtro multifuncional

Diagram of a cylindrical device with labeled parts, showing internal layered structure and numbered annotations.

1. Painel de controlo
2. Saída de ar
3. Cabo

Technical diagram of a cylindrical device with numbered parts labeled ③, ④, and ⑤

Illustration of a cylindrical industrial fan or radiator with internal blades and a handle (no text or symbols)

Illustration of a cylindrical industrial fan or filter unit with internal blades and a handle (no text or symbols visible)

Line drawing of a cylindrical device with internal structure and base, no text or symbols present

Diagram of a cylindrical device with internal components and a handle, showing no text or symbols

1. Remover o filtro multifuncional do saco plástico.

Line drawing of hands holding a grid notebook on a sheet of paper (no text or symbols)

Diagram of a portable air conditioner unit with heat exchanger and cooling unit (no text or labels)

Illustration of a cylindrical device with internal structure and a handle, no visible text or symbols

Illustration of a cylindrical industrial device with heat dissipation fins and cooling fins (no text or symbols)

Illustration of a hand connecting a wall-mounted power outlet to a cylindrical device with mesh insulation (no text or symbols)

Painel de controlo

Painel de controlo EPUR300UV

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)
