Product type	Microwave oven
Brand	EAS Electric
Model	EMBG20L
Power supply voltage	230 V ~ 50 Hz
Input power (microwave)	1050 W
Output power (microwave)	700 W
Input power (grill)	1000 W
Capacity	20 L
Turntable diameter	255 mm
Dimensions (W x D x H)	440 x 358.5 x 259 mm
Net weight	Approx. 10.92 kg
Functions	Microwave, Grill, Combined (3 levels), Defrost
Microwave power levels	Low (17%), Medium-low (33%), Medium (55%), Medium-high (77%), High (100%)
Combined levels	Combi 1 (80% grill, 20% micro), Combi 2 (70% grill, 30% micro), Combi 3 (60% grill, 40% micro)
Safety	Door safety lock, automatic shut-off, overheat protection
Allowed materials	Heat-resistant glass, microwave-safe plastic, parchment paper, plastic wrap
Prohibited materials	Metal, aluminum, metal utensils, kraft paper, foam, wood
Maintenance and cleaning	Clean the cavity with a damp cloth after each use; do not use abrasive cleaners
Included accessories	Glass tray, turntable ring, grill rack, user manual
Installation	Minimum clearance: 30 cm above, 20 cm on sides, back against wall
Warranty	3 years (parts and labor), valid in Spain and Portugal
Compliance	Low Voltage Directive 2006/95/EC and Electromagnetic Compatibility Directive 2014/30/EU
Repairability	Contact a qualified professional for any internal intervention

Frequently Asked Questions - EMBG20L EAS Electric

How to properly install the EMBG20L microwave oven?

Place the oven on a flat and stable surface. Leave a free space of at least 30 cm above and 20 cm on the sides for ventilation. The back of the appliance must be against the wall. Do not install it near a heat source.

What types of utensils can I use in this microwave?

Use only microwave-safe containers: heat-resistant glass, microwave-safe plastic, parchment paper or plastic wrap. Avoid any metal, aluminum, or items with metallic finishes.

How to clean the interior of the oven?

After each use, clean the cavity with a damp cloth and mild soap. For stubborn stains, heat a bowl of water with lemon for 10 minutes, then wipe. Never use abrasive cleaners or metal sponges.

What are the different power levels available?

The oven offers 5 microwave levels: Low (17%), Medium-low (33%), Medium (55%), Medium-high (77%) and High (100%). In addition, you have 3 combined modes (Combi 1, 2, 3) that combine grill and microwave, and a Grill mode alone.

How to use the defrost function?

Turn the power selector to the Medium-low position (defrost) or use the time setting for weight-based defrosting. For even defrosting, turn the food halfway through.

Can I grill food with this oven?

Yes, use the Grill mode alone or the combined modes (Combi). Place the food on the provided rack, itself placed on the turntable. Monitor the cooking to avoid burning.

What to do if the oven does not turn on?

First check that the cord is properly plugged in. If the problem persists, unplug the appliance, wait 10 seconds and plug it back in. Check the fuse or circuit breaker. If nothing works, contact a qualified technician.

How to ensure child safety?

Do not allow children under 8 years old to use the appliance without supervision. Older children can use it under supervision. Keep the door closed in case of smoke and never let the oven operate empty.

Which foods or containers are dangerous in the microwave?

Never heat whole eggs (even cooked), tightly sealed containers, or liquids in containers without openings. Metal, paper bags, and objects made of wood or foam are also prohibited.

How does the warranty for this microwave work?

The warranty is 3 years from the date of purchase, covering manufacturing defects (parts and labor). It is valid in Spain and Portugal. Keep the invoice or receipt. Damages due to misuse are not covered.

USER MANUAL EMBG20L EAS Electric

HORNO MICROONDAS CON GRILL

ELECTRONIC MICROWAVE OVEN WITH GRILL

FOUR À MICRO-ONDES AVEC GRILL

FORNO MICRO-ONDAS COM GRILL

Simple line drawing of a microwave oven with a rectangular door and side panel (no text or symbols)

EMBG20L

QR code with embedded logo and text 'IERAS ELECTRIC' in the center

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

A F G E D C B

Simple line drawing of a round object with diagonal hatching and two legs (no text or symbols)

A. Panel de control

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

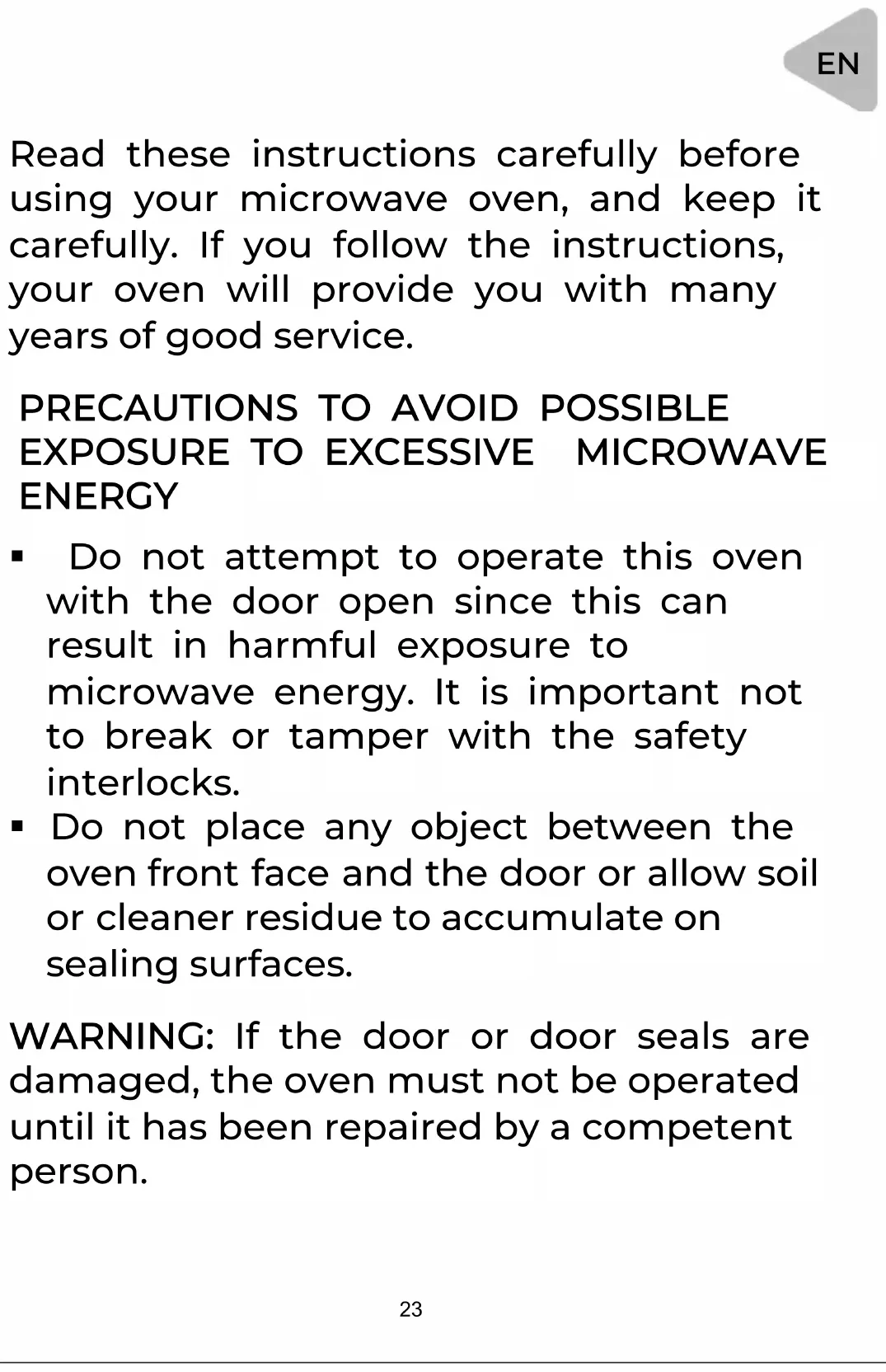

Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

• Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

TECHNICAL ESPECIFICATIONS

Model:	EMBG20L
Rated Voltage:	230V~ 50Hz
Rated Input Power(Microwave):	1050W
Rated Output Power (Microwave):	700 W
Rated Output Power (Grill)	1000 W
Oven Capacity:	20L
Turntable Diameter:	255mm
External Dimensions:	440×358.5×259mm
Net Weight:	Approx.10,92kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

4. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

5. Keep the appliance and its cord out of reach of children less than 8 years.

6. Only use utensils that are suitable for use in microwave ovens.

7. The oven should be cleaned regularly and any food deposits should be removed.

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. This appliance is intended to be used in household and similar applications such as:

16. staff kitchen areas in shops, offices and other working environments;

17. by clients in hotels, motels and other residential type environments;
18. farm houses;

19. bed and breakfast type environments.

20. If the power cord is damaged, it must be replaced by the manufacturer, its technical service or qualified persons to avoid any dangerous situation.

21. Do not store or use this appliance outdoors.

22. Do not use this oven near water, in a wet basement or near a swimming pool.

23. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.

24. Do not let cord hang over edge of table or counter.

25. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

26. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

27. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

28. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

29. Accessible parts may become hot during use. Young children should be kept away.
30. Steam cleaner is not to be used.
31. During use the appliance becomes

hot. Care should be taken to avoid touching heating elements inside the oven.

1. The back of the appliance must be placed against a wall.
2. The microwave should not be placed inside a cabinet.
3. The microwave oven is intended for heating food an beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

INSTRUCTIONS TO REDUCE THE RISK OF INJURY TO PERSONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug.

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. If a long cord set or extension cord is used: The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. The extension cord must be a grounding-type 3-wire cord. The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

Consult a qualified electrician or service-man if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

DANGER: Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

MICROWAVE CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and near parts must be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. CLEANING TIP: For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100%microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS CAUTION

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Termo meters	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack the dish.

Declaration of conformity

This device complies the requirements of the Low Voltage Directive 2006/95/CE and the requirements of the EMC directive 2014/30/EU.

SETTING UP YOUR OVEN

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

A F E D C B G

Line drawing of a simple oval-shaped object with diagonal hatching and two legs, no text or symbols present.

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

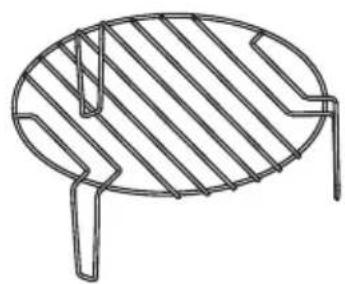

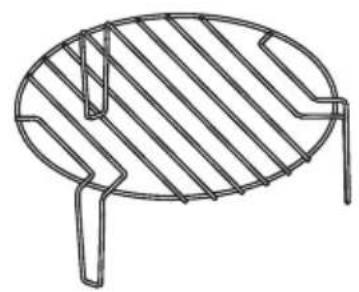

Grill Rack: Only to be used in grill function and be placed on the glass tray.

Turntable Installation

Hub (underside) Glass tray Turntable shaft

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.

b. Both glass tray and turntable ring assembly must always be used during cooking.

c. All food and containers of food are always placed on the glass tray for cooking.

d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

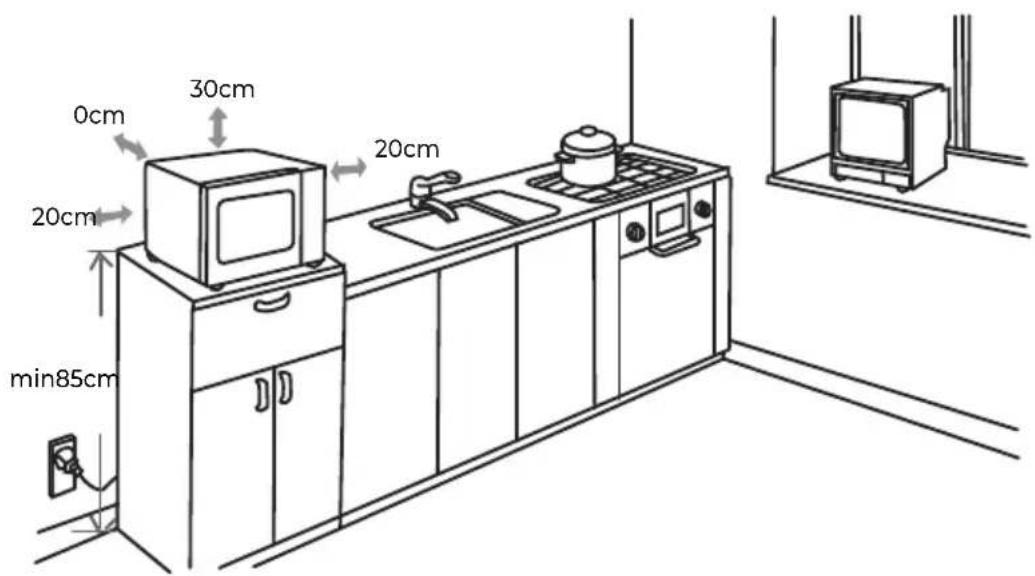

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

0cm 30cm 20cm 20cm min85cm

a) The minimum installation height is 85cm.
b) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.
c) Do not remove the legs from the bottom of the oven.
d) Blocking the intake and/or outlet openings can damage the oven.
e) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

OPERATION

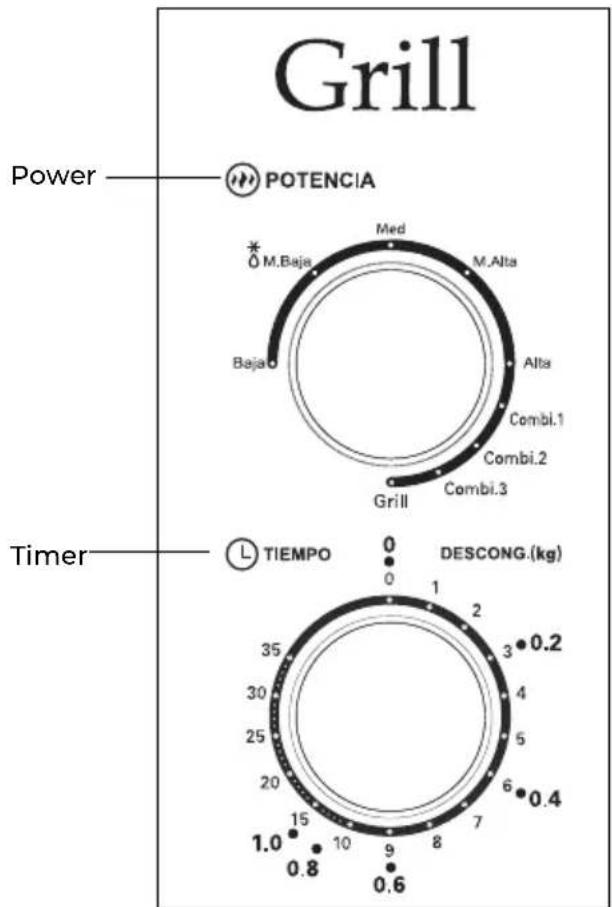

Control Panel and Features Operation Instructions

Grill Power POTENCIA Med M.Alta Alta Combi.1 Baja Combi.2 Combi.3 Grill Timer L TIEMPO 0 0 1 2 3 4 5 6 7 8 9 0.2 DESCONG.(kg) 0.4 0.6 1.0 0.8 1.0 0.6

1. To set cooking power by turning the power knob to desired level.

2. To set the time of cooking by turning the timer knob to desired time per your food cooking guide.

3. The microwave oven will automatically start cooking after power level and time are set.

4. After the cooking time is up, the unit will "Dong" to stop.

5. If the unit is not in use, always set time to "0".

Function/Power Output Application
Low	17% micro.	Soften ice cream
Med. Low (Defrost)	33% micro.	Soup stew, soften butter or defrost
Med.	55% micro.	Stew, fish
Med. High 77% micro.		Rice, fish, chicken, ground meat
High	100% micro.	Reheat, milk, boil water, vegetables, beverage
Combi.1	80% grill 20% micro.	Sausage, Lamb, Kabobs, Seafood, Steak
Combi.2	70% grill 30% micro.	Chicken pieces, Chicken breasts, Pork chops
Combi.3 60% grill 40% micro. Whole chicken
Grill 100% grill		Baken bread, Slice food

Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero). Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

TROUBLE SHOOTING

Normal
Microwave oven interfering TV reception	Radio an TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in	It is forbidden to run the unit with any food inside. It's very dangerous.

Trouble Possible cause Remedy
Oven can not be started	(1) Power cord not plugged in tightly	Unplug. Then plug again after ten seconds.
	(2) Fuse blowing or circuit breaker works	Replace fuse or reset circuit breaker (repared by professional personnel).
	(3) Trouble with outlet	Test outlet with other electrical appliances.
Oven does not heat	(4) Door not closed well	Close door well.

Symbol of a waste bin crossed with no text or labels, representing environmental restriction (no text present)

The european directive to 2002/96/EC on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be obligatory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

EXCLUSIONS FROM THE WARRANTY

1. Breakages caused by falling glass lids, damage to the pots due to misuse and abuse, accidents or alterations in the products due to overheating, use of cooking sprays, improper cleaning, use of caustic soda, use of unapproved metals or other cleaning products.

2. Aesthetic parts made of metal, silicone, wood, plastic, glass or any damage that does not affect the functionality of the device.

3. Microwaves used in industrial applications or for commercial environments.

4. Remote controls, door seals, damage caused by introducing metal or damage suffered to the mica shield.

5. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.

6. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavourable environmental or climatic circumstances. Not suitable for outdoor use.

7. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of an abnormal, negligent or inappropriate use of the device.

8. Civil liabilities of any nature.

9. Consequential damage to the appliance as long as this has not been caused by an internal malfunction.

10. Maintenance or conservation of the appliance: periodic reviews, adjust-ments and greasing.

11. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.

12. Faults caused by improper or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

13. Appliances with illegible or altered serial number.

14. Defects or breakdowns produced as a consequence of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of the manifest non-compliance with the manufacturer's instructions for use and maintenance.

15. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

16. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

17. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

EAS ELECTRIC SMART TECHNOLOGY

www.easelectric.es

A F R R G E D C B

Simple line drawing of a round table with diagonal hatching and two legs (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

A F E D C B G

Simple line drawing of a circular object with diagonal hatching and two legs, resembling a fan or vent (no text or symbols)

Symbol of a waste bin with no text or labels, crossed by diagonal lines and a solid black rectangle below (no readable text or symbols)

CONDITIONS DE LA GARANTIE

EXCLUSIONS DE LA GARANTIE
