USER MANUAL EMEI20L EAS Electric

Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

WARNING: If the door or door seals are

damaged, the oven must not be operated until it has been repaired by a competent person. ENTECHNICAL ESPECIFICATIONS

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

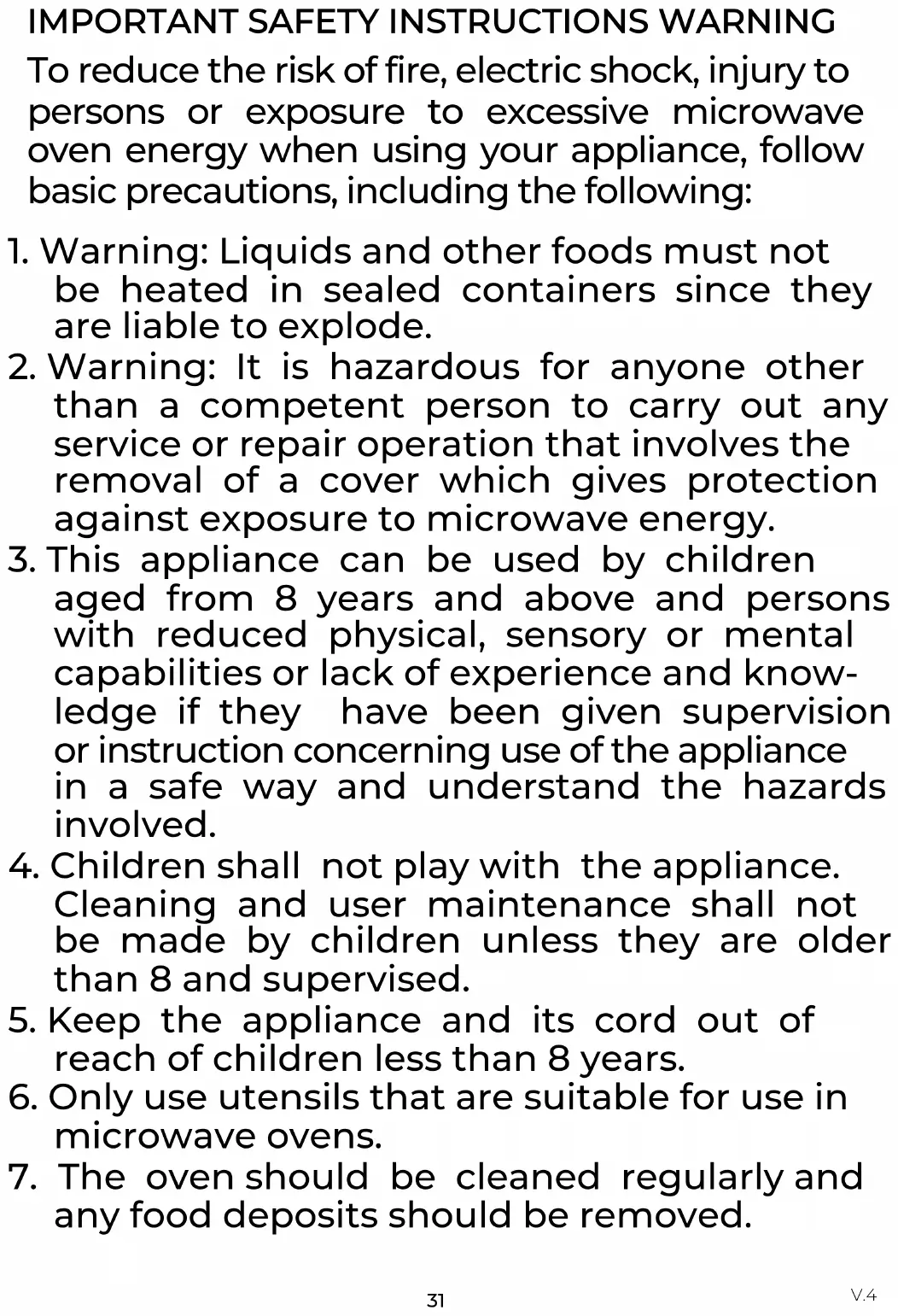

1. Warning: Liquids and other foods must not

be heated in sealed containers since they are liable to explode.

2. Warning: It is hazardous for anyone other

than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children

aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and know- ledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

4. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

5. Keep the appliance and its cord out of

reach of children less than 8 years.

6. Only use utensils that are suitable for use in

7. The oven should be cleaned regularly and

any food deposits should be removed.32 V.4

8. When heating food in plastic or paper

containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is emitted, switch off or unplug

the appliance and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage

purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal

handles from paper or plastic containers/ bags before placing them in the oven.

13. Install or locate this oven only in

accordance with the installation instruc- tions provided.

14. Eggs in their shell and whole hard-

boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. This appliance is intended to be used

in household and similar applications such as:. −staff kitchen areas in shops, offices and other working environments; −by clients in hotels, motels and other residential type environments; −farm houses; −bed and breakfast type environments33 V.4

16. If the power cord is damaged, it must

be replaced by the manufacturer, its technical service or qualified persons to avoid any dangerous situation.

18. Do not use this oven near water, in a

wet basement or near a swimming pool.

19. The temperature of accessible

surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.

21. Failure to maintain the oven in a clean

condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22. The contents of feeding bottles and

baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23. Microwave heating of beverages can

result in delayed eruptive boiling, there- fore care must be taken when handling the container.34 V.4

24. The appliances are not intended to be

operated by means of an external timer or separate remote-control system.

25. Accessible parts may become hot

during use. Young children should be kept away.

26. Steam cleaner is not to be used.

27. During use the appliance becomes

hot. Care should be taken to avoid touching heating elements inside the oven.

28. The back of the appliance must be

placed against a wall.

29. The microwave should not be placed

30. The microwave oven is intended for

heating food an beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

READ CAREFULLY AND KEEP FOR

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equip- ped with a cord having a grounding wire with a grounding plug. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. If a long cord set or extension cord is used: The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. The extension cord must be a grounding-type 3-wire cord. The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. Consult a qualified electrician or service- man if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

DANGER: Electric Shock Hazard Touching

some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.MICROWAVE CLEANING Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after

using with a slightly damp cloth.

2. Clean the accessories in the usual

3. The door frame and seal and

nears parts must be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners

or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. CLEANING TIP: For easier cleaning

of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth. V.4 36UTENSILS CAUTION It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

1. Fill a microwave-safe container with

1 cup of cold water (250ml) along with the utensil in question.

2. Cook on maximum power for 1

utensil is warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven Dinnerware Remarks Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Utensils Browning dish Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Glassware Oven cooking bags Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Use for short–term cooking/ warming only. Do not leave oven unattended while cooking. Paper plates and cupsV.4

Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Use as a cover to prevent splattering or a wrap for steaming. Parchment paper Plastic Plastic wrap Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Microwave-safe only (meat and candy thermometers). Termo meters Wax paper Use as a cover to prevent splattering and retain moisture.V.4

Materials to be avoided in microwave oven Remarks May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. Metal shields the food from microwave energy. Metal trim may cause arcing. May cause arcing and could cause a fire in the oven. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood will dry out when used in the microwave oven and may split or crack the dish. Utensils Aluminum tray Food carton with metal handle Metal or metal- trimmed utensils Metal twist ties Paper bags Plastic foam Wood Declaration of conformity This device complies the requirements of the Low Voltage Directive 2006/95/CE and the requirements of the EMC directive 2014/30/EU.Grill Rack (Only be used in grill function and be placed on the glass tray) A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system Turntable Installation Hub (underside) Glass tray Turntable shaft a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center. Turntable ring assembly V.4

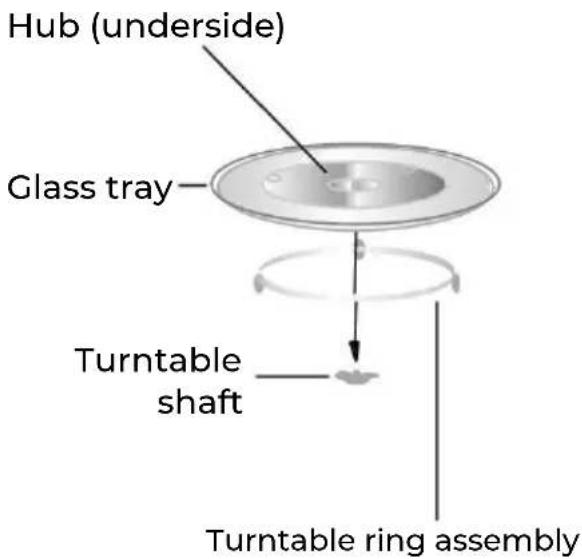

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

C B E DInstallation and connection 1.This appliance is only intended for domestic use.

2. This oven is intended for built-in use only.

It is not intended for counter-top use or for use inside a cupboard.

3. Please observe the special installation

3. The appliance can be installed in a

60cm wide wall-mounted cupboard.

4. The appliance is fitted with a plug and

must only be connected to a properly installed earthed socket.

5. The mains voltage must correspond to

the voltage specified on the rating plate.

6. The socket must be installed and

connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.

7. Adapters, multi-way strips and

extension leads must not be used. Overloading can result in a risk of fire. The accessible surface may be hot during operation. V.4 42V.4

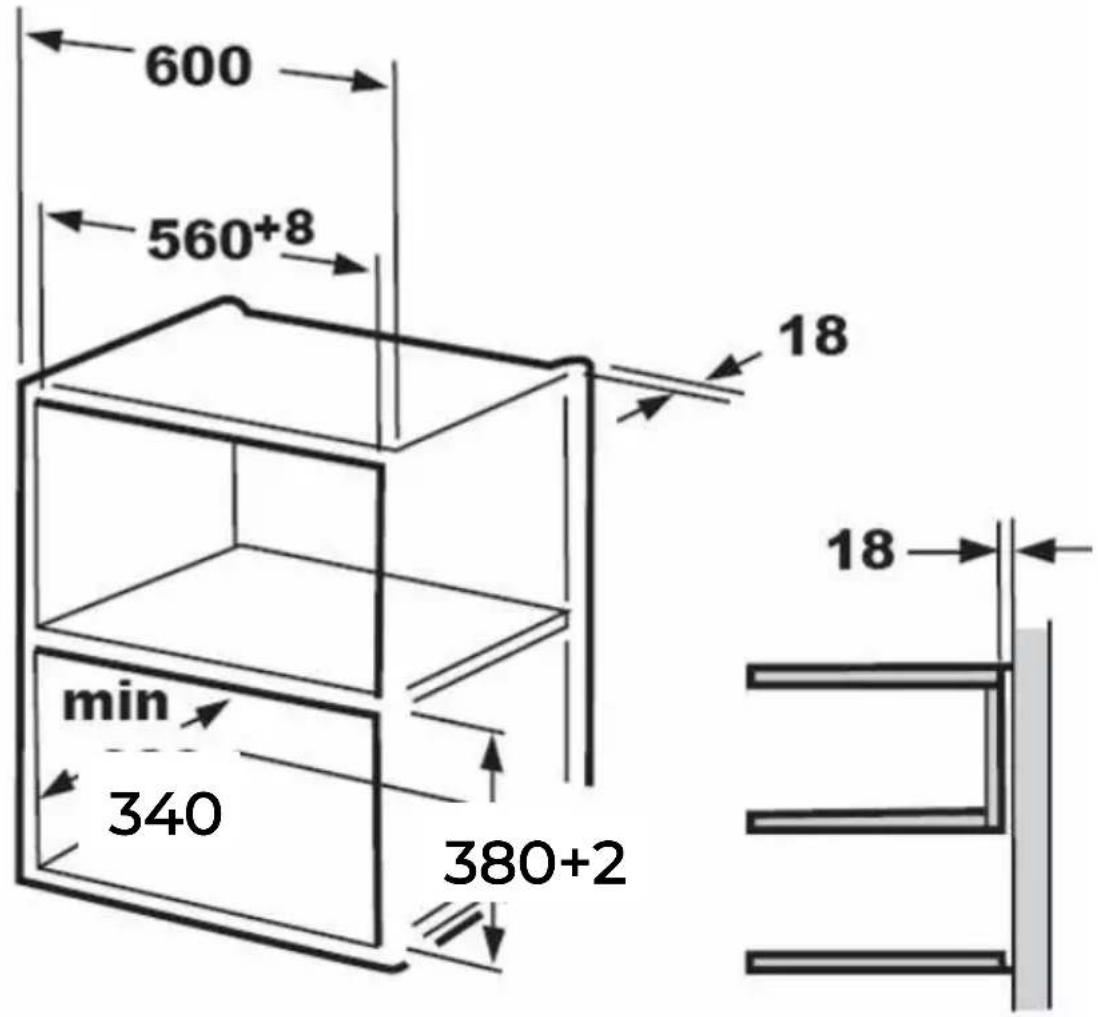

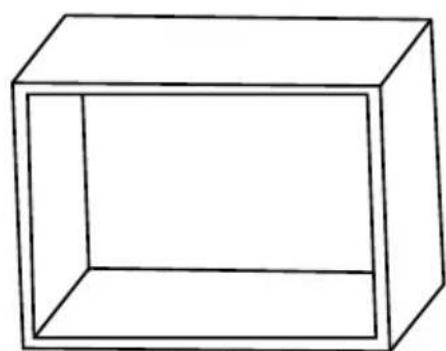

Installation Instructions Please Read the Manual Carefully Before Installa- tion Please note Electrical connection The oven is fitted with a plug and must only be connected to a properly installed earthed socket. The socket must only be installed and the connecting cable must only be replaced by a qualified electrician, and in accordance with the appropriate regulations. If the plug is no longer accessible following installation, an all pole isolating switch must be present on the installation side with a contact gap of at least 3 mm. The fitted cabinet must not have a back wall behind the appliance. Minimum installation height: 85 cm. Do not cover ventilation slots and suction holes. Note: Do not trap or bend the power cable.380+2

V.4 44Note: The bracket and bottom cabinet tem-plate are needed when installing in both installations. 380+2

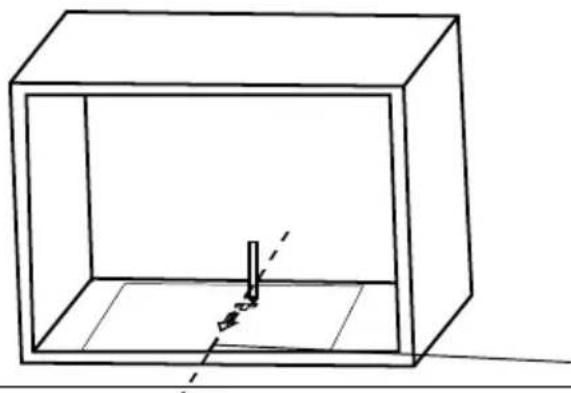

TE, put the template on the bottom plane of cabinet.

2. Make the marks on the bottom plane of cabinet according

Screw A Bracket Centre line

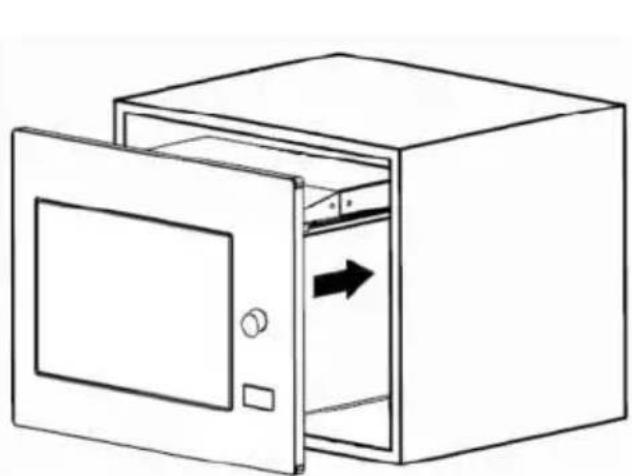

4. Install the oven to the cabinet.

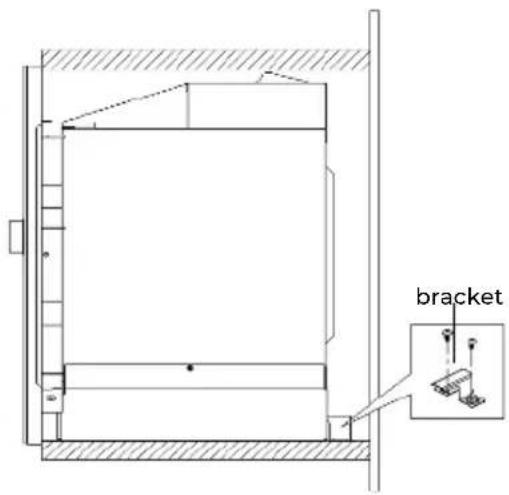

- Make sure the back of the oven is locked by bracket. - Do not trap or kink the power cord.

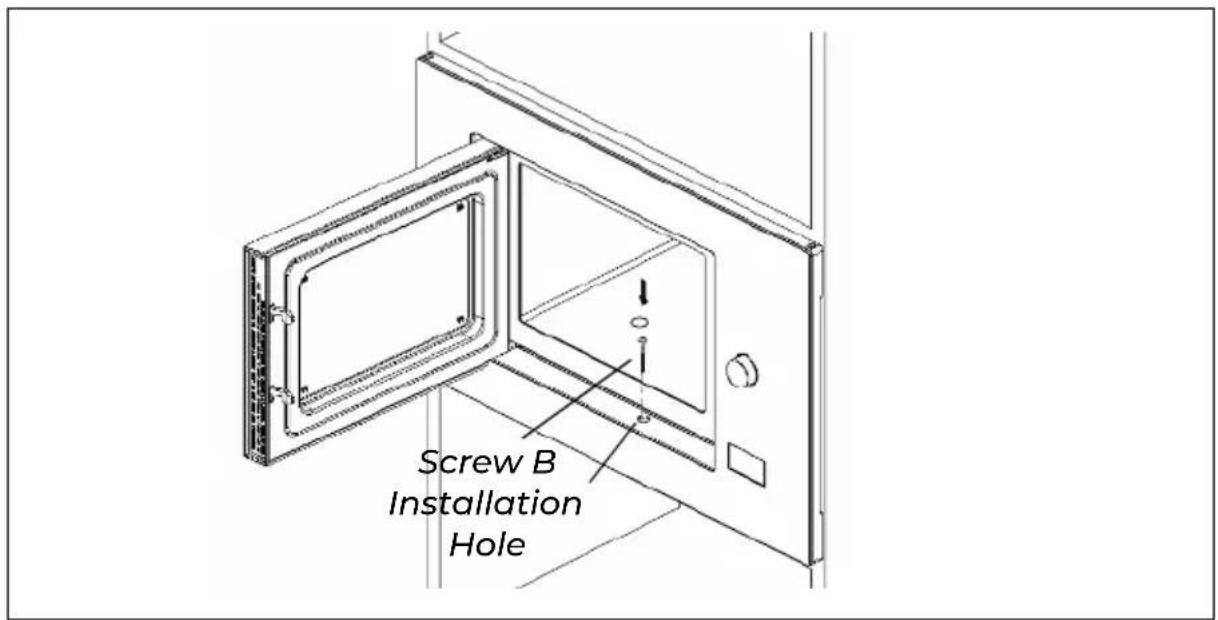

5. Open the door, fix the oven to the cabinet with screw

B, at the installation hole. Then fix the Trim-kit plastic cover to the installation hole. Screw B Installation Hole

1) Press the "Micro./Grill/Combi." key once, and "P100" display.

2) Press "Micro./Grill/Combi." repeatedly or turn to select the microwave power

"P100", "P80", "P50", "P30", "P10" will display in order.

3) Press "INICIO/+30SEG./CONFIRM." to confirm.

4) Turn to adjust the cooking time. (The time setting should be 0:05-95:00.)

5) Press "INICIO/+30SEG./CONFIRM." to start cooking.

Operating instructions

When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.

1) Press " Reloj /Temporizador" once, the hour figures will flash.

2) Turn to adjust the hour figures, the input time should be within 0-23.

3) Press "Reloj /Temporizador", the minute figures will flash.

4) Turn to adjust the minute figures, the input time should be within 0-59.

5) Press "Reloj /Temporizador" to finish clock setting. ":" will flash.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if no operation in 1 minute, the oven

will go back to the previous state. Note: the step quantities for the adjustment time of the coding switch are as follow:

2. Microwave Cooking

0---1 5 seconds 1---50 10 seconds 5---10 min: 30 seconds 1 minute 10---30 5 minutes 30---95 min: min: min: min: Functions and powers Micro/Grill/ Combi order Pad instructions display Microwave Power Grill Power 1 P100 100% 2 P80 80% 3 P50 50% 4 P30 30% 5 P10 10% 6 G 0% 100% 7 C-1 55% 45% 8 C-2 36% 64%3. Grill or Combi. Cooking Press "Micro./Grill/Combi." once, the screen will display "P100". Press "Micro./Grill/ Combi. " repeatedly or turn to choose the grill or combination power you want, and "G", "C-1" or "C-2" will display for each added press . Then press "INICIO/+30SEG./ CONFIRM." to confirm, and turn to set cooking time from 0:05 to 95:00. Press "INICIO/+30SEG./CONFIRM." again to start cooking. Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

3) Press " INICIO/+30SEG./CONFIRM." to confirm, and the screen displays "C-1".

4) Turn to adjust the cooking time until the oven displays "10:00".

5) Press "INICIO/+30SEG./CONFIRM." to start cooking.

Note:If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press" INICIO/+30SEG./CONFIRM." to continue cook. If no operation, the oven will continue working.

1) In waiting state, press "INICIO/+30SEG./CONFIRM." key to cook with 100% power

level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.

2) During the microwave, grill and combination cooking and time defrost process,

press "INICIO/+30SEG./CONFIRM." to increase the cooking time.

3) In waiting states, turn left to choose the cooking time directly. After choosing the

time, press "INICIO/+30SEG./CONFIRM." to start cooking. The microwave power is 100%. V.4

5. Defrost By Weight

1) Press "Peso/Tiempo descong." once, the screen will display "dEF1".

2) Turn to select the food weight. The range of weight is 100-2000g.

3) Press "INICIO/+30SEG./CONFIRM." key to start defrosting.

2) Turn to select the cooking time.

3) Press "INICIO/+30SEG./CONFIRM. " key to start defrosting.1) In waiting states, turn right to choose the menu from "A-1" to "A-8";

2) Press "INICIO/+30SEG./CONFIRM. " to confirm the menu you choose;

3) Turn to choose the food weight.

4) Press "INICIO/+30SEG./CONFIRM." to start cooking;

5) After cooking finish, the buzzer sounds five times.

2) Turn to select to enter the correct timer. (The max. time is 95 minutes).

3) Press “INICIO/+30SEG./CONFIRM.” to confirm setting.

4) When the kitchen time is reached, timer indicator will go out. The buzzer will ring 5

450g 450 A-7 BEVERAGE 120 ml 1 240 ml 2 360 ml 3 A-8 POPCORN 50g 50 100g 1009.Multi-Stage Cooking Two stages can be maximumly set. If one stages is defrosting, it should be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin. Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press "PESO/TIEMPO DESCONG " twice, the screen will display "dEF2";

2)Turn to adjust the defrost time of 5 minutes; 3)Press "Micro./Grill/Combi." once; 4)Turn to choose 80% microwave power till "P80" display; 5)Press "INICIO/+30SEG./CONFIRM." to confirm; 6)Turn to adjust the cooking time of 7 minutes. 7)Press "INICIO/+30SEG./CONFIRM." to start cooking.

10. Inquiring Function

1) In cooking states of microwave, grill and combination, press " Micro./Grill/

Combi.", the current power will be displayed for 3 seconds.

2) In pre-set state, press "RELOJ/TEMPORIZADOR" to inquire the time for delay

start cooking. The pre-set time will flash for 3 seconds, then the oven will turn back to the clock display.

3) During cooking state, press "RELOJ/TEMPORIZADOR" to check the current

time. It will be displayed for 3 seconds.

11. Lock-out Function for Children

Lock: In waiting state, press "STOP/BORRAR" for 3 seconds, there will be a long "beep" denoting entering the children-lock state and screen will display " ". Lock quitting: In locked state, press "STOP/BORRAR" for 3 seconds, there will be a long "beep" denoting that the lock is released. V.4 51TROUBLE SHOOTING Glass turntable makes noise when microwave oven operates (5) Dirty roller rest and oven bottom Refer to “Microwave cleaning” to clean dirty parts. V.4

Normal Microwave oven interfering TV reception Radio an TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal. Dim oven light In low power microwave cooking, oven light may become dim. It is normal. Steam acumulating on door, hot air out of vents In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal. Oven started accidentally with no food in It is forbidden to run the unit with any food inside. It’s very dangerous. Trouble Possible cause Remedy Oven can not be started (1) Power cord not plugged in tightly Unplug. Then plug again after ten seconds. (2) Fuse blowing or circuit breaker works Replace fuse or reset circuit breaker (repared by professional personnel). (3) Trouble with outlet Test outlet with other electrical appliances. Oven does not heat (4) Door not closed well Close door well.DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. V.4 53WARRANTY CONDITIONS This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be obligatory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.
