EMC1971SX1 - Refrigerator EAS Electric - Free user manual and instructions

Brand	EAS Electric
Model	EMC1971SX1
Product Type	Refrigerator
Energy Class	A+
Annual Energy Consumption	150 kWh
Total Capacity	120 L
Refrigerator Compartment Capacity	100 L
Freezer Compartment Capacity	20 L (4 stars)
Dimensions (H x W x D)	85 x 60 x 60 cm
Net Weight	35 kg
Supply Voltage	220-240 V ~ 50 Hz
Defrost Function	Automatic (refrigerator), manual (freezer)
Interior Lighting	LED
Adjustable Thermostat	Yes
Tempered Glass Shelves	Yes, 3 adjustable shelves
Crisper Drawer	1 bin
Door Balconies	3 balconies
Reversible Door	Yes (orientation can be changed)
Noise Level	40 dB
Climate Class	N-ST
Care and Cleaning	Clean with a soft cloth and soapy water; defrost if necessary
Safety	Grounding mandatory; accessible power socket
Spare Parts and Repairability	Parts available via after-sales service
General Information	EAS Electric refrigerator model EMC1971SX1, 83-page manual

Frequently Asked Questions - EMC1971SX1 EAS Electric

How do I set the temperature of my refrigerator?

Use the thermostat located inside the refrigerator. Turn the knob to a setting between 1 (least cold) and 5 (coldest). The recommended temperature is 4°C for the refrigerator and -18°C for the freezer.

How do I clean the interior of the refrigerator?

Unplug the appliance. Remove the shelves and bins. Clean with a soft cloth soaked in warm water and mild detergent. Rinse and dry before replacing the accessories.

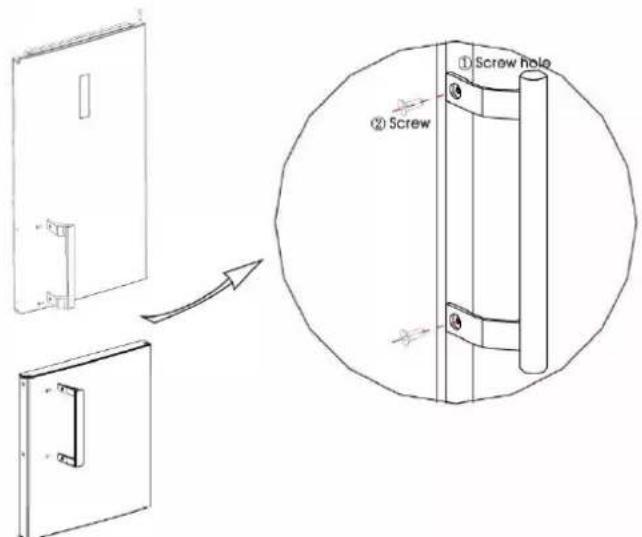

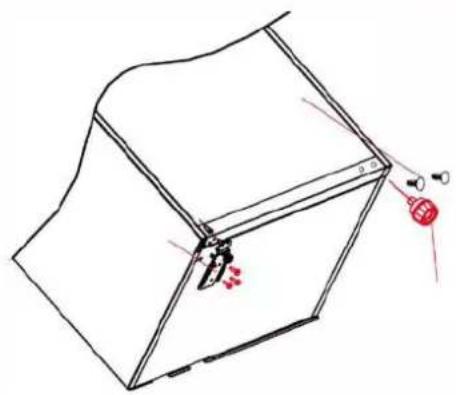

How do I reverse the door opening direction?

Follow the instructions in the manual (pages 10-12). You will need a screwdriver. Disassemble the door, reverse the hinges, and reassemble. Make sure to keep all screws.

What should I do if the refrigerator stops cooling?

First check the power supply and the thermostat. Ensure the socket works and the thermostat is not set to 0. If the problem persists, contact after-sales service.

How do I defrost the freezer?

Unplug the appliance and empty the freezer. Leave the door open to let the ice melt. Do not use sharp objects to scrape ice. Clean and dry before turning it back on.

What is the power consumption of this refrigerator?

The annual consumption is approximately 150 kWh, corresponding to energy class A+. This may vary depending on usage and environment.

The refrigerator makes an unusual noise, is this normal?

A slight hum from the compressor or a gas circulation sound is normal. If the noise is loud or irregular, check that the appliance is level and not touching furniture.

How do I change the light bulb?

Unplug the appliance. Remove the bulb cover (usually clipped on). Replace the defective bulb with a bulb of the same type (LED or incandescent depending on the model). Refit the cover.

What to do in case of a prolonged power outage?

Do not open the doors unnecessarily. Food stays cold for several hours. If the outage lasts more than 4 hours, check the condition of the food. Do not refreeze thawed food.

Where can I find the complete user manual?

The manual is available for free download on sites like notice-facile.com. You can also scan the QR code on the appliance to access the digital version.

USER MANUAL EMC1971SX1 EAS Electric

and similar non-retail applications.

b

Special for new European standard:

AVERTISSEMENTS DE SECURITÉ
