EMF173NF3 - Fridge EAS Electric - Free user manual and instructions

Product type	Refrigerator with freezer (combi)
Model	EMF173NF3
Brand	EAS Electric
Climate class	SN (from +10°C to +32°C), N (from +16°C to +32°C), ST (from +16°C to +38°C), T (from +16°C to +43°C)
Refrigerant	Flammable gas (R600a or similar)
Lighting	LED, energy efficiency class F
Controls	Temperature adjustment button with automatic lock
Compartments	Cold chamber (refrigerator) and freezer compartment
Door reversibility	Yes, possible by user (kit provided)
Adjustable feet	Yes, for leveling
Defrosting	Manual (recommended when off)
Cleaning	Interior: diluted baking soda; exterior: soapy water; do not use solvents
Safety	Child lock (via control panel), prohibition of storing explosive substances
Spare parts available	Thermostats, sensors, boards, lights, handles, hinges, shelves, baskets, door gaskets (minimum 7-10 years)
Power supply	Single-phase, 220-240V, 50Hz (standard estimate)
Warranty	3 years (Spain and Portugal, manufacturing defects)

Frequently Asked Questions - EMF173NF3 EAS Electric

How to change the door opening direction?

Unplug the appliance and remove all food. Follow the steps in the manual: disassemble the upper hinge, the middle hinge, then the lower hinge. Reverse the parts (stoppers, covers) and install the new hinges provided. See section 2.3 of the manual for detailed diagrams.

How to adjust the refrigerator temperature?

Use button A on the control panel. Press to go from setting 1 (less cold) to setting 4 (colder). Locking is automatic after 15 seconds; hold the button for 3 seconds to unlock.

What to do in case of a power outage?

Limit door opening to keep the cold. Food stays cold for several hours. Do not add fresh food until power returns. After restoration, wait 5 minutes before reconnecting.

How to clean the interior of the refrigerator?

Unplug the appliance and remove all food and accessories. Mix 2 tablespoons of baking soda in 1 liter of warm water. Clean with a soft cloth, rinse and dry. Never use solvents or abrasives.

Why is there condensation on the exterior walls?

This is normal in case of high ambient humidity. Condensation occurs on cold surfaces. Dry it with a clean cloth. If the problem persists, check the door gasket seals.

What do the error codes on the display mean?

LEDs flash in case of fault. Indicators 1 and 2: refrigerator temperature sensor; 1 and 3: defrost sensor; 1 and 4: ambient temperature sensor. Contact technical service if the problem persists.

How to defrost the freezer?

Unplug the appliance and remove food. Leave the door open. Use a plastic scraper to remove ice. Speed up the process with hot water (not boiling) then dry. Reconnect after replacing food.

Can I store carbonated drinks in the freezer?

No, sealed bottles may burst due to freezing. Keep drinks only in the refrigerator compartment.

How to replace the LED bulb?

Replacement must be done by the manufacturer, its after-sales service, or a qualified person. Do not attempt to do it yourself to avoid any risk.

What to do if the refrigerator makes an abnormal noise?

A hum from the compressor is normal, especially at startup. Cracking sounds are due to refrigerant circulation. If the noise is loud, check that the appliance is level and accessories are properly secured.

USER MANUAL EMF173NF3 EAS Electric

Abstract arrangement of gray and white triangular shapes arranged in a row (no text or symbols)

FRIGORÍFICO

FRIDGE

RÉFRIGÉRATEUR

FRIGORIFICO

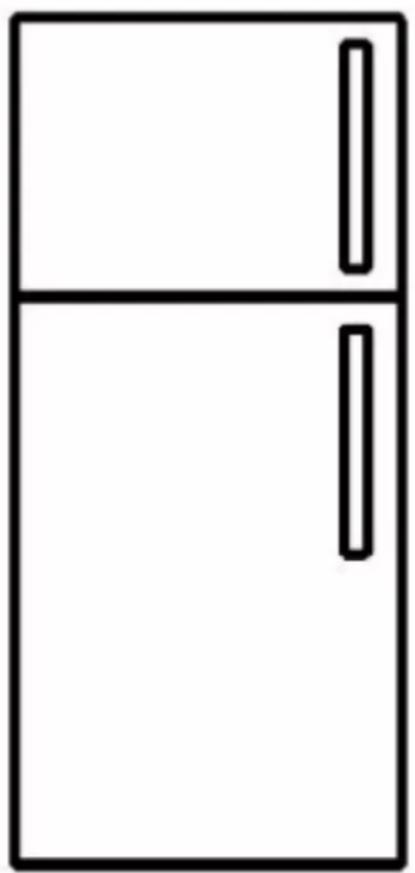

Simple line drawing of a refrigerator with two vertical bars on the top (no text or symbols)

EMF173NF3

EMF173NFX3

QR code with embedded logo and text 'EAS ELECTRIC' in the center

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Contenido

Warning sign depicting a flame symbol in yellow and black on white background

Simple line drawing of a hand holding a checkmark and a smiley face icon, separated by a vertical line (no text or symbols)

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and cabinet, no text or symbols present

Simple line drawing of a refrigerator with a box on top and a prohibition symbol below (no text or labels)

Simple line drawing of a refrigerator, battery, and hand tool (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a baby hanging from an open refrigerator with no text or symbols

Simple line drawing of a trash can with a frowning face and warning symbol (no text or labels)

Illustration of hands holding a tray with a bottle, a box, and an exclamation mark (no text or symbols on the main subject)

Freezing chamber !

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Simple line drawing of a person carrying a cardboard box next to an open refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

10mm 30mm 10mm

Line drawing of a refrigerator with open doors and internal compartments, shown in two circular insets (no text or symbols)

545mm 490mm 910mm 930mm

Illustration of various cooking and beverage items including a gas container, alcohol spray bottle, and a kettle (no text or symbols)

Line drawing of a door with a hand inserting a clip into the frame (no text or symbols)

4.3 Descongelación

3 Warning
3 Meanings of safety warning symbols
6 Electricity related warnings
7 Warnings for using
7 Warnings for placement
8 Warnings for energy
8 Warnings for disposal

9 PROPER USE OF THE REFRIGERATOR
9 Placement
10 Levelling the fee
12 Door right-left change
15 Changing the light
15 Starting to use
15 Energy saving tips

16 STRUCTURE AND FUNCTIONS
16 Key components
17 Functions

17 MAINTENANCE AND CARE
17 Overall cleaning
18 Defrosting
18 Out of operation

19 TROUBLE SHOOTING
20 COMMERCIAL GUARANTEE

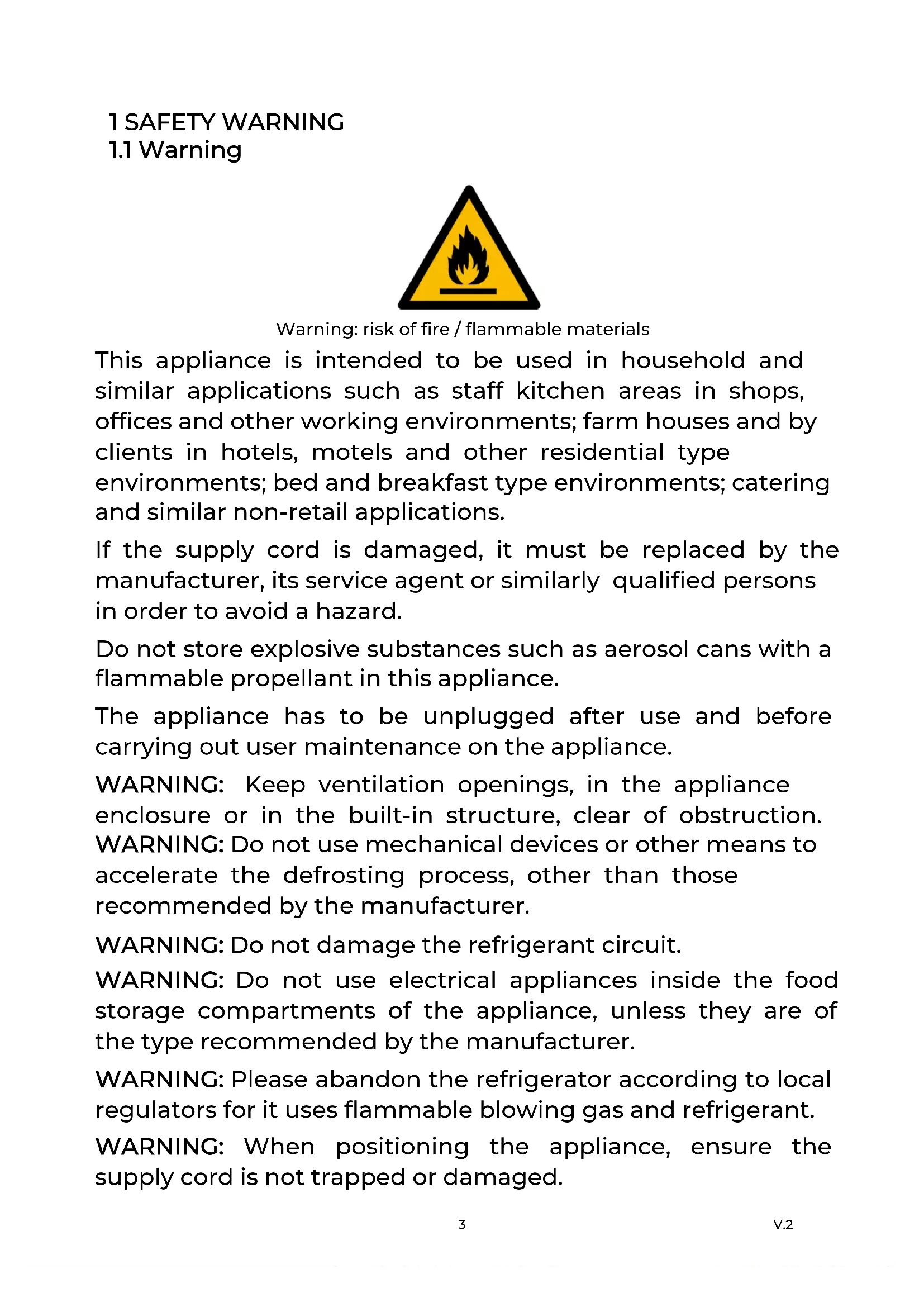

1 SAFETY WARNING

1.1 Warning

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Warning: risk of fire / flammable materials

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it uses flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Do not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

For IEC standard: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

Children should be supervised to ensure that they do not play with the appliance.

To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

■ Two-star frozen-food compartments are suitable for storing pre-frozen food, storing and making ice-cream and making ice cubes. (note 2)

■ One, two and three-star compartments are not suitable for the freezing of fresh food. (note 3)

- Appliances without a 4-star compartment are not suitable for freezing foodstuffs (note 4).

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1, 2, 3, 4: Please confirm whether it is applicable according to your product compartment type.

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

This product contains a light source of energy efficiency class (F)

1.2 Meaning of safety warning symbols

Prohibition symbol

This is a prohibition symbol.

Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

Warning symbol

This is a warning symbol.

It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.

Note symbol

This is a cautioning symbol.

Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

Simple line drawing of a hand holding a checkmark and a smiley face icon next to a vertical panel (no text or symbols)

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and a box, no text or symbols present

Simple line drawing of a refrigerator with a door and handle, no text or symbols present

Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.

To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances. The power plug should be firmly contacted with the socket or else fires might be caused.

Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.

1.4 Warnings for using

Simple line drawing of a refrigerator with an open lid and a hand holding a pencil, accompanied by a crossed-out electrical symbol (no text or labels)

Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.

Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when closing the refrigerator door to avoid falling articles.

Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Simple line drawing of a baby hanging from an open refrigerator with no text or symbols

Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.

Simple line drawing of a trash can with a frowning face and warning symbol (no text or labels)

Do not place heavy objects on the top of the refrigerator considering that objectives may fall when you close or open the door, and accidental injuries might be caused.

Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement

Illustration of a hand holding a tray with items including a bottle, cheese, and milk, with a warning symbol (no text or labels)

Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

Do not place flammable items near the refrigerator to avoid fires.

Milk Palm Palm/No.1

The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

Freezing chamber 2-year

Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 Warnings for energy

1. Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2. The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3. The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
4. The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5. The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

1.7 Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Symbol of a trash bin crossed with diagonal lines, no text or labels present

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

2. Proper use of refrigerators

2.1 Placement

Simple line drawing of a person handling a cardboard box and an refrigerator (no text or symbols)

Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

Simple line drawing of a refrigerator with a potted plant and sun symbols (no text or labels)

Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

Simple line drawing of a refrigerator and a door (no text or symbols)

The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat and sturdy.

10mm 30mm 10mm

The top space of the refrigerator shall be greater than 30cm, and the refrigerator should be placed against a wall with a free distance more than 10cm to facilitate heat dissipation.

Precautions before installation:

Information in the Instruction Manual is only for reference. The physical product may differ. Before installation and adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

2.2 Levelling feet

Schematic diagram of the leveling feet

Diagram of the leveling feet L H

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Adjusting procedures:

a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.

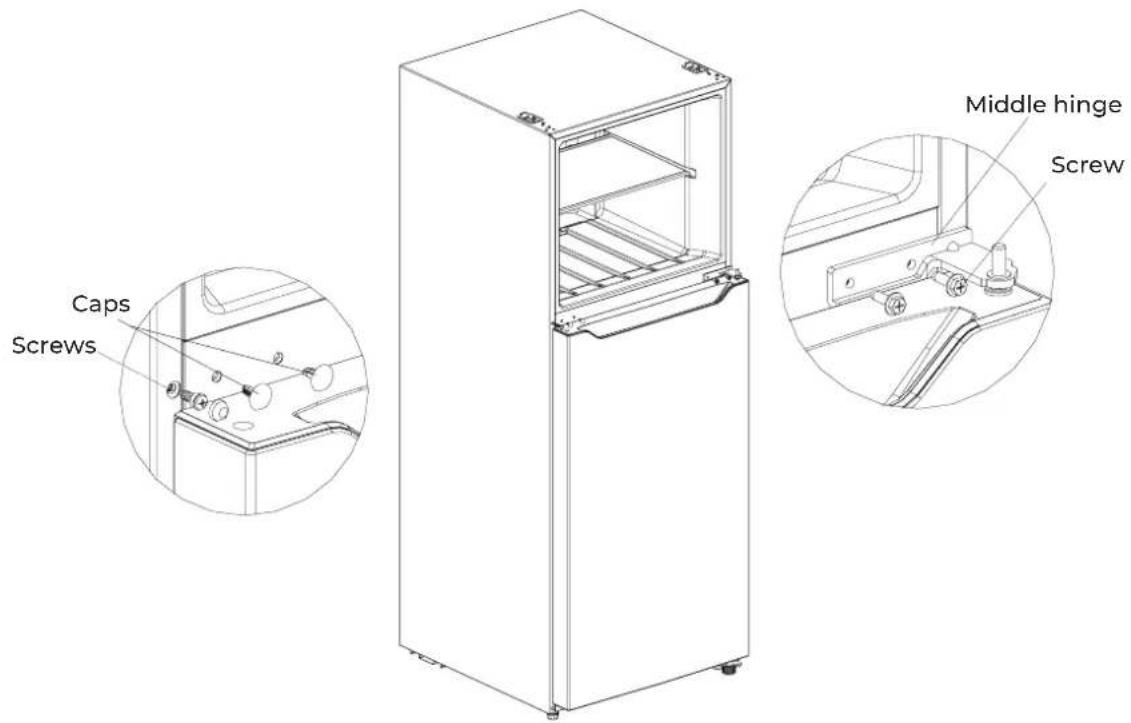

2.3 Door Right-Left Change

List of tools to be provided by the user
	Cross screwdriver		Putty knife and thin blade screwdriver
	5/16" Socket and ratchet		Masking tape

1) Power off the refrigerator, and remove all objects from the door trays.

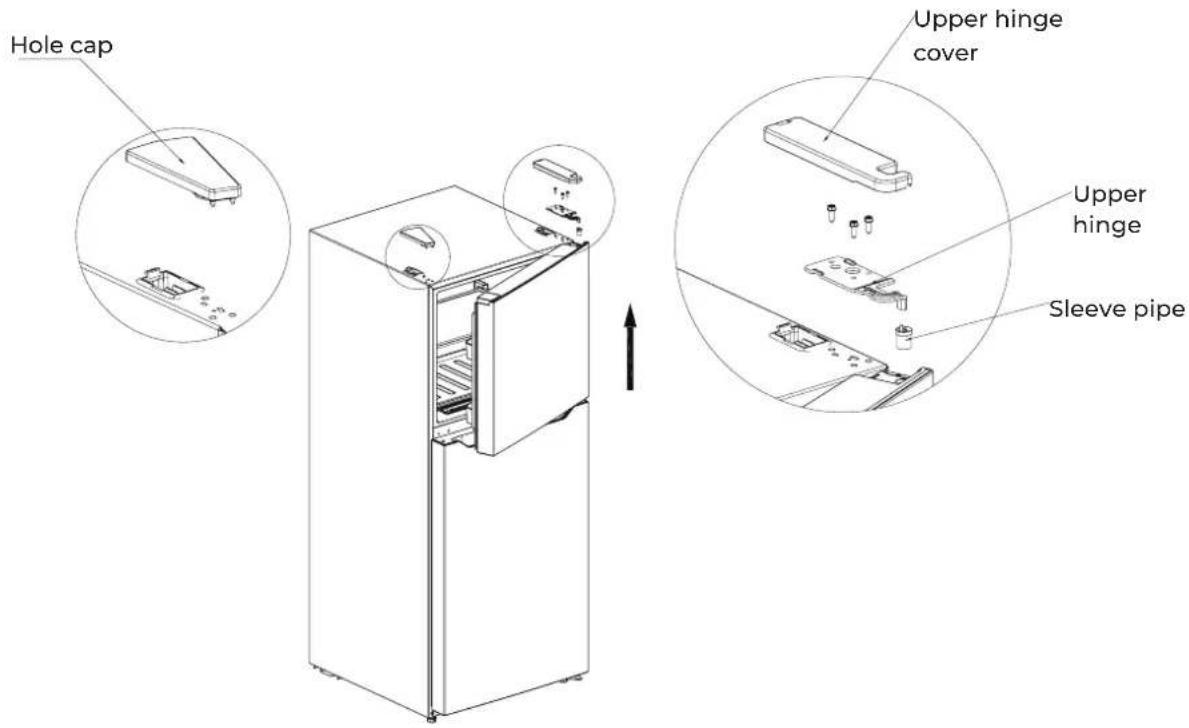

2) Remove the upper hinge and hole caps of refrigerator door.

Parts to be used for door reverse
SN	parts	Quantity	Notes
1	Right upper hinge	1	Pre-installed on the refrigerator, remove and keep for future use
2	Upper right hinge cover	1	Pre-installed on the refrigerator, remove and keep for future use
3	Hole cover	1	Pre-installed on the refrigerator and to be used when changing the door
4	Stopper	1	Pre-installed on the refrigerator and to be used when changing the door
5	Stopper lower hinge	1	Pre-installed on the refrigerator and to be used when changing the door
6	Adjustable foot	1	Pre-installed on the refrigerator and tobe used when changing the door
7	Cap of left cover	1	Pre-installed on the refrigerator and to be used when changing the door
8	Left upper hinge	1	In the attached plastic bag, take them out for use when door is reversed
9	Upper left hinge cover	1	In the attached plastic bag, take them out for use when door is reversed
10	Cap of right cover	1	In the attached plastic bag, take them out for use when door is reversed

1. Please power off the appliance before conducting this operation. Remove all food from door shelves.

2. Remove hole cap, upper hinge cover, fitting screws of upper hinge, upper hinge and sleeve pipe, then uplift the freezer door until it is separated from cabinet completely.

Hole cap Upper hinge cover Upper hinge Sleeve pipe

1. Remove the hole caps, fitting screws of middle hinge and middle hinge, and remove the screws and screw caps on the other side then uplift the refrigerator door until it is separated from cabinet completely.

Caps Screws Middle hinge Screw

1. Remove the lower hinge assembly from lower right corner and remove the hole cap, screw cap from lower left corner. Dismantle the hinge shaft and adjustable foot and install them on the other side of lower hinge. Then install the lower hinge assembly on lower left corner by fitting screws, and install the hole cap and screw cap on lower right corner.

Shaft Shaft Hole cap Screw Screw cap

1. Dismantle the stoppers, sleeve pipes of both refrigerator and freezer door, install them on the other side of both doors. Exchange the installation position of sleeve pipe and hole cap on upper end cap of refrigerator door. Remove the left decorative cover of freezer door, and move the sleeve pipe.

Hole cap Sleeve pipe Cover Sleeve pipe Sleeve pipe Stopper Screw

1. Install the refrigerator compartment door on the lower hinge and then install the middle hinge, screws and caps.

Line drawing of a refrigerator with open lid and side views showing internal components (no text or symbols)

1. Take out the left upper hinge, left upper hinge cover, and right decorative cover from the accessory bag. Install the freezer door on the middle hinge, and install the left upper hinge, left hinge cover and hole cap. Finally, install the right decorative cover on right side of the end cap of freezer door.

The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

2.4 Changing the Light

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

2.5 Starting

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

Before initial start, keep the refrigerator still for half an hour before connecting it to power supply.

Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

545mm 180mm 910mm 930mm

Spare enough space for convenient opening of the doors and drawers or statement by the distributor.

2.6 Energy saving tips

- The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.

- Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

- Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.

- Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

- Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

3. STRUCTURE AND FUNCTIONS

3.1 Key components

Shelf LED light Damper adjusting slider shelf Deoderizer Fruits and vegetables box Door tray Door tray

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Refrigerating chamber

• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.

Freezing chamber

• The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time.

3.2 FUNCTIONS

TEMPERATURE CONTROL COLD COLDEST SUPER COOL ① ② ③ SETTING 3 sec - Unlock A

1) KEYS

A) Temperature setting button of refrigerator compartment.

2) Display

LED 1 - Setting: COLD

LED 2 - Setting 2:

LED 3 - Setting 3: COLDEST

LED 4 - Setting 4: SUPER COOL

When switching on for the first time, the display panel is fully illuminated for 3 seconds and then the refrigerator operates according to setting 3.

In case of a fault, the corresponding LED flashes.

In case of no fault, the actual temperature setting of the refrigerator is displayed.

Error code	Description of the fault
Indicators 1 and 2	Refrigerator temperature sensor
Indicators 1 and 3	Freezer defrosting sensor
Indicators 1 and 4	Ambient temperature sensor

3) Temperature setting

Each time the temperature setting button A is pressed, the temperature changes to the next setting. Once the temperature setting is completed, the refrigerator will start to operate according to the set value after 15 seconds.

The switching sequence is as follows:

4) Locking/Unlocking

When the temperature control panel is locked, you must press and hold the temperature setting key to unlock it. All LEDs will flash for 2 seconds when unlocked. When the temperature control panel is unlocked, if no operation is performed within 15 seconds, it will automatically lock.

COLDER

5)) Adjusting the damper

The initial position of the damper switch is on the right, and it is recommended to keep it that way. If it is moved to the left, the refrigerator temperature will increase.

4. Maintenance and care of the appliance

4.1 Overall cleaning

Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.

The interior of the refrigerator should be cleaned regularly to avoid odor.

Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.

Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.

Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.

Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.

Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Glass Alcohol Bottle Gas Bottle

Please unplug the refrigerator for defrost and cleaning.)

4.2 Cleaning the glass shelves

• Lift the front of the shelf and pull it out.
• Pull the shelf out and clean it as necessary.
• Follow these steps in reverse to reinstall the shelf.

Line drawing of a door with an open lid and a hand inserting a component into the door (no text or symbols)

4.2 Defrosting

■ Power off the refrigerator.
- Remove the food from the refrigerator and place it properly to prevent food from melting.
- Clear the drain pipe (to use soft materials to prevent damage to the liner), Prepare the water containers for defrosting.(pay attention to clean the compressor compartment water draining tray, avoiding overflow to the ground).
- You can use the natural temperature for the natural defrost, you can also use the ice shovel to eliminate the frost (use plastic or wooden ice shovel, for avoiding damage to the liner or pipe)
- You can also use the appropriate amount of hot water to speed up the defrost, with a dry towel to dry the water after defrosting.
■ After defrosting, put back the foods in cabinet, and power on the refrigerator.

4.3 Out of operation

Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.

Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.

Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and seal them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted, otherwise the service life may be impaired.

5. Trouble shooting

You may try to solve the following simple problems by yourself. If they cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Smell	Odorous foods shall be tightly wrappedCheck whether there is any rotten foodClean the inside of the refrigerator
Long-time operation of the compressor	Long operation of the refrigerator is normal in summer when the ambient temperature is highIt is not suggestible having too much food in the appliance at the same timeFood shall get cool before being put into the applianceThe doors are opened too frequently
Light fails to get lit	Check whether the refrigerator is connected to power supply and whether the illuminating light is damagedHave the light replaced by a specialist
Doors cannot be properly closed	The door is stuck by food packagesThe refrigerator is tilted
Loud noise	Check whether the floor is level and whether the refrigerator is placed stably. Check whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting.The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal. When housing becomes hot due to high ambient temperature and storage of too much food, it is recommended to provide sound ventilation to facilitate heat dissipation.
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

Table 1 Climate classes

Class Symbol		Ambient temperature range (°C)
Extended temperate	SN	+10 to +32
Temperate	N	+16 to +32
Subtropical	ST	+16 to +38
Tropical	T	+16 to +43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Special for new European standard:

The ordered parts in the following table can be acquired from our after sales service:

Ordered Part	Provided by	Minimum Time Required for Provision
thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy. (Remember to bring the purchase invoice)
2. If your product breaks down which needs to repair, please contact after-sales service provider.

WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.
5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.
6. Civil liabilities of any nature.
7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.
8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.
9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.
10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of ground-ing in the home, power disturbances, inappropriate modifications or use of non-original spare parts.
11. Appliances used in industrial applications or for commercial purposes.
12. Appliances with illegible or altered serial number.
13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.
14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.
15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.
16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

EAS ELECTRIC

SMART TECHNOLOGY

www.easelectric.es

Contenu

AVERTISSEMENTS DESÉCURITÉ

16 STRUCTURE ET FONCTIONS

Warning sign depicting a flame symbol in yellow and black on white background

Simple line drawings of a hand holding a checkmark and a smiley face on a door (no text or symbols)

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and a box, no text or symbols present

Simple line drawing of a refrigerator with a door and handle, no text or symbols present

Simple line drawing of a refrigerator, battery, and hand tool (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a baby hanging from an open refrigerator with no text or symbols

Simple line drawing of a trash can with a sad face and warning symbol (no text or labels)

Illustration of hands holding a tray with a bottle, a container, and an icon (no text or symbols)

Billed Power Power (induct) !

Freezing chamber !

Simple line drawing of a person carrying a cardboard box next to an open refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

10mm 30mm 10mm

Line drawing of a refrigerator with open doors and internal compartments, shown in two circular insets (no text or symbols)

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

545mm 48mm 510mm 530mm

Illustration of various chemical products including gas, alcohol, and cooking pot (no text or symbols)

Line drawing of a door with an open lid and a hand inserting a valve into the door (no text or symbols)

4.2 Dégivrage

CONDITIONS DE LA GARANTIE

EXCLUSIONS DE LA GARANTIE

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing hand gesture with checkmark and smiley face, alongside a separate panel with a checkmark and smiley face icon.

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a window and furniture, no text or symbols present

Simple line drawing of a refrigerator with a box on top and a prohibition symbol below (no text or labels)

Simple line drawing of a refrigerator, battery, and hand tool (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a baby hanging from an open refrigerator with no text or symbols

Simple line drawing of a trash can with a frowning face and warning symbol (no text or labels)

Illustration of hands holding a tray with a bottle, a box, and an exclamation mark (no text or symbols on the main subject)

Freezing chamber

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a person carrying a cardboard box next to an open refrigerator (no text or symbols)

Antes de usar, remova todas as embalagens, incluindo rolhas e fitas adesivas, de dentro do frigorífico e remova a película protetora das portas e paredes.

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a refrigerator with arms and legs, no text or symbols present

Line drawing of a refrigerator with open doors and internal compartments, shown in two circular insets (no text or symbols)

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

420mm 5 4 0 m m 90° 1000mm

Gas Alcohol Protein Bottle

Line drawing of a door with an open lid and handle, showing hand placement inside (no text or symbols)

4.2 Descongelação

Scan for manual in other languages and further updates:
