EMW60 - Washing machine EAS Electric - Free user manual and instructions

Product Type	Freestanding front-loading washing machine
Brand	EAS Electric
Model	EMW60
Wash Capacity	6 kg
Dimensions (W x D x H)	60 x 40 x 85 cm
Net Weight	52 kg
Power Supply	220-240 V ~ 50 Hz
Maximum Current	10 A
Rated Power	2050 W
Water Pressure	0.05 – 1 MPa
Maximum Spin Speed	1000 rpm
Energy Efficiency Class	D
Number of Programs	10 (Cotton, Mixed, ECO 40-60, Express 15', etc.)
ECO 40-60 Program	Yes, consumption 0.85 kWh, 52.5 L
Available Options	Pre-wash, Delayed Start (0-24h), Extra rinse, Child lock
Installation Type	Freestanding
Noise Level Spin	80 dB(A)
Drum Material	Stainless steel
Unbalance Control System	Yes (automatic balancing)
Pump Filter	Yes, cleanable
Warranty	3 years (Spain and Portugal)
Included Accessories	Water inlet hose, transport caps, manual

Frequently Asked Questions - EMW60 EAS Electric

What to do if the machine does not start?

Check that the door is properly closed and the laundry is not stuck. Make sure the appliance is plugged in and the socket is powered. If the problem persists, restart the appliance or contact technical support.

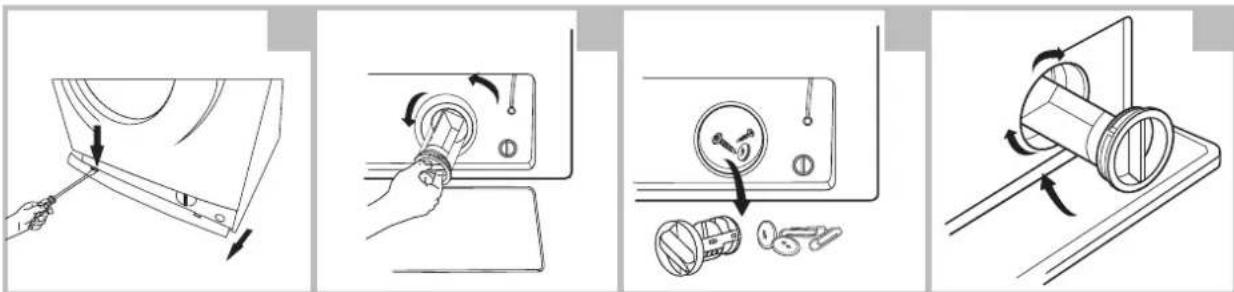

How to clean the drain pump filter?

Turn off and unplug the appliance. Open the service filter, turn the filter counterclockwise to remove it. Clean any foreign objects and replace the filter by turning it clockwise. Perform this operation every 3 months.

What does error code E30 mean?

Error code E30 indicates that the door was not closed properly. Close the door tightly and restart the program. Check that no clothing is caught in the door.

How to use the delayed start?

Select the desired program, then press the Delayed Start button to set a delay from 0 to 24 hours. Press Start/Pause to start the countdown. The machine will start automatically at the end of the delay.

How much detergent should I use?

Dose detergent according to load, soiling level, and water hardness. For a full load, follow the detergent manufacturer's recommendations. Avoid excess to prevent foam formation and residues.

How to activate child lock?

Press and hold the Delayed Start and Function buttons simultaneously for 3 seconds until you hear a beep. To deactivate, repeat the same operation. This function locks all buttons except Off.

Why are there detergent residues in the drawer?

This may be due to wet or clumped detergent. Clean and dry the drawer and compartment. Use a dry and suitable detergent. Check that the drawer is inserted correctly.

How to properly install the drain hose?

Place the drain hose at a height between 60 and 100 cm. Do not bend or extend it. Securely fasten it to the main drain or a drain branch to avoid leaks.

What to do in case of abnormal noise?

Check that the transport bolts have been removed. Make sure the machine is level and on a solid floor. If the noise persists, contact technical support.

How to maintain the door gasket?

After each wash, clean the glass and gasket with a damp cloth to remove lint and stains. Lint buildup can cause leaks. Also remove small objects after each cycle.

USER MANUAL EMW60 EAS Electric

Abstract arrangement of gray and white triangular shapes pointing right (no text or symbols)

LAVADORA

WASHING MACHINE

LAVE-LINGE

MÁQUINA DE LAVAR

Line drawing of a washing machine with circular vent and buttons (no text or symbols)

Solid black right-pointing triangle shape on white background (no text or symbols)

QR code with embedded logo and text 'EAS ELECTRIC' in the center

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Simple line drawing of a rectangular frame with a central circle and two intersecting X-shaped lines (no text or symbols)

Diagram showing a box with an arrow pointing to a device, and a magnified inset illustrating the process with a circular diagram labeled 'Top Floor'.

Close-up of a mechanical component with a wrench and circular head, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a metallic part (no visible text or symbols)

Close-up of a white object with a dark circular hole and a blue arrow pointing to it, partially overlaid by a striped pattern (no text or symbols)

Close-up of a white mechanical component with a blue circular arrow indicating rotation (no text or symbols)

Close-up of a white object with blue arrows indicating direction, no visible text or symbols

Close-up of a faucet with a blue arrow indicating clockwise motion (no text or symbols)

Nota

Line drawing of a sweater with a tag and tie, no text or symbols present

Diagram showing a bag being folded into a basket with arrows indicating process flow (no text or symbols)

Diagram illustrating a garment pattern with labeled parts and directional arrows indicating movement or processing steps.

Two handbags with circular designs, one wrapped around a ribbon and the other attached (no text or symbols)

Simple line drawing of a money bag with a hand holding a small object inside (no text or symbols)

Line drawing of a T-shirt with patterned collar and side ribs (no text or symbols)

Technical diagram of a boat hull with labeled components and symbols

! Atención

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Nota

Line drawing of a hand holding a curved object, possibly a tool or component (no text or symbols present)

Diagram of a faucet with rotating arrows indicating clockwise motion (no text or symbols)

Line drawing of a hand holding a handheld device with a probe inserted (no text or symbols)

3

Line drawing of a hand holding a magnifying glass over a wall-mounted device (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and a base, no visible text or symbols

Line drawing of a mechanical device with a lever and internal components (no text or symbols)

Line drawing of a hand using a tool to remove or remove a dark object inside a container (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Hand holding a rotary switch with a knob, no text or symbols visible

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

■ Guarantee conditions 36

Blank white rectangle with a small black triangle symbol in the top-left corner (no text or markings)

Empty white rectangle with a thin gray border (no text or symbols)

Two empty rectangular boxes with no text, numbers, or symbols inside.

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Line drawing of a washing machine with water inlet, fan, and hose (no text or symbols)

Three-panel image showing four small icons and a magnifying glass, next to an open book (no text or symbols)

Diagram showing three layout options with icons and symbols: a triangle, a washing machine, and a printer with an arrow indicating rotation.

Close-up of a white car wheel with a wrench and blue arrow indicating rotation (no text or symbols)

Close-up of a mechanical component with a blue arrow pointing to a metallic part (no visible text or symbols)

Close-up of a white object with a dark circular hole and a blue arrow pointing to it, partially overlaid by a striped pattern (no text or symbols)

Close-up of a white mechanical component with a blue circular arrow indicating rotation (no text or symbols)

Close-up of a white object with blue arrows pointing to a circular object (no text or symbols visible)

Close-up of a faucet with blue arrows indicating clockwise motion (no text or symbols)

Water trough Max.100cm Min.60cm

Max.100cm Max.100cm Min.60cm

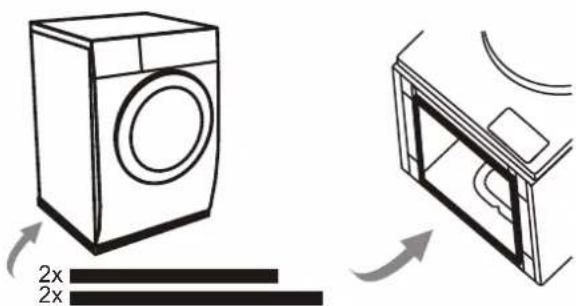

Acoustic Sponge

Note!

effectively reduce the noise caused by the machine while working, in order to provide you with a more peaceful and quiet living environment.

2x 2x

1. Lay the machine on the floor, using some soft material like foam or clothes between the machine and floor for a protection;
2. Stick the 2x longer sponges to the longer bottom edges of machine, and the 2x shorter sponges to the shorter bottom edges.

!

Diagram illustrating five different steps of hair cleaning or hair repair: hair being inserted into a wall, faucet, circular opening, ring closure, and hand positioning.

Diagram showing three UI control icons: rotary knob, switch, and play button with double arrow

Line drawing of a sweater with a tag and tie (no text or symbols)

Diagram illustrating a garment pattern with labeled parts and directional arrows indicating movement or processing steps.

Line drawing of two fabric bags with circular designs and ribbon handles (no text or symbols)

Line drawing of a money bag with a hand placed inside, no text or symbols present

Line drawing of a knitted sweater with pleated collar and side ribs (no text or symbols)

Empty rectangular frame with a small triangle marker at the top-left corner (no text or symbols)

Technical diagram of a boat hull with labeled components and symbols

Blank white image with a small black pushpin icon in the top-left corner (no text or symbols)

Off 20°C 40°C 60°C ECO 40-60 easy and simple operation 8:86 Cn

Inicio/Pausa

EMW60
Cycle	Nominal capacity in kg	Temperature Setting	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter//operalling cycle	Highest temperature ature °C	residual moisture in % /spin speed
Express 15'	2.0	Cold	0:15	0.035	31	Cold	70%/800
Algodón 20°C	6.0	20	2:20	0.426	58	20	65%/1000
Algodón 40°C	6.0	40	2:40	0.871	58	40	65%/1000
Mixto 20°C	6.0	20	1:00	0.239	58	20	65%/1000
Algodón 60°C	6.0	60	2:45	1.28	58	60	65%/1000
ECO 40-60	6.0	-		0.850	52.5	39	61%/1000
	3.0	-		0.544	38.7	31	62%/1000
	1.5	-		0.401	32.6	27	65%/1000

EMW70
Cycle	Nominal capacity in kg	Temperature Setting	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter//operalling cycle	Highest temperature ature °C	residual moisture in % /spin speed
Express 15'	2.0	Cold	0:15	0.035	31	Cold	70%/800
Algodón 20°C	7.0	20	2:20	0.438	65	20	65%/1000
Algodón 40°C	7.0	40	2:40	0.929	65	40	65%/1000
Mixto 20°C	7.0	20	1:00	0.251	65	20	65%/1000
Algodón 60°C	7.0	60	2:45	1.385	65	60	65%/1000
ECO 40-60	7.00	-	3:28	0.940	55.3	39	62%/1200
	3.50	-	2:42	0.590	41.5	35	62%/1200
	2.0	-	2:42	0.435	35.6	30	62%/1200

!

Algodón

Mixto

Vaqueros

Express 15'

Solo centrifugado

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Line drawing of a hand gripping a curved object (no text or symbols)

Technical diagram showing four steps of a washing machine operation: cutting, rotary dialing, rotary knob setting, and rolling pin.

!

Blank gray image with no visible content, text, or symbols

Blank gray image with no visible content, text, or symbols

Blank gray image with no visible content, text, or symbols

Blank gray image with no visible content, text, or symbols

E30

E10

E21

E12

EXX

Blank gray image with no visible content, text, or symbols

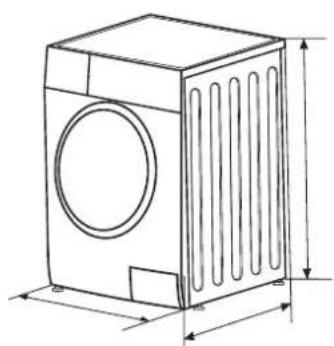

Line drawing of a washing machine with side panel and height dimension lines (no text or symbols)

Pure horizontal lines with dotted vertical markers, no text or symbols present

Supplier's name or trade mark: EAS ELECTRIC SMART TECHNOLOGY
Supplier's address (b): P.I San Carlos, Camino de la Sierra S/N Parcela 11. 03370 Redován (Alicante)
Model identifier: EMW60
General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (a) (kg)			Dimensions in cm	Height	85
				Width
				Depth
EEIw (a)			Energy efficiency class (a)
Washing efficiency index (a)			Rinsing effectiveness (g/kg) (a)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 pro-gramme. Actual energy consump-tion will depend on how the appli-ance is used.			Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water con-sumption will depend on how the appliance is used and on the hardness of the water.
Maximum temperature inside the treated textile (a) (°C)	Rated capacity		Remaining moisture content (a) (%)	Rated capacity
	Half			Half
	Quarter			Quarter
Spin speed (a) (rpm)	Rated capacity		Spin-drying efficiency class (a)	C
	Half
	Quarter
Programme duration (a) (h:min)	Rated capacity		Type	free-standing
	Half
	Quarter
Airborne acoustical noise emissions in the spinning phase (a) (dB(A) re 1 pW)			Airborne acoustical noise emis-sion class (a) (spinning phase)	C
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)
Minimum duration of the guarantee offered by the supplier (b): 3 years
This product has been designed to release silver ions during the washing cycle			NO
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found: www.easelectric.es

^(a) for the eco 40-60 programme.
(b) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
(6) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Supplier's name or trade mark: EAS ELECTRIC SMART TECHNOLOGY
Supplier's address (b): P.I San Carlos, Camino de la Sierra S/N Parcela 11. 03370 Redován (Alicante)
Model identifier: EMW70
General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (a) (kg)			Dimensions in cm	Height	85
				Width
				Depth
EEIw (a)			Energy efficiency class (a)
Washing efficiency index (a)			Rinsing effectiveness (g/kg) (a)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 pro-gramme. Actual energy consump-tion will depend on how the appli-ance is used.			Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water con-sumption will depend on how the appliance is used and on the hardness of the water.
Maximum temperature inside the treated textile (a) (°C)	Rated capacity		Remaining moisture content (a) (%)	Rated capacity
	Half			Half
	Quarter			Quarter
Spin speed (a) (rpm)	Rated capacity		Spin-drying efficiency class (a)	c
	Half
	Quarter
Programme duration (a) (h:min)	Rated capacity		Type	free-standing
	Half
	Quarter
Airborne acoustical noise emissions in the spinning phase (a) (dB(A) re 1 pW)			Airborne acoustical noise emis-sion class (a) (spinning phase)	c
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)
Minimum duration of the guarantee offered by the supplier (b): 3 years
This product has been designed to release silver ions during the washing cycle			NO
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found: www.easelectric.es

^(a) for the eco 40-60 programme.
(b) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
(°) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.

2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.

3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.

4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.

10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of ground-ing in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

PRÉCAUTIONS DE SÉCURITÉ

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Simple line drawing of a rectangular box with a central circle and two intersecting X marks (no text or symbols)

Diagram of a box with an arrow pointing upward, showing a magnified view of a small object inside (no text or symbols present)

Close-up of a mechanical component with a wrench and circular knob, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a metallic part (no visible text or symbols)

Close-up of a white object with a dark circular hole and a blue arrow pointing to it, no visible text or symbols.

Close-up of a mechanical component with a wrench and blue circular arrow indicating rotation (no text or symbols)

Close-up of a white object with blue arrows pointing to a small object (no text or symbols visible)

Illustration of a faucet with a blue arrow indicating clockwise motion (no text or symbols)

Remarque

Line drawing of a sweater with a tag and tie, no text or symbols present

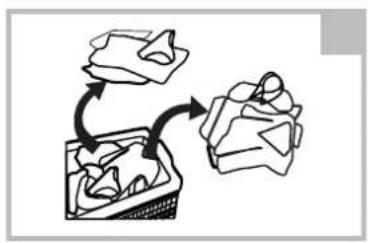

Simple line drawing of a bag being folded into a basket (no text or symbols)

Diagram illustrating a garment disposal process with labeled parts and directional arrows indicating movement.

Two handbags with circular designs, one wrapped around a bow and the other attached to a blanket (no text or symbols)

Simple line drawing of a bag with a grid pattern and a small object inside (no text or symbols)

Line drawing of a T-shirt with patterned fabric and side ribs (no text or symbols)

Technical diagram of a boat hull with labeled components and symbols

① Attention

Line drawing of a hand cleaning a washing machine (no text or symbols)

Remarque

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Diagram of a faucet with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a handheld device with a brush (no text or symbols)

Hand holding a small device with a circular diagram showing a rotary switch (no text or symbols)

Line drawing of a hand holding a magnifying glass over a wall-mounted device (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical lever mechanism with no text or symbols

Line drawing of a hand inserting a small object into a container (no text or symbols)

Technical line drawing of a mechanical component with internal compartments and a handle (no text or symbols)

Remplacez la cassette

Remarque

Line drawing of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Hand holding a rotary knob on a device panel, with no visible text or symbols

Diagram showing a device with a dial and buttons, and a separate view of a mechanical component with weights.

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

CONDITIONS DE LA GARANTIE

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Simple line drawing of a rectangular frame with a central circle and two intersecting X-shaped lines (no text or symbols)

Desembalar a máquina de lavar

△ Atenção

Diagram showing a box with an arrow pointing to a device, and a magnified inset illustrating the process with a circular diagram labeled 'Top Floor'.

Close-up of a mechanical component with a wrench and circular head, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a metallic part (no visible text or symbols)

Remova os parafusos e arruelas de borracha e guarde-os para uso futuro.

Close-up of a white object with a dark circular hole and a blue arrow pointing to it, no visible text or symbols.

Close-up of a white mechanical component with a blue circular arrow indicating rotation (no text or symbols)

Close-up of a white object with blue arrows indicating direction, no visible text or symbols

Close-up of a faucet with a blue arrow indicating clockwise motion (no text or symbols)

Nota

Line drawing of a sweater with a tag and tie, no text or symbols present

Verifique a etiqueta

Diagram showing a box being folded into a bag with arrows indicating rotation (no text or symbols)

Diagram illustrating a garment pattern with labeled parts and directional arrows indicating movement or processing steps.

Two handbags with circular designs, one wrapped in a strap and the other in a tassel (no text or symbols)

Simple line drawing of a bag with a grid pattern and a small object inside (no text or symbols)

Line drawing of a T-shirt with patterned fabric and side ribs (no text or symbols)

Technical diagram of a boat hull with labeled components and symbols

! Atenção

Line drawing of a hand washing a washing machine (no text or symbols)

Note

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

Diagram of a faucet with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a connector with a cable, no text or symbols present

Hand holding a small mechanical component with a magnified inset showing rotational motion (no text or symbols)

Line drawing of a hand holding a magnifying glass over a wall-mounted device (no text or symbols)

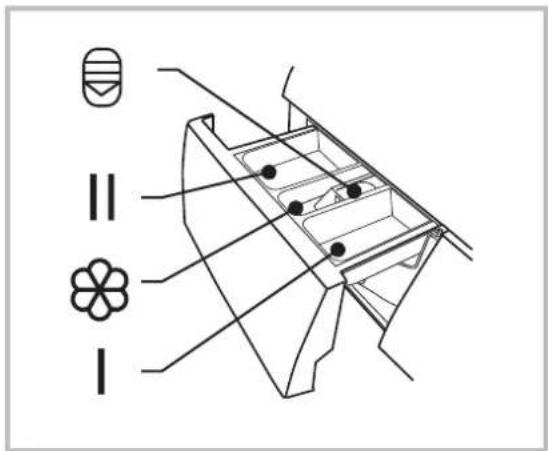

Limpeza da gaveta do detergente

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical assembly with a lever and housing (no text or symbols)

Line drawing of a hand inserting a container into a rack (no text or symbols)

Technical line drawing of a mechanical component with internal compartments and a bracket (no text or symbols)

Substitua a cassette

Nota

Line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Hand holding a rotary knob on a device panel, with no visible text or symbols

Diagram showing a switch mechanism with labeled parts and a magnified view of the switch component.

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Scan for manual in other languages and further updates:
