Product type	Hot air fryer (oil-free)
Brand	Orbegozo
Model	FDR 68
Power supply	Electric
Temperature range	70 °C to 200 °C
Timer	Up to 480 minutes
Preset programs	11 programs: fries, chicken wings, bacon, fish, vegetables, baking, roast, cook, dehydrate, reheat, keep warm
Special functions	Preheat, turn reminder, interior light, pause/cancel, auto shut-off
Basket capacity	Approximately 3 liters (do not fill beyond 2/3)
Body material	Plastic
Basket material	Metal with non-stick coating
Cleaning	Basket and grid dishwasher safe (top rack); body cleaned with damp cloth
Safety	Thermal cut-off, hot surface, auto shut-off when drawer is opened
Warranty	Legal warranty
After-sales service	Contact via Orbegozo website

Frequently Asked Questions - FDR 68 Orbegozo

How to prepare the fryer before first use?

Remove all packaging and labels. Wash the basket and grid with warm soapy water. Clean the body with a damp cloth. Dry all components thoroughly before reassembling.

What preset programs are available?

The appliance offers 11 programs: fries, chicken wings, bacon, fish, vegetables, baking, roast, cook, dehydrate, reheat, and keep warm. Select the corresponding icon for automatic cooking.

How to manually set temperature and cooking time?

Press TEMP/TIME to toggle between temperature and timer settings. Use the + and - buttons to adjust. Confirm by pressing Start.

What to do if the fryer does not turn on?

Check that the drawer is fully closed until it clicks. Ensure the outlet is working. If the problem persists, contact Orbegozo technical service.

How to clean the basket and grid?

The basket and grid are dishwasher safe (top rack, normal cycle). You can also hand wash them with a soft sponge and soapy water. Dry completely before reuse.

Can I use parchment paper or aluminum foil in the fryer?

Yes, you can use parchment paper or aluminum foil, but make sure not to cover the ventilation openings and do not exceed 2/3 of the basket for proper air circulation.

Why is there smoke during cooking?

Light smoke may appear when cooking fatty foods (chicken wings, sausages). Drain accumulated fat from the drawer between batches. Always dry foods before cooking to limit smoke.

How to activate the preheat function?

Select a program or manually set temperature and time, then press the PREHEAT button. The indicator lights up. When preheating is complete, the screen displays 'Add food'. Insert food and close the drawer.

What does the beep during cooking mean?

The beep and flashing display indicate it's time to turn or stir the food for even cooking. Open the drawer, shake the basket, then close. Cooking resumes automatically.

Where to find the complete instruction manual?

The manual is available for free in PDF format on the website notice-facile.com for the Orbegozo model FDR 68. You can also download it from the official Orbegozo website.

USER MANUAL FDR 68 Orbegozo

Black and white photo of a Bnegafo air fryer with digital display and two wings filled with French fries (no visible text or symbols on the main device)

FDR 68

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Line drawing of an air fryer with a handle and lid, showing internal compartments and a downward arrow indicating process (no text or symbols)

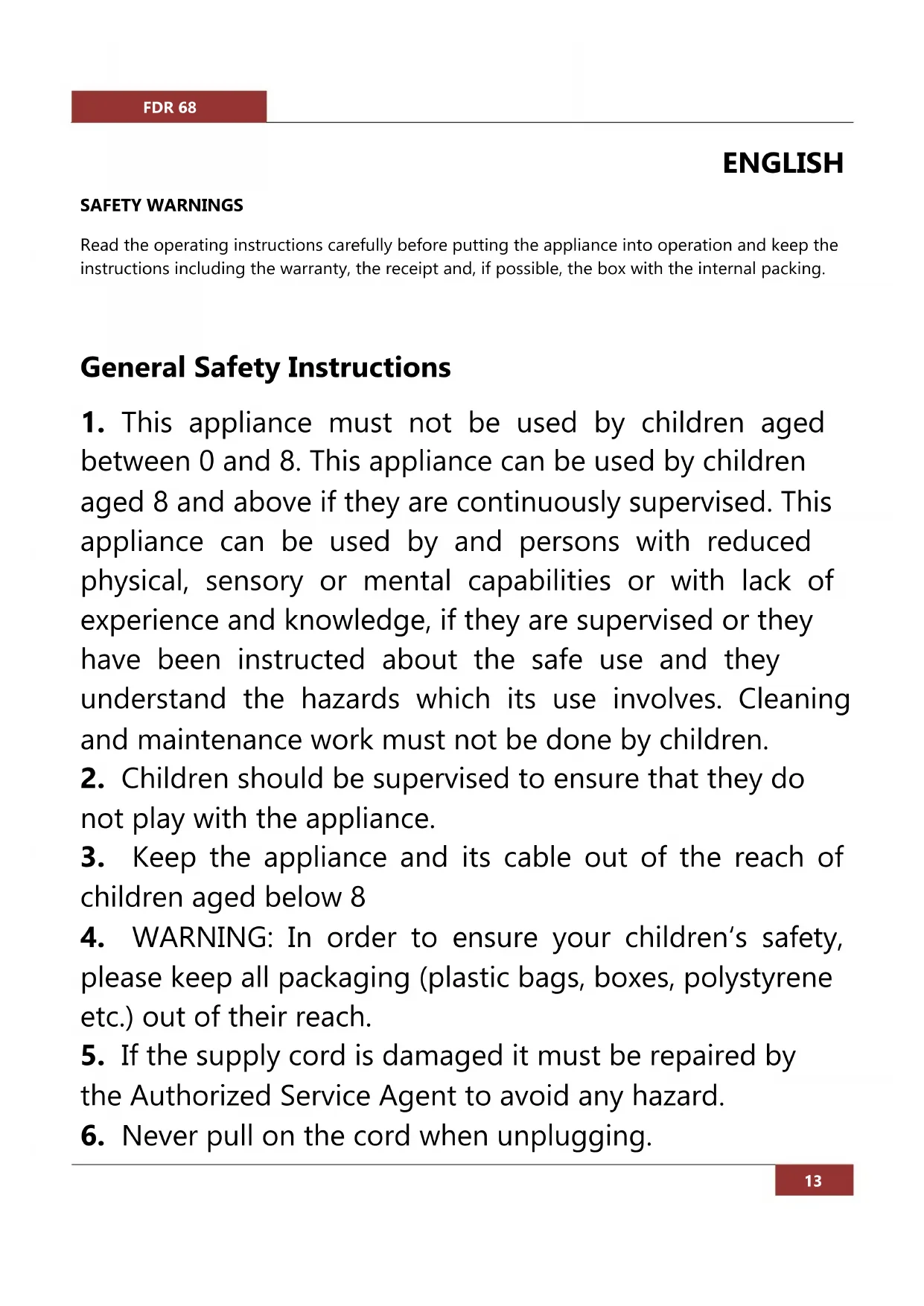

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

General Safety Instructions

1. This appliance must not be used by children aged between 0 and 8. This appliance can be used by children aged 8 and above if they are continuously supervised. This appliance can be used by and persons with reduced physical, sensory or mental capabilities or with lack of experience and knowledge, if they are supervised or they have been instructed about the safe use and they understand the hazards which its use involves. Cleaning and maintenance work must not be done by children.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and its cable out of the reach of children aged below 8
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent to avoid any hazard.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com
14. WARNING: In case of misuse, there is a risk of possible injury.

Special Safety Instructions

• Never let the cord touch hot surfaces or hang down over the worktop edge – a child could grab it and pull the fryer down.
• After cleaning, ensure all parts are completely dry before use.
• Never leave your fryer on unattended.
• Do not use if there is any damage to the fryer, cord or plug. Get it checked or repaired: see 'service'.
• Watch out for steam during cooking and when you open

the lid.

• Never put your fryer near or on cooker hot plates.
• This fryer is for domestic use only.
• The appliances not intended to be immersed in water for cleaning.
• Do not use the device outdoors.
  • Always unplug the fryer after use.
• In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- This kind of appliance should be placed on a stable surface with the handles (if has) put to avoid a spill of hot liquids.

- CAUTION: HOT SURFACE The surface can remain hot during or after use.

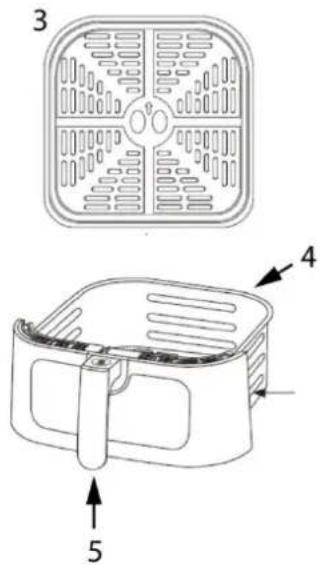

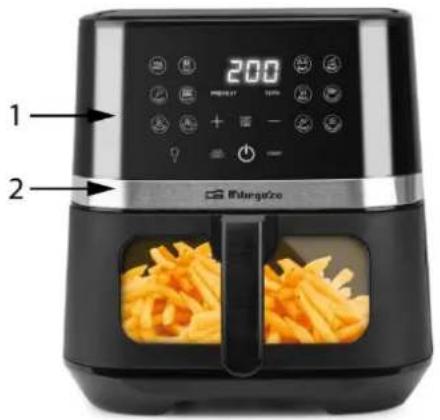

GENERAL DESCRIPTION

1. Touch screen
2. Fryer body
3. Basket rack
4. Pull-out drawer - basket

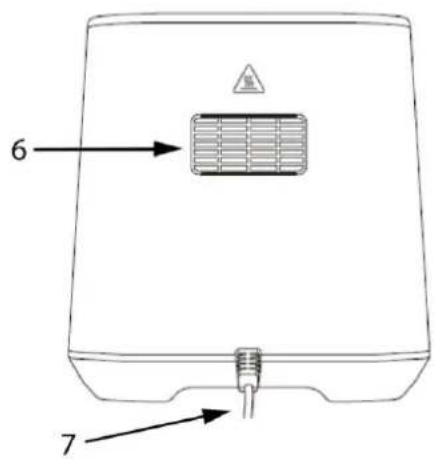

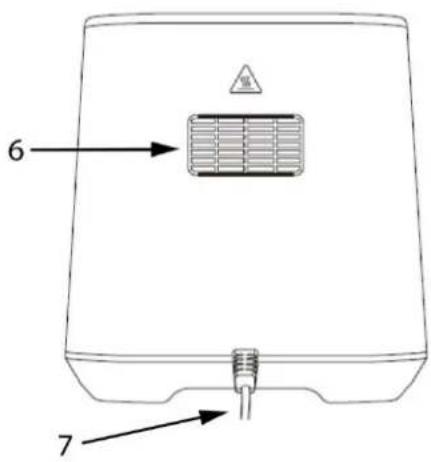

1. Pull-out drawer handle
2. Air outlet
3. Power cable

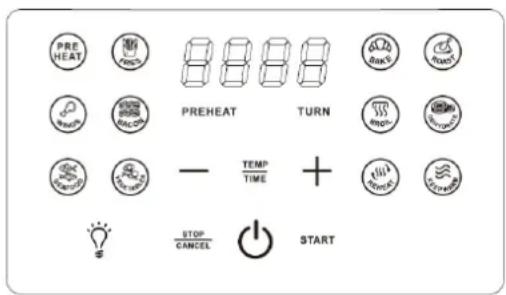

CONTROL REGULATORS


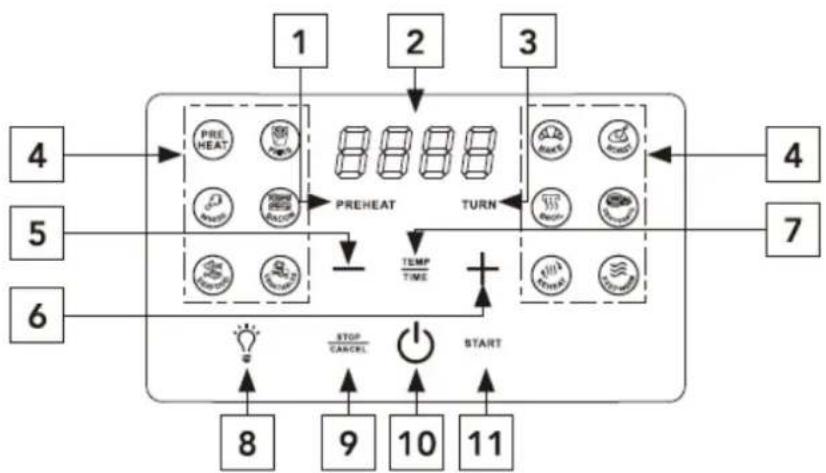

DESCRIPTION

1. Preheating indicator
2. Time/temperature indicator
3. Stir indicator
4. Pre-setted programs
5. Reduce button

6. Increase button

7. Time/temperature selector

8. On/Off interior light

9. Pause/Cancel button

10. On/Off button

11. Start button

BEFORE USING FOR THE FIRST TIME

1. Remove the bowl from the appliance by placing it on a flat and clean surface.
2. Remove all packaging material and labels from both the inside and outside of the air fryer and check that there is no packaging under or around the fry basket.
3. Wash the fry basket in hot, soapy water.
4. DO NOT IMMERSE THE BODY OF THE FRYER IN WATER. Clean the body of the air fryer with a damp cloth and dry each component part thoroughly.

I OPERATING INSTRUCTIONS

Cook in manual mode

1. Prepare the food to be fried and place it on the rack in the basket drawer. Fully close the basket drawer until you hear a "CLICK".

NOTE: The control panel will only function if the basket drawer is fully closed. Always make sure the rack is in place before placing food in the baske drawer. Avoid overfilling the drawer.

1. Insert the plug into the socket and the Standby icon will appear on the screen.
2. Press the Standby icon to start the configuration, all the icons on the screen will light up.
3. Choose any pre-set mode, then we will set the temperature and time by manual mode. To adjust the temperature press "Temp/Time", then press the increase or decrease button on the control panel until the desired temperature is reached.

TEMP TIME

1. To adjust the time, press "Temp/Time" to switch to timer setting, then press the increase or decrease buttons on the control panel to adjus.
2. To start cooking, press "Start".

Cook using preset cooking programs

1. Insert the plug into the socket and the Standby icon will appear on the screen.
2. Press the Standby icon to start the configuration, all the icons on the screen will light up.
3. To start setting, select the preset menu icon according to your needs, press "Start" to start cooking.

NOTA: Some presets incorporate the preheat function by default, if it is not needed, press the "Pre Heat" button to deactivate the function. If necessary, be sure to load the food after preheating.

1. To turn off the fryer, press the "Standby" button. "End" will be displayed and the fan will run for a few seconds and then the fryer will turn off.

Preheat function:

This function is to preheat the drawer and rack before filling with food. The LED will display "Pre Heat" while the preheat function is running, the LED display will indicate

"Add Food" after preheating. Prepare the food you want to fry and place it in the basket. Fully close the drawer until you hear a 'CLICK'.

NOTE: When the function is activated, the "PREHEAT" indicator will light up. It can be turned on/off by pressing the "PRE HEAT" button.

START

START

End

PREHEAT

Stir/Flip Reminder:

During cooking, when food needs to be turned, the machine will make a "BEEP" sound and the display will flash, indicating the manual turning operation.

Inner light:

This function is used to illuminate the inside of the basket to check the status of the food. It will be on, while cooking. Press the icon to turn the function on and off.

Stop/cancel function:

During cooking, when you need to pause o cancel cooking, press "Stop/Cancel" once to stop cooking, press "Stop/Cancel" once more to cancel cooking, "End" will be displayed when cooking is cancelled.

NOTE: Some foods require stirring during cooking time. Just open the basket drawer and shake it out. The air fryer will automatically turn off and on when the basket drawer has been opened or closed. If the food has not cooked in the indicated time, simply place the food back in the fryer and program the fryer for a few more minutes.

Larger amounts of food may require a longer cooking time and more frequent stirring during cooking. If at any time you wish to pause cooking, press the "Stop/Cancel" button once.

To turn the fryer off completely, press the "Standby" button. "End" will appear and the fan will run for a few seconds and then the fryer will turn off.

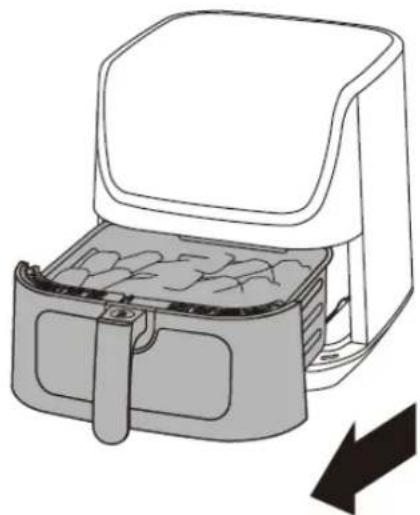

Temperature and time setting

Being able to adjust the temperature and/or time will allow more control over the cooking process. Settings can be adjusted before or during cooking (except while the preheat function is running).

1. To adjust the temperature, make sure the LED shows the temperature setting, if not, press "TEMP/TIME" to change, then press the increase or decrease buttons on the control panel to adjust.
2. To adjust the cooking time, make sure the LED shows timer setting, if not, press "TEMP/TIME" to switch to timer setting, then press the increase or decrease buttons on the control panel to adjust.

STOP CANCEL

Line drawing of a microwave oven with a bag open, showing internal compartments and a downward arrow indicating cooling (no text or symbols)

Menu	Type of food	Icon	Time (minutes)	Temperature (°C)
1	French fries		15	200
2	Chicken wings		25	200
3	Bacon		6	190
4	Fish		10	190
5	Vegetables		20	200
6	Baking		25	160
7	Roast		25	200
8	Cook		12	200
9	Dehydrate		480	70
10	Reheat		15	150
11	Keep warm		30	100

HELPFUL TIPS

• It is advisable to use olive oil spray or vegetable oil for air frying.
• Use your air fryer to cook food with little oil and in no time! As a general rule, reduce the cooking temperature of the recipe by about 10^ C depending on the type of food and the quantity.
• NEVER fill the frying basket more than 2/3 full. When frying fresh vegetables we recommend that you add no more than 3 cups of food to the basket.
• To achieve the best result, some foods need to be shaken vigorously or turned over during cooking time. Please refer to the table below and use it as a guide.
• • When cooking foods rich in fat, such as chicken wings or sausages, and in order to avoid excess smoke, empty the fat from the fryer basket drawer between batches of food if necessary.
• Always dry the food before cooking to avoid excess smoke and achieve an ideal browning.
• • Fry small batches of freshly breaded food. Press the breaded dough onto the food to help achieve better adhesion. Place the food in the basket so that they do not touch each other to allow for better air circulation.
• • You can use the air fryer to reheat food..

MAINTENANCE INSTRUCTIONS

This device does not require much maintenance. Contains no user serviceable parts. Apart from cleaning, any service that requires the appliance to be disassembled must be carried out by a qualified technician.

Care and Cleaning Instructions

Make sure the air fryer is unplugged from power and completely cool before cleaning.

1. Clean basket drawer and rack with warm, soapy water. Do not use harsh, abrasive cleaners, just a soft sponge. Soak parts for 10 minutes before cleaning if stubborn dirt or grease is present.
2. Clean the exterior and interior of the fryer with a damp cloth and dry with a soft cloth.
3. Make sure all parts are completely dry and assembled to the fryer before storing.
   Store in a clean, dry place out of the reach of children.
4. The rack and basket drawer can be washed in a dishwasher on the top rack on a normal cycle; Please note that this may affect the appearance of the surface over time.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin"

symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
