USER MANUAL FDR 27 Orbegozo

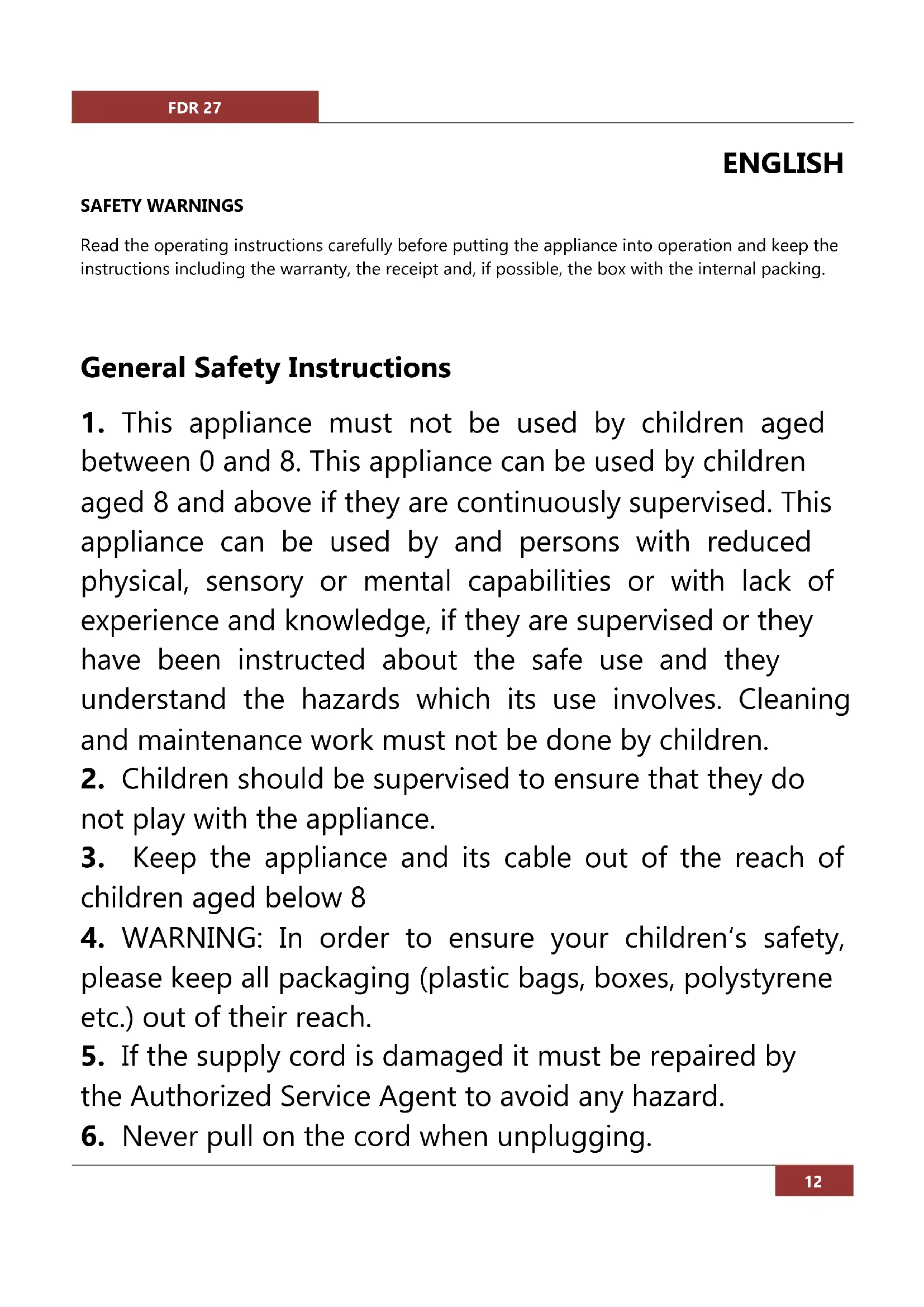

ENGLISH SAFETY WARNINGS Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. General Safety Instructions

1. This appliance must not be used by children aged

between 0 and 8. This appliance can be used by children aged 8 and above if they are continuously supervised. This appliance can be used by and persons with reduced physical, sensory or mental capabilities or with lack of experience and knowledge, if they are supervised or they have been instructed about the safe use and they understand the hazards which its use involves. Cleaning and maintenance work must not be done by children.

2. Children should be supervised to ensure that they do

not play with the appliance.

3. Keep the appliance and its cable out of the reach of

children aged below 8

4. WARNING: In order to ensure your children‘s safety,

please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by

the Authorized Service Agent to avoid any hazard.

7. Do not use the unit with a damaged cord or plug, or if

it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other

10. Make sure the appliance has been unplugged before

11. This appliance must be installed following the national

regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual,

you can find it in www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible

injury. Special Safety Instructions Never let the cord touch hot surfaces or hang down over the worktop edge – a child could grab it and pull the fryer down. After cleaning, ensure all parts are completely dry before use. Never leave your fryer on unattended. Do not use if there is any damage to the fryer, cord or plug. Get it checked or repaired: see ‘service’. Watch out for steam during cooking and when you openFDR 27

the lid. Never put your fryer near or on cooker hot plates. This fryer is for domestic use only. The appliances not intended to be immersed in water for cleaning. Do not use the device outdoors. Always unplug the fryer after use. In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. CAUTION: HOT SURFACE The surface can remain hot during or after use.FDR 27

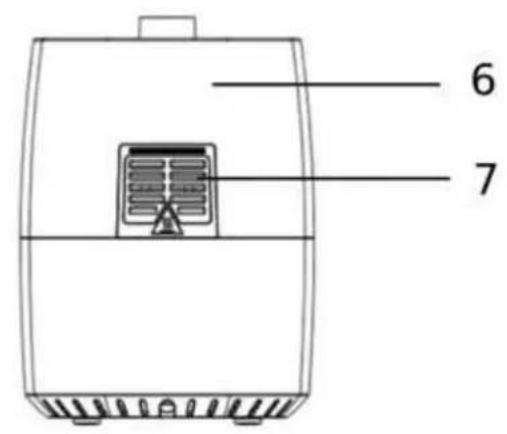

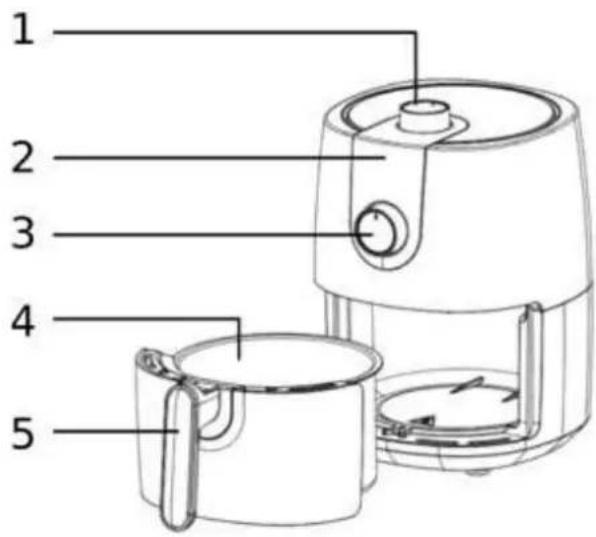

6. Airfryer main shell

1. Remove all packing material and labels from the inside and outside of the Air Fryer. Check that there

is no packaging underneath and around the frying basket and drawer.

2. Wash frying basket and drawer in hot, soapy water.

3. DO NOT IMMERSE THE AIR FRYER BODY IN WATER. Wipe Air Fryer body with a damp cloth. Dry all

parts thoroughly. IMPORTANT: The fryer uses hot air technology. Never fill of oil or other grease the fryer basket. OPERATING INSTRUCTIONS WARNING! This unit should not be used to boil water. NOTE: During first use, the Air Fryer may emit a slight odor. This is normal.

1. Place the Air Fryer on a flat, heat-resistant work area, close to an electrical outlet.FDR 27

2. Firmly grasp the frying basket handle to open frying basket drawer; then remove the drawer from

the machine and place on a flat, clean surface.

3. Place food into the frying basket. Do not overfill frying basket with food. To ensure proper cooking

and air circulation, NEVER fill any frying basket more than 2/3 full. When air frying fresh vegetables, we do not recommend adding more than 3 cups of food to the frying basket.

4. Insert the drawer into the Oil Free Fryer. Always make sure frying basket drawer is fully closed.

5. Plug cord in the wall outlet.

6. Select air frying temperature.

7. Turn timer dial to the desired air frying time plus 3 minutes for preheat if the Air Fryer is cold. The

orange POWER light will illuminate; the Air Fryer will begin heating. IMPORTANT: The Air Fryer will not heat if the timer dial has not been set.

WARNING: Air Fryer will not heat -- the orange POWER light will remain off, until frying basket drawer is

8. To assure even cooking/browning, open the basket drawer halfway through the cooking time and

check. Lift frying basket from frying basket drawer in order to turn or shake foods in the frying basket. Once complete, return the frying basket into frying basket drawer. Adjust temperature if needed. The timer will continue to count down when the drawer is opened, but the Air Fryer will stop heating until the drawer is replaced.

WARNING: Extreme caution must be used when handling the hot frying basket.

CAUTION: Always use oven mitts when handling the hot air fryer basket. CAUTION: Hot oil can collect at the base of the drawer. To avoid risk of burns or personal injury, or to avoid oil from contaminating air fried foods, always unlock and remove the frying basket from the drawer before emptying. NEVER turn the drawer upside down with the frying basket attached. NOTE: The Air Fryer can be turned OFF at any time by turning the timer dial to 0.

9. One beep will sound when the set air frying time has expired. The Air Fryer will turn OFF

automatically. The light will turn off.

10. Shake the frying basket vigorously and check food for browning and doneness. If additional air

frying is needed, adjust temperature if desired, and set timer for 5 minute increments until fully cooked.

11. Allow cooked food to rest for 5 to 10 seconds before removing basket drawer from Air Fryer or

food from frying basket.

12. When air frying is finished, remove the drawer from the machine and place on a flat, heat resistant

surface. Then remove the food from the basket.

13. Shake air fried foods out onto serving area. Promptly return the frying basket to the drawer and lock

into place. Continue with subsequent batches, if any.FDR 27

14. When all air frying is completed, turn both the temperature control dial and the timer dial to OFF.

The orange POWER light will turn off.

HELPFUL HINTS - For a better result it’s recommended to use olive oil spray or vegetable oil works well for air frying. - Use your Air Fryer to cook pre-packaged foods with a fraction of the oil, in a fraction of the time! As a general rule, lower the recipe baking temperature by 10º C depending on the food and amount. - Do not overfill frying basket with food. NEVER fill any frying basket more 2/3 full. When air frying fresh vegetables, we do not recommend adding more than 3 cups of food to the frying basket. - For best results, some foods need to be shaken vigorously or turned over during the air fry time. Consult the Air Frying Chart following as a general guide. - To avoid excess smoke, when cooking naturally high fat foods, such as chicken wings or sausages, it may be necessary to empty fat from the frying basket drawer between batches. - Always pat food dry before cooking to encourage browning and avoid excess smoke. - Air fry small batches of freshly breaded foods. Press breading onto food to help it adhere. Arrange in frying basket so that food is not touching to allow air flow on all surfaces. - The Air Fryer can be used to reheat food. Set the temperature to 150ºC for up to 10 minutes.

WARNING! ALWAYS USE A MEAT THERMOMETER TO ENSURE THAT MEAT, POULTRY AND FISH ARE COOKED THOROUGHLY BEFORE EATING. The following chart is intended as a guide only. The quantity of food air fried at one time, the thickness or density of the food, and whether the food is fresh, thawed, or frozen may alter the total cooking time necessary.

1. To assure even cooking/browning, open the frying basket drawer halfway through the cooking time.

Check, turn or vigorously shake foods in the frying basket. This chart lists average total air frying time, the time at which some action is required, and what action is to be taken for best results.

2. Remember, frying smaller batches will result in shorter cooking times and higher food quality. Adjust

air frying temperatures and times as necessary to suit your taste. IMPORTANT NOTE: Unless food is pre-packaged and pre-oiled, for browned and crispy results, all foods should be lightly oiled before air frying. Oil may be sprayed or brushed onto foods. Spray oils work well as oil is evenly distributed and smaller quantities of oil are needed.FDR 27

To ensure crispy results, make sure foods are dried before adding oil. Cut pieces smaller to create more surface area for crispier results. Blanching is a term that refers to pre-cooking foods at a lower temperature before the final air fry. Add 3 minutes to the AIR FRY TIME to allow the Air Fryer to preheat.

Fried sweet potato chips (fresh, hand cut, 1,5mm to 3mm thickness) Blanch (step 1) 160ºC 15 minutes 8 minutes shake Air Fry (step 2) 180ºC 10-15 minutes 5 minutes shake French fries (fresh, hand cut, 6 mm to 8,5 mm thick) Blanch (step 1) 160ºC 15 minutes 8 minutes shake Air Fry (step 2) 180ºC 10-15 minutes 5 minutes shake French fries, thin (frozen) 3 cups 200ºC 12-16 minutes 8 minutes shake French fries, thick (frozen) 3 cups 200ºC 17-21 minutes 10 minutes shake Meatloaf, 0,5 kg 180ºC 35-40 miutes

Hamburgers, 100 gr up to 200ºC gr 180ºC 10-14 minutes (rare to well done)

Donuts 180ºC 8 minutes 4 minutes turn over Fried cookies 180ºC 8 minutes 4 minutes turn over

• Add 3 minutes to the AIR FRY TIME to allow the air fryer to preheat

This appliance requires little maintenance. It contains no user-serviceable parts. Any servicing requiring disassembly other than cleaning must be performed by a qualified appliance repair technician. Care & Cleaning Instructions WARNING! Allow the Air Fryer to cool fully before cleaning.

1. Unplug the Air Fryer. Remove grill from the basket. Make sure the grill and frying basket have

cooled completely before cleaning.

2. Wash the basket drawer and frying basket in hot soapy water. Do not use metal kitchen utensils or

abrasive cleansers or cleaning products as this may damage the non-stick coating.

3. The frying basket and frying basket drawer are dishwasher-safe. For best results, place in the top

rack of your dishwasher to clean.

4. Wipe the Air Fryer body with a soft, non-abrasive damp cloth to clean.

Storing Instructions

1. Make sure the Air Fryer is unplugged and all parts are clean and dry before storing.

2. Never store the Air Fryer while it is hot or wet.

3. Store Air Fryer in its box or in a clean, dry place.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU. GUARANTEE This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/ For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/ Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. (Check the legal conditions on our website).FDR 27
