USER MANUAL URC 2140 ONE FOR ALL

Color palette bar with grayscale gradient and a red horizontal bar at the bottom (no text or symbols)

INTRODUCTION

Thank you for purchasing the One For All Essence Universal Remote Control. The remote can be used to control up to 4 Audio Video Devices such as a TV, Set Top Box, Streaming device, audio system, soundbar.

This manual will help you to set up the Essence to control all of your devices and take advantage of its features.

BATTERIES

Your remote requires 2 x AAA / LR03 batteries (not Included). Please insert them as shown below. Alkaline batteries are recommended.

Simple line drawing of a cylindrical object with a slot, no text or symbols present

Simple line drawing of a vertical cylindrical object with a curved arrow and small internal component (no text or symbols)

Illustration of a 2x AAA battery pack with internal components and casing (no text or symbols)

Line drawing of a cylindrical device with internal components, no text or symbols present

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Use quality Alkaline batteries.

Color palette bar with grayscale swatches and a red horizontal bar, no text or symbols present

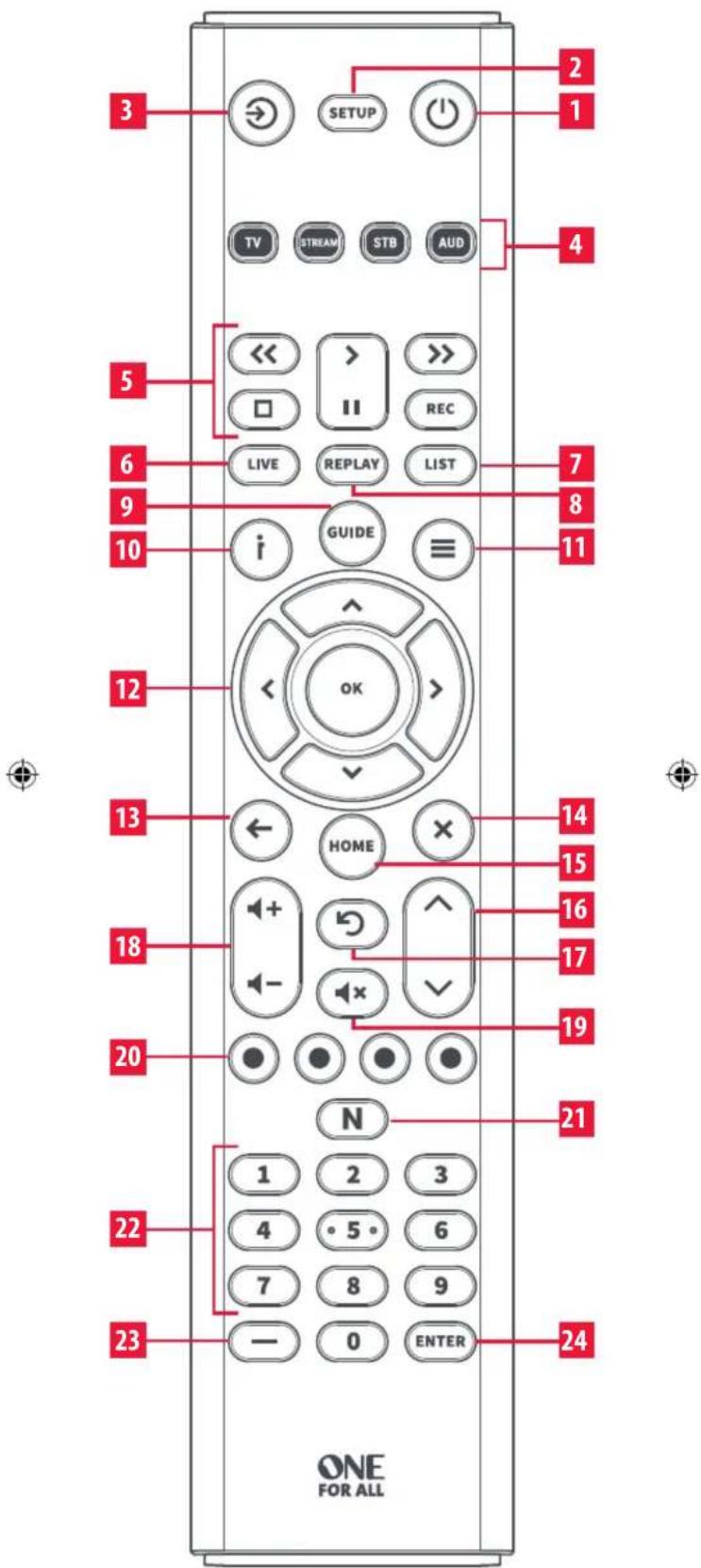

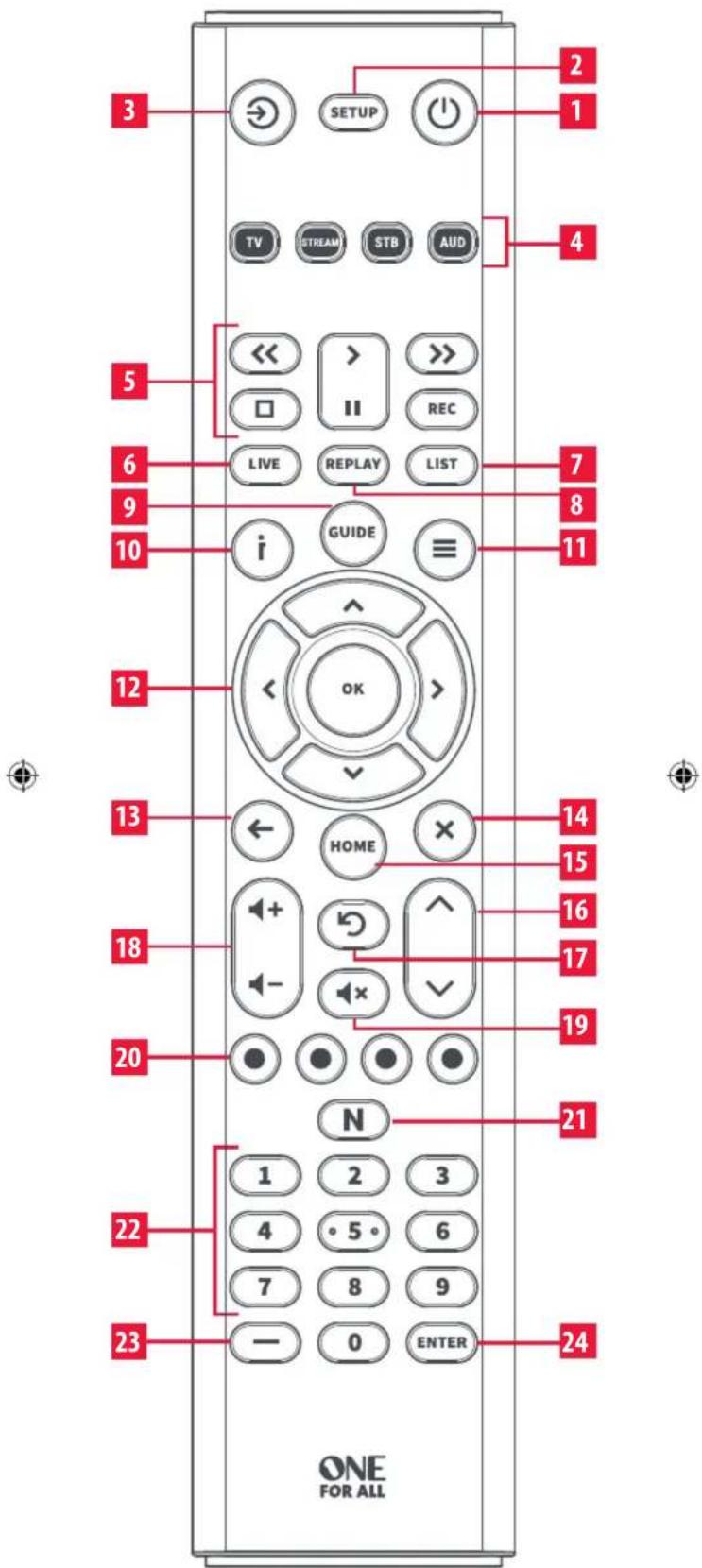

KEY DESCRIPTIONS

3 SETUP 2 1 TV STREAM STB AUD 4 5 << > >> 6 REPLAY LIST 7 i GUIDE 8 10 11 12 OK 13 HOME 14 15 16 17 18 N 20 21 22 3 4 5 6 7 8 9 — 0 ENTER 23 24 ONE FOR ALL

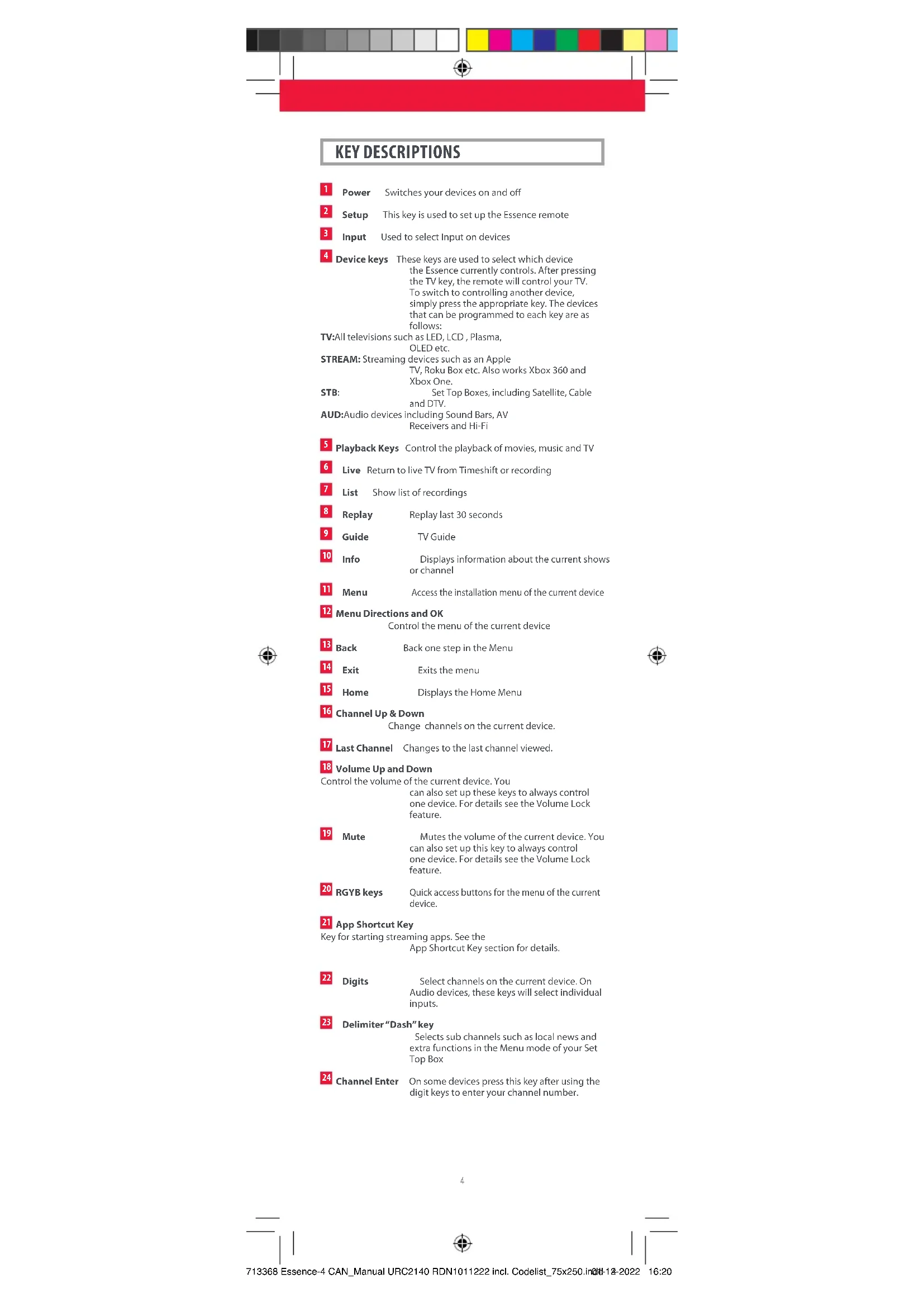

KEY DESCRIPTIONS

1 Power Switches your devices on and off
2 Setup This key is used to set up the Essence remote
3 Input Used to select Input on devices
4 Device keys These keys are used to select which device the Essence currently controls. After pressing the TV key, the remote will control your TV. To switch to controlling another device, simply press the appropriate key. The devices that can be programmed to each key are as follows:
TV: All televisions such as LED, LCD, Plasma, OLED etc.
STREAM: Streaming devices such as an Apple TV, Roku Box etc. Also works Xbox 360 and Xbox One.
STB: Set Top Boxes, including Satellite, Cable and DTV.
AUD:Audio devices including Sound Bars, AV Receivers and Hi-Fi
5 Playback Keys Control the playback of movies, music and TV
6 Live Return to live TV from Timeshift or recording
7 List Show list of recordings
8 Replay Replay last 30 seconds
9 Guide TV Guide
10 Info Displays information about the current shows or channel
11 Menu Access the installation menu of the current device
12 Menu Directions and OK Control the menu of the current device
13 Back Back one step in the Menu
14 Exit Exits the menu
15 Home Displays the Home Menu
16 Channel Up & Down Change channels on the current device.
17 Last Channel Changes to the last channel viewed.
18 Volume Up and Down Control the volume of the current device. You can also set up these keys to always control one device. For details see the Volume Lock feature.
19 Mute Mutes the volume of the current device. You can also set up this key to always control one device. For details see the Volume Lock feature.
20 RGYB keys Quick access buttons for the menu of the current device.
21 App Shortcut Key Key for starting streaming apps. See the App Shortcut Key section for details.
22 Digits Select channels on the current device. On Audio devices, these keys will select individual inputs.
23 Delimiter "Dash" key Selects sub channels such as local news and extra functions in the Menu mode of your Set Top Box
24 Channel Enter On some devices press this key after using the digit keys to enter your channel number.

Color palette bar with grayscale swatches and a red rectangle below, no text or symbols present

SETUP

The Essence remote is pre-programmed to control some of the most popular devices out of the box. If you have one of the following devices try the putting the batteries in and pressing the device key, and then press a few keys to see if the remote works your device:

Device Key To Press Device controlled

TV Samsung TV

STREAM Roku Streaming Box

STB Comcast Set top box

AUDIO Yamaha Receiver

If your device is not one of those listed above, or you have extra devices to set up, there are 3 ways to do this. The easiest is SimpleSet which is used for the common brands and devices.

SIMPLESET

If the brand of your device is shown in the SimpleSet list next to a digit key, you can use the SimpleSet system described in this section, please locate the brand of your device and note the key associated with it.

TV

1 LG
Onn, Insignia
Philips, Magnavox
Roku, Element
Samsung, Panasonic
Sharp, Hisense
Sony, Sanyo
TCL, RCA
Toshiba, Westinghouse
0 VIZIO

Color palette bar with grayscale gradient and a red horizontal bar at the bottom (no text or symbols)

SETUP

SIMPLESET

AUDIO

Bose

Denon

Polk Audio

LG

Onn

Onkyo

Samsung

Sony

Yamaha

O, Sonos

1 2 3 4 · 5 · 6 7 8 9 — 0 ENTER

To set up your device:

1. Turn on your device (not on standby) and point the Essence remote towards it. If you are setting up a Streaming device, make sure a movie or TV show is playing.
2. Preset the Device key you wish to set up (for example TV).
3. SETUP Hold down the SETUP key until the LED under the Device key blinks twice
4. Hold down the digit key for your brand and device as listed in the tables above - e.g. 3 for a Philips TV.
5. The remote will send a Power command every 3 seconds, but if your device does not have a Power function (for example a streaming box like Apple TV) the remote will send the Play/Pause function.
6. As soon as your device reacts by turning off or Pausing (Streaming box only) release the digit.
7. The LED will blink twice and the remote should now operate your device.
8. If you find one or more keys do not work as you expect, start again at step 2 – the remote will start with the next code in the memory.

Color palette bar with grayscale and red sections, no text or symbols present

SETUP

SETUP BY CODE

If the brand of your device is not listed in the SimpleSet feature, you can set up by trying codes individually. To do this, firstly locate your brand in the Code List. Codes are listed by brand and device, and in order of popularity.

1. Turn on your device (not on standby) and point the Essence remote towards it.
2. Prevent the Device key you wish to set up (for example TV)
3. Hold down the SETUP key until the LED under the Device key blinks twice
4. Enter the first 4 digit code listed for your brand (e.g. 1840 for LG).
5. The LED will blink twice on the last digit of the code.
6. Now aim the remote towards your device and press the POWER key.*
7. If the device turns off your remote is ready to use. If not, repeat steps 2-6 with the next code in the list.
   * Note: If your original remote did not have a Power key, try testing with a different key at step 6. For example try pressing Play or Pause when setting up a streaming box and see if the box responds.

Color palette bar with grayscale gradient and a red horizontal bar, no text or symbols present

SETUP

LEARNING

Your Essence remote control can learn any function from any other working remote control. This is a quick and easy one-time setup that allows you to control any infrared controlled device you have in your living room. It also allows you to add a key or keys that may be missing to a spare key on the Essence.

To do this, firstly make sure you have all your original remote controls to hand, and that they have working batteries in.

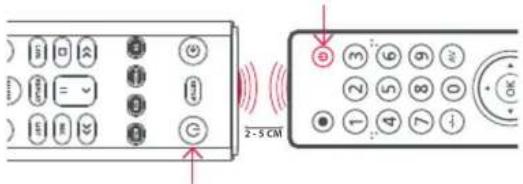

To learn functions, the original remote should be approximately 2-5 cm from the Essence remote, pointing towards it:

Diagram showing two remote control panels with labeled buttons and a 2-5 CM signal indicator, likely illustrating remote control or data transfer.

1. Prevent the Device key for the device you want to learn functions onto (e.g. TV).

2. SETUP Hold down the SETUP key until the LED under the Device key blinks twice.

3. Press 975 the LED should blink twice.

4. Press and release the key you want to learn a function onto (for example the POWER key) – the LED will begin to flash rapidly.

5. Press and release* the corresponding key on the original remote, for example POWER.

6. The LED will blink twice to indicate the key has been learned correctly.

7. Repeat steps 4 and 5 for each key you want to learn – remember you can learn from multiple remotes, but only one function per key.

8. When you have learned all the functions you require, press and hold the SETUP key until the LED blinks twice.

* Some remotes send commands differently. If you find a function cannot be learned, try holding down the key on the original remote instead of pressing and releasing.

Hints:

• If the LED shows one long blink at step 5, the function was not learned correctly, please try again from step 4.
• If you find one or more keys don't work properly after set up, you can re-enter the learning mode at any time by repeating the procedure from step 1.
• If one or more of your original remotes aren't working, you can still set up the Essence remote by SimpleSet or Code Set Up.

Color palette bar and horizontal bar with a central crosshair (no text or symbols)

SETUP

Deleting a learned function

If you want to delete a learned function and return that key to its original state, you can use the following procedure:

1. Press the Device key for the device your learned function operates
2. Hold the SETUP key until the LED under the Device key blinks twice
3. Press 1976 - the LED should blink twice
4. Press the key you want to reset twice – the LED should blink twice and the learned function has been deleted.

VOLUME LOCK

If you primarily use one device for controlling sound, for example a Sound Bar or Audio Video Receiver, it's possible to program your Essence remote to only control that device when you use the Volume Up, Down and Mute keys. To do this:

1. Hold down the SETUP key until the LED under the Device key blinks twice.

2. Press 993 - the LED should blink twice.

3. Pres the device key for the device to always control volume – for example Audio.

4. The LED will blink twice.

From now on, pressing the Volume Up, Down or Mute keys will always control the above programmed device, no matter what device you are controlling.

To unlock the volume, and return the remote to controlling each device's sound individually, the procedure is:

1. Hold down the SETUP key until the LED under the Device key blinks twice

2. Press 993-the LED should blink twice

3. Press VOLUME DOWN – the LED will blink four times and Volume is now unlocked.

Color palette bar and horizontal bar with a central crosshair (no text or symbols)

APP SHORTCUT KEY

N

The Essence remote features an App Shortcut Key which can be used to open app on your Smart Devices. If your original remote control has a Netflix key, this key will perform the same function.

However if you did not have a key like this, but still had the ability to watch a streaming service, you can use this key as a shortcut by programming a macro on it. Most AV devices which are connected to the internet, such as Smart TVs or streaming Set Top Boxes have one or more applications they can run to access TV viewing via the internet. Examples of these would be Netflix, YouTube, Amazon Prime or similar.

To program the macro, you first need to know the device you use to access the service, and then the sequence of keys you need to press to always bring up the service you prefer. For example, some Panasonic TVs will start Netflix by pressing the Apps key, then Menu Down Twice, and finally the OK key. Or on an Apple TV, the sequence is Menu, Menu Down and OK.

Once you have determined the sequence for your device, follow these steps:

1. Sit in front of your device with it switched on (not on standby)
2. Hold down the App Shortcut key until the LED blinks twice.
3. Press the device key for the device you want to use for the macro (e.g. STREAM)
4. Now perform the sequence of keys exactly as you would normally to start your streaming service The remote will operate your device and the macro is recorded in real time - so if it normally takes a few seconds for your device to react don't worry.
5. Once you have finished the sequence - and the Streaming Service has started on your device - hold down the App Shortcut key until the LED blinks twice and goes out. The macro is now stored.

Tips

• Make sure the Essence remote is operating the device in question before programming
- If you find the Macro doesn't work as expected, you can just repeat the same sequence to reprogram
- When programming, wait for your device to respond first, the remote will remember the timing
- The App Shortcut macro is tied to one device, remember to make sure you are watching the correct device

Connect with us on Facebook

Rejaligner-nous sur Facebook. Facebook.com/oneforallworldwide

Connect with us on Instagram.

Connect with us on LinkedIn.

Rejaignez-ensus sur LinkedIn.
LinkedIn.com/company/one-for-all-worldwide

Visit our YouTube channel.

Visitez notre chalve youtube.

youtube.com uses/serveforallproducts

Color palette bar with grayscale swatches and a red horizontal bar at the bottom (no text or symbols)

INTRODUCTION

Line drawing of a cylindrical object with a rectangular opening and a small protrusion, labeled '1' in the top-left corner (no text or symbols on the object itself)

Line drawing of a cylindrical device with a curved arrow indicating rotation or movement (no text or symbols)

3 2x AAA

Line drawing of a handheld device with a cylindrical body and a rectangular casing (no text or symbols)

Color palette bar with grayscale swatches and a red horizontal bar at the bottom (no text or symbols)

PRINCIPALES DESCRIPTIONS

3 SETUP 2 1 TV STREAM STB AUD 4 5 << > >> □ II REC LIVE REPLAY LIST 7 9 i GUIDE 8 10 ≡ 11 12 OK 13 HOME 14 15 16 17 18 N 20 ● ● ● ● 21 22 1 2 3 4 · 5 · 6 7 8 9 — 0 ENTER 23 24 ONE FOR ALL

12

PRINCIPALES DESCRIPTIONS

Color palette bar and horizontal bar with a central crosshair (no text or symbols)

CONFIGURATION

Color palette bar with grayscale swatches and a red horizontal bar at the bottom (no text or symbols)

SETUP

SIMPLESET

AUDIO

Bose

Denon

Polk Audio

LG

Onn

Onkyo

Samsung

Sony

Yamaha

O, Sonos

1 2 3 4 · 5 · 6 7 8 9 — 0 ENTER

Color palette bar and horizontal bar with a central crosshair (no text or symbols)

SETUP

CONFIGURATION PAR CODE

Color palette bar with grayscale gradient and a red horizontal bar, no text or symbols present

SETUP

APPRENTISSAGE

Diagram showing two remote control panels with labeled buttons and a 2-5 CM signal indicator

Color palette bar with grayscale swatches and a red horizontal bar at the bottom (no text or symbols)

SunBriteTV 2528.4139.

Superscan 1963

Supersonic 3593.2104.17

SVA

Sylvania 1963. 1864

1394.1595.3332.

3577.4053

Symphonic 1963, 1595, 1394

TCL 4398, 2434, 3183

5446.3879

TCL-Roku 4398

Technicolor 3577

Toshiba 2724,3945,5213,

4885.5394

Upstar 4182, 4405, 3899

V7 Videoseven 2087

Vidao 2397

Videoseven 2087

Viewsonic 2014.2277.2087

3706.1755.2049.

1860 1564 1365

Viore 3382

2104.3429.3094

VisionQuest 1687

1758.3758.4905.

5454.4723.2707.

2757.3415.2512

W Box

Technologies 4686

1712,4797,3559,

3382,4398,5173.

4910, 2293, 3094.

4139.3560.4635.

2397.3908

Westinghouse-

4398

White

Westinghouse

1365

Xoceco 1753

1423.2731.1661

1365.2358.1463

STREAM

AirTV 5295

Amlogic 4899

Apple 2615

Armada 4899

Beelink 5123

Boxee 3693

Ceton 1272

Cloud Media 2260

Delta Electronics 4339

DishTV 5295

D-Link 3671,3693

Dynalink 6413

Echostar 5295

Funai 3339

G-Box Midnight 4440

Geniatech 4339

lomega 2558

Kollins 4339

1G 3373

Linksys 1272

Logitech 3272

Logitech 3272 Magnavoy 3330

Magnavox 3559 Matricom 4440 4899

Media Center PC 1272

Media Center PC 1272 Mi 3082

Mi 3962 Misca 3850

Micca 3650 Microsoft 4000

Microsoft 4000, Millet 2082

Minet 3962 Mind 1272

Mind 1272 Minio 4413

Minix 4413, McGio 4220

MyGica 4339

Netgear 3324,

3292

NVIDIA 4918

Onn 6490

Ortek 3122

Panasonic 3760

PDP 5724

Pivos 4339

Popcorn Hour 2260

Oumi 4339

RCA 3335

Roku 3061

Seagate 2698

Sling Media 5295 3778

Shing Media 9295,3776 Sony 2713 5724 1272

Sony 2715, 3724, 1272 Technicolor 5205

Technicolor 3295 Tibo 4330

100 4339 Vermila 4800

Verishille 4899 Vivitsk 4220

Vivitek 4539 VIZIO 3670

VIZIO 5670 Western Digital 2658

Western Digital 2558

Xbox 4000, 2049

xiaomi 3982

STB
Access
Communications 1376, 2187, 4537
ADB 2586,1481,1998,
2254,3028
Altice USA 3885, 1376, 6351,
1877, 3560, 1982
Amino 1615, 1481, 1898.
3605.2482.4437.
1998.3028.3426
Armstrong 1376, 3560
Arris 1376, 2378, 1982,
1998,2187,0869,
5912, 1877, 5889,
5097,6400,0858.
5537.5942
AT&T 1377.6268.0858
AT&T U-verse 0858
Atlantic Broadband 1376, 1877, 1982.
Atlantic Broadband 1576, 1071, 1982, 3560, 4079
Avtel 3500,4079 4458
Axtel 4450 Bell 0775 1998 5537
Dell 0773, 1996, 3397, 1877, 5007
Bell Aliant 1009
Bell Aliant 1990 Bell Eibe TV 1008 5007 5527
Bell Ride TV 1998, 3097, 5537 Bell MTS 1008, 5007, 5527
Bell MTS 1998, 3097, 5537 Bell Satellite TV 0225
Bell Satellite TV 0775
Blue Ridge
Communications 1877,3560
Buckeye Broadband 1376, 1877, 2187,
4079
Cable Axion 1376
Cable One 1376, 3560, 1877
Cablecom Mexico 1376
Cablemás 1376, 1877
Cablevisión Mexico 1376,4375,4537
CenturyLink 1998.0858
Channel Master 3118
Cincinnati Bell 1877.1376
Cisco 1877, 1982, 2947
0858 3028 2345
0058, 3026, 2345, 2378, 5012, 1998
2376, 3912, 1990, 4315, 3204, 4374
4315, 3234, 4374, 5484, 2826, 4450
3484, 2020, 4430, 4514, 5942
Cogeco 1376.1982.3560.
4537
Comcast 1982 1376 1877
Comcast 1982, 1976, 1077, 3560, 2187, 4079
3508, 2167, 4679, 4443, 4537
Cov 445,457
CUX Communications 1877 1376 1982
Communications 1877, 1576, 1962, 4215, 2774, 2560
4315, 3774, 3560, 6400
6400 DIRECTV 1377 6268 3724
DIRECTV 1577,0206,3724 DISH 0775
Dish 0775 Dish Mexico 0775, 6069
Dish Mexico 0775, 6068 DISU Network 0775
DISH Network 0775 Fortlink 1376-2187
EastLink 1376,2187
Echostar 0775
Entone 3426, 1615, 1898,
4437
Evolution Digital 2479, 4079, 2746,
4315, 3560
Frontier
Communications 2378, 1998, 3560,
0775
Google Fiber 3666
Ignite TV 1982
Izzi Telecom 1376.6195.4375.
4537
Kaon Media 4458.2746
Liberty Cablevision 1376
Maxcom 1998
Mediacom 1376 3560 1982
Mediacom 1976, 3500, 1982, 1877
Megacable 1376 6286 4374
4450.4514.4375
4537 4883
Midco 1376, 1982, 3560
Mako 1576, 1982, 3500, 2826, 4079

Color palette bar and horizontal bar with a central crosshair (no text or symbols)

WARRANTY / GUARANTEE

WARRANTY / GUARANTEE INFORMATION

Terms and Conditions for "100% Guaranteed To Work" policy, and the separate 1 Year Limited Warranty against defects in material and workmanship can be found at www.oneforall.com/remoteguarantee, or you may request hard copies via mail to Universal Electronics Inc. 15147 N. Scottsdale Road, Suite H300, Scottsdale, Arizona 85254. Please include your full name, product information, and contact information in your request communication.

www.oneforall.com

INFORMATIONS SUR LA GARANTIE

GARANTIE / INFORMATIONS SUR LA GARANTIE

Color palette bar with grayscale gradient and a red horizontal bar at the bottom (no text or symbols)

Connect with us on Facebook.

Rejignedez-hous sur Facebook, facebook.com/snefotallworldwide

Connect with us on Instagram

Realignant-Boost for Instagram: anyoneforallworldwide

Connect with us on LinkedIn.

Rejvignez nous zur LinkedIn.

Visit our YouTube channel.

Visitez notre chaine youtube.

youtube.com/user/briefmallproducts

Customer Support:

Service client:

www.oncforall-canada.ca

OFA warranty / terms & conditions:

Garantie OFA / termes et conditions:

www.oneforall-canada.ca

Imported into Canada by:

One For All is a registered trademark of Universal Electronics BV

Industry Canada Regulatory Information

CAN ICES-3 (B)/NMB-3 (B)

Avis d'Industrie Canada CAN ICES-3 (B)/NMB-3 (B)

713368

RDN 1011222
