USER MANUAL HW-Q810C SAMSUNG

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

Figures and illustrations in this User Manual are provided for

reference only and may differ from actual product appearance.

CONTENTS

01 Checking the Components 3

02 Product Overview 4

Top Panel of the Soundbar....4

Bottom Panel of the Soundbar....5

03 Using the Soundbar Remote Control 6

Inserting Batteries before using the Remote Control (AAA batteries X 2)....6

How to Use the Remote Control....6

Active Voice Amplifier (AVA) 8

Using the Hidden Buttons (Buttons with more than one function)....8

Output specifications for the different sound effect modes....8

Adjusting the Soundbar volume with a TV remote control ....10

04 Connecting the Soundbar 11

Connecting the power and units 11

- Recommended Speaker Layout.... 12

- Surround speaker mode (HW-Q9**C, HW-Q9**GC only) .. 12

- Manually connecting the Subwoofer or Surround Speakers.... 13

- LED Indicator Lights on the Rear of Subwoofer and Surround Speakers 14

05 Connecting to a TV 15

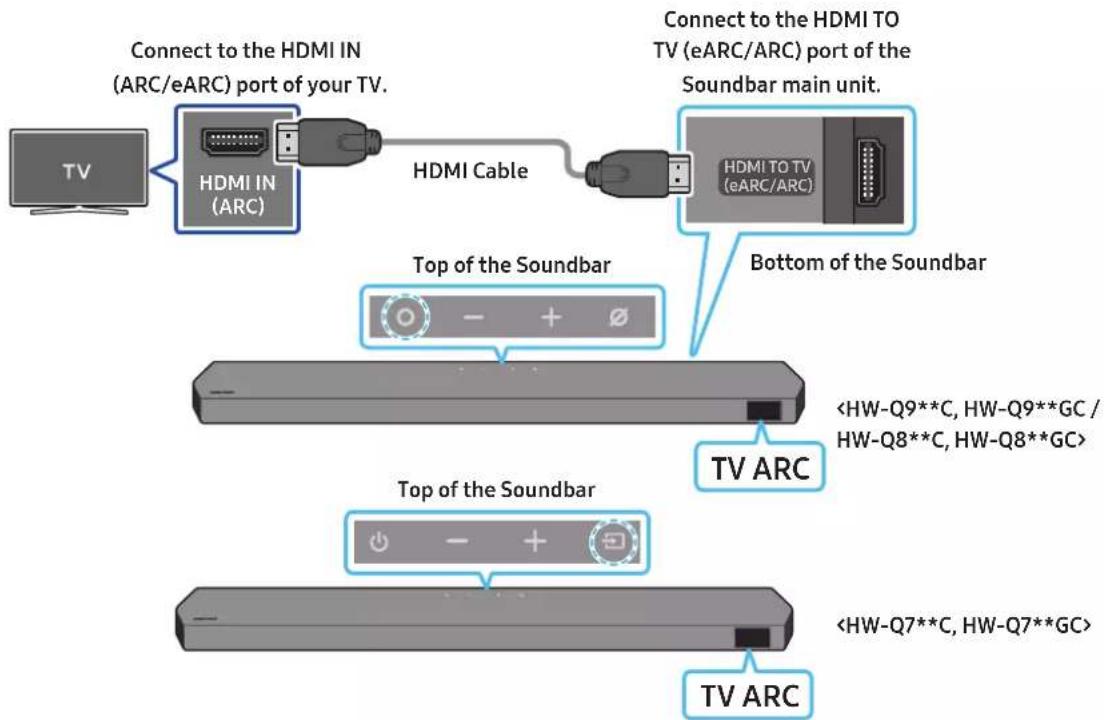

Connecting the TV that supports HDMI ARC (Audio Return Channel) 15

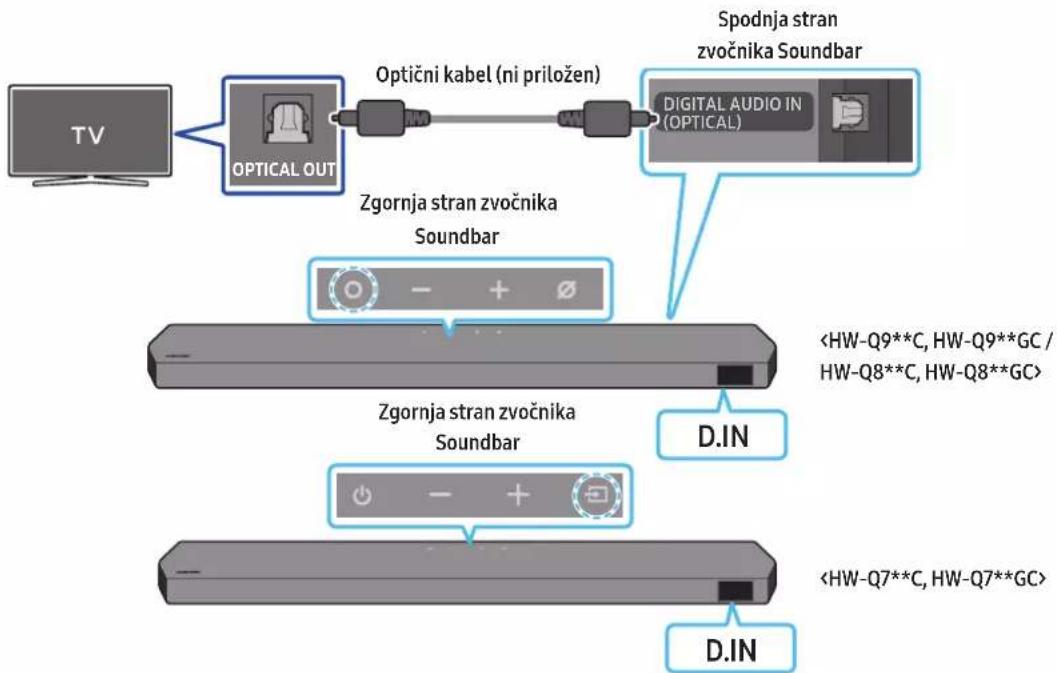

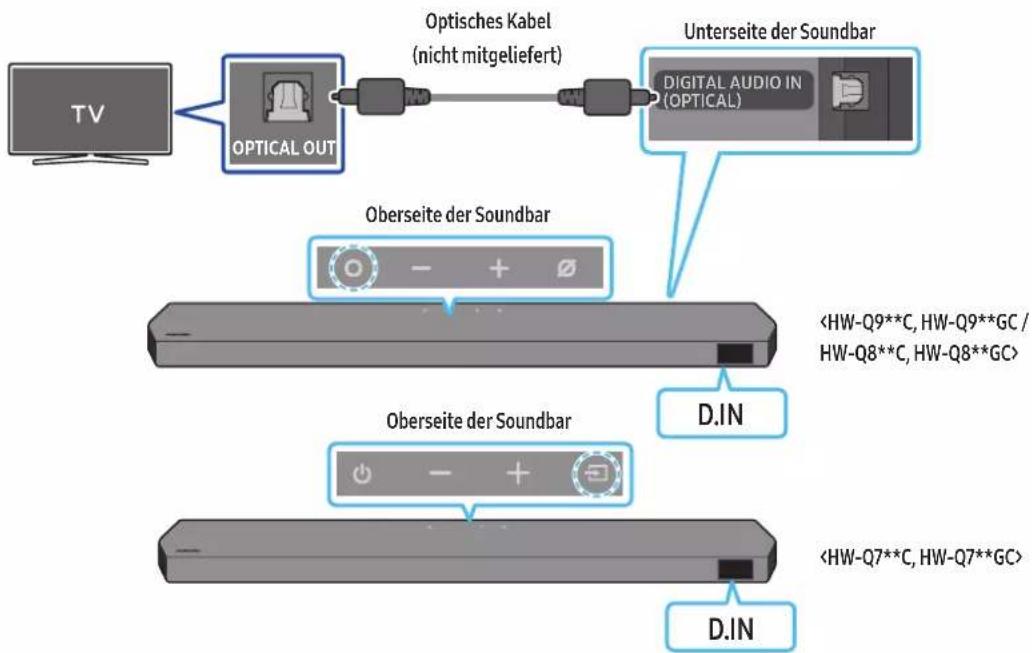

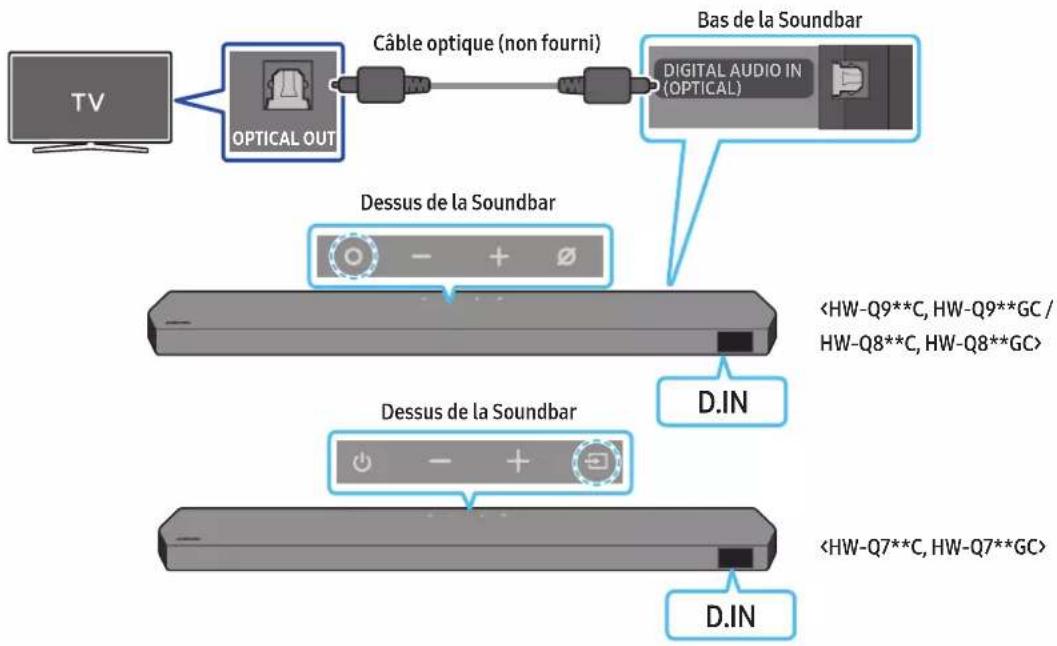

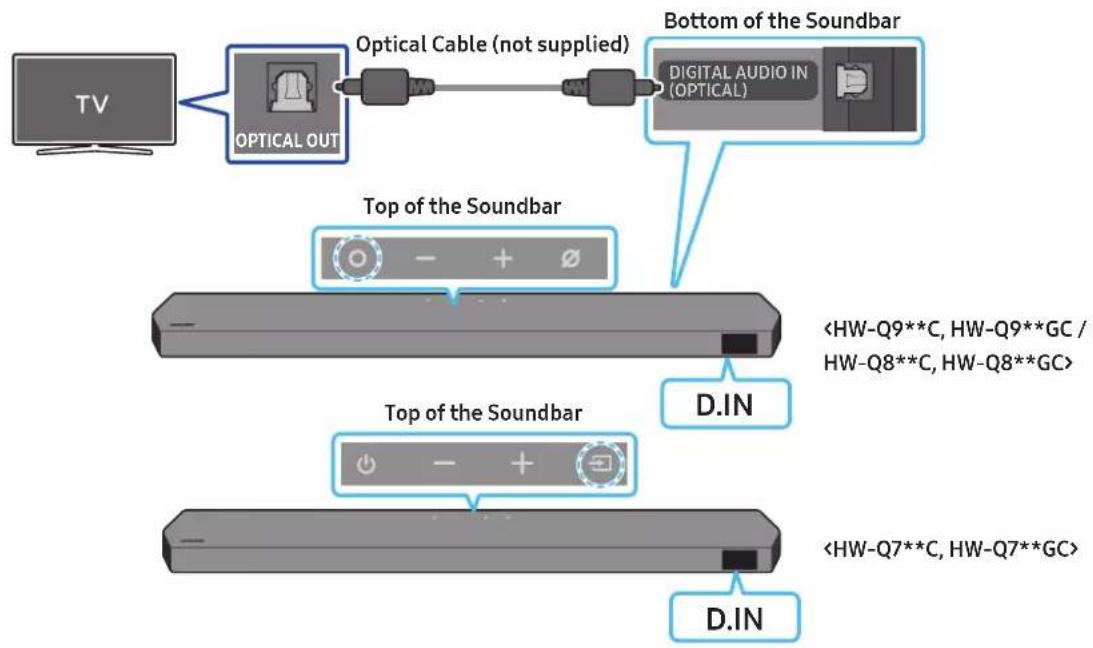

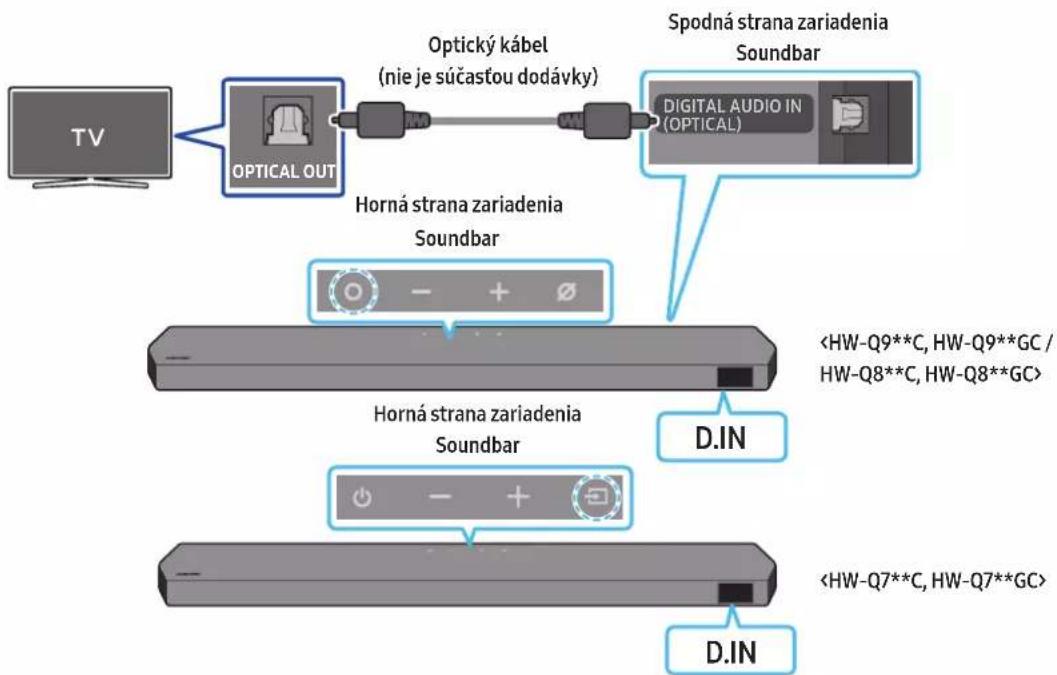

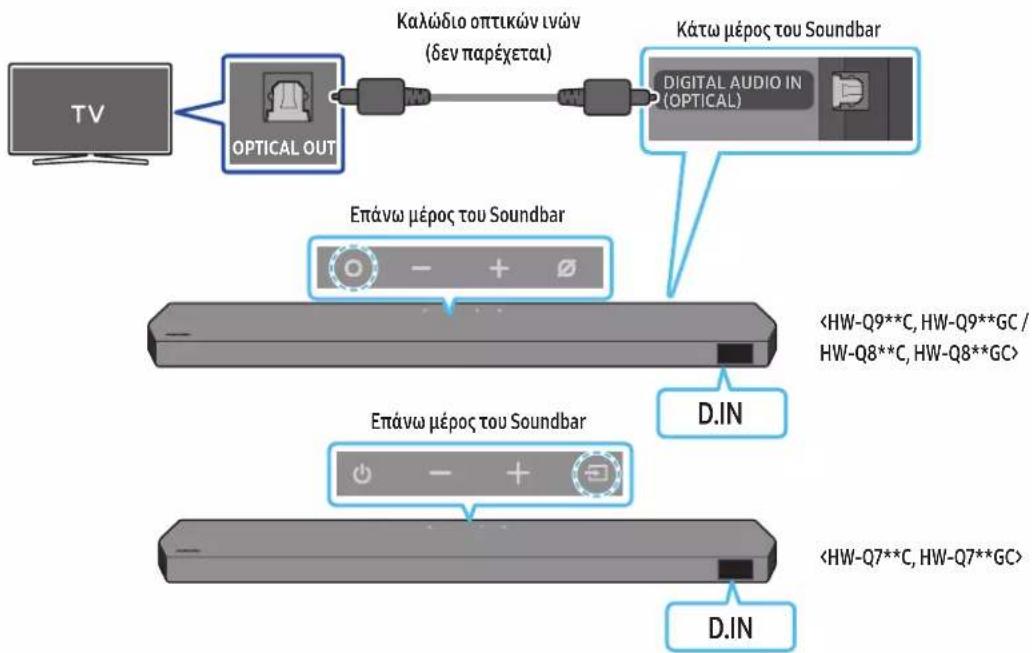

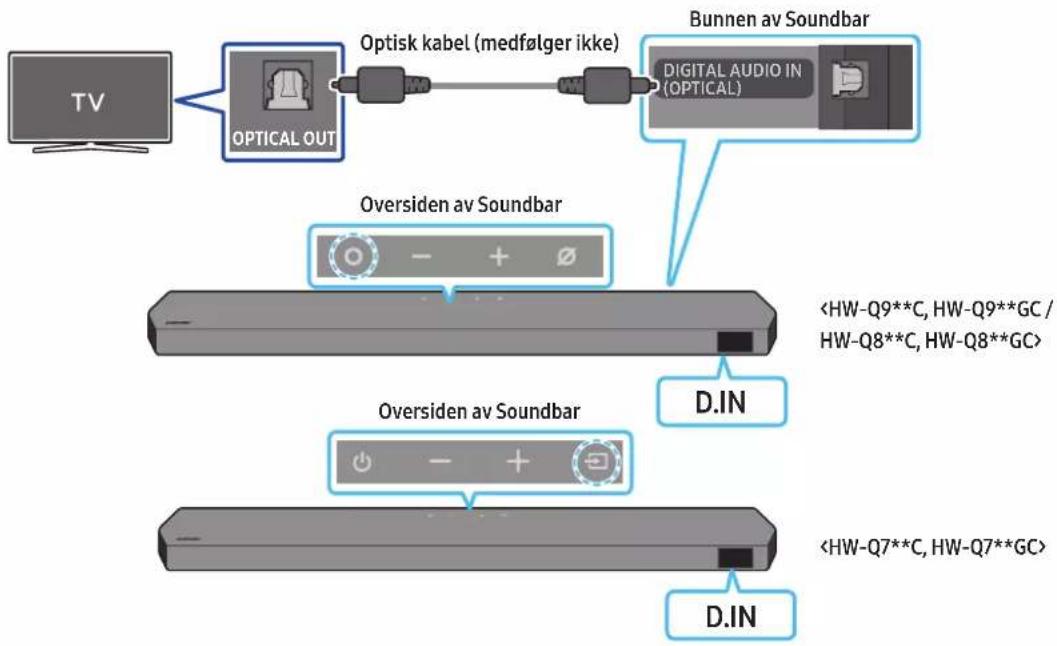

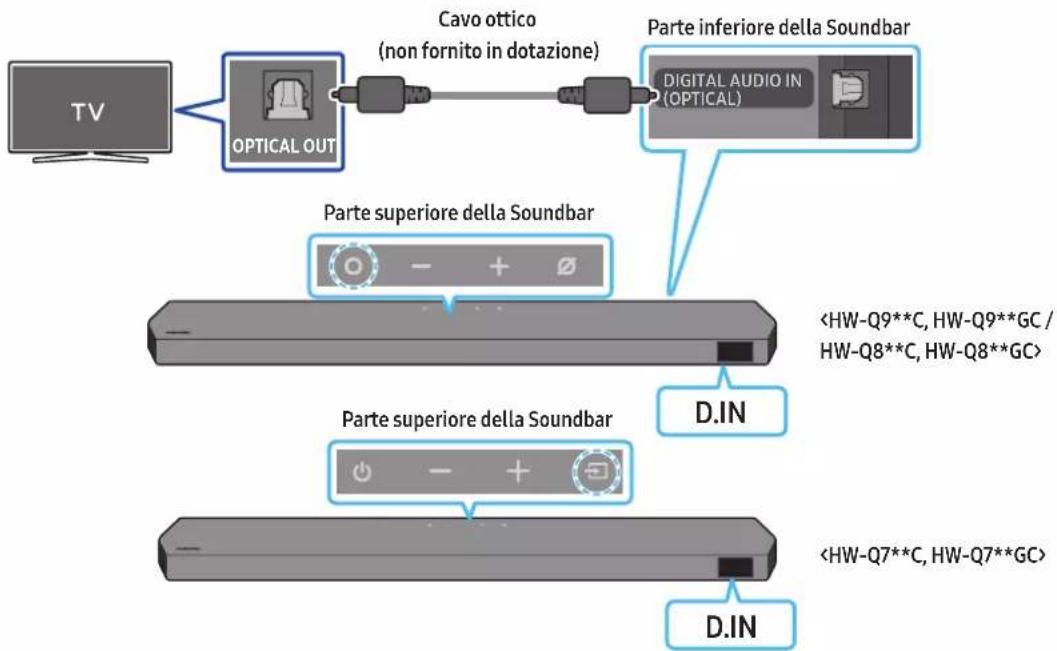

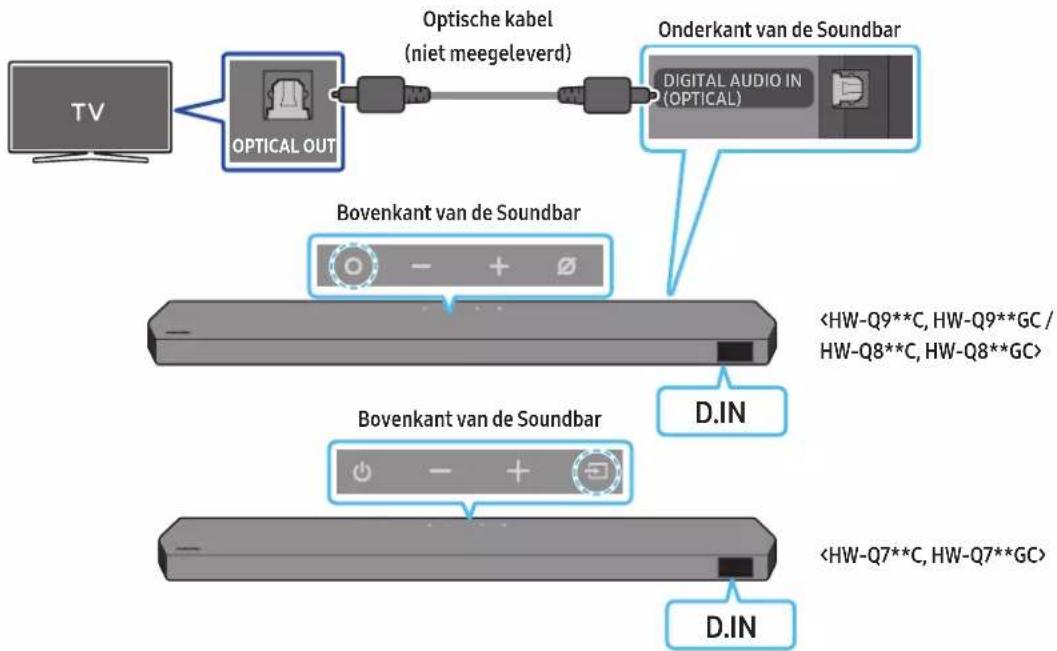

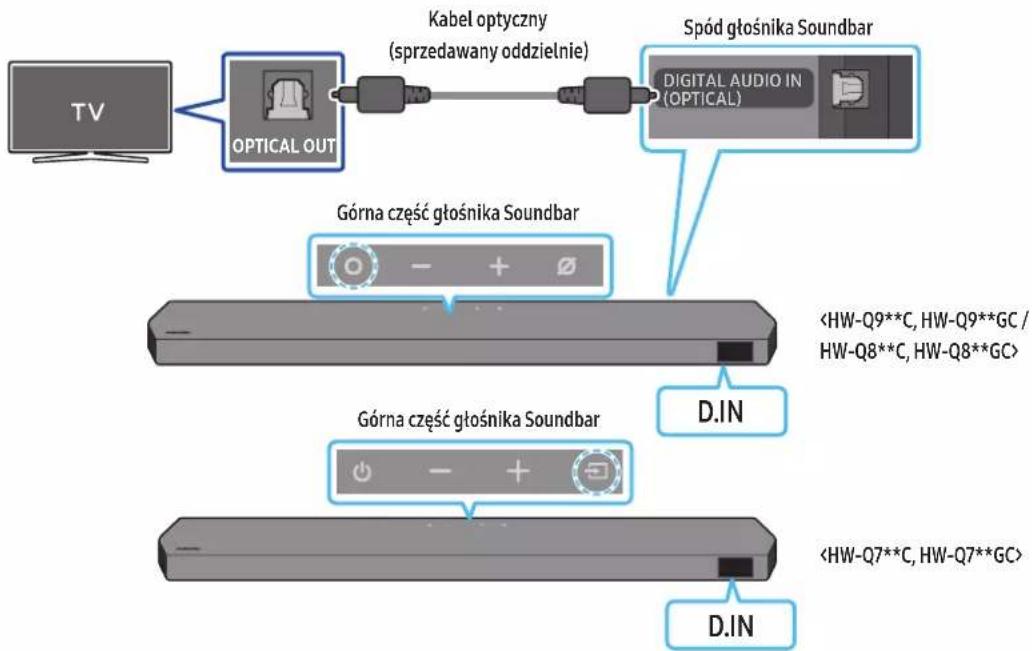

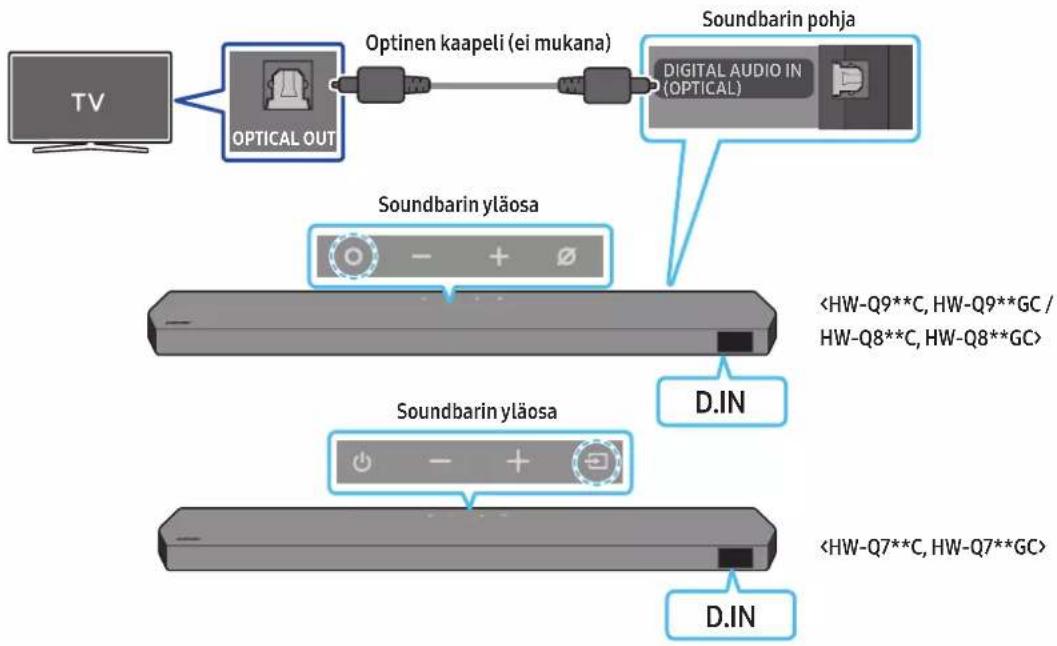

Connecting using an Optical Cable 16

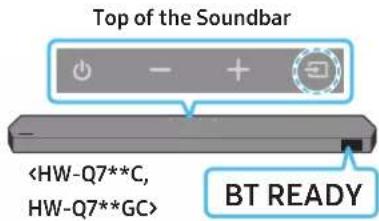

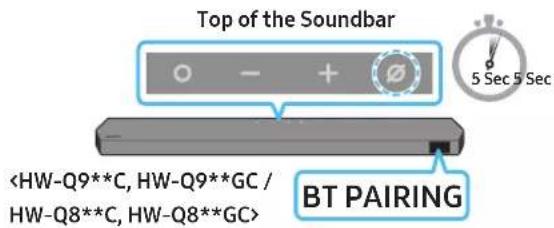

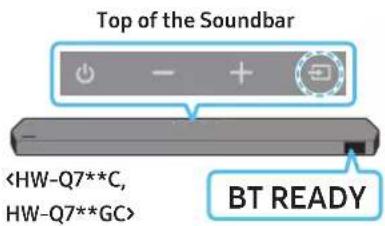

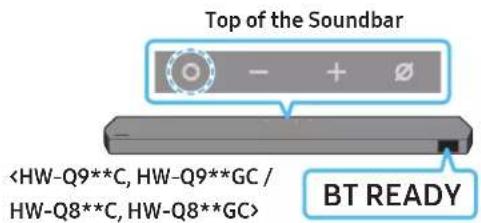

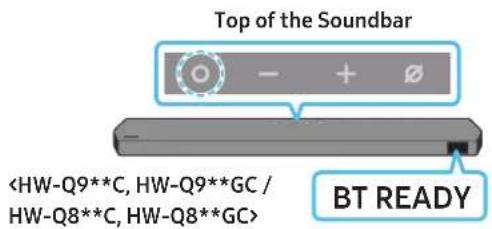

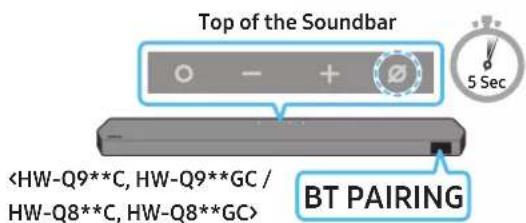

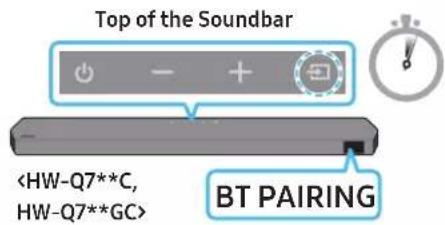

Connecting via Bluetooth 17

Connecting via Wi-Fi 19

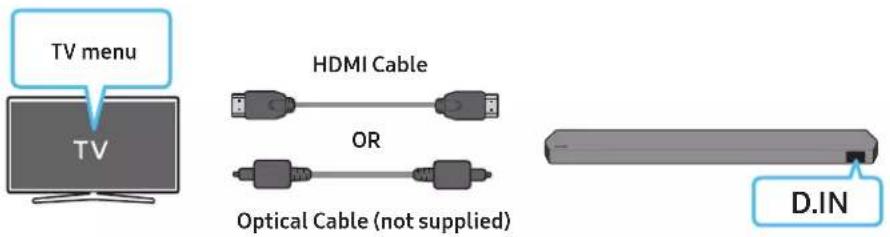

Using the Q-Symphony Function....20

Using the SpaceFit Sound 21

06 Connecting an External Device 22

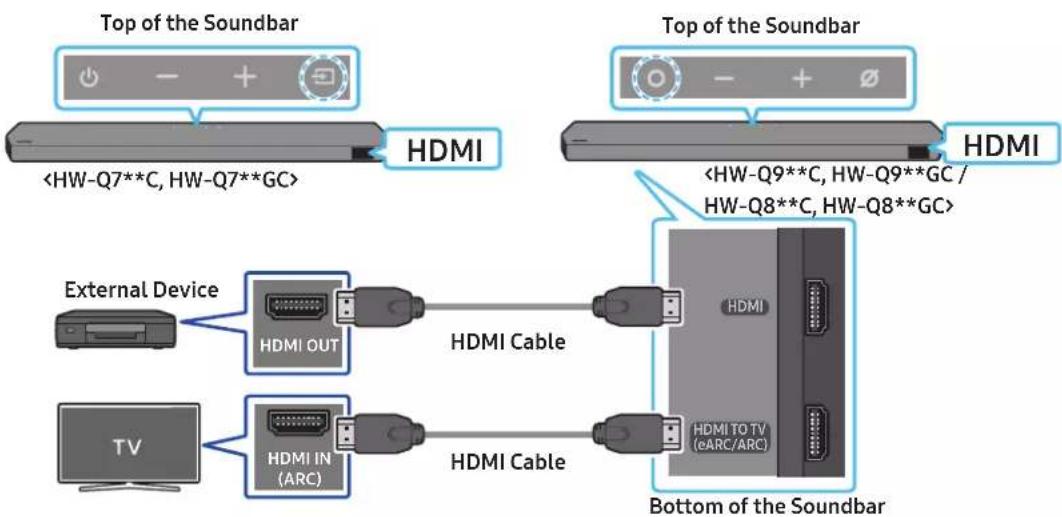

Method 1. Connecting using an HDMI Cable (Capable of Dolby Atmos / DTS:X decoding and playback)....22

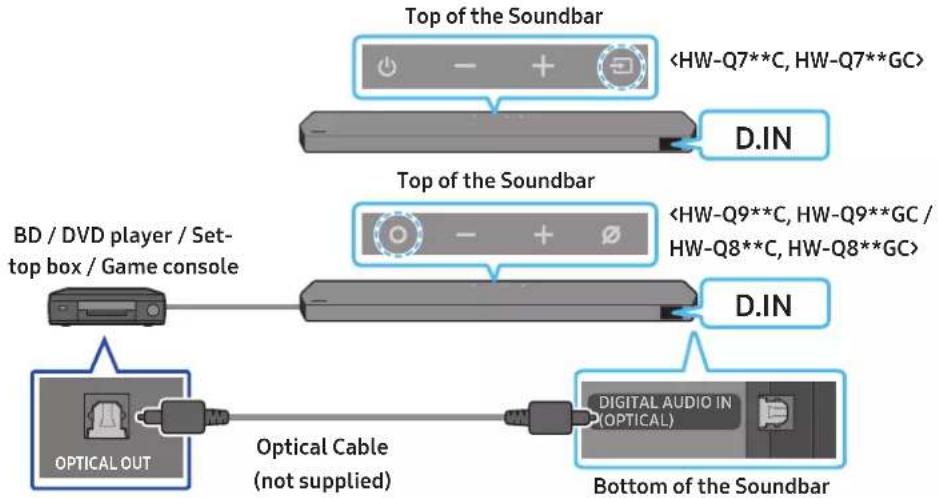

Method 2. Connecting using an Optical Cable ..... 23

07 Connecting a Mobile Device 24

Method 1. Connecting via Bluetooth .....24

Method 2. Connecting via Wi-Fi (Wireless Network)....26

Using the Tap Sound 27

08 Connecting via Apple Airplay 2 28

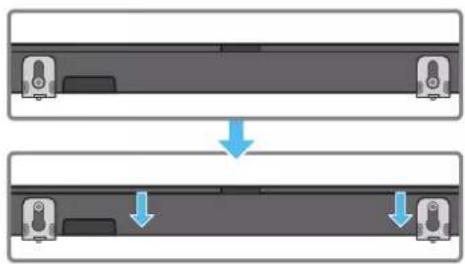

09 Installing the Wall Mount 29

Installation Precautions....29

Wallmount Components .....29

Installing the Surround Speakers on a Wall (applicable models only)....30

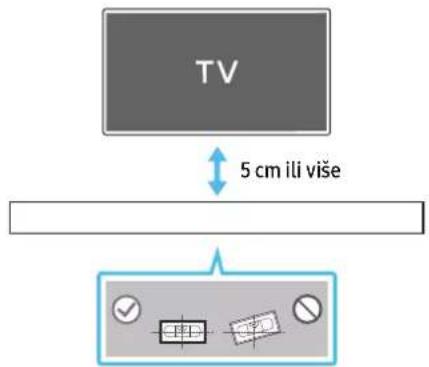

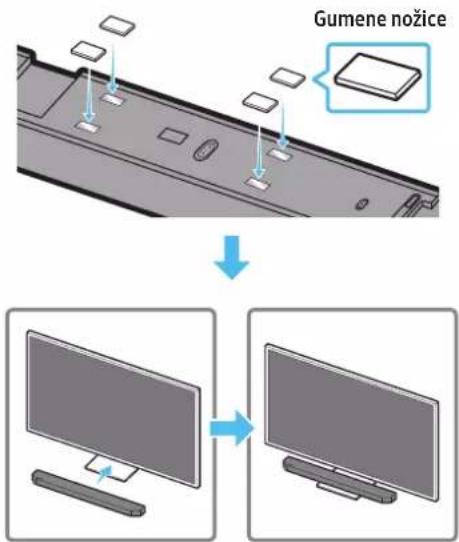

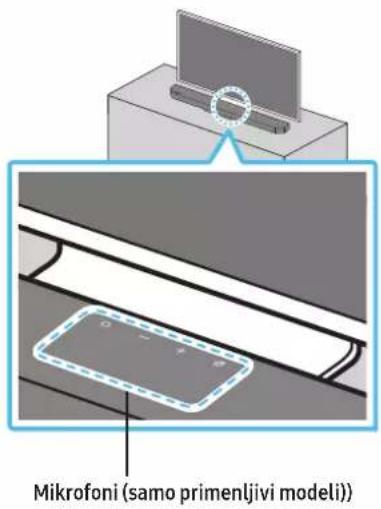

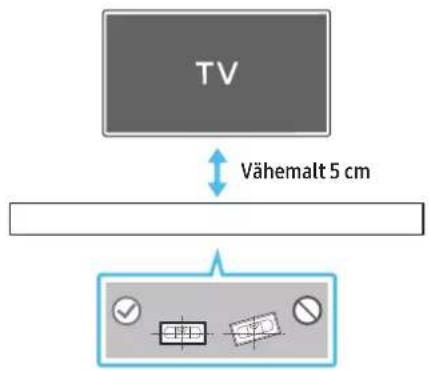

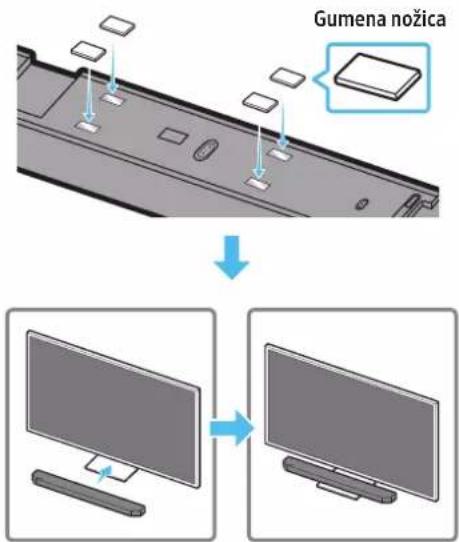

10 Installing the Soundbar in front of TV 30

Component 30

11 Software Update 31

Auto Update 31

USB Update....31

Initialisation 32

12 Troubleshooting 32

01 CHECKING THE COMPONENTS

Three grayscale images of remote devices: a rectangular box, a remote control unit with two detached devices, and a cylindrical device (no text or symbols visible)

Soundbar Main Unit Soundbar Remote Control / Batteries Subwoofer

x 2 x 4 or 2

Surround Speaker (optional) (Left / Right)

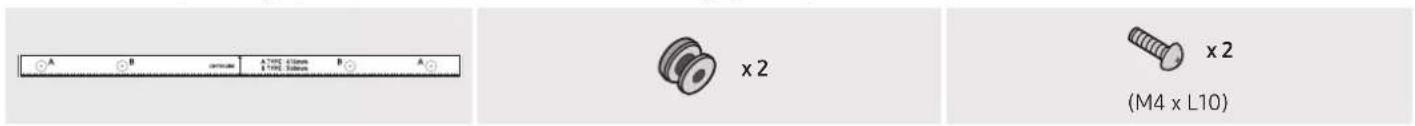

A B ×2 ×2 (M4 x L10)

Wall Mount Guide Holder-Screw Screw

Two 3D mechanical parts with dimension annotations (x2 and x4), no text or symbols present.

Bracket-Wall Mount Rubber-Foot

• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Rear of the Soundbar Main Unit)
  • To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care.
• For more information about the wallmount or rubber-foot, see pages 29\~31.
• Design, specifications, and App screen are subject to change without prior notice.
• The appearance of the accessories may differ slightly from the illustrations above.
  • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
  • Weight and dimensions are approximate.

02 PRODUCT OVERVIEW

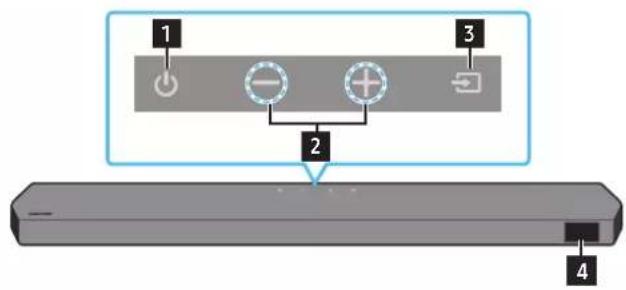

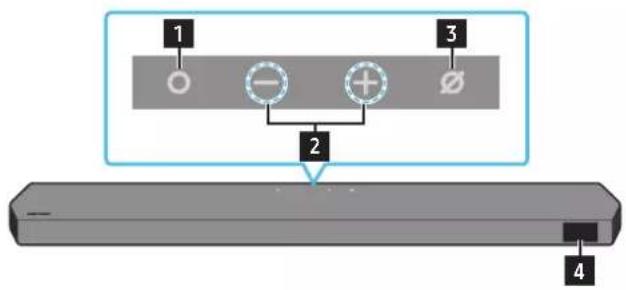

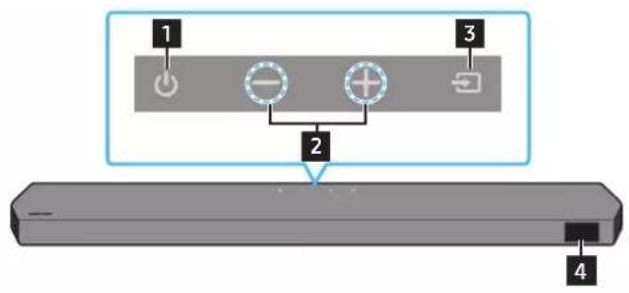

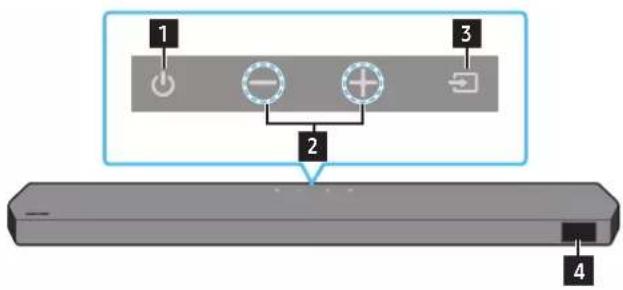

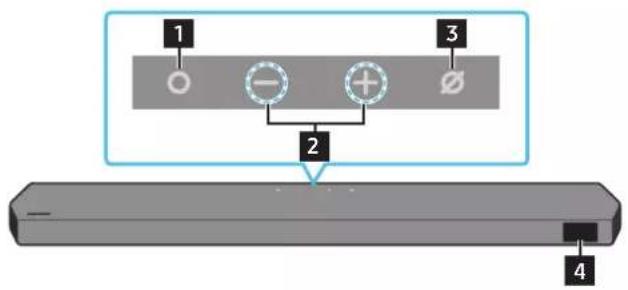

Top Panel of the Soundbar

1 2 3 4

1 2 3 4

HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC HW-Q7**C, HW-Q7**GC

1	○ (Multi Function) Button (HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC models)In standby mode, press the Ⓜ Multi Function) button to turn on the Soundbar.Press the Ⓜ Multi Function) button to change the input source.
1	↓ (Power) Button (HW-Q7**C, HW-Q7**GC model)Turns the power on and off.
2	- + (Volume) ButtonAdjusts the volume.

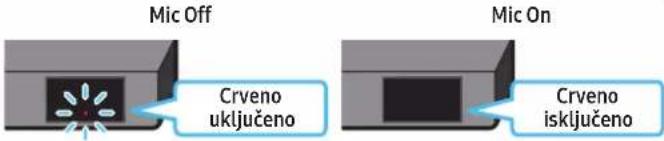

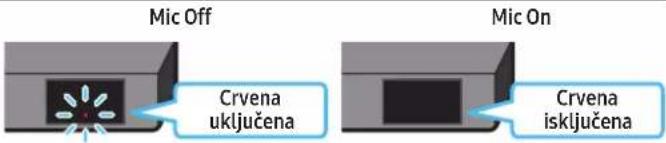

3	∅ (Mic On/Off) Button(HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC models)Press the button to turn the microphone on or off.When the microphone is off, the LED indicator will glow red.
3	→ (Source) Button (HW-Q7**C, HW-Q7**GC model)Press the → (Source) button to change the input source.
4	DisplayDisplays the product's status and current mode.D.IN → HDMI → Wi-Fi → BT

- When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

- When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

• If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and change the TV speaker to External Speaker.

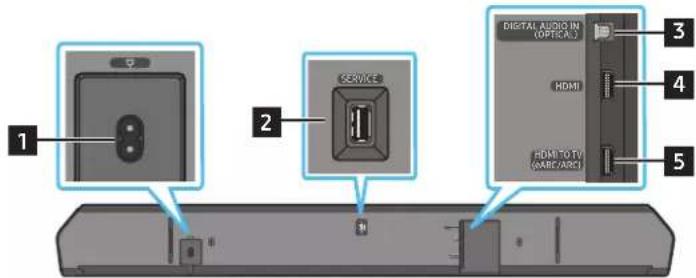

Bottom Panel of the Soundbar

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

Connect the Soundbar's AC power cable. (See page 11)

2 SERVICE

Connect a USB storage device to upgrade the product's software.

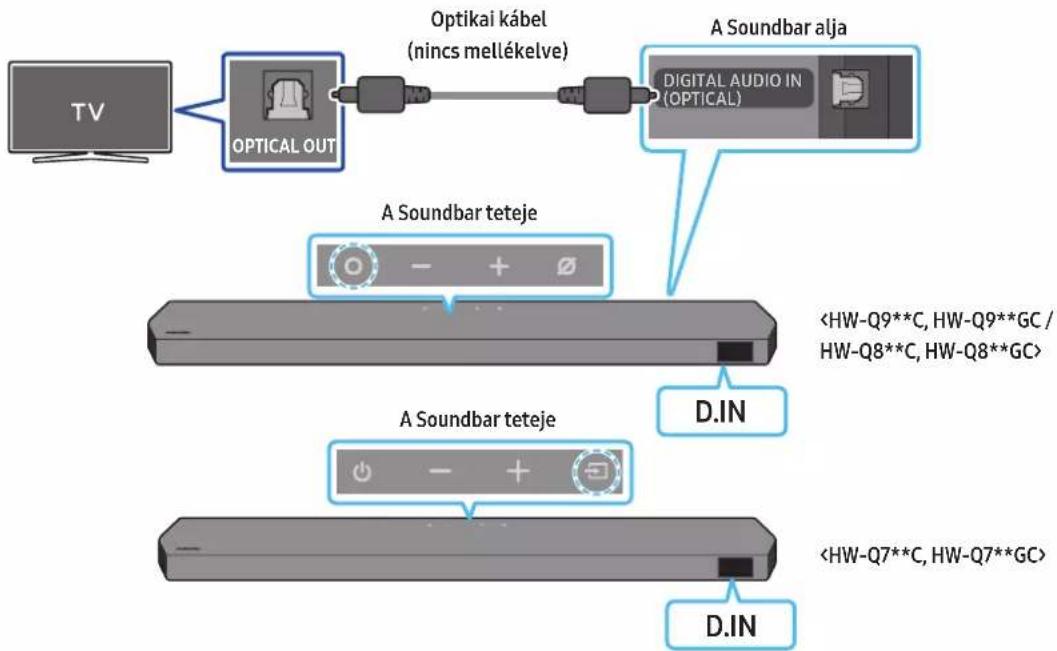

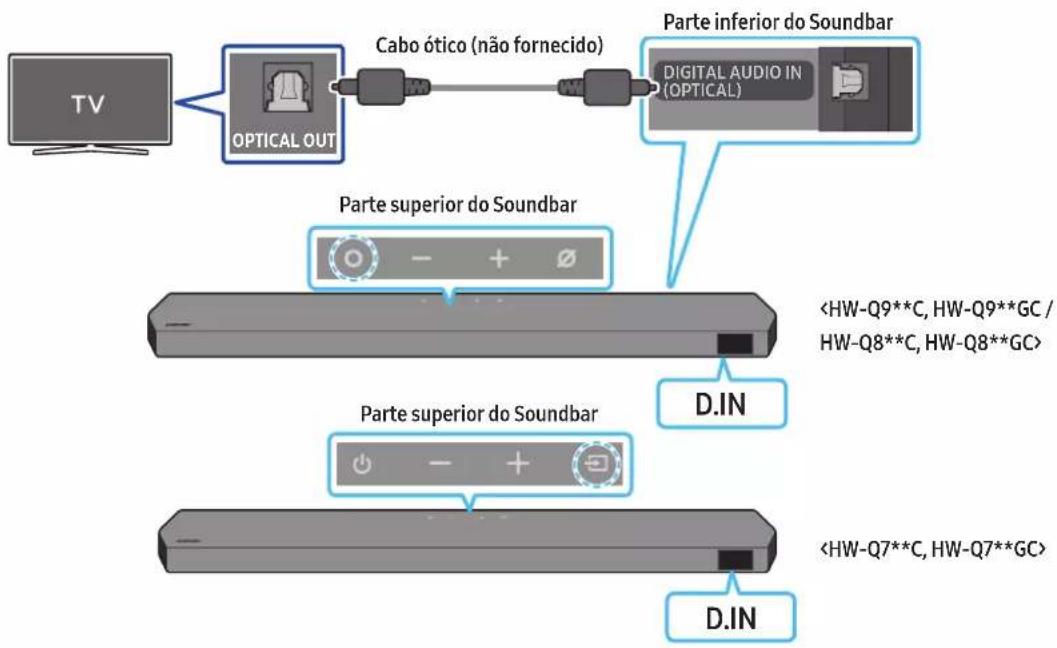

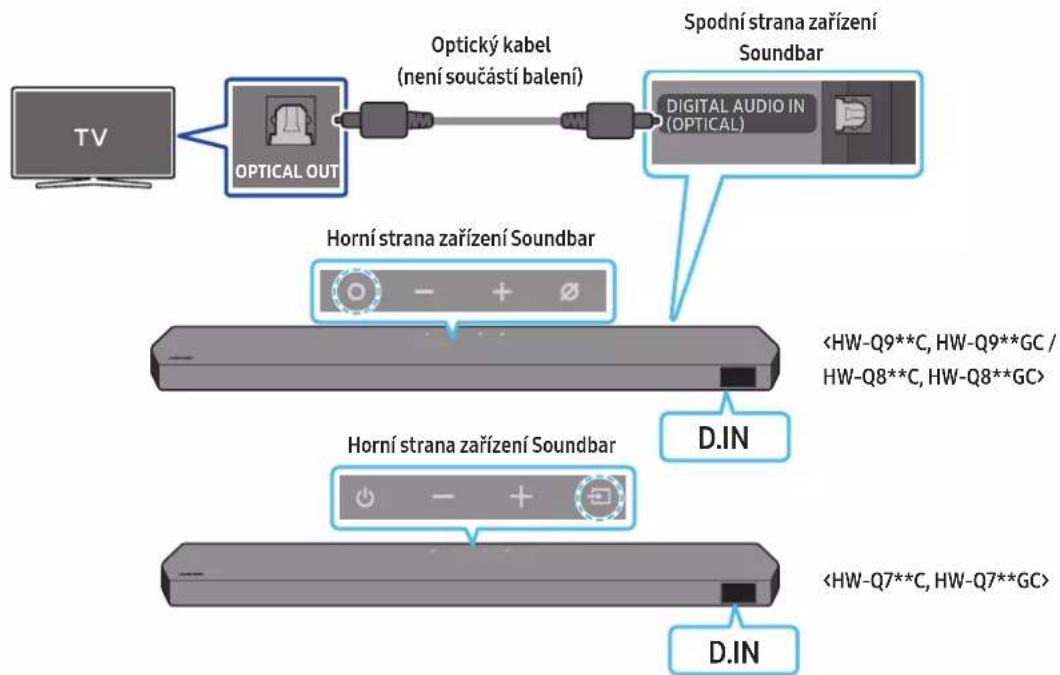

3 DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device. (See page 23)

4HDMI

Inputs digital video and audio signals simultaneously using an HDMI cable. Connect to the HDMI output of an external device. (See page 22)

5 HDMI TO TV (eARC/ARC)

Connect to the HDMI jack on a TV. (See page 15)

• When disconnecting the power cord from a wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

03 USING THE SOUNDBAR REMOTE CONTROL

Inserting Batteries before using the Remote Control (AAA batteries X 2)

Slide the back cover in the direction of the arrow until it is completely removed. Insert 2 AAA batteries (1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

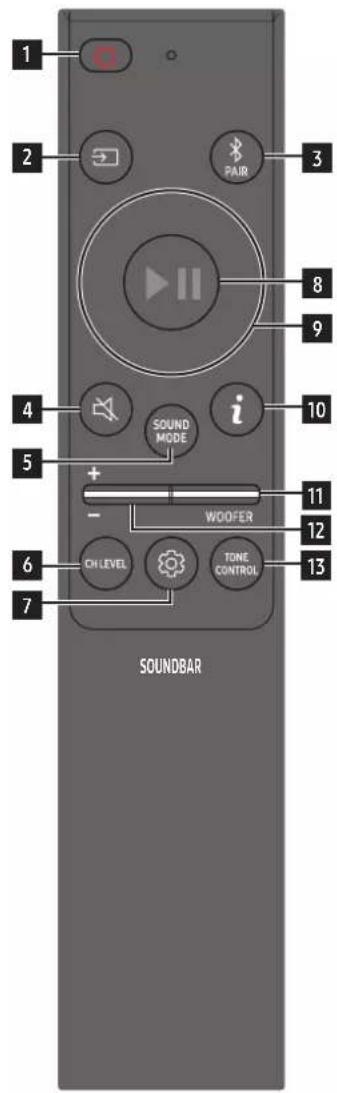

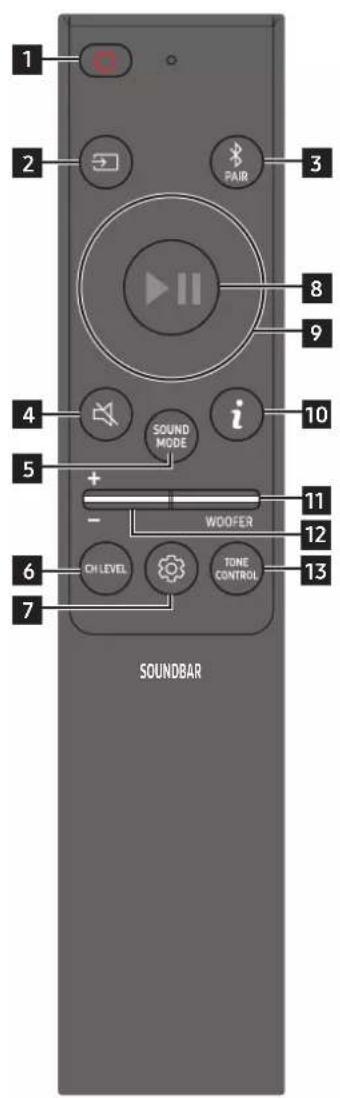

How to Use the Remote Control

1 2 3 FAIR 8 9 4 i 10 5 + - WOOFER 11 12 6 CH LEVEL TONE CONTROL 13 7 SOUNDBAR

1	Power	Turns the Soundbar on and off.·Auto Power Down FunctionThe unit turns off automatically in the following situations:·In D.IN / HDMI / Wi-Fi / BT mode if there is no audio signal for 18 minutes.
2	Source	Press to select a source connected to the Soundbar.·Voice Feedback On/OffYou can turn on or off the Voice Feedback.Press and hold the → (Source) button on the remote control for 5 seconds while the Soundbar is off (Standby mode).Each time you change the Voice Feedback setting, the OLED Display will show “AUI OFF” (Default) or “AUI ON”.
3	Bluetooth PAIR	Switch the Soundbar to Bluetooth pairing mode. Press the button and wait for the “BTPAIRING” screen to connect to a new Bluetooth device.
4	Mute	Press the ↗ (Mute) button to mute the sound.Press it again to unmute the sound.
5	SOUND MODE	By pressing the button, you can select the desired audio mode such as Surround, Game Pro, Standard, Adaptive Sound.·StandardOutputs the original sound.·SurroundProvides a wider sound field than standard.·Game ProProvides stereoscopic sound to immerse you in the action while gaming.·Adaptive SoundAnalyzes the content in real time and automatically provides the optimal sound field based on the characteristics of the content.
6	CH LEVEL	By pressing the button, you can adjust the volume of the each speaker such as Centre level, Side level, Wide level, Front Top level, Rear level, and Rear top level.·To control the volume of the each speaker select Centre level, Side level, Wide level, or Front Top level in Sound Settings, and then adjust the volume between -6~+6 by using the Up/Down buttons.·If Surround Speakers are connected, select Rear level or Rear top level and then use the Up/Down buttons to adjust the volume within a -6 to +6 range.·CH LEVEL specifications may differ with the respective model.

7	Sound Control	By pressing the button, you can set the audio function such as SpaceFit Sound, AVA, Voice enhance mode, Night mode, Sync, Surround speaker mode, Virtual. The desired item can be adjusted using the Up/Down buttons.The SpaceFit Sound and AVA functions are not supported by HW-Q7**C, HW-Q7**GC model.Voice enhance mode enhances spoken dialog in movies and TV to make it easier to hear.Night mode is optimized for night time viewing with the settings adjusted to bring the volume down but keep the dialog clear.Press and hold the (Sound Control) button for about 5 seconds to adjust the sound for each frequency band.150Hz, 300Hz, 600Hz, 1.2kHz, 2.5kHz, 5kHz, and 10kHz are selectable using the Left/Right buttons and each can be adjusted to a setting between -6 to +6 using the Up/Down buttons.(Make sure the Sound mode is set to "Standard".If the video on the TV and audio from the Soundbar are not synchronized, select Sync in Sound Control, and then set the audio delay between 0~300 milliseconds by using the Up/Down buttons.Sync is only supported for some functions.Available Surround speaker mode settings are supported only by HW-Q9**C, HW-Q9**GC model.The Virtual Speaker function can be turned ON/OFF by using the Up/Down buttons.
8	Play / Pause	You can also play or pause music by pressing the button.
9	Up/Down/Left/Right	Press the indicated areas to select Up/Down/Left/Right.Press Up/Down/Left/Right on the button to select or set functions.Music SkipPress the Right button to select the next music file. Press the Left button to select the previous music file.ID SETUse this option when the Subwoofer or Surround Speakers are not connected or need reconnection.While powered off, press and hold the Up button for 5 seconds to perform ID SET. (See page 13.)
10	Info	Press to display information about the active function or the codec available.In BT mode, it displays the connected device (when pairing is complete) or "BT ready" (when pairing is required).
11	WOOFER LEVEL	Push the button up or down to adjust the level of the woofer (bass).
12	VOLUME	Push the button up or down to adjust the volume.MutePress the VOL button to mute the sound. Press it again to unmute the sound.
13	TONE CONTROL	By pressing the button, you can adjust the volume of the treble or bass sound. The defired item can be adjusted using the Up/Down buttons. This function is enabled in Sound mode excluding in Standard mode.To control the volume of the treble or bass sound, select TREBLE or BASS in Sound Settings, and then adjust the volume between -6~+6 by using the Up/Down buttons.Once the bass level is changed, the woofer level will be also adjusted accordingly.

Active Voice Amplifier (AVA)

• Analyzes external noise in real time while soundbar is playing, so that voice audio can always be heard clearly.
• No data is saved during the analysis.
• This function is not supported by HW-Q7**C, HW-Q7**GC model.

Using the Hidden Buttons (Buttons with more than one function)

Hidden Button		Reference page
Remote Control Button Function
WOOFER (Up) TV remote control	On/Off (Standby) page 10
Up ID SET page 13
(Sound Control)	7 Band EQ page 7
→(Source)	Voice Feedback On/Off (Standby) page 6

Output specifications for the different sound effect modes

Effect Input		Output
		With Subwoofer & Surround Speaker
Standard	2.0 ch 2.1 ch
	5.1 ch 5.1 ch / 7.1 ch (DTS)
	7.1 ch 7.1 ch
	Dolby Atmos®, DTS:X 7.1.4 ch
Surround	2.0 ch	9.1.4 ch
	5.1 ch	9.1.4 ch
	7.1 ch	9.1.4 ch
	Dolby Atmos®, DTS:X	9.1.4 ch
Game Pro	2.0 ch	9.1.4 ch
	5.1 ch	9.1.4 ch
	7.1 ch	9.1.4 ch
	Dolby Atmos®, DTS:X	9.1.4 ch
Adaptive Sound	2.0 ch	9.1.4 ch
	5.1 ch	9.1.4 ch
	7.1 ch	9.1.4 ch
	Dolby Atmos®, DTS:X	9.1.4 ch

Effect Input		Output
		With Subwoofer Only	With Subwoofer & Surround Speaker
Standard	2.0 ch 2.1 ch 2.1 ch
	5.1 ch 5.1 ch 5.1 ch / 7.1 ch (DTS)
	7.1 ch 5.1 ch 7.1 ch
	Dolby Atmos®, DTS:X 5.1.2 ch 7.1.4 ch
Surround	2.0 ch 5.1.2 ch 7.1.4 ch
	5.1 ch 5.1.2 ch 7.1.4 ch
	7.1 ch 5.1.2 ch 7.1.4 ch
	Dolby Atmos®, DTS:X 5.1.2 ch 7.1.4 ch
Game Pro	2.0 ch 5.1.2 ch 7.1.4 ch
	5.1 ch 5.1.2 ch 7.1.4 ch
	7.1 ch 5.1.2 ch 7.1.4 ch
	Dolby Atmos®, DTS:X 5.1.2 ch 7.1.4 ch
	2.0 ch 5.1.2 ch 7.1.4 ch
Adaptive Sound	5.1 ch 5.1.2 ch 7.1.4 ch
	7.1 ch 5.1.2 ch 7.1.4 ch
	Dolby Atmos®, DTS:X 5.1.2 ch 7.1.4 ch

Effect Input		Output
		With Subwoofer Only	With Subwoofer & Surround Speaker
Standard	2.0 ch 2.1 ch 2.1 ch
	5.1 ch 3.1 ch 5.1 ch
	Dolby Atmos®, DTS:X 3.1.2	ch 5.1.4 ch
Surround	2.0 ch 3.1.2 ch 5.1.4	ch
	5.1 ch 3.1.2 ch 5.1.4	ch
	Dolby Atmos®, DTS:X 3.1.2	ch 5.1.4 ch
Game Pro	2.0 ch 3.1.2 ch 5.1.4	ch
	5.1 ch 3.1.2 ch 5.1.4	ch
	Dolby Atmos®, DTS:X 3.1.2	ch 5.1.4 ch
Adaptive Sound	2.0 ch 3.1.2 ch 5.1.4	ch
	5.1 ch 3.1.2 ch 5.1.4	ch
	Dolby Atmos®, DTS:X 3.1.2	ch 5.1.4 ch

The Surround Speakers will not produce sounds for 2 channel output while Standard mode is in use. To enable sound for the Surround Speakers, change the effect mode to Surround.

Adjusting the Soundbar volume with a TV remote control

Adjust the Soundbar volume using the TV's remote control.

• This function can be used with IR remote controls only. Bluetooth remote controls (remote controls that require pairing) are not supported.

• Set the TV speaker to External Speaker to use this function.
  • Manufacturers supporting this function:
  Samsung, VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA

• Turn Off the Soundbar.

• Push up and hold the WOOFER button for 5 seconds.

Each time you push the WOOFER button up and hold it for 5 seconds, the mode switches in the following order: "OFF-TV REMOTE" (Default mode), "SAMSUNG-TV REMOTE", "ALL-TV REMOTE".

Remote Control Button Display Status
		(Default mode)	Disable the TV remote control.
			Enable a Samsung TV's IR remote control.
			Enable a third-party TV's IR remote control.

04 CONNECTING THE SOUNDBAR

Connecting the power and units

Use the Power cord to connect the Subwoofer, Surround Speakers, and Soundbar to an electrical outlet in the following order:

• For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Rear of the Soundbar Main Unit)
• Connect the Power cord to the Subwoofer.

Power Cord

Rear of Subwoofer

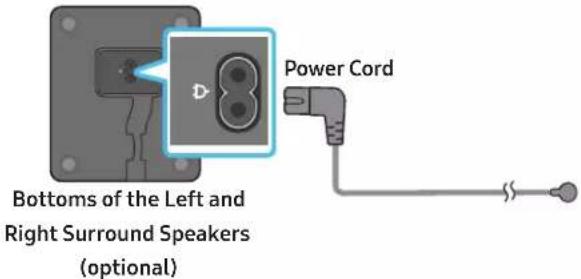

1. Connect the power cord to the Left and Right Surround Speakers. (optional)

Bottoms of the Left and Right Surround Speakers (optional) Power Cord

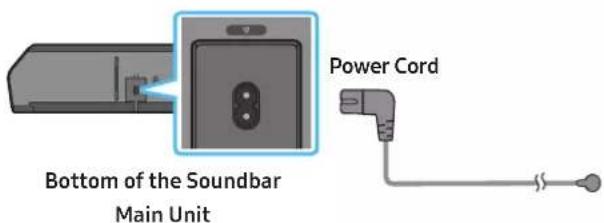

1. Connect the Power cord to the Soundbar.

Bottom of the Soundbar Main Unit Power Cord

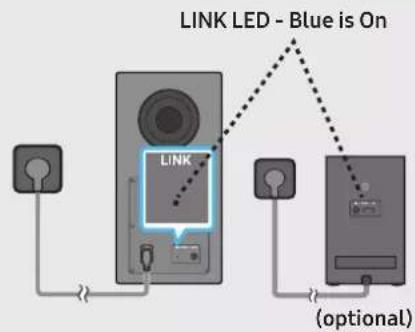

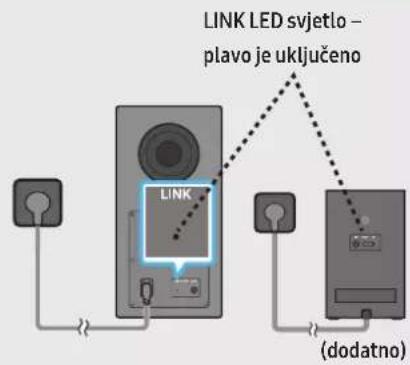

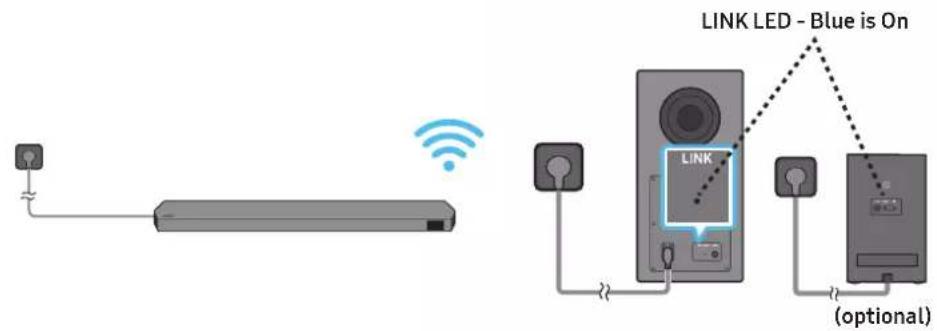

1. Connect power to the Soundbar, Subwoofer and Surround Speakers. The Subwoofer and Surround Speakers are automatically connected when the Soundbar is turned on.

NOTE

• Connect the Subwoofer and Surround Speakers power before connecting to the Soundbar. The Subwoofer and Surround Speakers will be automatically connected when turning on the Soundbar.
• If you unplug and reconnect the power cord when the product is turned on, the Soundbar turns on automatically.
• The surround speaker system is supported by applicable models only.

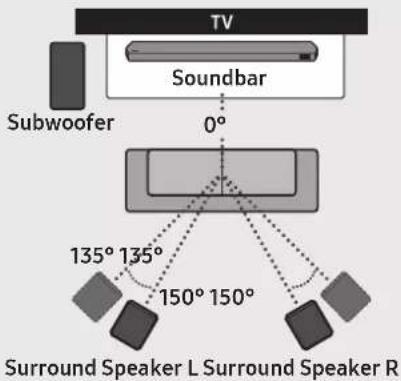

Recommended Speaker Layout

TV Soundbar 0° Subwoofer 135° 135° 150° 150° Surround Speaker L Surround Speaker R

CAUTION

• Wireless receiving antennas are built into the subwoofer and surround speakers. Keep the units away from water and moisture.
• For optimal listening performance, make sure that the areas around the subwoofer and surround speakers locations are clear of any obstructions.

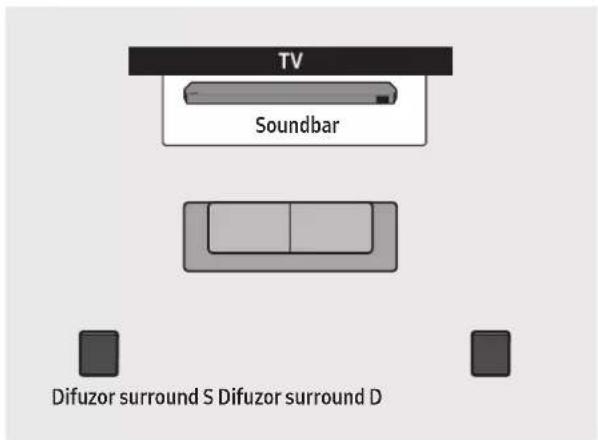

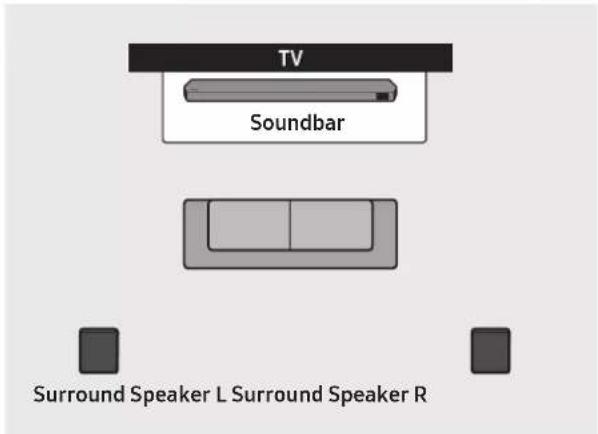

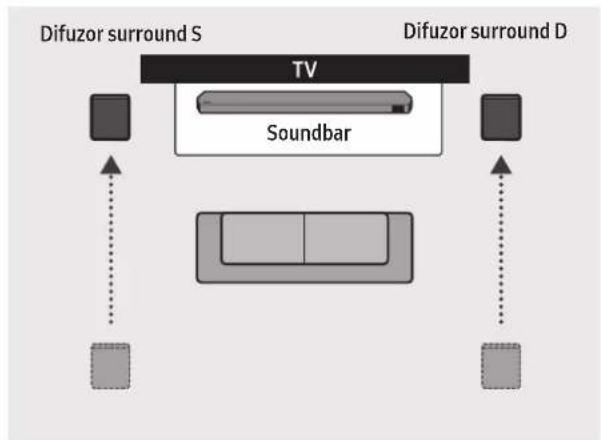

Surround speaker mode (HW-Q9\*\*C, HW-Q9\*\*GC only)

An optimal surround sound may be delivered depending on the position of the surround speaker. See the illustration below for speaker positioning.

To activate this mode, select the Surround Speaker mode using the remote control of the Soundbar.

(Sound Control) → Surround speaker → ▲(Up) / ▼(Down) → Front / Rear

TV Soundbar Surround Speaker L Surround Speaker R

Rear positioning Front positioning

NOTE

• This mode is available only with Soundbar models including a specific surround speaker.
  • In Front speaker mode, position the front speakers toward you.
• The surround speaker mode is enabled by default.

Before performing the manual connection procedure below:

• Check whether the power cables for the Soundbar and subwoofer or Surround Speakers are connected properly.
  • Make sure that the Soundbar is turned off.

• Turn off the Soundbar main.

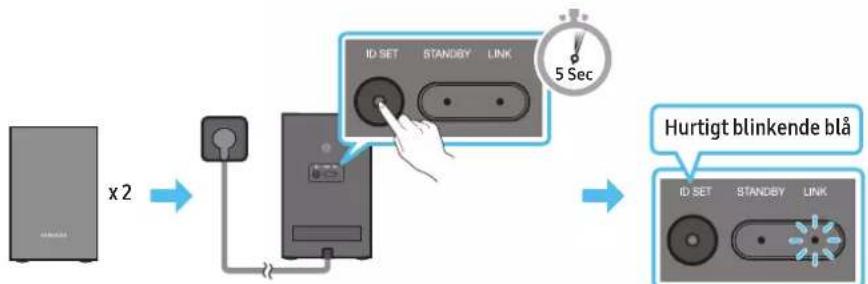

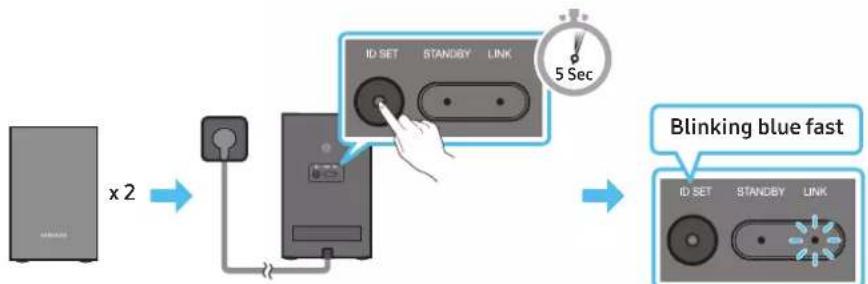

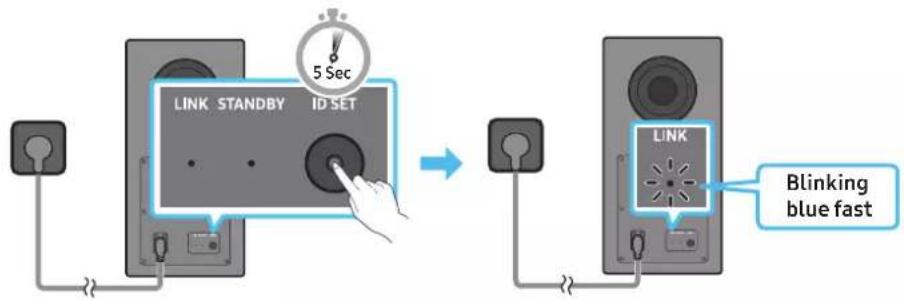

• Press and hold ID SET on the rear of the subwoofer and surround speakers for at least 5 seconds.

- The red indicator at the rear of each speaker turns off and the blue indicator blinks.

LINK STANDBY ID SET 5 Sec LINK Blinking blue fast

Rear of Subwoofer Rear of Subwoofer

Rear of the Left and Right Surround Speakers (optional)

1. Press the Up button on the remote control for 5 seconds.

2. The ID SET message appears on the display of the Soundbar for a moment, and then it disappears.

3. The Soundbar will automatically power on when ID SET is complete.

5 Sec ID SET

1. Check if the LINK LED is solid blue (connection complete).

LINK LED - Blue is On LINK (optional)

The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Subwoofer, surround speakers.

LED Indicator Lights on the Rear of Subwoofer and Surround Speakers

LED Status Description Resolution
SubwooferSurround Speakers(applicable models only)	On	Successfully connected(normal operation)	-
	Blinking Recovering the connection		Check if the power cable attached to the main Soundbar unit is connected properly or wait about 5 minutes.If blinking persists, try manually connecting the subwoofer and Surround Speakers. See page 13.
SubwooferSurround Speakers(applicable models only)	On	Standby (with theSoundbar main unit turned off)	Check if the power cable attached to the main Soundbar unit is connected properly.
		Connection failed	Connect again. See the instructions for manual connection on page 13.
SubwooferSurround Speakers(applicable models only)	Blinking Malfunction		See the contact information for the Samsung Service Centre in this manual.

NOTE

• If the main unit is powered off, the subwoofer will go into stand-by mode and the STANDBY LED on the rear of the sub-woofer will turn red after blinking in blue several times.
• If you use a device that uses the same frequency as the Soundbar near the Soundbar, interference may cause some sound interruption.
• The maximum transmission distance of the main unit's wireless signal is about 10 m, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the subwoofer, the system may not operate at all because the wireless signal cannot penetrate metal.
• The surround speaker system is supported by applicable models only.

CAUTION

• Wireless receiving antennas are built into the subwoofer and Surround Speakers. Keep the unit away from water and moisture.
• For optimal listening performance, make sure that the area around the subwoofer and the Surround Speakers are clear of any obstructions.

05 CONNECTING TO A TV

Connecting the TV that supports HDMI ARC (Audio Return Channel)

CAUTION

• When both the HDMI cable and optical cable are connected, the HDMI signal is received first.
• To connect the HDMI cable between the TV and Soundbar, be sure to connect the terminals marked ARC. Otherwise, the TV sound may not be output.
• The recommended cable is a Premium High Speed HDMI Cable with Ethernet certified by HDMI.org.

Connect to the HDMI IN (ARC/eARC) port of your TV. Connect to the HDMI TO TV (eARC/ARC) port of the Soundbar main unit. HDMI IN (ARC) HDMI Cable HDMI TO TV (eARC/ARC) Top of the Soundbar Bottom of the Soundbar Top of the Soundbar TV ARC TV ARC

1. With the Soundbar and TV turned off, connect the HDMI cable as shown in the figure.
2. Turn on the Soundbar and TV.

3. "TV ARC" appears in the display window of the Soundbar main unit and the Soundbar plays TV sound.

4. When the TV sound is not output, press the ○ (Multi Function) / → (Source) button at the top of the Soundbar or the → (Source) button on the remote control to select the "D.IN" mode. The screen displays "D.IN" and "TV ARC" in sequence, and TV sound is played.

5. When connecting a TV that supports the eARC function, "eARC" appears on the display and the sound is heard.
6. To connect with eARC, the eARC function in the TV menu should be set to On. Refer to the TV user manual for details on setting. (e.g. Samsung TV: Home ( home ) → Menu → Settings ( ➕ → All Settings ( ➕ → Sound → Expert Settings → HDMI-eARC Mode (Auto))
7. If "TV ARC" does not appear in the display window of the Soundbar main unit, confirm that the HDMI cable is connected to the correct port.
8. Use the volume buttons on the TV's remote control to change the volume on the Soundbar.

NOTE

• When you connect the TV that supports the HDMI ARC (Audio Return Channel) to the Soundbar with an HDMI cable, you can transmit the digital video and audio data without connecting a separate optical cable.
  • We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose diameter is less than 14 mm.
• This function is not available if the HDMI cable does not support ARC.
• When the audio in a broadcast is encoded in Dolby Digital and the "Digital Output Audio Format" on your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on the TV is changed, you will experience better sound quality. (The TV menu may use different words for Dolby Digital and PCM depending on the TV manufacturer.)
  • The ARC/eARC protocols support Dolby Atmos.
• Make sure that the content supports Dolby Atmos®.

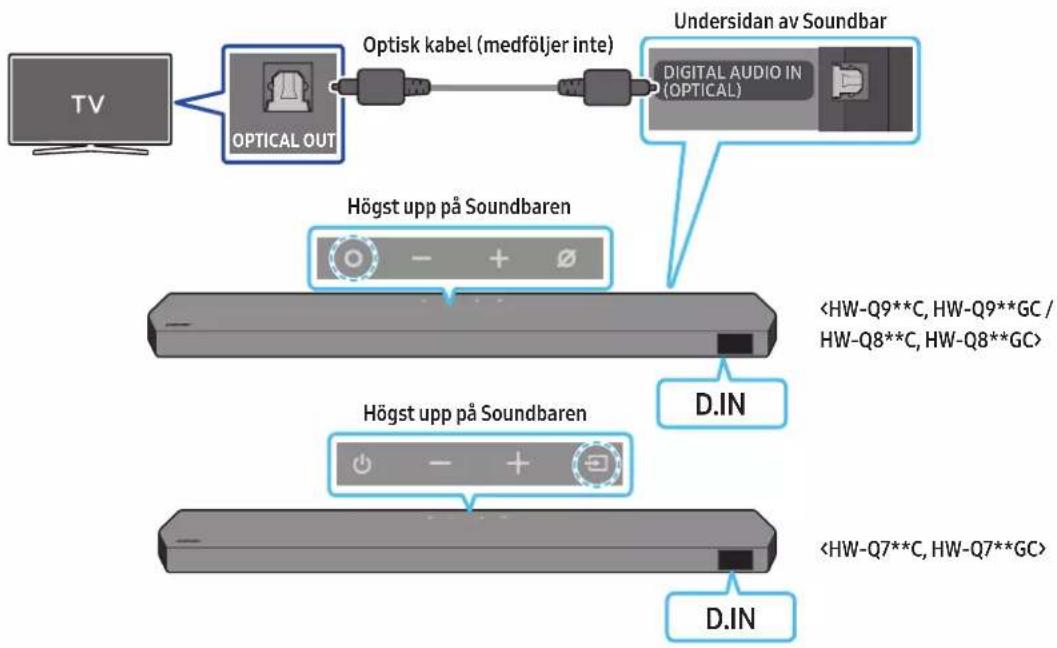

Connecting using an Optical Cable

Pre-connection Checklist

• When both the HDMI cable and optical cable are connected, the HDMI signal is received first.
• When you use an optical cable and the terminals have covers, be sure to remove the covers.

Diagram showing three stages of a mechanical device with arrows indicating motion (no text or symbols)

1. With the TV and Soundbar turned off, connect the DIGITAL AUDIO IN (OPTICAL) port on the Soundbar and the OPTICAL output port on the TV with the optical cable (not supplied), as shown in the figure.
2. Turn on the Soundbar and TV.
3. Press the ⬤ (Multi Function) / → (Source) button at the top of the Soundbar or the → (Source) button on the remote control to select the "D.IN" mode.
4. The TV sound is output from the Soundbar.

Connecting via Bluetooth

When a Samsung TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

• Only one Samsung TV can be connected at a time.
• Samsung TV that supports Bluetooth can be connected. Check the specifications of your TV.

The initial connection

1. Press the ✧PAIR button on the Soundbar remote control to enter the "BTPAIRING" mode.

(OR) a. Press the ⬤ (Multi Function) / → (Source) button on the top panel and then select "BT". "BT" changes to "BT PAIRING" in a few seconds automatically or changes to "BT READY" if there is a connect record.

Top of the Soundbar BT READY

Top of the Soundbar BT READY

b. When "BT READY" appears, press and hold the ☑ (Mic On/Off) / ➞ (Source) button on the top panel of the Soundbar for more than 5 seconds to display "BT PAIRING".

Top of the Soundbar BT PAIRING

Top of the Soundbar BT PAIRING

1. Select Bluetooth mode on the Samsung TV.
   (e.g. Home (なし) → Menu → Settings (なし) → All Settings (なし) → Sound → Sound Output → Bluetooth Speaker List → Soundbar Q***C (Bluetooth))
2. Select "Soundbar Q***C" from the list on TV's screen.
   An available Soundbar is indicated with "Need Pairing" or "Paired" on the TV's Bluetooth device list. To connect the Samsung TV to the Soundbar, select the message, and then establish a connection.
3. When the Samsung TV is connected, [TV Name] "BT" appears on the Soundbar's front display.
4. You can now hear Samsung TV sound from the Soundbar.
5. After you have connected the Soundbar to your Samsung TV the first time, use the "BT READY" mode to reconnect.

If the device fails to connect

• If you have an existing Soundbar (e.g., Soundbar Q***C) on the list of speakers on the Samsung TV, delete it.
• Then repeat steps 1 through 3.

Disconnecting the Soundbar from the Samsung TV

Press the ⬆ (Multi Function) / → (Source) button at the top of the Soundbar or the → (Source) button on the remote control to select the mode other than "BT".

- Disconnecting takes time because the Samsung TV must receive a response from the Soundbar.

(The time required may differ, depending on the Samsung TV model.)

• BT READY : In this mode, you can reconnect any Samsung TV or mobile device that was connected before.
• BT PAIRING : In this mode, you can connect a new device to the Soundbar.
  (Press the ✝PAIR button on the Soundbar remote control or press and hold the ⏻(Mic On/Off) / ➞(Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in "BT" mode.)

Notes on Bluetooth connection

• Locate a new device within 1 m to connect via Bluetooth communication.
• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• The Soundbar automatically turns off after 18 minutes in the Ready state.
• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:
• If there is a strong electrical field around the Soundbar.
• If several Bluetooth devices are simultaneously paired with the Soundbar.
• If the Bluetooth device is turned off, not in place, or malfunctions.
• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

Connecting via Wi-Fi

Pre-connection Checklist

• Wi-Fi connection is available only on Samsung TV.
- Check whether the wireless router (Wi-Fi) is turned on and the TV is connected to the router.
- The TV and Soundbar must be connected to the same wireless network (Wi-Fi).
- If your wireless router (Wi-Fi) uses a DFS channel, you will not be able to establish a Wi-Fi connection between the TV and Soundbar. Contact your Internet service provider for details.
- Because the menus may differ depending on the year of manufacture, refer to your TV manual.
- To connect the TV to the Soundbar via Wi-Fi, connect the Soundbar to the wireless router first. See page 26, for details on how to establish a Wi-Fi connection.

1. For more information about Wi-Fi connection to the Soundbar, see page 26, "Method 2. Connecting via Wi-Fi (Wireless Network)".

2. Change the input source of the TV by using the Audio menu to Soundbar.

• Samsung TVs released in 2017 or later

Home (☐) → Menu → Settings (☐) → All Settings (☐) → Sound → Sound Output → Soundbar Q***C (Wi-Fi)

NOTE

The Wi-Fi Dolby Atmos connection is available in some Samsung TVs and some Soundbar models.

Precaution : The Soundbar will restart automatically if you turn on/turn off Wi-Fi.

Wi-FiPort deactivation method	Press the CH LEVEL button on the remote control of the Soundbar for 30 seconds to turn Wi-Fi On / Off.
BluetoothPort deactivation method	Press the TONE CONTROL button on the remote control of the Soundbar for 30 seconds to turn Bluetooth On / Off.

Using the Q-Symphony Function

• When the Soundbar connects to a Samsung TV that supports the Q-Symphony function you can play the sound simultaneously through the Soundbar and the TV. If you use the Q-Symphony function, the surround sound played on the TV allows you to enjoy a richer, more three-dimensional surround sound effect.
• When the Soundbar is connected "TV+Soundbar" menu appears on the TV.

Settings (💡) → All Settings (💡) → Sound → Sound Output

TV menu TV HDMI Cable OR Optical Cable (not supplied) D.IN

• TV menu example: TV + [AV] Soundbar series name (HDMI) / TV + [AV] Soundbar series name (Optical)

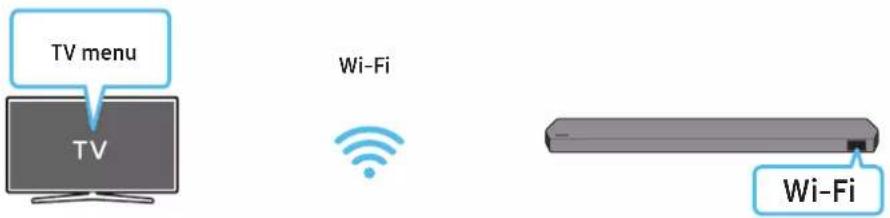

TV menu TV Wi-Fi Wi-Fi

• TV menu example: TV + [AV] Soundbar series name (Wi-Fi)

NOTE

• It can operate according to the Codec supported by TV.
• This function is supported only when the HDMI Cable or Optical Cable (not supplied) or Wi-Fi is connected.
• The message displayed may differ with the TV model.
• Ensure that your TV and Soundbar are connected to the same wireless router/frequency.
• This function is available in some Samsung TVs and some Soundbar models.

Using the SpaceFit Sound

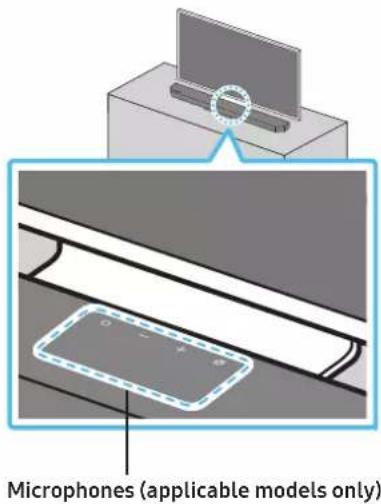

This function analyzes the user's listening space with the Soundbar's microphone and provide optimal sound for the space. Sound optimization proceeds automatically.

Method 1. Connecting via Soundbar

To enable this function, turn on the SpaceFit Sound mode with the remote control of the Soundbar.

1. Press the ⚙ (Sound Control) button to turn on the SpaceFit Sound mode.

"SPACEFIT SOUND OFF" appears on the display.

Diagram of a calculator interface with buttons labeled 'OK', 'Cancel', and 'Save', and a hand pointing to the right button.

1. Press the Up button on the remote control to turn on the SpaceFit Sound.

"ON" appears on the display.

1. Press the Down button on the remote control to turn off the SpaceFit Sound.

"OFF" appears on the display.

Hand interacting with a device screen displaying 'Video' and 'Play', with a blue cursor pointing at the button.

• This is available in all Sound modes.

Method 2. Connecting via TV

To enable this function, turn on the Adaptive Sound+ mode on your Samsung TV menu.

(Home (n) → Menu → Settings (☀) → All Settings (☀) → General → Intelligent Mode Settings → Adaptive Sound+)

- The sound mode on your Soundbar will automatically change to Adaptive Sound+ if you enable the Adaptive Sound+ mode on your TV.

NOTE

- This function works when the Soundbar connects to some of the Samsung TVs.

- HW-Q7**C, HW-Q7**GC models support only the method of "Connecting via TV".

06 CONNECTING AN EXTERNAL DEVICE

Method 1. Connecting using an HDMI Cable (Capable of Dolby Atmos / DTS:X decoding and playback)

Pre-connection Checklist

• If the Audio Output options include Secondary Audio, make sure Secondary Audio is set to Off.
• Make sure that the content supports Dolby Atmos® / DTS:X.

Top of the Soundbar HDMI Top of the Soundbar HDMI External Device HDMI OUT HDMI Cable HDMI TO TV (eARC/ARC) TV HDMI IN (ARC) HDMI Cable Bottom of the Soundbar

1. Use an HDMI cable to connect the HDMI OUT port on the external device and the HDMI port on the bottom of the Soundbar.
2. Use an HDMI cable to connect the HDMI IN port of the TV and the HDMI TO TV (eARC/ARC) port on the bottom of the Soundbar.
3. Turn on the Soundbar, TV, and the external device.
4. Press the O (Multi Function) / → (Source) button on the top of the Soundbar or the → (Source) button on the remote control to select "HDMI" mode.
5. The Soundbar display indicates that "HDMI" mode is currently selected and the Soundbar will start playing sounds.

NOTE

• When you use Dolby Atmos® / DTS:X: If the input source is Dolby Atmos® / DTS:X, refer to "Output specifications for the different sound effect modes" on page 8.
• When Dolby Atmos® is activated, "DOLBY ATMOS" appears in the front display.
• When DTS:X is activated, "DTS:X" appear in the front display.
• Configuring Dolby Atmos® / DTS:X on your BD player or other device
  Open the audio output options on the settings menu of your BD player or other device and make sure that "No Encoding" is selected for Bitstream. For example, on a Samsung BD Player, go to Home Menu → Sound → Digital Output and then select Bitstream (unprocessed).

Supported UHD Signals Specification (3840 x 2160p)

Frame rate (fps) Colour depth RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
< 60	8 bit O O O O
	10 bit	-	-	O O
	12 bit	-	-	O O
120	8 bit	-	-	-	-
	10 bit	-	-	-	-

• Supported specification may vary depending on the connected external device or usage conditions.

Method 2. Connecting using an Optical Cable

1. Use an optical cable (not supplied) to connect the DIGITAL AUDIO IN (OPTICAL) on the Soundbar main and the OPTICAL OUT port on the external device.
2. Turn on the Soundbar and external device.
3. To select "D.IN" mode, press the Ⓐ (Multi Function) / → (Source) button on the top of the Soundbar or the → (Source) button on the remote control.
4. Your Soundbar will play sounds from the external device.

07 CONNECTING A MOBILE DEVICE

Method 1. Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

- When you connect a paired Bluetooth device with the Soundbar off, the Soundbar automatically turns on.

The initial connection

- When connecting to a new Bluetooth device, make sure the device is within 1 m distance.

1. Press the ✝PAIR button on the Soundbar remote control to enter the "BT PAIRING" mode.

Mobile device

(OR) a. Press the ⬤ (Multi Function) / → (Source) button on the top panel and then select "BT".

"BT" changes to "BT PAIRING" in a few seconds automatically or changes to "BT READY" if there is a connect record.

Top of the Soundbar BT READY

Top of the Soundbar BT READY

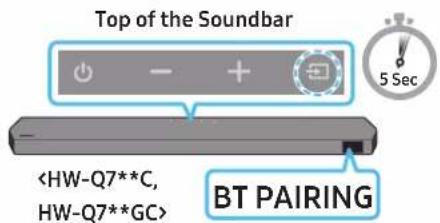

b. When "BT READY" appears, press and hold the ☑ (Mic On/Off) / ➞ (Source) button on the top panel of the Soundbar for more than 5 seconds to display "BT PAIRING".

Top of the Soundbar BT PAIRING

Top of the Soundbar BT PAIRING

1. On your device, select "Soundbar Q***C" from the list that appears.

- When the Soundbar is connected to the Mobile device, [Mobile Device Name] "BT" appears in the front display.

1. Play music files from the device connected via Bluetooth through the Soundbar.

• After you have connected the Soundbar to your mobile device the first time, use the "BT READY" mode to reconnect.

If the device fails to connect

• If you have an existing Soundbar (e.g., "Soundbar Q***C") in the list of speakers on the Mobile device, delete it.
• Repeat steps 1 and 2.

What is the difference between BT READY and BT PAIRING?

• BT READY: In this mode, you can reconnect any Samsung TV or mobile device that was connected before.
• BT PAIRING : In this mode, you can connect a new device to the Soundbar.

(Press the ✝PAIR button on the Soundbar remote control or press and hold the ⏻(Mic On/Off) / →(Source) button on the top of the Soundbar for more than 5 seconds while the Soundbar is in "BT" mode.)

Notes on Bluetooth connection

• Locate a new device within 1 m to connect via Bluetooth communication.
• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• The Soundbar automatically turns off after 18 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.
• If the Bluetooth device is turned off, not in place, or malfunctions.

- Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

• The Soundbar supports SBC data (44.1kHz, 48kHz).

- Connect only to a Bluetooth device that supports the A2DP (AV) function.

- You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.

- When connecting the Soundbar to a Bluetooth device, place them as close to each other as possible.

- The farther the Soundbar and Bluetooth device are from each other, the lower the sound quality will become.

The Bluetooth connection may break when the devices are out of the effective range.

- The Bluetooth connection may not function as intended in areas with poor reception.

- A Bluetooth device may experience noise or malfunction under in the following conditions:

• When the body is in contact with the signal transceiver on the Bluetooth device or Soundbar
• In corners or when there is an obstacle in proximity, such as a wall or partition, where electrical changes may occur.
• When exposed to radio interferences by other products operating on the same frequency ranges, such as medical equipment, microwave ovens, and wireless LAN devices.
• Obstacles such as doors and walls may still impact the sound quality even when the devices are within the effective range.

- Note that your Soundbar cannot be paired with other Bluetooth devices while using the Bluetooth option.

- This wireless device may cause electrical interference during operation.

Disconnecting the Bluetooth device from a Soundbar

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected.

- When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

Disconnecting the Soundbar from the Bluetooth device

Press the ⬆ (Multi Function) / ➞ (Source) button on the top of the Soundbar or the ➞ (Source) button on the remote control to switch the mode from "BT".

- Disconnecting takes time because the Bluetooth device must receive a response from the Soundbar. (Disconnection time may differ, depending on the Bluetooth device)

- When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

Method 2. Connecting via Wi-Fi (Wireless Network)

To connect a Soundbar to a mobile device via a wireless network (Wi-Fi), the SmartThings app is required.

The initial connection

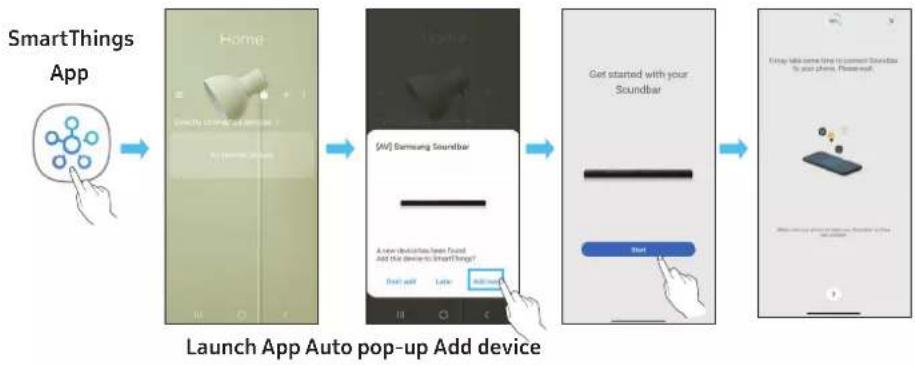

1. Install and launch the SmartThings app from your mobile device (smartphone or tablet).
2. On the app, follow the screen instructions to add the Soundbar.

- The automatic pop-up (the second screenshot below) may not show on some devices.

If the pop-up window does not appear, press “+” on the Home screen. The Soundbar is added to the app.

• The illustration below may differ according to the app version.


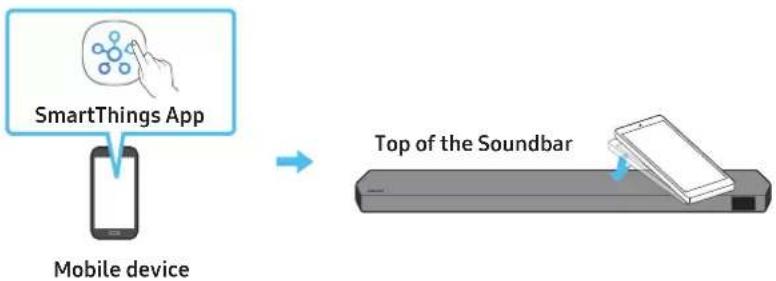

Using the Tap Sound

Tap the Soundbar with your mobile device to play the sound of content on the mobile device through the Soundbar.

• This function may not be supported, depending on the mobile device.
• This function is only compatible with Samsung mobile devices with Android 8.1 or later.

1. Turn on the Tap Sound function on your mobile device.
2. For details on how to turn on the function, refer to "Setting the Tap Sound function" below.

3. Tap the Soundbar with the mobile device. Select "Start now" in the displayed message window. A connection is established between the mobile device and Soundbar via Bluetooth.

4. Play the sound of content on the mobile device through the Soundbar.

5. This function connects a mobile device to the Soundbar via Bluetooth by detecting vibration that occurs when the device touches the Soundbar.

6. Make sure the mobile device does not tap a sharp corner of the Soundbar. The Soundbar or mobile device may become scratched or damaged.
7. It is recommended that the mobile device be covered with a case. Lightly tap the wide area in the upper portion of the Soundbar, without using excessive force.
8. To use this function, update the SmartThings app to the latest version.
   The function may not be supported, depending on the app version.

Setting the Tap Sound function

Use the SmartThings app to turn on the Tap View, Tap Sound function.

1. On the mobile device, run the SmartThings app.
2. Select (≡→_) in the SmartThings app screen displayed on the mobile device.
3. Set "Tap View, Tap Sound" to On to allow the function to work when a mobile device moves close to the Soundbar. The function is turned on.

NOTE

• When the mobile device is in power-saving mode, the Tap Sound function does not work.
• The Tap Sound function may not work if there are devices near the Soundbar that cause radio interference such as electric devices. Make sure devices that may cause radio interference are placed at a sufficient distance away from the Soundbar.

08 CONNECTING VIA APPLE AIRPLAY 2

• This feature may not be available in some countries.
- This Samsung Soundbar supports AirPlay 2 and requires iOS 13.4 or later.

With AirPlay 2, you can stream music, podcasts, and other audio from your Apple devices to the Samsung Soundbar.

• To enable AirPlay2 in your Soundbar, you must first register the device with the Samsung Smart Things app by agreeing with the app's terms and conditions.
• Make sure the Soundbar is powered on and connected to the same Wi-Fi network as your Apple device.
• Select from an AirPlay-supported app or Control Centre on your iPhone, iPad, or Mac.
• Select the Soundbar from the list of available devices to play the current audio to.

09 INSTALLING THE WALL MOUNT

Installation Precautions

• Install on a vertical wall only.
- Do not install in a place with high temperature or humidity.
- Verify whether the wall is strong enough to support the product's weight. If not, reinforce the wall or choose another installation point.
- Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.
• Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on.
- Diameter: M5
– Length: 35 mm or longer recommended.
- Connect cables from the unit to external devices before you install the Soundbar on the wall.
- Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

Wallmount Components

Wall Mount Guide

x2

x2

(M4 × L10)

Holder-Screw Screw

x2

Bracket-Wall Mount

1. Place the Wall Mount Guide against the wall surface.

• The Wall Mount Guide must be level.

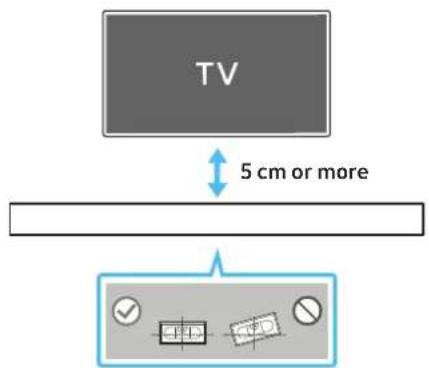

- If your TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

TV 5 cm or more

1. Align the Wall Mount Guide's Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

- If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

Centre Line

1. Push a pen tip or sharpened pencil tip through the centre of the A-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide.

A B A (100%) B (100%) A A A

1. Using an appropriately sized drill bit, drill a hole in the wall at each marking.

- If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors or mollies into the holes before you insert the support screws. If you use anchors or mollies, make sure the holes you drill are large enough for the anchors or mollies you use.

1. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

Diagram showing a screw being inserted into a housing with motion arrows indicating rotation (no text or symbols)

1. Install the 2 Bracket-Wall Mounts in the correct orientation on the bottom of the Soundbar using 2 Screws.

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

- When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

Rear of Soundba

Right end of Soundbar

1. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

1. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

- Insert the Holder-Screws into the wide (bottom) part of the Bracket-Wall Mounts, and then slide the Bracket-Wall Mounts down so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Installing the Surround Speakers on a Wall (applicable models only)

You can purchase wall mounts separately to install the surround speakers on a wall.

Wall mounts aren't sold by Samsung Electronics.

Notes for Wall Mounting the Surround Speakers

• Surround Speaker wall mounts must be able to support more than 8.0 kg.
  • Hole size : 1/4 - 20 UNC threaded insert

- Standard Screw : 6.35 mm ø,

1.27mm Pitch

• Length : 18 mm long
• Quantity: Left 1 EA / Right 1 EA

L

R

• Check the strength of the wall before you install the Wall Mount Brackets. If the strength is insufficient, make sure to reinforce the wall before installing the Wall Mount Brackets and the speakers on the wall.
• Samsung Electronics is not liable for any damage to the product due to the product being installed inappropriately.
  • Take care not to install the speakers sideways or upside down.

10 INSTALLING THE SOUNDBAR IN FRONT OF TV

Component

Rubber-Foot

To install, attach the Rubber-Feet to the bottom of the Soundbar before placing it in position above the TV stand. Make sure you attach the Rubber-Feet so they do not lie outside the edges of the TV stand. Refer to the figure below.

Rubber-Foot

Place the Soundbar on a TV stand.

Microphones (applicable models only)

As illustrated in the image, align the centre of the Soundbar with the centre of the TV, carefully place the Soundbar onto the TV stand. At this time, place the microphones (applicable models only) at the front of the stand not to interfere with voice recognition.

TV

Right end of Soundbar

NOTE

• Make sure the Soundbar is placed on a flat and solid surface.
- Insufficient gap from the TV may cause voice recognition and acoustic problems.
- The illustration above differs with the respective model.
- This function is not supported by HW-Q7**C, HW-Q7**GC model.
- For the best performance of the microphones, keep the Soundbar at least 2 cm away from the TV's panel.

11 SOFTWARE UPDATE

Auto Update

When the Soundbar is connected to the Internet, software updates automatically occur even when the Soundbar is turned off.

- To use the Auto Update function, the Soundbar must be connected to the Internet.

The Wi-Fi connection to the Soundbar will be terminated if the Soundbar's power cord is disconnected or the power is cut off. If the power is cut off, when the power comes back on or you reconnect the power cord, turn on the Soundbar, and then reconnect it to the Internet.

USB Update

Bottom of the Soundbar

Samsung may offer updates for the Soundbar's system firmware in the future.

When an update is available, you can update the Soundbar by connecting the USB drive that contains the update firmware to the SERVICE port of the Soundbar.

1. Go to the Samsung website (www.samsung.com) → search for the model name from the customer support menu option.
2. For more information about update, refer to Upgrade Guide.
3. Download the upgrade file (USB type).
4. Unzip the file to create a folder with the file name.
5. Store the created folder in a USB and then connect it to the Soundbar.

6. Turn on the Soundbar. Then the product is updated within 3 minutes with displaying the message, "UPDATE".

7. During update, do not turn it off or remove the USB.

8. If "UPDATE" does not appear on the display window, remove the power cord from the Soundbar and then reconnect it.
9. When the latest version is installed, no update is performed.
10. Depending on the USB type, update may not be supported.

Initialisation

Top of the Soundbar

- + INIT

With the Soundbar on, press the (Volume) buttons on the body at the same time for at least 5 seconds. "INIT" appears on the display and then the Soundbar is initialised.

CAUTION

- All the settings of the Soundbar are initialised. Be sure to perform this only when initialisation is required.

12 TROUBLESHOOTING

Before seeking assistance, check the following.

Soundbar does not turn on.

- Check whether the power cord of the Soundbar is correctly inserted into the outlet.

Soundbar works erratically.

• After removing the power cord, insert it again.
• Power cycle the external device and try again.
- If there is no signal, the Soundbar automatically turns off after a certain period of time. Turn on the power. (See page 6.)

Remote control does not work

• Point the remote directly at the soundbar.
• Replace the batteries with new ones.

The Soundbar indicator turns solid red.

- The microphone is turned off. Turn on the microphone. (See page 4.)

Sound is not output from the soundbar.

• The volume of the Soundbar is too low or muted. Adjust the volume.
• When any external device (STB, Bluetooth device, mobile device, etc.) is connected, adjust the volume of the external device.
• For sound output of the TV, select Soundbar. (Samsung TV: Home ( home ) → Menu → Settings ( 📋 → All Settings ( 🌐 → Sound → Sound Output → Select Soundbar)
• The cable connection to the Soundbar may not be loose. Remove the cable and connect again.
• Remove the power cord completely, reconnect, and turn the power on.
• Initialise the product and try again. (See page 32.)

Sound is not output from the subwoofer or the rear speakers.

• Check whether the LED indicator on the rear of the Subwoofer and Surround Speakers are on in blue. Reconnect the Soundbar and Subwoofer and Surround Speakers if the indicator is blinking in blue or turned red. (See page 13.)
• You may experience an issue if there is an obstacle between the Soundbar and Subwoofer. Move devices to an area away from obstacles.
• Other devices sending radio frequency signals in proximity may interrupt the connection. Keep your speaker away from such devices.
• Remove and reconnect the power plug.

In case there is sound jitter, delays, or noise from the Subwoofer and Surround Speaker

• If there are any objects between the Soundbar and Subwoofer speaker, this could cause a problem. Please reposition these to a place without such an object.
• There may be sound jitter or delays when the Subwoofer and Surround Speaker are far from the Soundbar. Please place them near the Soundbar.
• There may be sound jitter or delays when the Soundbar is near an instrument or electrical device that can cause radio interference. Place the Soundbar far from such devices that can cause radio interference. (E.g., wireless router)
• Change the TV network connection status from wireless to wired.

The Subwoofer volume is too low

• The original volume of the content you are playing may be low. Try adjusting the Subwoofer level. (See page 7.)
• Bring the Subwoofer speaker closer to you.

If the TV is not connected via HDMI TO TV (eARC/ARC)

• Check whether the HDMI cable is correctly connected to the ARC terminal. (See page 15.)
• Connection may not be possible due to the connected external device (set-top box, game machine, etc.). Directly connect the Soundbar.
• HDMI-CEC may not be activated on the TV. Turn on the CEC on the TV menu. (Samsung TV: Home (☐) → Menu → Settings (☒) → All Settings (☒ → Connection → External Device Manager → Anynet+ (HDMI-CEC) ON)
• To connect with eARC, the eARC function in the TV menu should be set to On. (Samsung TV: Home (n) → Menu → Settings (→ All Settings (→ Sound → Expert Settings → HDMI-eARC Mode (Auto))

There is no sound in when connecting to the TV in HDMI TO TV (eARC/ARC) mode

• Your device is unable to play the input signal. Change the TV's audio output to PCM or Dolby Digital. (For a Samsung TV: Home ( home ) → Menu → Settings ( ➕ → All Settings ( ➕ → Sound → Expert Settings → Digital Output Audio Format)

Soundbar will not connect via Bluetooth.

• When connecting a new device, switch to "BT PAIRING" for connection. (Press the ✝ PAIR button on the remote control or press the ⏻ (Mic On/Off) / → (Source) button on the body for at least 5 seconds.)
• If the Soundbar is connected to another device, disconnect that device first to switch the device.
• Reconnect it after removing the Bluetooth speaker list on the device to connect. (Samsung TV: Home (→Menu → Settings (→All Settings (→Sound → Sound Output → Bluetooth Speaker List)
• The automatic TV connection may be disabled. While the Soundbar is in "BT READY", press and hold the Left button on the Soundbar remote control for 5 seconds to select ON-TV CONNECT. If you see OFF-TV CONNECT, press and hold Left button again for 5 seconds to switch the selection.

- Remove and reconnect the power plug, then try again.

- Initialise the product and try again. (See page 32.)

Sound drops out when connected via Bluetooth.

• Some devices can cause radio interference if they are located too close to the Soundbar. e. g. microwaves, wireless routers, etc.
• If your device that is connected via Bluetooth moves too far away from the soundbar, it may cause the sound to drop out. Move the device closer to the soundbar.
• If a part of your body is in contact with the Bluetooth transceiver or the product is installed on metal furniture, the sound may drop out. Check the installation environment and conditions for use.

Soundbar will not connect to Wi-Fi.

• Check whether your wireless router is on.
• Turn off the router, turn it back on, and then try again.
• The soundbar will not connect if the wireless signal is too weak. Try moving the router closer to the soundbar, or eliminating any obstacles that are between the soundbar and the router, if possible.
• If your wireless router is new, you will need to reconfigure the speaker's network settings.

The soundbar does not turn on automatically with the TV.

- When you turn off the Soundbar while watching TV, power synchronization with the TV is disabled. First turn off the TV.

The AVA function (applicable models only) is not available in the following cases.

- The AVA function (applicable models only) will not be available when the microphone is turned off.

After connecting the TV to the Soundbar, I switched the Soundbar mode. Then no sound is output from the TV.

• If you connect your Soundbar to a mobile device while the Soundbar is connected to the TV, the Soundbar outputs sound from the mobile device while keeping the TV connection. So the TV sound will not be delivered anywhere.
• Disconnect the mobile device, and the TV sound will be output from the Soundbar again.

The Soundbar does not appear in AirPlay2

• To enable AirPlay2 in your Soundbar, you must first register the device with the Samsung Smart Things app by agreeing with the app's terms and conditions. (See page 28.)
• AirPlay2 does not operate if you delete the Soundbar from the Samsung Smart Things app.
• Make sure that the Soundbar and the Apple device are connected to the same Wi-Fi network.
• The Soundbar is compatible with AirPlay2 installed on iOS 13.4 or later.

СЪДЪРЖАНИЕ

01 Проверка на компонентите 3

Three grayscale images of different devices: a rectangular remote, a remote control with two buttons, and a tall tower (no text or symbols visible)

Three technical diagrams showing a device with labeled dimensions: x2, x4, and two connected cables (no text or symbols beyond labels)

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows indicating movement.

5 Sec ID SET

Diagram showing three stages of a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a calculator with labeled buttons and a hand pointing to the function button

Diagram showing a screw being inserted into a housing with motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Illustration of a person emitting sound waves from a device to a stand (no text or symbols)

Three grayscale images of remote devices: a rectangular box, a remote control unit with two buttons, and a cylindrical tower (no text or symbols)

Glavna jedinica sustava Soundbar Daljinski upravljač / baterije sustava Soundbar Subwoofer

Three electronic devices: a gray server unit labeled 'x2', a black I/O port labeled 'x4 ili 2', and a USB connector (no visible text or symbols on the devices themselves)

Zvučnik prostornog ozvučenja (dodatno)
(lijevi/desni)

A B A TYPE C10000 A TYPE D50000 B A x 2 x 2 (M4 x L10)

Vodič za zidni nosač Vijak držača Vijak

Two 3D mechanical parts shown side by side: a bracket with cross-sectional view and a flat plate, both labeled 'x2' and 'x4' respectively (no text or symbols on the objects themselves)

Zidni nosač Gumene nožice

• Trebate li više informacija o napajanju i potrošnji energije, pogledajte naljepnicu na proizvodu. (Naljepnica: Stražnji dio glavne jedinice sustava Soundbar)
• Kako biste kupili dodatne sastavne dijelove ili opcijske kabele, obratite se Servisnom centru tvrtke Samsung ili Korisničkoj podršci tvrtke Samsung.
• Trebate li više informacija o zidnom nosaču ili gumenim nožicama, pogledajte stranice 29\~31.
• Dizajn, specifikacije i zaslon aplikacije mogu biti promijenjeni bez prethodne najave.
• Izgled dodataka može se neznatno razlikovati od izgleda na prethodnim ilustracijama.
  • Samsung Electronics Co., Ltd pridržava pravo promijeniti specifikacije bez ranijeg upozorenja.
• Težina i dimenzije su približne.

02 PRIKAZ PROIZVODA

Gornja ploča zvučnika Soundbar

1 2 3 4

1 2 3 4

HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC HW-Q7**C, HW-Q7**GC

1	Gumb (Više funkcija) (modeli HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC)U načinu rada na čekanju pritisnite gumb (Više funkcija) kako biste uključili Soundbar.Pritisnite gumb (Više funkcija) kako biste promijenili izvor ulaza.
1	Gumb (Uključivanje/isključivanje ) (model HW-Q7**C, HW-Q7**GC)Uključuje i isključuje napajanje.
2	Gumb—+ (Glasnoća)Podešava glasnoću.
3	Gumb (Uključivanje/isključivanje mikrofona)(modeli HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC)Pritisnite gumb za uključivanje ili isključivanje mikrofona.Kada je mikrofon isključen, LED indikator svijetlit će u crvenoj boji.
3	Gumb (Izvor) (model HW-Q7**C, HW-Q7**GC)Pritisnite gumb -Izvor) kako biste promijenili izvor ulaza.
4	ZaslonPrikazuje status i trenutni način rada proizvoda.D.IN → HDMI → Wi-Fi → BT

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

Povežite kabel za napajanje zvučnika Soundbar izmjeničnom strujom. (Pogledajte stranicu 11)

2 SERVICE

Povežite s USB uređajem za pohranu kako biste nadogradili softver proizvoda.

3 DIGITAL AUDIO IN (OPTICAL)

Povežite sa digitalnim (optičkim) izlazom vanjskog uređaja. (Pogledajte stranicu 23)

4 HDMI

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

5 Sec ID SET

1. Provjerite svijetli li LINK LED postojano plavo (povezivanje je završeno).

Diagram showing three stages of a device operation: before, after, and after (no text or symbols)

1. Kad su televizor i Soundbar isključeni, ulaz DIGITAL AUDIO IN (OPTICAL) na uređaju Soundbar i izlazni priključak OPTICAL na televizoru povežite optičkim kabelom (nije priložen), kao što je prikazano na slici.
2. Uključite Soundbar i televizor.
3. Pritisnite gumb ○ (Više funkcija) /→ (Izvor) na vrhu uređaja Soundbar ili gumb → (Izvor) na daljinskom upravljaču kako biste odabrali način rada „D.IN”.
4. Zvuk televizora se čuje iz Soundbar sustava.

Povezivanje putem Bluetooth veze

Kad je Samsung TV povezan putem Bluetooth veze, možete čuti stereo zvuk bez prethodnog mučenja s kabelima.

• Istodobno se može spojiti samo jedan Samsung TV.
• Može se povezati Samsung TV koji podržava Bluetooth. Provjerite specifikacije svojeg televizora.

Početno povezivanje

Diagram of a calculator interface with buttons labeled 'OK', 'Cancel', and 'WRITE', and a hand pointing to the button.

Simple 3D illustration of a bracket-like object with a hole, labeled 'x2' (no text or symbols on the object itself)

Zidni nosač

1. Postavite vodič za zidni nosač na površinu zida.

• Vodič za zidni nosač mora biti ravan.
- Ako je televizor postavljen na zid, instalirajte Soundbar najmanje 5 cm ispod televizora.

TV 5 cm ili više

1. Poravnajte središnju liniju vodiča za zidni nosač sa sredinom TV-a (ako postavljate Soundbar ispod TV-a), a zatim pričvrstite vodič za zidni nosač na zid pomoću ljepljive trake.
2. Ako ga ne postavljate ispod TV-a, postavite središnju liniju u sredinu područja instalacije.

Središnja linija

1. Gurnite vrh olovke kroz sredinu slika A-TYPE na svakoj strani vodiča kako biste označili otvore za nosive vijke, a zatim uklonite vodič za zidni nosač.

A B A C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

1. S pomoću svrdla odgovarajuće veličine izbušite otvor u zidu na svakoj oznaci.

- Ako oznake ne odgovaraju položajima usadnih vijaka, obavezno umetnite odgovarajuća sidra ili tiple u otvore prije umetanja nosivih vijaka. Ako upotrebljavate tiple, pobrinite se da su otvori koje ste izbušili dovoljno veliki za te tiple.

1. Gurnite vijak (nije priložen) kroz svaki vijak držača, a zatim čvrsto zategnite svaki vijak u otvor za nosive vijke.

Diagram showing a screw being inserted into a housing with blue motion arrows indicating rotation (no text or symbols)

1. Montirajte 2 zidna nosača u točan položaj na dnu uređaja Soundbar pomoću 2 vijka.

Illustration of a mechanical device with a screw and adjustment knob, showing motion direction (no text or symbols)

Illustration of a flat-screen TV with a cable and antenna (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Two identical gray electronic devices with blue directional arrows pointing to the screen (no text or symbols)

LD

• Provjerite jačinu zida prije nego što postavite zidne nosače. Ako zid nije dovoljno jak, obavezno ga učvrstite prije postavljanja zidnih nosača i zvučnika na taj zid.
• Tvrtka Samsung nije odgovorna za oštećenja proizvoda zbog njegovog nepravilnog postavljanja.
• Pripazite da zvučnike ne postavite bočno ili naopako.

10 POSTAVLJANJE UREĐAJA SOUNDBAR ISPRED TV-A

Sastavni dio

Gumene nožice

Prilikom postavljanja pričvrstite gumene nožice na donji dio sustava Soundbar prije postavljanja u položaj iznad postolja televizora. Obavezno pričvrstite gumene nožice tako da se ne nalaze izvan rubova postolja TV-a. Pogledajte donju sliku.

Gumene nožice

Three grayscale images of remote devices: a rectangular box, a remote control unit with two buttons, and a cylindrical tower (no text or symbols)

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

5 Sec ID SET

Diagram showing three stages of a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a calculator interface with buttons labeled 'OK', 'Cancel', and 'MOVE'

08 PŘIPOJENÍ PŘES APPLE AIRPLAY 2

Diagram showing a screw being inserted into a housing with motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Illustration of a flat-screen TV with antenna and cable (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Two identical gray rectangular devices with blue arrows pointing to circular features on their surfaces (no text or symbols)

LP

Diagram showing a device mounted on a base with a magnified view of its internal structure (no text or symbols present)

Diagram showing a device with a labeled component and an inset highlighting a two-pin connector.

Three grayscale images of remote devices: a rectangular box, a remote control unit with two buttons, and a tower (no text or symbols)

Three electronic devices with sizes and connectors, no visible text or symbols

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

Strømkabel Subwooferens bagside

Subwooferens bagside Subwooferens bagside

5 Sec ID SET

Three-step diagram showing a device moving from left to right, with no visible text or symbols.

TV Bluetooth

Diagram of a calculator interface with labeled buttons and a hand pointing to the button

Simple 3D illustration of a bracket-like object with a hole, labeled 'x2' (no text or symbols on the object itself)

Vægmonteringsbeslag

Diagram showing a screw being inserted into a housing with blue motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

10 INSTALLATION AF SOUNDBAREN FORAN TV'ET

Komponent

x4

Gummifod

Three grayscale images of remote devices: a rectangular box, a remote control unit with two buttons, and a tower (no text or symbols)

Three electronic device components with no visible text or symbols

Two 3D mechanical parts shown side by side: a bracket with cutout and a flat plate, both labeled 'x2' and 'x4' respectively (no other text or symbols)

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

5 Sec ID SET

Diagram showing three stages of a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a calculator interface with labeled buttons and a hand pointing to the button

Hand interacting with a device screen displaying a play button (no text or symbols visible)

Diagram showing a screw being inserted into a housing with blue motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and a button, showing motion direction (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two identical mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Diagram showing a monitor mounted on a base with a magnified view of a rectangular object (no text or symbols present)

Three grayscale images of remote and TV devices: a rectangular box, a remote control with two buttons, and a tower (no text or symbols)

Three product diagrams showing a gray server unit, a black connector with a loop, and a USB cable (no text or symbols)

Surround-luidspreker (optioneel) (links/rechts)
Stroomkabel (subwoofer, surround-luidspreker, Soundbar) (optioneel)

A B A TYPE 0.5mm B TYPE 0.5mm A x 2 x 2 (M4 x L10)

Two 3D mechanical parts: a bracket with cross-sectional view and a flat rectangular block, both labeled 'x2' and 'x4' (no other text or symbols)

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

'SAMSUNG-TV REMOTE', 'ALL-TV REMOTE'.

5 Sec ID SET

Diagram showing three stages of a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a calculator interface with labeled buttons and a hand pointing to the function

Hand interacting with a circular device displaying a play button (no text or symbols visible)

Diagram showing a screw being inserted into a housing with blue motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical component with a screw and adjustment knob, no text or symbols present

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

12 PROBLEEMOPLOSSING

Three grayscale images of remote devices: a rectangular remote, a control unit with two buttons, and a cylindrical tower (no text or symbols)

Two 3D mechanical parts shown side by side: a bracket with cross-sectional view and a flat plate, both labeled 'x2' and 'x4' respectively (no text or symbols on the objects themselves)

Seinakinnituskronstein Kummijalg

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

5 Sec ID SET

Diagram showing three stages of a device operation: before, after, and after (no text or symbols)

Diagram of a calculator interface with labeled buttons and a hand pointing to the button

Simple 3D illustration of a bracket-like object with a hole, labeled 'x2' (no text or symbols on the object itself)

Seinakinnituskronstein

1. Asetage seinakinnitusjuhik vastu seinapinda.

2. Seinakinnitusjuhik peab olema loodis.

3. Kui teler on seinale kinnitatud, paigaldage Soundbar vähemalt 5 cm telerist allapoole.

TV Vähemalt 5 cm

Diagram showing a screw being inserted into a housing with motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing motion direction (no text or symbols)

- Kokkupanekul veenduge, et seinakinnituskronsteinide riputusosad jääksid Soundbari taha.

Soundbari tagakülg

Heliriba parempoolne ots

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Soundbar pōhi

Active Voice Amplifier (AVA)....8

Three grayscale images of remote devices: a rectangular remote, a control unit with two buttons, and a cylindrical tower (no text or symbols)

Three electronic devices: a gray server unit labeled 'x2', a black connector with 'x4 tai 2' label, and a USB cable (no visible text or symbols on devices)

Simple black U-shaped connector with two connectors, no text or symbols visible

HDMI-kaapeli

A B cortical A TYPE 0.05mm B A TYPE 0.05mm x 2 x 2 (M4 x L10)

Two 3D mechanical parts shown side by side: a bracket with cross-sectional view and a flat plate, both labeled 'x2' and 'x4' respectively (no text or symbols on the objects themselves)

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TV (ABC/ABC) 3 4 5

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

Active Voice Amplifier (AVA)

5 Sec ID SET

Diagram showing three stages of a mechanical device: before, after, and after (no text or symbols)

Diagram of a calculator interface with labeled buttons and a hand pointing to the function button

Diagram showing a screw being inserted into a housing with motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two identical mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Kumitassu

Diagram showing a monitor mounted on a base with a magnified view of a device inside (no text or symbols)

Illustration of a TV setup with a speaker emitting sound waves, next to a monitor and cable (no text or symbols)

Three grayscale images of remote devices: a rectangular remote, a control unit with two buttons, and a cylindrical tower (no text or symbols)

Three product images: a gray server unit labeled 'x2', a black connector with 'x4 ou 2' label, and a black USB cable (no text or symbols on devices)

02 VUE D'ENSEMBLE DU PRODUIT

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

5 Sec ID SET

Diagram showing a mechanical device with directional arrows indicating motion (no text or symbols)

TV Bluetooth

Diagram of a calculator interface with buttons labeled 'OK', 'Cancel', and 'WRITE' and a hand pointing to the button.

Hand interacting with a touchscreen display showing play button and icons (no text or symbols)

08 CONNEXION VIA APPLE AIRPLAY 2

Simple 3D illustration of a bracket-like object with a hole, labeled 'x2' (no text or symbols on the object itself)

Support de fixation murale

Diagram showing a screw being inserted into a housing with motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical component with a screw and a button, showing motion direction (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Diagram showing a device mounted on a base with a magnified view of its internal structure (no text or symbols present)

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

04 Σ'YNΔΕΣΗ TOY SOUNDBAR

5 Sec ID SET

Diagram showing three stages of a device operation: before, after, and after (no text or symbols)

Diagram of a hand interacting with a control panel labeled with buttons for 'MOVE', 'MOVE', and 'OK', showing a cursor pointing at the button.

A B A100. Close STOCK 5/6 A A

Diagram showing a screw being inserted into a housing with blue motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two mechanical components before and after force application, with arrows indicating motion direction (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion or assembly (no text or symbols)

Diagram showing a device mounted on a base with a magnified view of its internal structure (no text or symbols present)

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

5 Sec ID SET

Diagram showing three stages of a mechanical device with arrows indicating motion (no text or symbols)

Diagram of a calculator with labeled buttons and a hand pointing to the function button

Simple 3D illustration of a bracket-like object with a hole, labeled 'x2' (no text or symbols on the object itself)

Tartó-Fali konzol

Diagram showing a screw being inserted into a housing with blue motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing motion direction (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Two identical gray rectangular objects with blue arrows pointing to circular features, no text or symbols present.

BJ

Three grayscale images of remote devices: a rectangular box, a remote control unit with two buttons, and a cylindrical tower (no text or symbols)

Three product images: a gray server unit labeled 'x2', a black connector with 'x4o2' label, and a blue USB connector (no text or symbols on devices)

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

5 Sec ID SET

Diagram showing three stages of a device operation: before, after, and after (no text or symbols)

TV Bluetooth

Diagram of a calculator interface with buttons labeled 'OK', 'Cancel', and 'WRITE', and a hand pointing to the button.

08 CONNESSIONE TRAMITE APPLE AIRPLAY 2

x2 x2 (M4 x L10)

Simple 3D illustration of a mechanical bracket with no text or symbols

Diagram showing a screw being inserted into a housing with motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Two identical gray rectangular devices with blue arrows pointing to a button, no text or symbols present.

SD

Diagram showing a device mounted on a base with a magnified view of its internal components (no text or symbols present)

02 PRODUKTA PÄRSKATS

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

Pievienojiet Soundbar strāvas vadu. (Skatiet 11. lpp.)

2 SERVICE

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or cleaning process with directional arrows and polarity indicators

Diagram showing three stages of a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a calculator interface with labeled buttons and a hand pointing to the button

Hand interacting with a device screen displaying playback controls and a play button labeled 'PAN'

- Šī funkcija ir pieejama visos skaņas režimos.

Mobilä ierice

(VAI)

Diagram showing a screw being inserted into a housing with blue motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Two identical gray rectangular objects with blue arrows pointing to circular features, no text or symbols present.

Kreisais Labais

12 PROBLÉMU NOVĚRŠANA

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows indicating movement.

5 Sec ID SET

Diagram showing three stages of a device operation: before, after, and after (no text or symbols)

Diagram of a calculator with labeled buttons and a hand pointing to the button, showing 'ENTER' and 'ENTER' labels.

Hand interacting with a touchscreen device displaying icons (no text or symbols visible)

Simple 3D illustration of a bracket-like object with a hole, labeled 'x2' (no text or symbols on the object itself)

Sieninis laikiklis

Diagram showing a screw being inserted into a housing with motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing motion direction (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Illustration of a person emitting sound waves from a device to a monitor (no text or symbols)

Three grayscale images of remote devices: a rectangular box, a remote control unit with two buttons, and a cylindrical tower (no text or symbols)

Soundbar-hovedenhet Soundbar-fjernkontroll/batterier Basshøyttaler

x 2 x 4 eller 2

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TV (ABC/ABC) 3 4 5

1 POWER

Koble til strømledning på Soundbar. (Se side 11)

2 SERVICE

3 DIGITAL AUDIO IN (OPTICAL)

Koble til den digitale (optiske) utgangen til en ekstern enhet. (Se side 23)

4 HDMI

Diagram illustrating three-step assembly or process of a mechanical component with directional arrows indicating movement.

Strømkabel

5 Sec ID SET

Diagram showing three stages of a device operation: before, after, and after (no text or symbols)

Diagram of a calculator interface with labeled buttons and a hand pointing to the button

08 KOBLE TIL VIA APPLE AIRPLAY 2

Simple 3D illustration of a bracket-like object with no text or symbols

Diagram showing a screw being inserted into a housing with blue motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two identical mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Illustration of a TV setup with a speaker emitting sound waves, next to a monitor and cable (no text or symbols)

Active Voice Amplifier (AVA)....8

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

Obstuga pilota

1 2 PAIR 3 8 9 4 i 10 5 + - WOOFER 11 12 6 CH LEVEL TONE CONTROL 13 7 SOUNDBAR

Active Voice Amplifier (AVA)

5 Sec ID SET

Diagram showing three stages of a mechanical device with arrows indicating motion (no text or symbols)
    KabelOptyczny
    KabelOptyczny
    KabelOptyczny
    KabelOptyczny
    KabelOptyczny
    KabelOptyczny
    KabelOptyczny
    KabelOptyczny
    KabelOptyczny
    KabelOptyczny
    KabelOptyczny
    KabelOptyczny
    KabelOtyzny
    KabelOtyzny
    KabelOtyzny
    KabelOtyzny
    KabelOtyzny
    KabelOtyzny
    KabelOtyzny
    KabelOtyzny
    KabelOtyzny
    KabelOtyzny
    SpódGtośnikaSoundbar["Spód gtośnika Soundbar"]
    DigitalAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudiou
    SpódGtośnikaSoundbar
    DigitalAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudiou
    DigitalAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudioAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou
    DigitalAudiou

TV Bluetooth

Diagram of a calculator interface with labeled buttons and a hand pointing to the button

Diagram showing a screw being inserted into a housing with motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing motion direction (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Two identical gray rectangular devices with blue arrows pointing to circular features on their surfaces (no text or symbols)

Lewy Prawy

Diagram showing a monitor mounted on a base with a magnified view of a rectangular object (no text or symbols present)

Active Voice Amplifier (AVA)....8

Three grayscale images showing different devices: a rectangular remote, a remote control with two buttons, and a tall tower (no text or symbols)

Three product diagrams: a gray box labeled 'X2', a black loop with '4 ou 2' label, and a blue USB connector (no text or symbols on diagrams)

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

Active Voice Amplifier (AVA)

5 Sec ID SET

Diagram showing three stages of a device operation: before, after, and after (no text or symbols)

Diagram of a calculator interface with buttons labeled 'OK', 'Cancel', and 'WRITE' and a hand pointing to the button.

Hand interacting with a circular interface button labeled 'PCB' and a play button, no readable text or symbols beyond the button elements.

Hand interacting with a touchscreen display (no visible text or symbols)

Linha central

Diagram showing a screw being inserted into a housing with blue motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Illustration of a flat-screen TV with antenna and cable (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Active Voice Amplifier (AVA)....8

Folosirea Butoanelor ascunse (Butoane cu mai multe functii) .....8

Three grayscale images of remote devices: a rectangular box, a remote control with two buttons, and a tall tower (no text or symbols visible)

Three electronic device components: a gray box labeled 'x 2', a black U-shaped connector labeled 'x 4 sau 2', and a black USB connector (no text or symbols on the devices themselves)

Two 3D mechanical parts: a bracket with cross-sectional view and a flat plate, both labeled 'x2' and 'x4' (no other text or symbols)

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

Active Voice Amplifier (AVA)

(Control sunet) → Difuzor surround → (Sus)/ (Jov) → Front / Rear)

TV Soundbar Difuzor surround S Difuzor surround D

5 Sec ID SET

Diagram showing three stages of a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a calculator with labeled buttons and a hand pointing to the function button

Hand interacting with a touchscreen device (no visible text or symbols)

08 CONECTAREA PRIN APPLE AIRPLAY 2

Diagram showing a screw being inserted into a housing with motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Two identical gray electronic devices with blue directional arrows pointing to the screen (no text or symbols)

SD

Technical diagram showing a mechanical assembly with a monitor and base plate, no visible text or symbols

Diagram showing a device with a USB port connected to a labeled component, likely illustrating a system or hardware setup.

Three grayscale images of remote devices: a rectangular remote, a control unit with two buttons, and a cylindrical tower (no text or symbols)

Glavni zvučnik Soundbar Daljinski upravljač/baterije Soundbar-a Sabvufer

Three electronic devices: a gray server unit labeled 'x2', a black-and-white connector labeled 'x4 ili 2', and a black-and-white connector with connectors (no visible text or symbols on the devices themselves)

Zvučnik za prostorni zvuk (opcionalno) (levi/desni)

A B cortical A TYPE 0.05mm B A TYPE 0.05mm x 2 x 2 (M4 x L10)

Two 3D mechanical parts: a bracket with cross-sectional view and a flat rectangular block, both labeled 'x2' and 'x4' (no other text or symbols)

Nosač za montažu na zid Gumena nožica

• Više informacija o napajanju i potrošnji energije potražite na nalepnici na proizvodu. (oznaka: Zadnja strana glavne jedinice Soundbar zvučnika)
• Za kupovinu dodatnih komponenata ili opcionalnih kablova, obratite se Samsung servisnom centru ili Samsung korisničkoj podršci.
• Za više informacija o montiranju na zid ili na gumenoj nožici pogledajte strane od 29 do 31.
• Dizajn, specifikacije i ekran aplikacija su podložni promeni bez prethodnog obaveštenja.
• Izgled dodatne opreme se može u određenoj meri razlikovati od ilustracija prikazanih iznad.
• Samsung Electronics Co., Ltd zadržava pravo da promeni specifikacije bez prethodnog upozorenja.
• Težina i dimenzije su približne.

02 PREGLED PROIZVODA

Gornji panel Soundbar uređaja

1 2 3 4

HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC

1 2 3 4

HW-Q7**C, HW-Q7**GC

1	Dugme (Više funkcija) (modeli HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC)U režimu pripravnosti pritisnite dugme (Više funkcija) da biste uključili zvučnik Soundbar.Pritisnite dugme (Više funkcija) da biste promenili ulazni kanal.
1	Dugme (Uključivanje/Isključivanje) (model HW-Q7**C, HW-Q7**GC)Uključuje i isključuje napajanje.
2	Dugme — + (Jačina zvuka)Podešava jačinu zvuka.
3	Dugme (Mikrofon uključen/isključen)(modeli HW-Q9**C, HW-Q9**GC / HW-Q8**C, HW-Q8**GC)Pritisnite dugme da uključite ili isključite mikrofon.Kad se mikrofon isključi, LED indikator svetleće u crvenoj boji.
3	Dugme (Izvor) (model HW-Q7**C, HW-Q7**GC)Pritisnite dugme (Hzvor) da biste promenili ulazni izvor.
4 EkranPrikazuje status i trenutni režim proizvoda.D.IN → HDMI → Wi-Fi → BT

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

Priključite kabl za napajanje naizmeničnom strujom Soundbar zvučnika. (Pogledajte stranicu 11)

2 SERVICE

Povežite sa USB uređajem za skladištenje da biste nadogradili softver proizvoda.

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

Kako se koristi daljinski upravljač

1 2 3 8 9 4 i 10 5 + - WDOFER 11 12 6 CH LEVEL TONE CONTROL 13 7 SOUNDBAR

1	Napajanje	Uključuje i isključuje Soundbar.Funkcija automatskog smanjenja napajanjaJedinica se automatski isključuje u sledećim situacijama:U režimu D.IN / HDMI / Wi-Fi / BT ako 18 minuta nema signala zvuka.
2	Izvor	Pritisnite za izbor izvora signala koji je povezan sa Soundbar-om.Uključi/isključi glasovne povratne informacijeGlasovnu povratnu informaciju možete da uključite ili isključite.Pritisnite i zadržite dugme → (Izvor) na daljinskom upravljaču 5 sekundi dok je Soundbar isključen (Režim pripravnosti).Svaki put kada promenite postavku Glasovne povratne informacije, na OLED ekranu prikazaće se „AUI OFF“ (Podrazumevano) ili „AUI ON”.
3	Bluetooth PAIR	Prebacuje Soundbar uređaj u režim za Bluetooth uparivanje. Pritisnite dugme i sačekajte da se prikaže ekran „BTPAIRING“ da biste povezali novi Bluetooth uređaj.
4	Utišaj	Pritisnite dugme ≈ (Utišaj) da biste isključili zvuk.Ponovo ga pritisnite da biste uključili zvuk.
5	SOUND MODE	Pritiskom na dugme možete izabrati željeni audio režim kao što su Surround, Game Pro, Standard, Adaptive Sound.StandardNa izlazu se dobija originalni zvuk.SurroundObezbeđuje šire zvučno polje od standardnog.Game ProObezbeđuje stereoskopski zvuk koji vas uranja u akciju tokom igre.Adaptive SoundAnalizira sadržaj u realnom vremenu i automatski obezbeđuje optimalno zvučno polje na osnovu karakteristika sadržaja.
6	CH LEVEL	Pritiskom na dugme možete podesiti jačinu zvuka svakog zvučnika, kao što su Centre level, Side level, Wide level, Front Top level, Rear level, and Rear top level.Za kontrolu jačine zvuka svakog zvučnika izaberite Centre Level, Side level, Wide level ili Front Top Level u opciji Postavke zvuka, a zatim podesite jačinu između -6~+6 pomoću dugmeta Nagore/Nadole.Ako su zvučnici za prostorni zvuk povezani, izaberite Rear level ili Rear top level, a zatim upotrebite dugmad Nagore/Nadole za podešavanje jačine zvuka u rasponu od -6 do +6.Specifikacije režima CH LEVEL mogu se razlikovati u zavisnosti od modela.

7	Kontrola zvuka	Pritiskom na dugme možete postaviti audio funkcije kao što suSpaceFit Sound, AVA, Voice enhance mode, Night mode, Sync,Surround speaker mode, VirtualŽeljena stavka se može prilagoditi pomoću dugmetaNagore/Nadole.FunkcijeSpaceFit Soundi AVApodržavaju modeli HW-Q7**C, HW-Q7**GC.Voice enhancemode olakšava slušanje govornih dijaloga u filmovima i na TV-u da biste lakše slušali.Night modeje optimizovan za gledanje noću jer su postavke prilagođene tako da je jačina zvuka mala, a dijalog jasan.Pritisnite i zadržite dugme(Kontrola zvuka)oko 5 sekundi kako biste podesili zvuk na svakom frekventnom opsegu.Moguće je izabrati150 Hz, 300 Hz, 600 Hz, 1,2 kHz, 2,5 kHz, 5 kHz i10 kHz pomoću dugmetaNalevo/Nadesno, a svaka od tih stavki se može podesiti na postavku od -6 do +6 pomoću dugmetaNagore/Nadole.(Uverite se da je režim zvuka podešen na „Standard“).Ako video na TV-u i zvuk sa zvučnika Soundbar nisu sinhronizovani, izaberiteSyncu opciji Kontrola zvuka, a zatim postavite odlaganje zvuka između 0~300 milisekundi pomoću dugmetaNagore/Nadole.Syncje podržana samo za neke funkcije.Dostupne postavkeSurround speaker modepodržava samo model HW-Q9**C, HW-Q9**GC.Funkciju zvučnikaVirtualje moguće postaviti naON/OFFpomoću dugmetaNagore/Nadole.
8	Reprodukcija/Pauza	Pritiskom na ovo dugme takođe možete pokrenuti reprodukciju muzike ili je pauzirati.
9	Nagore/nadole/nalevo/nadesno	Pritisnite označena područja za izbor Nagore/nadole/nalevo/nadesno.Pritisnite nagore/nadole/nalevo/nadesno na dugmetu da biste izabrali ili podesili funkcije.Preskakanje muzikePritisnite dugmeNadesnoza izborsledeće muzičke datoteke. Pritisnite dugmeNalevoza izbor prethodne muzičke datoteke.ID SETOvu opciju upotrebite kada sabvufer zvučnik ili zvučnici za prostorni zvuk nisu priključeni ili je potrebno da se ponovo priključe.Dok je napajanje isključeno, pritisnite i zadržite dugmeNagore5 sekundi kako biste izvršili ID SET. (Pogledajte stranicu 13.)
10	Informacije	Pritisnite dugme za prikaz informacija o aktivnoj funkciji na dostupnom kodeku.U režimuBTprikazuje se povezani uređaj (kada se završi uparivanje) ili „BTready“(kada je potrebno uparivanje).
11	WOOFER LEVEL	Pritisnite dugme nagore ili nadole da biste podesili nivo vufera (niski tonovi).
12	JAČINA ZVUKA	Pritisnite dugme nagore ili nadole da biste prilagodili jačinu zvuka.UtišajPritisnite dugmeJAČINAZVUKAda biste isključili zvuk. Ponovo ga pritisnite da biste uključili zvuk.
13	TONE CONTROL	Pritiskom na dugme možete podesiti jačinu zvuka visokih ili niskih tonova. Željena stavka se može prilagoditi pomoću dugmetaNagore/Nadole. Ova funkcija je omogućena u režimu zvuk, osim u režimuStandard.Za kontrolu jačine visokih ili dubokih tonova izaberiteTREBLEiliBASSu opciji Postavke zvuka, a zatim podesite jačinu između -6~+6 pomoću dugmetaNagore/Nadole.Kada se promeni nivo niskih tonova, nivo vufera će se takođe prilagoditi u skladu sa tim.

Aktivno pojačalo glasa (AVA)

5 Sec ID SET

Diagram showing three stages of a device operation: before, after, and after (no text or symbols)

1. Kada su TV i Soundbar isključeni, optičkim kablom (nije priložen) povežite DIGITAL AUDIO IN (OPTICAL) port Soundbar-a i OPTICAL izlazni port TV-a, na način prikazan na slici.
2. Uključite Soundbar i TV.
3. Pritisnite dugme 🟢 (Više funkcija) / ➞ (Izvor) na vrhu zvučnika Soundbar ili dugme ➞ (Izvor) na daljinskom upravljaču da biste izabrali režim „D.IN”.
4. Soundbar uređaj emituje zvuk sa televizora.

Povezivanje putem Bluetooth veze

Kada se Samsung TV poveže putem Bluetooth veze, možete dobiti stereo zvuk bez petljanja sa kablovima.

• Istovremeno može biti povezan samo jedan Samsung TV.
• Može se povezati Samsung TV koji podržava Bluetooth povezivanje. Proverite specifikacije svog TV-a.

Početno povezivanje

1. Pritisnite dugme ✝PAIR na daljinskom upravljaču Soundbar zvučnika da biste ušli u režim „BTPAIRING”.

Diagram of a calculator interface with buttons labeled 'OK', 'Cancel', and 'Save', and a hand pointing to the right button.

1. Pritisnite dugme Nagore na daljinskom upravljaču da biste uključili SpaceFit Sound. Na ekranu se prikazuje „ON“.

1. Pritisnite dugme Nadole na daljinskom upravljaču da biste uključili SpaceFit Sound. Na ekranu se prikazuje „OFF“.

- Ova funkcija je dostupna u svim režimima zvuka.

Home Directly purchase and purchase No purchase option

Pokrenite aplikaciju

[AV] Samsung Soundbar A new device has been found. Add the device to Smart Things? Start add Save Add new

Automatski iskačući prozor

Get starsad with your Soundbar Start

Dodaj uređaj

I may have come too to get a new Search to post phone. Please visit.

Diagram showing a screw being inserted into a housing with blue motion arrows indicating rotation (no text or symbols)

1. Montirajte 2 zidna nosača u tačan položaj na dnu Soundbar zvučnika pomoću 2 vijka.

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

- Prilikom sastavljanja proverite da li se delovi za kačenje na zidnim nosačima nalaze na zadnjem delu Soundbar zvučnika.

Zadnja strana Soundbar-a

Desni kraj zvučnika Soundbar

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Postavljanje zvučnika za prostorni zvuk na zid (samo primenljivi modeli)

Za postavljanje zvučnika za prostorni zvuk na zid možete odvojeno da kupite zidne držače.

Kompanija Samsung Electronics ne prodaje zidne držače.

Napomene vezane za montiranje zvučnika za prostorni zvuk na zid

Two identical gray rectangular devices with blue arrows pointing to circular features on their surfaces (no text or symbols)

Levi Desni

• Proverite izdržljivost zida pre postavljanja zidnih nosača. Ako njegova čvrstina nije adekvatna, ojačajte zid pre montiranja konzole zidnih nosača i zvučnika na zid.
• Samsung ne snosi odgovornost ni za kakvo oštećenje proizvoda zbog njegovog nepravilnog postavljanja.
• Vodite računa da ne postavite zvučnike položeno ili da donja strana bude okrenuta nagore.

10 POSTAVLJANJE ZVUČNIKA SOUNDBAR ISPRED TV-A

Komponenta

x4

Gumena nožica

Za instalaciju, prikačite gumene nožice sa donje strane Soundbar uređaja pre nego što ga postavite iznad stalka za televizor. Vodite računa da gumene nožice prikačite tako da ne budu van spoljašnjih ivica stalka za televizor. Pogledajte sliku u nastavku.

Gumena nožica

Postavite Soundbar uređaj na postolje za televizor.

Mikrofoni (samo primenljivi modeli)

Kao što je prikazano na slici, poravnajte sredinu Soundbar-a sa sredinom TV-a i pažljivo postavite Soundbar u stalak za televizor.

Sada postavite mikrofone (samo primenljivi modeli) ispred stalka da ne bi došlo do smetnji sa prepoznavanjem glasa.

Illustration of a TV setup with a speaker emitting sound waves, next to a monitor and cable (no text or symbols)

Desni kraj zvučnika Soundbar

NAPOMENA

• Obavezno postavite Soundbar na čvrstu i ravnu površinu.
• Nedovoljna udaljenost od televizora može dovesti do problema sa prepoznavanjem glasa i akustikom.
• Gornja ilustracija se razlikuje u zavisnosti od odgovarajućeg modela.
• Ovu funkciju ne podržava model HW-Q7**C, HW-Q7**GC.
• Za najbolje performanse mikrofona, držite zvučnik Soundbar bar 2 cm od panela televizora.

11 AŽURIRANJE SOFTVERA

Automatsko ažuriranje

Kada se Soundbar poveže na Internet, softver sa ažurira automatski, čak i kada je Soundbar isključen.

• Za upotrebu funkcije automatskog ažuriranja Soundbar mora biti povezan na Internet.
  Wi-Fi veza sa Soundbar-om će biti raskinuta ako se kabl za napajanje Soundbar-a isključi ili se napajanje prekine. Ako se napajanje prekine, kada se napajanje ponovo uspostavi ili se kabl za napajanje ponovo uključi, uključite Soundbar, pa zatim ga ponovo povežite na Internet.

Ažuriranje putem USB-a

Donja strana Soundbar-a

Kompanija Samsung u budućnosti može ponuditi ažurirane verzije firmvera sistema Soundbar-a.

Kad je ažurirana verzija dostupna, Soundbar se može ažurirati tako što ćete priključiti USB memoriju koja sadrži ažurirani firmver na port Soundbar-a označen sa SERVICE.

1. Idite na veb lokaciju kompanije Samsung (www.samsung.com) → potražite naziv modela u opciji menija korisničke podrške.

2. Više informacija o ažuriranju potražite u Vodiču za nadogradnju.

3. Preuzmite datoteku za ažuriranje (USB tip).

4. Raspakujte zip datoteku da biste dobili fasciklu sa datotekom.

5. Snimite napravljenu fasciklu na USB memoriju, koju zatim priključite na Soundbar.

6. Uključite zvučnik Soundbar. Proizvod se zatim ažurira u roku od 3 minuta uz prikazivanje poruke „UPDATE“.

7. Tokom ažuriranja nemojte da ga isključujete ili da uklanjate USB.

8. Ako se poruka „UPDATE” ne pojavi na prozoru ekrana, uklonite kabl za napajanje sa zvučnika Soundbar, a zatim ga ponovno povežite.
9. Ako je instalirana najnovija verzija, ažuriranje se ne obavlja.
10. U zavisnosti od vrste USB-a, ažuriranje možda nije podržano.

Inicijalizacija

Gornji deo zvučnika Soundbar

- + INIT

Kad je Soundbar uključen, istovremeno pritisnite dugmad — + (Jačina zvuka) na kućištu i držite ih tako najmanje 5 sekundi. Na ekranu se pojavljuje poruka „INIT“, a zatim se Soundbar resetuje.

PAŽNJA

- Pokreću se sve postavke Soundbar zvučnika. Vodite računa da ovo obavljate samo kada je pokretanje obavezno.

12 REŠAVANJE PROBLEMA

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

Pripojte napájací kábel zariadenia Soundbar. (Pozrite si stranu 11)

2 SERVICE

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

5 Sec ID SET

Diagram showing three stages of a device operation: before, after, and after (no text or symbols)

Diagram of a calculator with labeled buttons and a hand pointing to the function dial

A B A A A

Diagram showing a screw being inserted into a housing with motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Illustration of a flat-screen TV with a cable and antenna (no text or symbols)

Pravý koniec zariadenia Soundbar

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two identical mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Two identical gray rectangular devices with blue arrows pointing to circular features on their surfaces (no text or symbols)

L' P

Technical diagram showing a mechanical assembly with a component and a labeled part (no readable text or symbols)

Diagram showing a device with a port and an inset highlighting a component labeled '10000' with Chinese text.

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

1 POWER

Priključite napajalni kabel za izmenični tok za Soundbar. (Glejte stran 11)

2 SERVICE

Priključite napravo za shranjevanje USB, da nadgradite programsko opremo izdelka.

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

5 Sec ID SET

Diagram showing three stages of a mechanical device with directional arrows indicating motion (no text or symbols)

Diagram of a calculator with labeled buttons and a hand pointing to the function button

Hand interacting with a touchscreen device displaying icons (no text or symbols visible)

Diagram showing a screw being inserted into a housing with motion arrows indicating rotation (no text or symbols)

1. 2 stenska nosilca pravilno usmerite in z 2 vijakoma namestite na spodnjo stran zvočnika Soundbar.

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

1. Soundbar potisnite navzdol, kot je prikazano spodaj, da stenska nosilca varno namestite na vijake nosilca.

- Vijake nosilca vstavite v široki (spodnji) del stenskih nosilcev in nato potisnite stenska nosilca navzdol, da ju varno namestite na vijake nosilca.

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Illustration of a TV setup with a speaker emitting sound waves, next to a monitor and cable (no text or symbols)

Three grayscale images of remote devices: a rectangular box, a remote control unit with two detached devices, and a tower (no text or symbols visible)

Three electronic devices with sizes and connectors, no visible text or symbols

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TOV (ABC/ABC) 3 4 5

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

5 Sec ID SET

Diagram showing three stages of a device operation: before, after, and after (no text or symbols)

TV Bluetooth

Diagram of a calculator interface with buttons labeled 'OK', 'Cancel', and 'WRITE', and a hand pointing to the button.

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A

Diagram showing a screw being inserted into a housing with motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Diagram showing a mechanical assembly with a plate and a bracket, no text or symbols present

Micrófonos (solo modelos pertinentes)

Diagram showing a device with a connector and an inset highlighting a component labeled '12' with Chinese text.

(AAA-batterier x 2)....6

Three grayscale images of remote devices: a rectangular box, a remote control unit with two buttons, and a cylindrical tower (no text or symbols)

Two 3D mechanical parts shown side by side: a bracket with cross-sectional view and a flat plate, both labeled 'x2' and 'x4' respectively (no other text or symbols)

Väggfäste Gummifot

1 2 SERVICE DIGITAL AUDIO IN (OPTICAL) HDMI HDMI+TV (ABC/ABC) 3 4 5

1 POWER

3 DIGITAL AUDIO IN (OPTICAL)

Diagram illustrating three-step assembly or disassembly process with labeled components and directional arrows

5 Sec ID SET

Diagram showing three stages of a device operation: before, after, and after (no text or symbols)

TV Bluetooth

Diagram of a calculator interface with buttons labeled 'OK', 'Cancel', and 'MOVE'

Mobil enhet

08 ANSLUTA VIA APPLE AIRPLAY 2

Simple 3D illustration of a bracket-like object with no text or symbols

Väggfäste

Diagram showing a screw being inserted into a housing with motion arrows indicating rotation (no text or symbols)

Illustration of a mechanical device with a screw and adjustment knob, showing no text or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Diagram showing two mechanical components with downward arrows indicating motion or assembly (no text or symbols)

Two identical gray rectangular objects with blue arrows pointing to circular features, no text or symbols present.

VÄHÖ

Diagram showing a device mounted on a base with a magnified view of its internal components (no text or symbols present)

Mikrofoner (bara tillämpliga modeller)
