Product Type	Semi-conductor Breathalyzer
Brand	Xblitz
Model	Spirit 2
Dimensions	124 x 44 x 19 mm
Weight	49 g (without batteries)
Power Supply	2 AA batteries (1.5 V)
Sensor Type	Semi-conductor
Measurement Range	0 to 2.00 ‰ BAC
Resolution	0.01 BAC%
Standby Time	Approximately 35 s
Operating Temperature	0 to 50 °C
Admissible Humidity	≤ 93 %
Display	LCD
Kit Contents	Device, 2 AA batteries, 5 mouthpieces, user manual
Main Functions	Measurement of alcohol in exhaled air, light indicator (green/red), audible alarm, unit change
Care and Cleaning	Clean with a soft cloth and mild cleaner; do not use caustic cleaners
Safety	Recalibrate every 6 months or after 500 tests; do not drive after drinking
Warranty	60 months (subject to regular calibration)
Spare Parts and Repairability	Mouthpieces available; contact an authorized service center for repairs

Frequently Asked Questions - Spirit 2 Xblitz

How to turn on the Xblitz Spirit 2 device?

To turn on the device, press and hold the button for about 2 seconds. The device emits an audible signal, the LED lights up blue, and a countdown from 20 to 0 appears. Do not blow before the countdown ends.

What to do if the screen shows nothing?

First check that the batteries are correctly installed. If the problem persists, replace the batteries with new ones. If still nothing displays, contact an authorized service center.

How to change the measurement unit of the result?

After the measurement ends, press the button to scroll through available units (‰, mg/L, g/L, %BAC). Each press changes the unit.

When should the device be recalibrated?

It is recommended to recalibrate the device every 6 months or after 500 tests. Contact the distributor or an authorized service center to perform calibration.

What does the "Err" message on the screen mean?

The "Err" message indicates a sensor malfunction. In this case, the device turns off. Contact an authorized service center for repair.

What does the "rP" message mean?

The "rP" message means the breath was unstable or interrupted during measurement. Restart the test by blowing steadily and continuously.

How long should I wait after drinking before blowing?

For accurate measurement, wait 15 minutes after consuming alcohol before taking the test. This avoids residual alcohol in the mouth.

How to clean the device?

Use a soft cloth and a mild cleaning product to wipe the device. Never use caustic cleaners or hard utensils that could damage the casing.

What is the warranty of the Xblitz Spirit 2?

The device comes with a 60-month warranty. Note that the warranty is conditional on regular calibration (at least once a year) at an authorized service center.

Where to find the device serial number?

The serial number is located on the label of the device, usually on the back or under the battery cover. It is required for warranty claims.

USER MANUAL Spirit 2 Xblitz

PL

INSTRUKCJA OBSŁUGI

Szanowny Kliencie,

Thank you for choosing the Xblitz Spirit 2. The device you have purchased is a semiconductor breathalyser for measuring blood alcohol content from exhaled air. Please read the instructions below before use.

CAUTION: Do not allow yourself or anyone else to drive after drinking alcohol.

01. CONTENTS OF THE KIT

1. Breathalyser
2. AA battery x2
3. Mouthpiece x5
4. Operating instructions

02. DESCRIPTION OF THE DEVICE

SEE FIG. A

1. Mouthpiece hole
2. Indicator light
3. Display
4. Button
5. Air outlet
6. Ventilation opening
7. Label
8. Battery cover

03. DESCRIPTION OF THE DISPLAY

SEE FIG. B

1. Battery indicator
2. Test result, messages
3. Unit

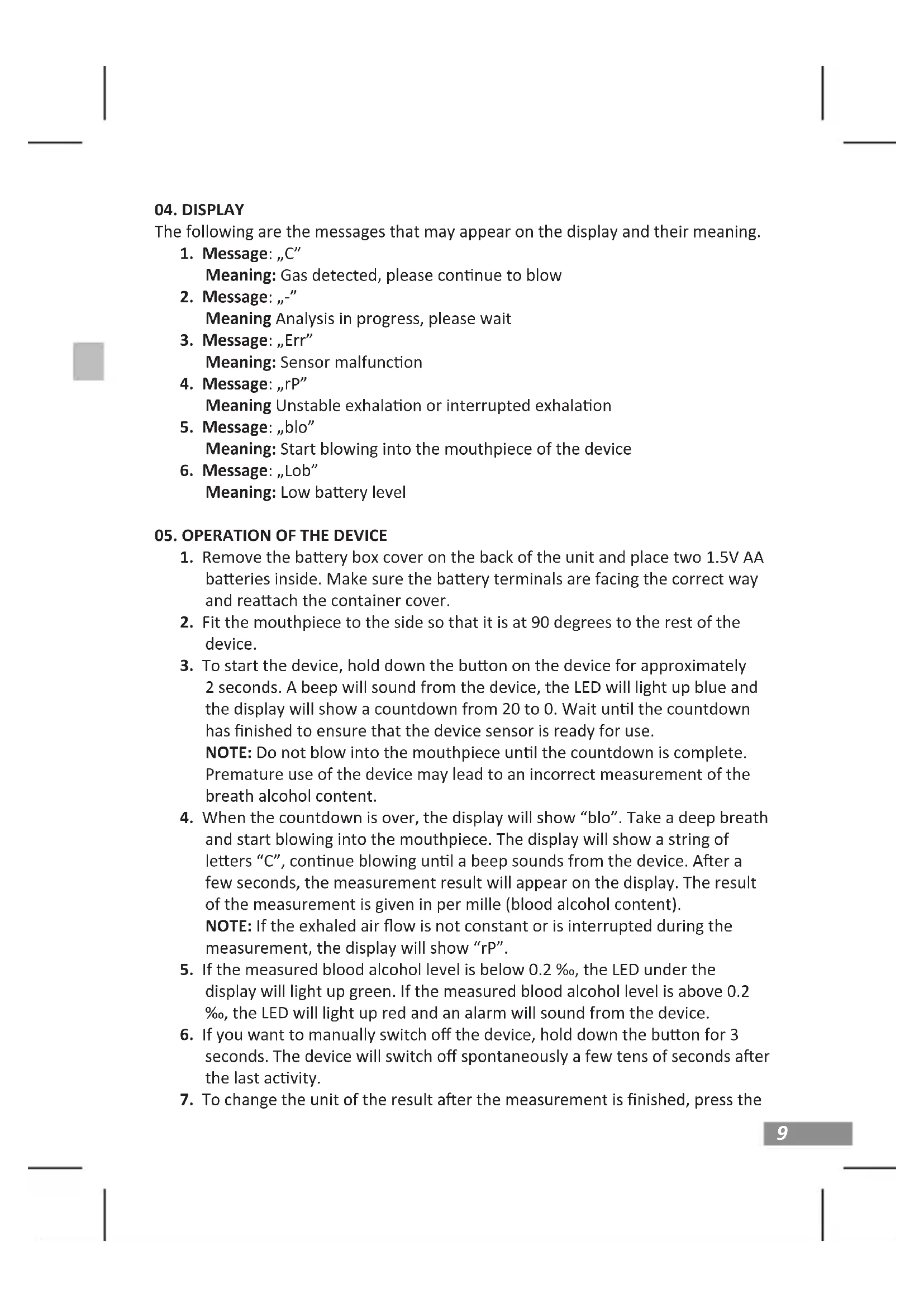

04. DISPLAY

The following are the messages that may appear on the display and their meaning.

1. Message: „C”
   Meaning: Gas detected, please continue to blow

2. Message: „-” Meaning Analysis in progress, please wait

3. Message: „Err" Meaning: Sensor malfunction

4. Message: „rP” Meaning Unstable exhalation or interrupted exhalation

5. Message: „blo” Meaning: Start blowing into the mouthpiece of the device

6. Message: „Lob" Meaning: Low battery level

1. Remove the battery box cover on the back of the unit and place two 1.5V AA batteries inside. Make sure the battery terminals are facing the correct way and reattach the container cover.
2. Fit the mouthpiece to the side so that it is at 90 degrees to the rest of the device.
3. To start the device, hold down the button on the device for approximately 2 seconds. A beep will sound from the device, the LED will light up blue and the display will show a countdown from 20 to 0. Wait until the countdown has finished to ensure that the device sensor is ready for use.

NOTE: Do not blow into the mouthpiece until the countdown is complete. Premature use of the device may lead to an incorrect measurement of the breath alcohol content.

1. When the countdown is over, the display will show "blo". Take a deep breath and start blowing into the mouthpiece. The display will show a string of letters "C", continue blowing until a beep sounds from the device. After a few seconds, the measurement result will appear on the display. The result of the measurement is given in per mille (blood alcohol content).

NOTE: If the exhaled air flow is not constant or is interrupted during the measurement, the display will show "rP".

1. If the measured blood alcohol level is below 0.2 ‰, the LED under the display will light up green. If the measured blood alcohol level is above 0.2 ‰, the LED will light up red and an alarm will sound from the device.
2. If you want to manually switch off the device, hold down the button for 3 seconds. The device will switch off spontaneously a few tens of seconds after the last activity.
3. To change the unit of the result after the measurement is finished, press the

key. Pressing the key switches to the next unit.

06. PRECAUTIONS

1. Do not drop the device or shake it violently.
2. Test results may be inaccurate when battery capacity is low.
3. To ensure the accuracy of the measurement, perform the test 15 minutes after drinking alcohol.
4. If the device has been left unused for a long time, the first measurement taken may be inaccurate.
5. If you want to perform multiple tests, wait at least 1 minute between tests.

6. Do not blow tobacco smoke, liquids or pieces of food into the device. This can permanently damage the sensors and lead to incorrect measurements.

7. If the device is dirty, use a gentle material to wipe it down. Do not use caustic cleaners or wire or hard cleaning utensils, they could damage the appliance casing. Do not use caustic cleaners or wire or hard cleaning tools, as these could damage the appliance.

8. The correlation between breath alcohol content and blood alcohol concentration depends on a number of variables, including environmental factors (such as wind, humidity, temperature, etc.) as well as the health of the person being tested.

9. The measurement results from this device do not constitute evidence in legal terms and cannot be used in court. The driver bears full responsibility for driving under the influence of alcohol.

10. The result of a test can vary depending on many factors. Getting a given test result one time does not mean that the result will be the same even a few minutes later.

11. Do not allow yourself or anyone else to drive after consuming alcohol. Always use a taxi or other vehicle driven by a sober person when you or someone else has consumed alcohol.

12. Under normal use, the device needs to be recalibrated approximately every 6 months or after 500 tests performed. For accurate measurement results, contact your device distributor or service centre and ask them to recalibrate the device's sensor.

07. FAQ

The following are the messages that may appear on the display and their meaning.

1. Error: Nothing is displayed on the screen.

Possible reason: Incorrectly installed batteries

Solution: Correctly insert the batteries in the device

Possible reason: Batteries close to discharge

Solution: Replace the batteries

Possible cause: Circuit failure

Solution: Contact an authorised service centre

1. Error: No response to air being blown in

Possible cause: Unheated sensor

Solution: Wait until the countdown on the display is over.

Possible cause: Circuit failure

Solution: Contact an authorised service centre

1. Error: "Err" message appears and the device switches off

Possible cause: Sensor malfunction

Solution: Contact an authorised service centre

1. Error: Unable to switch on the device

Possible reason: Discharged batteries

Solution: Replace the batteries

08. SPECIFICATION

Sensor type: Semiconductor

Measurement resolution: 0.01BAC%

Standby time: Approximately 35 s

Operating temperature: 0\~50 °C

Permissible air humidity: ≤ 93 %

Display: LCD

Batteries: 2x 1.5V AA

Dimensions: 124x44x19 mm

Weight: 49g (without battery)

Error range: ± 0.1‰ BAC for 0.5BAC‰

09. WARRANTY CARD

The product comes with a 60-month warranty. Warranty conditions can be found

Details, contact and address of the service can be found at: www.xblitz.pl

Serial number......

The guarantee is only valid if the device is regularly serviced and calibrated at an authorised service centre at least once a year. The device has been correctly calibrated since new. Every breathalyser offered on the market requires periodic calibration, i.e. every 12 months (every 6 months is recommended), the device must be configured so that it correctly interprets the amount of alcohol in the air exhaled. The need for recalibration is not a defect in the device and is not subject to warranty. A device that is not regularly calibrated will show erroneous results.

DE

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

Cher client,

The crossed out trash can symbol indicates that unusable electrical or electronic devices, its accessories (such as power supplies, cords) or components (for example batteries, if included) cannot be disposed of alongside with household waste. In order to dispose of the devices or its components (for example, batteries) deliver the device to the collection point, where it will be accepted free of Disposal is subject to the recast version of the WEEE Directive 19/ EU) and the Directive on batteries and accumulators (2006/66 / oper disposal of the device prevents degradation of the natural ment. Information about the collection points of the facilities is by the competent local authorities. Incorrect disposal of waste is to penalties provided for by the law in force in the given area.

DE

Seller's details: Calibration date:

Pure white background with no visible text, symbols, or objects

Xblitz®

Producent:

KGK TREND Sp. z o.o.

(dawniej KGK Trade Sp. z o.o. Sp. K.)

ul. Ujastek 5b, 31-752 Kraków, Polska.

Wyprodukowano w PRC

Manufacturer:

KGK TREND Sp. z o. o.

(formerly KGK Trade Sp. z o.o. Sp. K.)

st. Ujastek 5b, 31-752 Cracow, Poland.
