A11 - Vacuum Cleaner TINECO - Free user manual and instructions

Product Type	Cordless Vacuum Cleaner
Brand	Tineco
Model	A11
Rated Voltage	21.6 V
Power Input	450 W
Dustbin Capacity	0.6 L
Charging Time	3 to 4 hours
Runtime (Low Mode)	~35 min
Runtime (Medium Mode)	~19 min
Runtime (MAX Mode)	~12 min
Battery Type	Removable Lithium-ion
Filtration	Washable HEPA + Pre-filter + Mesh Filter
Included Accessories	Anti-tangle LED Power Brush, 2-in-1 Combination Brush, Soft Dusting Brush, Flexible Long Crevice Tool, LED Turbo Brush, Flexible Extension Tube, Pre-filter Cleaning Tool, Hair Cleaning Tool
Warranty	2-year Limited
Recommended Use	Indoor Only
Filter Maintenance	Clean after each use, wash pre-filter monthly, HEPA every 3 months
Safety	Blockage detection, auto shut-off, overheat protection
Repairability	Removable battery and brush roll, replaceable filters

Frequently Asked Questions - A11 TINECO

How to charge the battery of the Tineco A11 vacuum?

Plug the adapter into the wall dock and an outlet. Attach the main body and/or spare battery to the dock to charge. Charging time is about 3 to 4 hours.

What to do if the vacuum won't turn on?

Check that the battery is charged. If the red light flashes, the battery may be overheated or the unit blocked. Let it cool down or clear obstructions.

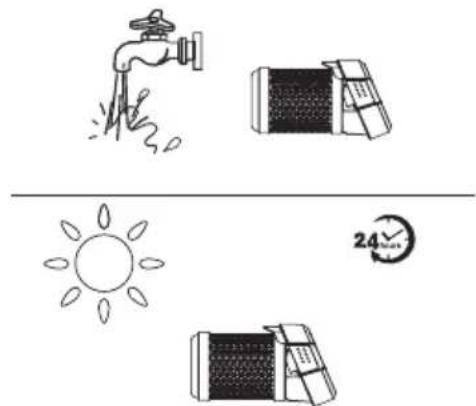

How to clean the dustbin and filters?

Press the release button to remove the dustbin. Wash the dustbin and mesh filter under cold water. Clean the pre-filter with the provided tool. The HEPA filter can be washed with water. Dry completely before reassembling.

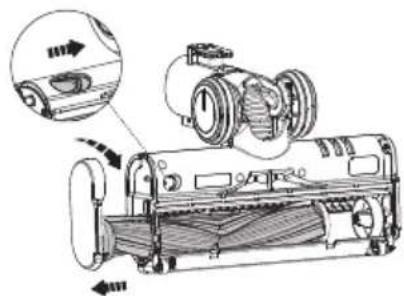

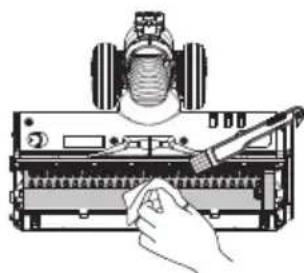

How to change the brush roll?

Open the end cover by sliding the button, rotate clockwise to remove the brush roll. Clean it and replace by rotating counterclockwise.

What accessories are included with the Tineco A11?

The included accessories are: Anti-tangle LED Power Brush, 2-in-1 Combination Brush, Soft Dusting Brush, Flexible Long Crevice Tool, LED Turbo Brush, Flexible Extension Tube, Pre-filter Cleaning Tool and Hair Cleaning Tool.

Why is the vacuum making an abnormal noise?

Check if the tube, suction inlet, or other parts are blocked. Clear any obstructions.

What does the flashing pink light mean?

This indicates that the filters or suction inlet are blocked. Clean the filters or remove the obstruction.

Can I use the vacuum to pick up liquids?

No, do not use this appliance to pick up combustible or flammable liquids. It is designed for dry indoor use only.

How to maintain the battery during long periods of non-use?

Store the lithium battery in a cool, dry place. Ensure it is half charged (2 lights on in normal mode) every 3 months.

What is the warranty for the Tineco A11?

A 2-year limited warranty against material and workmanship defects for household use. Motorized accessories and separate batteries have 1 year.

USER MANUAL A11 TINECO

Stick Vacuum Cleaner

Instruction Manual

Manual De Uso

Mode D'emploi

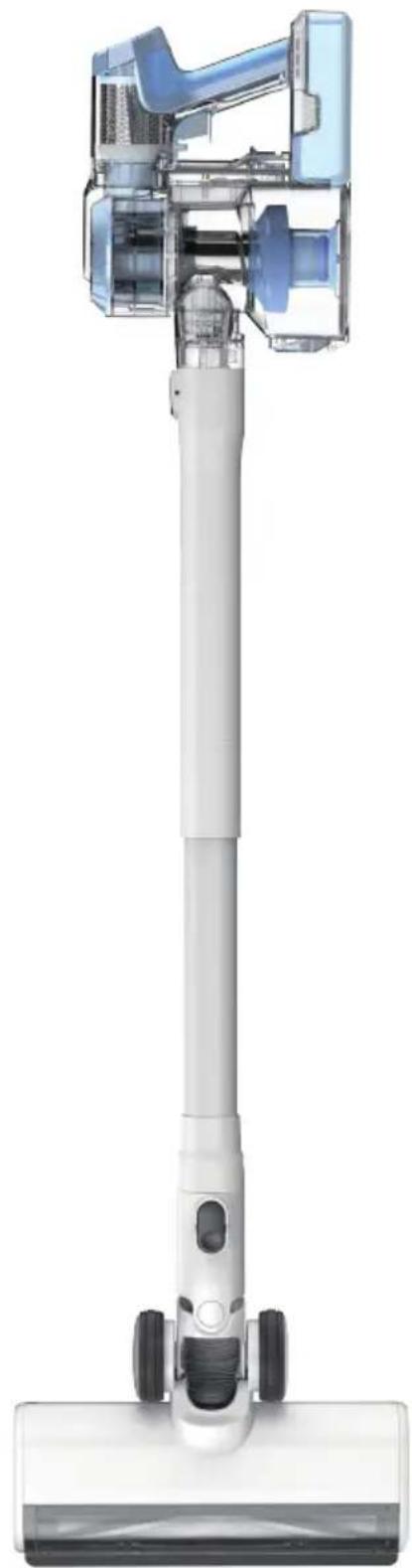

Exterior view of a white vacuum cleaner with blue internal components (no text or symbols visible)

*Actual product may differ from illustration.

CONTENTS

Important Safety Instructions....2

Specifications 4

Overview....5

Accessories....6

Assembly 8

Operation 10

Maintenance 13

Troubleshooting....16

Warranty 17

Important Safety Instructions

SAVE THESE INSTRUCTIONS

Household use only.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING – To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
3. For INDOOR use ONLY. Do not use the appliance outdoors, nor in commercial or industrial environments. Do not use the appliance on wet surfaces or surfaces with standing water.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
5. Use only as described in this manual. Use only manufacturer's recommended attachments.
6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
7. Do not handle charger, including charger plug, and charger terminals with wet hands.
8. Do not put any object into openings. Do not use with any openings blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
9. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
13. Do not use without a filter.
14. Prevent unintentional activation. Ensure the switch is in the off position before connecting to the battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or powering on the appliance with the switch on may cause accidents.
15. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, storing the appliance. Such preventive safety measures reduce

the risk of starting the appliance accidentally.

1. For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.
2. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and re.
3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.
4. Under improper usage, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.
5. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.
6. Do not expose a battery pack or appliance to re or excessive heat. Exposure to re or temperatures above 266^ F ( 130^ C) may cause an explosion.
7. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of re.
8. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
9. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
10. Always turn off this appliance before connecting or disconnecting the motorized nozzle.
11. Do not charge or store the appliance outdoors or inside a car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2^ F ( 4^ C) but lower than 104^ F ( 40^ C). The charger is for indoor use only.

This appliance complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This appliance may not cause harmful interference, and (2) this appliance must accept any interference received, including interference that may cause undesired operation.

Tineco INTELLIGENT, INC.

1700 WESTLAKE AVENUE N., SUITE 200, SEATTLE, WA, 98109, USA

WWW.TINECO.COM

1-855-292-8864

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital appliance, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
(4) Consult the dealer or an experienced radio/TV technician for help.

Specifications

Product A11 Series
Voltage 21.6V	==
Rated Power 450W
Dustbin Capacity 0.6L
Charging Time (One battery)	3-4 hrs
AC Input 100-240V~

Disposal

• The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded.
• When removing the battery, the appliance must be powered off.
• Batteries, chargers, accessories and packaging should be sorted for environmental friendly recycling. Do not put them into fire, water or soil. Do not dispose of batteries and chargers into household waste!
• If battery leakage contacts skin or clothing, immediately flush with water to avoid irritation and seek medical help.

Overview

Technical line drawing of a mechanical device with no visible text or symbols

ABCDEFGHIJKLMNOPQRSTUVWXYZ

A. Low-Med-Max indicator
B. Dust empty release button
C. Dustbin
D. Trigger lock
E. Trigger
F. Mode switch button

G. Dustbin release button
H. Battery release button

I. HEPA release button
J. Battery indicator light
K. Rubber handle
L. Battery pack

Accessories

Z

Note:

• Test an accessory on a small, inconspicuous area before use on sensitive surfaces.
• To identify what should be included with your purchase, please refer to the "Included Accessories" located on the packaging box.
• As shown below, there are many components compatible with this model. If you require more accessories, please go to www.tineco.com or store.tineco.com.

Pure mechanical diagram showing a lever and base structure without any text, numbers, or symbols

Anti-tangle LED power brush

Ideal for both hard floors and carpets. Picks up ground-in dirt with no hair wrap.

Technical line drawing of a mechanical component or bracket (no text or symbols)

Mini power brush

For vacuuming upholstered furniture, mattresses, etc. Vacuums pet hair and removes ingrained dirt.

Line drawing of a handheld device with a bulb and handle (no text or symbols)

2-in-1 dusting brush

Switches between a wide and a soft brush by pressing the release button. The soft brush is most effective on hard-surface furniture while the wide brush is effective for upholstered furniture, curtains, etc.

Line drawing of a cylindrical mechanical component with a flanged end (no text or symbols)

Crevice tool

For corners, nooks, and other hard-to-reach places such as around car seats, picture frames, and cupboards.

Line drawing of a cleaning brush with bristles (no text or symbols)

Soft dusting brush

Angled bristles on a slender, oval-shaped rim provide anti-static, cushioned contact. Suitable for dusting shelves, lighting, delicate surfaces, electronics and more.

Technical line drawing of a mechanical component with threaded ends and a central shaft (no text or symbols)

Flexible long crevice tool

Easy to bend, easy to reach tight spots. Suitable for cleaning dust behind and beneath furniture, around refrigerators, and many other tight gaps.

Technical line drawing of a mechanical component with no visible text or symbols

Full-size LED soft-roller power brush

Perfect for hard oors, especially sensitive wood oor. Picks up coarse and ne dirt at the same time.

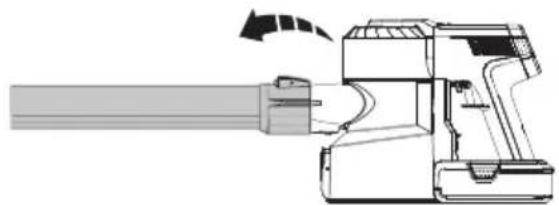

Multi-angle folding tube

An articulated joint makes it adjustable to allow for exibility when cleaning from high to low.

Simple black cylindrical object with a protruding rod and two side connectors (no text or symbols)

Flexible extension hose

Excellent extension and exibility to access hard-to-reach spaces; perfect for in-care use. Compatible with all non-motorized Tineco accessories.

Pre-Iter cleaning tool

A dirty - lter is a leading cause of suction loss, and this tool is designed to make your - lter last much longer. Place the dirty - lter inside the pre- - lter cleaning tool and close the lid. Run the appliance in MAX mode, and rotate the side cover.

Hair cleaning tool

Use the end with the small blade to remove hair and debris wrapped around the roller.

Use the end with the brush to clean the brush window, and the dustbin, as required.

Assembly

Tube Installation

Pure mechanical assembly diagram showing a shaft and housing with no text or symbols

Technical line drawing of a mechanical shaft or tool component (no text or symbols)

Insert tube.

Technical line drawing of a mechanical device with an arrow indicating process (no text or symbols present)

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

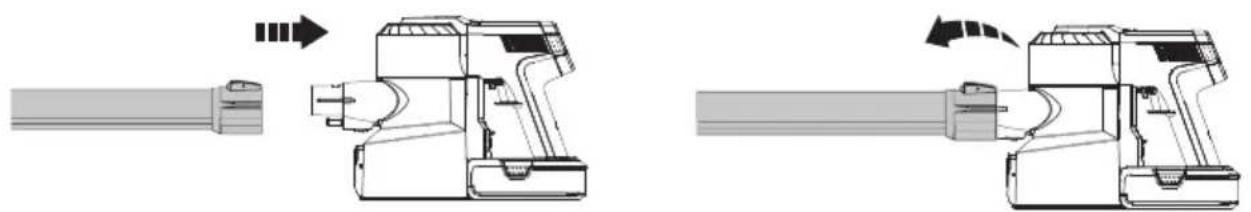

Insert to the main body. Press the release button to remove the tube.

Brush Installation

Diagram of a mechanical assembly with a shaft and connector, showing motion direction (no text or symbols)

Diagram of a mechanical assembly with a lever and adjustment mechanism (no text or symbols)

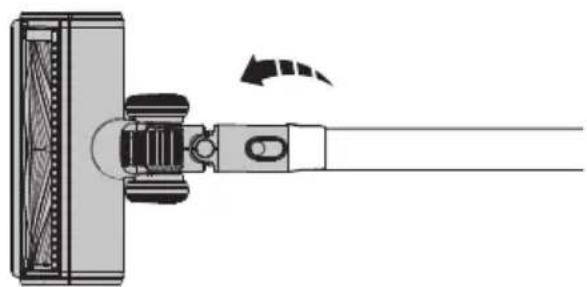

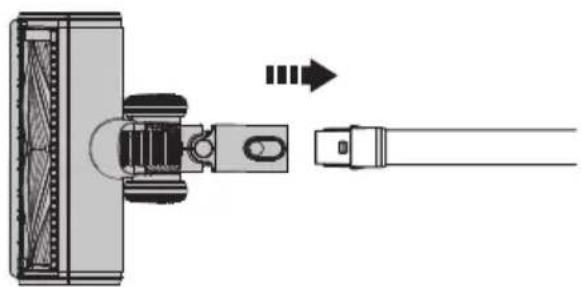

Insert the power brush. Press the release button to remove the power brush.

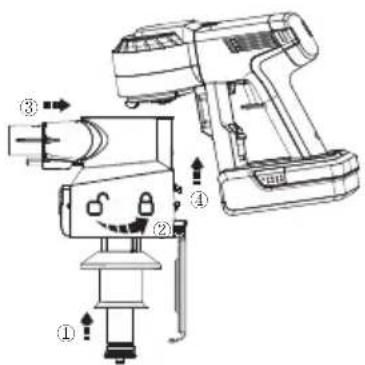

Dustbin Installation

Technical line drawing of a handheld electronic device with internal components and directional arrows indicating motion (no text or symbols)

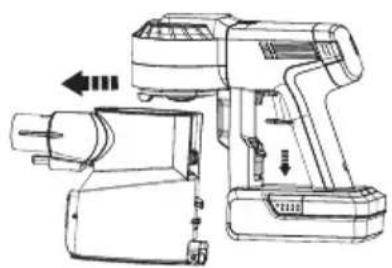

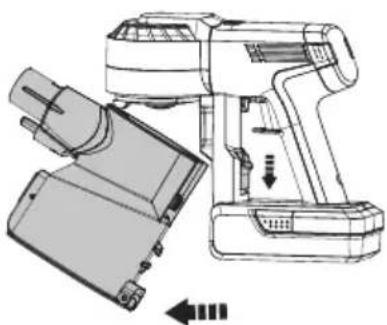

To clean the dustbin more thoroughly, press the dustbin release button to detach from the appliance.

Technical line drawing of a handheld electronic device with internal components and directional arrows (no text or symbols)

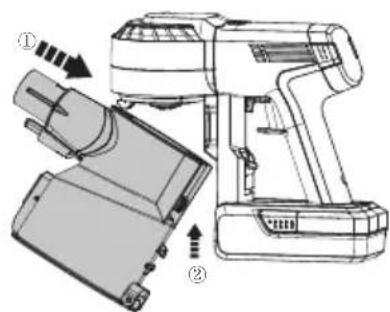

When re-attaching the dustbin, hold on an angle and slot the top of the dustbin into the hook on the main body. Push upwards until the hook is fixed into the slot on the dustbin and then it clicks back into place.

Battery Installation

Technical line drawing of a mechanical device with no visible text or symbols

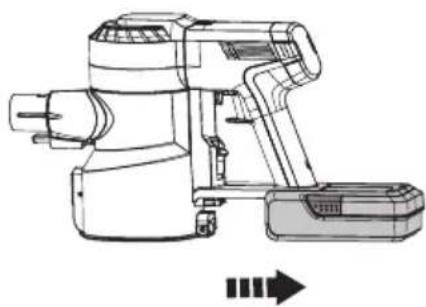

Press the battery release button, and remove the battery.

Technical line drawing of a mechanical device with a base and internal components, showing no text or symbols.

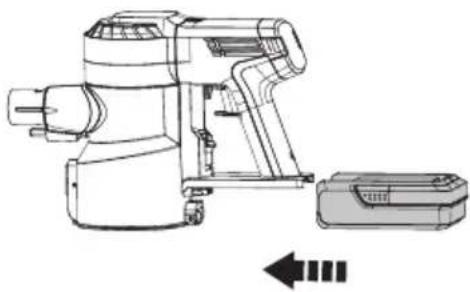

To replace, slide the battery into the slot at the base of the main body. The battery will click into position when correctly fitted.

Wall-mounted Dock Installation

47.25" (120cm)

Determine the best wall location for mounting the dock. We recommend placing it 47.25" (120cm) from the lower screw hole to the floor (may need to be adjusted based on the actual situation).

click

Assemble the two bracket components, with a "click" to signify correct assembly. Once this is complete, use the screws provided by Tineco to affix the dock to the wall.

Warning:

• Ensure the wall surrounding the mounting area is free of gas, water pipes, electrical cables and wires.
  • To avoid the dock falling, ensure it is firmly installed.

Operation

Preparing for Use

Note:

• Before the first use, please charge the appliance (see "Charging the Battery") for 3-4 hours in an area where the ambient temperature is between 39.2^ (4^) and 104^ (40^) .
• Select an accessory and attach it to the appliance before use (see "Accessories").

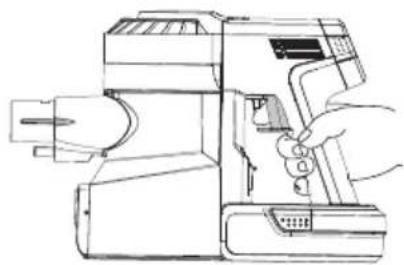

Line drawing of a mechanical device with hands operating it (no text or symbols)

Pull the trigger to activate the suction. Pull the trigger lock to hold the trigger for continuous power mode.

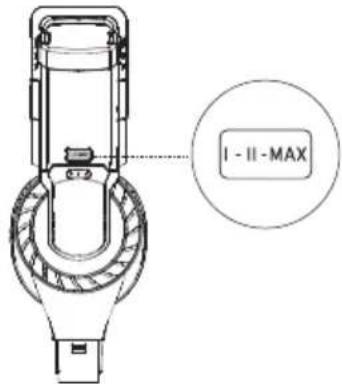

I - II - MAX

Press to enter Medium mode, and press it again to enter MAX mode. From MAX mode, press to return to Low mode.

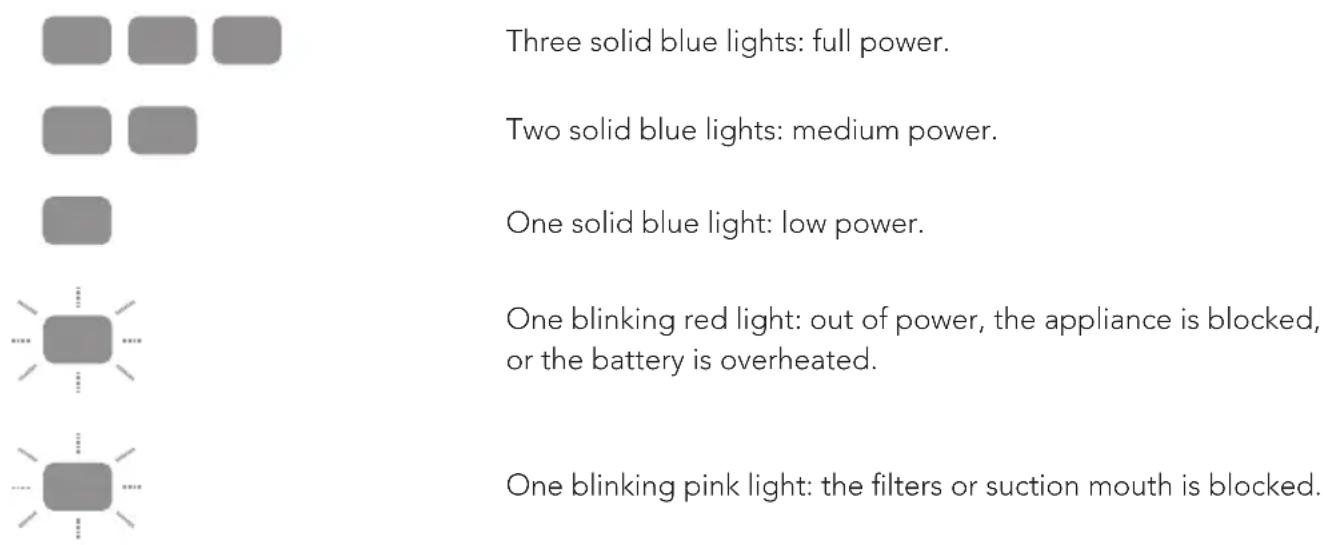

Low mode: one indicator light illuminated Medium mode: two indicator lights illuminated MAX mode: all indicator lights illuminated

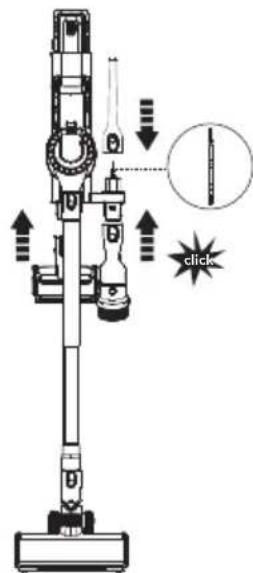

- Place the appliance on the wall-mounted dock for convenient storage and recharging after use.

Technical diagram of a mechanical device with numbered parts and directional arrows indicating motion or force

Technical diagram of a mechanical device with labeled components and directional arrows, including a 'click' annotation.

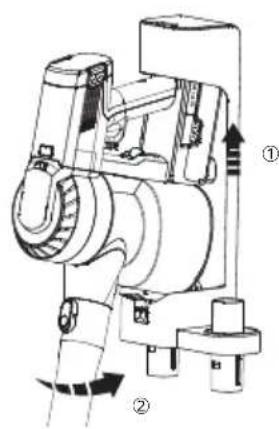

Place the main body on the dock. To avoid bristle damage, always place attachments on the dock after use.

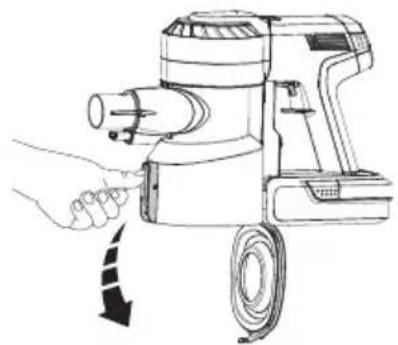

Emptying the Dustbin

Line drawing of a hand operating a handheld electric shaver with a black arrow indicating motion (no text or symbols)

Press the release button on the side of the dustbin to empty the contents.

Line drawing of a hand holding a device with an arrow indicating motion (no text or symbols)

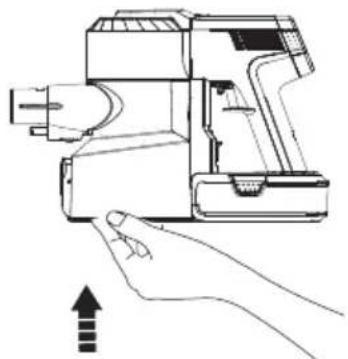

Close and click the dustbin flap back into place.

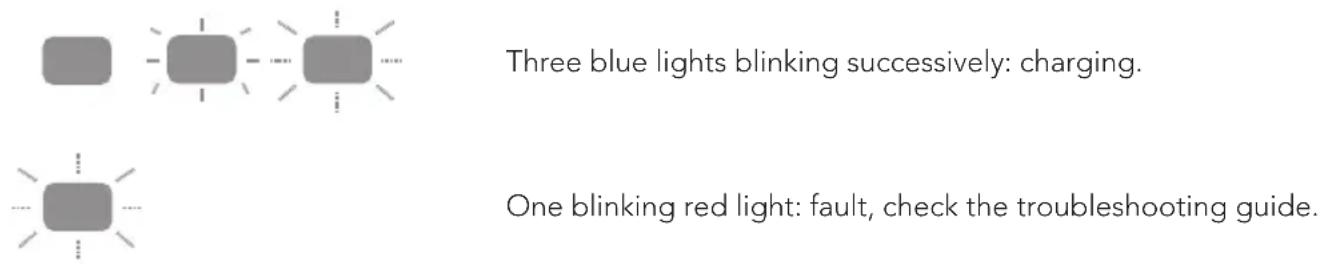

Charging the Battery

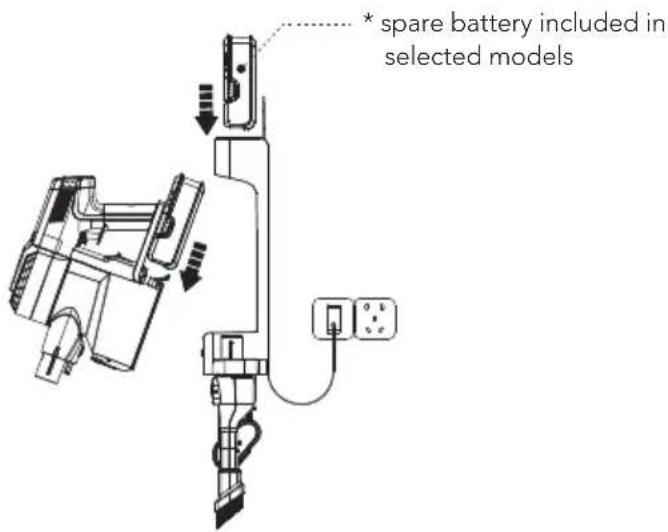

- When secured on the wall-mounted dock, the battery attached to the main body will charge first, followed by the spare battery.

* spare battery included in selected models

Diagram of a laboratory apparatus with labeled components and an inset showing electrical connections and wiring setup.

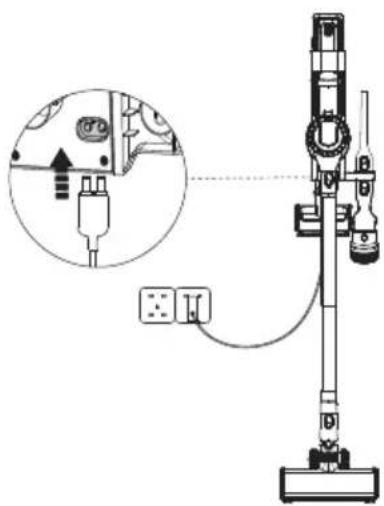

Connect the adaptor to the dock and outlet.

To charge, secure the main body and/or the spare battery on the dock. The battery can be recharged while attached to the main body, or separately.

Warning:

• Only use the Tineco-provided adapter to charge the battery.
• During long periods of not being used, store the lithium battery in a cool, dry place. Ensure the battery is half-charged every 3 months (2 battery indicators glow on regular mode).
• Store appropriately indoors in a dry place. Do not expose appliance to sunlight or freezing temperature. Recommended temperature range: 39.2°F (4°C)\~104°F (40°C).

Runtime

• Low/Med/MAX mode: \~35 mins/19 mins/12 mins
  *Actual runtime depends on the quantity and capacity of the battery.
• Estimated runtime data was obtained by a Tineco Laboratory using one battery and non-motorized accessories.

Charging Time

• A full charge takes approximately 3-4 hours for one battery.
• Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2^ (4^) to 104^ (40^) .

Indicator

When in Use

Three solid blue lights: full power. Two solid blue lights: medium power. One solid blue light: low power. One blinking red light: out of power, the appliance is blocked, or the battery is overheated. One blinking pink light: the filters or suction mouth is blocked.

During Charging

Three blue lights blinking successively: charging. One blinking red light: fault, check the troubleshooting guide.

Fully Charged

Three gray rounded rectangles above three empty rounded rectangles (no text or symbols)

In 5 minutes: three solid blue lights.

After 5 minutes: lights off.

Maintenance

Note:

• Clean the dustbin and filters after each use.
• Use the cleaning tool to thoroughly clean the pre-filter when pink light blinking. To maintain high performance, wash and dry the pre-filter monthly, replacing it every 6 months. Wash and dry the HEPA filter every 3 months, replacing it every 12 months.

Dustbin and Mesh Filter

1

Technical line drawing of a handheld device with internal components and directional arrows (no text or symbols)

Press the dustbin release button to remove the dustbin.

2

Line drawing of hands operating a handheld device (no text or symbols visible)

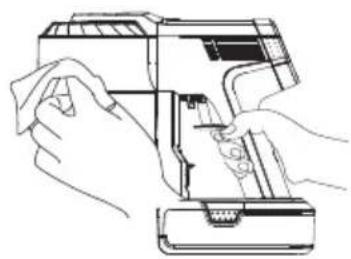

Clean with a damp cloth, taking care to prevent water entering the appliance main body and battery.

3

Mesh filter Pre-filter

Turn counter-clockwise to remove the filters.

4

Diagram showing bathroom fixtures including a faucet, toilet, sun, and alarm clock with time and duration labels

Clean the dustbin and mesh filter under cold running water. Air dry completely before reinstalling.

5

Technical diagram of a handheld device with numbered components and directional arrows indicating motion or assembly.

After cleaning, insert the clean pre-filter into the mesh filter properly and it clicks into place. Install the clean filter and dustbin back into the main body, then close the dustbin flap.

Pre-filter

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Ensure the appliance is switched off before cleaning, and remove the dirty pre-filter from the mesh filter-holder.

Diagram of a mechanical device with crossed-out section and upward arrow, no text or symbols present

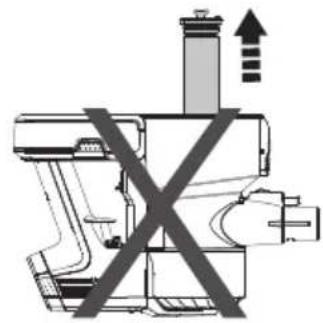

Do not turn the appliance upside down when removing or installing the filter to prevent dust from entering the motor.

Technical illustration of a hand tool and its internal components, showing motion and assembly (no text or symbols)

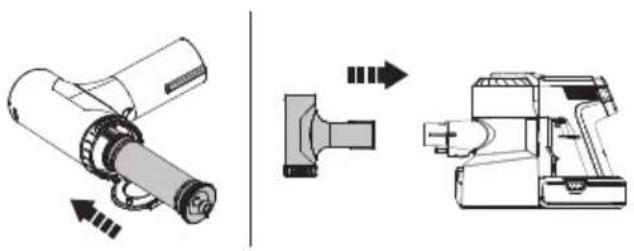

Replace a clean filter to the main body. Put the dirty pre-filter into the cleaning tool and connect the cleaning tool to the main body.

Line drawing of a hand operating a handheld device with a circular dial (no text or symbols)

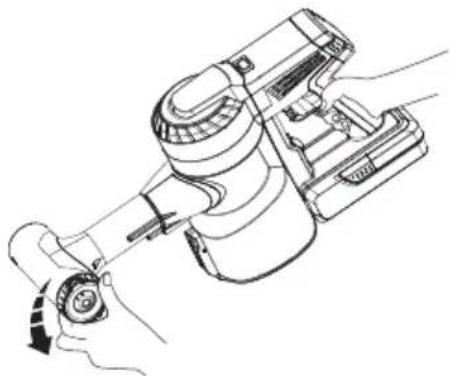

Run the appliance in MAX mode, and rotate the side cover to clean the dirty pre-filter.

HEPA Filter

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

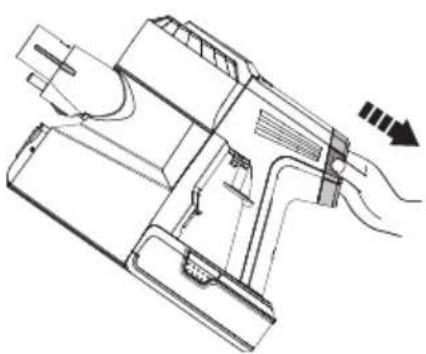

Press the HEPA release button and gently remove for cleaning. Do not use the appliance without first installing the HEPA filter.

Technical line drawing of a mechanical device with no visible text or symbols

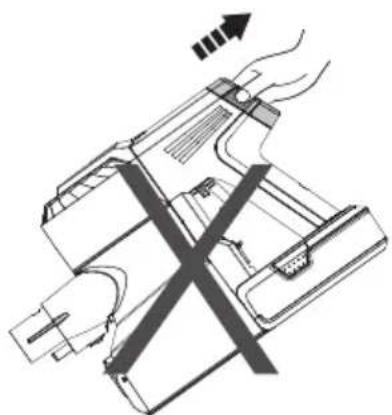

Do not place the appliance in the direction as above when removing or installing the HEPA filter, to prevent dust from entering the motor.

Illustration showing a faucet, eraser, sun, and recycling can with a 24-hour clock symbol

The HEPA filter can be washed under running water and must be completely dry before reinstalling.

Brush Roller

Technical illustration of a robotic device with internal components and directional arrows indicating motion (no text or symbols)

Slide the switch to open the brush roller end cover, and rotate it clockwise to be able to pull out the brush roller.

Technical line drawing of a mechanical device with gears and housing (no text or symbols)

Fully reinsert the brush roller into the brush window and the end cover can be rotated counter-clockwise until it clicks securely back into place.

Warning:

The power brush contains electrical components which must not be soaked or washed with water.

Illustration of a hand using a tool to press or adjust a mechanical component (no text or symbols visible)

After removing the brush roller, gently clean the brush window, suction mouth and the row of plastic teeth.

Troubleshooting

Problem Possible cause Solution
The appliance does not turn on	No power Charge the battery
	The suction mouth is blocked Check and remove blockages
Weak suction power	Dustbin and filters are full Clean the dustbin and filters
	The pre-filter is not installed Install the pre-filter
	The appliance is blocked (i.e. the tube, suction mouth or some other parts)	Remove blockages
	The brush roller tangled with hairs or fibers	Clean the brush roller
Abnormal motor sounds	The appliance is blocked (i.e. the tube, suction mouth or some other parts)	Remove blockages
Battery won’t charge	The battery is not correctly installed	Remove the battery and re-insert
Red light blinking, main body continues working while the brush stops	The brush is blocked	Stop the appliance and clean the brush roller
One blinking red light	Out of power, the battery is overheated, or the appliance is blocked	Charge the battery, cool the battery, or remove blockages
One blinking pink light	The filters or the suction mouth is blocked	Clean filters or remove blockages

Note:

If the above troubleshooting guide fails to provide a solution, please visit our website

www.tineco.com for further support.

Warranty

2-YEAR LIMITED WARRANTY

• Only applies to purchases made from authorized retailers of Tineco.
• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.

WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories and battery bought separately come with a 1-year warranty.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.
• This warranty will only be valid if the appliance is used in the country in which it was sold.

WHAT IS NOT COVERED?

Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.
• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.

- Use of parts not in accordance with the Tineco Instruction Manual.

- Use of parts and accessories other than those produced or recommended by Tineco.

- External factors unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges or acts of God.

• Repairs or alterations carried out by unauthorized parties or agents.

- Failing to clear blockage and other hazardous material from the appliance.

- Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer's instructions or failure to turn the brush bar off when necessary.

- Reduction in battery discharge time due to battery age or use.

WARRANTY LIMITATIONS

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of tness for a particular purpose, are limited to the duration of this warranty.
• Warranty coverage applies to the original owner and to the original battery only and is not transferable.
• This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
• Manufacturer's warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from.
  Please review the warranty carefully, and contact the manufacturer if you have any questions.

WARRANTY SERVICE

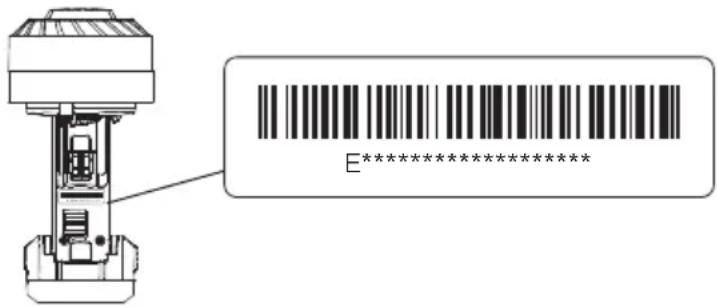

Register: We highly recommend that upon purchase, you register your appliance on the Tineco of cial website (www.tineco.com) and enjoy exclusive bene ts. To register, please enter the whole serial number (remove the dustbin to nd the serial number).

Failure to register your product won't diminish your warranty rights.

E*****************

How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.

All work will be carried out by Tineco or an authorized agent.

Any replaced defective parts will become the property of Tineco.

Service under this warranty will not extend the period of this warranty.

Contact our Customer Service

Hotline: [phone]

or Visit Tineco website

www.tineco.com

for expert customer service.

CONTENIDO

Technical line drawing of a mechanical device with no visible text or symbols

ABCDEFGHIJKLMNOPQRSTUVWXYZ

Pure mechanical diagram showing a lever and base plate without any text, numbers, or symbols

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a handheld device with a bulb and handle (no text or symbols)

Line drawing of a cylindrical mechanical component with a flanged end (no text or symbols)

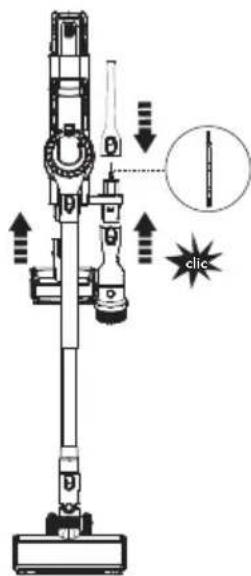

Boquilla para ranuras

Line drawing of a cleaning brush with bristles (no text or symbols)

Technical line drawing of a mechanical shaft or lever (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Simple black cylindrical object with two side protrusions and a central hole, no text or symbols visible.

Technical line drawing of a mechanical component with two views and an arrow indicating transformation (no text or symbols)

Inserte el tubo.

Technical line drawing of a mechanical device showing assembly steps (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating motion (no text or symbols)

Technical line drawing of a handheld device with internal components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a handheld device with two labeled parts (① and ②), showing internal components without any text or symbols.

Technical line drawing of a handheld device with no visible text or symbols

Technical line drawing of a portable air purifier with a separate device and directional arrow (no text or symbols)

Technical line drawing of a mechanical clamp or clamping device with no visible text or symbols

Line drawing of a mechanical device with hands operating it (no text or symbols)

I - II - MAX

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical device with labeled components and directional arrows, including a circle and starburst symbol.

Line drawing of a hand operating a handheld electric shaver with a black arrow indicating motion (no text or symbols)

Line drawing of a hand holding a handheld device with an upward arrow indicating motion (no text or symbols)

Diagram of a laboratory apparatus with a magnified inset showing internal components (no text or labels)

Abstract diagram with three gray rounded rectangles connected by lines, no text or symbols present

Tres luces azules parpadean sucesivamente: cargando.

Technical line drawing of a handheld device with internal components and directional arrows indicating motion (no text or symbols)

Line drawing of hands operating a handheld device (no text or symbols visible)

Diagram showing bathroom fixtures including faucet, toilet, lamp, and alarm clock with sun and timer, alongside a separate view of a mirror device.

Technical diagram of a handheld device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical device with crossed-out section and upward arrow, no readable text or symbols

Technical illustration of a handheld device with directional arrows indicating motion or assembly (no text or symbols present)

Line drawing of a hand operating a vacuum cleaner device with a rotary knob (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Illustration showing a faucet, water drop, and recycling with a 24-hour clock symbol

Technical diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with wheels and a base plate (no text or symbols)

Illustration of a hand using a tool to press or install electronic components on a device (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

ABCDEFGHIJKLMNOPQRSTUVWXYZ

A. Voyant Faible-Moy-Max

Pure mechanical diagram showing a lever and base structure without any text, numbers, or symbols

Line drawing of a mechanical component with a handle and base (no text or symbols)

Mini brosse turbo

Line drawing of a handheld device with a bulb and handle (no text or symbols)

Line drawing of a cylindrical tool with a flanged tip and handle (no text or symbols)

Suceur plat

Line drawing of a cleaning brush with bristles and handle (no text or symbols)

Tube flexible multi-angle

Pure mechanical component diagram showing a shaft and housing with no text or symbols

Technical line drawing of a mechanical component (no text or symbols)

Insérez le tube.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with a shaft and connector, showing internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and adjustment mechanism (no text or symbols)

Technical line drawing of a handheld electronic device with internal components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a handheld device with two labeled parts (① and ②), showing internal components without any text or symbols.

Line drawing of a handheld electronic device with ports and connectors, showing internal components and an arrow indicating direction (no text or symbols present)

Technical line drawing of a handheld device with a separate base and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with directional arrows and a labeled click point (no text or symbols beyond the label)

Line drawing of a mechanical device with hands operating it (no text or symbols)

I - II - MAX

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or force

Technical diagram of a mechanical device with labeled components and directional arrows, including a click symbol and an inset showing a vertical line.

Line drawing of a hand operating a handheld electric shaver with a black arrow indicating motion (no text or symbols)

Line drawing of a hand holding a handheld device with an upward arrow indicating motion (no text or symbols)

Diagram of a laboratory apparatus with labeled components and an inset showing a device connected to a plug, including a close-up view of the component.

Abstract diagram with three gray rounded rectangles connected by lines, no text or symbols present

Line drawing of a handheld device with internal components and directional arrows indicating motion (no text or symbols)

Line drawing of hands operating a handheld device (no text or symbols visible)

Diagram showing bathroom fixtures including faucet, toilet, lamp, and alarm clock with time and duration labels

Technical diagram of a handheld device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical device with crossed-out section and upward arrow, no readable text or symbols

Technical illustration of a handheld device with directional arrows indicating motion (no text or symbols)

Line drawing of a hand holding a small mechanical device with a tool, no text or symbols present

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Diagram of a vehicle fuel system with no visible text or symbols

Illustration showing a faucet, water drop, sun, and recycling bin with a 24-hour clock icon

Technical diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with gears and housing (no text or symbols)

Illustration of a hand using a tool to press or install electronic components (no text or symbols visible)

tinecoglobal
