ICONIC²³ - Slicer GRAEF - Free user manual and instructions

Product type	Universal slicer
Brand	Graef
Model	ICONIC²³
Blade material	Stainless steel (cleaning recommendation to avoid rust)
Cut thickness adjustment	Yes, via adjustment knob
Switch types	Instant switch and continuous switch
Combined riser	Yes, with MiniSlice function, food press and support
Blade drawer	Yes, with child safety (two locking buttons)
Child protection	Yes, carriage lock and safety shutter
Carriage lock	Yes, to secure the blade in closed position
Blade cover plate	Removable for cleaning, removed by turning 45°
Removable cutting board	Yes
Dip bowls	Yes
Compatible foods	Bread, ham, sausage, cheese, fruits, vegetables (no frozen or hard foods)
Intermittent duty	10 minutes of operation, then 1 hour of cooling
Cleaning	Exterior surface with damp cloth; blade and carriage by hand (not dishwasher-safe)
Carriage maintenance	A few drops of resin-free oil on the guide once a month
Blade removal	Possible for interior cleaning; handle with care
Warranty	5 years (60 months) subject to proper use
Included accessories	Combined riser, blade drawer, cutting board, dip bowls

Frequently Asked Questions - ICONIC²³ GRAEF

How to use the MiniSlice function?

Place the combined riser on the back of the carriage and firmly turn the locking lever. Place the food (e.g., cucumbers, carrots) in the compartment. Adjust the cut thickness, place a container under the blade, then guide the carriage against the blade while holding the instant switch or engaging continuous mode.

How to activate child protection?

Close the stop plate to the "0" position, push the carriage in front of the blade and press the carriage lock. Turn the adjustment knob beyond zero to the stop, then push the safety shutter outward. The adjustment knob and switch are thus locked.

What types of food can I slice?

You can slice bread, ham, sausage, cheese, fruits and vegetables. Do not cut frozen foods, bones, wood, metal or other hard objects.

How to clean the blade?

Clean the blade immediately after use with a damp cloth and a little dish soap. For deep cleaning, unscrew the blade (turn the protective plate 45°, then the blade lock 90°). Clean the interior with a damp cloth. Do not put the blade in the dishwasher.

How to remove the carriage?

Remove the carriage lock on the right side, pull the carriage backward and then lift it off. Clean it by hand under running water; do not put it in the dishwasher.

What is the permitted continuous operating time?

After 10 minutes of continuous operation, let the motor cool for 1 hour before using the appliance again.

How to maintain the carriage guide?

Apply a few drops of resin-free oil or vaseline to the guide once a month. Remove residue with a soft cotton cloth.

Can I wash the accessories in the dishwasher?

No. The combined riser may discolor in the dishwasher; it is recommended to clean it by hand. The blade drawer should not be put in the dishwasher; clean it with a damp cloth. The carriage also by hand.

What to do in case of breakdown or need for spare parts?

Contact Graef customer service at 02932-9703677 or by email at [e-mail]. Repairs must be carried out by an approved professional to preserve the warranty.

What is the warranty of the appliance?

Graef offers an additional warranty of 5 years (60 months) from the date of purchase. It covers manufacturing defects but not damages due to improper use or repairs by unauthorized third parties.

USER MANUAL ICONIC²³ GRAEF

3D rendering of a GRAEF microscope device with no visible text or symbols on the device itself

DE

Bedienungsanleitung

EN

Operating Instructions

FR

VORWORT

Product illustration....4

Product description....5

Preface....6

Information on these operating instructions....6

Warning messages....6

General safety instructions....7

Danger caused by electric current....9

Intended use....9

Limitation of liability....10

After-sales service 10

Unpacking 10

Disposal of the packaging....11

Disposal of the unit....11

Requirements on the installation location 11

Electrical connection 11

Sources of danger 12

Child protection....12

Short-time service 12

Slicing material 12

Start-up 12

Combination attachment as MiniSlice 13

Child protection....13

Knife drawer....14

Cleaning 14

Ensure value preservation of the blade 14

Blade removable....14

Slide 15

5-year guarantee....15

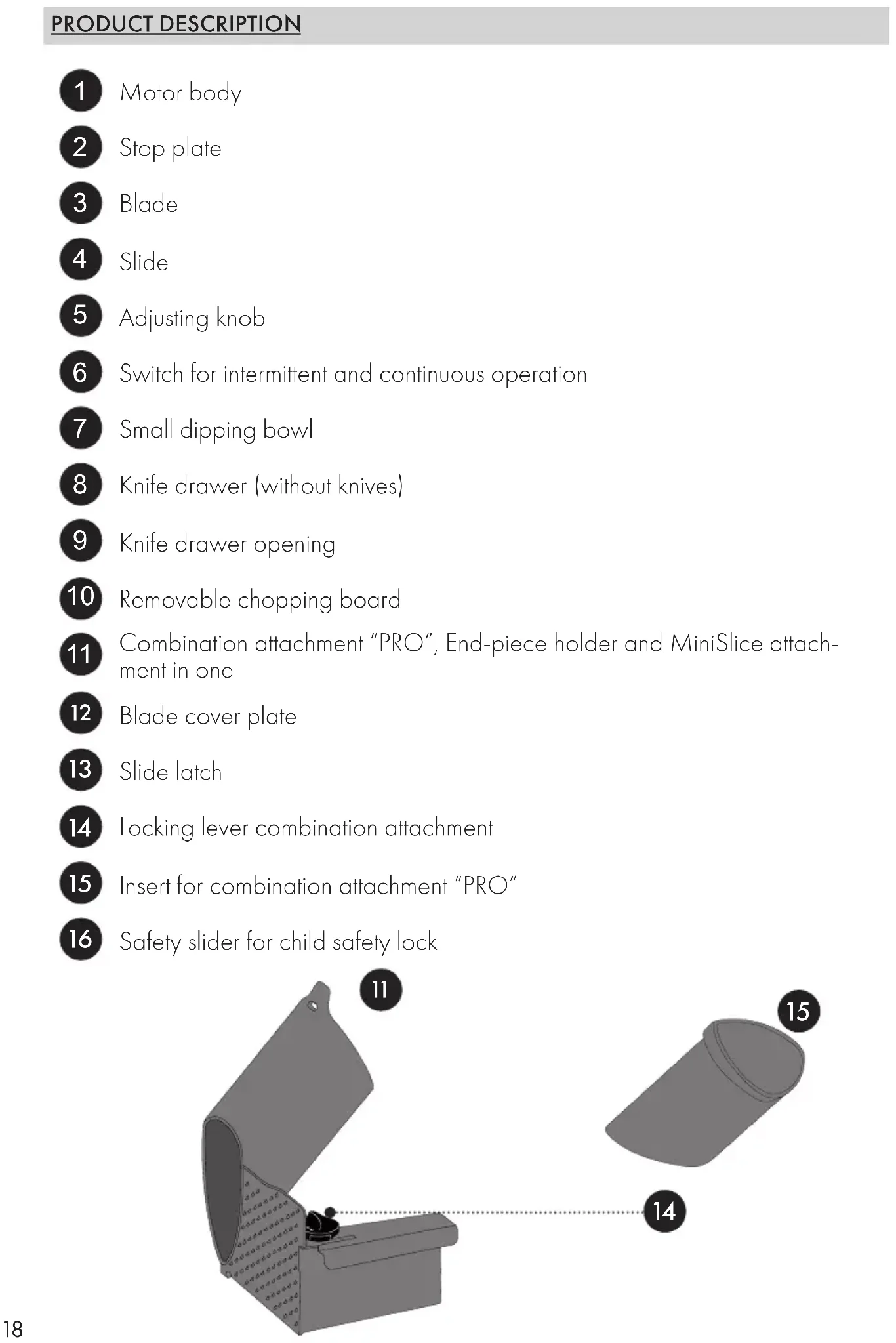

PRODUCT DESCRIPTION

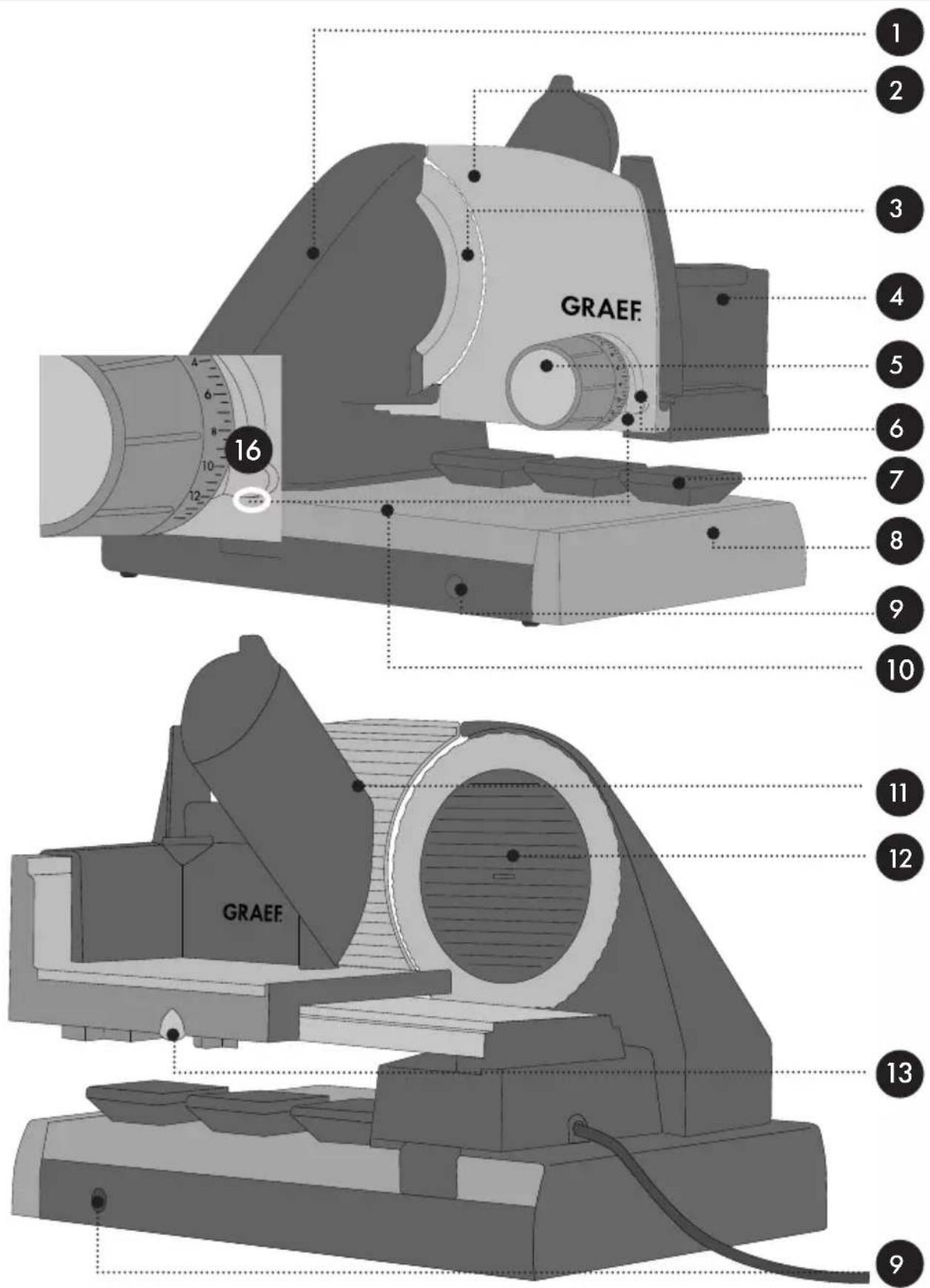

1 Motor body
2 Stop plate
3 Blade
4 Slide
5 Adjusting knob
6 Switch for intermittent and continuous operation
7 Small dipping bowl
8 Knife drawer (without knives)
9 Knife drawer opening
10 Removable chopping board

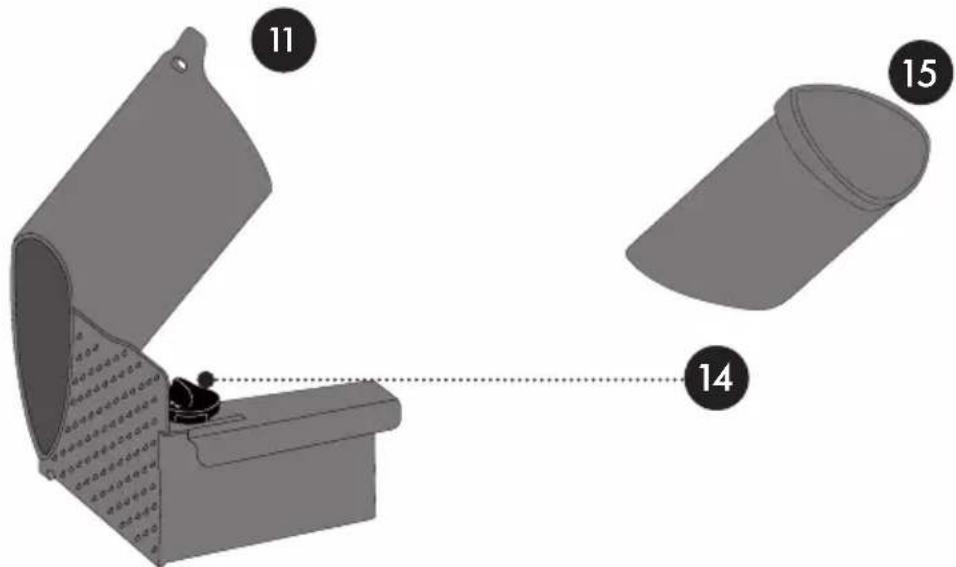

11 Combination attachment "PRO", End-piece holder and MiniSlice attachment in one
12 Blade cover plate
13 Slide latch
14 Locking lever combination attachment
15 Insert for combination attachment "PRO"
16 Safety slider for child safety lock

PREFACE

Dear Customer,

You have made a good choice by buying this all-purpose slicer. You have purchased a recognized quality product.

We would like to thank you for buying this unit and wish you a lot of fun with your new Graef all-purpose slicer.

INFORMATION ON THESE OPERATING INSTRUCTIONS

These operating instructions are an integral part of the all-purpose slicer (in the following referred to as unit) and provide you with important information about initial operation, commissioning, security, intended use and care of the unit.

The operating instructions have to be available at the unit at all times. The instructions have to be read and applied by every person who is in charge for:

• Initial operation
• Operation
• Fault correction and/or
• Cleaning

Keep these operating instructions and pass them on to the next owner along with the unit.

These operating instructions cannot take into consideration every conceivable use. For further information or in the event of problems that are not covered or not covered in sufficient detail in these instructions, please contact Graef customer service or your specialist dealer.

WARNING MESSAGES

In these operating instructions, the following warning messages and signal words are used:

WARNING

This refers to a potentially dangerous situation. Failure to observe this warning may result in serious injury or even death.

CAUTION

This refers to a potentially dangerous situation. In case of non-observation of this warning message, material damage may occur.

IMPORTANT!

This refers to application hints and other especially important information!

GENERAL SAFETY INSTRUCTIONS

This unit is in conformity with the safety instructions mentioned hereinbefore. However, incorrect handling may lead to personal injury and material damage.

For safe handling of this unit, please observe the following safety instructions:

• Before using the unit check for any external visible damage of the housing, the connecting cable and plug. Do not operate a damaged unit.
• Repairs may be carried out only by an expert or by Graef after-sales service. Incorrect repairs may cause considerable hazards for the user. In addition, any claim under guarantee is forfeited.
• Defective parts must be replaced by original spare parts only. Only these parts are guaranteed to meet the safety requirements.
• This unit can also be used by children from 8 years age as well as by persons with limited physical, sensory or mental ability or with a lack of experience and/or knowledge if they are supervised or have been trained in using the unit and have understood the dangers which may result from it. Cleaning and user maintenance must not be carried out by children, unless they are 8 years or older and are supervised.
• The unit and its connecting cable have to be clear of children who are younger than 8 years.
• Children should be supervised in order to make sure that they do not play with this unit.
• The unit is not intended to be used with an external timer or a separate remote control.
• Always disconnect the connecting cable by using plug; do not pull the connecting cable.
• Do not use the unit if the connecting cable or plug is damaged.
  • Prevent that liquids get on the plug.
• If the connecting cable is damaged, it shall be replaced by the manufacturer, the manufacturer's customer service or a similarly qualified person only, in order to avoid potential dangers.
• Do not open the housing under any circumstances. When touching live

connections and if the electric and mechanical structure is changed, there is danger of electric shock.

• Never touch live parts. They may cause an electric shock or even may lead to death.
• Before connecting the unit, compare the connecting data (voltage and frequency) on the type plate with those of your energy network. These details must correspond so that no damage occurs to the unit.
• Check to be sure that the connecting cable has been safely laid. Due to getting caught on the cable, the unit might fall down from the work surface.
• Packaging materials must not be used for playing. There is danger of suffocation.
• Never use the unit in the vicinity of a heat source.
• Never use the unit outdoors, and always keep it in a dry place.
• Switch the unit off and pull the power cord from the electric socket before changing accessories or touching any parts which are rotating during operation of the unit.
• Immediately after use, clean all accessories coming into contact with foodstuffs.
• In the event of improper use of the unit and accessories, the unit might be damaged and there is danger of injury.
• In order to avoid power surges, never use the unit with wet hands or on a damp or wet surface.
• Do not immerse the unit, power cable and the plug in water or other liquids.
• When not in use, turn the adjusting knob clockwise past the zero position until it stops so that the stop plate covers the knife edge.
• Do not touch the cutting edge of the blade with your fingers. This is very sharp and can cause severe injuries.
• Before cleaning, make sure that the unit is switched off and is not connected to the power supply.
• Check whether the stop has been closed (the blade edge must be

covered).

- The unit must neither be used without the slide nor the combination attachment, unless the size and shape of the slicing material does not allow its use.

DANGER CAUSED BY ELECTRIC CURRENT

WARNING

Mortal danger is caused by contact with live cables or components!

Please observe the following safety instructions in order to prevent exposure to electric current:

• Do not use the unit if the connecting cable or plug is damaged.
• In this case, you should let the Graef Customer Service install a new connection cable before using the appliance again. This may be done also by an authorised specialist.
• Do not open the housing under any circumstances. When touching live connections and if the electric and mechanical structure is changed, there is danger of electric shock.
• Never touch live parts. They may cause an electric shock or even may lead to death.

INTENDED USE

This unit is not intended for commercial use. The unit and the accessory parts are designed for the preparation of foodstuffs. Do not use them for other purposes.

This appliance is intended for domestic and similar use, such as:

• Staff kitchens in shops and office
• In agricultural estates
- By guests in hotels, motels and other living quarters
• In bed and breakfast boarding houses

IMPORTANT!

Use only in household-like areas!

Another or any exceeding use shall not be considered intended.

CAUTION

The unit can cause dangers, if is not used as intended.

• Use the unit exclusively as intended.
• Observe the procedures described in these operating instructions.

Claims of any kind caused by damage by unintended use shall be excluded.

The risk shall be borne sole by the user.

LIMITATION OF LIABILITY

All technical information, data and notes on the installation, the operation and the care contained in these operating instructions correspond to the last status before printing, and are ren-

dered under consideration of our previous experience and to the best of knowledge.

No claims may be derived from the specifications, illustrations and descriptions in these instructions.

The manufacturer does not assume any liability for damage caused by:

• Non-observation of the instructions
- Unintended use
- Improper repairs
• Technical modifications
• Use of unapproved spare parts

Translations are carried out to the best of knowledge. We do not assume any liability for translation mistakes. The original German text shall be binding only.

AFTER-SALES SERVICE

If your Graef unit is damaged, please contact your dealer or the Graef Customer Service at [phone] or write an e-mail to [e-mail].

IMPORTANT!

If possible, keep the original packaging during the guarantee period of the unit in order to be able to pack the unit correctly in case of guarantee.

UNPACKING

When unpacking the unit, proceed as follows:

• Remove the unit from the box.
• Remove the packaging parts.
• Remove any stickers on the unit. Do not remove the type plate!

DISPOSAL OF THE PACKAGING

The packaging protects the unit against transport damage. The packaging materials are selected according to the environmental compatibility and disposal-related aspects and can therefore be recycled.

The return of packaging into the material cycle saves raw material and reduces the waste volume. Dispose of the packaging material no longer needed at collection points for the "Green Dot" recycling system (in Germany).

DISPOSAL OF THE UNIT

At the end of its service life, this product cannot be disposed of in normal domestic waste. The symbol on the product and in the operating instructions point out to this fact. Reuse the materials according to their marking. With the reuse, recycling or other forms of recycling of old equipment, you make an important contribution to the protection of our environment. Please ask your municipal administration for the disposal point.

REQUIREMENTS ON THE INSTALLATION LOCATION

For safe and faultless operation of the unit, the following requirements of the installation location have to be met:

• The unit has to be placed on a solid, flat, horizontal, and non-slipping surface with a sufficient weight-carrying capacity.
  • Make sure that the unit cannot topple over.
• Choose the location in such a way that children cannot reach the connecting cable of the unit.
• Do not place the unit on hot surfaces, such as hotplates, or near them.
• Never use the unit outdoor and store in a dry location.
• The unit is not designed for installation in a wall or a built-in cupboard.
• Do not set up the unit in a hot, wet or moist environment.
• The socket has to be easily accessible so that the connecting cable can be removed easily in case of emergency.

ELECTRICAL CONNECTION

For safe and fault-free operation of the unit, the following requirements have to be met during the electrical connection:

• Before connecting the unit, compare the connecting data (voltage and frequency) on the type plate with those of your energy network. These details must correspond so that no damage occurs to the unit. In case of uncertainty, contact a qualified electrician.
• The socket has to be protected at least by a 10 amps circuit breaker.
• Make sure that the connecting cable is not damaged and not laid across hot surfaces or sharp edges.
• The connecting cable must not be stretched tightly.
• The electric safety of the unit is ensured only when it is connected to a socket with protective conductor installed correctly. Operation on a socket without protective conductor is forbidden. If in doubt, let the house installation be checked by a skilled electrician. The manufacturer does not assume responsibility for damage which has been caused by missing or interrupted protective conductor.

SOURCES OF DANGER

CAUTION

The very sharp blade can cut off body parts.

Your fingers are especially at risk. For this reason never reach into the space between the stop plate and blade as long as the stop plate is not completely closed, i.e. set to below "0".

SHORT-TIME SERVICE

After a short-time operation of 10 minutes, let the motor cool down for an hour.

SLICING MATERIAL

The unit can be used to cut bread, ham, sausage, cheese, fruit, vegetables, et cetera.

IMPORTANT!

By no means cut hard matter, such as frozen food, bones, wood, sheet metal, or the like.

START-UP

• Insert the plug into the socket.
• Select the requested cutting thickness.
• Place the slicing material on to the slide.
• Place the combination attachment on the rear wall of the slide and place the combination attachment against the slicing material.
• Either hold the intermittent switch pressed or press the intermittent switch and slide it downward in order to switch to permanent operation.

IMPORTANT!

The unit must not be used without the combination attachment, unless the size and shape of the slicing material does not allow its use. As soon as the size or shape of the slicing material allows the use of the combi attachment, it must be used.

• Press the slicing material slightly against the stop plate with the combination attachment and guide the slide evenly towards the blade.
• After completing the cutting process, either release the intermittent switch or slide the switch upward again.

IMPORTANT!

Soft slicing material (such as cheese or ham) can be cut best when chilled. Soft slicing material can be cut better when moved forward more slowly.

COMBINATION ATTACHMENT AS MINISLICE

• Put the combination attachment on the slide back wall.
• Turn the locking lever tightly.
• Put the slicing material, e.g. cucumber, carrots, mushrooms, cocktail tomatoes etc., into the filling shaft.
• If necessary, place the insert in the filling shaft. This slides down automatically. Do not press.
• Set the requested cutting thickness.
• Put a tablet, chopping board or plate under the blade.
• Either hold the intermittent switch pressed or press the intermittent switch and slide it downward in order to switch to continuous operation.
  • Evenly move the slide towards the blade.
• After completing the cutting process, either release the intermittent switch or slide the switch upward again.
• Loosen the locking of the combination attachment.

• After use, clean the combination attachment.

IMPORTANT!

Frequent cleaning in the dishwasher can lead to discolouration. Cleaning by hand under running water is recommended.

CHILD PROTECTION

To secure the blade (stop plate must be closed, i.e. positioned below "0"), push the slide in front of the blade and press in the slide latch. The slide is secured. To activate the child protection, the adjusting knob must be turned clockwise, past the zero position, until the stop. Now push the safety slider outwards as far as possible. The adjusting knob and on/off switch are now locked.

KNIFE DRAWER

IMPORTANT!

The knife drawer is equipped with a child safety lock.

• In order to open the drawer, press the two child safety locks at the same time, which are on right and left side of the base plate.
  • Here you can store your knives.
• For easier cleaning, the drawer can be removed.

IMPORTANT!

Do not clean the drawer in the dishwasher. Clean it using a damp cloth.

CLEANING

Use a soft and moist cloth to clean the outer surfaces of the unit. Use a mild detergent in case of heavy contamination.

ENSURE VALUE PRESERVATION OF THE BLADE

For long-lasting sharpness and value retention of your Graef blade, were recommend to clean it in regular intervals, especially after cutting up salted meat and/or ham. These foodstuffs contain salts, when they stay on the surface of the blade for a longer period of time, may even form a rust film (even on "stainless" steel).

When cutting up slicing material which contains a lot of water, such as tomatoes or cucumbers, lacking or wrong (too "wet") cleaning may also lead to a rust film on the blade surface. For this reason we recommend to use a moist cloth, and if necessary some washing-up liquid, to clean the blade directly after use.

From time to time, unscrew the blade and clean the unit on the inside. especially, when "juicy" slicing material (vegetables, fruit, roasts, et cetera) have been cut. Treat the blade with the upmost of care.

BLADE REMOVABLE

From time to time, unscrew the blade and clean the unit on the inside. Especially, when "juicy"

slicing material (tomatoes, fruit, roasts, et cetera) have been cut. Treat the blade with the upmost of care.

• Pull the slide right up to yourself.
- Remove the blade cover by turning it 45^ to the right.

IMPORTANT!

You can either turn the blade cover 45^ by hand or insert a coin (e.g. 1 euro) into the slot provided and turn the blade cover 45^ .

Do not press too hard, otherwise you may remove the blade directly with it.

• Turn the blade closure 90^ to the right and carefully remove the blade.
• Clean the inside of the blade using a damp cloth.
• From time to time, the blade gear should also be greased.
• Inserting the blade and blade cover takes place in reverse order. Put on the blade cover, turn it 45^ anticlockwise until it locks into place briefly and does not fall off.

CAUTION

- The blade must be inserted with great care as it is a very sharp object.

SLIDE

For better cleaning, the slide can be removed from the unit.

• Pull out the slide latch on the right side of the slide.
• Pull the slide away to the rear and remove it.
• Use a moist cloth or running water to clean all parts.

IMPORTANT!

Do not clean the slide in a dishwasher!

- Once a month, please add some drops of resin-free oil or petroleum jelly to the slide guide. Use a soft cotton wool cloth to remove excessive oil / petroleum jelly.

5-YEAR GUARANTEE

For this product we assume an additional guarantee of 60 months beginning with the date of sale. Your legal warranty claim in conformity with Section 439 et seq. of the German Civil Code (BGB) shall remain unaffected by this regulation. The guarantee does not cover any damage which is caused by incorrect handling or use as well as defects which only slightly influence the function or the value of the unit. Moreover, transport damage provided we are not responsible shall be excluded from the claims under guarantee. Guarantee shall be ruled out for damage, the repair of which has not been carried out by us or one of our represenations. In case of justi-fied complaints, we shall repair the defective product or replace it by a product without defects at our discretion.

AVANT-PROPOS

Chère cliente, cher client,

PREFAZIONE

Gentile Cliente,
