GFM410IX - Oven Glem Gas - Free user manual and instructions

Product type	Built-in oven
Brand	Glem Gas
Model	GFM410IX
Power supply	230 V / 50 Hz (single phase)
Power cable type	H05RR-F, H05VV-F, H05V2V2-F, H07RN-F or H05SS-F (depending on model)
Maximum altitude for use	2000 m
Cooking mode	Natural convection, fan-assisted, grill, (depending on model: pyrolysis)
Grill	Fold-down grill (depending on model)
Cleaning	Easy-clean enamel, catalytic panels (depending on model)
Oven door	Removable for cleaning, removable inner glass
Interior lighting	Bulb resistant up to 300 °C (replaceable)
Child safety	Door lock not specified, but recommendation to keep children away

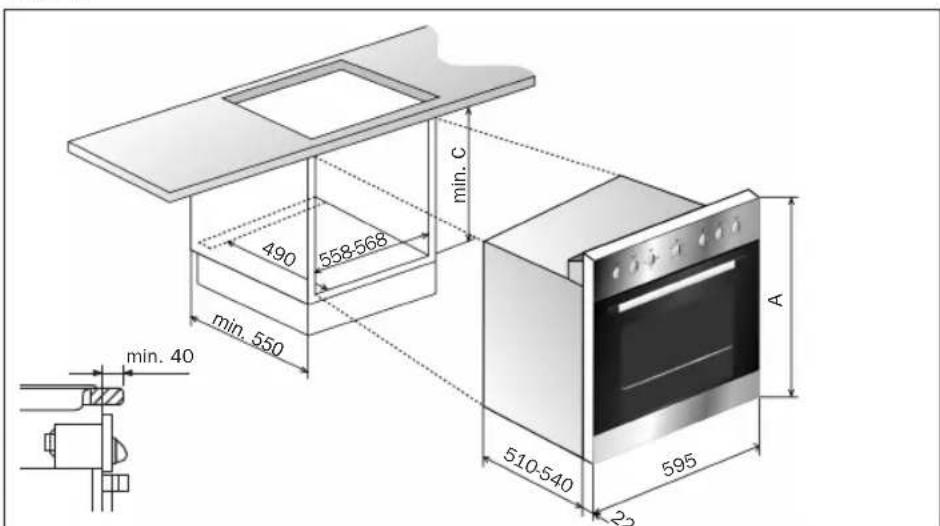

Installation	Built-in in a cabinet, cabinet base ≥ 550 mm, adhesive resistant > 85 °C
Estimated dimensions (W x H x D)	595 x 595 x 550 mm
Estimated weight	35 kg
Usage	Household use only
Repairability	Original spare parts available via Technical Assistance Service
Ecodesign	Compliant with regulations 66/2014 and 65/2014

Frequently Asked Questions - GFM410IX Glem Gas

How to use the oven for the first time?

Before first use, remove all packaging and protective plastics. Heat the empty oven in fan-assisted mode or at 200 °C for 1 hour to eliminate manufacturing residues. Let the door open to cool, then clean the interior and accessories with soapy water. Ensure the kitchen is well ventilated as smoke and odors may be released.

How to clean the oven interior?

For enameled surfaces, use a nylon brush or sponge with warm soapy water. Never use abrasive cleaners, metal scrapers or steam cleaners. If your oven is equipped with catalytic panels, you can remove them and soak them in water to soften residues, then clean them with a sponge and dry them before putting them back.

How to remove the oven door for cleaning?

Open the door fully and lift the levers (F) (depending on model). Then close the door until it engages in the levers. Grasp the door by the sides and lift it to release the hinges (G). To reassemble, reverse the procedure. Note: on some models, you must insert safety screws into the hinges before removing the door.

How to change the oven bulb?

First disconnect the oven from the power supply. Unscrew the bulb cover, then replace the bulb with a new one resistant up to 300 °C (available from the Technical Assistance Service). Screw the cover back on. Ensure the oven is disconnected before any intervention.

What to do if the oven does not heat?

Check that the oven is properly plugged in and that the installation fuses are in good condition. Ensure the clock is set to manual or programmed mode. Also check the position of the function selector and temperature. If the problem persists, contact the Technical Assistance Service.

How to save energy during cooking?

Use dark-colored containers suitable for the oven. Open the door as little as possible during cooking. Avoid preheating the empty oven if the recipe allows. If your oven has an ECO mode, use it. Turn off the oven 5-10 minutes before the end of cooking to benefit from residual heat. In fan-assisted mode, cook several dishes at once.

Can the inner glass of the door be removed for cleaning?

Yes, depending on the model. Open the door, grasp the glass by the lower part (H) and pull it outward to unlock it. Clean it with a glass cleaner and a soft cloth. To replace, insert the supports into the upper slots of the door and push until it snaps into place. Note: the door can close when the glass is removed.

How to install and connect the oven?

Installation must be carried out by a professional. The oven must be built into a cabinet with a base of at least 550 mm. Connect it to a compliant grounded outlet. Use an omnipolar switch with a contact opening of at least 3 mm for disconnection. Comply with current standards. For non-pyrolytic ovens, cables H05RR-F, H05VV-F, H05V2V2-F, H07RN-F or H05SS-F are authorized; for pyrolytic, only H05SS-F.

The oven produces smoke during cooking, is this normal?

A slight smoke may be normal during first use. If it persists, clean the oven regularly to remove grease residues. Reduce the amount of oil or fat used and do not exceed the recommended temperatures in the cooking table. If smoke is excessive, check that no food or aluminum foil is obstructing air circulation.

What safety precautions should be taken with children?

Children under 8 years old should be kept away from the oven during operation, especially during pyrolytic cleaning. Children over 8 and persons with reduced capabilities may only use the appliance under supervision and after receiving clear instructions. Never leave children to play with the appliance. Cleaning and maintenance should not be carried out by children without supervision.

USER MANUAL GFM410IX Glem Gas

Maintenance and Installation Generic Manual OVEN

Read this Instruction Manual carefully to obtain the best performance from your oven. Keep this manual so that it can be read by a new owner.

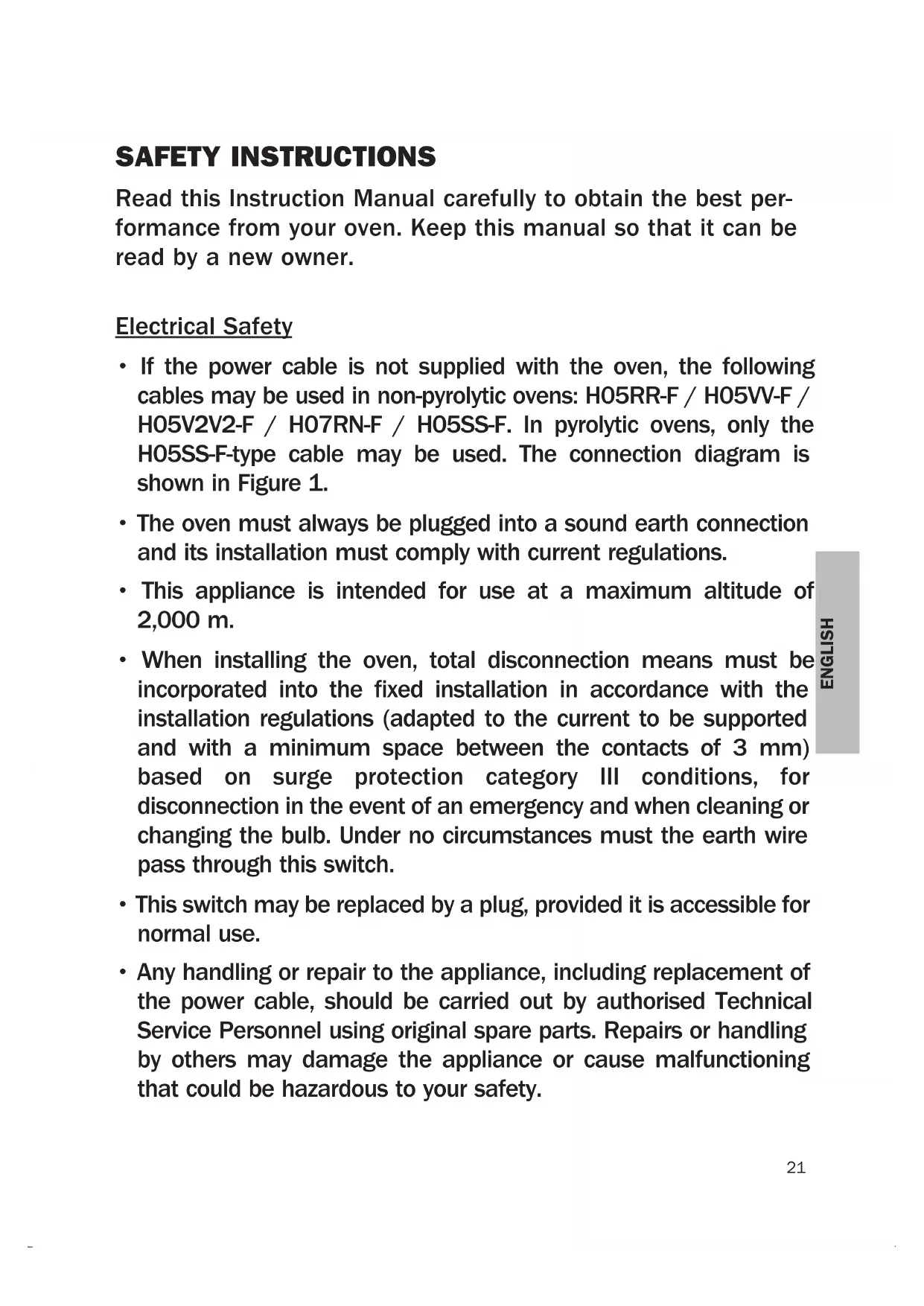

Electrical Safety

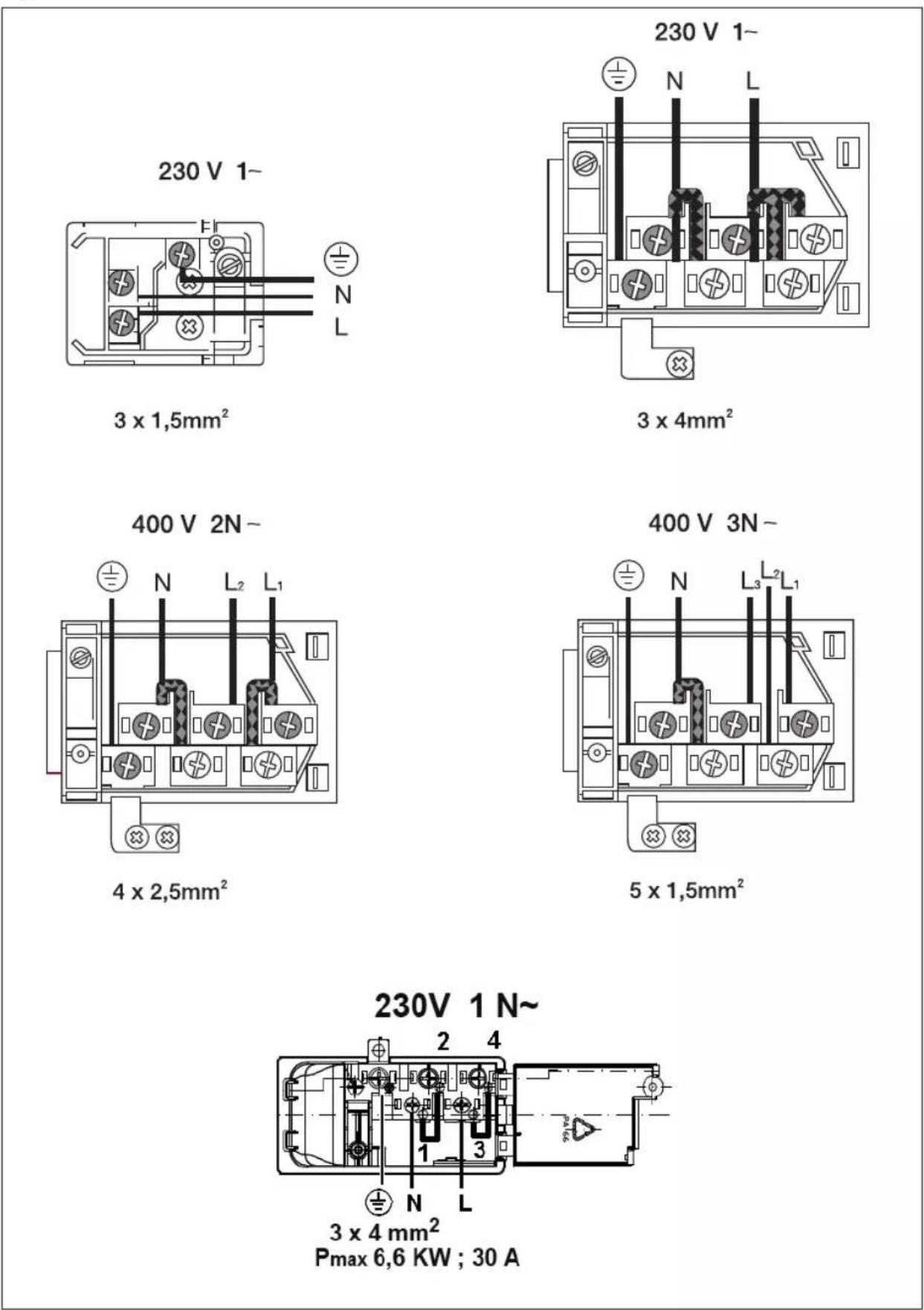

• If the power cable is not supplied with the oven, the following cables may be used in non-pyrolytic ovens: H05RR-F / H05VV-F / H05V2V2-F / H07RN-F / H05SS-F. In pyrolytic ovens, only the H05SS-F-type cable may be used. The connection diagram is shown in Figure 1.
• The oven must always be plugged into a sound earth connection and its installation must comply with current regulations.
• This appliance is intended for use at a maximum altitude of 2,000 m.
• When installing the oven, total disconnection means must be incorporated into the fixed installation in accordance with the installation regulations (adapted to the current to be supported and with a minimum space between the contacts of 3 mm) based on surge protection category III conditions, for disconnection in the event of an emergency and when cleaning or changing the bulb. Under no circumstances must the earth wire pass through this switch.
• This switch may be replaced by a plug, provided it is accessible for normal use.

• Any handling or repair to the appliance, including replacement of the power cable, should be carried out by authorised Technical Service Personnel using original spare parts. Repairs or handling by others may damage the appliance or cause malfunctioning that could be hazardous to your safety.

• Unplug your oven if it malfunctions.

• In ovens combined with hobs, only those recommended by the manufacturer may be fitted.

Child Safety

• Do not allow children to come near the oven while in use or during the pyrolytic cleaning cycle as it can reach very high temperatures.
• Children under 8 years of age should be kept away from the appliance unless they are under permanent supervision. Children should not be allowed to play with the appliance.
• The appliance may be used by children over the age of 8 and people with reduced physical, sensory or mental capacities or a lack of experience or know-how, provided they have been given appropriate instructions or supervision on how to use the appliance safely and understand the dangers involved.

Safety in the use of the oven

• The oven must always be operated with the door closed.
• Only use the oven after it has been installed inside the kitchen unit (See Installing the Oven).
• Do not install the oven behind decorative doors. This can cause it to overheat.
• The manufacturer is not responsible for any use of the oven other than for the home preparation of food.
• Do not cover the bottom of the oven with aluminium foil, or any other material, as this may affect cooking performance and damage the enamel inside the oven and the interior of your kitchen unit.

• Do not store oil, fats or inflammable materials inside the oven. This may be dangerous if the oven is turned on.

• Do not lean or sit on the open oven door. It could be damaged and you could be injured.

• The tray and grill have a system for easy part removal and handling of food.

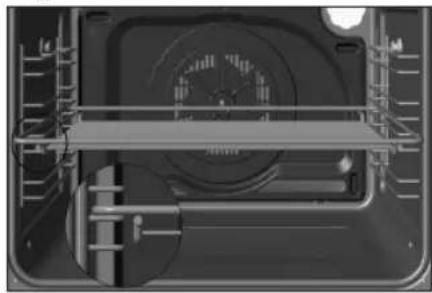

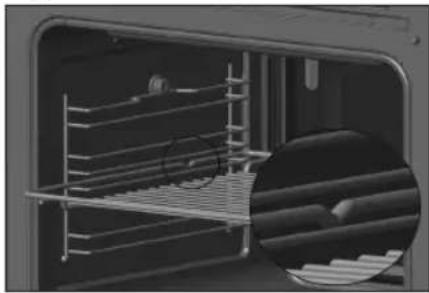

• Always place the grids inside the oven in the following manner:

- Between two runners of the side supports, or on one of the telescopic side rails if present, with the retention slots towards the back of the oven and facing downwards. Figure 19.

- The surface of the grid on which containers will be placed remains below the side runners. Figure 20.

- The oven heats up when in use, so please use oven gloves when performing operations inside the oven and avoid touching the heating elements.

- Only use the temperature probe supplied to measure the temperature inside the oven (in models that come with this feature).

Cleaning and Maintenance

• Disconnect the appliance from the mains power supply before any operation.
• Do not use abrasive cleaning products, or steam or pressurised water cleaning equipment.
• Do not use metal scouring pads, wire brushes or commercially available or abrasive powder cleansers to clean the oven door as they can scratch the surface and cause the glass to break.

• Cleaning and maintenance tasks to be carried out by the user should not be done by children without supervision.

• Before replacing a bulb, first make sure that the oven has been disconnected from the mains to avoid the possibility of receiving an electric shock.

• For your safety, never operate the oven without the back panel (that protects the fan) in place.

CAUTION

For the specific features and performance of your oven, please consult the Quick Start Guide that comes with this Manual.

Before First Use

There may be traces of grease and other substances in the oven as a result of its manufacturing process. These should be removed by means of the following procedure:

• Remove all of the packaging from your oven, including the protective plastic, if any.
• Turn the oven to setting ☑ else place it on the defect setting at 200°C, for 1 hour. Consult the Quick Start Guide accompanying this manual on how to do this.
• Cool the oven with the door open so that it ventilates and no odours remain inside it.
• Once cold, clean the oven and accessories.
  During this first operation, smoke and smells will be produced. The kitchen should therefore be well ventilated.

Environmentally Friendly Packaging

The packaging is made from totally recyclable materials which can be put to other uses. Consult your local council regarding the necessary procedures for disposing of these materials.

CAUTION

The symbol on the product or packaging indicates that this appliance cannot be disposed of as normal household waste. It should be taken to an electrical and electronic equipment collection point for recycling. In this way, any negative consequences for the environment and public health from incorrect handling can be avoided. Contact your local council, household waste disposal service or the establishment you bought the product from for more information on recycling the appliance.

Environmentally-friendly Use of the Oven

• Take any accessories that will not be used out of the oven.
- Use oven proof containers, preferably in a dark colour.

• Open the oven door as little as possible during cooking.
• Avoid preheating the oven while empty. Whenever the recipe allows, place the food in the cold oven.
• If your oven has an ECO function, use this function whenever the recipe allows.
• For recipes with long cooking times, switch off the oven 5 to 10 minutes before the end of the total cooking time to take advantage of residual heat.
• If your oven has ventilation features, cook multiple dishes at once.

Other important instructions

• The oven must always be operated with the door closed.
• The manufacturer takes no responsibility for any use of the oven other than for the home preparation of food.
• Do not store oil, fats or inflammable materials inside the oven. This may be dangerous if the oven is turned on.
• Do not lean or sit on the open oven door. You could damage it, as well as endanger your own safety.
• Do not cover the bottom of the oven with aluminium foil as this may affect cooking performance and damage the enamel inside the oven and the interior of your kitchen unit.
• To cook any food, insert the tray or grill in the side rails in the oven.
• Do not place containers or food on the bottom surface of the oven. Always use the trays and grill.
• Do not pour water on the bottom surface of the oven when in use; this may damage the enamel.
• It is normal for condensation to occur on the oven door when cooking dishes with a high liquid content.
• Clean the oven interior to remove traces of grease or food, which could later give off smoke and odours and cause stains to appear.

Cleaning and Maintenance

Caution:

Disconnect the appliance from mains power supply before any operation.

Cleaning the Oven Interior

1 Easy-to-clean enamel ovens

Use nylon brushes or sponges with warm soapy water to clean enamelled surfaces such as the bottom of the oven. Clean when the oven is cold. Use oven-cleaning products only on enamelled surfaces and always follow the manufacturer's instructions.

2 Ovens coated in special enamel adapted to other cleaning systems

Please consult the Specifications Sheet for your oven.

Caution

Do not clean the oven interior with steam or pressurised water cleaning equipment. Do not use metal scouring pads, wire brushes or any utensil that can scratch the enamel.

- Other oven models have a catalytic (self-cleaning) cleaning system. This system removes small traces of grease while cooking at high temperatures.

Use of Fold-down Grill (depending on Model)

To clean the top part of the oven:

• Wait until the oven is cold.
• Turn the screw (A) and lower the grill element as far as possible. Figure 1
• In other oven models, push the rod of the grill element (B) with both hands until it is released from the upper fastening point. Figure 2

- Turn the element round and clean the upper part of the oven.

- Finally, return the grill element to its original position.

Cleaning the Catalytic Panels

If the remains of food on the enamel cannot be cleaned off using normal (self-cleaning) methods, then:

1 Dismantle the panels and leave them to soak long enough to soften the remains.
2 Clean the panels with a sponge and clean water.
3 Dry the panels and mount them in the oven again.
4 Connect the oven for an hour at 200 °C.

Caution

Do not use commercial cleaning products or abrasive powder cleansers on the surface of the catalytic panels.

Instructions for Dismantling the Flat Catalytic Panels and their Supports.

1 Remove all accessories from inside the oven.

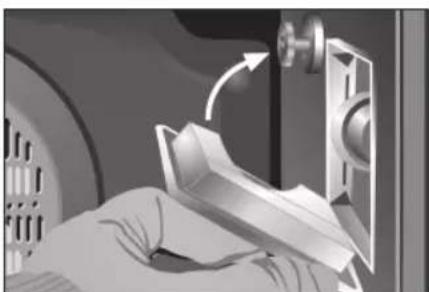

2 Pull on the supports (C), releasing them from the nut (D). Figure 3

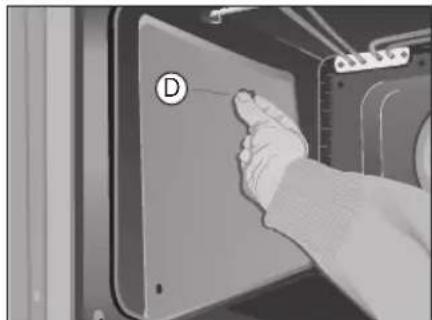

3 Unscrew the nut (D) to release the flat catalytic panels. Figure 4

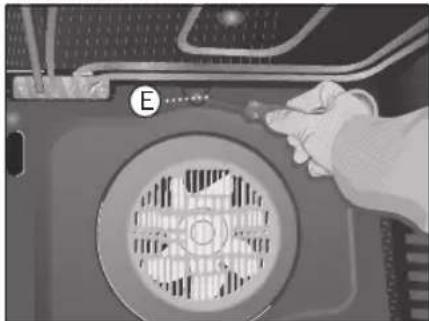

4 To dismantle the panel at the back, remove the screw (E). Figure 5
5 To assemble, proceed in reverse order.

Caution

For your own safety, never turn the oven on without the rear panel in position since this protects the fan.

Cleaning the Oven Exterior and Accessories

Clean the outside of the oven and accessories with warm soapy water or with a mild detergent.

Take great care when cleaning stainless steel surfaces. Use only sponges or cloths that do not scratch.

Cleaning the Oven Door

Do not use metal scouring pads, wire brushes or commercially available abrasive powder cleansers to clean the oven door as they could scratch the surface and cause the glass to break.

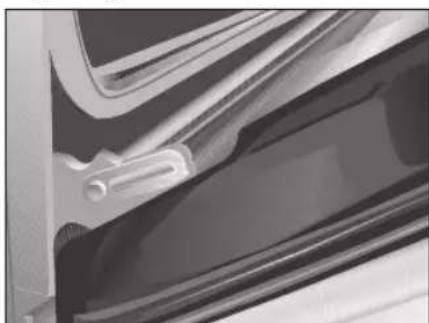

In some oven models the door may be removed to make them easier to clean, by proceeding as follows:

1 Open the door.

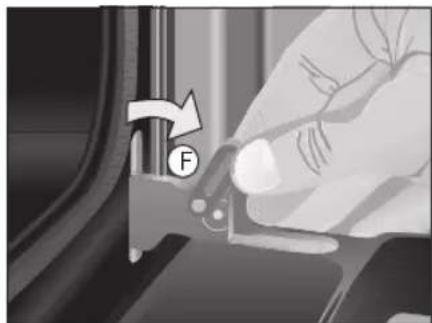

2 Turn the two clamps (F) right round. Figure 6
3 Close the door until it fits in the two clamps. Figure 7

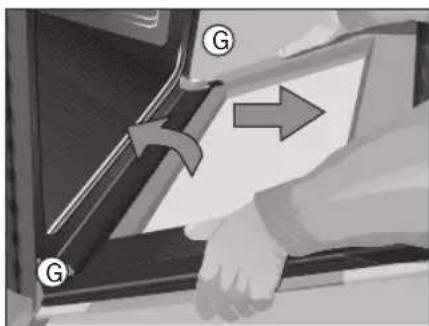

4 Holding the door at the sides with both hands, raise and remove the door from the oven until the hinges (G) have been completely removed. Figure 8

To mount the door, proceed in reverse order.

For other oven models, follow these instructions:

1 Open the oven door completely.

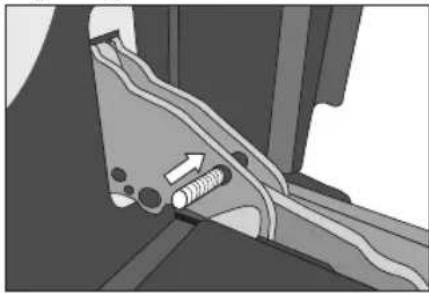

2 Insert the safety pins in the visible slots in the door hinges. Figure 9
3 Hold the door at the sides with both hands and close it almost completely.
4 Now lift the door and remove the hinges from the slots in the front of the oven by pulling them out. Figure 8

Caution

Do not remove the safety pins at any time since the hinge is taut and may cause injury. It would also be impossible to mount the door without the pins being in place.

To mount the door, hold it with both hands and insert the hinges in the appropriate openings in the front of the oven. Slowly open the door until it is fully open.

Cleaning the Large Inner Glass Door

Instructions for Removing / Replacing Inner Glass

1 Open the oven door.

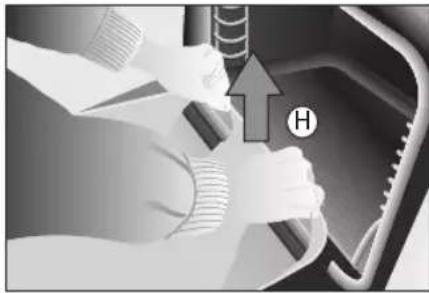

2 Pull the glass outwards by the bottom (H). Figure 10
3 The inside glass will become loose. Remove it.

Caution

Be very careful when removing the inner glass, as the oven door will close.

4 Clean the inner glass and the inner surface of the oven door.

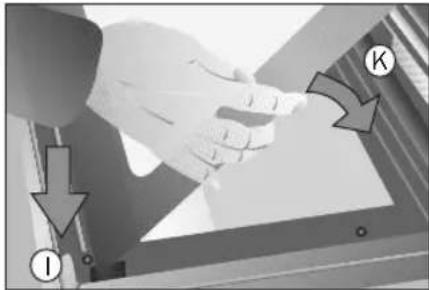

5 Return the glass supports to the upper door slots (I). Figure 11
6 Turn the glass towards the door (K).

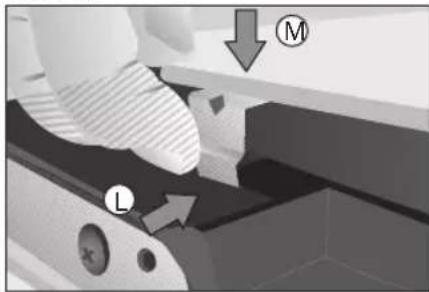

7 Attach the glass to the door again by pushing the two lower supports (L) with both hands while pushing the glass towards the door (M). Figure 12

Instructions to remove / replace inside glass panels. 90 cm oven

1 Open the oven door.
2 Fully rotate the two clamps (N) to stop the door from closing. Fig 13

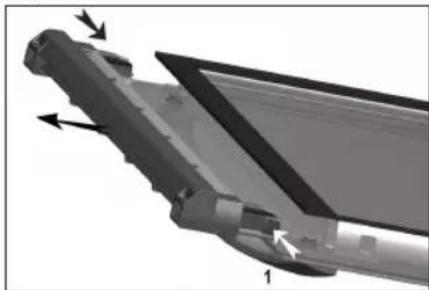

3 Squeeze point 1 located on the upper part of both sides of the oven door. Fig 14
4 Continue squeezing point 1 and pull out the upper clasp of the door. Fig 15
5 The inside glass panels will now be loose and can be easily cleaned with window cleaning liquid and a soft cloth.

Warning

If the door has not been blocked with the clamp (N), please take care when removing the inside glass panels as the oven door will close.

6 Once clean, return the glass panels in the same order so that the word TERMOGLASS can be read.

7 Replace the upper clasp of the door, making sure that the side tabs fit in point 1.

Changing the Oven Light bulb

Caution

First make sure the oven is unplugged before proceeding to change the bulb.

• Unscrew the bulb-holder glass cover.
• Replace the bulb and reassemble the glass cover.

The replacement bulb must be resistant to temperatures up to 300°C. You can order one from the Technical Assistance Service. Figure 16

For other oven models, follow these instructions:

• Loosen the lens from the lampholder with the help of the appropriate tool. Fig 17
• Exchange the bulb.
• Replace the lens, making sure it fits in the correct position without forcing it. Fig 18

If Something Goes Wrong

The oven stops working

Check the power connection.Check the fuses and the circuit breaker for your installation.Make sure the timer is either in the manual or programmed setting.Check the position of the function and temperature setting.

The light inside the oven does not go on

Change the bulb.Check that it has been properly inserted according to the Instruction Manual.

The heating pilot light does not turn on

Select a temperature.Select a function.It should only come on while the oven is heating up to the temperature selected.

Oven smoking during use

Normal during first use.Clean the oven regularly.Reduce the amount of grease or oil in the tray.Do not use temperatures higher than those indicated in the cooking chart.

The expected cooking results are not achieved

Check the cooking chart for guidance on how your oven operates.

Caution

If these problems persist despite these tips, contact Technical Service.

Technical Specifications

If the appliance does not work, inform Technical Service of the kind of problem you are experiencing and give the:

1 Serial Number (S-No)
2 Model of Appliance (Mod.)

You will find this information engraved on the identification plate. This plate is on the bottom of the oven and can be seen when opening the door.

Energy Information

Tested to comply with the requirements of the 66/2014 (Eco-Design) and 65/2014 (Energy Labelling) regulations in accordance with Regulation EN 60350-1.

Energy consumption measurements taken under different conditions may give different values from those indicated for your oven.

Consult the User's guide accompanying this manual to learn about the energy consumption of your oven.

Installation

This information is exclusively for the installer, who is responsible for the oven's assembly and electrical connection. If you install the oven yourself, the manufacturer will not accept liability for possible damage.

Prior to Installation

- To unpack the oven, pull on the tab located at the bottom of the box and hold it by the side handles, never by the oven door handle.

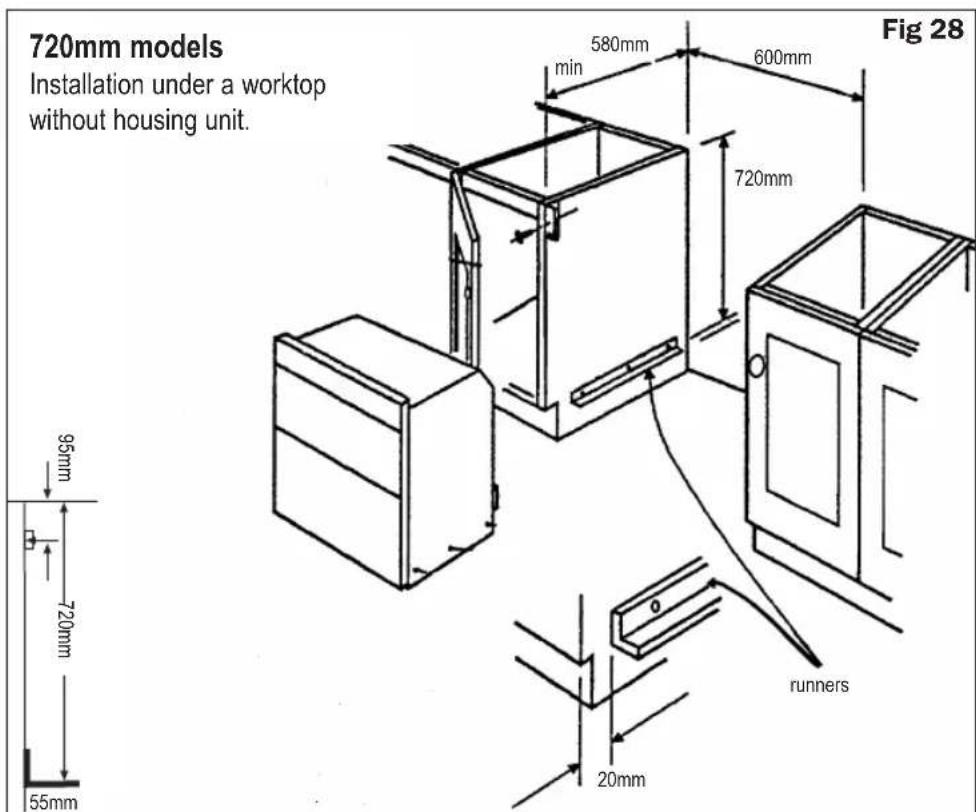

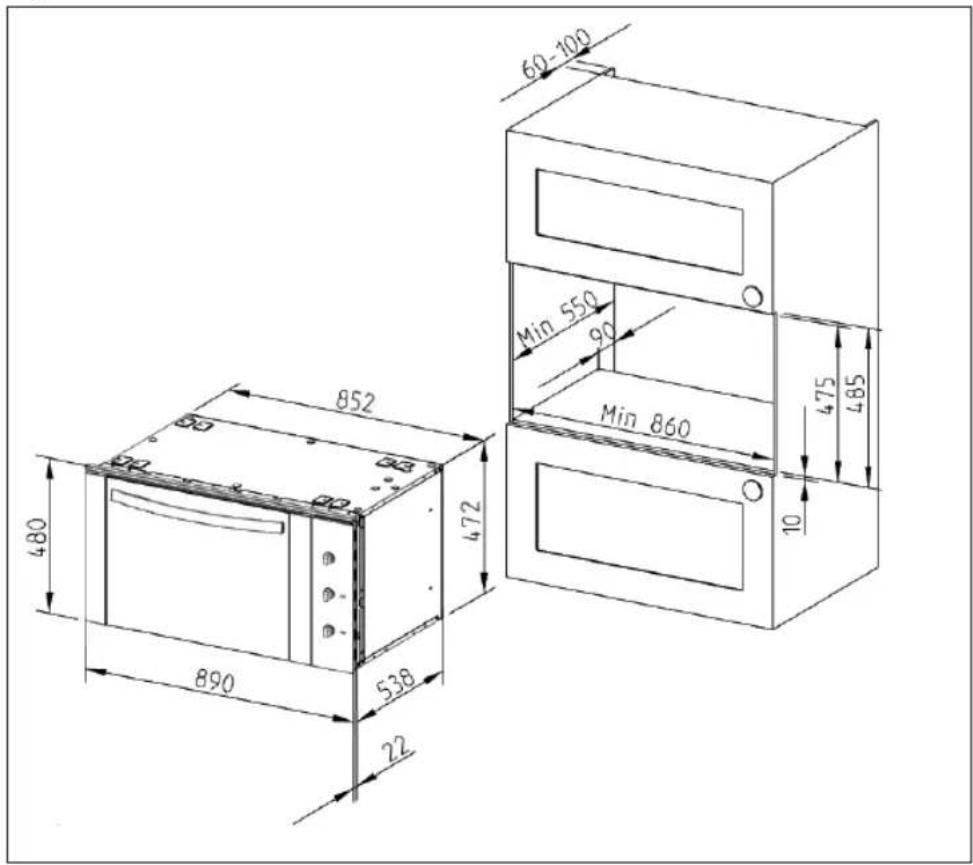

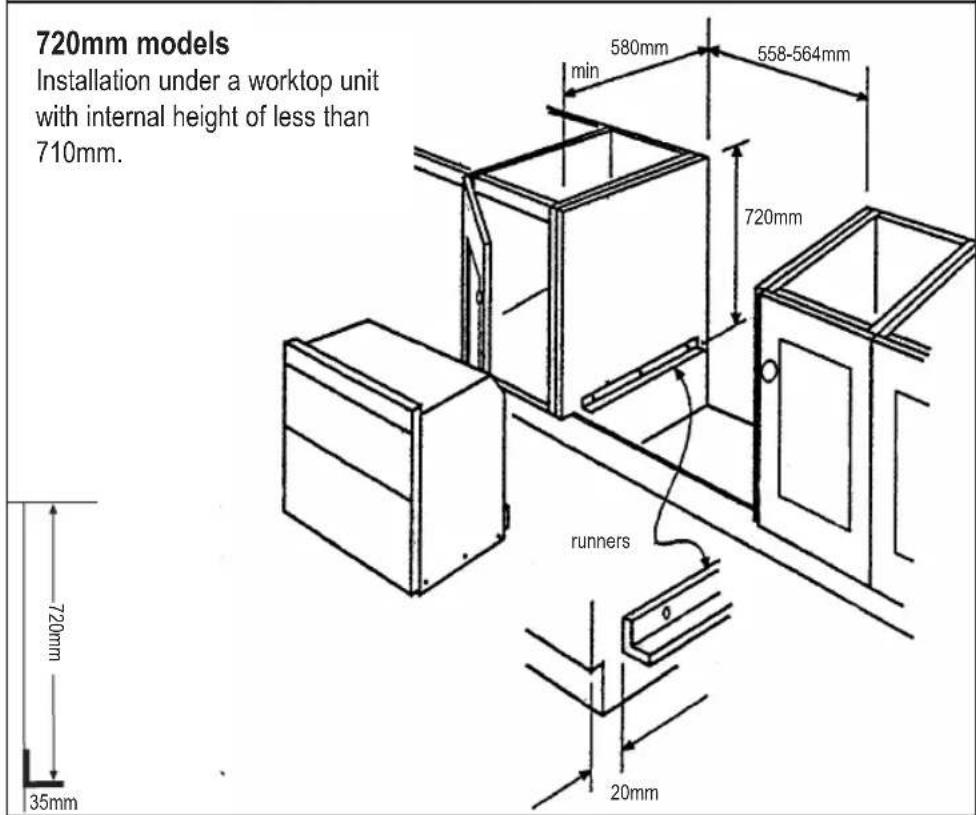

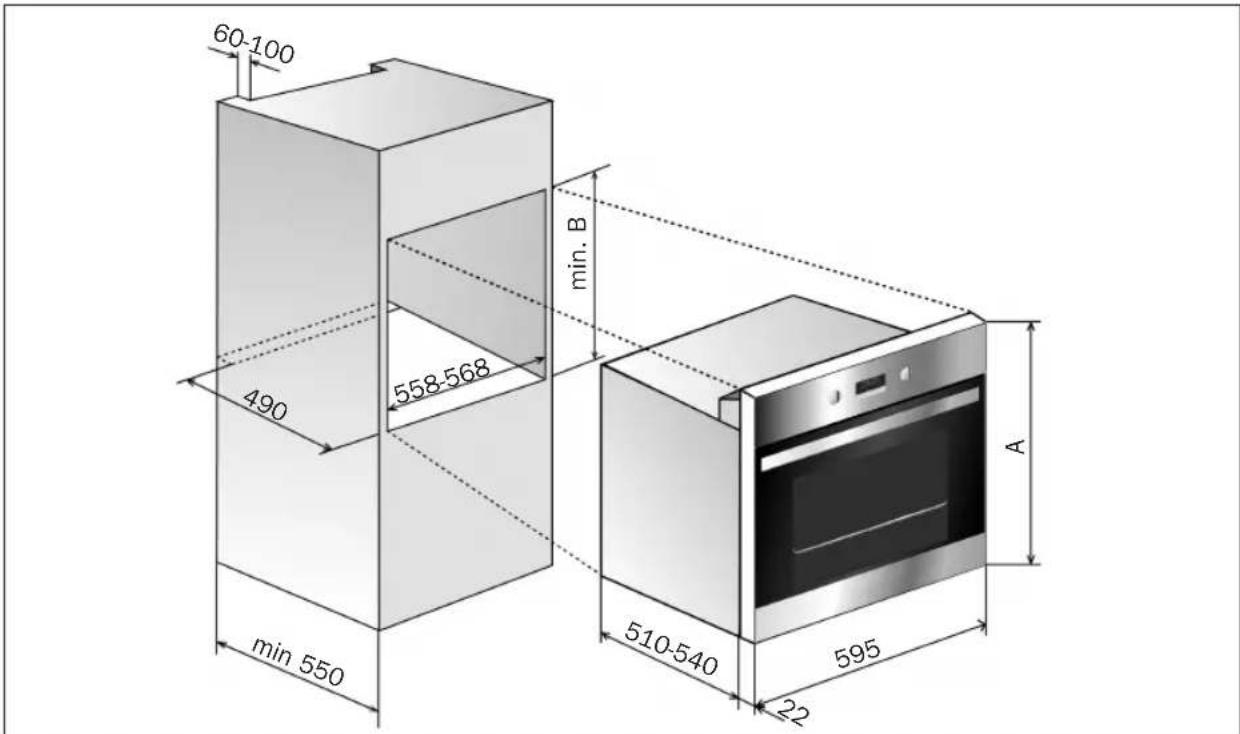

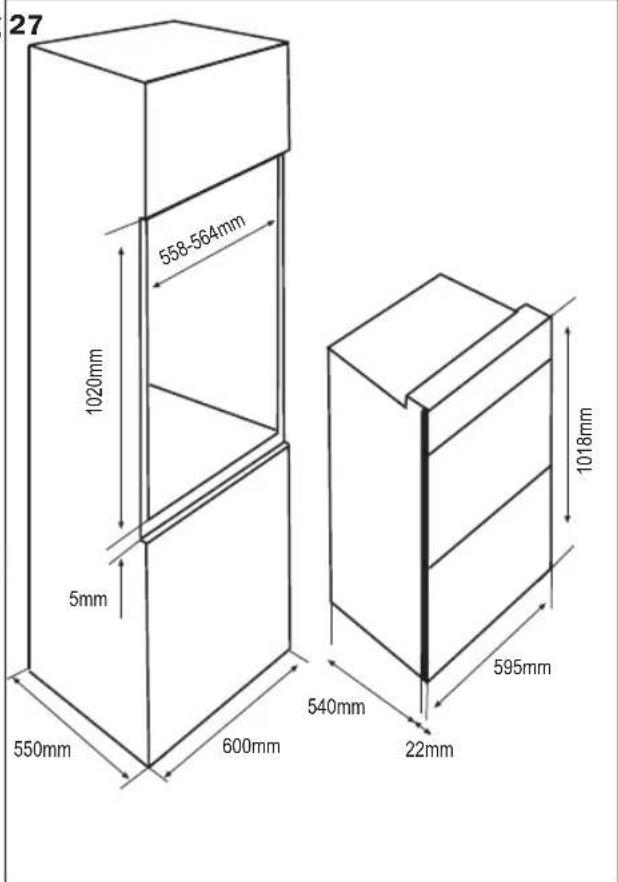

• The opening in the kitchen unit must be that indicated on the diagram. The minimum size of the unit base must be 550 mm.

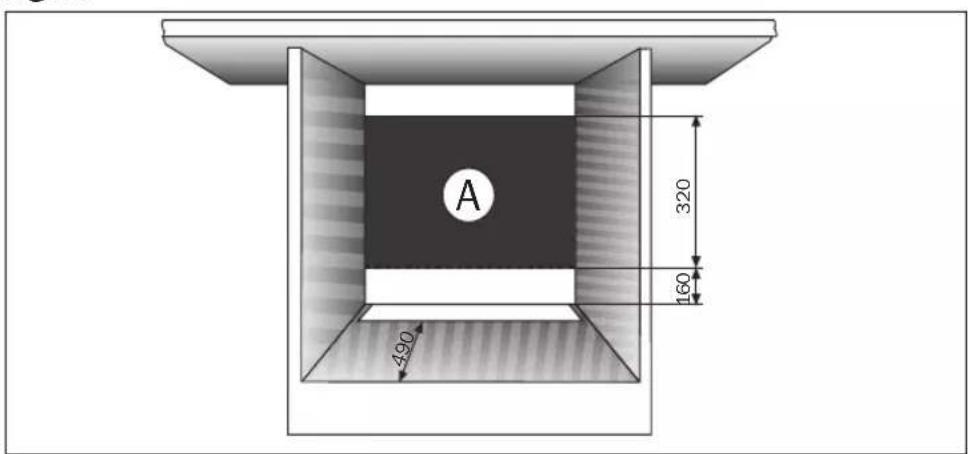

• With built-in multifunction ovens, the rear of the unit, corresponding to the shaded area (A) in Figure 24, must have nothing projecting out (unit reinforcement, pipes, sockets, etc.).
• The adhesive used in the plastic lining the kitchen units must be able to withstand temperatures over 85^ C.

Electrical Connection

The installer must ensure that:

• The mains power voltage and frequency correspond to what is marked on the identification plate.
• The wiring system can withstand the maximum power marked on the identification plate.
• After connecting the power, check that all electrical parts of the oven are working correctly.

Oven Installation

For all ovens. after the power has been connected:

1 Position the oven inside the unit and ensure that the power cable is not trapped or in contact with parts of the oven that heat up.
2 Anchor the oven to the unit with the screws supplied, screwing them into the unit through the holes that can be seen when the door is open.
3 Make sure that the body of the oven is not in contact with the walls of the unit and that there is a separation of at least 2 mm with the adjacent units.

CONSIGNES DE SÉCURITÉ

Close-up of a hand installing or adjusting a grid panel inside an oven (no text or symbols visible)

Fig 4

Close-up of a hand inserting a component into a device panel (no visible text or symbols)

Fig 5 Fig 6

Close-up of a hand adjusting a circular vent on a mechanical component (no visible text or symbols)

Close-up of a hand using a tool to adjust a mechanical component, showing a force arrow (no text or symbols present)

Fig 7 Fig 8

Close-up of a car's side panel showing steering wheel and dashboard (no text or symbols visible)

Fig 9 Fig 10

Mechanical component diagram showing a spring-loaded mechanism inside a housing (no text or symbols)

Fig 11

Close-up of hands shaking a mechanical component with directional arrows (no text or symbols)

Fig 13

Abstract grayscale illustration of a compass and document with a circular arrow, no text or symbols present.

Fig 15

3D mechanical component diagram showing internal parts and directional arrows (no text or symbols)

Fig 17 Fig 18

Hand holding a metallic tool inserted into a wall-mounted electrical outlet (no text or symbols visible)

Close-up of hands operating a mechanical device with a labeled arrow and 'H' symbol (no readable text or symbols beyond the label)

Fig 12

Fig 14

Close-up of a mechanical component with directional arrows indicating movement or force (no text or symbols visible)

Fig 16

Close-up of a hand holding a circular mechanical component, possibly a knob or dial (no visible text or symbols)

Close-up of a hand pressing down on a mechanical component with a curved arrow indicating rotation (no text or symbols visible)

Fig 19

Interior view of an oven with metal racks and a magnified inset showing internal components (no visible text or symbols)

Fig 20

Interior view of a microwave oven with visible fan and ventilation duct (no text or symbols)

Fig 21

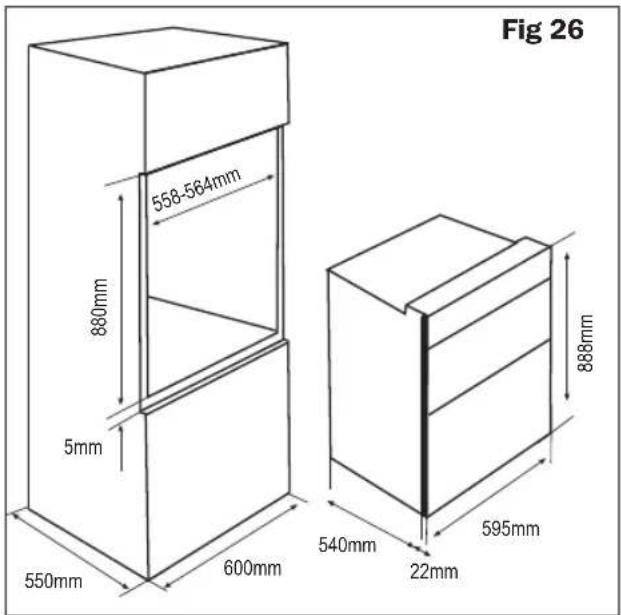

A: 595-455 / B: 590-450 / C: 600-460

Fig 22

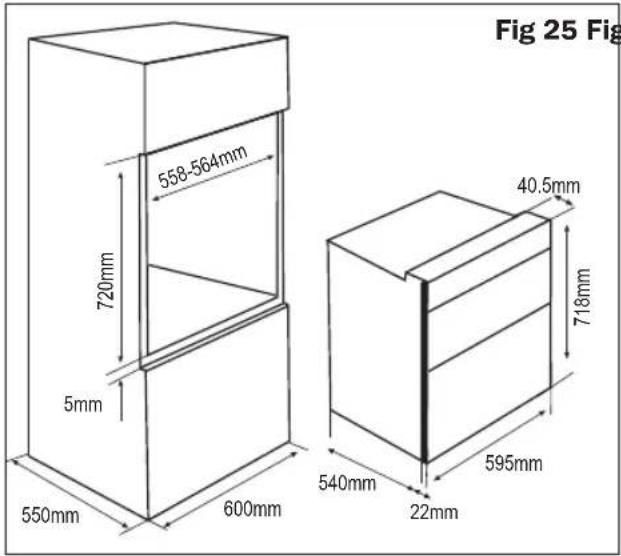

Fig 23

Fig 24

Fig 29
