USER MANUAL ZVEKN7KN ZANUSSI

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

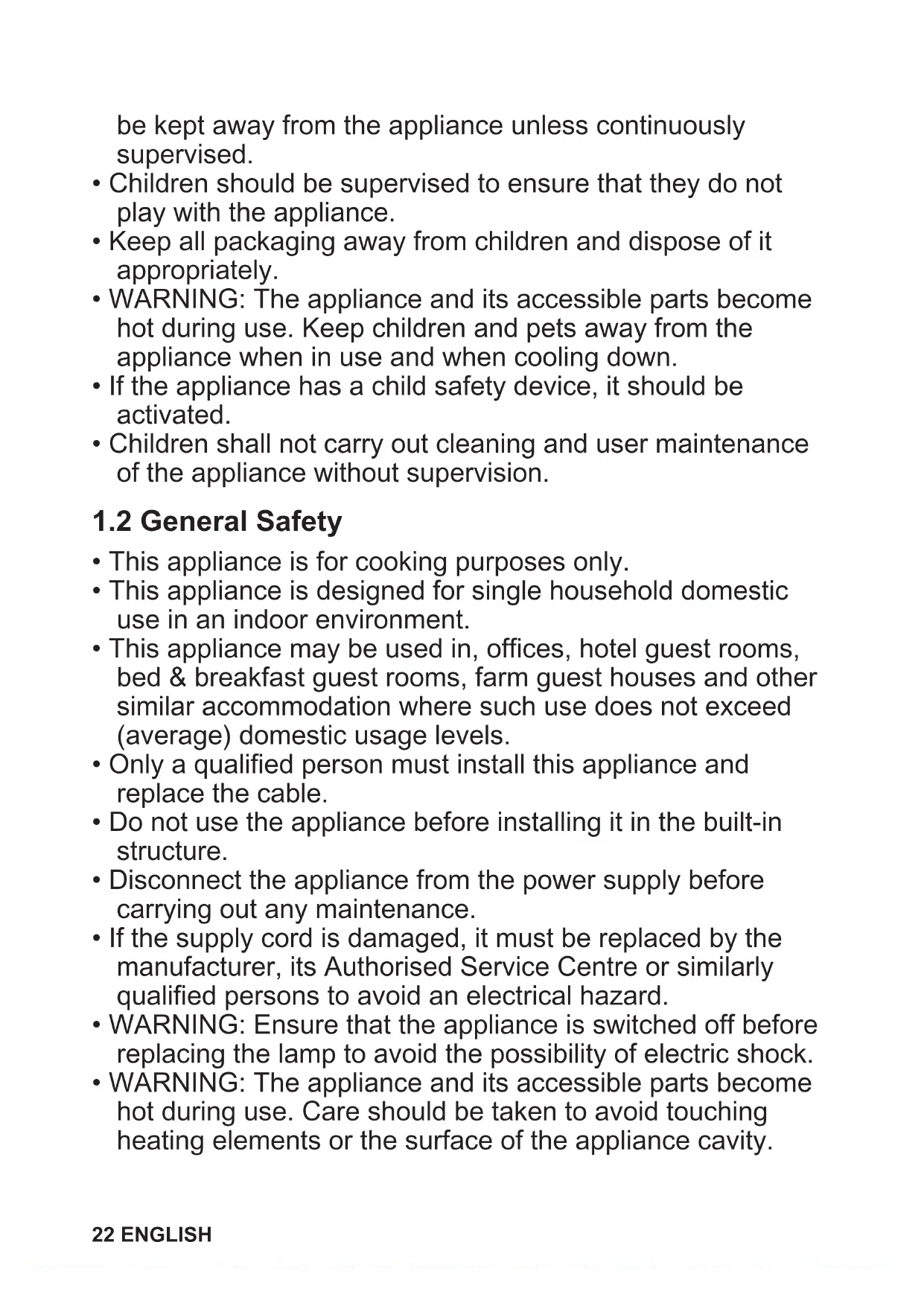

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall ENGLISH 21be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging away from children and dispose of it appropriately.

• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.

• If the appliance has a child safety device, it should be activated.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

• This appliance is for cooking purposes only.

• This appliance is designed for single household domestic use in an indoor environment.

• This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

• Only a qualified person must install this appliance and replace the cable.

• Do not use the appliance before installing it in the built-in structure.

• Disconnect the appliance from the power supply before carrying out any maintenance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements or the surface of the appliance cavity. 22 ENGLISH• Always use oven gloves to remove or insert accessories or ovenware.

• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.

• Do not use a steam cleaner to clean the appliance.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Follow the installation instructions supplied with the appliance.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Do not pull the appliance by the handle.

• Install the appliance in a safe and suitable place that meets installation requirements.

• Keep the minimum distance from other appliances and units.

• Before mounting the appliance, check if the appliance door opens without restraint.

• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.

• The built-in unit must meet the stability requirements of DIN 68930. Cabinet minimum height (Cabinet under the worktop minimum height) 444 (460) mm Cabinet width 560 mm Cabinet depth 550 (550) mm Height of the front of the appliance 455 mm Height of the back of the appliance 440 mm Width of the front of the ap‐ pliance 595 mm Width of the back of the ap‐ pliance 559 mm Depth of the appliance 567 mm Built in depth of the appli‐ ance 546 mm Depth with open door 882 mm Ventilation opening mini‐ mum size. Opening placed on the bottom rear side 560x20 mm Mains supply cable length. Cable is placed in the right corner of the back side 1500 mm Mounting screws 3.5x25 mm

2.2 Electrical connection

WARNING! Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.

• The appliance must be earthed.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• Always use a correctly installed shockproof socket. ENGLISH 23• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.

• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• If the mains socket is loose, do not connect the mains plug.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

• This appliance is supplied with a main plug and a main cable.

WARNING! Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.

• Make sure that the ventilation openings are not blocked.

• Do not let the appliance stay unattended during operation.

• Deactivate the appliance after each use.

• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.

• Do not operate the appliance with wet hands or when it has contact with water.

• Do not apply pressure on the open door.

• Do not use the appliance as a work surface or as a storage surface.

• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.

• Do not let sparks or open flames to come in contact with the appliance when you open the door.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance. WARNING! Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel: – do not put ovenware or other objects in the appliance directly on the bottom. – do not put aluminium foil directly on the bottom of cavity of the appliance. – do not put water directly into the hot appliance. – do not keep moist dishes and food in the appliance after you finish the cooking. – be careful when you remove or install the accessories.

• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.

• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.

• Always cook with the appliance door closed.

• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING! Risk of injury, fire, or damage to the appliance. 24 ENGLISH• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

• Make sure the appliance is cold. There is the risk that the glass panels can break.

• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.

• Be careful when you remove the door from the appliance. The door is heavy!

• Clean regularly the appliance to prevent the deterioration of the surface material.

• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

• If you use an oven spray, follow the safety instructions on its packaging.

2.5 Internal lighting

WARNING! Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

• This product contains a light source of energy efficiency class G.

• Use only lamps with the same specifications.

• To repair the appliance contact the Authorised Service Centre.

• Use original spare parts only.

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.

• Disconnect the appliance from the mains supply.

• Cut off the mains electrical cable close to the appliance and dispose of it.

• Remove the door catch to prevent children or pets from becoming trapped in the appliance.

Knob for the heating functions

Shelf support, removable

• Wire shelf For cookware, cake tins, roasts.

• Baking tray For cakes and biscuits.

4.1 Switching the appliance on and

off To turn on the appliance:

1. Press the knob. The knob comes out.

2. Turn the knob for the heating functions to

3. Turn the control knob to select the

desired temperature.

To turn off the appliance, turn the knob for the heating functions to the .

4.2 Control panel overview

Press to set: Clock functions.Press and hold to set the function:Fast Heat Up.Press to turn on or to turn off the ovenlamp.Press and hold to set the function:Lock.Press to confirm your selection.

4.3 Display indicators

Display with key functions. The appliance is locked.Enter the menu and select the icon toopen: Assisted Cooking.Enter the menu and select the icon toopen: Settings 26 ENGLISHFast Heat Up is turned on. Minute minder is turned on. End time is turned on. Time Delay is turned on. Uptimer is turned on. For temperature or time. The bar is fully red when the appliance reaches the set temperature.

WARNING! Refer to Safety chapters.

5.1 Initial cleaning

1. Remove all accessories and removable

shelf supports from the appliance.

2. Clean the appliance and the accessories

only with a microfibre cloth, warm water and a mild detergent.

3. Put the accessories and removable shelf

supports back to their initial position.

5.2 Initial preheating

Before the first use, set the clock and preheat the empty appliance.

1. Remove all accessories and removable

shelf supports from the appliance.

2. Set the function . Set the maximum

temperature. Let the appliance operate for 1 h.

3. Set the function . Set the maximum

temperature. Let the appliance operate for 15 min. Turn off the appliance and wait until it is cold. The appliance can emit an odour and smoke. Make sure that the airflow in the room is sufficient.

WARNING! Refer to Safety chapters.

6.1 Heating functions

True Fan Cooking To bake on up to two shelf positions at the same time and to dry food. Set the tempera‐ ture 20 - 40 °C lower than for Conventional Cooking. Conventional Cooking To bake and roast food on one shelf position. Frozen Foods To make convenience food (e.g., french fries, potato wedges or spring rolls) crispy. Pizza Function To bake pizza. To make intensive browning and a crispy bottom. Bottom Heat To bake cakes with crispy bottom and to pre‐ serve food. Defrost To defrost food (vegetables and fruit). The defrosting time depends on the amount and size of the frozen food. ENGLISH 27Moist Fan Baking This function is designed to save energy dur‐ ing cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The residual heat is used. The heating power may be reduced. For more information refer to "Daily Use" chapter, Notes on: Moist Fan Baking. Grill To grill thin pieces of food and to toast bread. Turbo Grilling To roast large meat joints or poultry with bones on one shelf position. To make gratins and to brown. Menu To enter the Menu: Assisted Cooking, Set‐ tings.

6.2 Notes on: Moist Fan Baking

This function was used to comply with the energy efficiency class and ecodesign requirements (according to EU 65/2014 and EU 66/2014). Tests according to: IEC/EN 60350-1. The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible. When you use this function the lamp automatically turns off after 30 sec. For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving.

6.3 Setting: Heating functions

1. Turn the knob for the heating functions to

select a heating function.

2. Turn the control knob to set a

temperature . - press and hold to turn on the function: Fast Heat Up. It is available for some oven functions.

6.4 Setting: Assisted Cooking

Each dish in this submenu has a recommended heating function and temperature. You can adjust the time and the temperature during cooking. When the function ends, check if the food is ready. For some of the dishes you can also cook with Weight Automatic.

1. Turn the knob for the heating functions to

4. Place the food inside the appliance.

Press . Assisted Cooking Legend Weight Automatic available. Shelf level. Dish Weight Shelf level / Accessory

thick pieces 1; baking tray Fry the meat for a few minutes on a hot pan. Insert to the appliance.

Roast Beef, well done 28 ENGLISHDish Weight Shelf level / Accessory

Steak, medium 180 - 220 g per piece; 3 cm thick slices 2; roasting dish on wire shelf Fry the meat for a few minutes on a hot pan. Insert to the appliance.

Beef roast / braised (prime rib, top round, thick flank)

1; roasting dish on wire shelf

Roast Beef, rare (slow cooking)

1 - 1.5 kg; 4 - 5 cm

thick pieces 1; baking tray Use your favourite spices or simply salt and fresh groun‐ ded pepper. Fry the meat for a few minutes on a hot pan. Insert to the appliance.

Roast Beef, medium (slow cooking)

Roast Beef, well done (slow cooking)

Fillet of beef, rare (slow cooking) 0,5 - 1.5 kg; 5 - 6 cm thick pieces 1; baking tray Use your favourite spices or simply salt and fresh groun‐ ded pepper. Fry the meat for a few minutes on a hot pan. Insert to the appliance. P10 Fillet of beef, medi‐ um (slow cooking) P11 Fillet of beef, done (slow cooking) P12 Veal roast (e.g. shoul‐ der)

thick pieces 1; roasting dish on wire shelf Fry the meat for a few minutes on a hot pan. Add liquid. Insert to the appliance. P13 Pork roast neck or shoulder

2; roasting dish on wire shelf Turn the meat after half of the cooking time. P14 Pulled pork (slow cooking)

1; baking tray Use your favourite spices. Turn the meat after half of the cooking time to get an even browning. P15 Pork loin, fresh 1 - 1.5 kg; 5 - 6 cm thick pieces 1; roasting dish on wire shelf Use your favourite spices. P16 Pork spare ribs 2 - 3 kg; use raw, 2 - 3 cm thin spare ribs 2; deep pan Add liquid to cover the bottom of a dish. Turn the meat af‐ ter half of the cooking time. P17 Lamb leg with bones 1.5 - 2 kg; 7 - 9 cm thick pieces 1; roasting dish on baking tray Fry the meat for a few minutes on a hot pan. Add liquid. Turn the meat after half of the cooking time. P18 Whole chicken 1 - 1.5 kg; fresh 2; casserole dish on baking tray Use your favourite spices. Turn the chicken after half of the cooking time to get an even browning. P19 Half chicken 0.5 - 0.8 kg 2; baking tray Use your favourite spices. ENGLISH 29Dish Weight Shelf level / Accessory P20 Chicken breast 180 - 200 g per piece 1; casserole dish on wire shelf Use your favourite spices. Fry the meat for a few minutes on a hot pan. P21 Chicken legs, fresh 250 - 400 g 2; baking tray If you marinated chicken legs first, set lower temperature and cook them longer. P22 Duck, whole 1.5 - 2.5 kg 1; roasting dish on wire shelf Use your favourite spices. Put the meat on roasting dish. Turn the duck after half of the cooking time. P23 Goose, breast 1kg 1; roasting dish on wire shelf Use your favourite spices. Turn the goose after half of the cooking time. P24 Meat loaf 1 kg 1; wire shelf Use your favourite spices. P25 Whole fish, grilled 0.5 - 1 kg per fish 1; baking tray Fill the fish with butter and use your favourite spices and herbs. P26 Fish fillet - 2; casserole dish on wire shelf Use your favourite spices. P27 Cheesecake - 1; 28 cm springform tin on wire shelf P28 Apple cake - 2; baking tray P29 Apple tart - 1; pie form on wire shelf P30 Apple pie - 1; 22 cm pie form on wire shelf P31 Brownies 2 kg of dough 2; deep pan P32 Chocolate muffins - 2; muffin tray on wire shelf P33 Loaf cake - 1; loaf pan on wire shelf P34 Baked potatoes 1 kg 1; baking tray Put the whole potatoes with skin on baking tray. P35 Wedges 1 kg 2; baking tray lined with baking paper Use your favourite spices. Cut potatoes into pieces. P36 Grilled mixed vegeta‐ bles

2; baking tray lined with baking paper Use your favourite spices. Cut the vegetables into pieces. P37 Croquettes, frozen 0.5 kg 2; baking tray 30 ENGLISHDish Weight Shelf level / Accessory P38 Pommes, frozen 0.75 kg 2; baking tray P39 Meat / vegetable la‐ sagna with dry pasta sheets

2; casserole dish on wire shelf P40 Potato gratin (raw po‐ tatoes)

1; casserole dish on wire shelf Rotate the dish after half of the cooking time. P41 Pizza fresh, thin

1; baking tray lined with baking paper P42 Pizza fresh, thick

1; baking tray lined with baking paper P43 Quiche - 1; baking tin on wire shelf P44 Baguette / Ciabatta / White bread

1; baking tray lined with baking paper More time needed for white bread. P45 Whole grain / Rye / Dark bread 1 kg 1; baking tray lined with baking paper / loaf pan on wire shelf

6.5 Changing: Settings

1. Turn the knob for the heating functions to

3. Turn the control knob to select the

Turn the knob for the heating functions to the off position to exit Menu. Menu: Settings Setting Value

Demo mode Activation code:

The appliance has features which help you save energy during everyday cooking. Make sure that the appliance door is closed when the appliance operates. Do not open the appliance door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position. Use metal cookware to improve energy saving. When possible, do not preheat the appliance before cooking. Keep breaks between baking as short as possible when you prepare a few dishes at one time. Cooking with fan When possible, use the cooking functions with fan to save energy. ENGLISH 31Residual heat The fan and lamp continue to operate. When you turn off the appliance, the display shows the residual heat. You can use that heat to keep the food warm. When the cooking duration is longer than 30 min, reduce the appliance temperature to minimum 3 - 10 min before the end of cooking. The residual heat inside the appliance will continue to cook. Use the residual heat to warm up other dishes. Keep food warm Choose the lowest possible temperature setting to use residual heat and keep a meal warm. The residual heat indicator or temperature appears on the display. Cooking with the lamp off Turn off the lamp during cooking. Turn it on only when you need it. Moist Fan Baking Function designed to save energy during cooking. When you use this function the lamp automatically turns off after 30 sec. You may turn on the lamp again but this action will reduce the expected energy savings.

This function prevents an accidental change of the appliance function. Turn it on when the appliance works - the set cooking continues, the control panel is locked. Turn it on when the appliance is off - it cannot be turned on, the control panel is locked. - press and hold to turn on the function. A signal sounds. - flashes 3 times when the lock is turned on. - press and hold to turn off the function.

7.2 Automatic switch-off

For safety reasons the appliance turns off after some time, if a heating function works and you do not change any settings. (°C) (h)

The Automatic switch-off does not work with the functions: Light, Time Delay.

When the appliance operates, the cooling fan turns on automatically to keep the surfaces of the appliance cool. If you turn off the appliance, the cooling fan can continue to operate until the appliance cools down.

Time of day To set the clock that displays the cur‐ rent time. Minute minder To set a countdown timer. When the timer ends, the signal sounds. This function has no effect on the operation of the oven. 32 ENGLISHCooking time To set cooking duration. When the tim‐ er ends, the signal sounds and the heating function will automatically turn off. Time Delay To postpone the start and / or end of cooking. Uptimer To show how long the appliance oper‐ ates. Maximum is 23 h 59 min.This function has no effect on the operation of the oven.

8.2 Setting: Time of day

1. Turn the knob for the heating functions to

3. Turn the control knob to set the clock.

1. When the appliance is off press . When

the appliance is on press twice. The display shows: 0:00 and .

2. Turn the control knob to set the Minute

3. Press . The timer starts counting down

immediately. When the time ends, press and turn the knob for the heating functions to the off position.

8.4 Setting: Cooking time

1. Turn the knob to select the heating

function and set the temperature.

2. Press repeatedly.

The display shows: 0:00 and .

3. Turn the control knob to set the Cooking

The timer starts counting down immediately. When the time ends, press and turn the knob for the heating functions to the off position.

8.5 Setting: Time Delay

1. Turn the knob for the heating functions to

select the function.

2. Press repeatedly.

The display shows: the time of day START .

3. Turn the control knob to set the start time.

5. Turn the control knob to set the end time.

The timer starts counting down at a set start time. When the time ends, press and turn the knob for the heating functions to the off position.

8.6 Turning on and off: Uptimer

1. Turn the knob for the heating functions to

Uptimer. Refer to "Daily Use" chapter, Menu: Settings.

WARNING! Refer to Safety chapters.

9.1 Inserting accessories

A small indentation at the top increases safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping off the shelf. ENGLISH 33Wire shelf Push the shelf between the guide bars of the shelf support and make sure that the feet point down. Baking tray Push the tray between the guide bars of the shelf support.

10.1 Cooking recommendations

The temperature and cooking times in the tables are for guidance only. They depend on the recipes, quality and quantity of the ingredients used. Your appliance may bake or roast differently than your previous appliance. The hints below show recommended settings for temperature, cooking time and shelf position for specific types of the food. If you cannot find the settings for a specific recipe, look for a similar one. Symbols used in the tables: Food type Heating function Temperature Accessory Shelf position Cooking time (min)

10.2 Moist Fan Baking -

recommended accessories Use dark and non-reflective tins and containers. They have better heat absorption than light colour and reflective dishes.

• Pizza pan - dark, non-reflective, diameter 28cm

• Baking dish - dark, non-reflective, diameter 26cm

10.3 Moist Fan Baking

Pasta gratin 200 - 220 1 45 - 60 Potato gratin 180 - 200 1 70 - 85 Moussaka 180 - 200 1 75 - 90 Lasagne 180 - 200 1 70 - 90 Cannelloni 180 - 200 1 65 - 80 Bread pudding 190 - 200 1 55 - 70 Rice pudding 180 - 200 1 55 - 70 34 ENGLISHApple cake, madeof sponge cakemixture (roundcake tin)160 - 170 1 70 - 80 White bread 200 - 210 1 55 - 70

10.4 Information for test institutes

Tests according to IEC 60350-1. 1st side 2nd side Burgers Grill max. 3 9 - 13 8 - 10Toast Grill max. 3 2.5 - 3.5 2.5 - 3.5 Preheat the appliance for 10 minutes.

11. CARE AND CLEANING

WARNING! Refer to Safety chapters.

11.1 Notes on cleaning

• Clean the front of the appliance only with a microfibre cloth with warm water and a mild detergent.

• Use a cleaning solution to clean metal surfaces.

• Clean stains with a mild detergent. Everyday Use

• Clean the interior of the appliance after each use. Fat accumulation or other residue may cause fire.

• Do not store food in the appliance for longer than 20 minutes. Dry the interior of the appliance only with a microfibre cloth after each use. Accessories

• Clean all accessories after each use and let them dry. Use only a microfibre cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.

• Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

11.2 Removing the shelf supports

Remove the shelf supports to clean the appliance.

1. Turn off the appliance and wait until it is

2. Pull the front of the shelf support away

3. Pull the rear end of the shelf support

away from the side wall and remove it.

Install the shelf supports in the opposite sequence.

WARNING! There is a risk of burns.

1. Turn off the appliance and wait until it is

cold to clean it. ENGLISH 352. Remove the shelf supports.

3. Grab the grill corners. Pull it forwards

against the spring pressure and out of two holders. The grill folds down.

4. Clean the oven ceiling with warm water, a

soft cloth and a mild detergent. Let it dry.

5. Install the grill in the opposite sequence.

6. Install the shelf supports.

11.4 Removing and installing the

door You can remove the door and the internal glass panels to clean it. The number of glass panels is different for different models. WARNING! The door is heavy. CAUTION! Carefully handle the glass, especially around the edges of the front panel. The glass can break.

1. Fully open the door.

the two door hinges.

3. Close the oven door to the first opening

position (at approximate angle: 70°).

4. Hold the door with one hand on each side

and pull it away from the oven at an upwards angle.

5. Put the door with the outer side down on

a soft cloth on a stable surface.

6. Hold the door trim on the top edge of

the door at the two sides and push inwards to release the clip seal.

7. Pull the door trim to the front to remove it.

8. Hold the door glass panels on their top

edge one by one and pull them up out of the guide.

9. Clean the glass panel with water and

soap. Dry the glass panel carefully. Do not clean the glass panels in the dishwasher. After cleaning, do the above steps in the opposite sequence. Install the smaller panel first, then the larger and the door. Make sure that the glasses are inserted in the correct position otherwise the surface of the door may overheat.

11.5 Replacing the lamp

WARNING! Risk of electric shock. The lamp can be hot.

1. Turn off the appliance and wait until it is

2. Disconnect the appliance from the mains.

3. Place the cloth on the oven floor.

1. Turn the glass cover to remove it.

2. Clean the glass cover.

3. Replace the lamp with a suitable 300 °C

heat-resistant lamp.

4. Install the glass cover.

WARNING! Refer to Safety chapters.

12.1 What to do if...

Problem Check if... You cannot activate or operate the appliance. The appliance is correctly connected to an electrical supply. The appliance does not heat up. The automatic switch-off is deactivated. The appliance does not heat up. The fuse is not blown. The appliance does not heat up. Lock is deactivated. The lamp is turned off. Moist Fan Baking - is activated. The lamp does not work. The lamp is burnt out. The display shows 00:00. There was a power cut. Set the time of day. If the display shows an error code that is not in this table, turn the house fuse off and on to restart the appliance. If the error code recurs contact an Authorised Service Centre.

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the appliance. It is visible when you open the door. Do not remove the rating plate from the appliance. We recommend that you write the data here: Model (MOD.) : Product number (PNC): Serial number (S.N.):

ENGLISH 3713. ENERGY EFFICIENCY

13.1 Product Information and Product Information Sheet according to EU

Ecodesign and Energy Labelling Regulations Supplier's name Zanussi Model identification ZVEKN7KN 944005037 Energy Efficiency Index 80.8 Energy efficiency class A+ Energy consumption with a standard load, conventional mode 0.89 kWh/cycle Energy consumption with a standard load, fan-forced mode 0.59 kWh/cycle Number of cavities 1 Heat source Electricity Volume 43 l Type of oven Built-In Oven Mass 30.4 kg IEC/EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Meth‐ ods for measuring performance.

14. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office. 38 ENGLISHVISITEZ NOTRE SITE WEB POUR : Obtenir des conseils d’utilisation, des brochures, un dépanneur, des informations surle service et les réparations :www.zanussi.com/supportSous réserve de modifications.

Grill Max. 3 2.5 - 3.5 2.5 - 3.5
